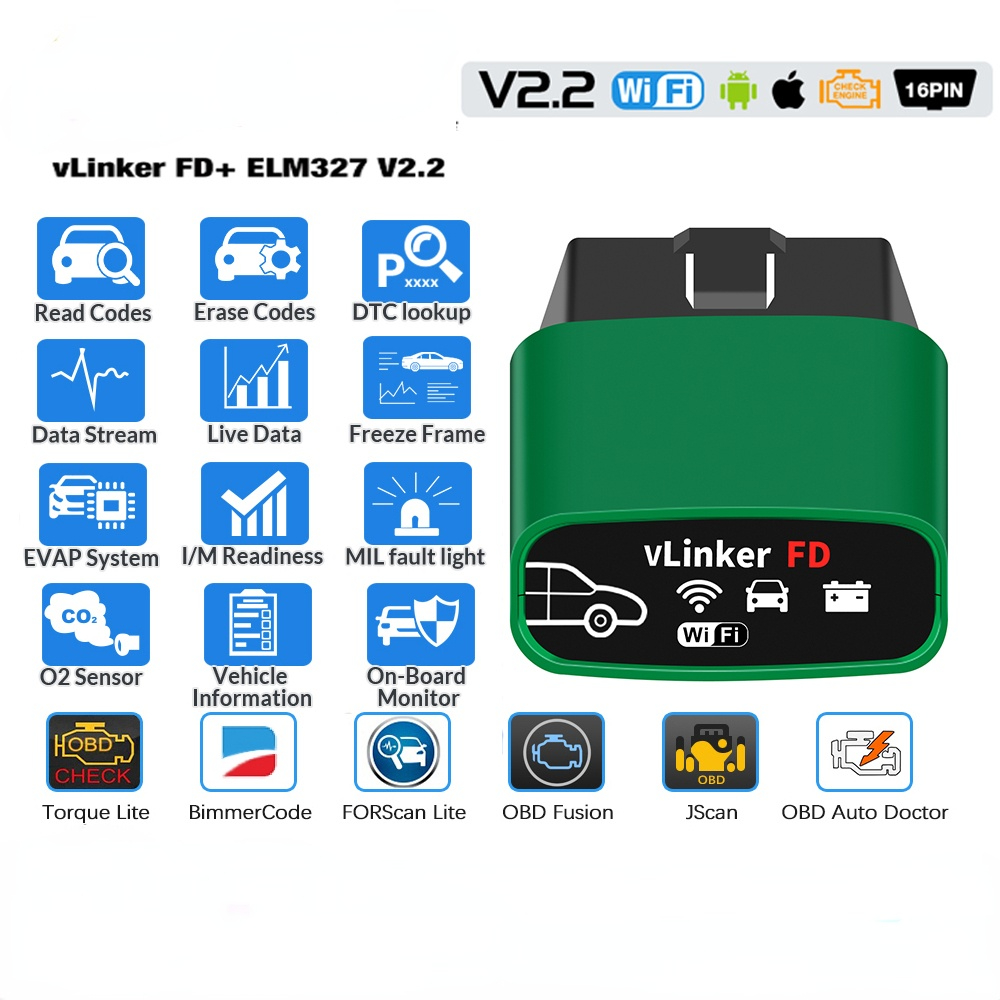

Vgate vLinker FD+ ELM327 Bluetooth-compatible 4.0 FORScan For Ford wifi OBD2 Car Diagnostic OBD 2 Scanner J2534 Auto Tool ELM 327 V 1 5
Purchase Notes：
1.Our store sells the original vlinker，We have software to test if is original vLinker, if you need you can contact us，Avoid getting fake vLinker from other stores
2.If you use bt4.0 to Connected, please connect bt directly in the diagnostic APP
3.Vlinker FM+ also support other cars withOBD2 standard protocols

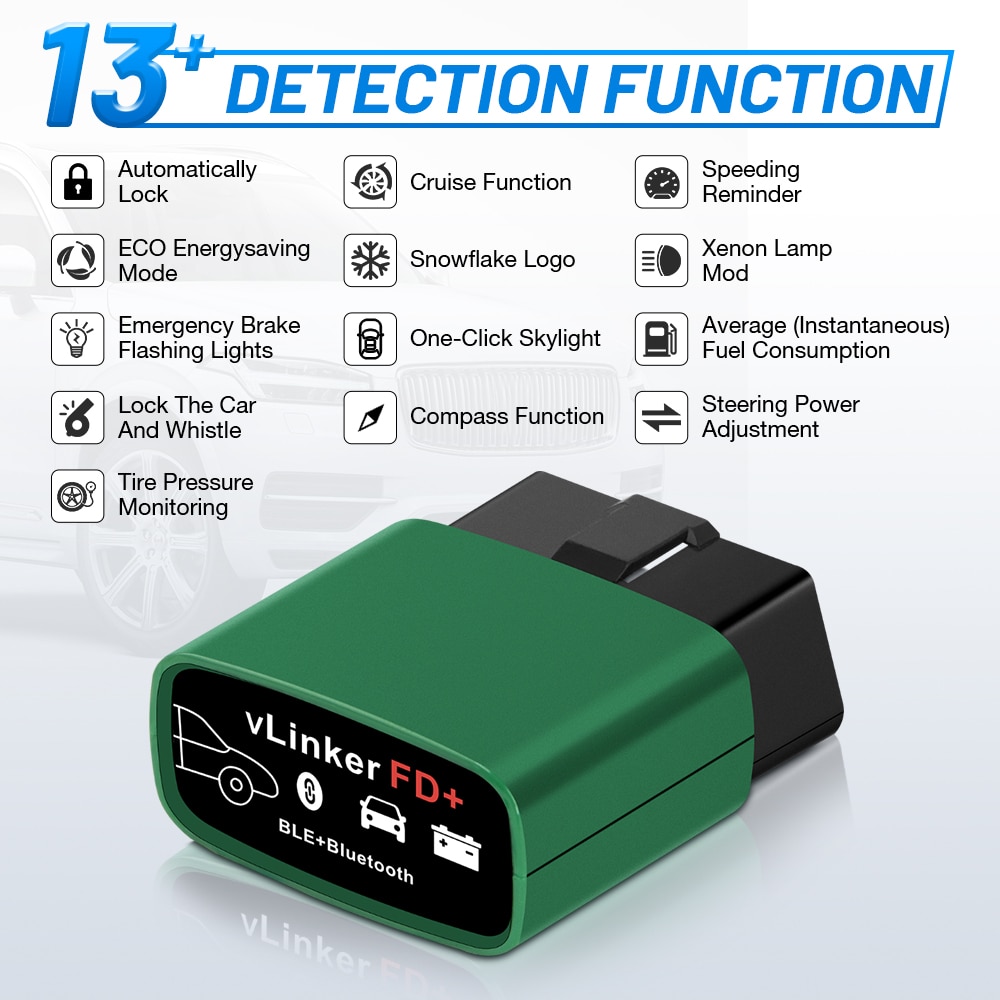

Vgate FD+ Professional Refresh Hidden Scanner Perfectly Compatible With FORscan For Ford 13+ DETECTION FUNCTION：
1. Automatically lock
2. Speeding reminder
3. Emergency brake flashing lights
4. Lock the car and whistle
5. Xenon lamp mode
6. One-click skylight
7. Tire pressure monitoring
8. Snowflake logo
9. Cruise function
10. Compass
11. Average (instantaneous) fuel consumption
12.ECO energy saving mode
13. Steering power adjustment

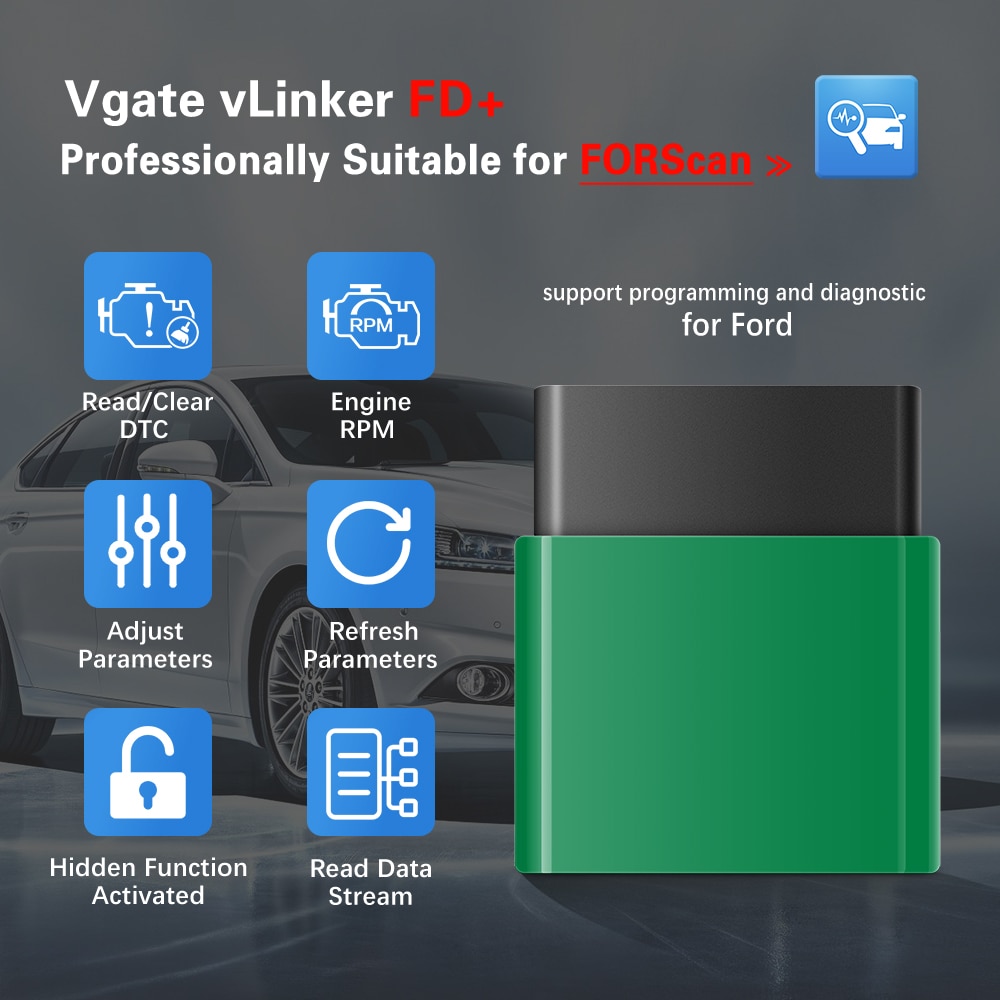

Vgate vlinker FD+ Professionally Suitable for Forscan:
Support Programming And Diagnostic For Ford
Read / Clear
EngineDTC
Adiust Parameters
Refresh Parameters
Hidden Function Activated
Read Data Stream

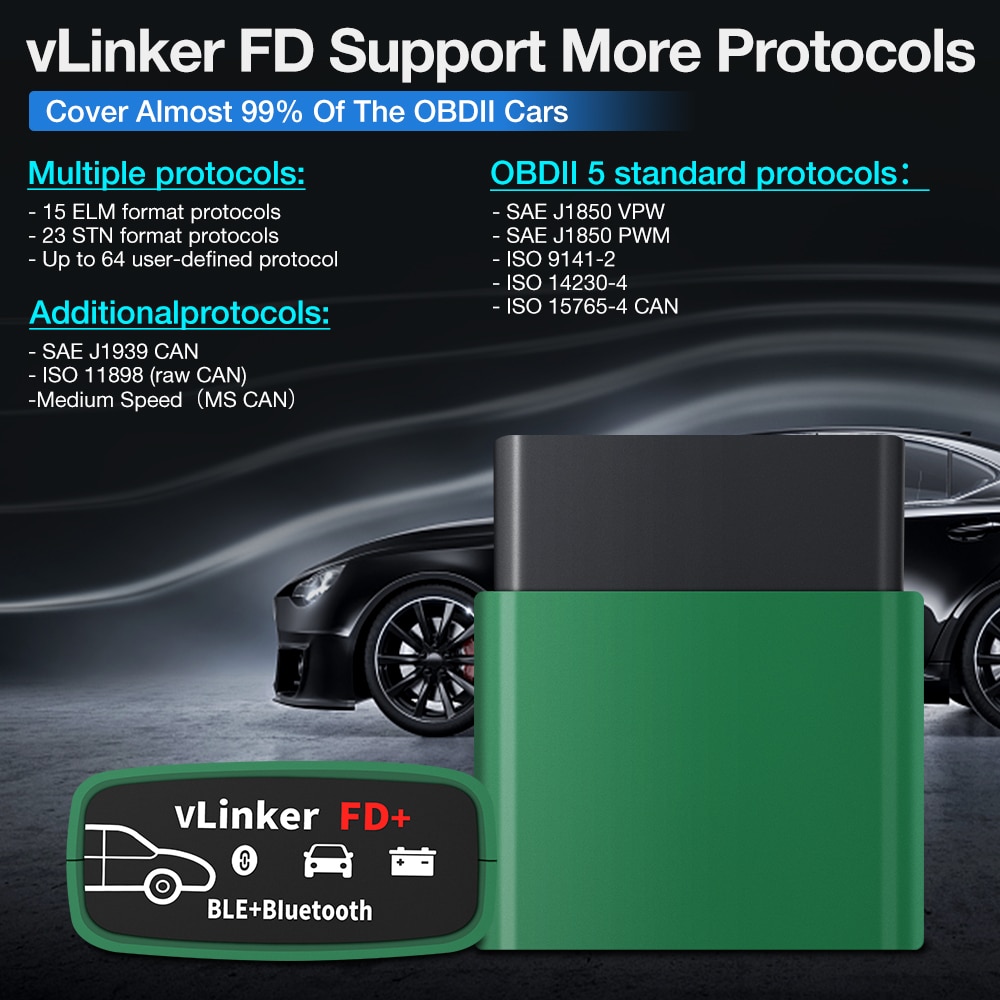

Support Protocols
Multiple protocols：
--15 ELM format protocols;
-- 23 STN format protocols;
-- Up to 64 user-defined protocols.
OBDII 5 standard protocols：
-- SAE J1850 VPW
-- SAE J1850 PWM
-- ISO 9141-2
-- ISO 14230-4
-- ISO 15765-4 CAN
Additionalprotocols：
-- SAE J1939 CAN
-- ISO 11898 (raw CAN)
--Medium Speed（MS CAN）
These Protocols Cover almost 99% of the OBDII Cars on the market
Rich instruction set, compatible with more APP software：
-- Fully compatible with ELM's AT command set;
-- Fully compatible with STN's ST command set;
--39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.
-- Compatible with ELM and STN power management solutions.
-- Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;
-- Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.
-- Device sleep power consumption is less than 2 mA.
-- OBD request byte up to 48 bytes, can meet the needs of some special long framecommunication.
-- UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.
-- 256-byte storage unit
-- More than 100,000 erasable times
-- Read and write operations on any unit in the storage area by using the VT command
-- Mix ID Sending" mode of CAN protocol.
-- Optional formatted send data according to protocol
-- Multiple WM sequence settings
-- Support AT command to manually set WM sequence
-- Support for specifying a protocol or a full protocol-wide temporary WM sequence
-- Support for a permanent link between a protocol and a private WM sequence
-- Secure bootloader for easy firmware updates
How to install it?

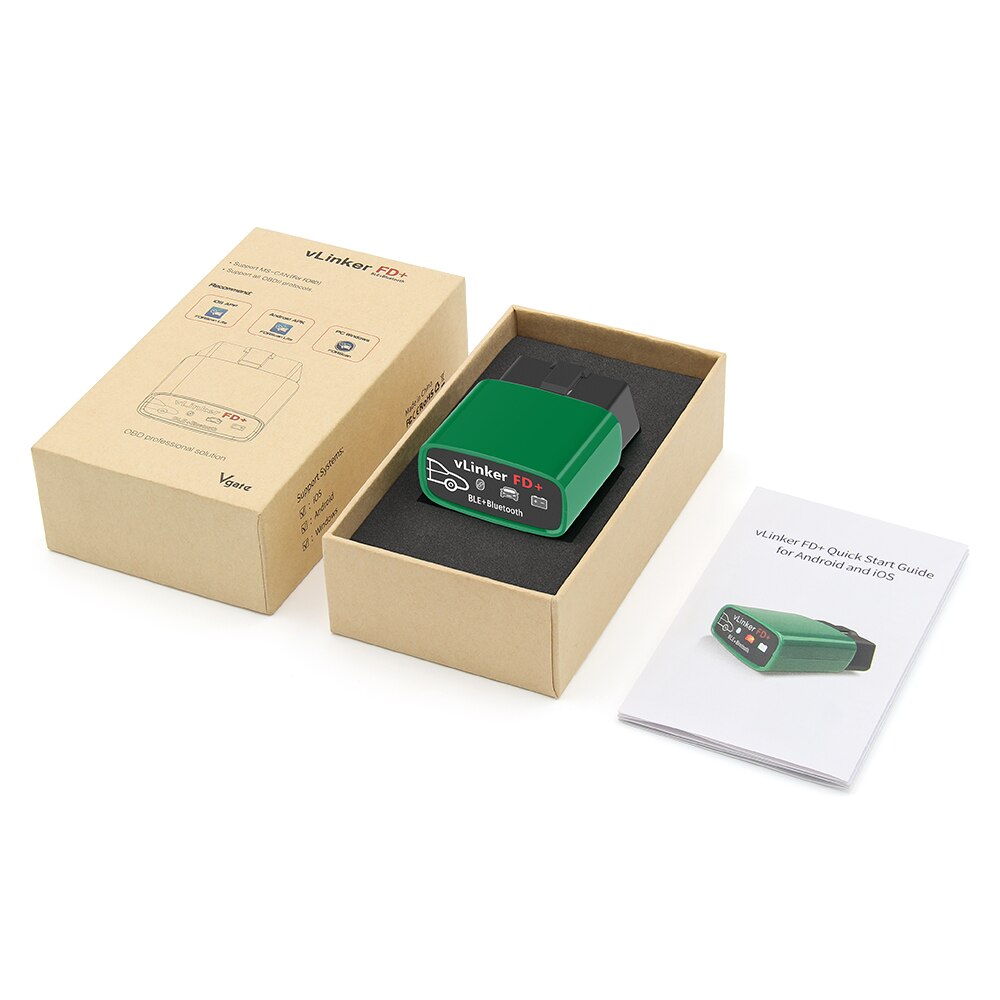

Package List:
1 x Vgate vLinker BT3.0/BT4.0/WIFI
1 x User manual
