NOTE:
1. Our equipment software is v1.5 version, and our hardware is v2.2 version, our equipment NO PIC18F25K80 chip and only 1 PCB, B2-1 is the label of the package, not the model
2. If the goods don't work, please contact us directly. believe we will solve the problem for you.
3. If you don't receive the parcel, please contact us and we will give you a refund directly.
Since we have received feedback from some customers about our products recently, we have sorted out the situation that customers care about in FQA, please read them before buying, I believe it will help you make a better choice, if still not helpful to you, please contact us, we can solve all problems for you!
Notice Tips:
About the language：（all of our elm 327 can support 12 kinds of languages）
1 . if you use the softwarescanmasterin our cd,you can choose 12 kinds of languages
2.if you use thetorque,you can download from your local phone app store ,then you can use local language
if you can't find the torque in your app store ,please use the software in our cd ,it just has english^-^

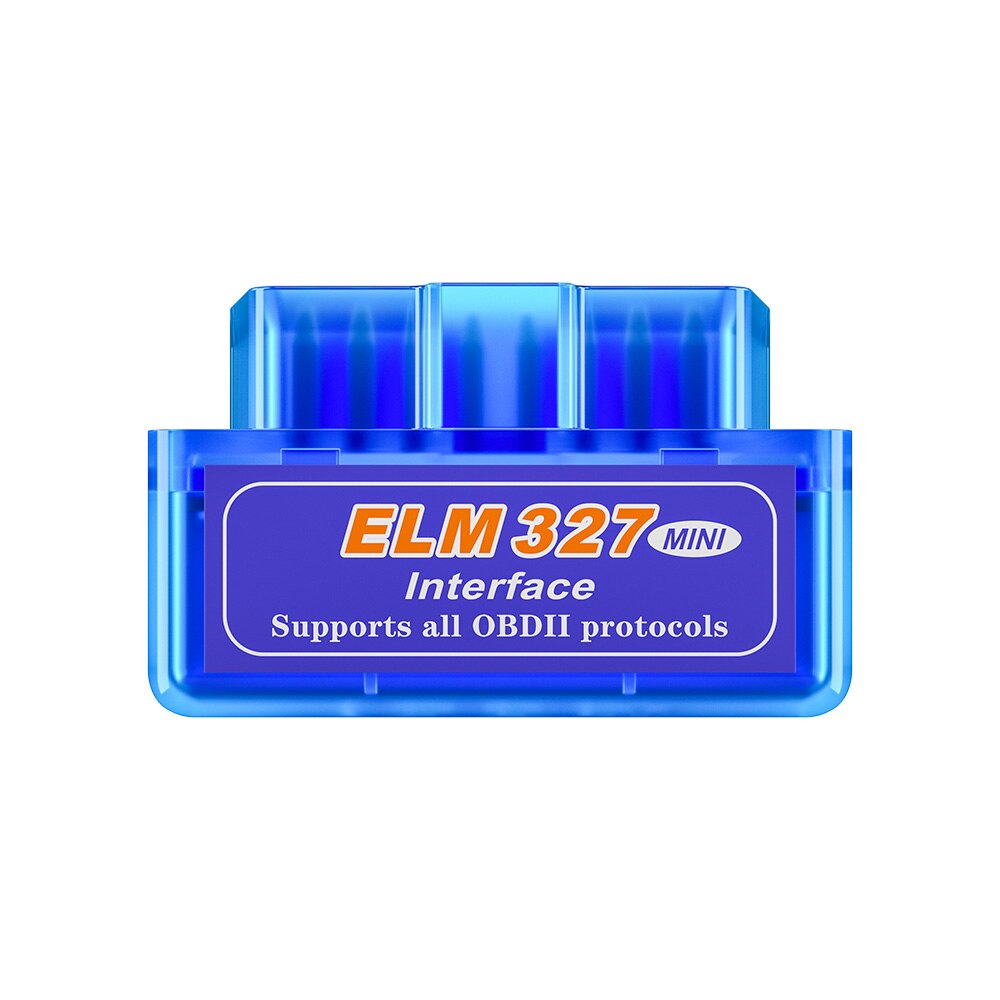

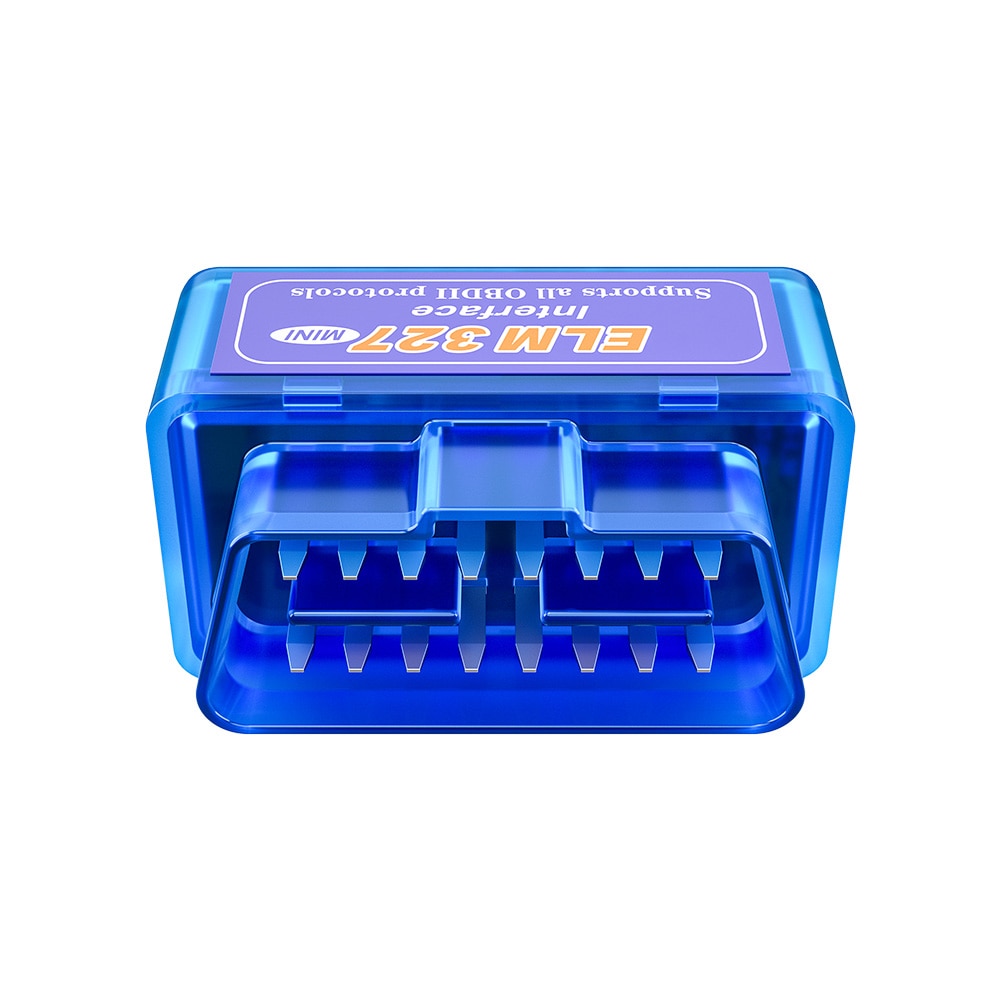

We offer here new mini OBD2 (vehicle diagnosis) with particularly small compact tool and cool Design. There he can then simply remain and be controlled and read out via Bluetooth. You get all the data on your smartphone, tablet or computer. It is easily to plug in your car's OBDII port, reads data sent by car's on-board diagnostic system, detects troubles of ECU and gives you the solution to fix it without having to take your car to the shop every time.

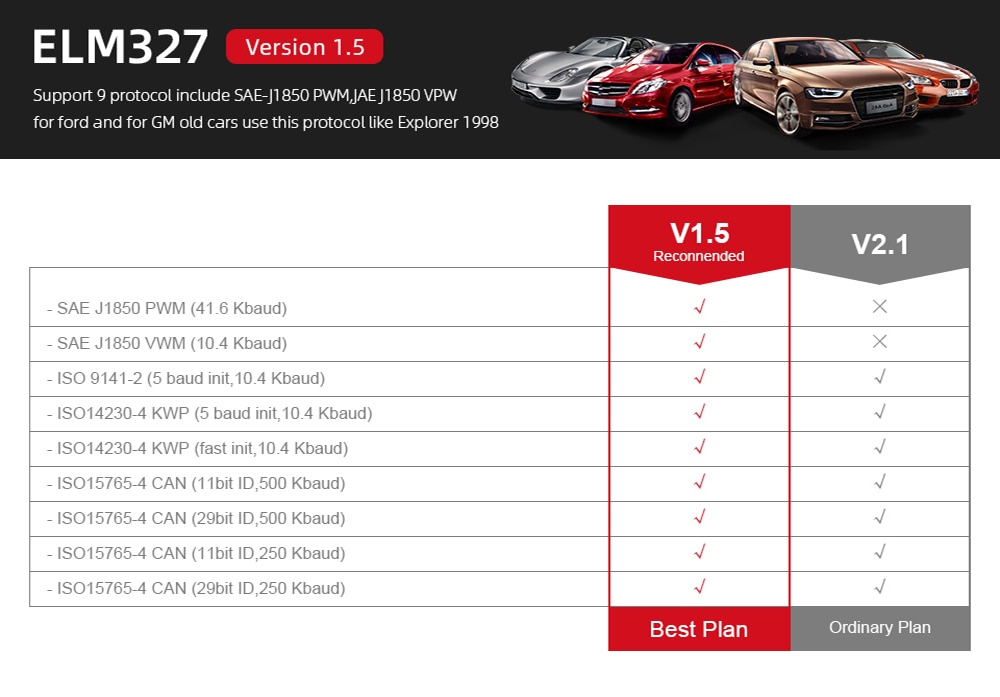

What is the different Firmware V1.5 and Firmware V2.1？
OBD2 Code Reader Multi-Protocol Support:
v2.1 version supports 7 protocols:
1. ISO9141-2(5 baud init, 10.4Kbaud)
2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3. ISO14230-4 KWP (fast init, 10.4 Kbaud)
4. ISO15765-4 CAN (11bit ID, 500 Kbaud)
5. ISO15765-4 CAN (29bit ID, 500 Kbaud)
6. ISO15765-4 CAN (11bit ID, 250 Kbaud)
7. ISO15765-4 CAN (29bit ID, 250 Kbaud)
A.SAE J1939 CAN (29bit ID, 250*Kbaud)
B.USER1 CAN (11*bit ID, 125*Kbaud)
C.USER2 CAN (11*bit ID, 50*kbaud)
*default settings (user adjustable)
V1.5 version ELM327 supports 9 protocols:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud) *default settings(user adjustable)
If you bought V1.5, we sent you v1.5.

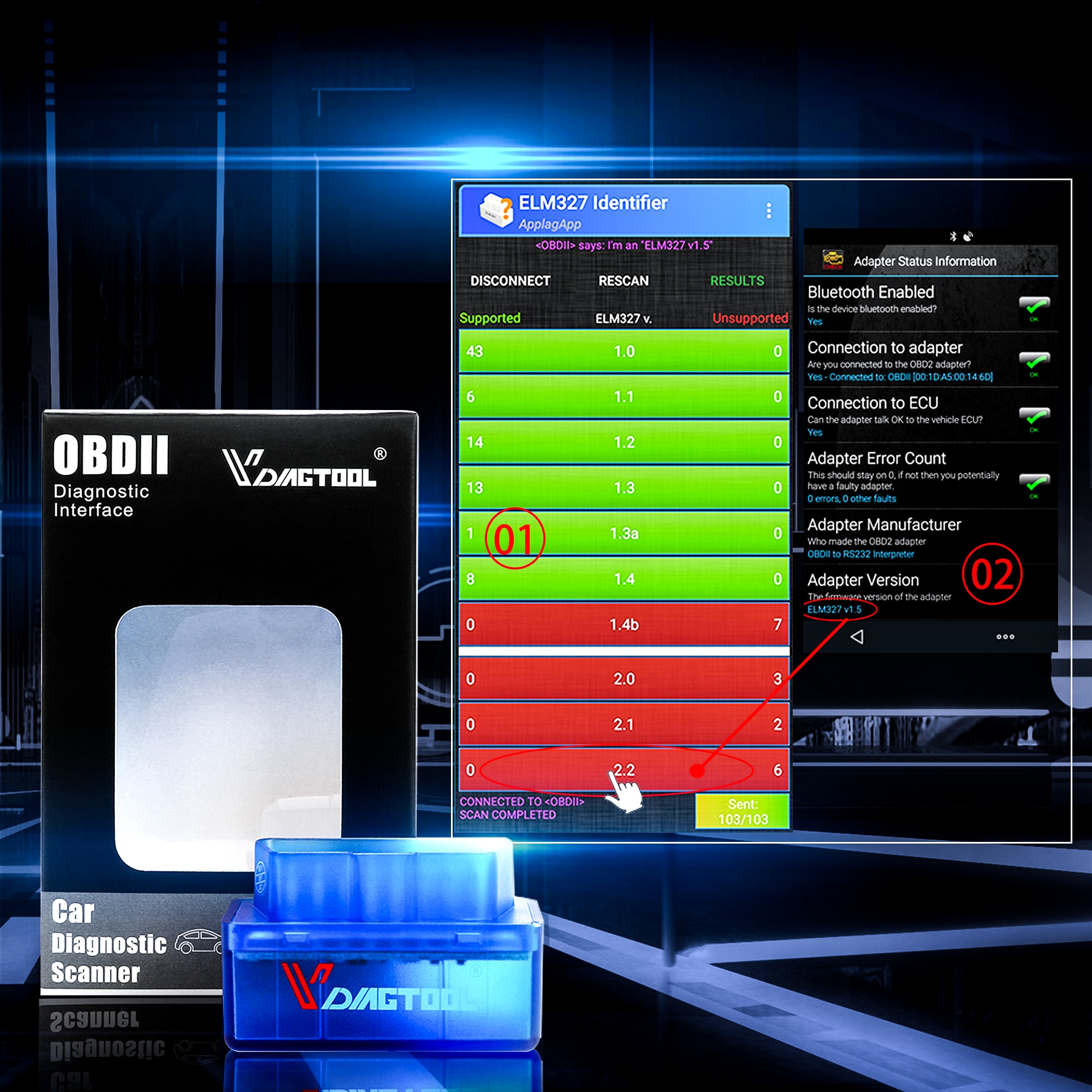

When you connect the vehicle, you will see that it is V1.5, as shown below:
This ELM327 OBD2 Scanner Tool can support phones based on Android, Symbian system and Windows XP and WIN7 32bite computers to test OBD2 compliant vehicles. It is exquisite and convenient to use.

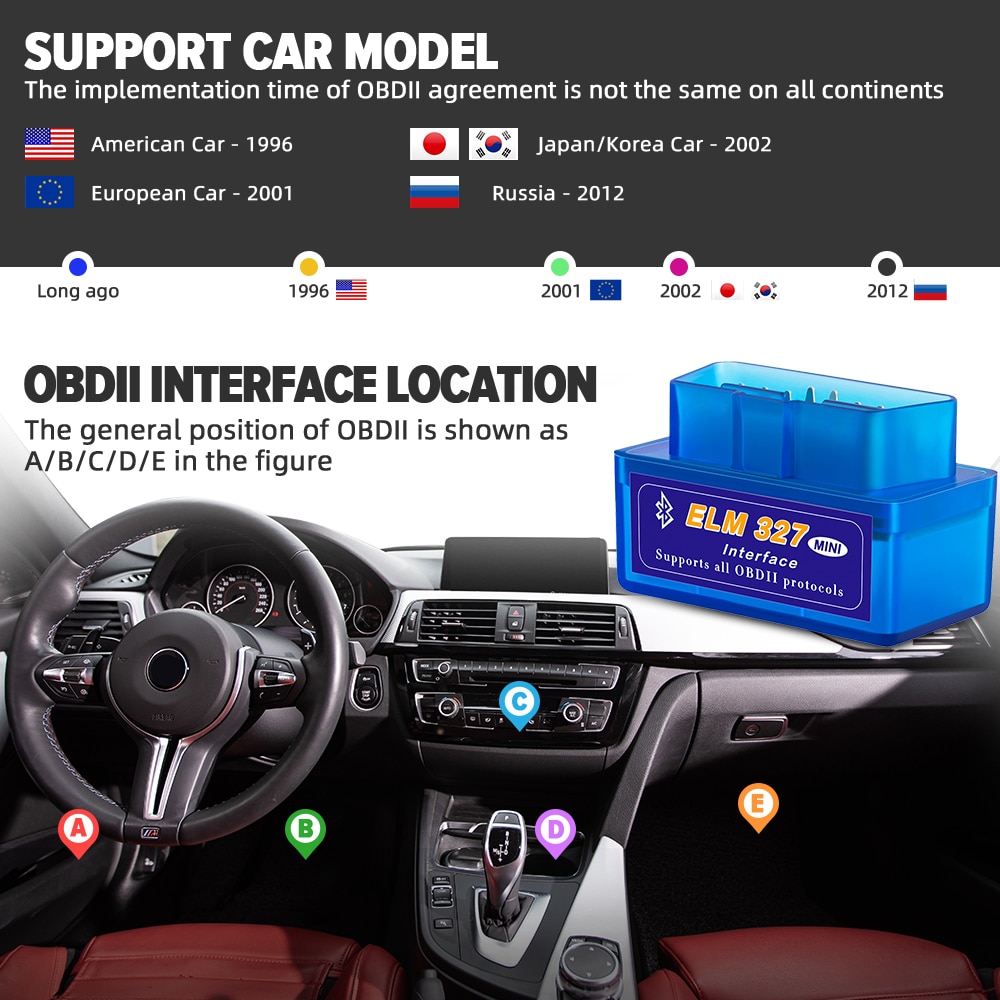

Support OBD 2 protocols car :
1.USA cars after 1998 r, for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep........
2.European car:
Compatible with Standard OBD2 Cars from 2003 to Now:
For Alfa Romeo, for SAAB, for Acura,
for Opel, for Audi, for Seat,
for Bentley, for Skoda, for Daewoo,
for Benz, for Daihatsu, for Land Rover,
for BMW, for Vauxhall, for Volvo,
3.France Car after 2008:
for Citroen，for Fiat，for Renault，for Peugeot
Not Support for Renault Clio 2/Megane/Dacia Logan,
4.Japanese car
Compatible with Standard OBD2 Cars from 2006 to Now:
for KIA, for Isuzu, for Honda ,
for Mitsubishi, for Hyundai, for Dacia,
for Lexus, for Mazda, for Nissan,
for Subaru, for Suzuki, for Toyota
5.Chinese car:
Compatible with Standard OBD2 Cars from 2009 to Now:
for BYD, for Chery, for Geely,
for Great Wall, for Karry
6. RUSSIAN CAR after 2011 year.
NOTE:
Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.And this device only have OBD2 Functions,don't have Special Functions,Like ABS Reset,Airbag Reset...
Please Leave us message in below format, we will reply you within 8 hours.
for example : xx, 2005, 2.0cc, Diesel
NOTE:
For Ssangyong Actyon , from 2009 to 2017 years.
For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.
For Ssangyong Kyron , 2.0 Diesel , from 2010 to 2017 years.
For Ssangyong Rexton , 2011 to 2017 years,
Not Support for Opel Corsa c 2004 1.3 CDTI
Not Support For VW for golf 4 2002

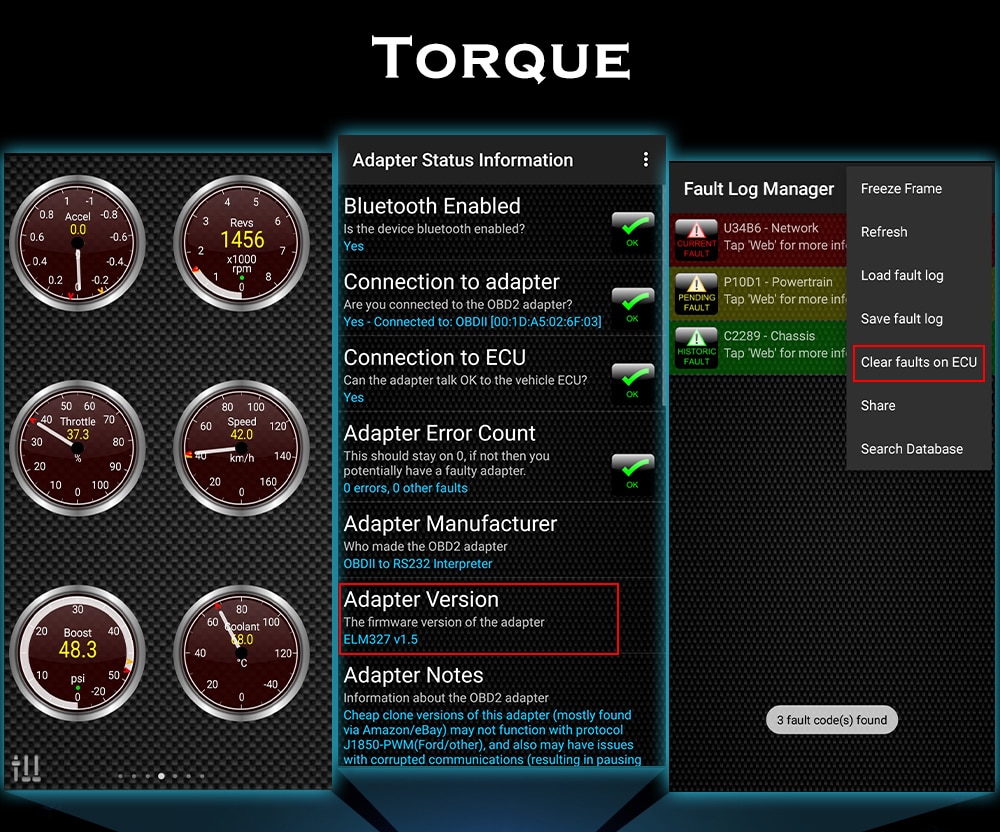

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
19.Many others.

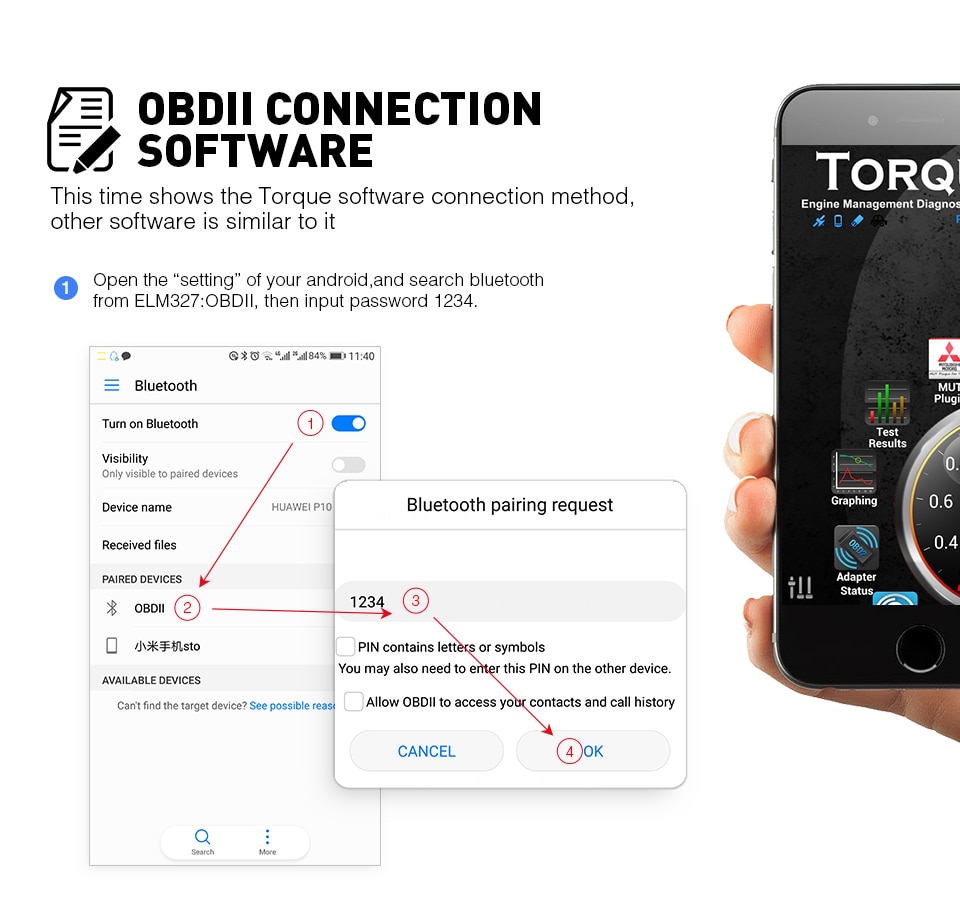

How to connect:
Android
1. Open "Settings" on your Android device and search under Bluetooth for "ELM327:OBDll".
2. Input password 1234.
3. Open your Torque app, go to Settings, OBD2 Adapter Settings, Connection Type, Bluetooth, back, then choose
Bluetooth Device, OBDII[AA:BB:CC:11:22:33].
4. You can then view and change settings and vehicle options.
Q: CD broken?
A: If CD is broken when u receive, pls don't worry and download the software from here:. (ノ°▽°)ノhttp://360diag.net/plus/list.php?tid=7
still have problem, contact us!
Q: Bluetooth cannot connect?
A: Pls check if you ever connected another ELM327 with your mobile phone first, if has, pls delete it first, and close bluetooth then open again and search your new ELM327, then do connected again.
Still can not solve it, contact us!
Q: Car models cannot work?
A: When u connected fine, and make sure everything is in right situation, but it still not work with your car, pls consider if your car model belongs to OBD2 protocol first, and V2.1 doesn't support J1850 PWM and VPM these two protocol, so if your car model is in these two protocols, it doesn't support. If u couldn't make sure your car is compatible or not, I suggest to buy V1.5, it will be more stable and work with more car models. Click below picture go to V1.5's link.
Q:What Version of this V1.5 ELM327?
A:Hardware V2.2,Software is V1.5
Q:How many language of this device CD software?
A:Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish
Q:Does it supports Russian Language?
A:Sorry,the software has no Russian yet. If your Smart Android phone is Russian setting ,it is OK.
Q:Does it supports WIFI and iOS?
A:No,it only supports android BT and Computer.
Q:Does V1.5 better than V2.1?
A:Yes, V1.5 is more stable than V2.1 ,also from many buyer feedback,V1.5 supports more protocols and car brand .
Q:How can i know if this device works my car or not ?
A:this ELM327 works most gasoline car brand model and parts of diesel ,but we can not sure if your car supported,we have no test each car .You can buy one to test. (If you dont sure and also do not want to buy one to try ,please do not buy ,we do not want any negative feedback about no supports your car else ! thanks in advance .)
Q:How is the step for Run software on android phone?
A:Open your android phone soft ware--Setting--Connecting Type--OBD2 Adapter Setting--BT--Choose BT Device--OBDII.
Q:My android phone connect to my old ELM327 before ,do i need delete previous informations?
A:Yes,please delete all old informations ,so make sure you can connect your new ELM327.

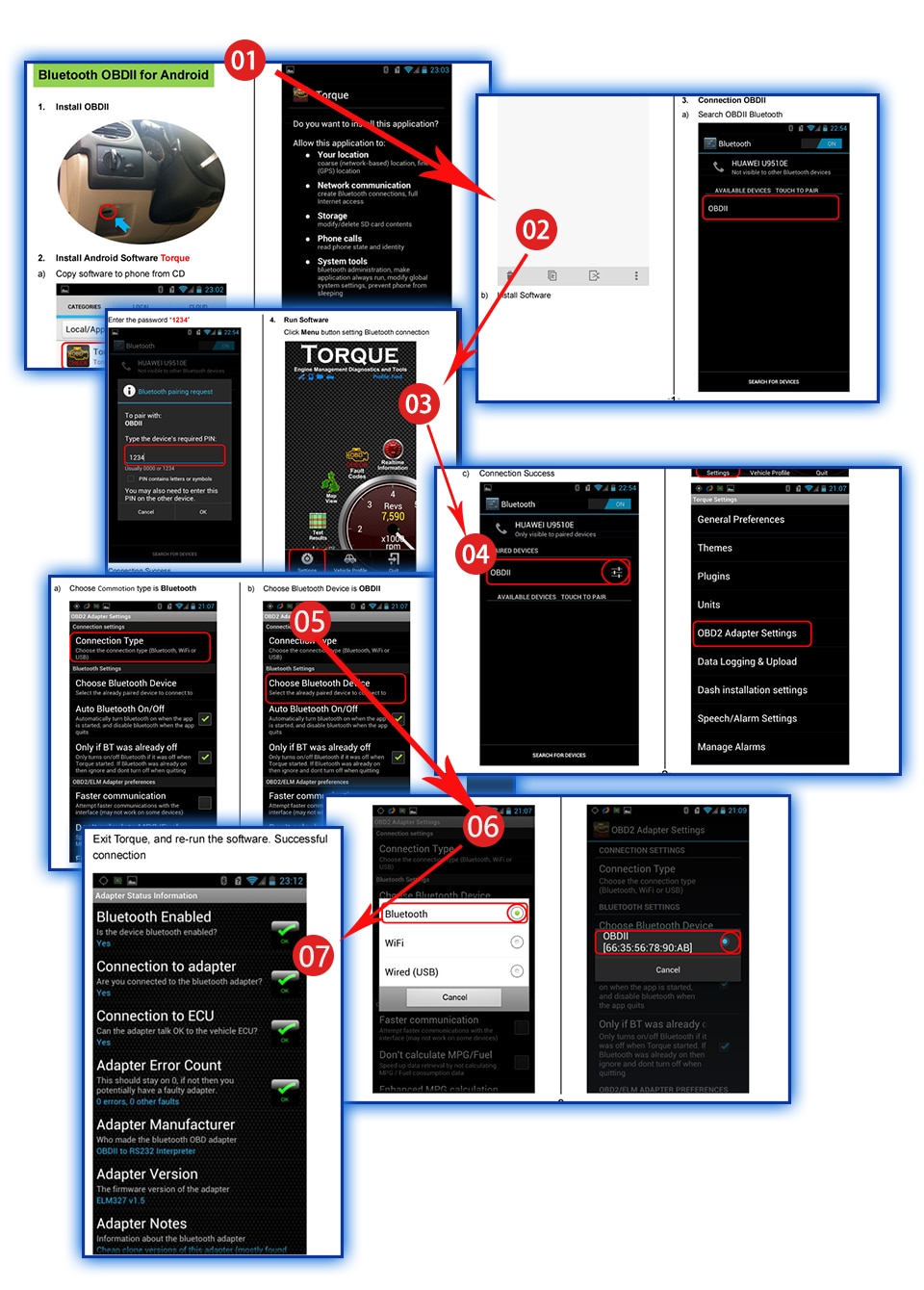

ELM327 OBD2 Scanner Installation Guide(just for referance):
