New arrived 80mm auto cutter receipt printer POS printer USB port or Ethernet port or Bluetooth interface for Milk tea shop

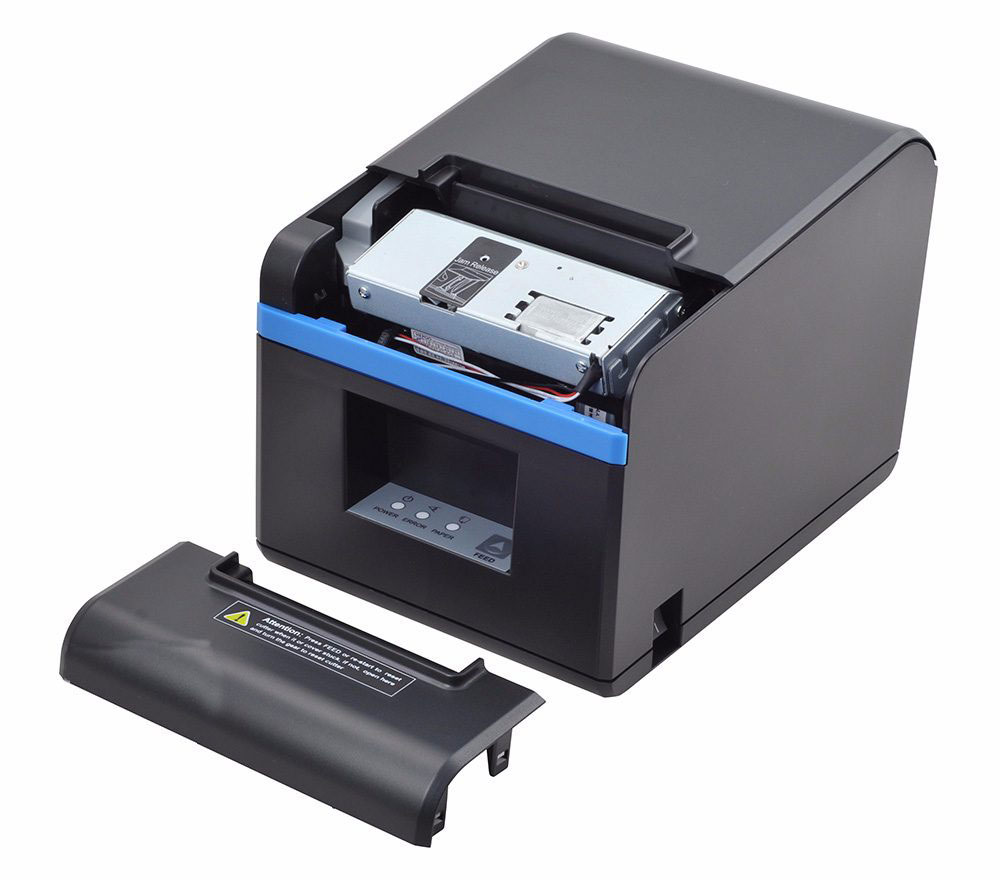

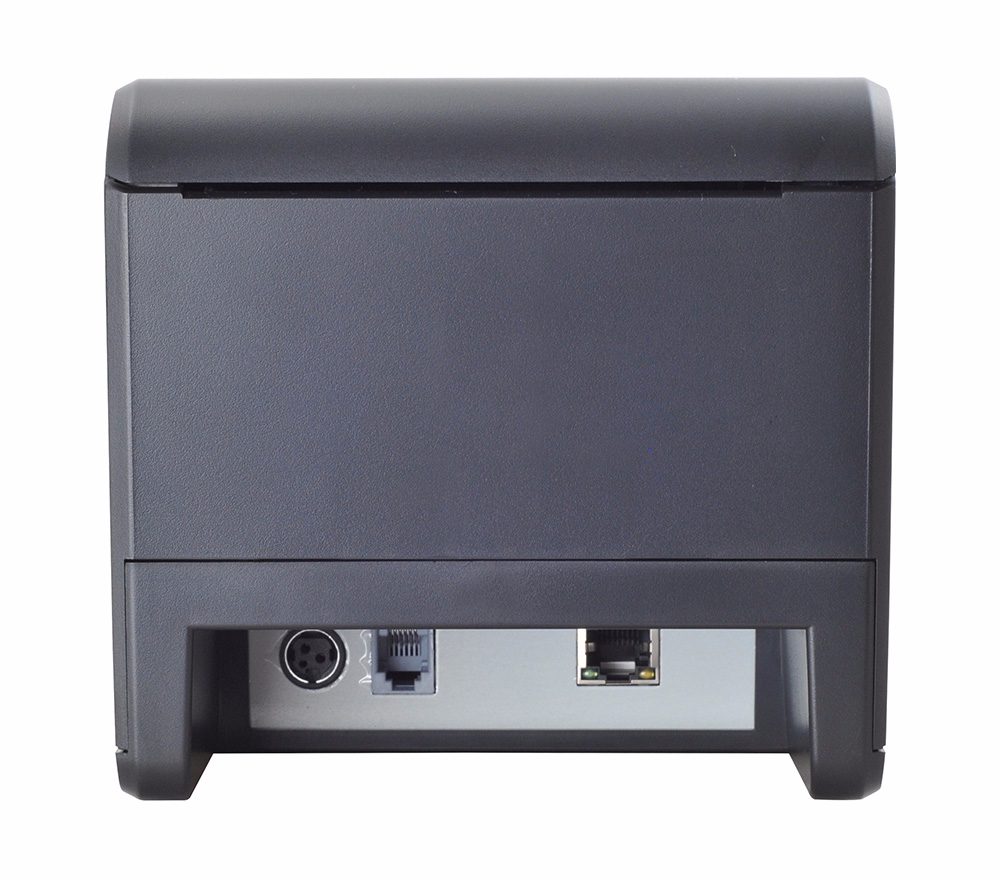

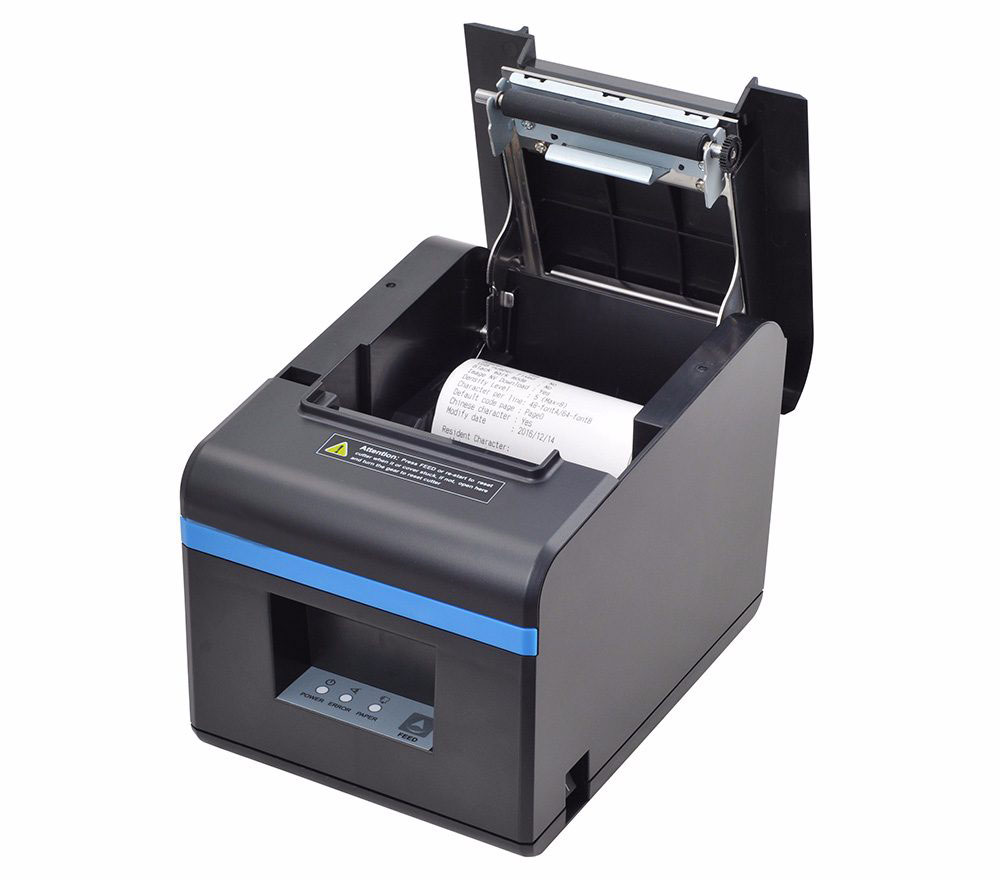

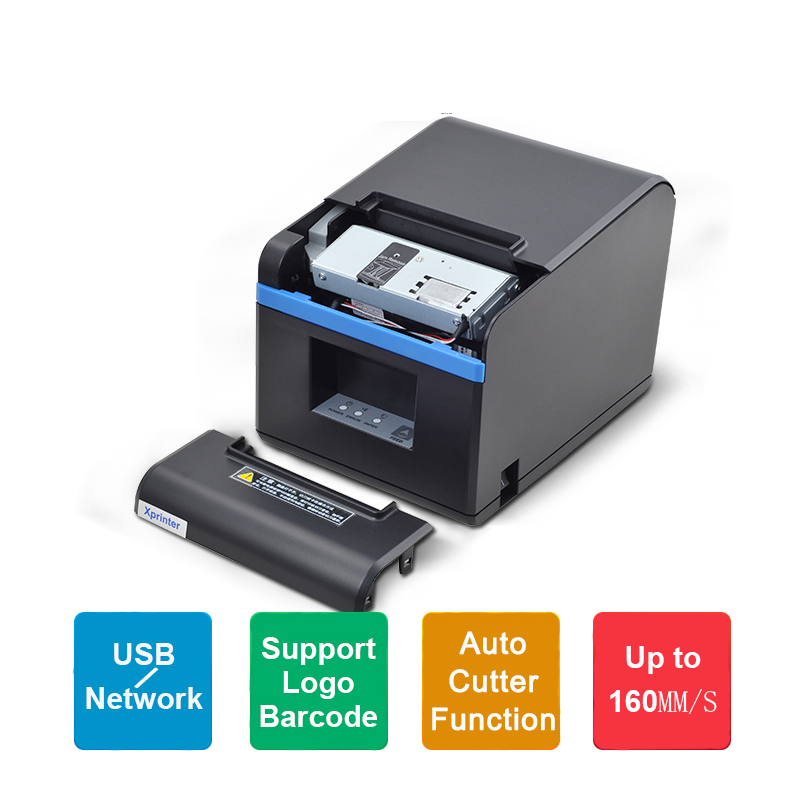

XP-N160II is an 80mm(3inches) USB/Lan/Bluetooth/WIFI Printer that is suitable for all types of receipt ,bill and Ticket printing needs, It is a high speed printer with Auto cutter. It features a large carriage space to hold big dia Thermal paper roll hence also saving on Thermal roll cost .The printer works with all the major operating systems like Windows, Linux. The Lan/Bluetooth/WIFI Printer is also compatible with Mobile devices running Android,IOS and windows.
Specifications:
Print method: direct thermal line
Character size: 576 dots/line
Print speed: 160mm/SEC
Interface: USB+Bluetooth/USB/Ethernet/Parallel port/WIFI+USB
Thermal paper:79.5plusmn0.5mmtimesphi80mm
Print width :72mm
Language: multi-language support
Extended character table: PC347（Standard Europe）、Katakana、
PC850（Multilingual）、PC860（Portuguese）、
PC863（Canadian-French）、PC865（Nordic）、
West Europe、Greek、Hebrew、East Europe、Iran、
WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、
PC858、IranII、Latvian、Arabic、PT151（1251）
Printing command: compatible with ESC / POS commands
Power: DC 24V/2.5A
Cash drawer:DC 24V/1A
Weight:1.03kg
Size:190times140times131mm (L*W*H)
Printing head reliability: 50 km
Work temperature: 0-45 C
Relative humidity: 10-80%
Driver compatible with: Win 2000, Win 2003, Win XP, Win Vista, Win 7, Win 8.win10 and linux
Features:
1. Great solution for all kinds of areas of commercial retail POS systems.
2. Compact and lightweight, stylish design.
3. High print quality and low operation cost.
4. Low noise, high speed printing.
5. Cash drawer support.
6. Easy paper loading structure, easy maintenance.
7. Low power consumption, low operating costs (no ribbons, ink cartridges).
8. Built-in data buffer (ready to receive print data during printing).
9. Adjustable character size and line spacing.
10. Bitmap and download graphics printing support.
11. Compatible ESC/POS print commands
Printer cleaning guide
Printer head requires cleaning when one of following cases occurs:
1) printing is not clear;
2) some columns on the printed page are not clear;
3) feed emits noise.
Printer head cleaning procedure is as follows:
1) turn the printer off, open the cover, remove the paper if there is any;
2) the printer head cool down completely if cleaning takes place right after printing;
3) wipe the thermal printer head surface with a soft ethanol dipped cloth to clear off dust and/or stains;
4) wait until ethanol completely evaporates, put the cover back and run test print.
Package includes:
80mm mini receipt printer x 1
USB data cable x 1
Poiwer cabke x 1
Power adapter x 1
Paper roll x 1
User manual x 1
Note: now new version , there is no Driver CD including , need to download at official website , or leave your email ,we can send to your email
FAQ:

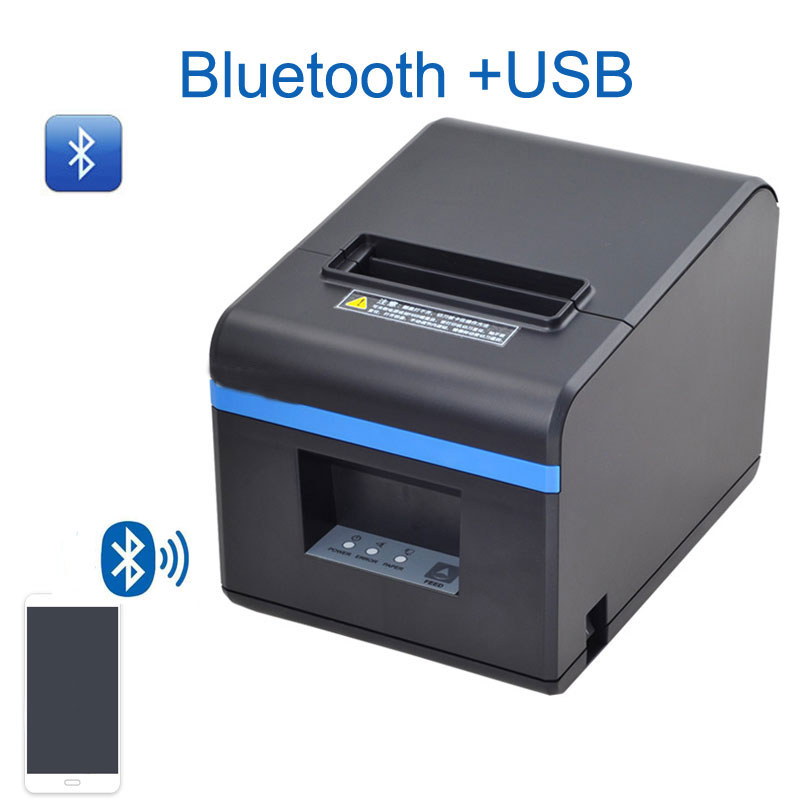

Bluetooth version: need install a POS app on mobile, in the app using Bluetooth connect printer and mobile, print in the POS app.
wifi setting : pls checked this link
www.kidesion.com/en/new/wifi-printer-setting.html
Ethernt Port setting: pls checked below link
www.kidesion.com/en/new/new-43-556.html
The Driver download at Officail website
or
http://www.kidesion.com/driver.html
-
Specifications
FAQ
Q1: This printer can be used for win8 or win10 ,mac system?
Answer:yes, at the time of installation will prompt you to select win7 or win8 and win10 and mac
Q1: The printer driver is in English,Russian, Spanish?
Answer:yes,support
Q3: Can deliver the European standard plug or American standard plug or British Standard plug?
Answer:YES, when order can select AU,EU,US and UK plug.
