XP-420B Black
XP-420B White
Labels papaer
Kindly download the XP-420B Printer Driver on this link:
https://u.pcloud.link/publink/show?code=XZXzdFXZnxTVMJK5OTXVCCYlE4UJpX9He5sk

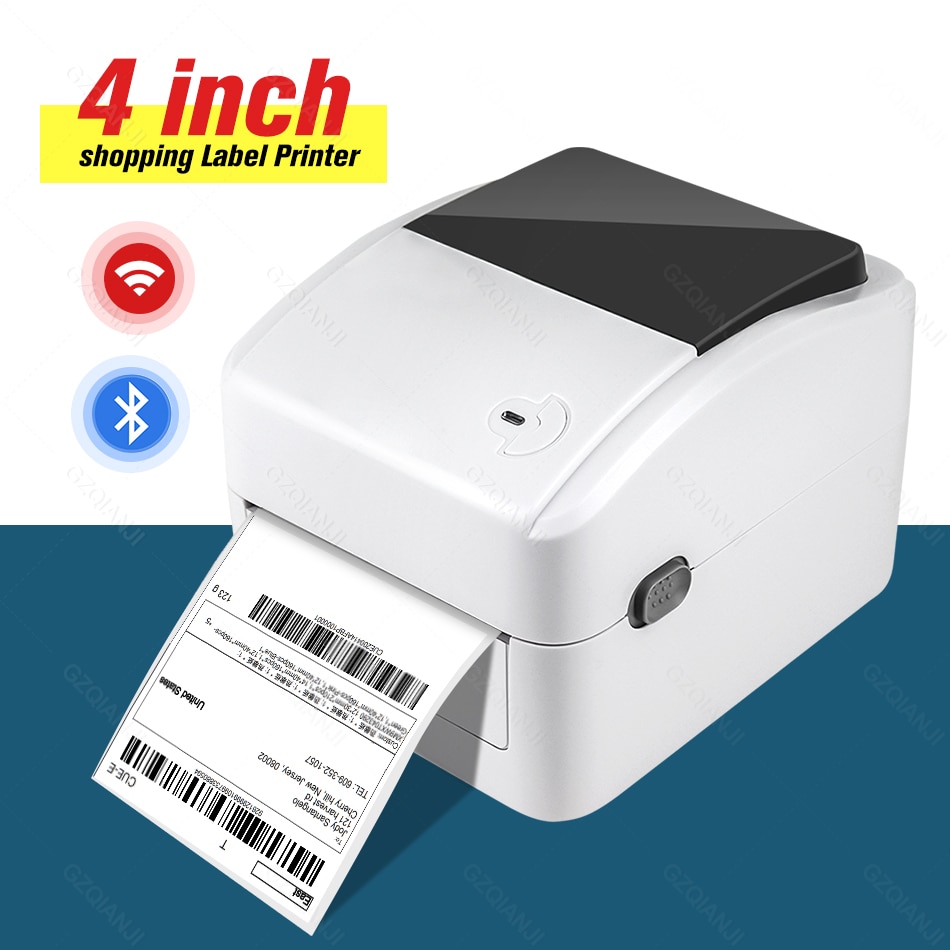

4 inch Thermal Barcode Label Printer
| Printing Features | |
| Resolution | 203 DPI |
| Printing method | Direct Thermal |
| Max.print speed | 152 mm (6") / s |
| Max.print width | 108 mm (4.25”) |
| Max.print length | 1778 mm |
| Performance Features | |
| Processor | 32-bit CPU |
| Memory | 8MB Flash Memory, 8MB SDRAM, Flash memory can be expanded to Max. 4 GB |

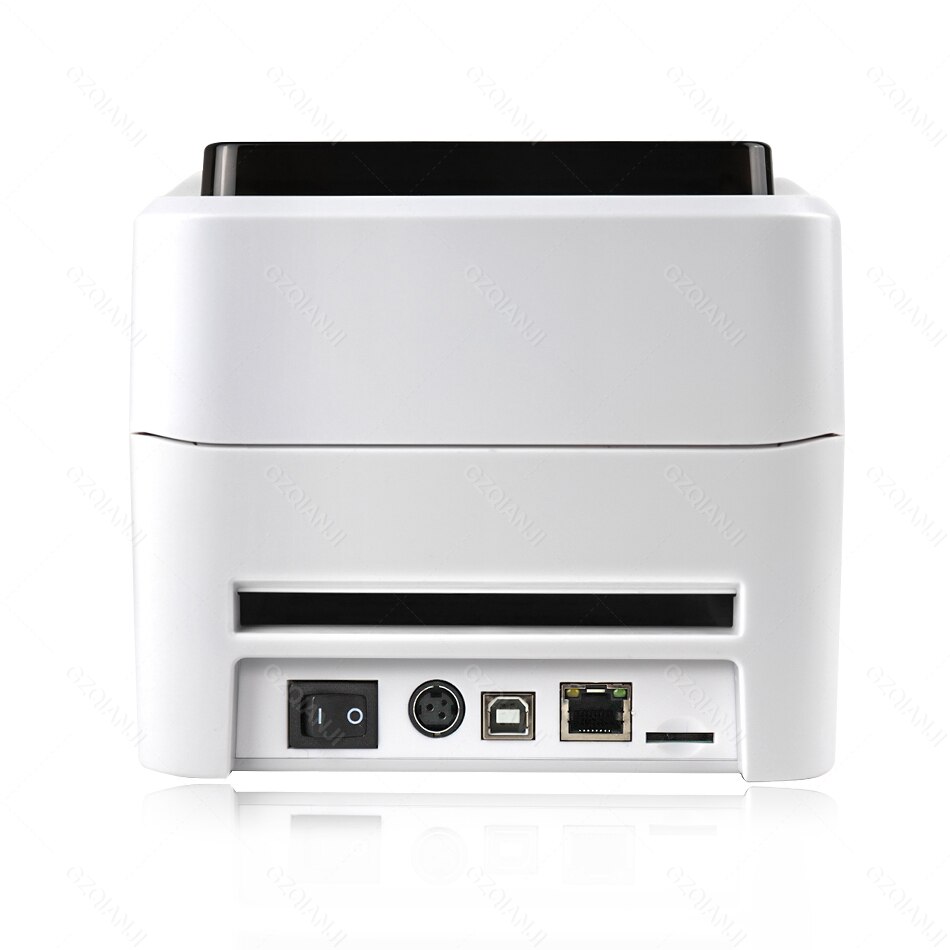

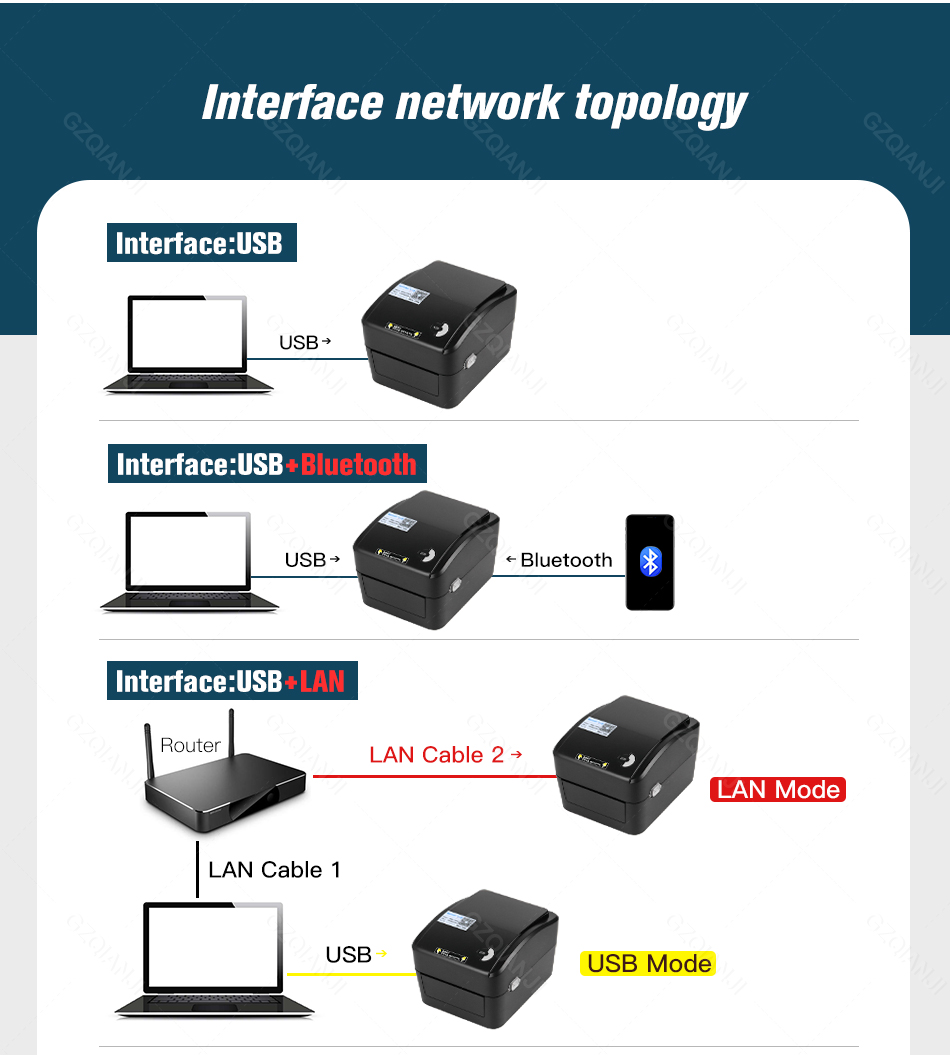

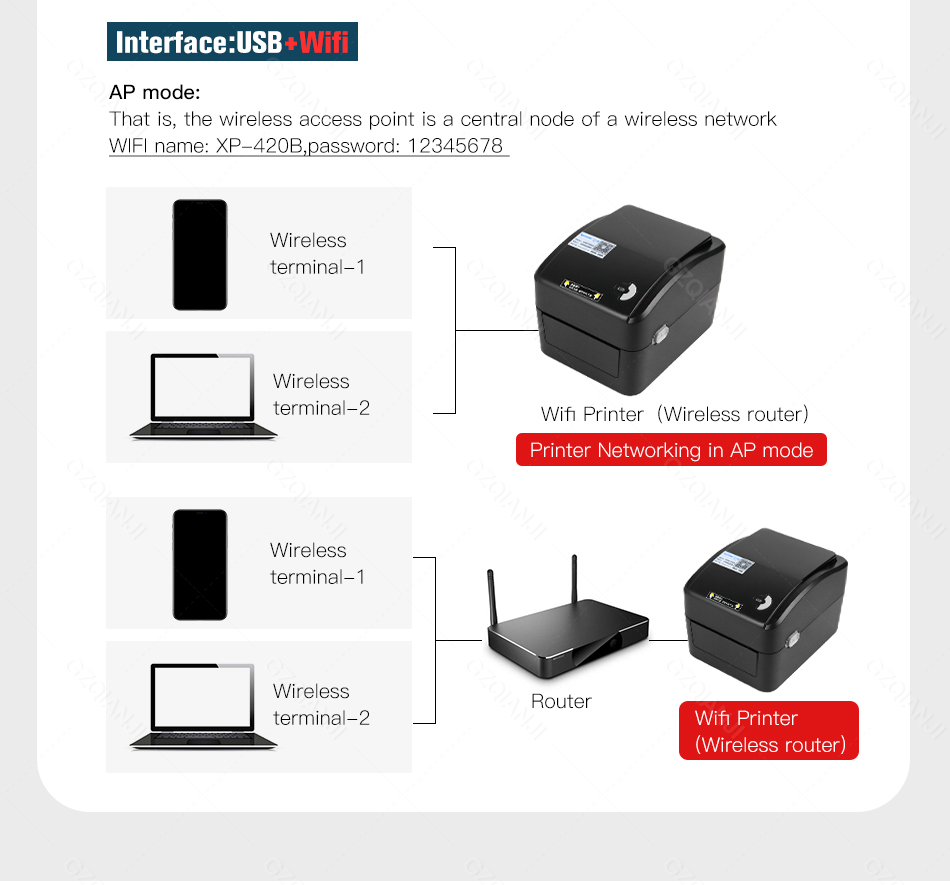

| Interface | Standard version: USB Optional:Lan/WIFI/Bluetooth/TF card |
| Sensors | ①Gap sensor ②Cover opening sensor ③Black mark sensor |
| Media | |

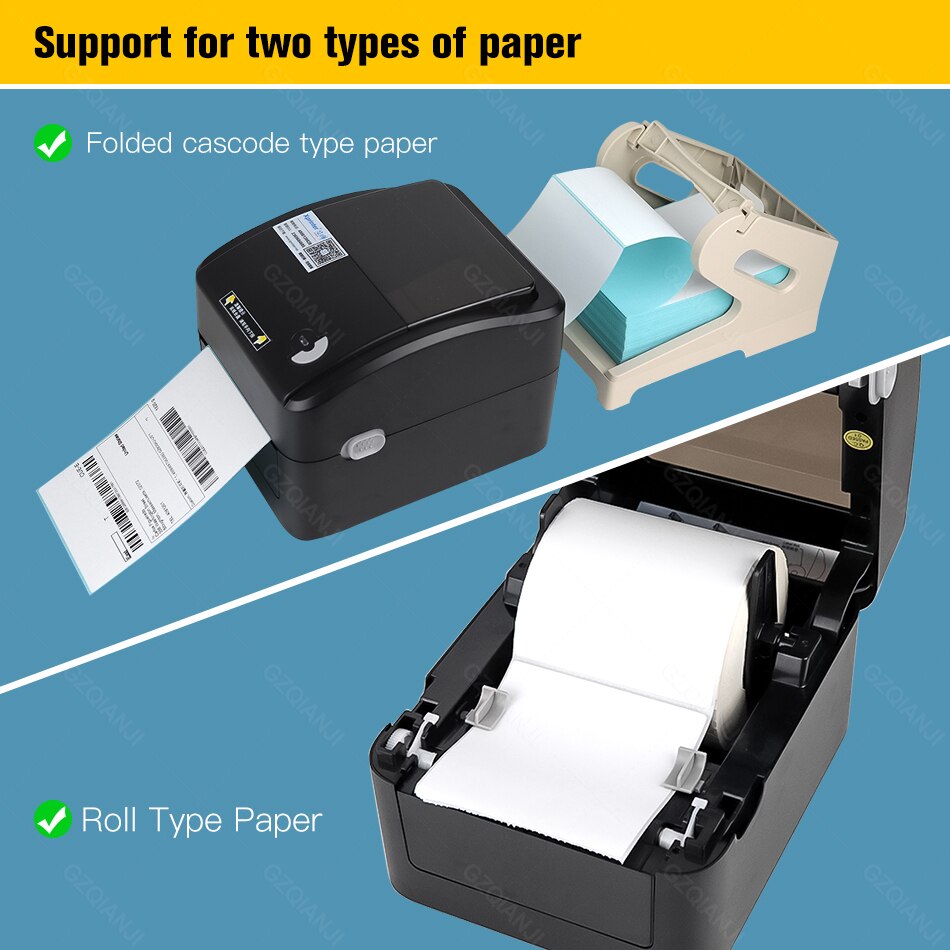

| Media type | Continuous, gap, black mark, fan-fold and punched hole |
| Media width | 25.4 mm ~ 115 mm |
| Media thickness | 0.06~0.254 mm (2.36~10mil) |
| Media core diameter | 25.4 ~ 76.2 mm (1 "~ 3 ") |
| Label length | 10 mm ~1778 mm |
| Fonts/Graphics/SyMBologies | |
| Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. |
| 1D bar code | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST,GS1 DataBar, Code 11 |
| 2D bar code | PDF-417, Maxicode, DataMatrix, QR code, Aztec |
| Rotation | 0°、90°、180°、270° |
| Emulaion | TSPL、EPL、ZPL、DPL |
| Physical Features | |
| Dimension | 215 mm (L) x 178 mm (W) x 155 mm (H) |
| Weight | 1.31 kg |
| Software | |
| Driver | Windows/ Linux/ Mac |
| SDK | Windows/ Android/ iOS |
| Power supply | |
| Input | AC 110-240V |
| Output | DC 24V 2.5A |
