Resolution 203 DPI

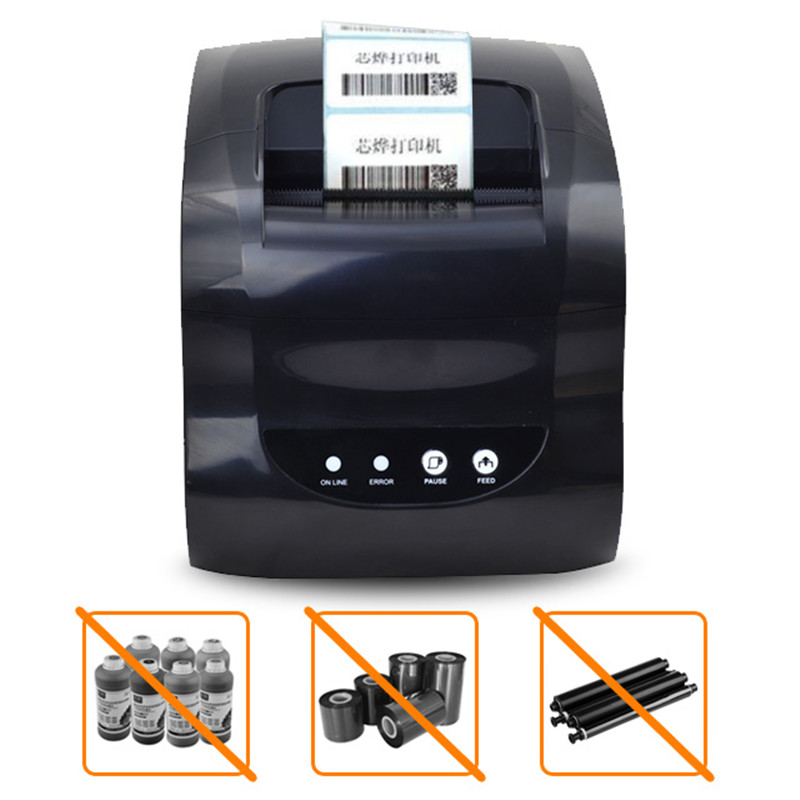

Printing method Direct Thermal
Max.print speed 127 mm/s 90 mm/s
Max.print width 76 mm
Media type Thermal roll paper, thermal adhesive paper

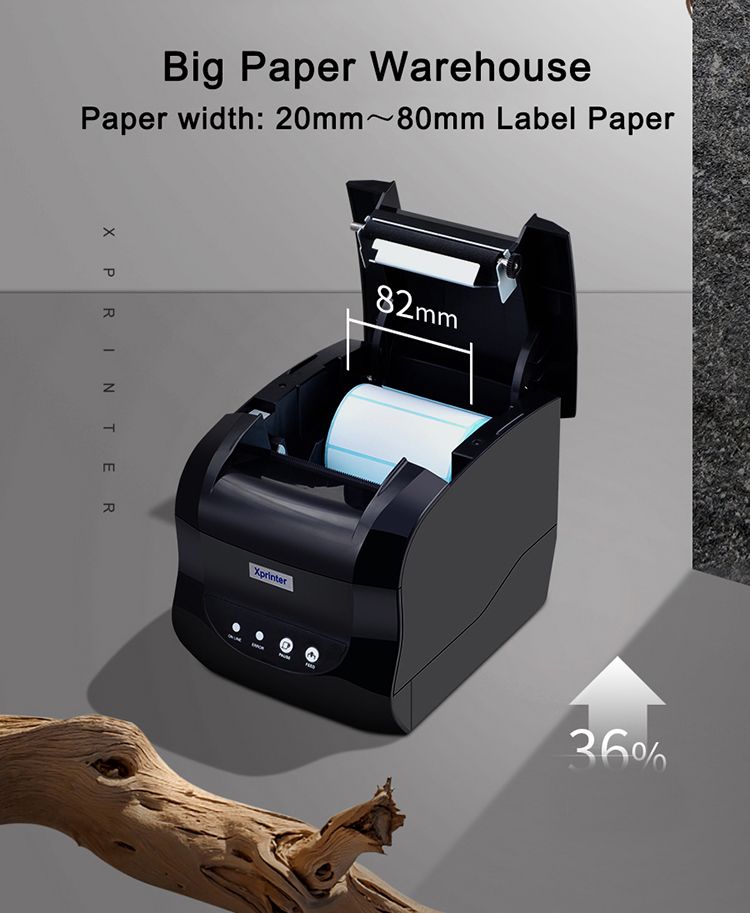

Media width 20~82 mm
Media thickness 0.06 ~ 0.19 mm
Media roll diameter Max.82 mm
Supply method Easy Paper Loading
Printing method: Direct thermal
Resolution: 8 dots/mm(203DPI)
Printing speed: Max:152mm/s Min:50.8mm/s

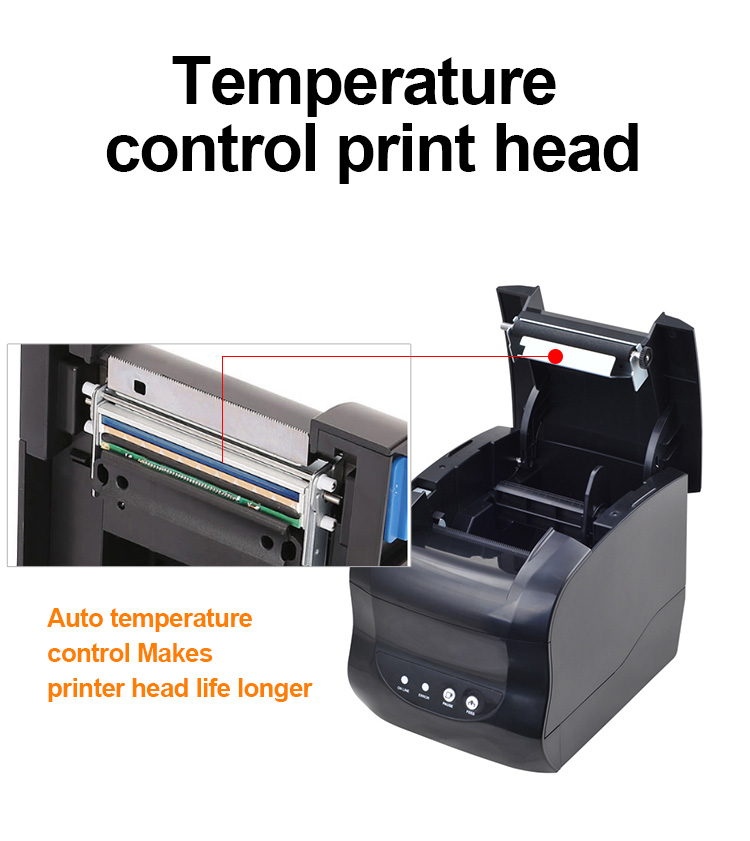

Print head temperature sensor: Thermal sensitive resistance
Paper exists detection: Photosensor
Interface: USB
Linear Bar Codes: CODE128、EAN128、ITF、CODE39、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPC-E、UPCE+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN14
2-Dimensional：PDF417 / QR CODE / DATA MATRIX
Internal font: FONT 0 to FONT 8
Enlargement & rotation:: (0°,90°, 270°, 360°) 1 to 10 times enlargement in both direction; 0°、90°、270°、 360° rotation
Image: Monochromatic PCX, BMP image files can be load to FLASH, DRAM
Paper type: Paper roll, sticker, adhesive sticker, etc
Paper width: 16mm～82mm
Roll inner diameter: Min 25mm
Paper off type: Tear off or Peel off
Power supply input: 24VDC, 2.5A
