P200 SMART HOOK Powerful Probe new generation of intelligent circuit analyzer is the only one upgradeable circuit tester on the market. It is a tool for quickly testing all 9V-30V electronic systems. The test time is greatly shortened, convenient, fast and smarter!
1.Intelligent identification of voltage/resistance
2.Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)
3.Relay test
4.Injector test
5.Diode test
6.Oscilloscope function
7.0-5V adjustable power supply
8. Activation of vehicle components
9.Positive and negative polarity test
10.Intelligent circuit breaker protection (adjustable overload)
11.Screen style background optional
12.Network online upgrade
13.Built-in Multi Lingual.
1.Display:............ (320*240 DPI) TFT true color display
2.Working temperature: ........... 0-60°C (32-140 F°)
3.Storage temperature:...........40-70°C (-40-185 F°)
4.External power supply: ... 12V or 24V powered by battery
5.Minimum working voltage:...9V
6.Maximum working voltage: 30V
7.Maximum measuring voltage: 150V
8.Minimum measuring voltage: .....................0.1V
9.Resistance measurement range:... 1 ohm~200K ohm
10.Current measuring range: ..................... 0~18A
11.Maximum continuous current: ..................... 18A
Five Test Mode
1.Voltage Test
2.Resistance Test
3.Diode/Continuity Test
4.Current Amps Test
5.Frequency/Duty Cycle Test

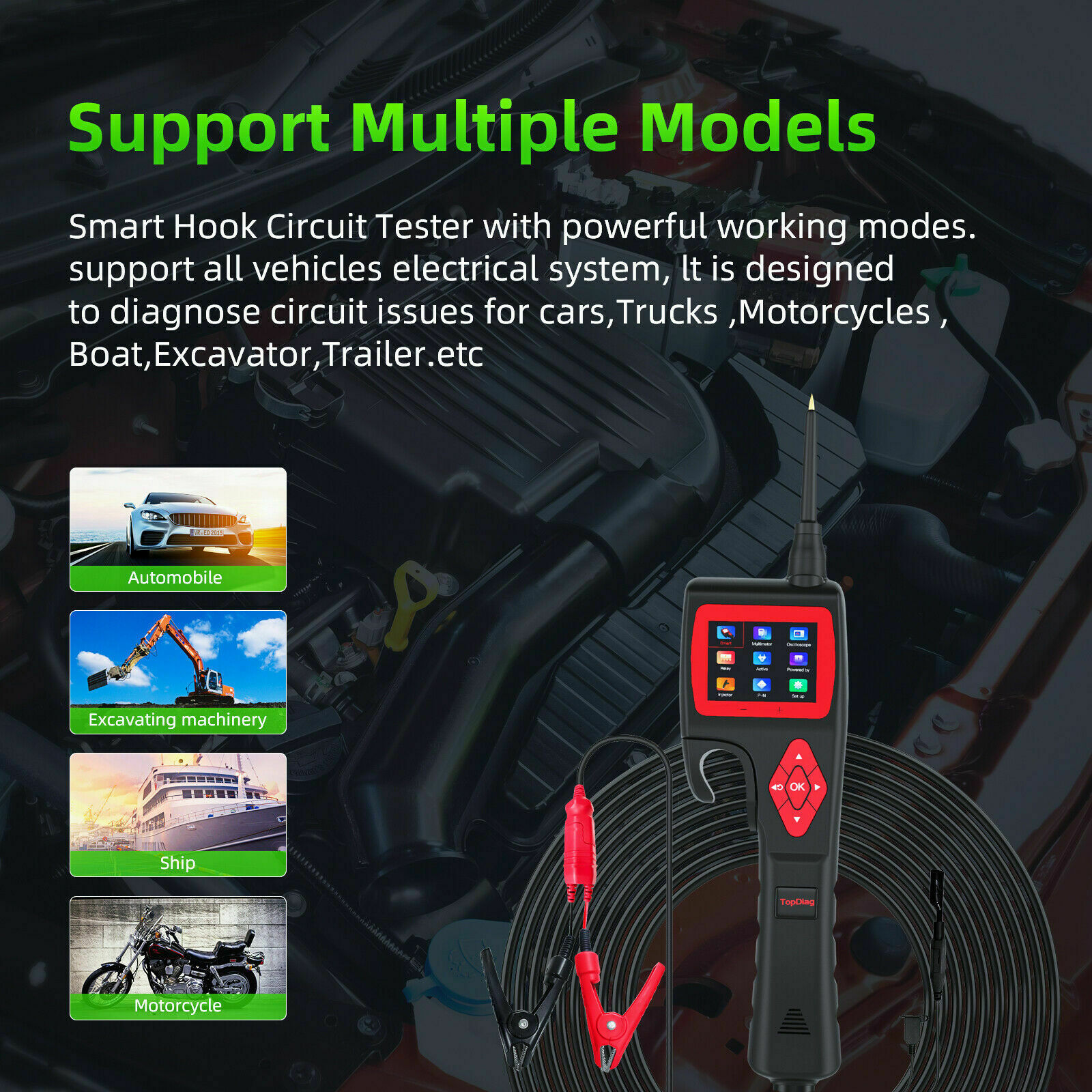

Smart Hook Circuit Tester with powerful working modes.support all vehicles electrical system, It is designed to diagnose circuit issues for cars,Trucks ,Motorcycles ,Boat,Excavator,Trailer.etc

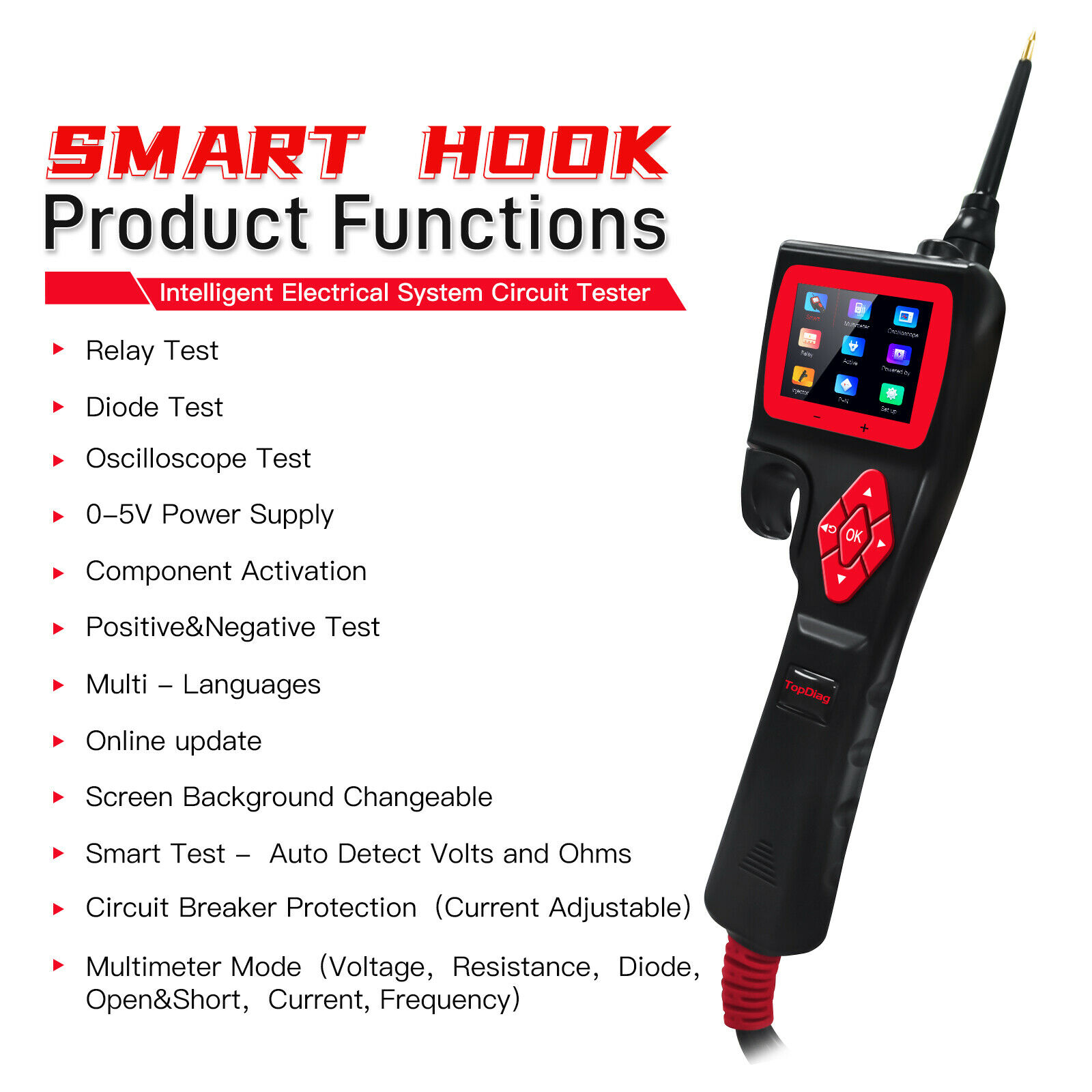

Relay Test
Diode Test
Oscilloscope Test
0-5V Power Supply

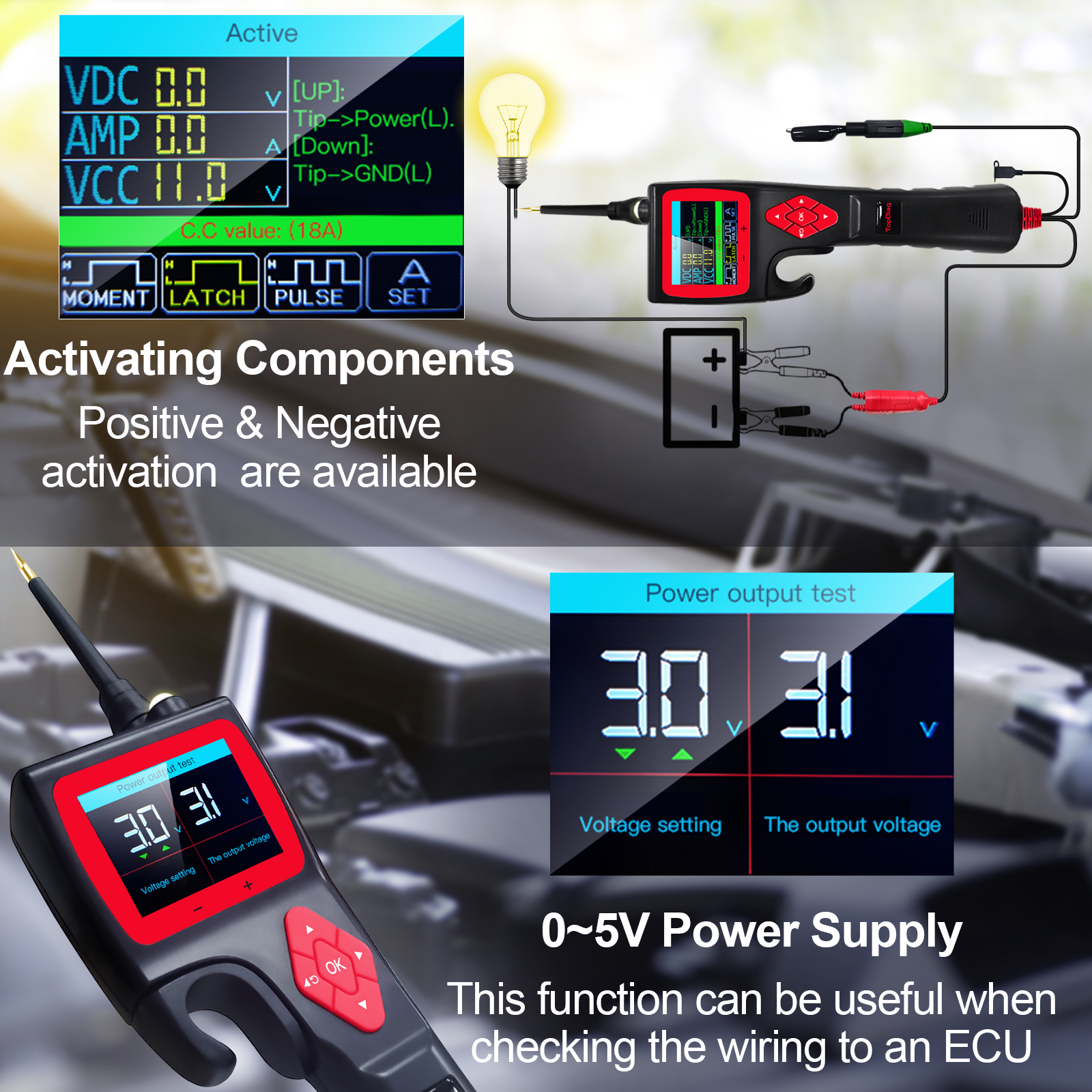

Component Activation
Positive&Negative Test
Multi - Languages
Online update
Screen Background Changeable
Smart Test - Auto Detect Volts and Ohms
Circuit Breaker Protection (Current Adjustable)
Multimeter Mode (Voltage，Resistance，Diode,Open&Short，Current,Frequency)
Completely Full Mutimeter Parameters fast to test Voltage，Resistance，Diode，Open&Short，Current, Frequency)
working condition, Better to improve your working efficiency.working condition, Better to improve your working efficiency.
1) Main unit
2) Solid copper test probe
3) Double pass test connection line
4) Alligator clip battery cable (Special Design)
5) Relay test line
6) Probe adapter
7) Operation manual
8) Packing Toolbox
