Main Features:
• USB+LAN 230mm/s, support network monitor function,IP change directly from different gateway and QR code.

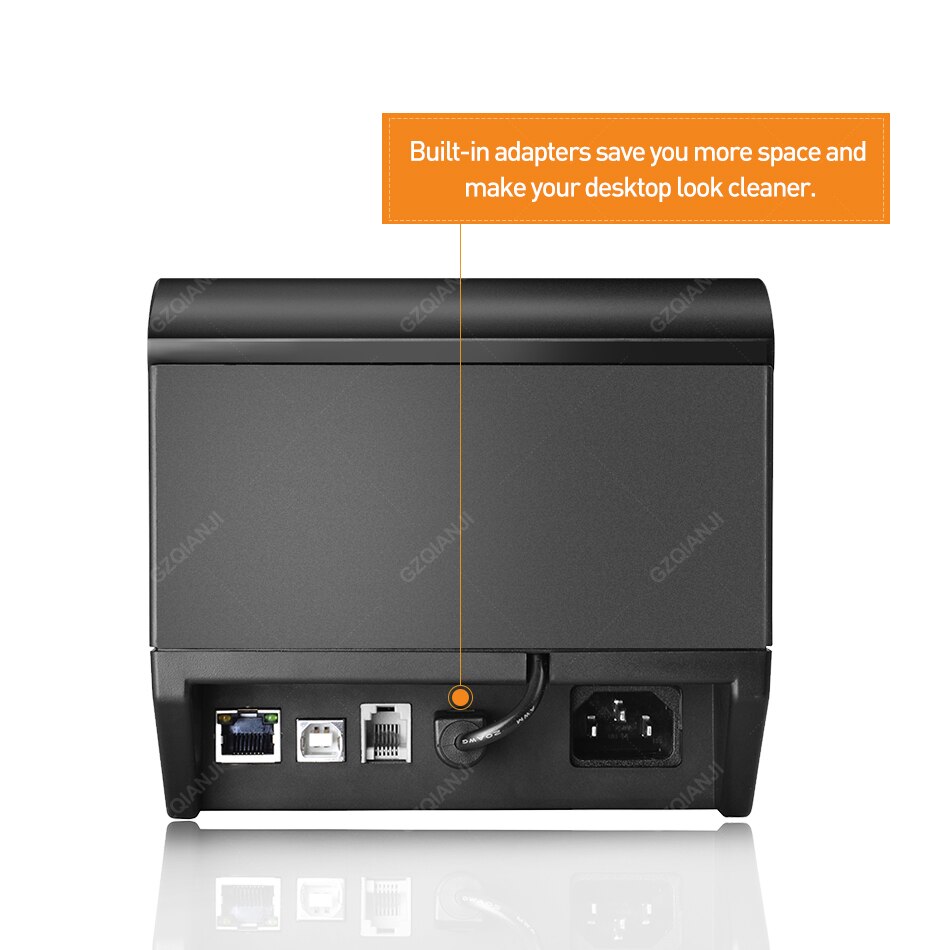

• It's built-in power adaptor,which avoid messy code every where, save space.
• With wall hanging equipped.
• It can be used as top paper coming printer and front paper coming printer at the same time.
| Model:GZ8006 | |
| Print Method | Direct Thermal |
| Resolution | 576dots/line or 572dots/line |
| Printing Width | 72mm |
| Paper separator(option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Interface | USB/USB+Lan/ USB+Bluetooth/ USB+WiFi (optional) |
| Power,Paper,Erro | Support |
| LED light with beeper | Without |
| Hanging device | Equipped |
| Input buffer | 256kbytes |
| NV Flash | 256kbytes |
| Font A | 12x24 |
| Font B | 9x17 |
| Chinese | GB18030,BIG5 24x24dots |
| Japanese/Korea | Support |
| User-defined | Support |
| 1D | UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code |
| Sensors | Paper out, paper near end, cover open, cutter jam,paper jam and black mark detection(Optional) |
| Input | AC 100V-240V 50/60HZ |
| Paper separator(option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Output | DC 24V/2.5A |
| Paper Type | Thermal Receipt Paper |
| Paper Width | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Paper Thickness | 0.06~0.08mm |
| Roll Dia | Max. Ø 83 mm |
| Paper Load | Easy paper loading |
| Working Condition | 0°C~45°C, 10%~80%RH |
| Storage Condition | -10°C-60°C,10%~90%RH |
| Dimensions | 196(D)x145(W)x135(H)mm |
| Net weight | 1.94kg，Gross weight，2.14kg |
| Printing head | 150KM |
| cutter | 1.5million |
| Package List | data cable,power adaptor,power code,paper roller,CD,manual,paper separator(option) |
| Individual box | Dimension 30X19X18cm(LXWXH） 1unit/carton |
| Master carton | Dimension 62X36X52cm(LXWXH） 12units/carton |
| Emulation | ESC/POS |
| Driver | Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS |
| SDK | Android, IOS |
