Autel AutoLink AL539 OBDII CAN Scan Tool Electrical Test Tool Code Reader Car Detector OBD 2 Diagnostic Scanner PK AL539B AL519

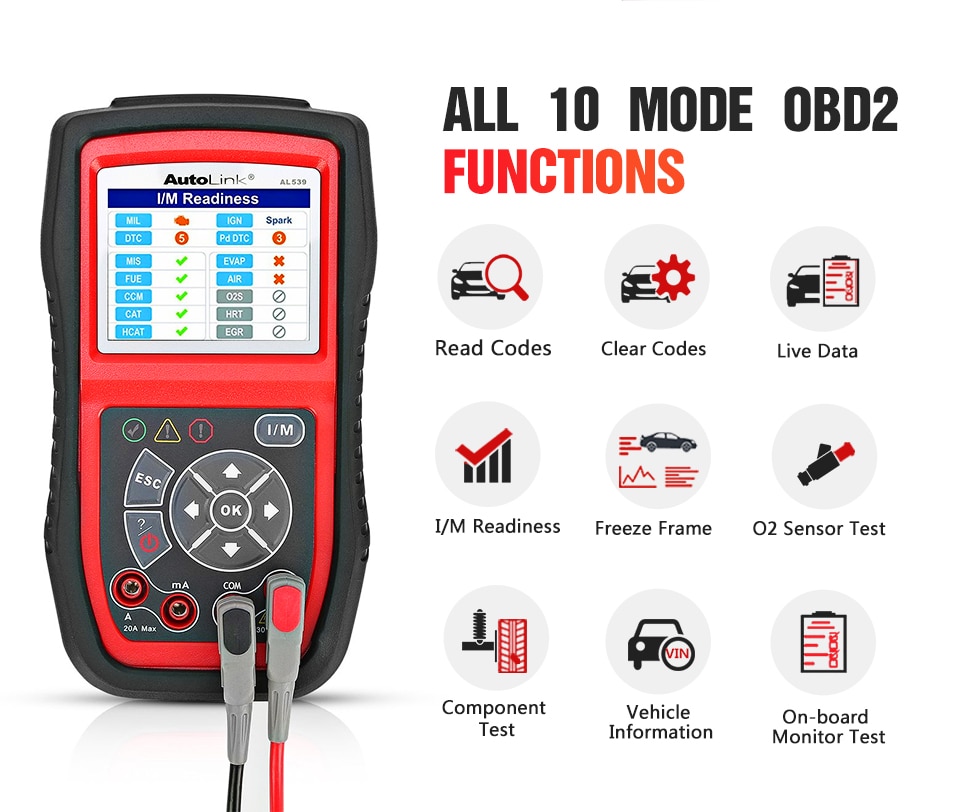

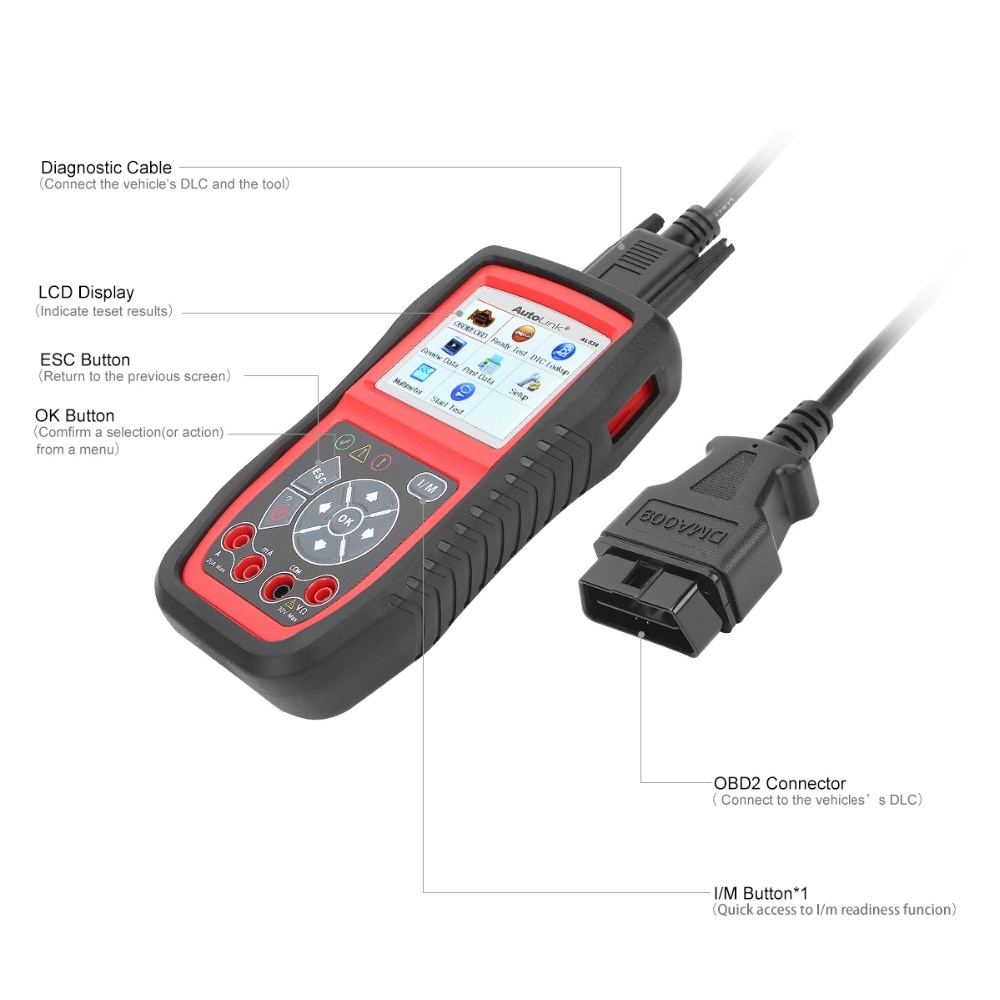

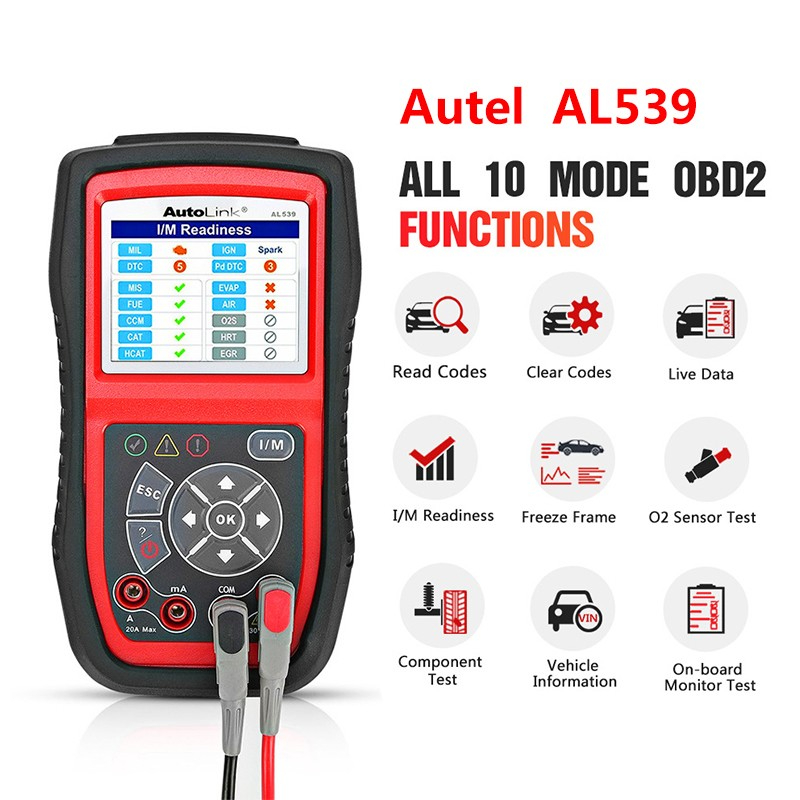

The AutoLink® AL539 OBDII & Electrical Test Tool supports all 10 modes of OBD II test for a complete diagnosis. Featuring the unique patented One-Click I/M Readiness Key, circuit test, starting and charging systems test, TFT color display, and built-in speaker, the versatile, easy-to-use AL539 will streamline automotive service and help ensure rapid, accurate diagnosis and timely repair.
Multi-Languages:
English, Spanish, German, Italian, Dutch, Polish and French
[Product Features]
-
Works on most 1996 and newer vehicles(OBDII & CAN)-domestic and import
-
Features the unique patented One-Click I/M Readiness Key for quick State Emissions readiness check and drive cycle verification
-

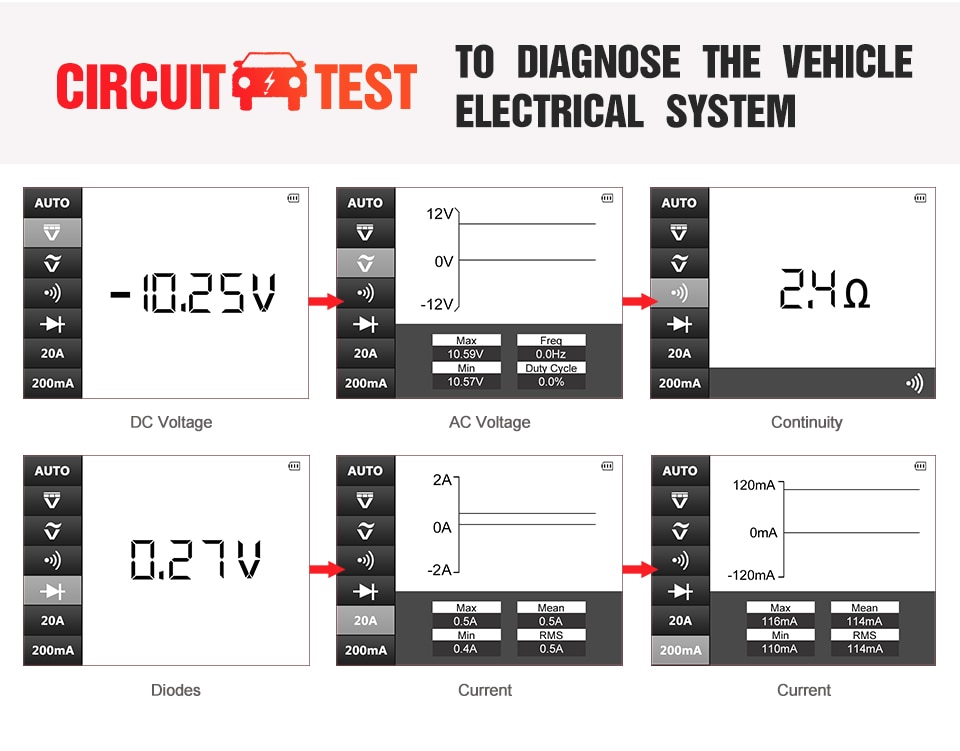

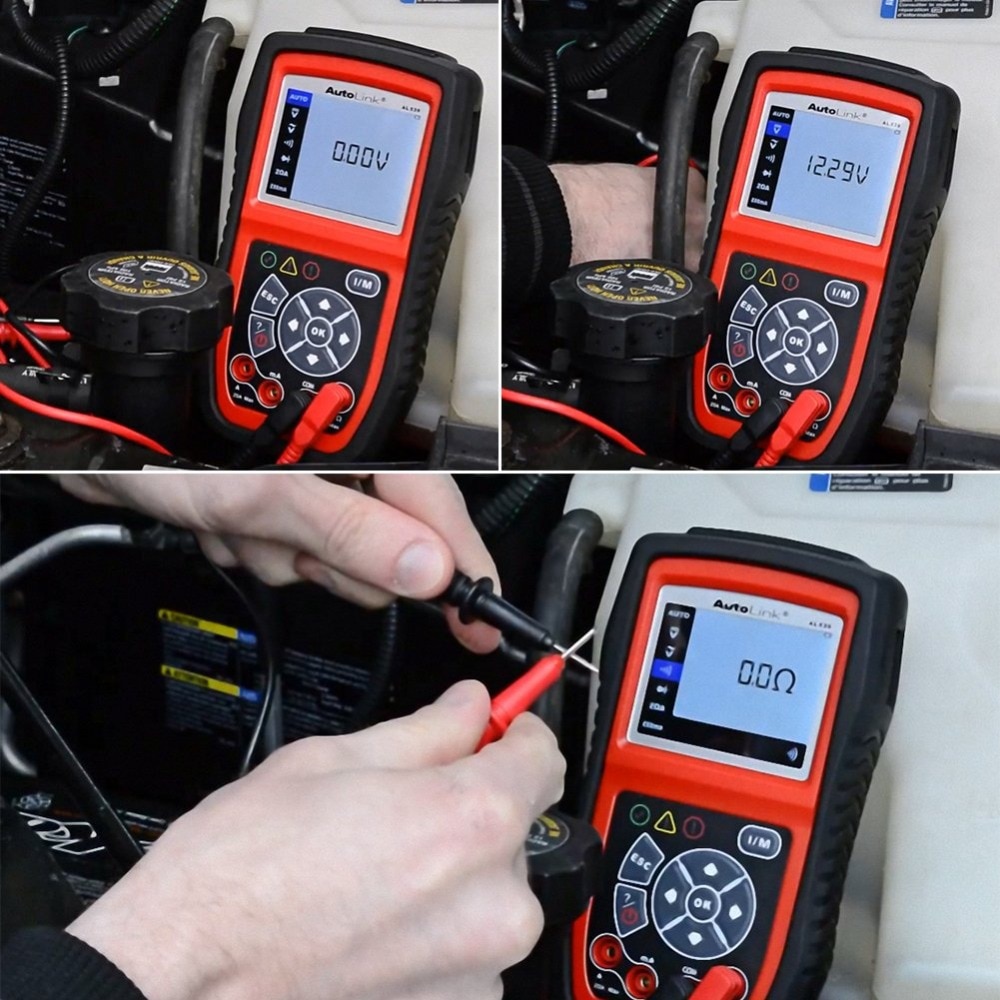

Easy-to-read AVOmeter allows you to test voltage, continuity and current at the fingertip
-
Capable of diagnosing 12V charging systems, starting systems and condition of discharged battery
-
Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
-
Easily determines the cause of the Check Engine Light (MIL)
-
Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
-

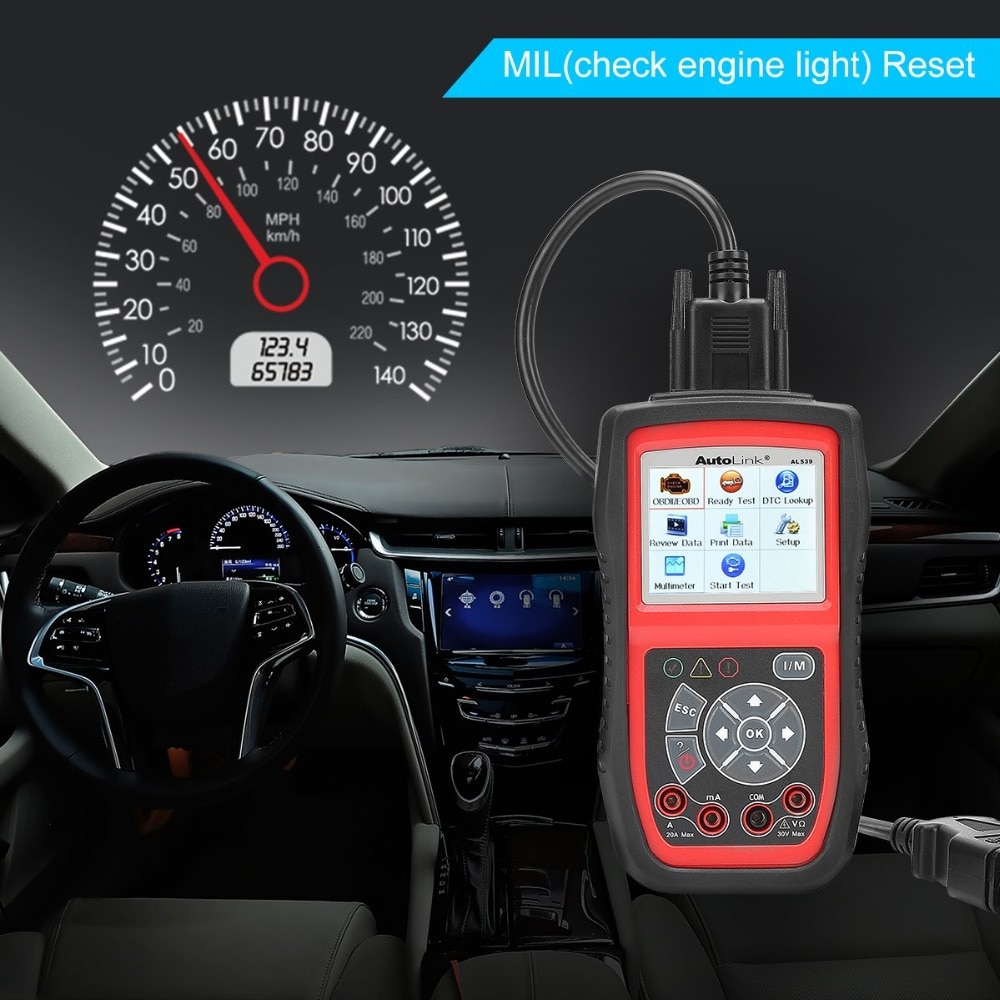

Turns off Check Engine Light (MIL), clears codes and resets monitors
-
Displays monitor and I/M readiness status (emissions)
-
Reads live PCM datastream, live O2 sensor test data, freeze frame data
-
Graphs data (1996 and newer)
-
Troubleshooter codes tips guide technicians to the root cause of trouble code faster, saving diagnosis and repair time
-
Memory/battery backup for off-vehicle data review and analysis
-
Multilingual menu and DTC definitions-English, Spanish and French, etc.
-
Retrieves vehicle information (VIN, CIN and CVN)
-
Internet updateable
-
Prints data via PC
[specifications]
| Display |
| TFT color display (320 x 240 dpi) |
| Operating Temperature |
| 0 to 60°C (32 to 140 F°) |
| Storage Temperature |
| -20 to 70°C (-4 to 158 F°) |
| Length\Width\Height |
| 175 mm (6.91")\96.6 mm (3.80")\37 mm (1.46") |
| Weight |
| 0.3kg (0.8lb, without wire) or 0.68kg (1.82lb, with wire) |

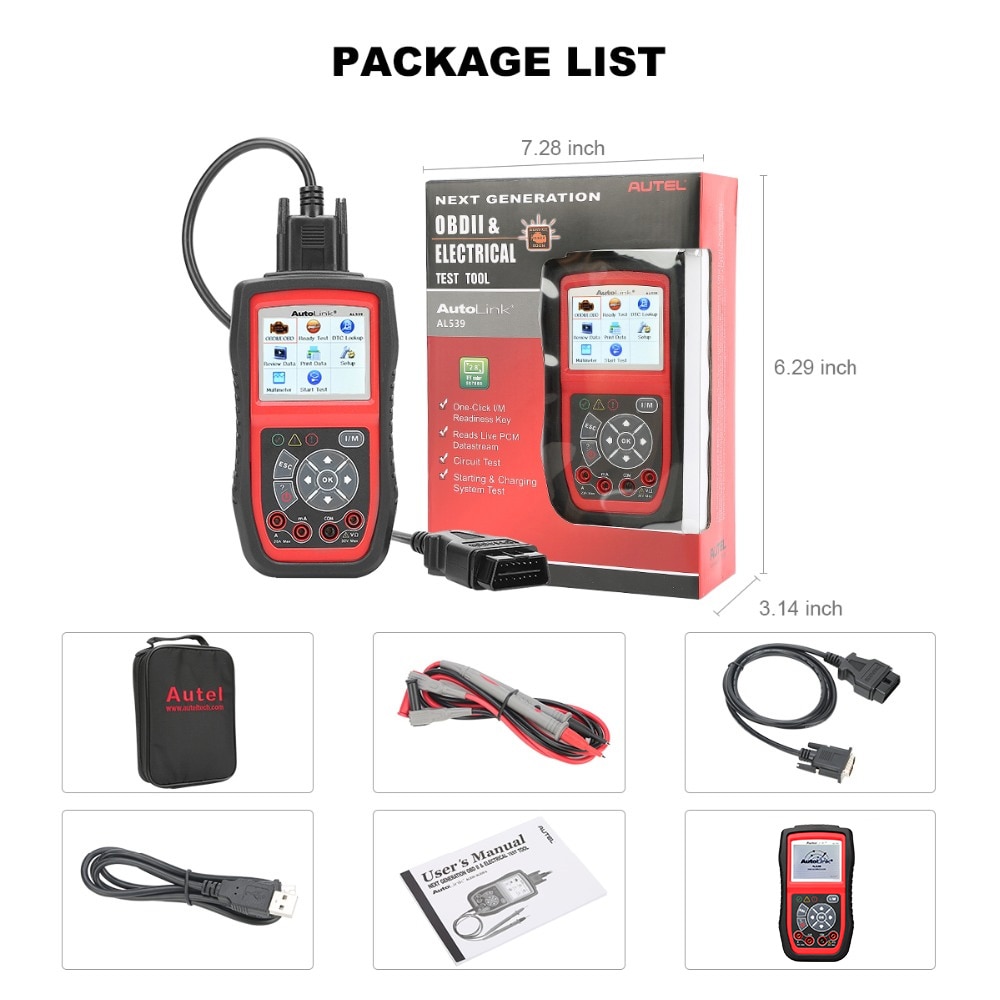

1pc x Auto Link® AL539
1pc x User’s manual
1pc x USB cable
1pc x OBDII Cable
1pc x Protective Nylon Case
1pc x Probes
1pc x 3.7V Li-ion battery
