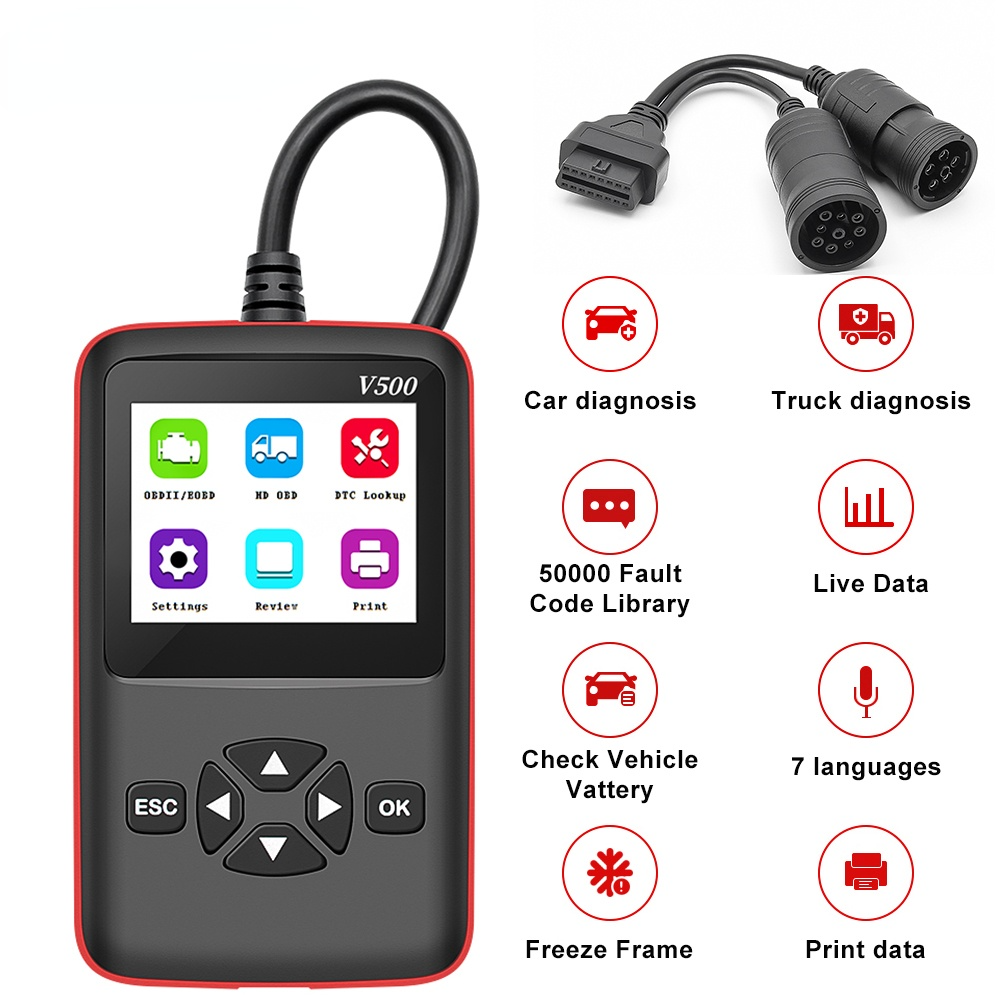

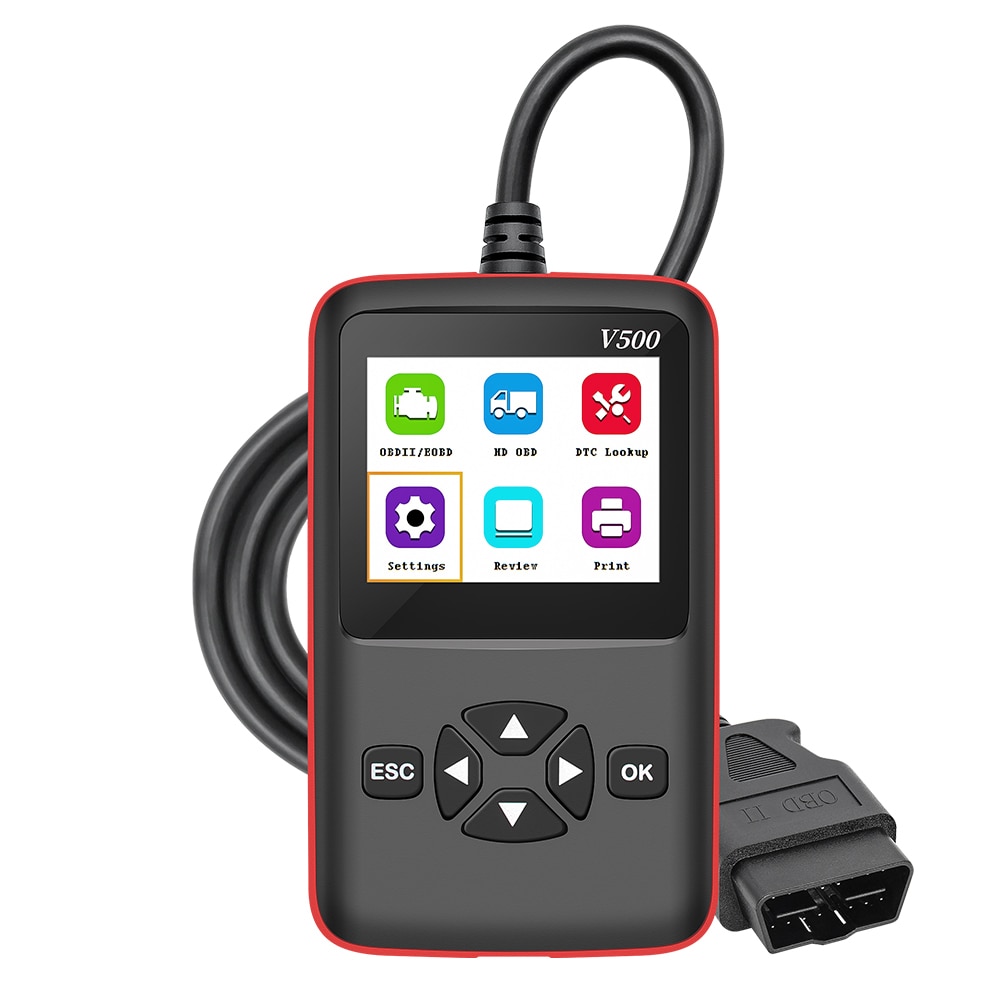

V500 Product introduction
This product is a two-in-one diesel-automobile code reader that supports nine standard protocols of OBDI/EOBD and is compatible with common truck protocols, such as SAE J1939/SAE J1708 and other common truck protocols. Plug and play, it can quickly read the fault information and vehicle parameters of Trucks and cars. It is a more comprehensive fault diagnosis instrument.

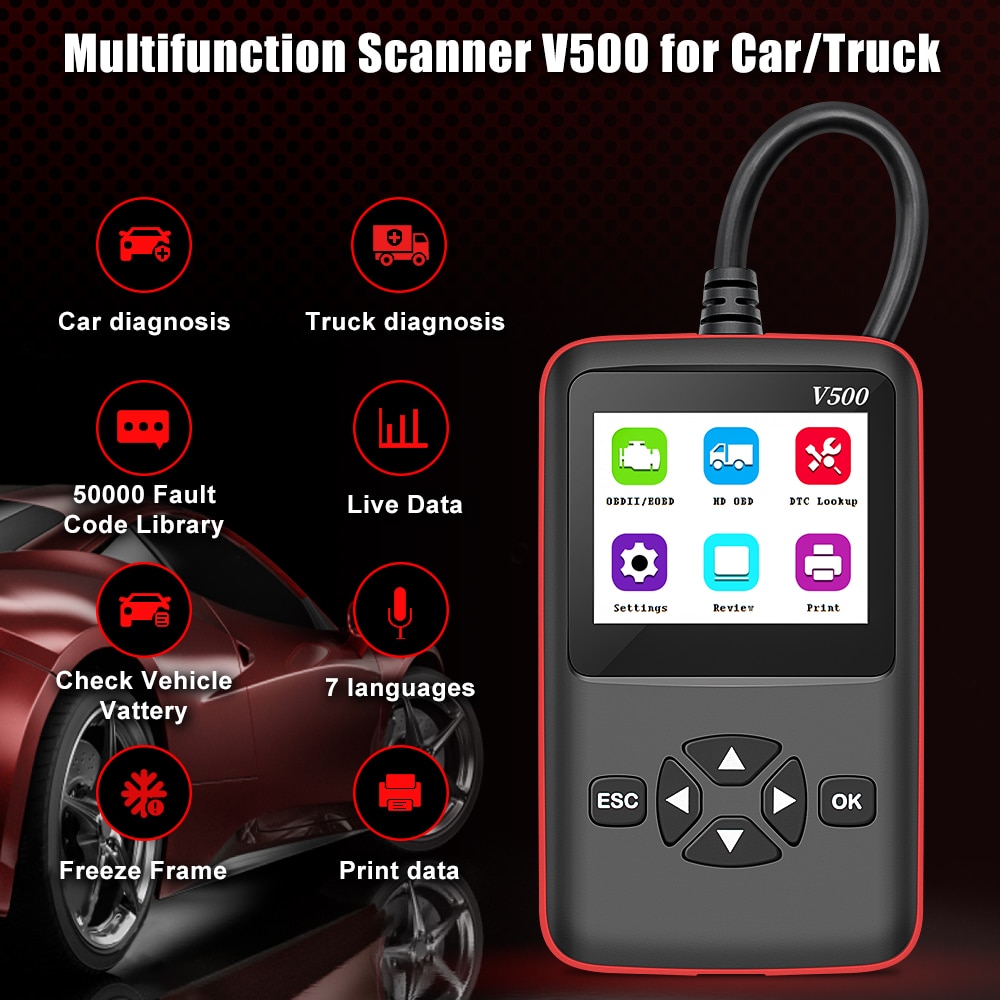

V500 Main functions
1.Support nine standard protocols of OBD I/EOBD.
2.Support Truck SAE J1939/SAE J1708 common protocols.
3.Support gasoline models to read, clear vehicle fault codes, read data stream, freeze frame information, check MIL status, read vehicle information, oxygen sensor test,vehicle monitoring (mode 6), evaporation system (mode 8) test.
4.Support Truck models to read vehicle information, read, clear fault code information, and read data stream information.
5.Support fault code information query, builtin about 50,000 fault code library information.
6.Support data stream playback function, view/delete fault code, data stream, and freeze frame information.
7.Support USB printing function, can print fault code, data stream,freeze frame information.
8.Support seven languages English, Chinese, Italian, French, Spanish,German, Russian.
V500 Support agreement for Car/Truck
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. IS09141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. IS015765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
10. SAE J1939
11. SAE J1708/ J1587
Support Seven languages:
English, French, Spanish, Chinese, Italian,Russian, German
Printing function
After connecting the vehicle, enter the home page, select the "Print"menu, and press the OK button to enter the setting page. This menu has 4 print functions, and you can use the up/down function keys to turn pages.
V500 Operation Instructions

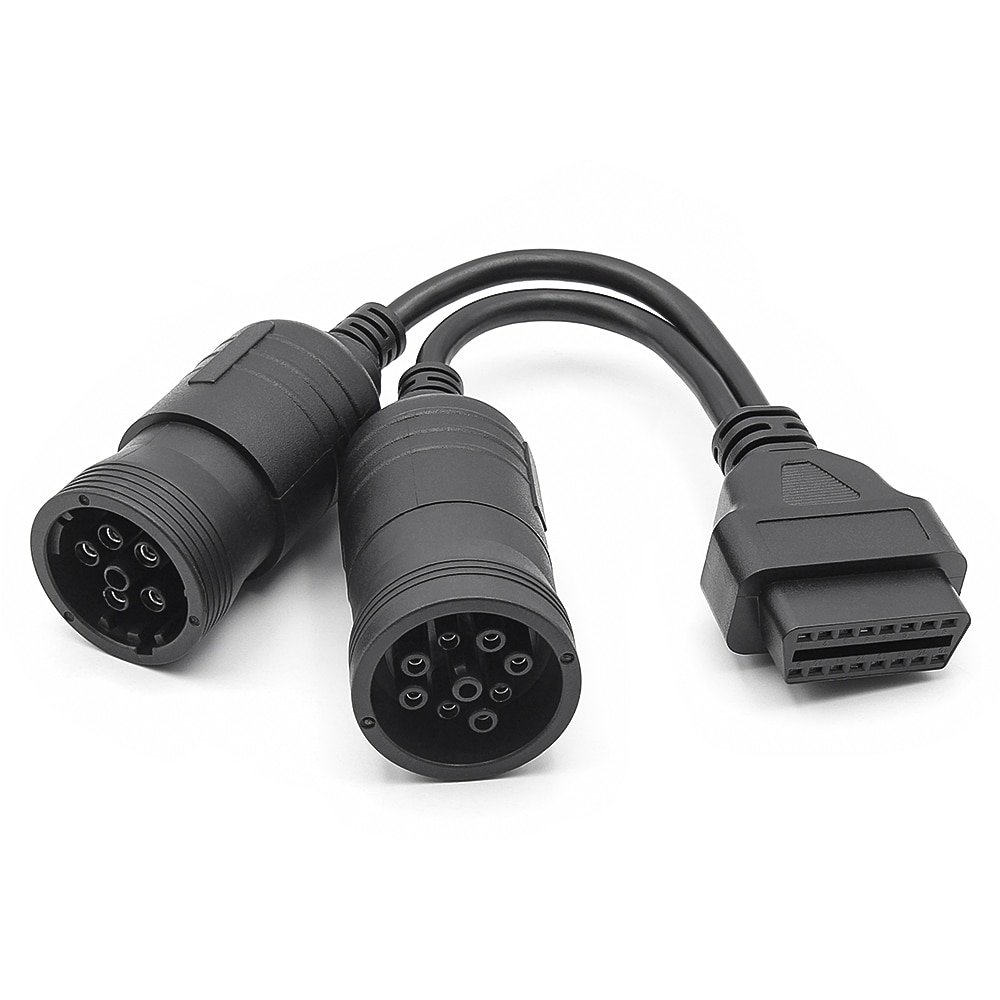

When you need to detect a car, you can directly plug this product into the car's OBD connector to start the test. When you need to detect a diesel car, you need to connect to the matching diesel car OBD adapter cable,which supports 6Pin and 9Pin Diesel vehicle connection, after the transfer is completed, you can plug into the diesel vehicle OBD connection for inspection.
V501 Main functions
1.Support truck SAE J1939/SAE J1708 common protocols.
2.Support truck models to read vehicle information, read, clear fault code information, and read data stream information.
3.Support fault code information query, built-in about nine thousand fault code library information.
4.Support data stream playback function, view/delete fault code, data stream information.
5.Support USB printing function, can print fault code, data stream information.
6.Support seven languages English, French, Spanish, Chinese, Italian,Russian, German.
V502 Main functions
1. Support nine standard protocols of OBD I/EOBD.
2.Support car battery voltage test.
3.Support gasoline models to read, clear vehicle fault codes, read data stream, freeze frame information, check MIL status, read vehicle information, oxygen sensor test, vehicle monitring (mode 6),evaporation system (mode 8) test.
4.Support fault code information query, built-in about 41,000 fault code library information.
5.Support data stream playback function, view/delete fault code, data stream, and freeze frame information.
6.Support USB printing function, which can print fault code, data stream and freeze frame information.
7. Support seven languages English, Chinese, lalian, French, Spanish,German, Russian.
V500/V501/V502 Package List
