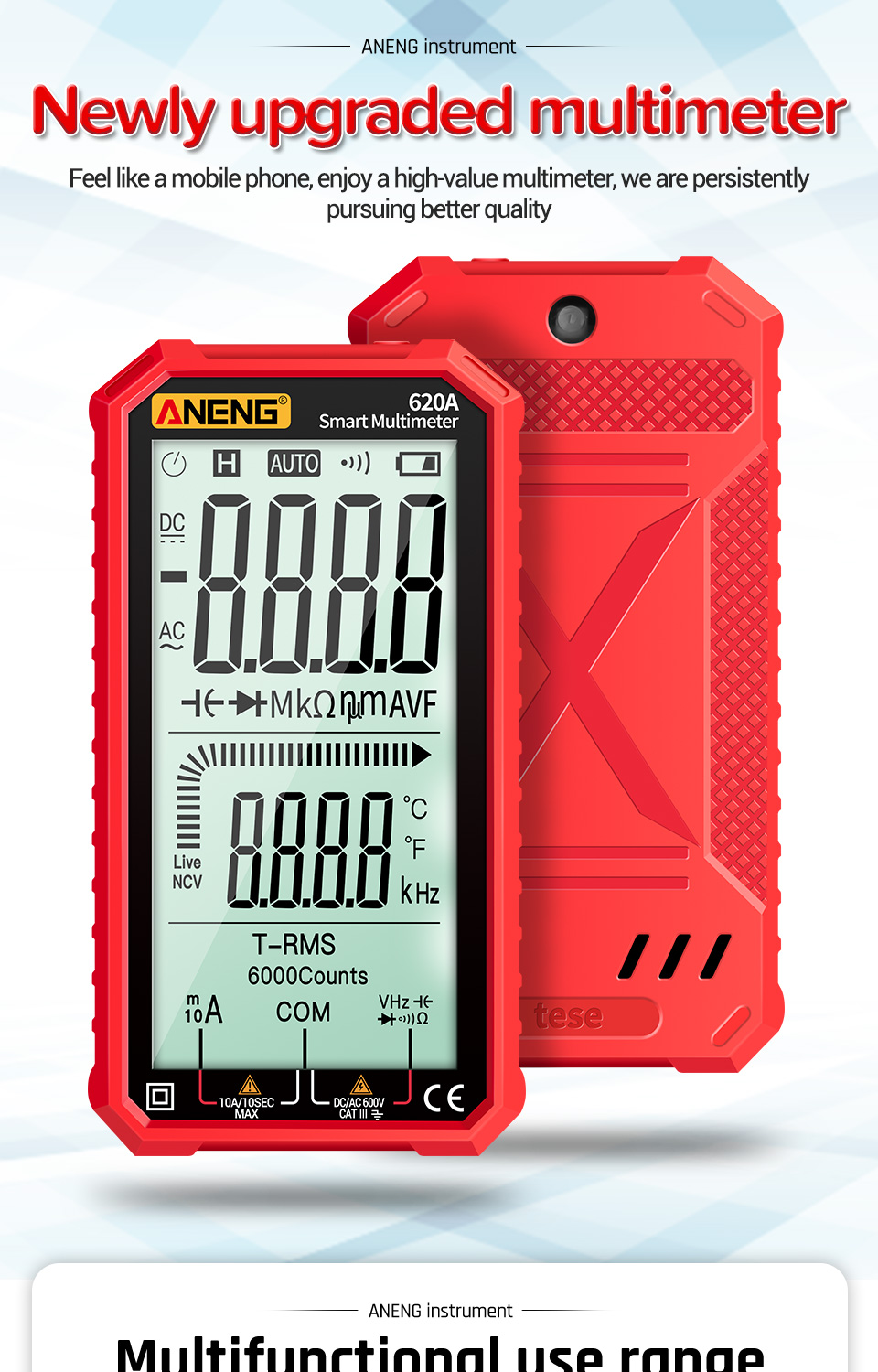

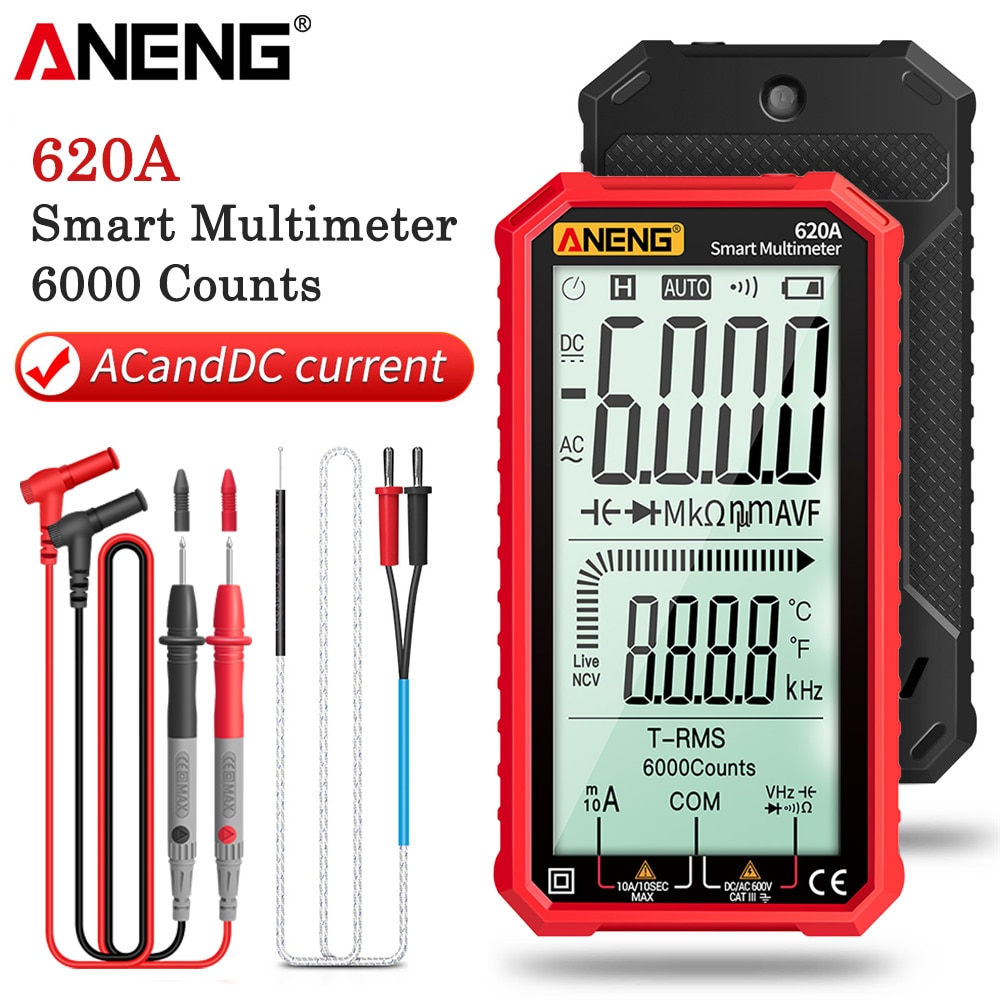

ANENG 620A True RMS digital professional multimeter 6000 Counts Smart AC/DC Current Voltage Tester Analog Bar Auto Range Tools
A.Overview:

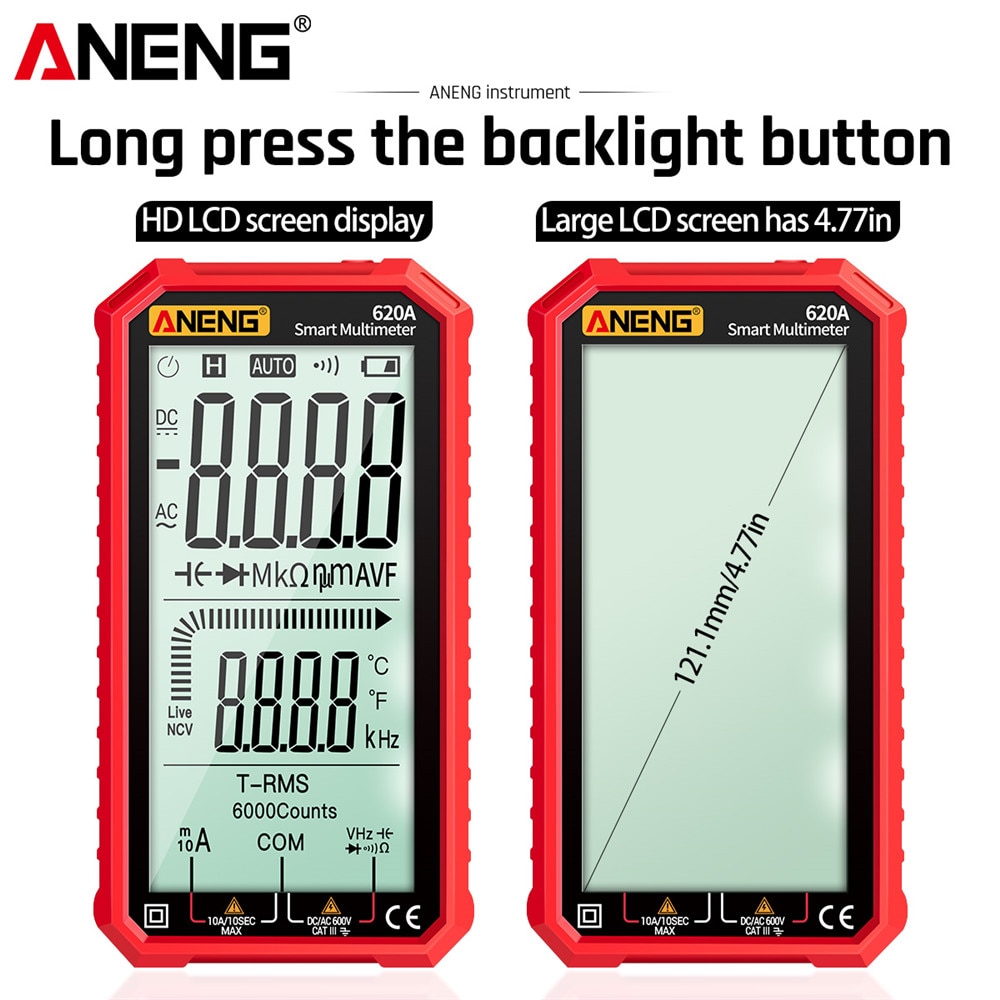

Dispaly: LCD
Max. display value:6000 digit
Automatic shut down time:15 minutes
power supply:2*1.5V AAA Battery (Without)
The instrument specifies one year as a cycle,and shall be re-calibrated under 18℃~28℃,with relative humidity less than 75%.
B.Specification:

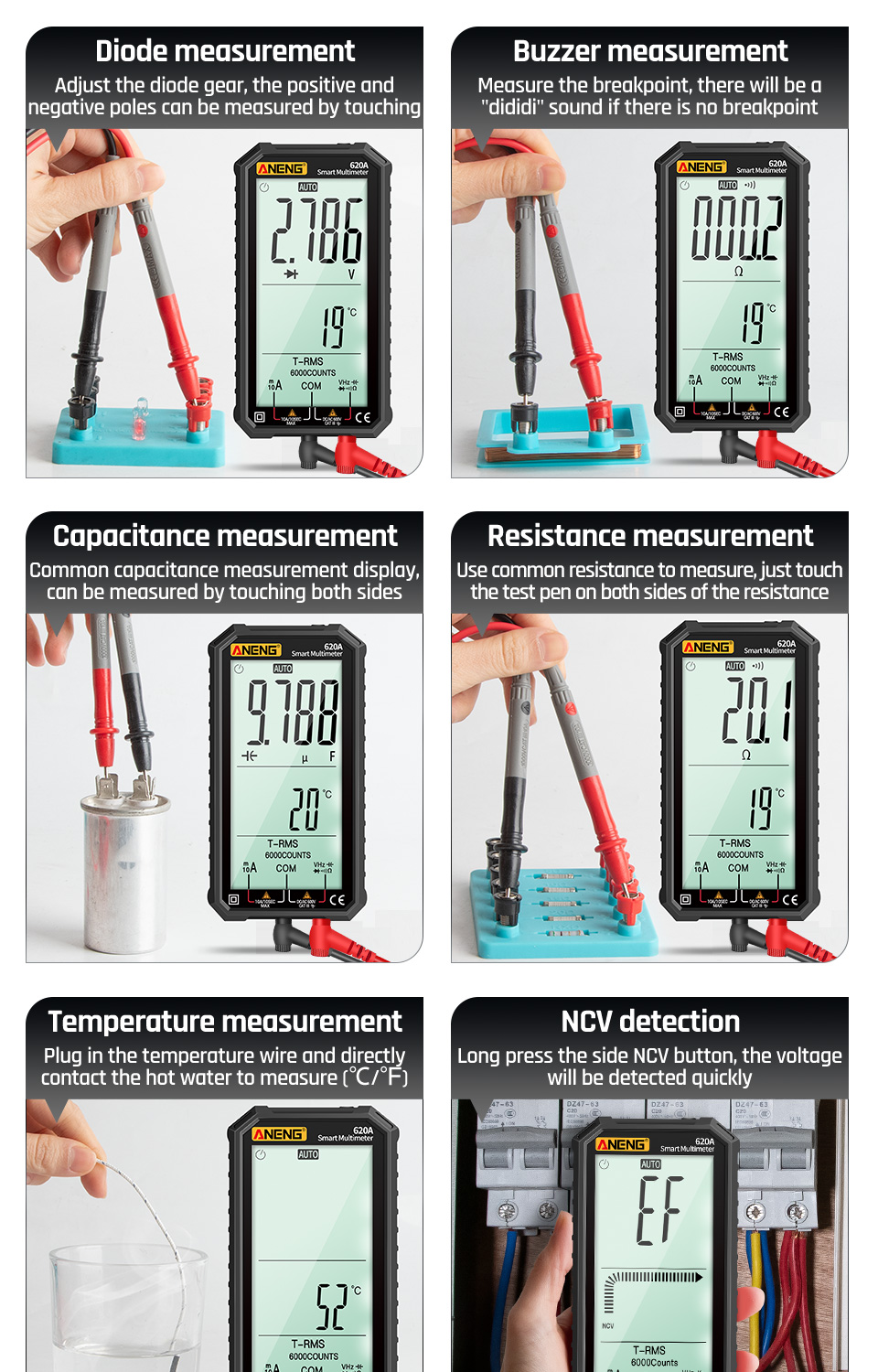

Function | Range | Accuracy |
AC Current | 6000mA/10A | +-(1.0%reading+8 digits) |
DC Current | 6000mA/10A | +-(1.0%reading+5 digits) |
DC Voltage | 6V/60V/600V | +-(0.5%reading+3 digits) |

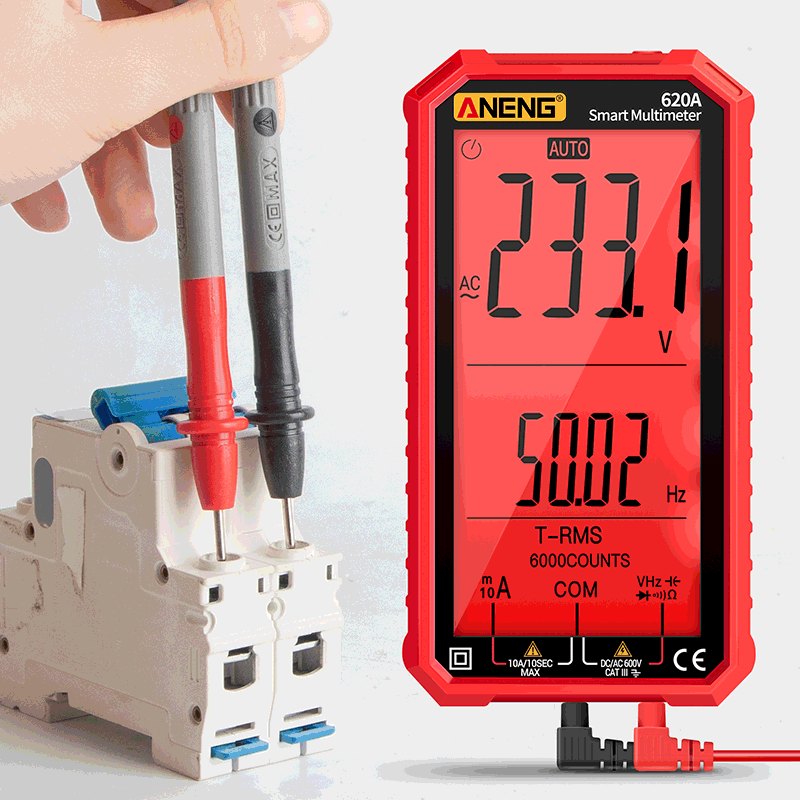

AC Voltage | 6V/60V/600V | +-(0.8%reading+5 digits) |
Line on-off Test | -- | 1Ω |

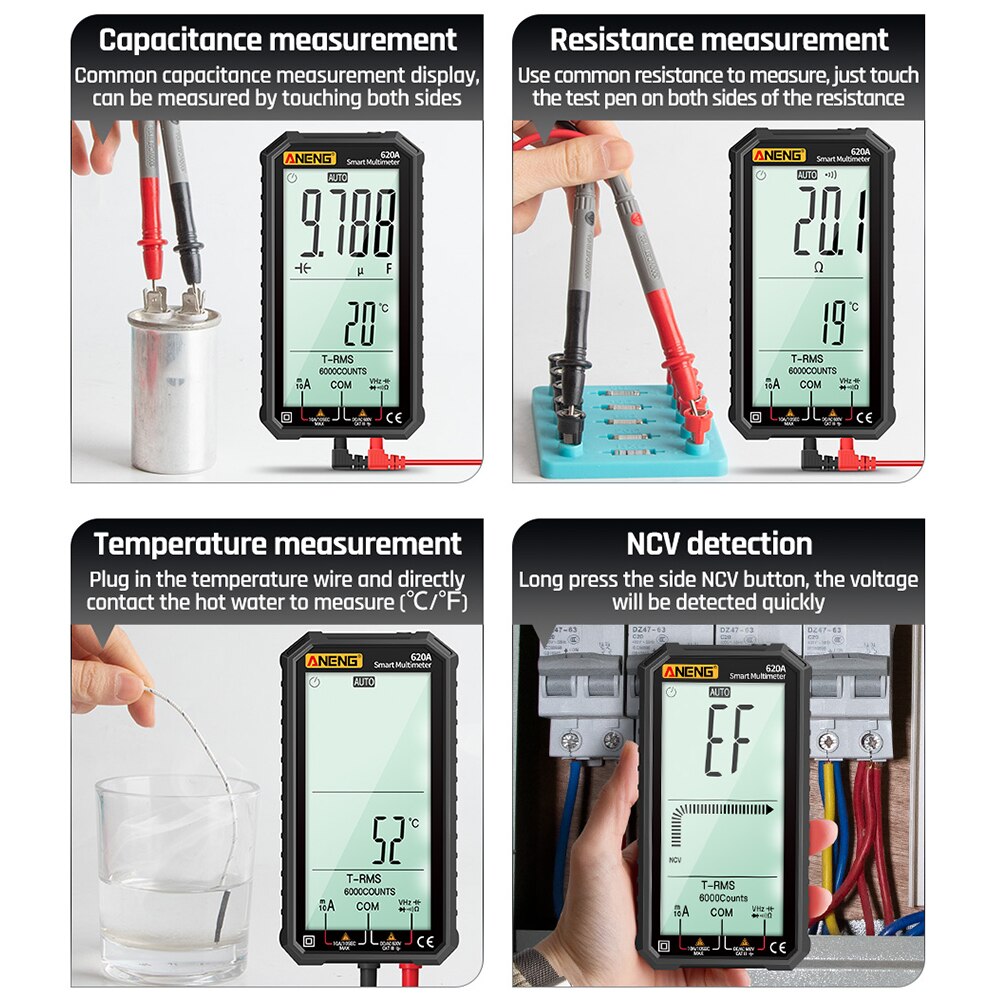

Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | +-(0.8%reading+3 digits) |
Diode Test | -- | 1V |
Capacitor | 6nF | +-(10%reading+40 digits) |
60nF/6uF/60uF/600uF/6mF/60mF | +-(2.5%reading+20 digits) | |
Temperature | -40~1000℃ | +-(1%reading+3℃) |
-40~1832℉ | +-(1%reading+3 ℉ ) | |
Frequency | 100Hz/1000Hz | +-(1.0%reading+5 digits) |
100Hz/1000Hz | +-(1.0%reading+5 digits) |
C.Package Include:
According to your choice
