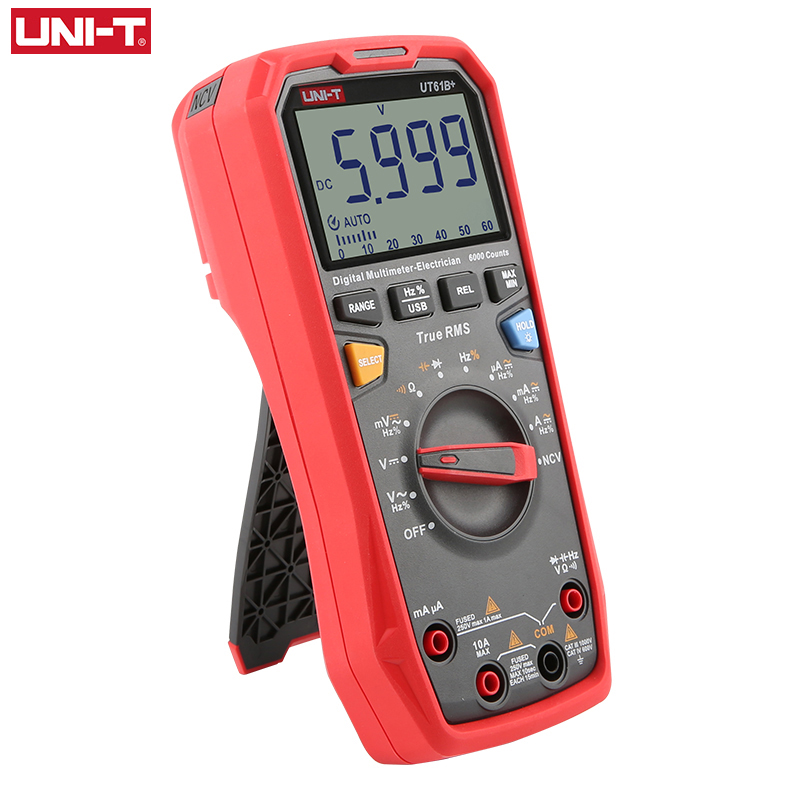

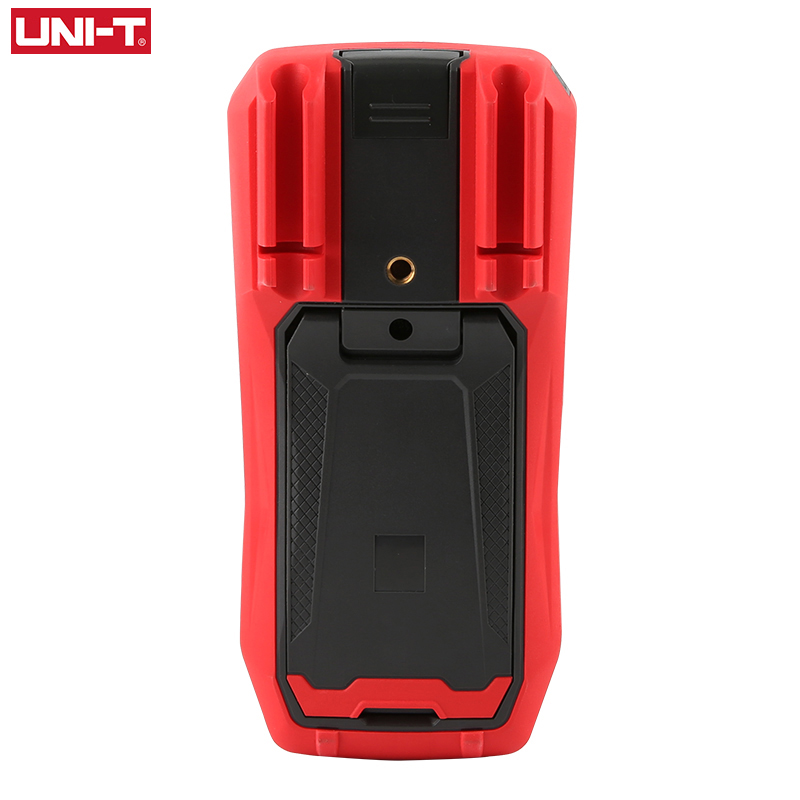

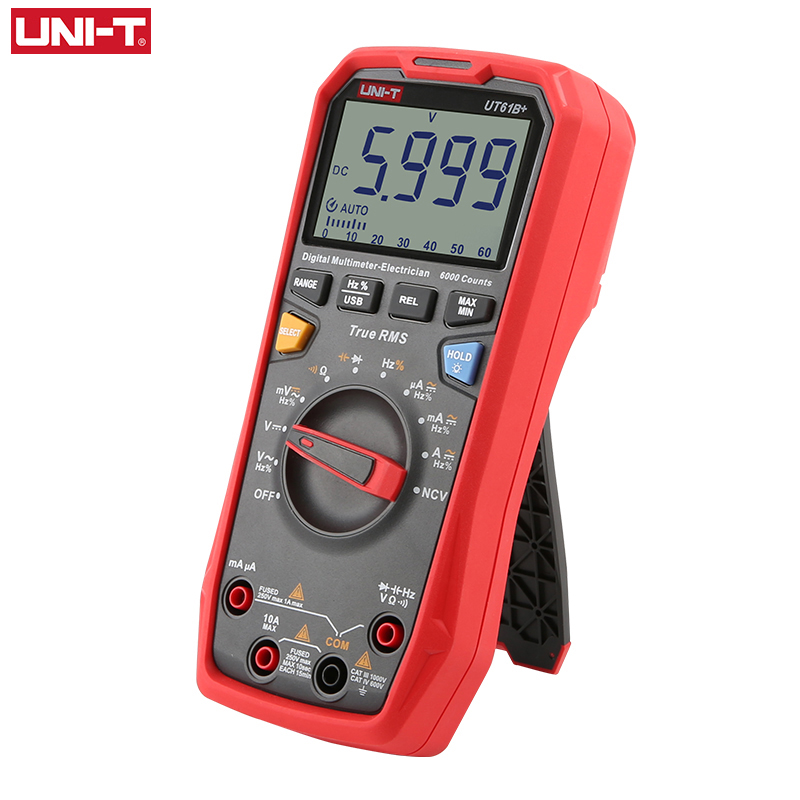

UT61B+ 1000V True RMS Digital Multimeter
UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.
Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
Features:
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.
Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
Features:
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
Specifications
Range
UT61B+
Safety ratings
CAT III 1000V/CAT IV 600V
AC voltage (V)
1000V
±(1%＋3)
DC voltage (V)
1000V
±(0.5%＋3)
AC current (A)
10A
±(1.2%＋5)
DC current (A)
10A
±(1%＋2)
Resistance (Ω)
60MΩ
±(1%＋2)
Capacitance (F)
60mF
±(3%＋5)
Frequency (Hz)
10MHz
±(0.1%＋4)
Duty cycle (%)
0.1%~99.9%
±(2%＋5)
Display count
6000
Bandwidth (Hz)
40Hz~500Hz
Analog bar
31
General Characteristics
Power
1.5V battery (R03) x 4 （Not included)
Product net weight
350g
Product size
190mm x 90mm x 50mm
Standard accessories
Gold plated test leads, USB cable, English manual
Standard individual packing
Gift box, cloth bag
