A.Characteristics:
1-1.Display:liquid srystal display(LCD)
1-2.Max display:6000 counts
1-3 Measure method:double integral A/D conversion
1-4.sampling rate:about 3 times per second
1-5.over range display:the highest position shows"OL"
1-6.Power:AAA 2*1.5V battery(Not included)
B.Technical specification
| Function | Range | Accuracy |

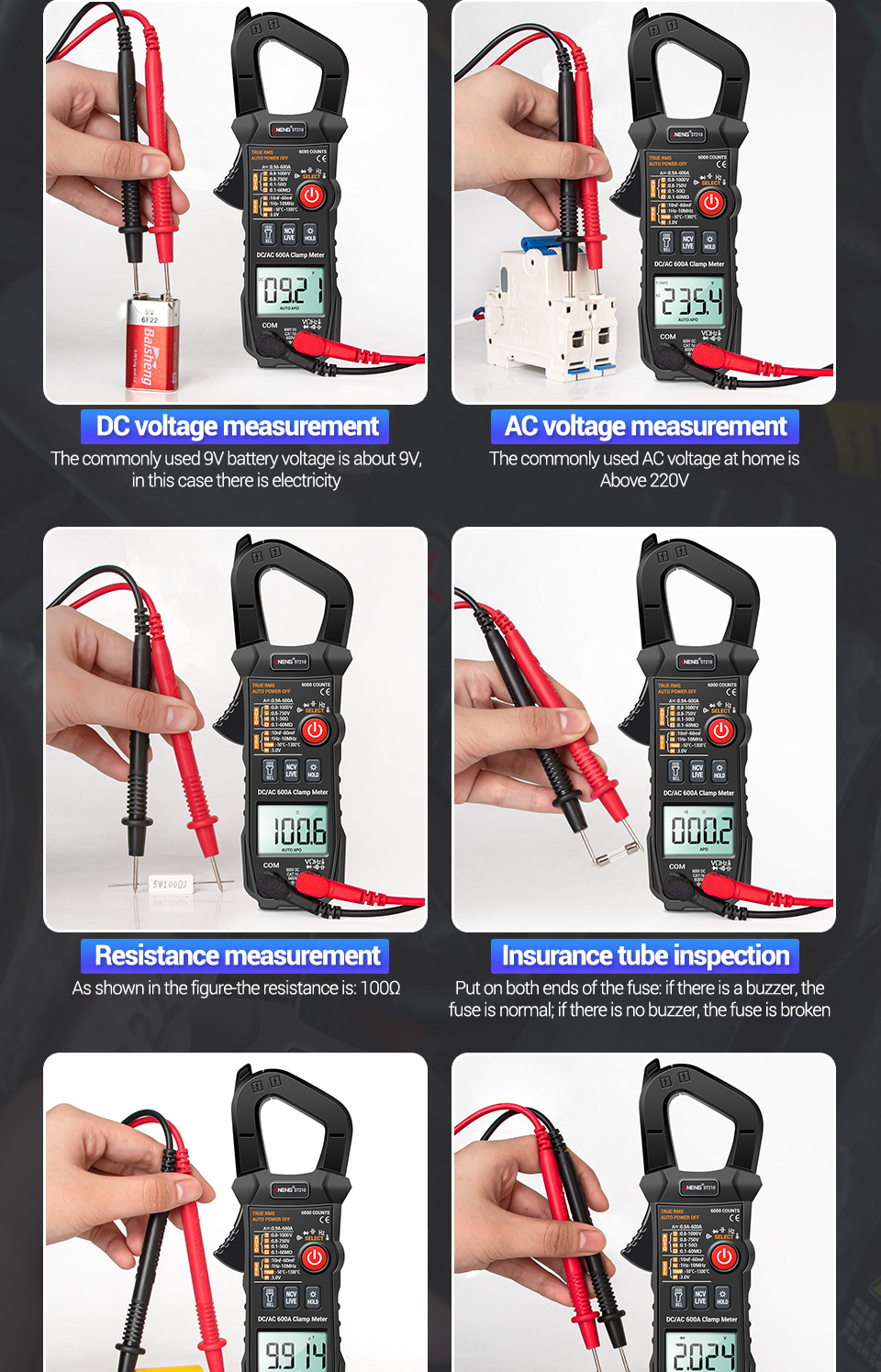

| DCV/ACV | DC/AC6V/60V DC700V | +-(0.5%+3) |
|
| AC500V | +-(0.8%+10) |
| Resistance | 600Ω | +-(0.8%+5) |
|
| 6kΩ/60kΩ/600kΩ | +-(0.8%+3) |
|
| 60MΩ | +-(2.5%+3) |
| Capacitance | 10nF/100nF/1uF/10uF/100uF/1mF/10mF | +-(3.5%+20) |
|
| 60mF | +-(5%+3) |

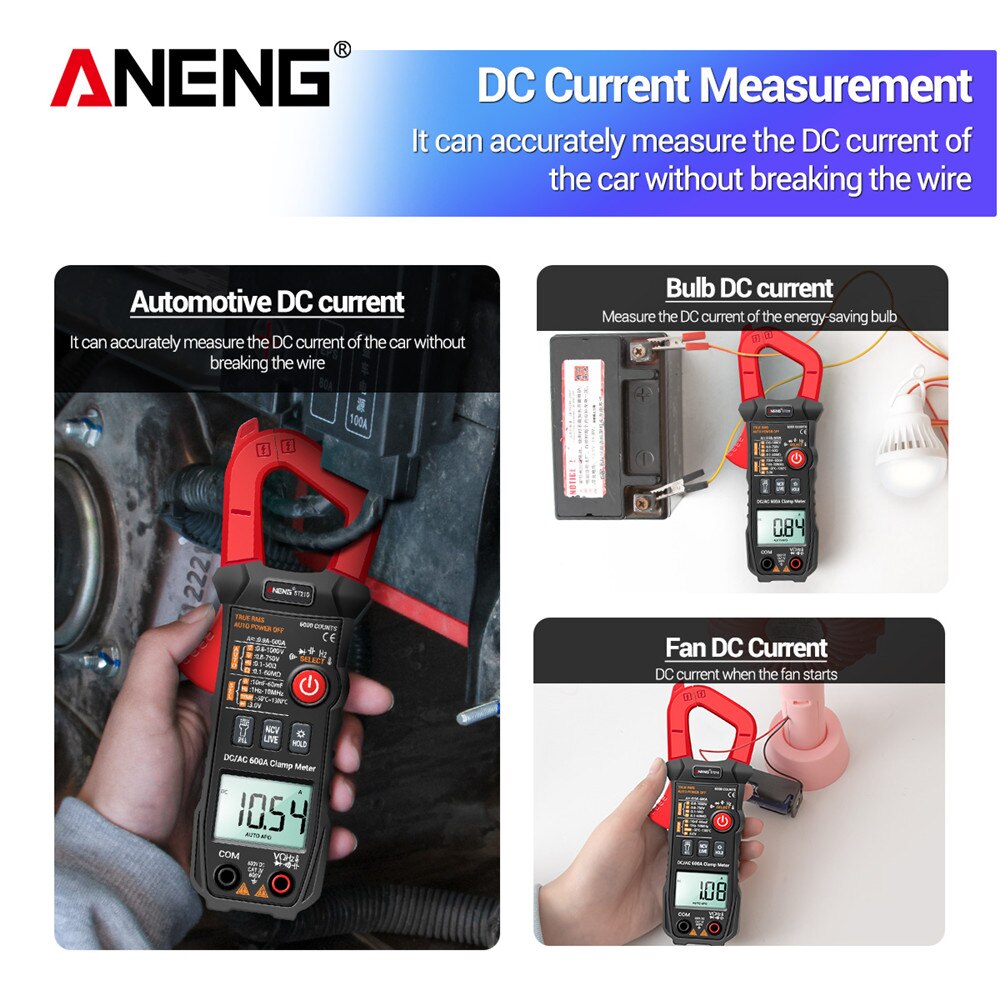

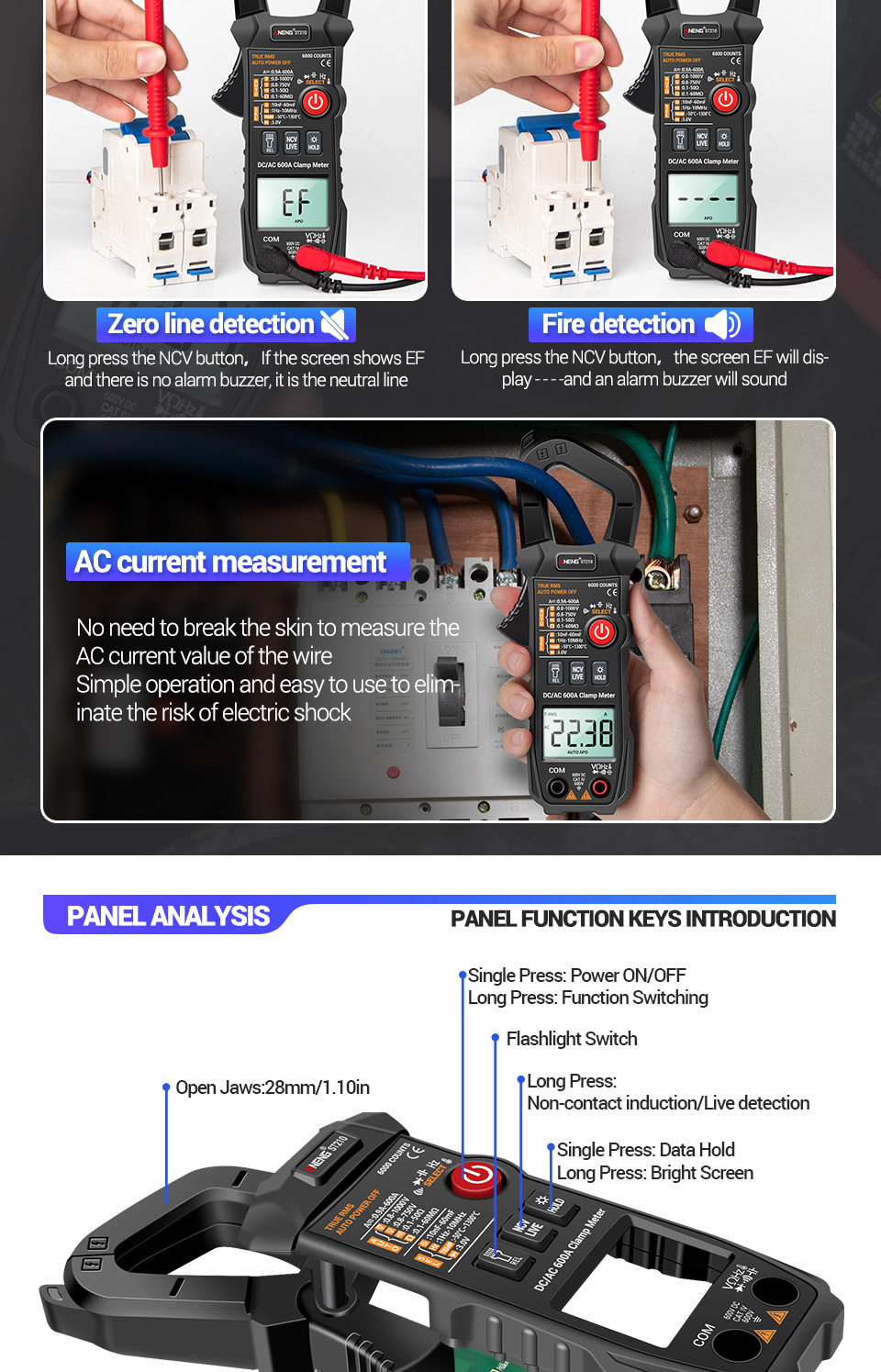

| AC/DC Current | 60A/600A | +-(2.5%+30) |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10Hz | +-(0.1%+3) |
| Temperature | YES |
|
| Fast continuity Test | YES |
|

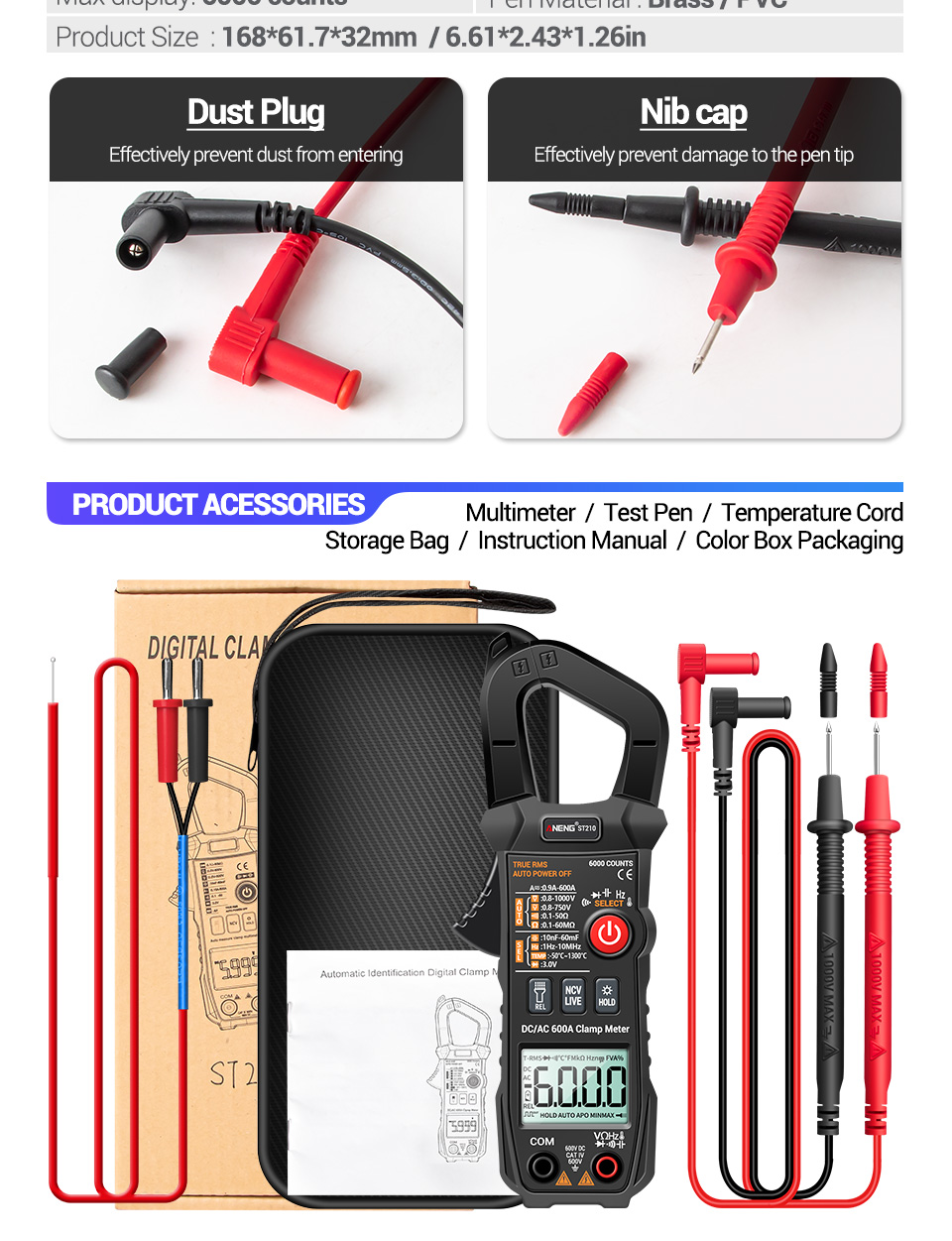

C.Package Include:
1*clamp meter
2*Test lead wire
1*Thermocouple
1*Manual
1*Storage bag
1*Packing box(According to the choice)
ANENG ST208 Digital Ture RMS 6000 Count AC Current Clamp Automatic Voltimetro Multimeter Clamp Tester Meter Electrician Tool
General Characteristics
The 6000 counts is a pocket-sized auto-scaning digital meter that does not require a dial to select a function.The meter will automatically recognize and measure based on the input voltage/current/resistance/current.It has stable performance,high precision,high reliability,clear reading and overload protection.
1. Display: liquid crystal display (LCD);
2. Maximum display: 5999 (5 5/6) bit automatic polarity display;
3. Measurement method: double integral A/D conversion;
4. Sampling rate: about 3 times per second;
5. Over range display: The highest position shows"OL";
Package:
1 x Clamp Ammeter
1 x English User Manual
1 x Test Lead Probe
1 x storage bag
