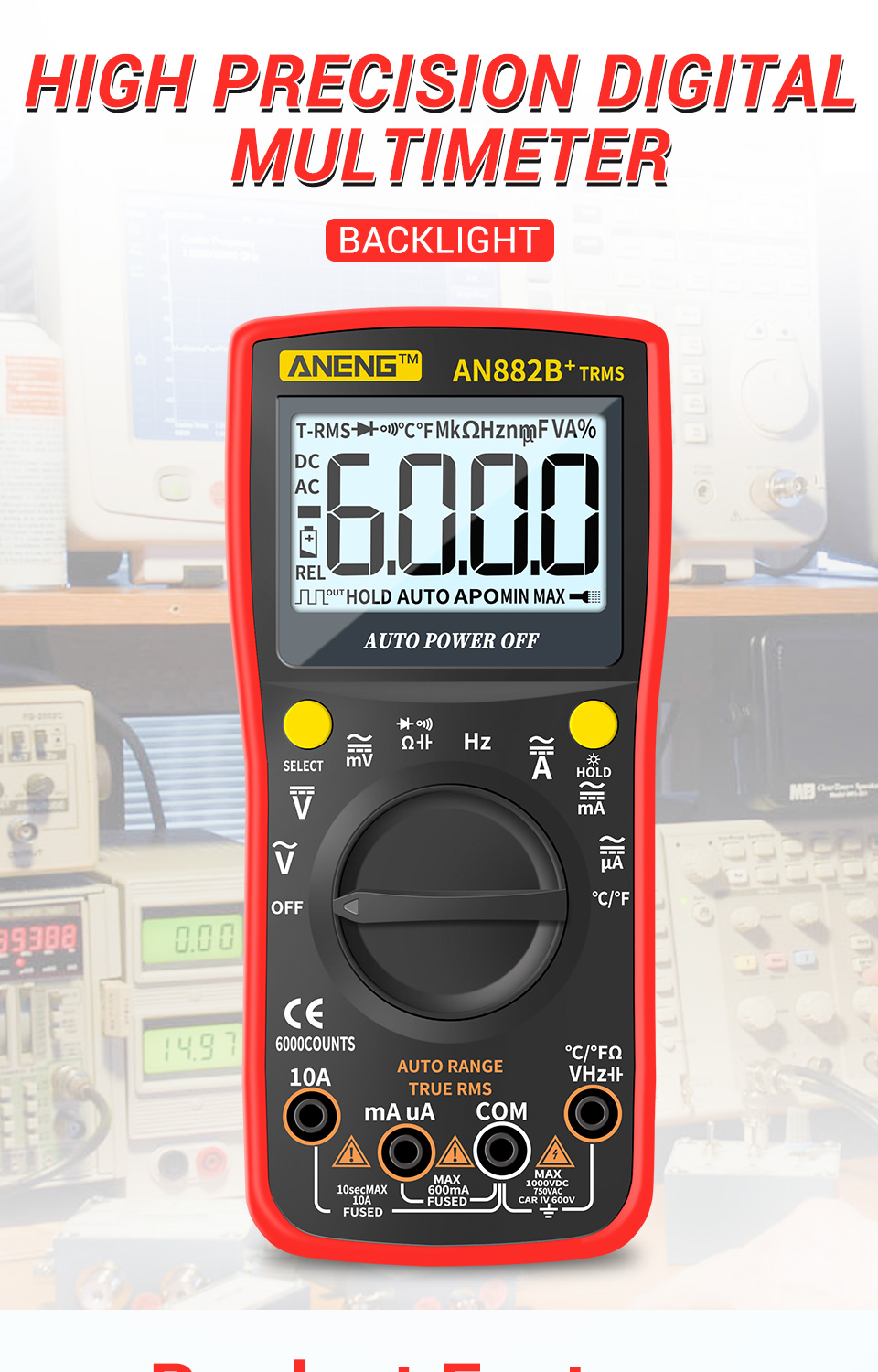

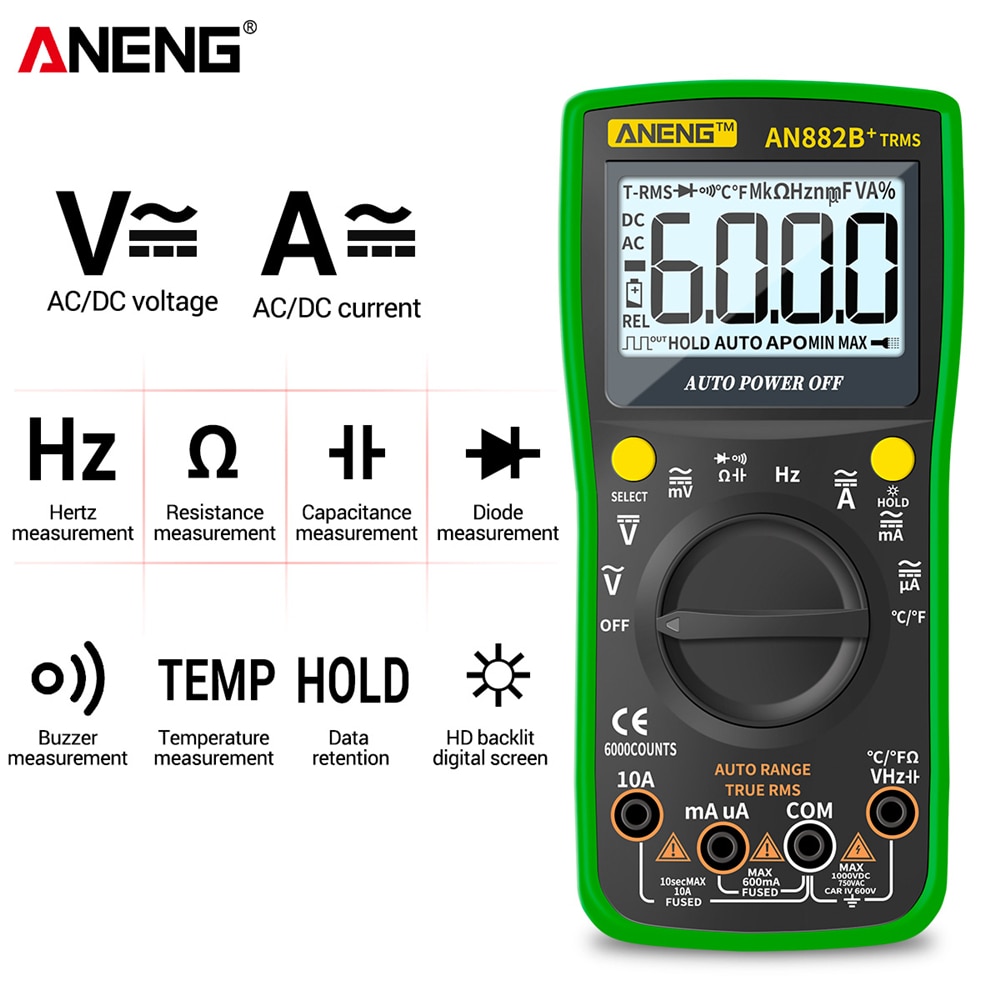

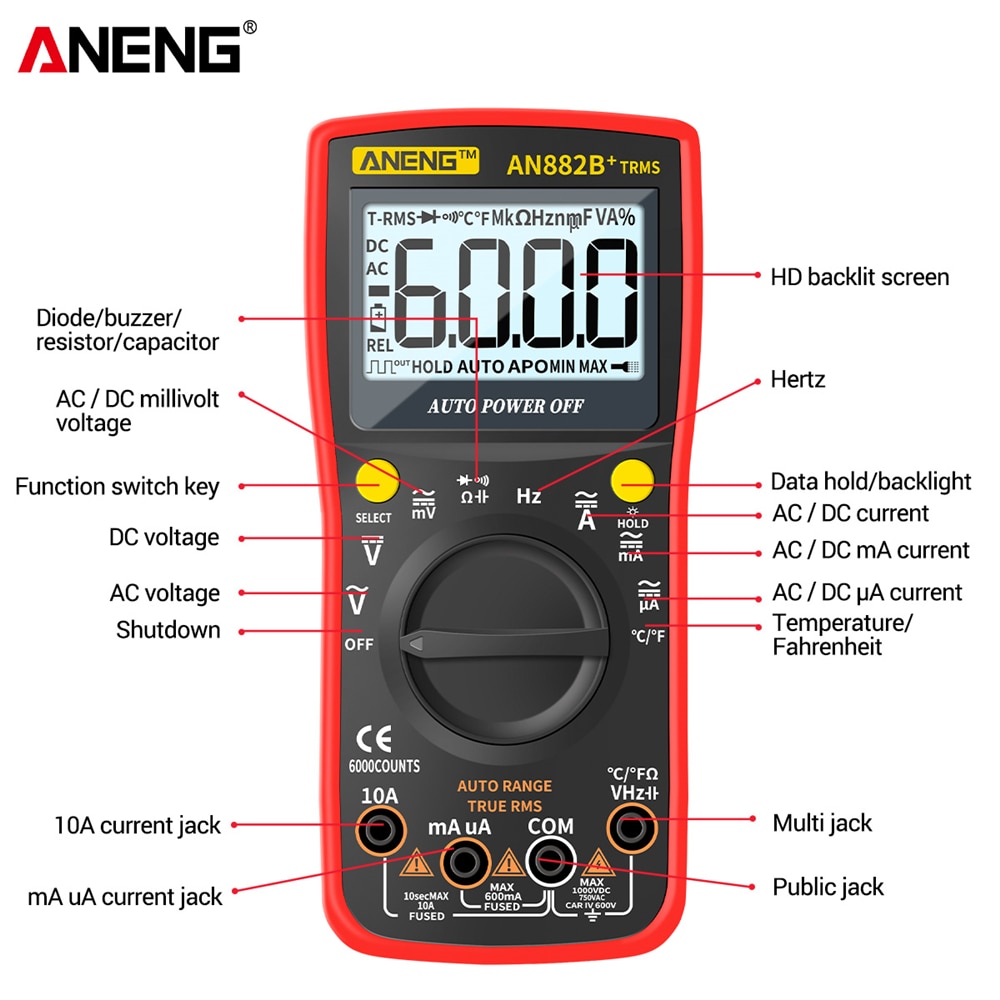

Digital True RMS 6000 Count Professional Multimeter
A.Technical characteristics:

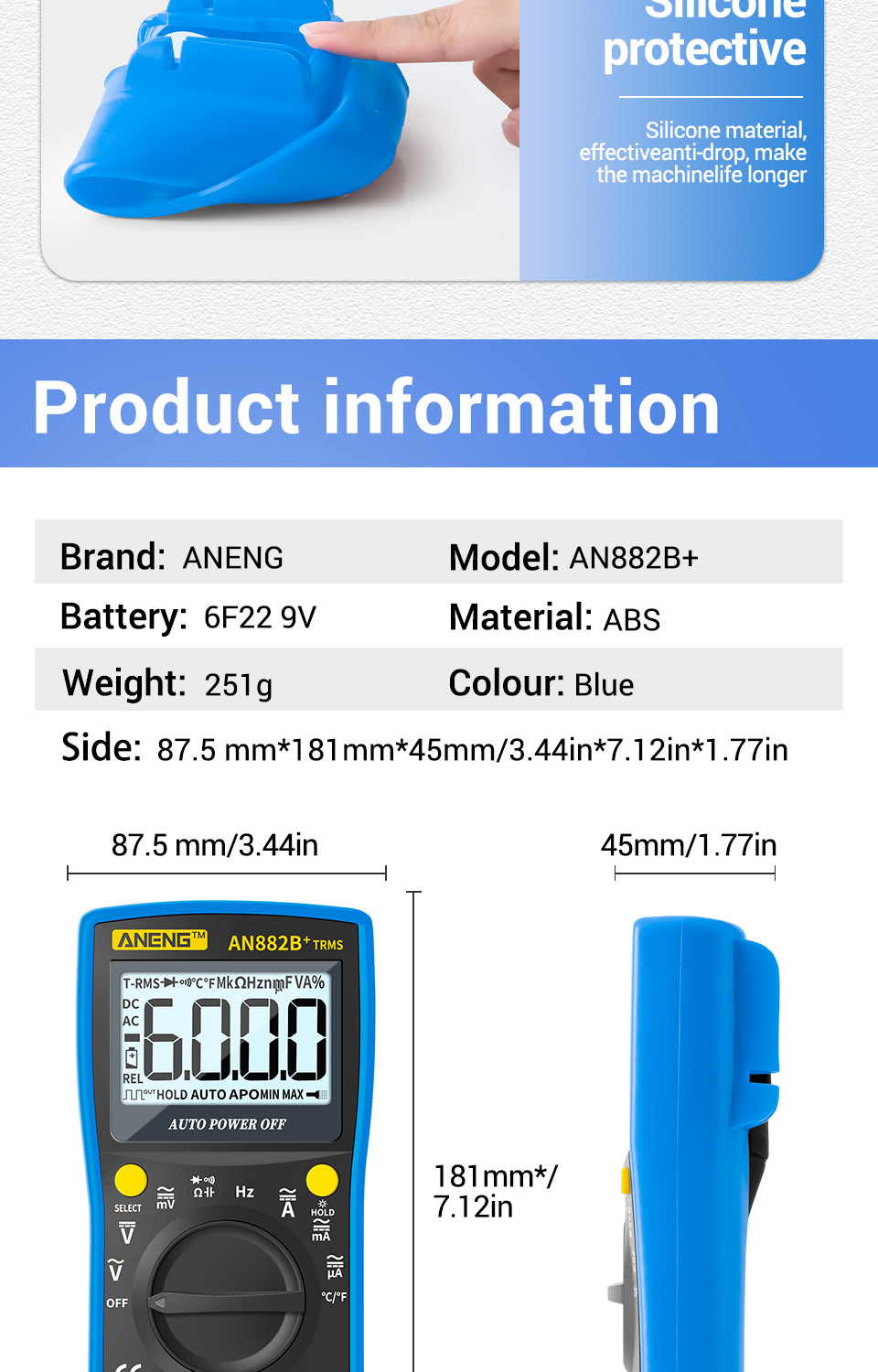

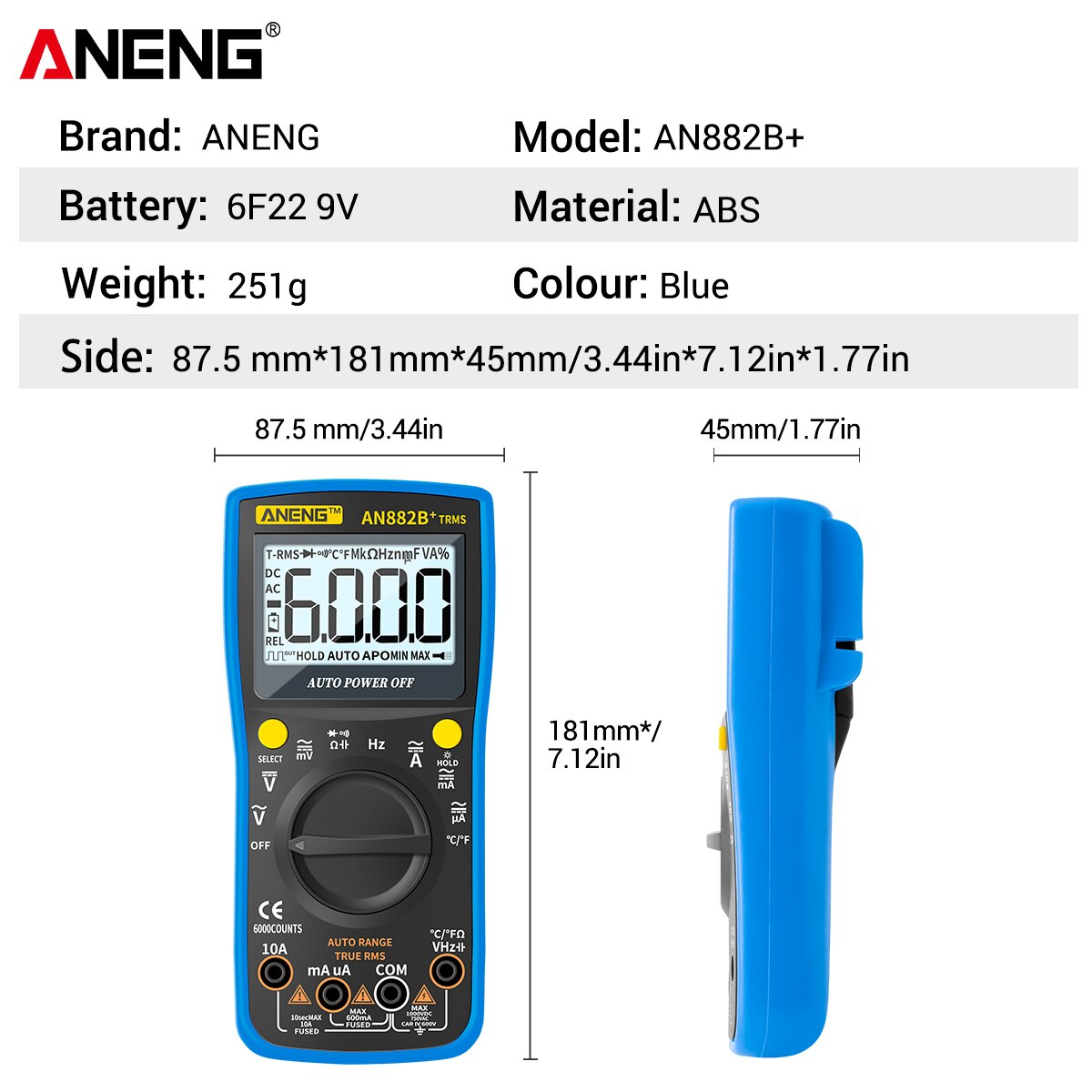

Brand | ANENG | Model | AN882B+ |
Symbol Function | 6000 Counts | Backlight Display | Yes |
Auto Power Off | Yes | Unit Symbol Display | Yes |
Resistor/Diode/On-off | Yes | True RMS Measurement | Yes |
AC/DC Voltage | Yes | AC/DC Current | Yes |
Capacitance | Yes | Frequency | Yes |
Temperature | Yes | Color | Blue/Green/Red |
B.Electrical Specification:
Function | Range | Accuracy |
DC Voltage(DCV) | 600mV/6V/60V//600V | (0.5%+3) |
| 1000V | (0.8%+10) |

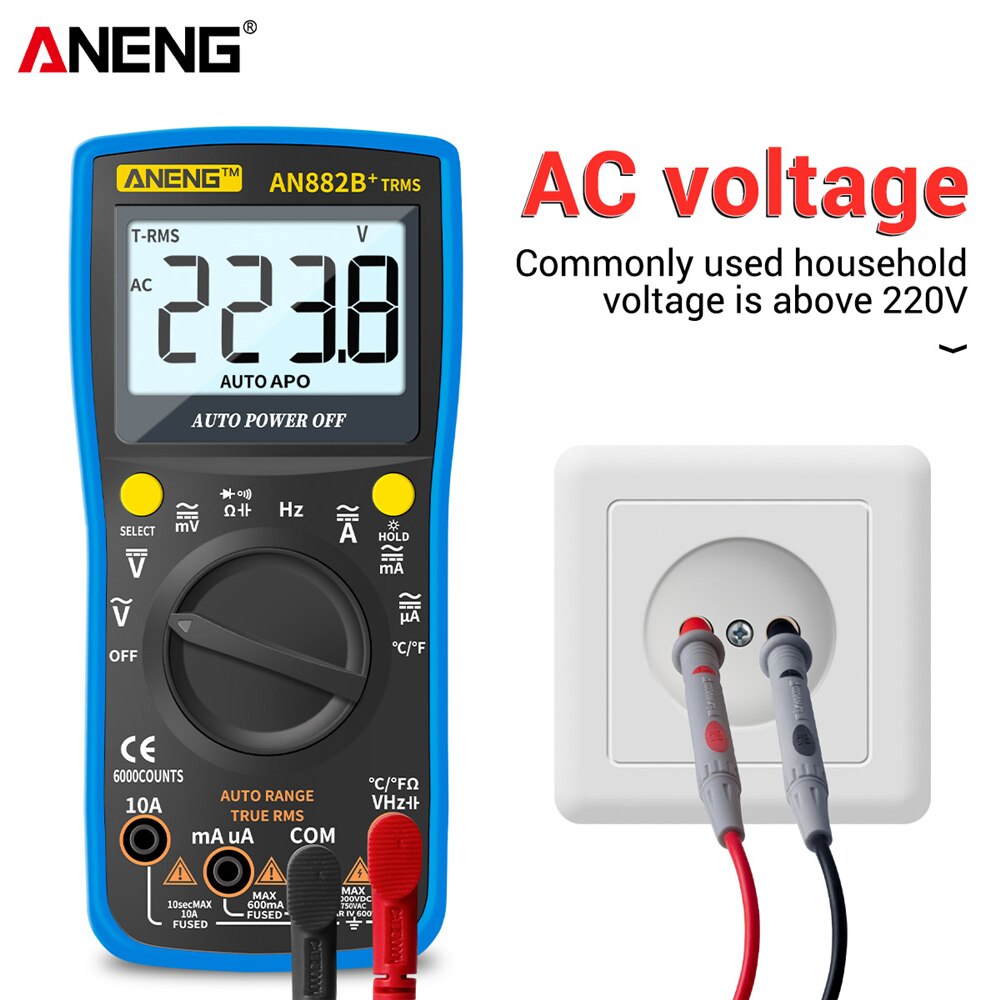

AC Voltage(ACV) | 600mV/6V/60V//600V | (0.8%+5) |
| 750V | (1.2%+10) |
DC Current | 600uA/6000uA | (0.8%+10) |
| 60mA/600mA/10A | (2.0%+30) |
AC Current | 600UA/6000UA | (0.8%+10) |
| 60mA/600mA/10A | (2.0%+30) |
Resistance | 600Ω | (0.8%+5) |
| 6KΩ/60KΩ/600KΩ/6MΩ | (0.8%+3) |
| 60MΩ | (2.0%+25) |
Capacitance | 60nF/600nF/6uF/60uF | (3.5%+20) |
| 600uF/6mF | (5.0%+10) |

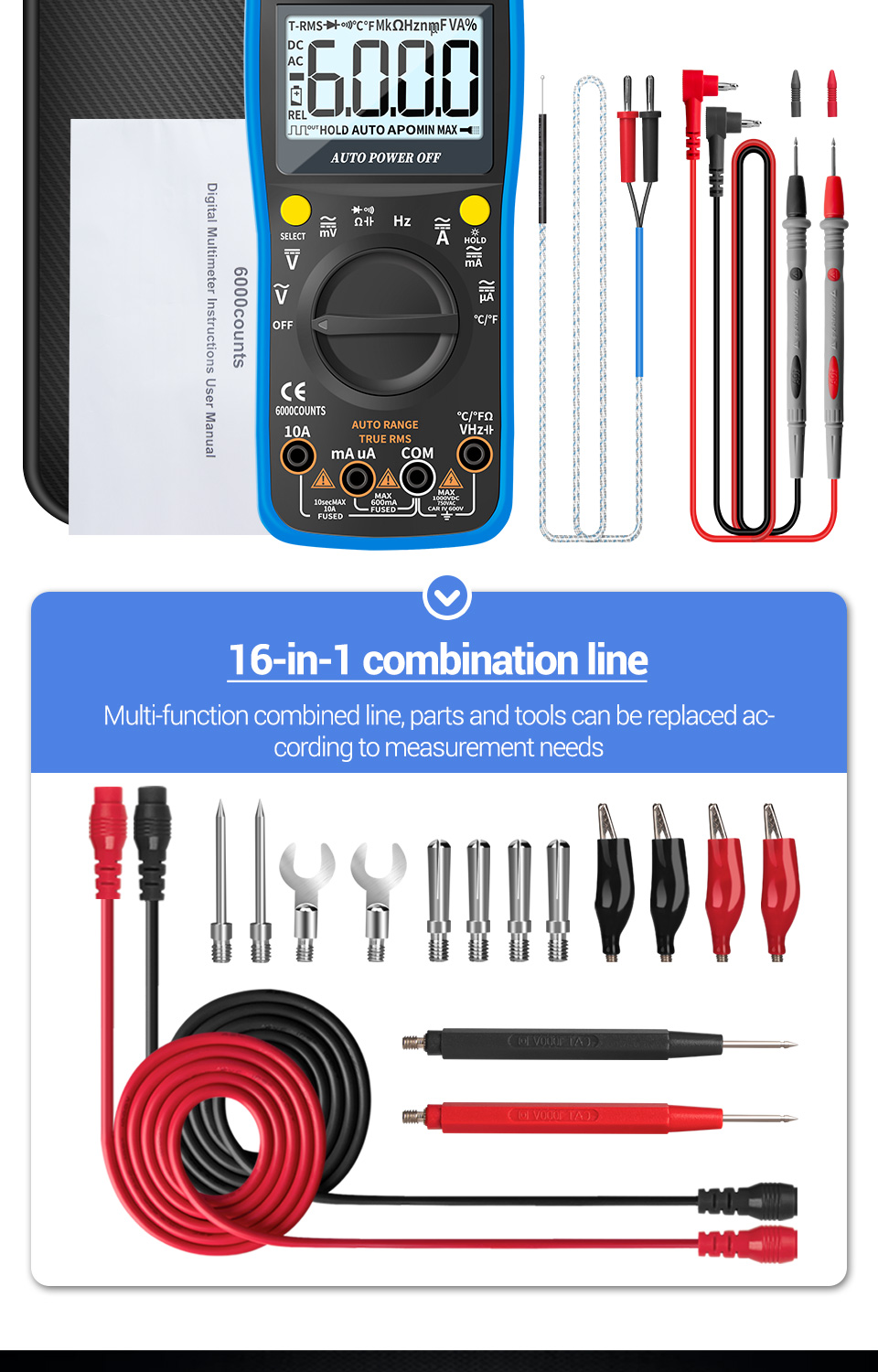

C.Package Include:

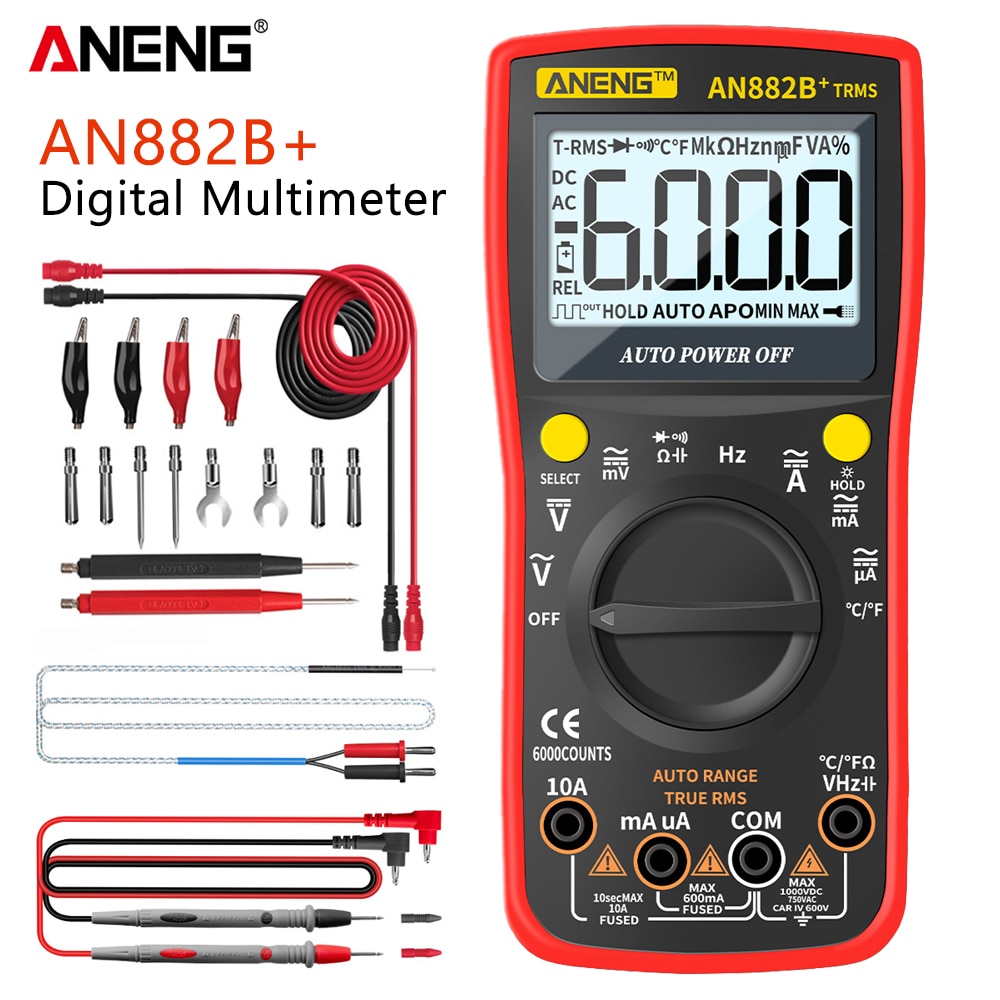

1 * ANENG AN882b+ Digital Multimeter

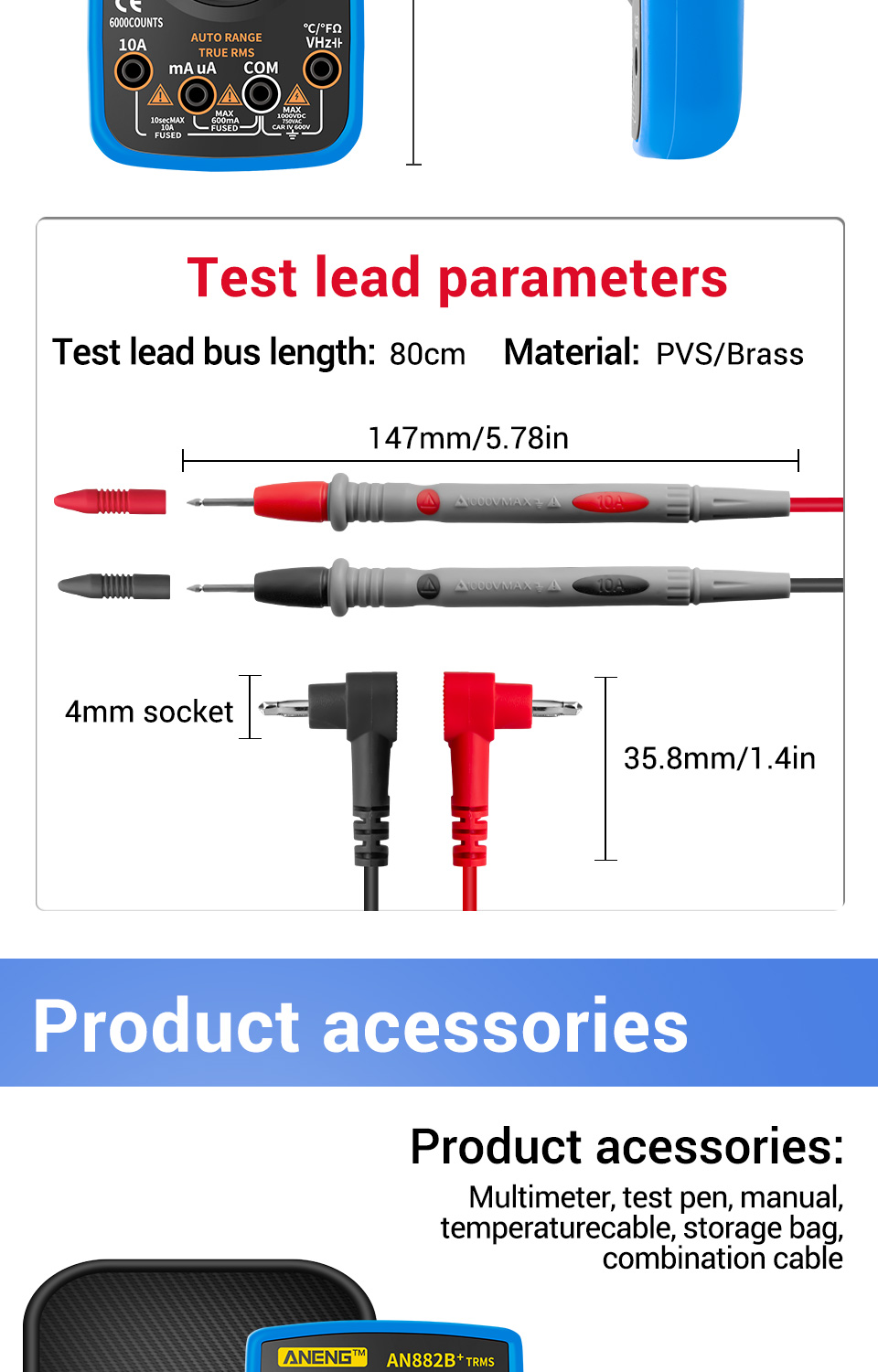

1 * Test pen
1 * Temperaturecable
1 * Manual
1 * Storage bag(According to the choice)
1 * combination cable(According to the choice)
