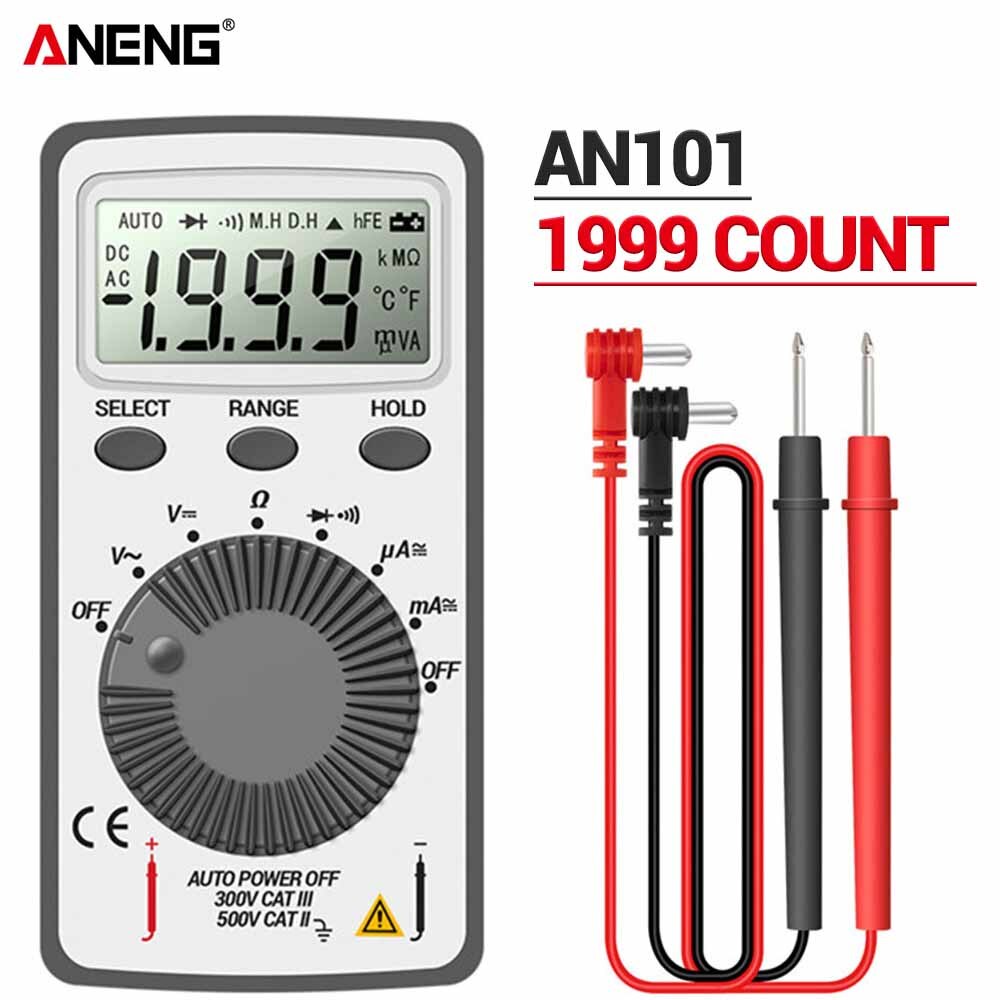

Display: LCD, 1999 counts updates 2/sec
-
Polarity Indication: "-" displayed automatically
-
Over-range Indication: "OL" displayed
-
Range select: auto or manual
-
Battery Type: 3V x 2,2032 size (not included)
-
Operation Temperature: 0℃ to 40℃, less than 80%RH
-
Storage Temperature: -10℃ to 50℃, less than 85%RH
DC Voltage (Auto ranging):
-
Range, Resolution & Accuracy
-
200mV, 0.1mV, ±(0.8% of rdg + 5dgts)
-
2V, 1mV, ±(0.5% of rdg + 2dgts)
-
20V, 10mV
-
200V, 100mV
-
600V, 1V, ±(1.0% of rdg + 5dgts)
-
Input Impedance: 10MΩ
-
Overload Protection: 600V DC/AC rms
-
Max. Input Voltage: 600V DC
AC Voltage (Auto ranging):
-
Range, Resolution & Accuracy
-
2V, 1mV, ±(1.2% of rdg + 3dgts)
-
20V, 10mV
-
200V, 100mV
-
600V, 1V, ±(1.2% of rdg + 8dgts)
-
Input Impedance: 10MΩ
-
Frequency Range: 40Hz ~ 400Hz
-
Overload Protection: 600V DC/AC rms
-
Response: Average, calibrated in rms of sine wave
-
Max. Input voltage: 600V AC rms
DC Current:
-
Range, Resolution & Accuracy
-
200µA, 0.1µA, ±(0.8% of rdg + 5dgts)
-
2000µA, 1µA
-
20mA, 10µA
-
200mA, 100µA
-
Overload Protection: F0.5A/600V fuse
-
Max. Input Current: 500mA
-
Voltage Drop: 200µA and 20mA ranges: 20mV
-
2000µA and 200mA ranges: 200mV
AC Current:
-
Range, Resolution & Accuracy
-
200µA, 0.1µA, ±(1.0% of rdg + 5dgts)
-
2000µA, 1µA
-
20mA, 10µA
-
200mA, 100µA
-
Overload Protection: F0.5A/600V fuse
-
Max. Input Current: 500mA
-
Voltage Drop: 200µA and 20mA ranges: 20mV
-
2000µA and 200mA ranges: 200mV
-
Frequency Range: 40Hz ~ 400Hz
-
Response: Average, calibrated in rms of sine wave
Package included:
-

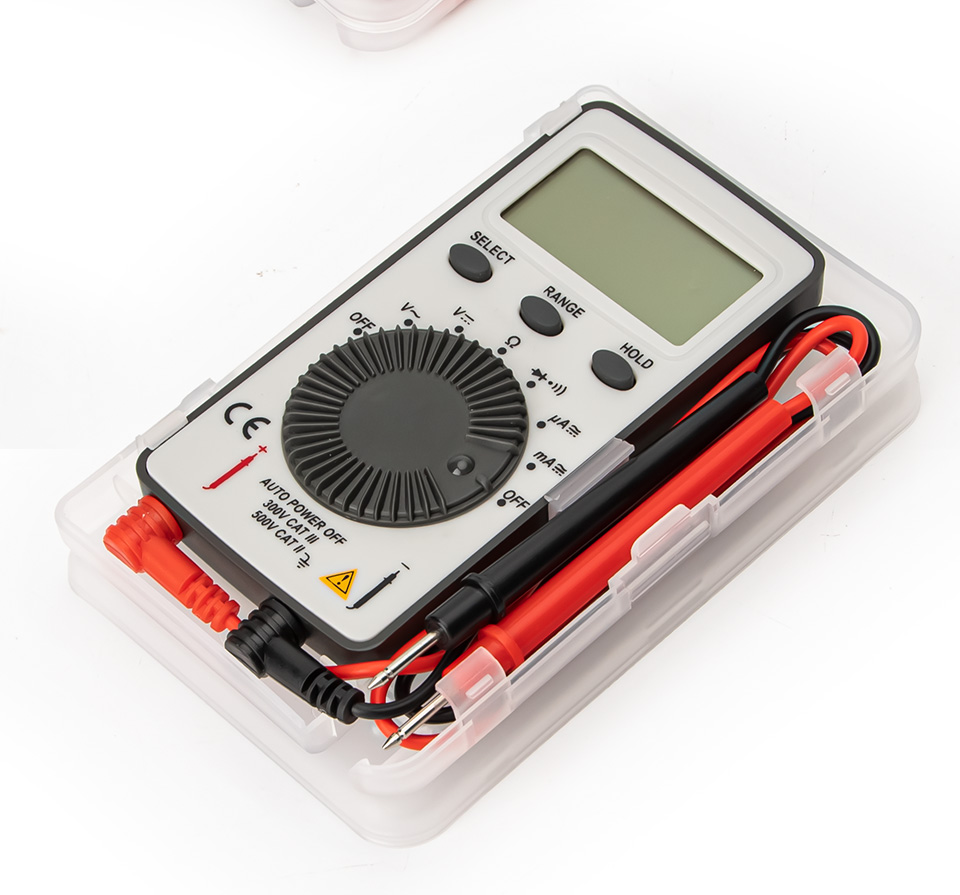

1 x Digital Multimeter (battery is not included)
-
2 x Test Leads
Note:
-
Please allow 0-1cm errors due to manual measurement.
-
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
