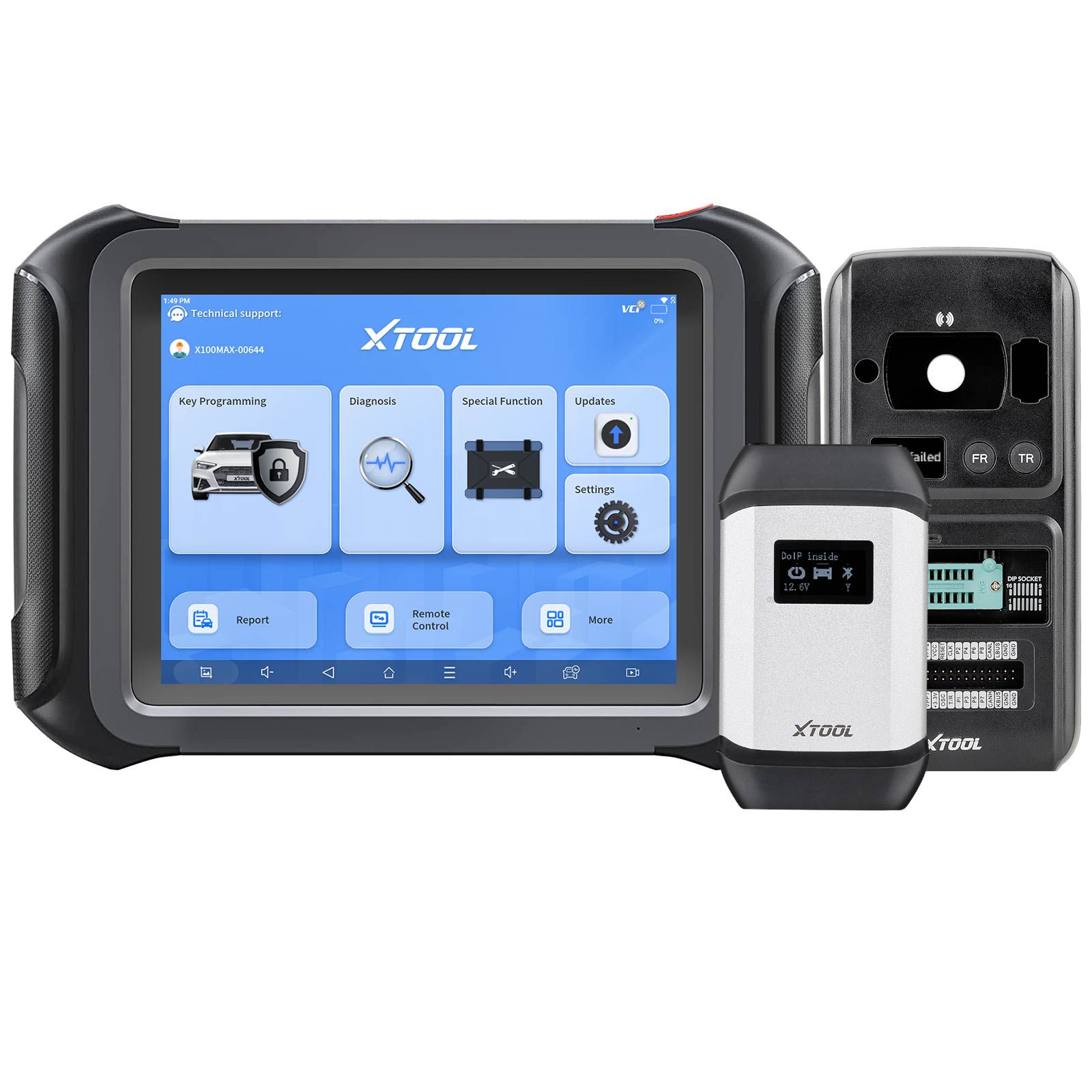

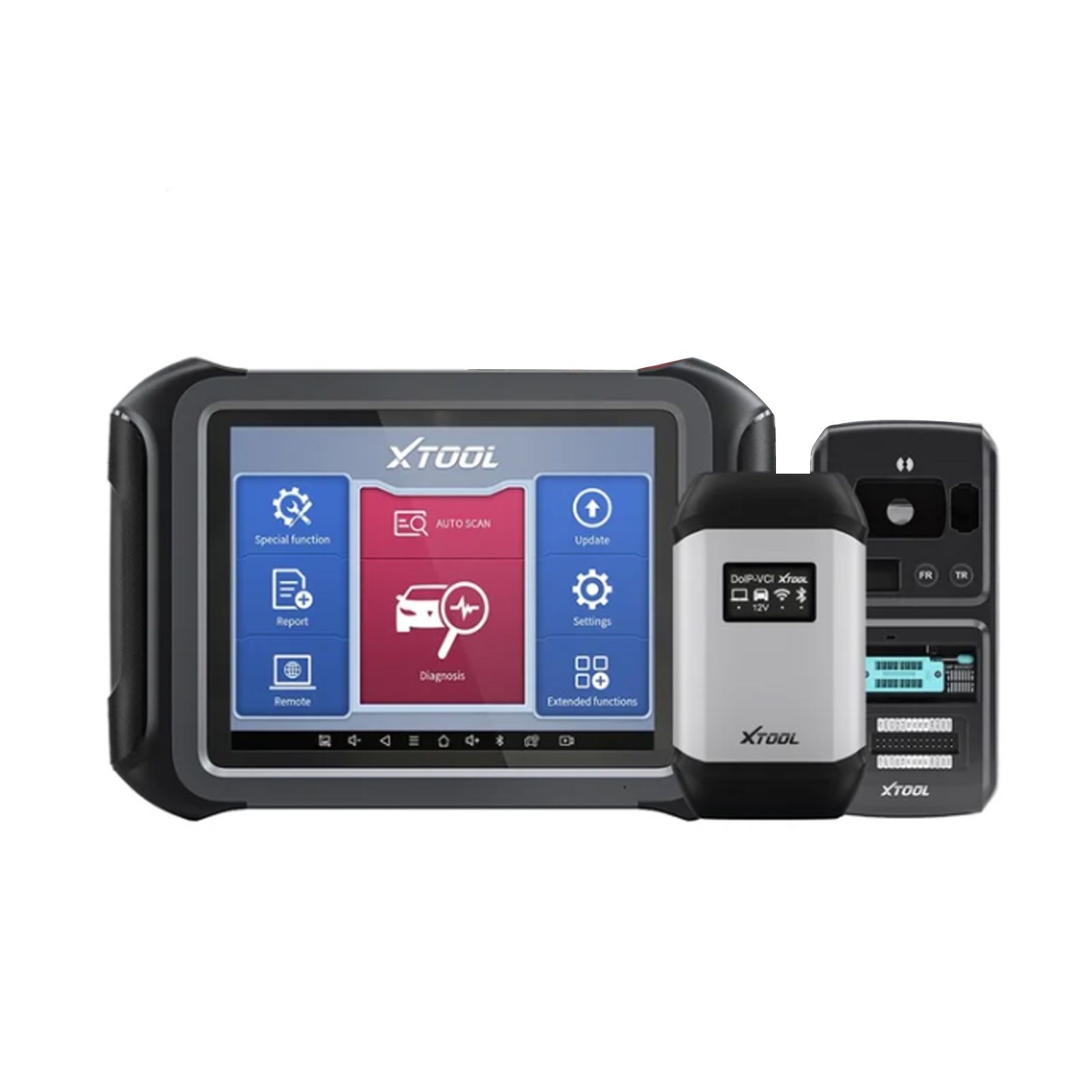

XTOOL X100 MAX Auto Key Programmer with KC501 – IMMO Elite Diagnostic Tool

Top Reasons to Choose the XTOOL X100 MAX

• Includes KC501 for comprehensive IMMO and Key Programming functions
• Dealer-level full system diagnostics
• 42+ maintenance services and full special functions
• Bi-directional control for active component testing
• Refresh hidden vehicle functions
• Step-by-step guided functions
• Supports CAN FD protocols
• Multi-language support: English, German, French, Spanish, Finnish, Italian, Japanese, Portuguese, Russian, Korean, Polish, Arabic (contact us with your serial number to change language)
• Two years of free software updates
• Bluetooth and wired USB Type B connectivity
• AutoScan and AutoVIN for fast vehicle identification

XTOOL X100 MAX Key Features and Functions

Advanced IMMO & Key Programming

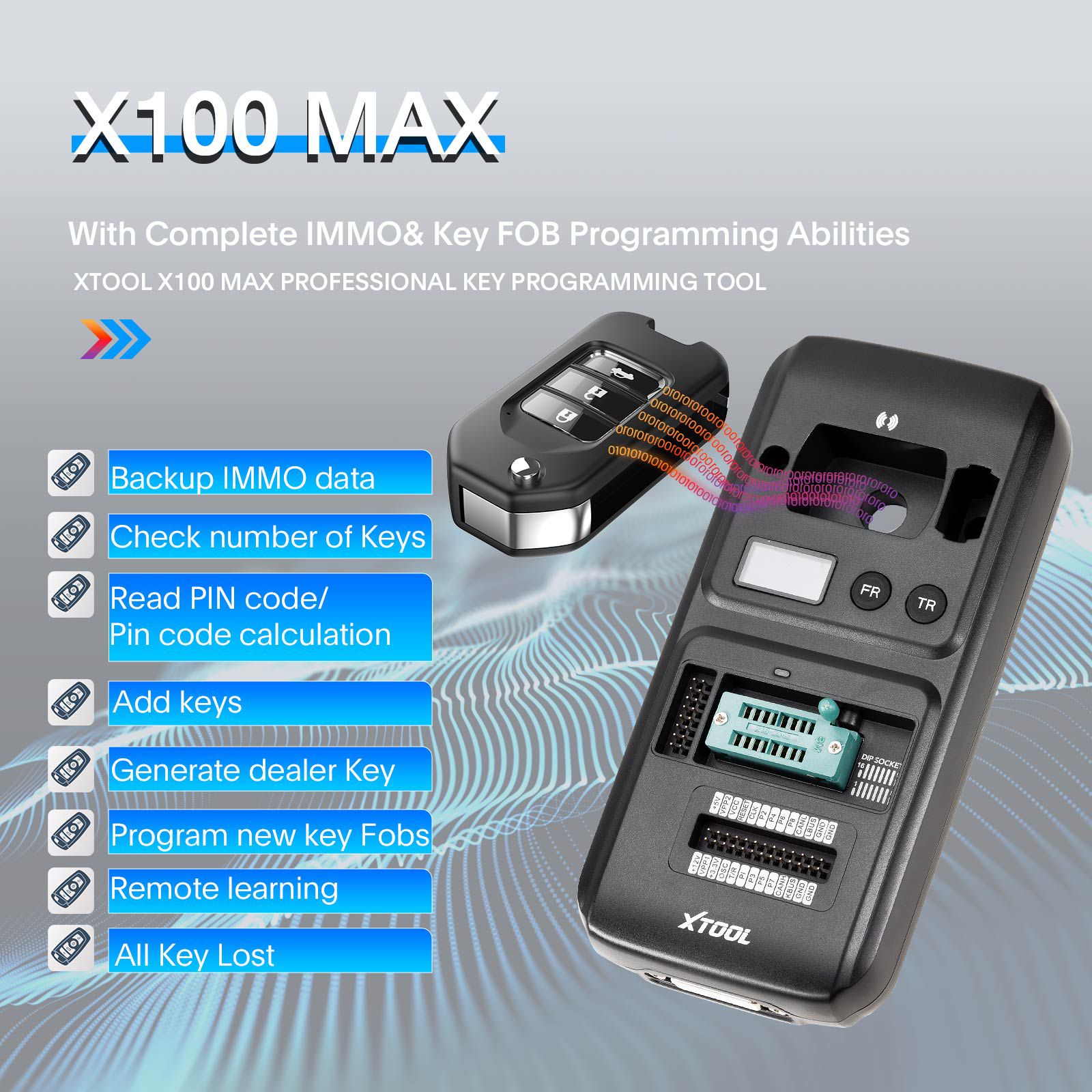

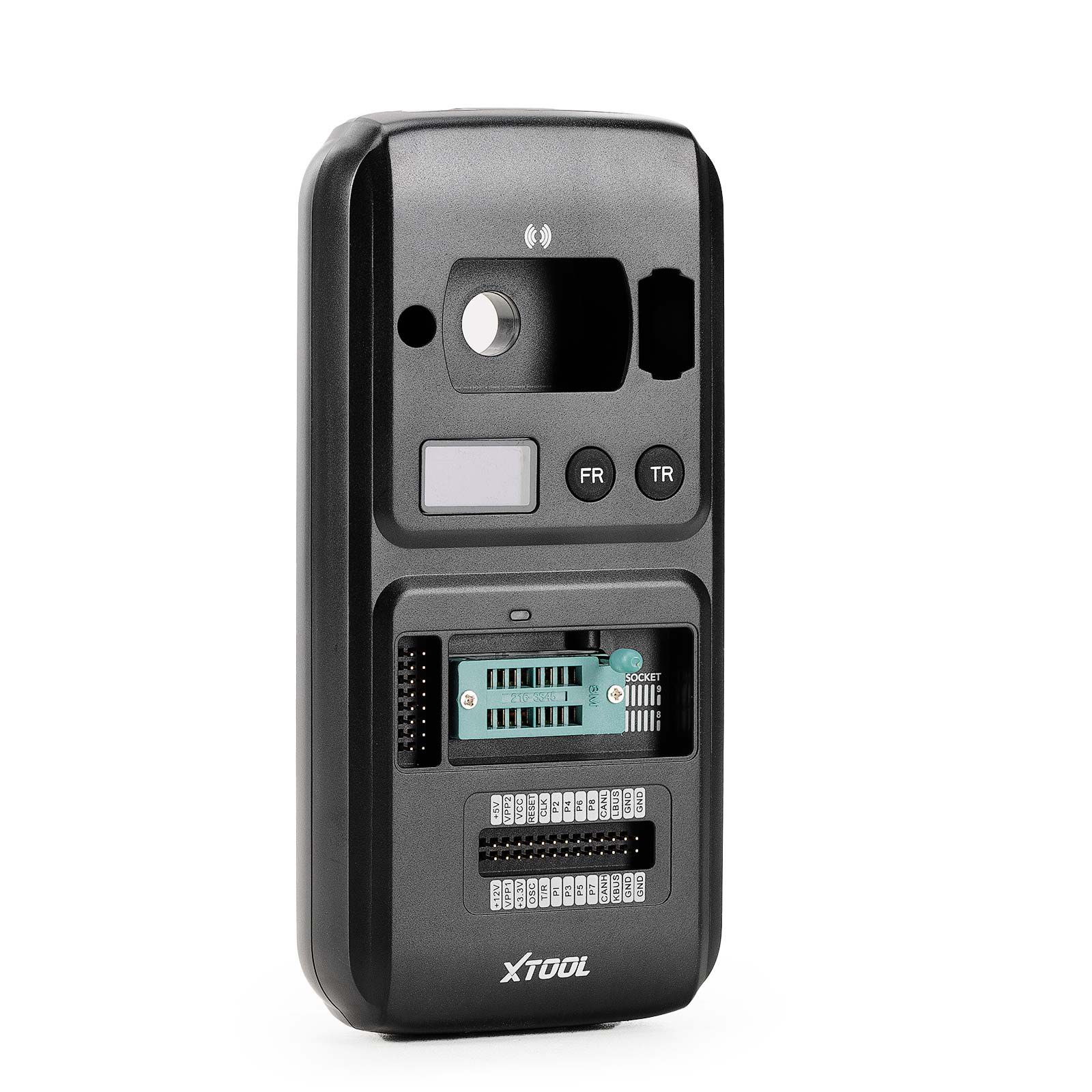

Equipped with the KC501 Key Programmer, the X100 MAX performs key fob programming, PIN reading, and read/write operations for car keys and key chips—ideal for auto technicians and locksmiths.

OE-Level Full System Diagnostics

Read and clear diagnostic trouble codes (DTCs), view live data with PID graphing, and retrieve freeze frame data across all vehicle systems.

42+ Special Maintenance Functions

Includes Oil Reset, EPB, BMS, SAS, DPF, Throttle Relearn, ABS Bleed, Key Programming, Injector Coding, and more.

ECU Coding

Perform online ECU coding to unlock hidden features, customize settings, or disable unwanted functions.

Bi-Directional Control

Exercise full control over vehicle components to run active tests and verify system functionality.

Topology Mapping

Visualize the communication relationships between vehicle modules through intuitive, color-coded topology maps—enhancing diagnostic efficiency in modern, complex vehicles.

AutoScan & AutoVIN

Automatically detect the Vehicle Identification Number (VIN) for rapid, accurate diagnostics.

Extensive Vehicle Coverage

Supports 10,000+ vehicles across American, European, Asian, and Japanese brands.

VAG Guided Functions with CAN FD & DoIP Support

Includes guided procedures for VAG group vehicles and supports next-generation CAN FD and DoIP protocols.

2 Years Free Updates

Stay current with two years of complimentary software updates.

Hardware Specifications

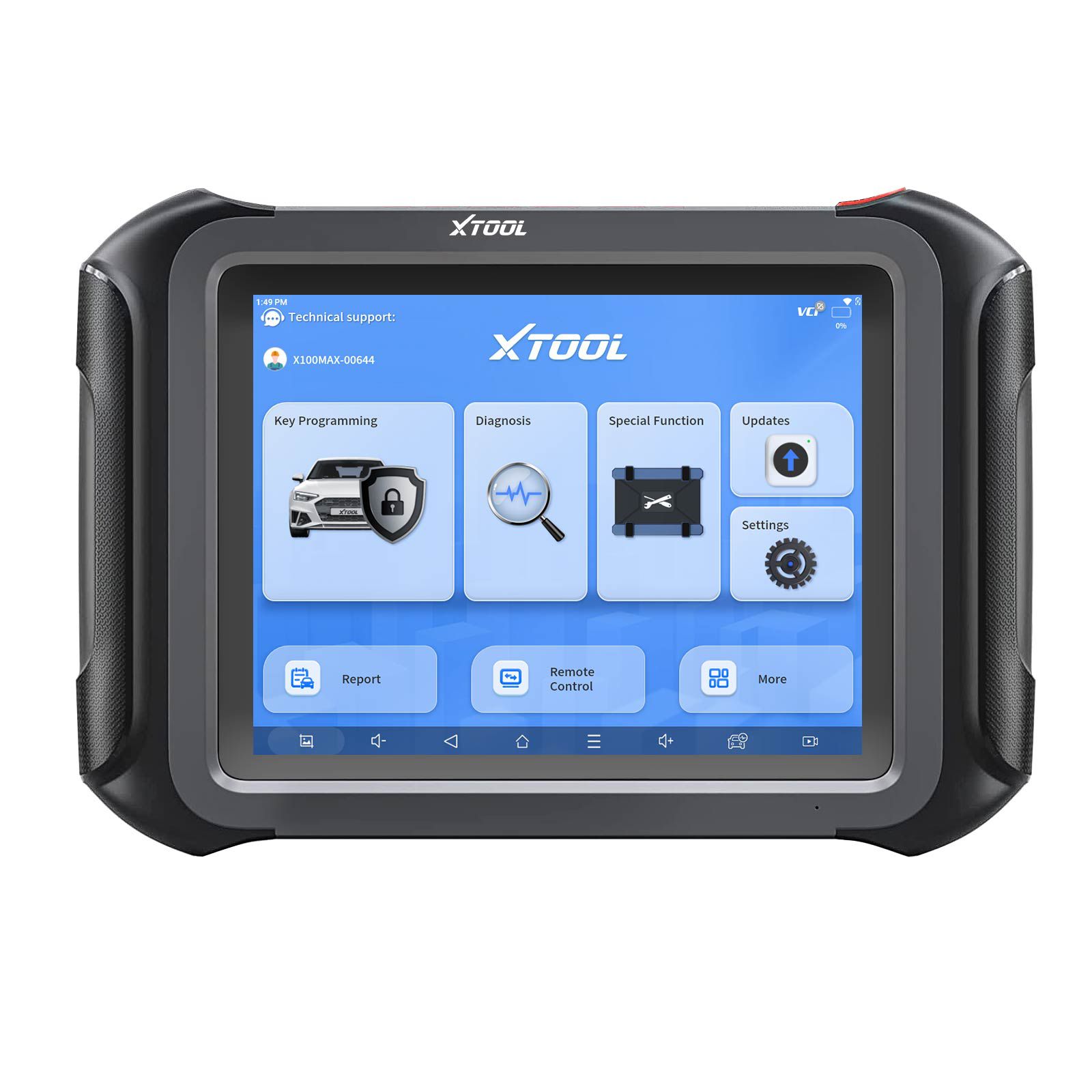

Runs on Android 5.1 with a 9.7" touchscreen, 10,000mAh battery, 1024×768 resolution, quad-core 1.8GHz CPU, 2GB RAM, 64GB storage, and dual-band Wi-Fi.

X100 MAX Highlights for Professionals

The locksmith’s Best Choice

If you need a high-performance key programming tool that “can work, works more, and works faster,” the XTOOL X100 MAX delivers. Compared to the entry-level X100 PAD3, the X100 MAX—enhanced with the KC501 module—offers breakthrough capabilities for advanced IMMO systems on vehicles like Mercedes-Benz, BMW, and VW. It supports KS01 and SK1 adapters, handles Toyota all-key-lost scenarios professionally, and performs complete IMMO and key fob programming up to 3× faster—including IMMO/EEPROM/MCU read/write, key add/delete/learn, and more.

Comprehensive IMMO & Key Programming Capabilities

• Read PIN/CS (All Key lost)
• Check number of registered keys
• Generate dealer keys
• Add new keys
• Program new key fobs
• Key learning
• Remote learning
• Read remote frequency, chip type, and chip ID
• Key chip read & write
• EEPROM read & write
• Transponder read & write
• Basic MCU read & write
• IMMO ECU reset/adaptation
• IMMO ECU refresh/coding
• Mercedes-Benz FEM/BDC key learning and ECU adaptation
• Read & write for Mercedes-Benz infrared keys
• BMW CAS2/CAS3 key learning
• Volkswagen/Audi/Skoda/Seat IMMO III/IV/V: add key and all-key-lost support

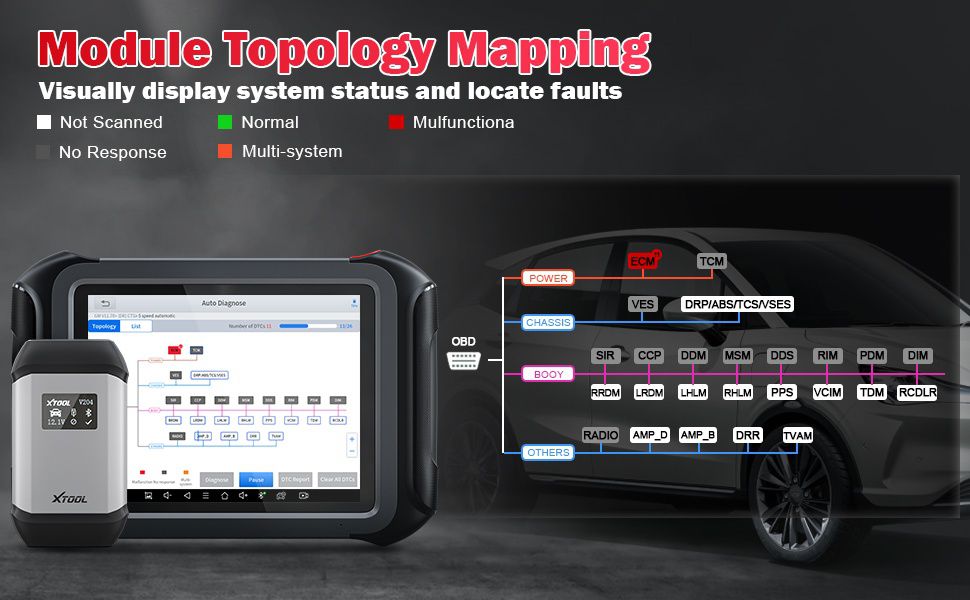

Topology Module Mapping

The X100 MAX scans all available vehicle modules and displays their diagnostic status in a color-coded tree map, revealing communication structures between modules. This significantly improves repair efficiency in professional workshops.

Advanced ECU Coding

Unlock hidden features, disable annoying functions, enhance vehicle performance, customize OEM settings, reprogram adaptive data after component replacement, and configure high-end models—all to improve fuel efficiency and ensure safe driving.

Bi-Directional Control for Precision Diagnostics

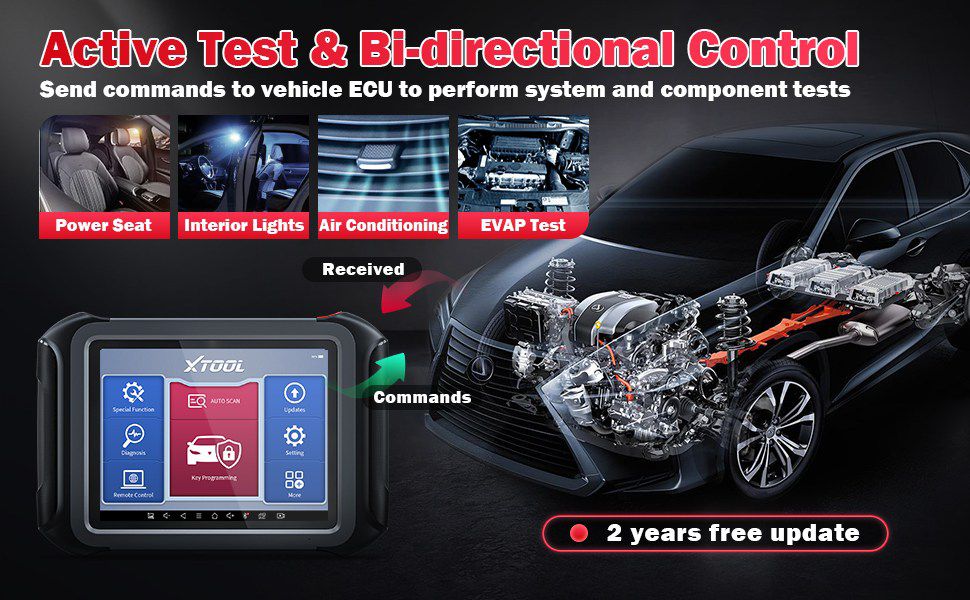

As a true bi-directional tool, the X100 MAX sends commands to ECUs, reads ECU data, and monitors actuator operation through active tests—helping you quickly isolate faults. For example, if a fuel pump failure causes ignition issues, you can toggle the pump on/off via the X100 MAX to determine whether the problem lies with the pump, wiring, relay, or control signal—without disassembly.
Note: Available functions vary by vehicle.

OE-Level Full System Diagnostics

Read all DTC types across full vehicle systems—including ABS, SRS, TPMS, Engine, Transmission, and Brake System. View, graph, and record live PIDs for in-depth analysis. Supports bi-directional controls, actuation tests, and comprehensive diagnostic functions.
Live data is displayed in both text and graphical formats for easy review, with playback capability to pinpoint sensor or component issues.
AutoScan and AutoVIN automatically identify the VIN for fast, accurate diagnostics.
This complete scanning process quickly locates faulty systems and retrieves relevant DTCs, enabling you to optimize vehicle performance, reduce emissions, and improve efficiency.

42+ Maintenance Service Functions

• Oil Reset: Resets oil life monitoring after oil and filter changes
• Injector Coding: Programs new injector IDs after replacement
• Brake Reset: Deactivates/activates brake control, assists with fluid management, and adjusts brake pads
• Battery Reset: Evaluates charge state, monitors closed-circuit current, and registers battery replacement
• Key Programmer: Enables ECU recognition of new keys
• TPMS Reset: Required after tire or sensor maintenance
• Gear Learn: Relearns gear parameters after ECU, crankshaft sensor, or flywheel replacement
• A/C Relearn: Resets compressor and servo motor positions for fault verification
• HV Battery: Disconnects high-voltage battery output for safe EV maintenance
• Write VIN: Writes VIN to replaced ECUs for validation and software download (required when installing used modules)

The X100 MAX also supports: Throttle Relearn, Disable Transportation Mode, ABS Bleeding, Headlight Calibration, Air Suspension Reset, DPF Regeneration, EEPROM Adapter use, Control Unit Reset, VGT Relearn, NOx Reset, FRM Reset, EGR Relearn, AdBlue Reset, SRS Reset, Clutch Adaptation, Speed Limit Adjustment, and ADAS functions.
Note: Service function availability varies by vehicle. Contact us with your VIN to confirm compatibility.

More Extended Functions

Advanced Diagnostic and Programming Features

• VAG Guided Function: With VAG Guide Functions, X100MAX can perform complex special functions to assist with step-by-step diagnostics for VW, Audi, Skoda, and other VAG group vehicles.
• Supports CAN FD & DoIP Protocol: Compatible with modern communication protocols including CAN FD (supports GM MY2020+ models) and DoIP (for BMW E/F/G Chassis, Jaguar, and Land Rover vehicles).
• Covers 1000+ Brands: Supports over 10,000 vehicle models across American, European, Asian, and Japanese manufacturers.
• Diagnostic Report Sharing & Printing: Allows technicians to generate diagnostic reports before and after service, which can be printed or shared with customers as PDF files.
• Online Tech Support: Enables remote assistance from XTOOL technical engineers, colleagues, or friends via TeamViewer, allowing them to control the tablet from their PC.
• 13 Languages Available: Language can be changed from English to Spanish, Portuguese, French, Japanese, German, Polish, Russian, Italian, Korean, Dutch, Swedish, and more—simply provide the Serial Number (S/N) to request a change.

High-End Key Programming Diagnostic Tool Specifications

• Operating System: Android 5.1
• Processor: Quad-core processor, 1.8GHz
• RAM: 2GB
• ROM: 64GB
• Display: 9.7-inch capacitive touchscreen with 1024×768 resolution
• Connectivity: USB / Wi-Fi / Bluetooth
• Camera: 8-megapixel autofocus rear camera with flash
• Sensor: Gravity sensor
• Audio Input/Output: Microphone / Loudspeaker

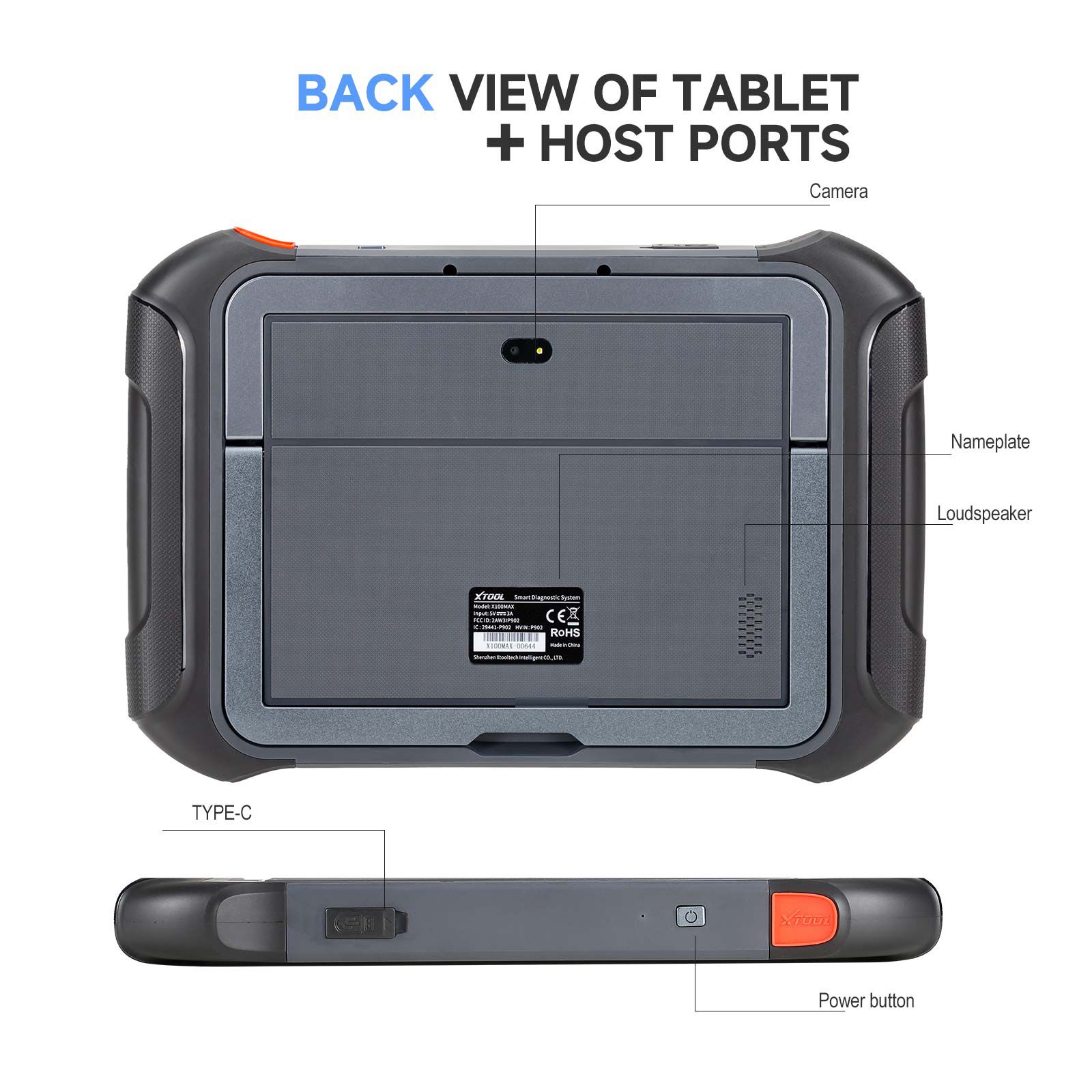

• Ports: USB 3.0, DC charging port, VGA port, DoIP port
• Battery: 3.7V, 10000mAh rechargeable lithium-ion battery
• Input Voltage: 12V DC
• Operating Temperature: -10°C to 50°C
• Relative Humidity: < 90%
• Dimensions: 315.07 × 218.35 × 34.61 mm

Package List

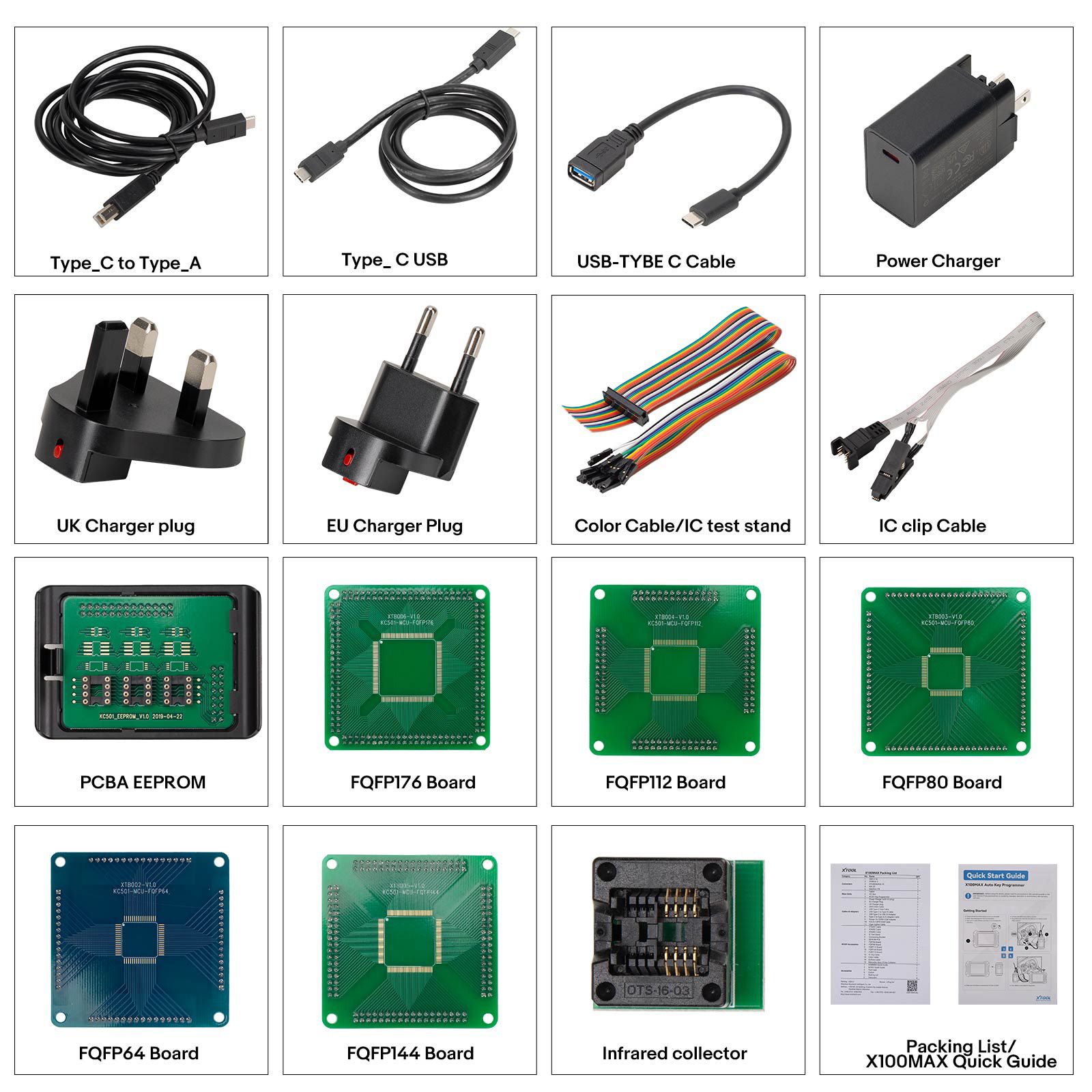

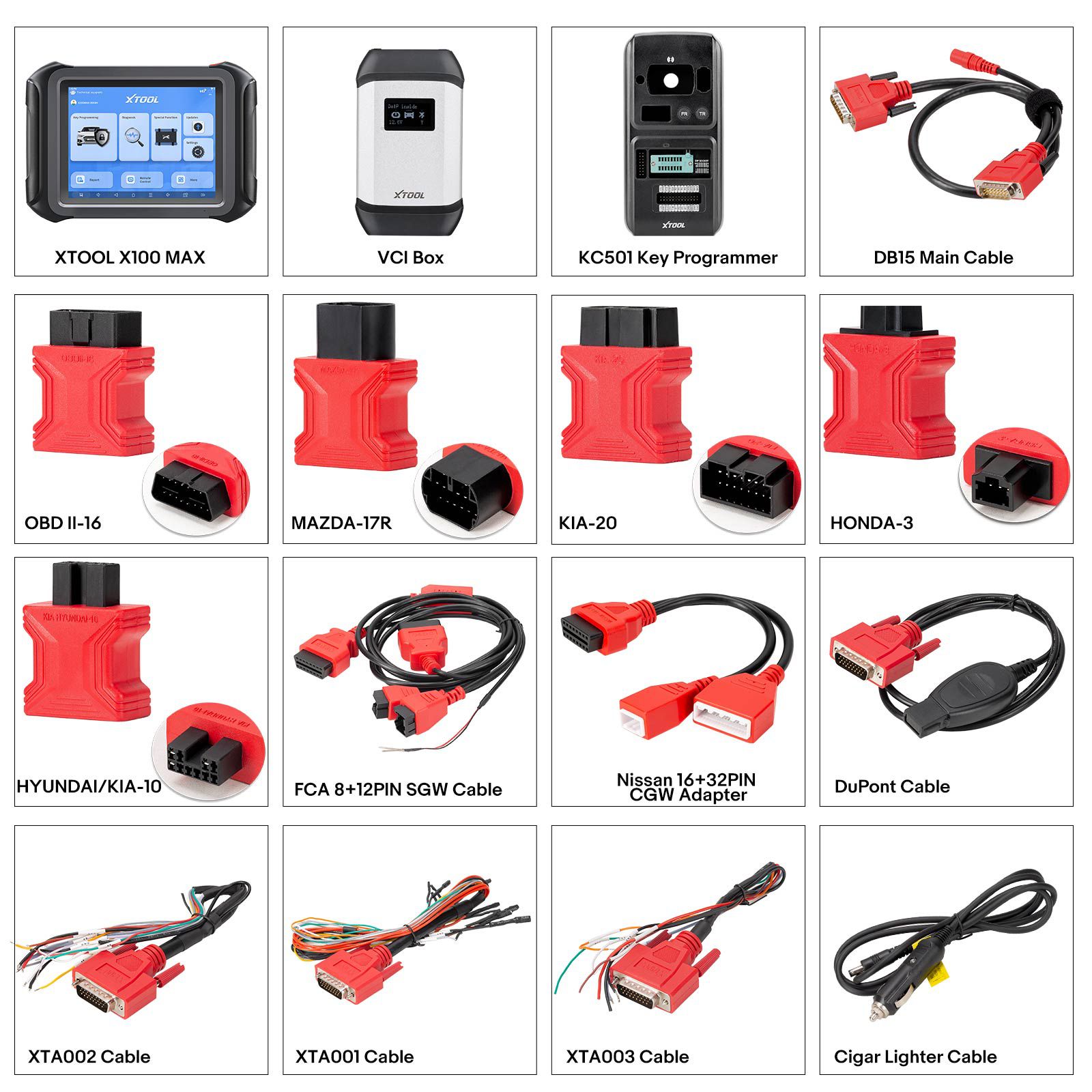

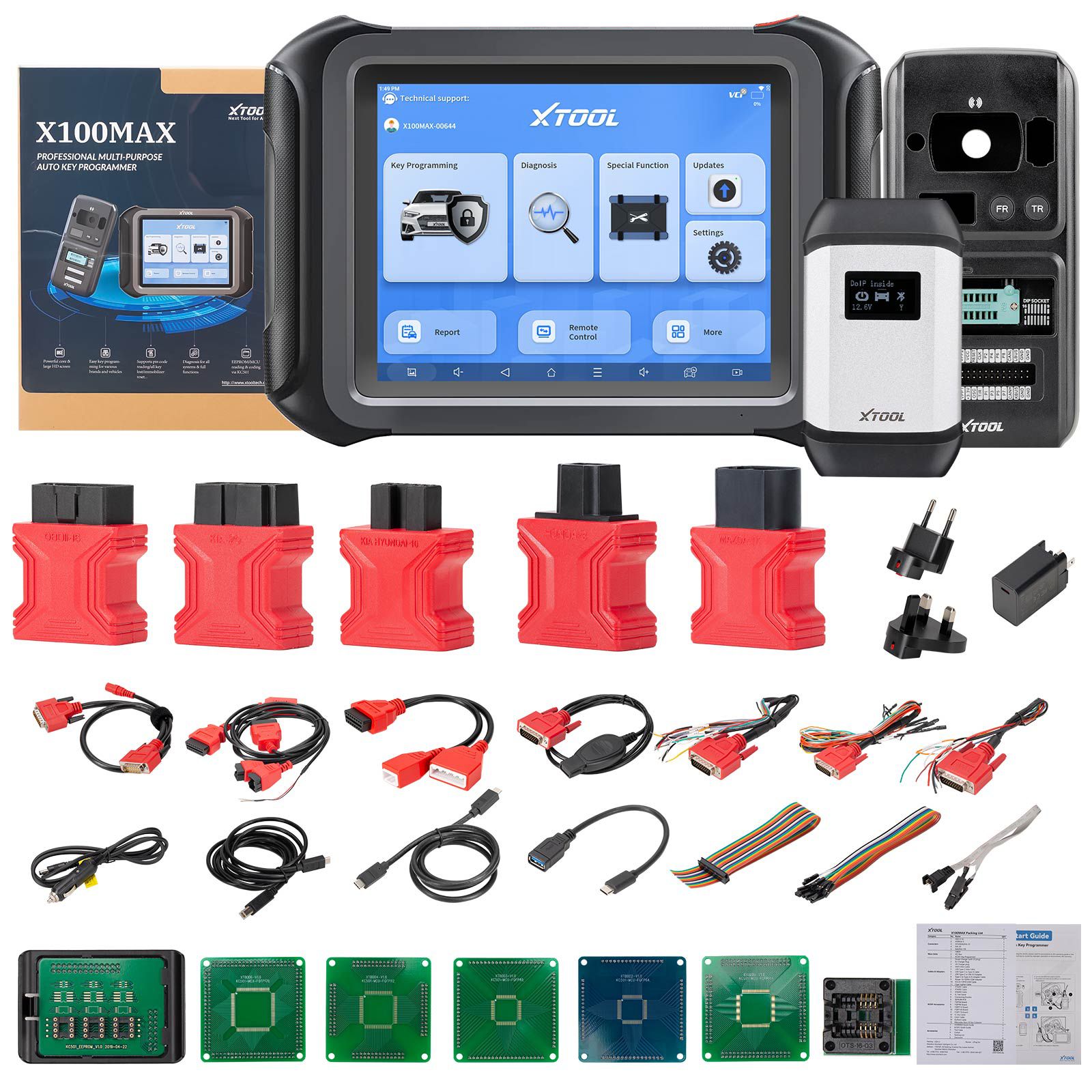

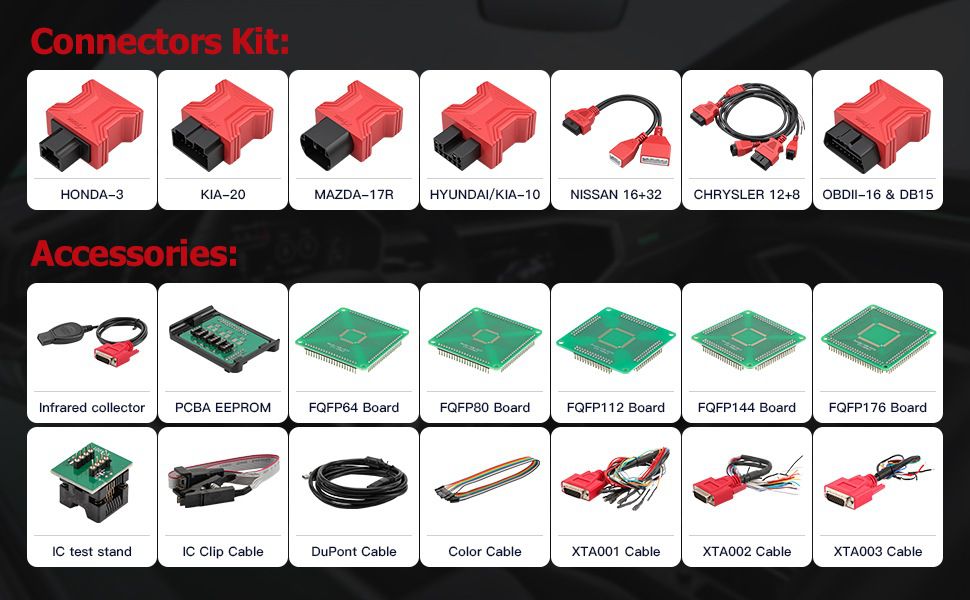

• 1 set × Xtool X100 MAX
