VVDI2 48 Transponder Copier and Data Collector

The VVDI2 48 transponder copy adapter works in conjunction with the VVDI2 key programmer to copy 48 transponders used in the 4th Immobilizer system. Supported vehicle types include NEC24C32, NEC24C64, NEC24C64 color instrument, A1, A3/TT/R8, Q3, new Tiguan 873B, 883B, and more.

VVDI2 48 Chip Copy (No Condor Registration Required)

Requirements to copy a 48 chip:

• 1000 member points on your VVDI2 account to unlock the 48 chip copy function
• VVDI2 must have the 4th Immobilizer system function enabled
• VVDI2 48 chip data collector
• A new blank 48 chip
• 100 member points per one-time 48 chip copy operation

How to activate the 48 chip copy function:
Open the VVDI2 key programmer software, navigate to Menu > Member Points System, and redeem the 48 chip copy function using your available points.

Supported vehicle types:
The 48 chip copy function is compatible with vehicles using the 4th Immobilizer system, including models with NEC24C32, NEC24C64, NEC24C64 color instrument, A1, A3/TT/R8, Q3, new Tiguan 873B, 883B, and others.

Key functions:
Copying a 48 chip requires the vehicle’s PIN code and component security (CS) bytes. You can obtain these using one of the following methods:

1. VVDI2 can read the PIN code directly from the Engine Control Unit (ECU) via OBDII and retrieve the CS bytes.
2. You already possess the component security bytes and PIN code.
   With either method, the VVDI2 supports 48 chip copying, adding new 48 chips, all-key-lost scenarios, and smart key programming.

Important note for MAGOTAN / CC models:
For these vehicles, the VVDI2 can only copy 48 chips when an original key is present. It does not support 46 chips, smart keys, or all-key-lost situations.

XHORSE VVDI2 48 Chip Copy (no Condor registration required)

Package Contents

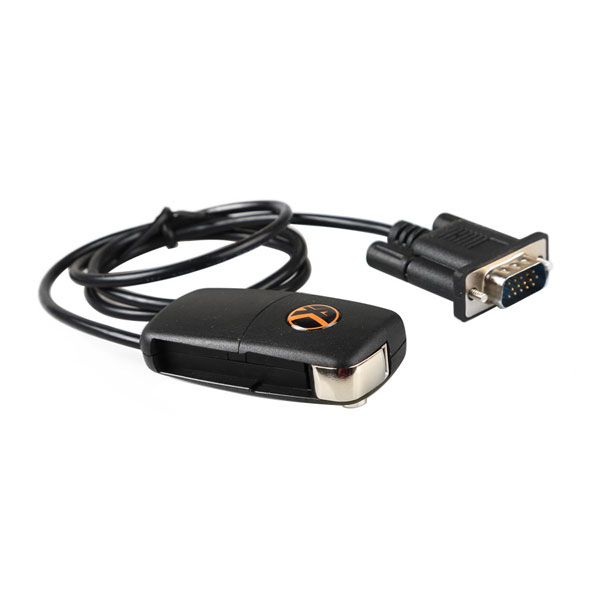

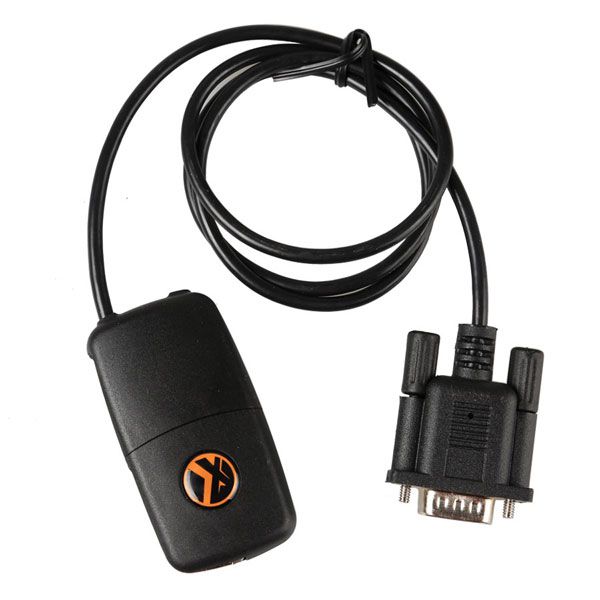

• 1 × VVDI2 48 chip dedicated data collector

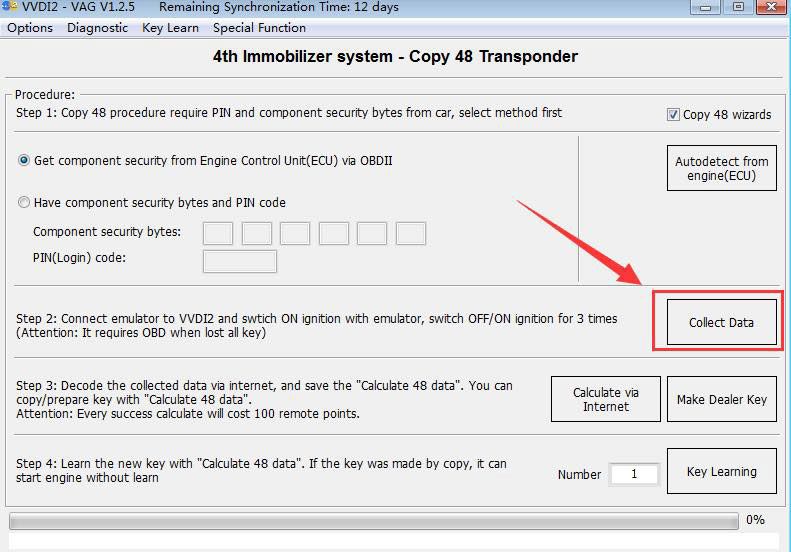

VVDI2 48 Chip Copy Software
