OBD2 Vgate vLinker BM+ ELM327 V2.2 for BMW Scanner BT4.0 WiFi OBD2 Car Diagnostic Auto Tool Bimmercode PK ELM327 V1.5

Purchase Notes

1. Our store sells the original Vgate. We have software to test if it is an original Vgate—if you need verification, please contact us. Avoid getting fake Vgate units from other stores.
2. If you use BT4.0 to connect, please connect directly via Bluetooth in the diagnostic app.
3. vLinker BM+ also supports other vehicles that comply with OBD2 standard protocols.

Vgate vLinker BM+ Supported BMW Models

• BMW 1 Series: F20, F21
• BMW 2 Series: F22, F23, F87
• BMW 2 Series Active Tourer: F45
• BMW 2 Series Gran Tourer: F46
• BMW 3 Series: F30, F31, F34, F35, F80
• BMW 4 Series: F32, F33, F36, F82, F83
• BMW 5 Series: F07, F10, F11, F18, F90
• BMW 5 Series: G30, G31
• BMW 6 Series: F06, F12, F13
• BMW 7 Series: F01, F02, F03, F04
• BMW 7 Series: G11
• BMW X1: F48
• BMW X2: F39
• BMW X3: F25
• BMW X3: G01
• BMW X4: F26
• BMW X5: F15, F85
• BMW X6: F16, F86
• BMW i3
• BMW i8
• Mini: F54, F55, F56, F57, F60

Vgate vLinker BM+ Compatibility with Bimmercode/Bimmerlink

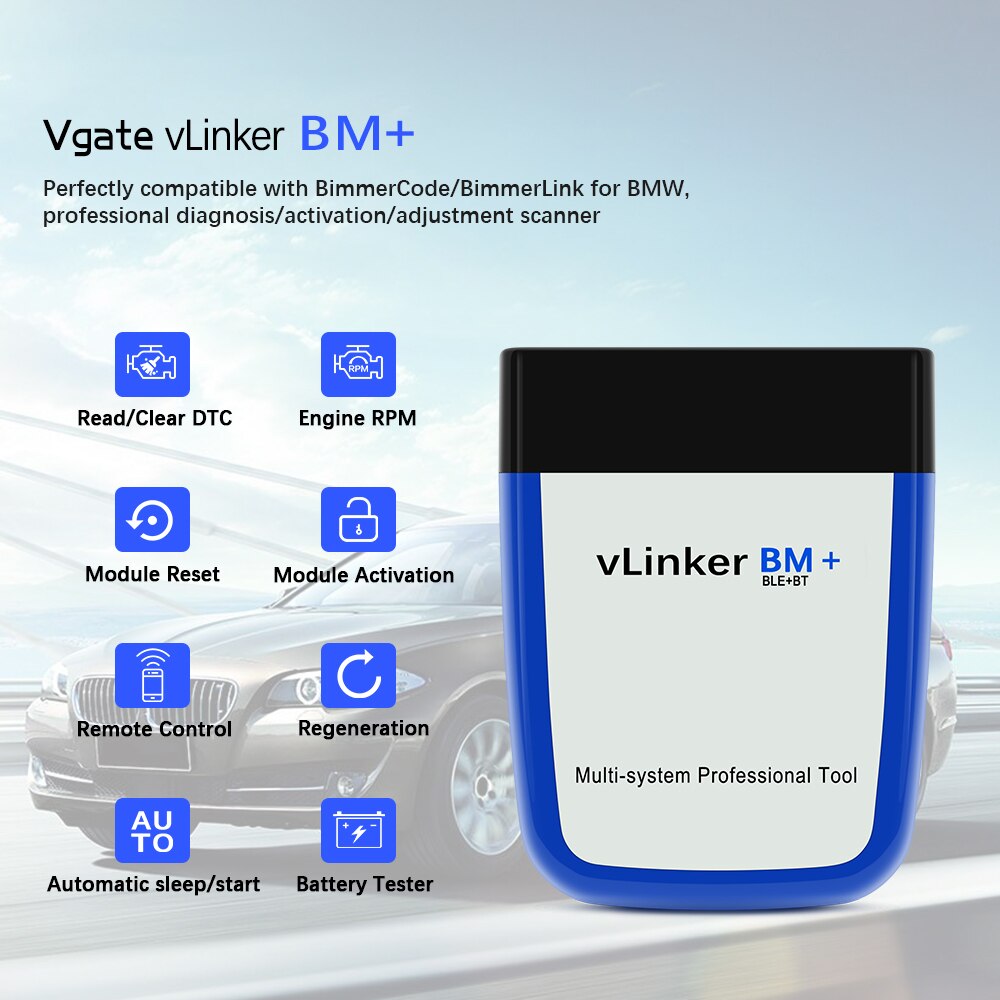

Perfectly compatible with Bimmercode/Bimmerlink for professional BMW diagnosis, activation, and adjustment:

• Read/Clear DTC
• Engine RPM
• Module Reset
• Module Activation
• Remote Control
• Regeneration
• Automatic Sleep/Start
• Battery Tester

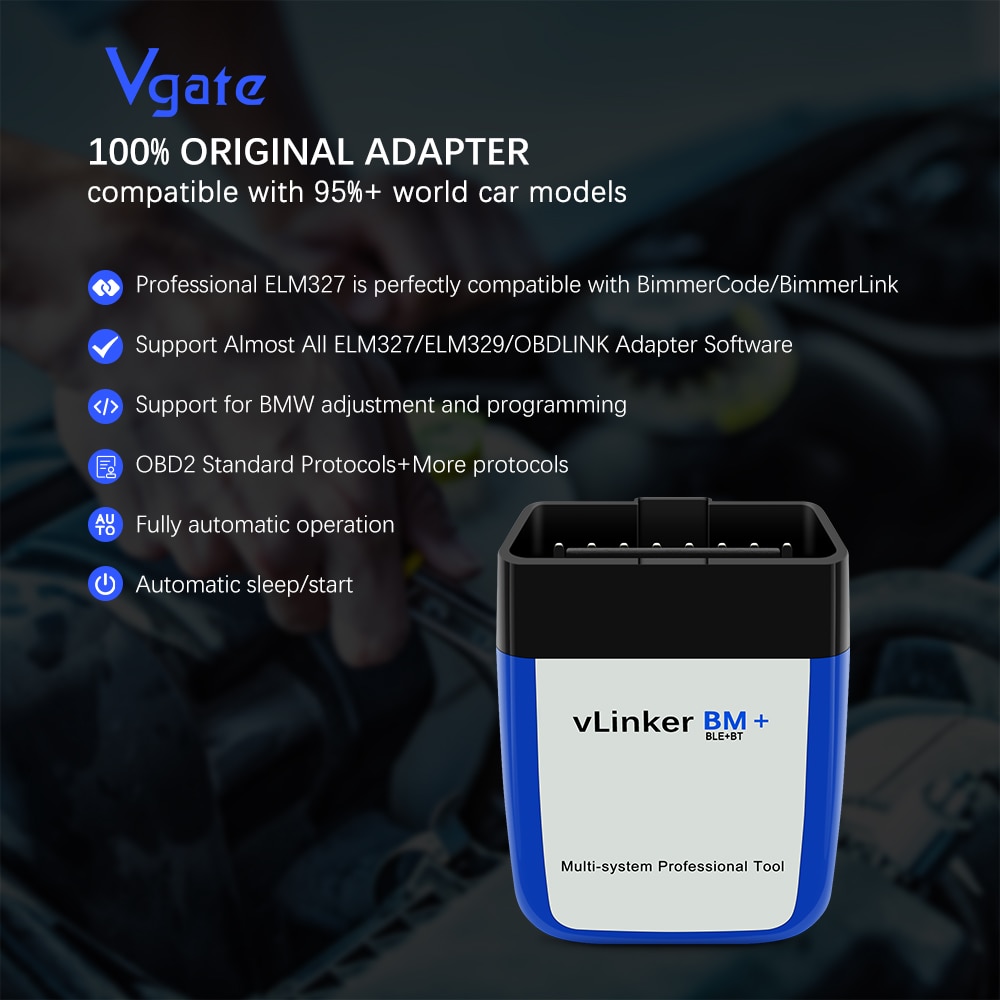

Vgate vLinker BM+ Features

• 100% original adapter compatible with over 95% of global car models.
• Professional ELM327 perfectly compatible with BimmerCode / BimmerLink.
• Supports almost all ELM327 / ELM329 / OBDLINK adapter software.
• Supports BMW adjustment and programming.
• Supports OBD2 standard protocols and additional protocols.
• Fully automatic operation.
• Automatic sleep/start functionality.

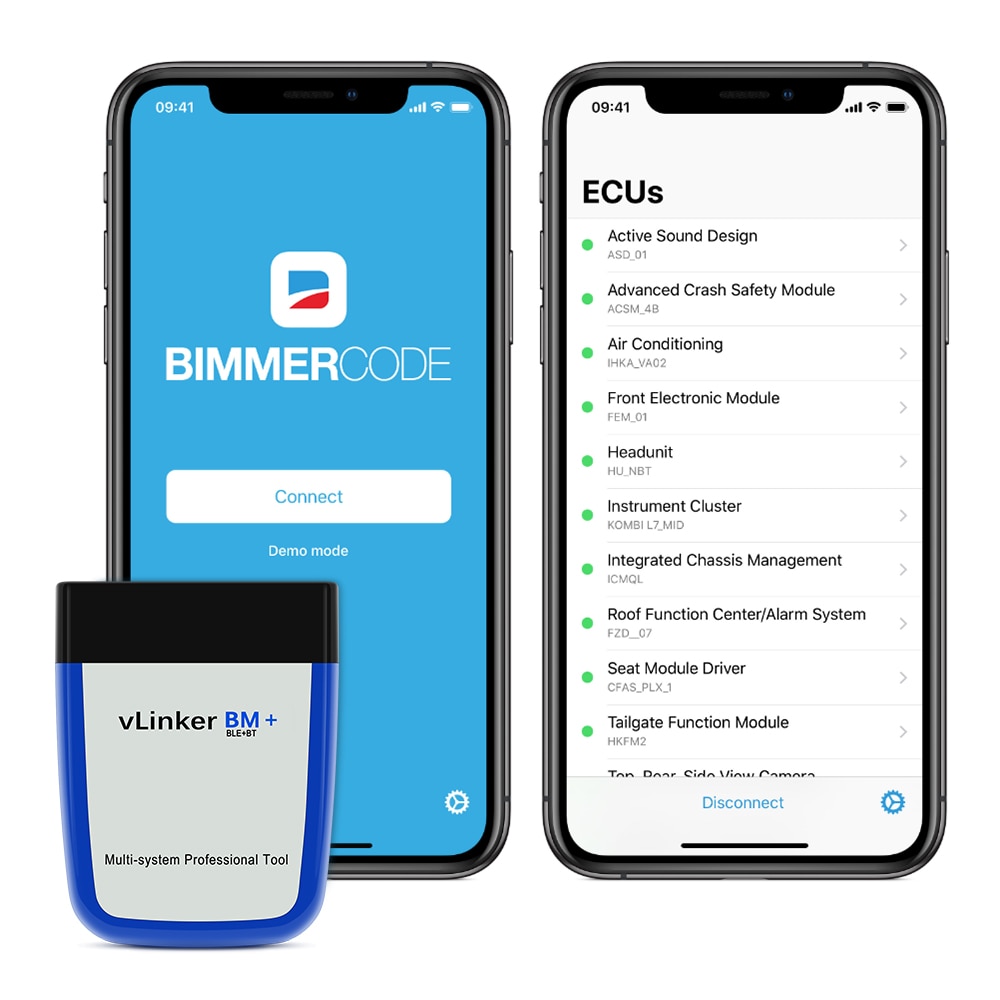

Compatibility with BimmerCode

Vgate vLinker BM+ is an adapter that is perfectly compatible with BimmerCode:

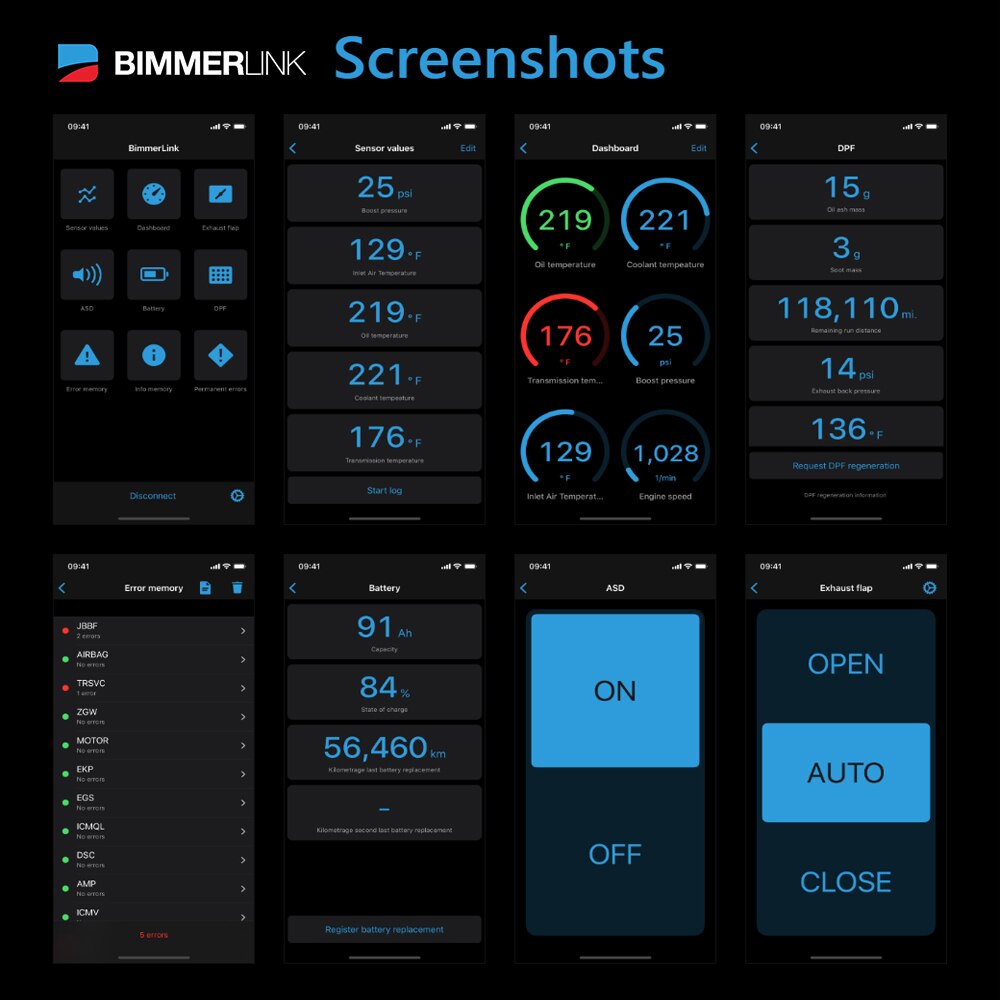

Compatibility with BimmerLink

Vgate vLinker BM+ is an adapter that is perfectly compatible with BimmerLink:

Supported Protocols

Multiple Protocol Formats

• 15 ELM format protocols
• 23 STN format protocols
• Up to 64 user-defined protocols

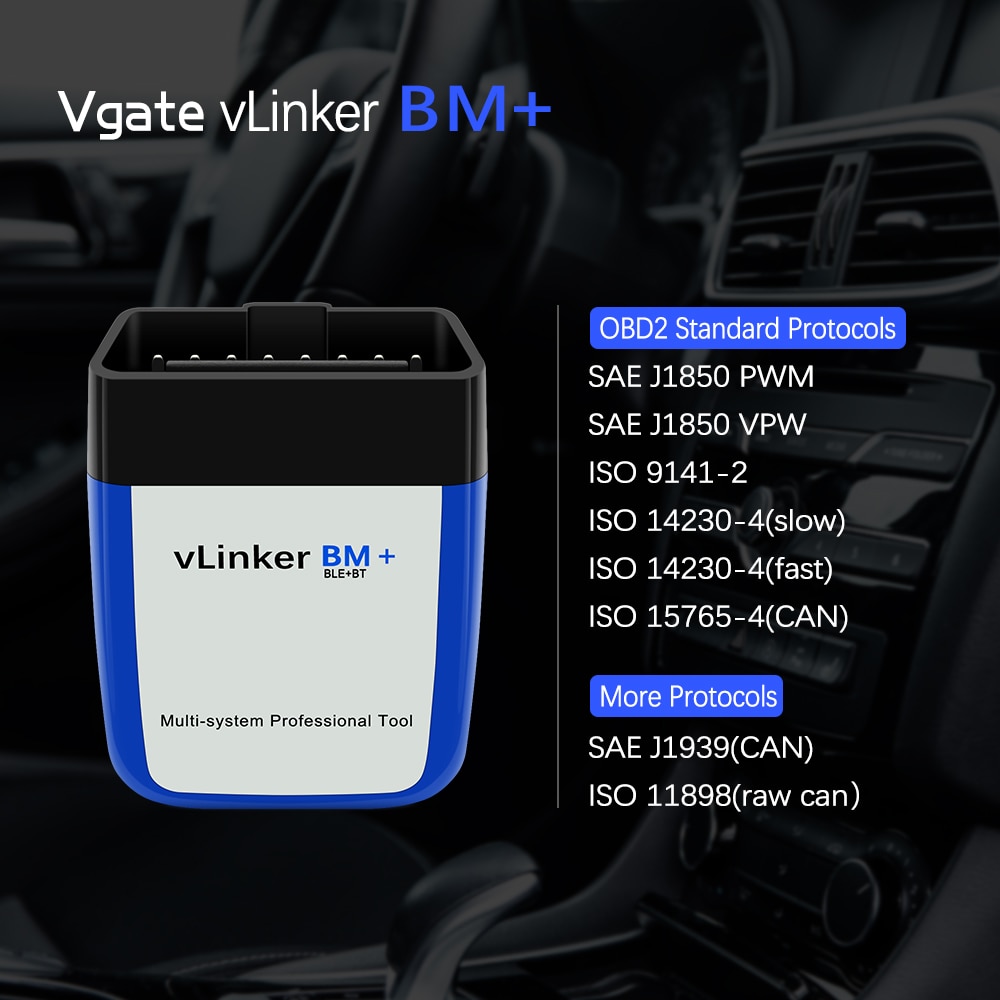

OBDII Standard Protocols

• SAE J1850 VPW
• SAE J1850 PWM
• ISO 9141-2
• ISO 14230-4
• ISO 15765-4 CAN

Additional Protocols

• SAE J1939 CAN
• ISO 11898 (raw CAN)

These protocols cover almost 99% of OBDII-compliant vehicles on the market.

Advanced Instruction Set & Software Compatibility

• Fully compatible with ELM's AT command set
• Fully compatible with STN's ST command set
• 39 VT macro commands—some equivalent to multiple AT/ST instructions, simplifying communication steps
• Compatible with ELM and STN power management solutions
• Supports up to 5 sleep triggers: instructions, UART silence, low battery voltage, OBD bus silence, etc.
• Supports up to 5 wake-up methods: UART activity, battery voltage drop, OBD bus activity, ignition key, etc.
• Device sleep power consumption is less than 2 mA
• OBD request byte length up to 48 bytes, supporting special long-frame communication needs
• UART data buffer up to 2K bytes; baud rate increased to 230.4 Kbps
• 256-byte storage unit
• Over 100,000 erase/write cycles
• VT commands enable read/write operations on any storage unit
• Supports "Mix ID Sending" mode for CAN protocol
• Optional formatted data transmission per protocol
• Multiple WM sequence settings
• AT command support for manual WM sequence configuration
• Support for temporary WM sequences across a specific or all protocols
• Permanent binding between a protocol and a private WM sequence

-- Secure bootloader for easy firmware updates

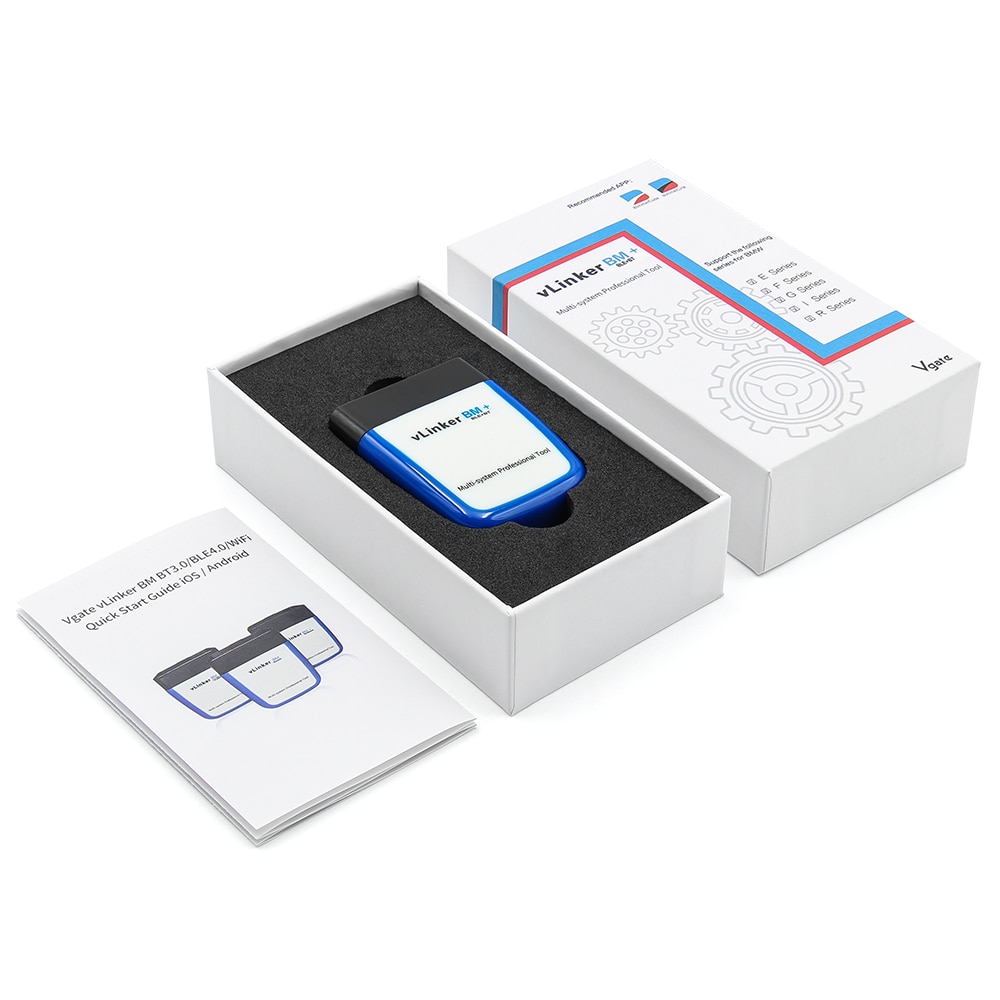

Package Contents

• 1 x Vgate vLinker WIFI/BT3.0/BT4.0
• 1 x User Manual
