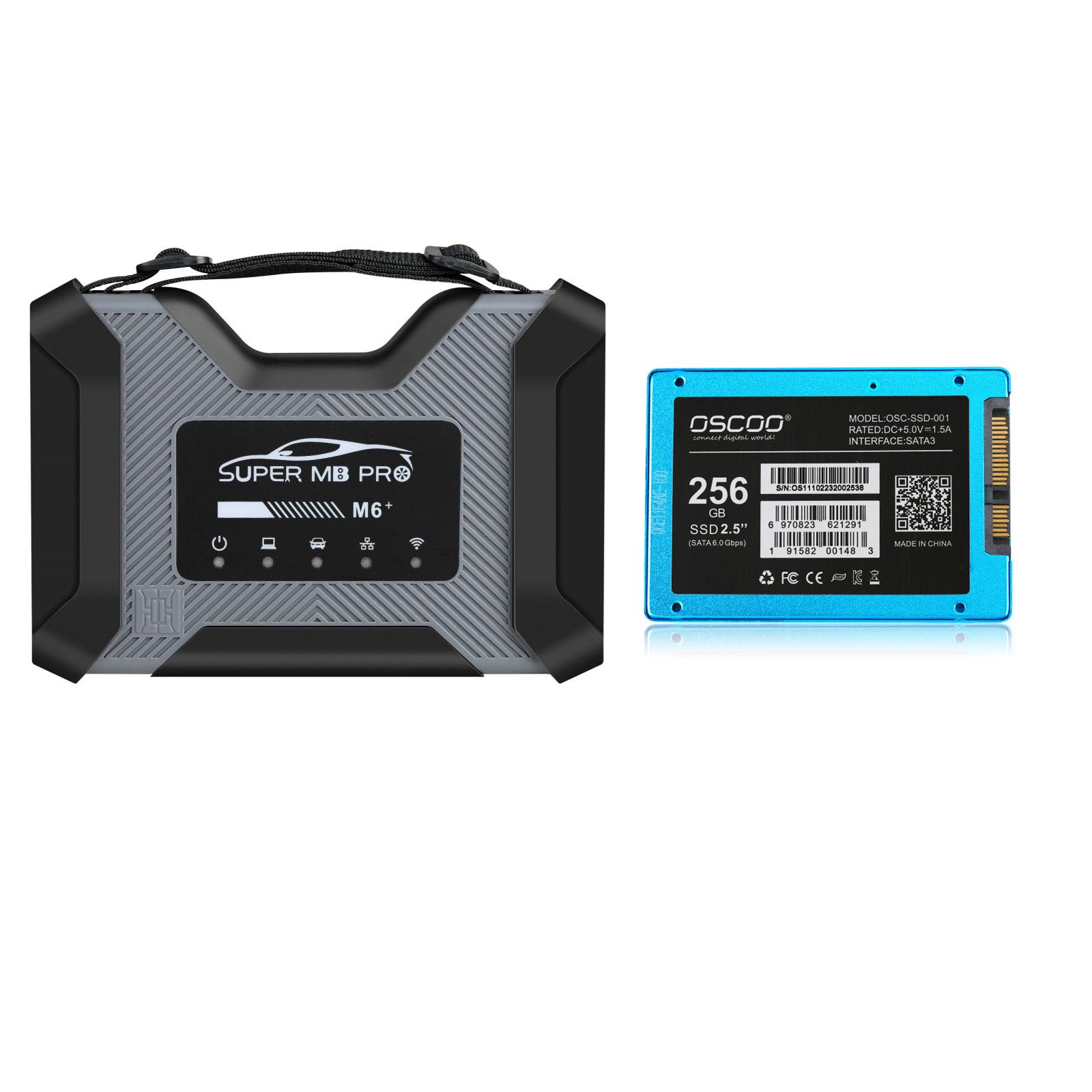

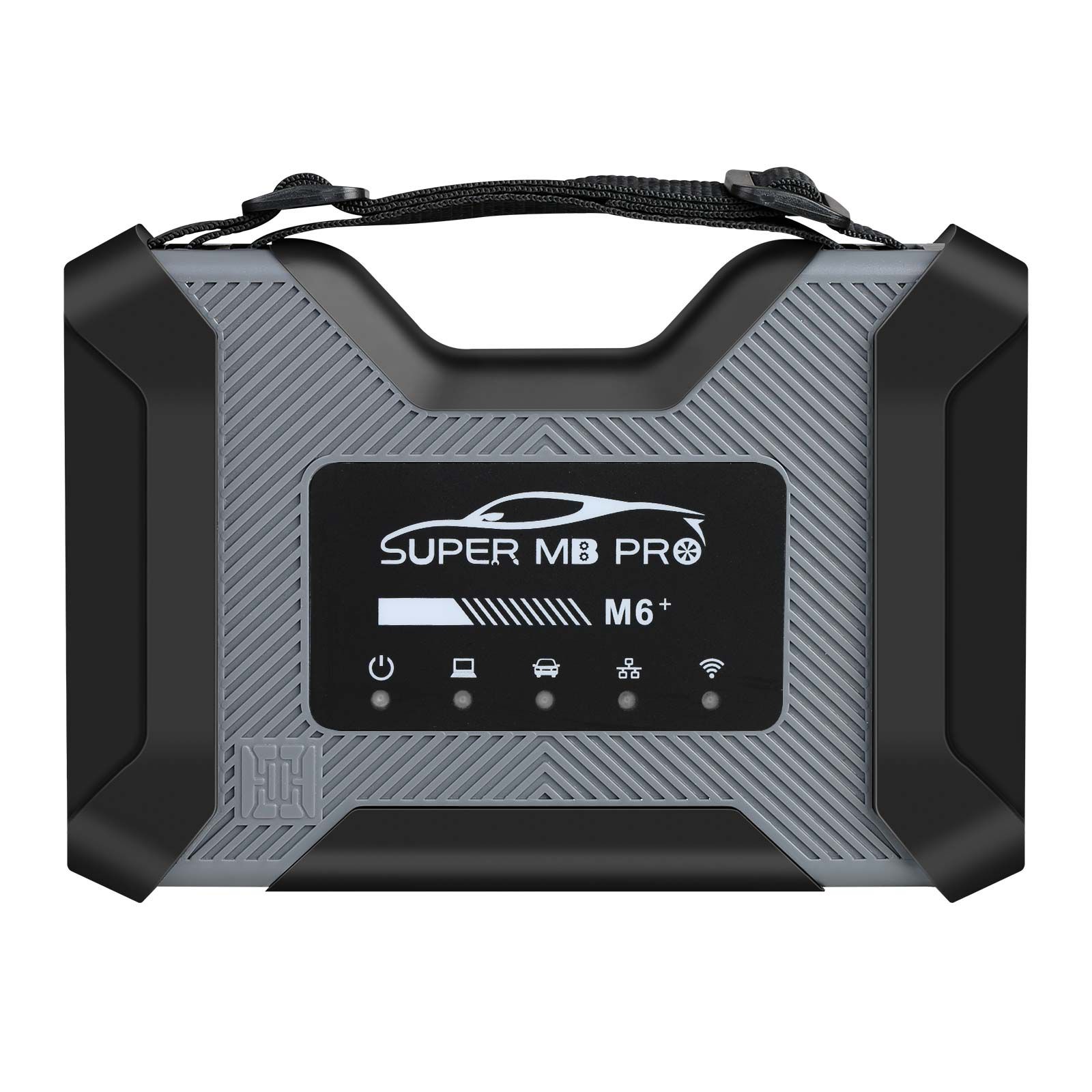

Super MB Pro M6+ Full Version DoIP Benz Diagnostic Scanner With SSD for Cars and Trucks

Based on M6, Super MB PRO M6+ has greatly improved product functions and compatibility, and is 100% compatible with the original mercedes-Benz software.

Highlights:

1. Super MB Pro M6+ Full Version DoIP Benz Diagnostic Scanner With V2023.3 SSD for Cars and Trucks
2. M6+ supports BMW E-SYS, Aicoder,BMW APP software
3. Comes with latest software ssd run fast
4. Support Vediamo and DTS Monaco
5. Support the old cars and new 12v car, 24v diesel Truck & bus, MPV etc
6. Xentry W204, DAS W211, HTTWIN, W140 Tested OK.
7. With W223 C206 W213 W167 License Valid till August 2023

1.100% compatible with the original mercedes-Benz software.

2.The front label of the M6+ uses a design with trademark rights and art copyrights to improve product recognition.

3.The communication interface between the M6+ and the computer is a USB3.0 interface, which improves the compatibility of the product with computers and tablets. (Compatible with both old and new computers and tablets, no need to choose old-fashioned computers and tablets with network ports.)

4.M6+ supports remote C-side operation. The client does not need to install special diagnostic testing software. Just connect the M6+ to a local computer that can access the Internet, and we can remotely provide customers with paid diagnosis and detection services of vehicle failure. Customers can also set up a local remote diagnostic test in the local area network. The above ways greatly improve the product flexibility.

5.M6+ supports BMW E-SYS, Aicoder, wired and wireless programming and coding of F and G series, and supports BMW modification, hidden functions activation.

6.M6+ supports BMW APP software, provides mobile phone English version of Bimmercode (coding hidden functions activation) Bimmerlink (diagnostics codes clearing) and other mobile phone software, supports MHD .Bimmergeeks .. XHP Flashtool. ODIS-e.XDelete.THOR-the M Flasher.PRO- Tool and other mobile apps.

7. M6+ supports vehicles with DOIP communication protocol, such as the new Volkswagen, Audi, Skoda, Bentley, Lambo, etc. A dedicated transition button is provided.

M6+ and M6 product function comparison chart

	M6 Product Functions	M6+ Product Functions
XENTRY	√	√
XENTRY Truck	√	√
DTS	√	√
VIDEO	√	√
MB DOIP	√	√
MB WIFI	√	√
PC USB	×	√
PC RJ45	√	×
BMW Aicoder	×	√
BMW E-SYS	×	√
BMW APP	×	√
Other DOIP	×	√

M6+ Connection Instructions

1. Connection between MB diagnostic software and hardware

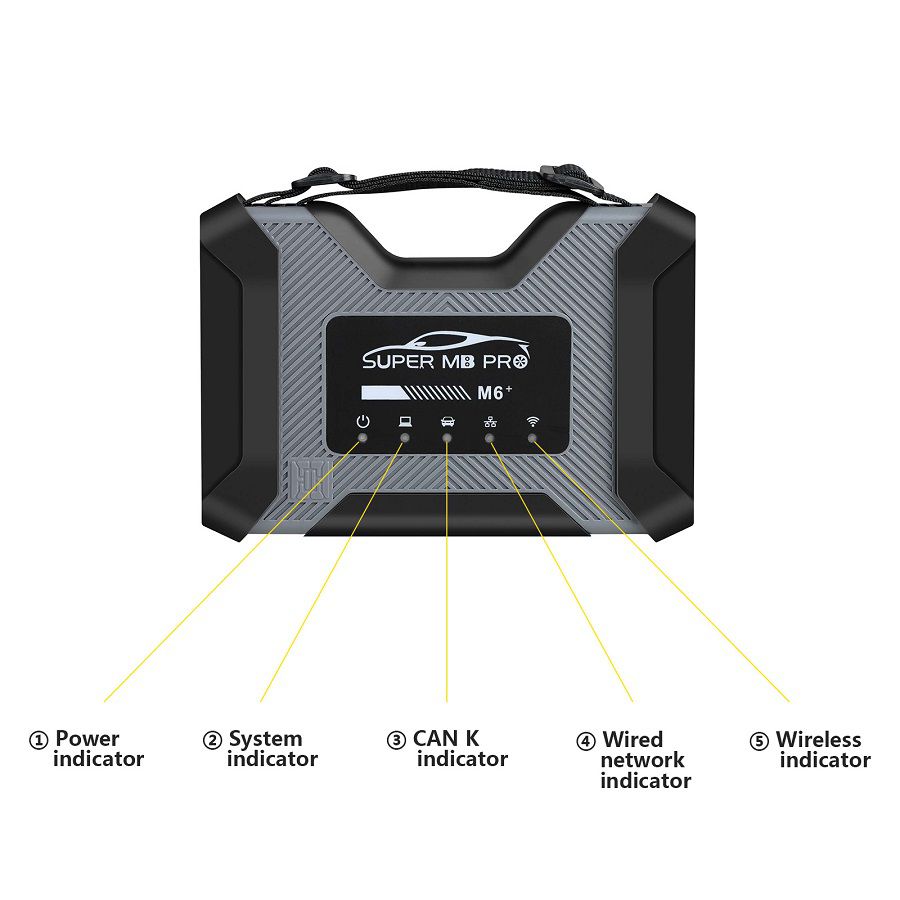

(1)Connect the M6+ hardware box to the car diagnostic interface via the test line. The red indicator light ① on the host is always on, and the system indicator ② is flashing during startup. After startup, ② is always on and beeps once, indicating the startup is finished.

(2)Wired connection: Connect the USB port ⑦ of the M6+ hardware box to the USB port of the computer or tablet via a USB cable, and a new network connection will appear on the network management interface of the computer or tablet (WIN10 driver-free), and the IP address of the network connection property will be changed to 169.254.255.*, Subnet mask: 255.255.0.0, Preferred DNS: 169.254.255.255, click “Advanced”, add multiple IP addresses as 172.29.127.*, 255.255.0.0. After the computer or tablet is connected to the network, ④ the indicator light will be on.

(3) Wireless connection: You cannot find the wireless network by plugging in the USB cable. Unplug the USB cable from the M6+ hardware box port, and you will find a M6+ DOIP-**** network on the computer or tablet, just connect it. ⑤ The green light of the wireless indicator is always on, the wired light is off, no setting is required, the password is 123456789.

(4) After opening the BEN software lock on the computer side, the original diagnostic test software can be used normally.

(5) For remote C-end operation, please consult us.

2, Connection between BWM software and hardware

(1)Connect the M6+ hardware box to the car diagnostic interface via the test line. The red indicator light ① on the host is always on, and the system indicator ② is flashing during startup. After startup, it is always on and beeps once, indicating the startup is finished.

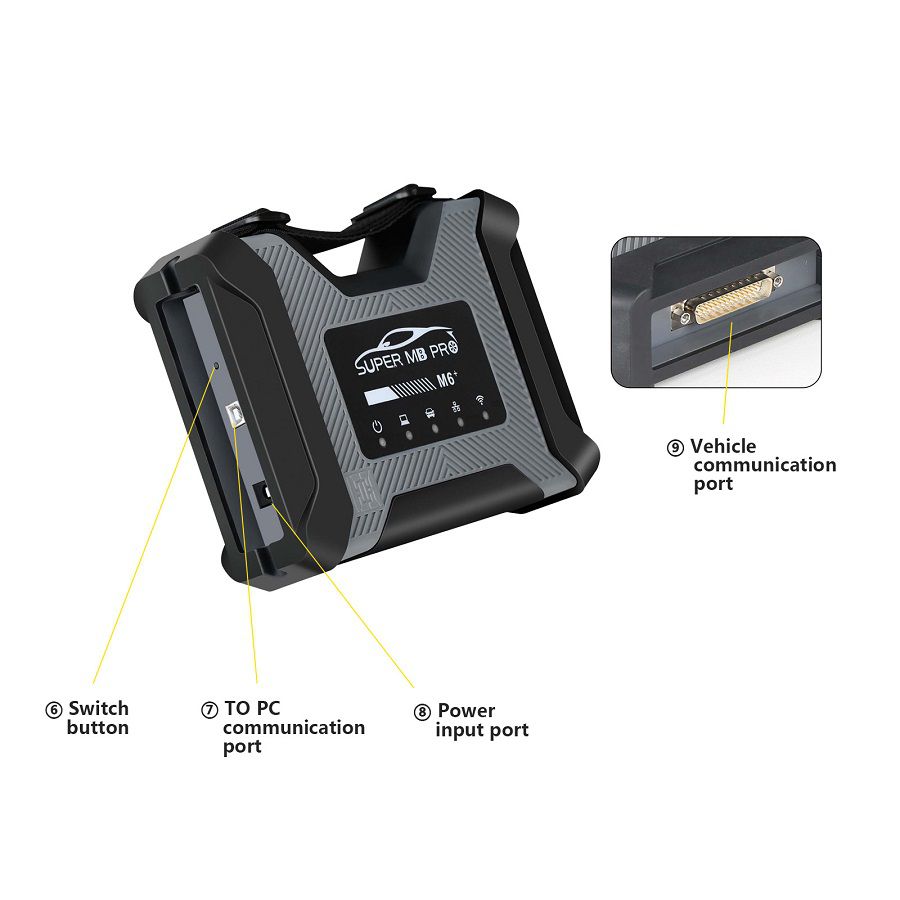

(2)Wired connection: Connect the USB port of the M6+ hardware box to the USB port of the computer or tablet via a USB cable, and a new network connection will appear on the network management interface of the computer or tablet (WIN10 driver-free), and change the network connection attribute IP address to 172.29.127.* 255.255.255.0. Click “Advanced” and add a multi-IP address as 169.254.0.* 255.255.255.0. After the computer or tablet is connected to the network, the indicator light ④ will be always on. Press and hold the switch button ⑥ on the side for 3 seconds and then release it. You can see that the ④ green indicator light is always on and then flashing, indicating that the test can be performed normally. It will return to the initial state after it is powered on again.

(3)The wireless network can NOT be found by plugging in the USB cable. Unplug the USB cable from the M6+ hardware box port, and you will find a M6+ DOIP-**** network on the computer or tablet. You can connect without any settings, and the password is 123456789, ⑤The wireless indicator green light is always on, ④The wired indicator is off. Press and hold the ⑥ switch button on the side for 3 seconds and release it, you can see ⑤the wireless green indicator light is always on and turns to flashing, indicating that the test can be performed normally. It will return to the initial state after it is powered on again.

(4) The computer-side BWM software adopts wired or wireless connection, and the mobile phone BWM APP software adopts wireless connection.

(5) For remote C-end operation, please consult us.

3. For DOIP function and hardware connection of other diagnostic test software, please refer to BWM software and hardware connection method.

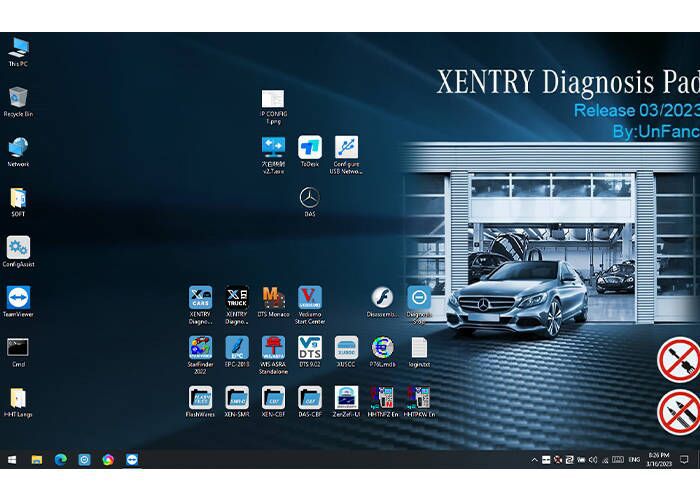

V2023.3 MB Star SD Connect C4 256G SSD WIN10 64Bit Support HHT-WIN Vediamo DTS Monaco

Software includes:

MB Software V2023.3 (Win10 X64 Version)
Xentry DAS 2023.3
Long Registration Code
Support Diagnosis of Sedan and Truck
Support login-free diagnosis of new models (213, 257...)
Support diagnosis of HHT Software for old models (140...) (no longer need virtual machine and no computer configuration requirement)
WIS 2021.7: Workshop Information System
EPC 2018.11: Electronic Parts Catalog, inquire USD and EUR prices of electronic parts by data cards
StarFinder 2016, 2020 and 2022
PL76 Prices inquiry of electronic parts 2022.01
SDmedia Offline Version 2014.01
Engineer Version Vediamo Updated to V5.01.01
Disassemble Assistant
Self Service Literature V1.4
Engineer version DTS V8.16.15 (free) and V9.02( need to be activated) , Upgrade to the Latest Version of 2019 and 2021 data
Fix the error that mercedes-Benz DAS cannot directly call WIS
Repair SMART 450, 451, 452, 454, no longer need TAN Calculator, all offline
with W223 C206 W213 W167 License Valid till August 2023.

Notice:
Do not close or uninstall the built-in Huorong anti-virus software, otherwise the Mercedes-Benz software will be damaged, and do not install other anti-virus software.

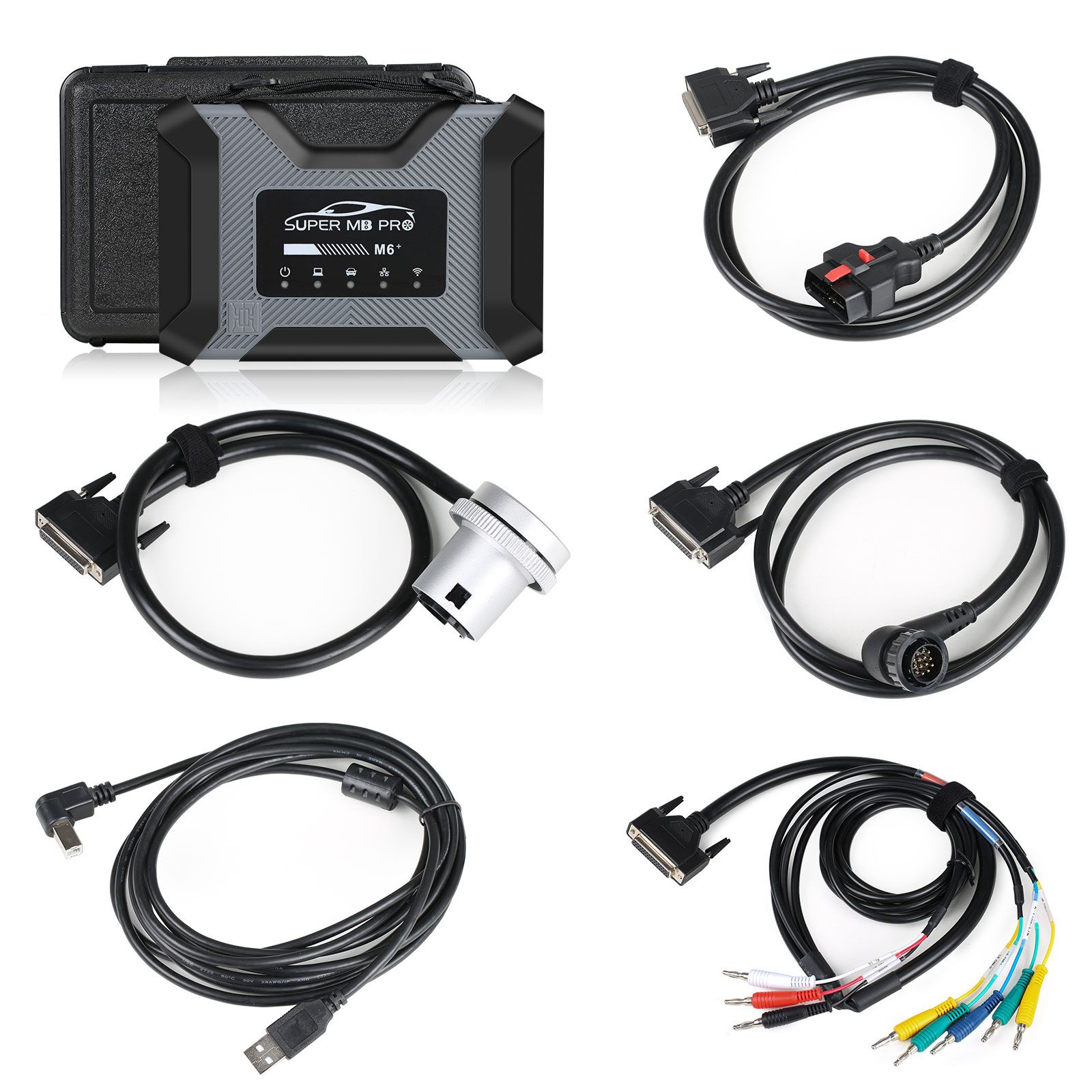

Package Includes:
