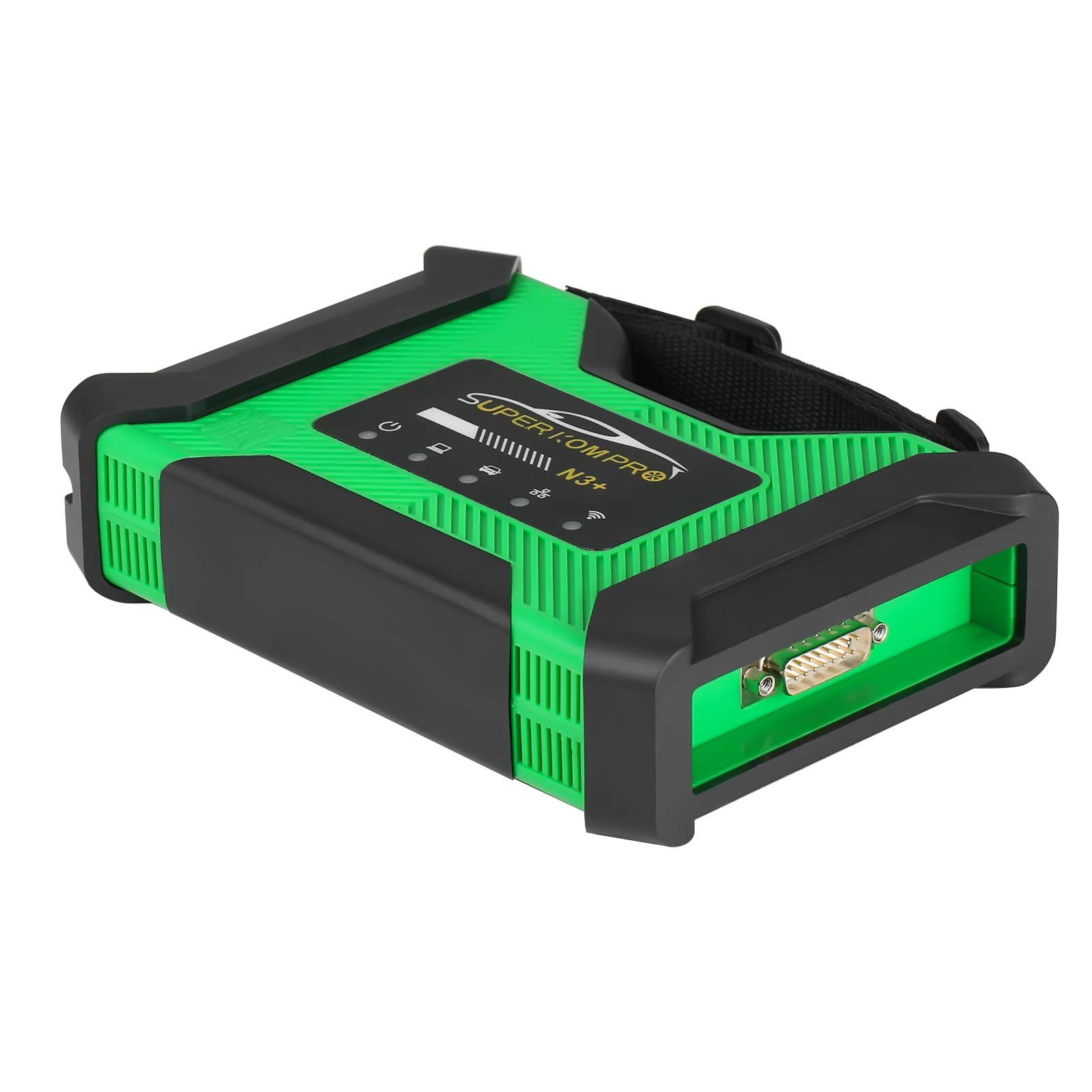

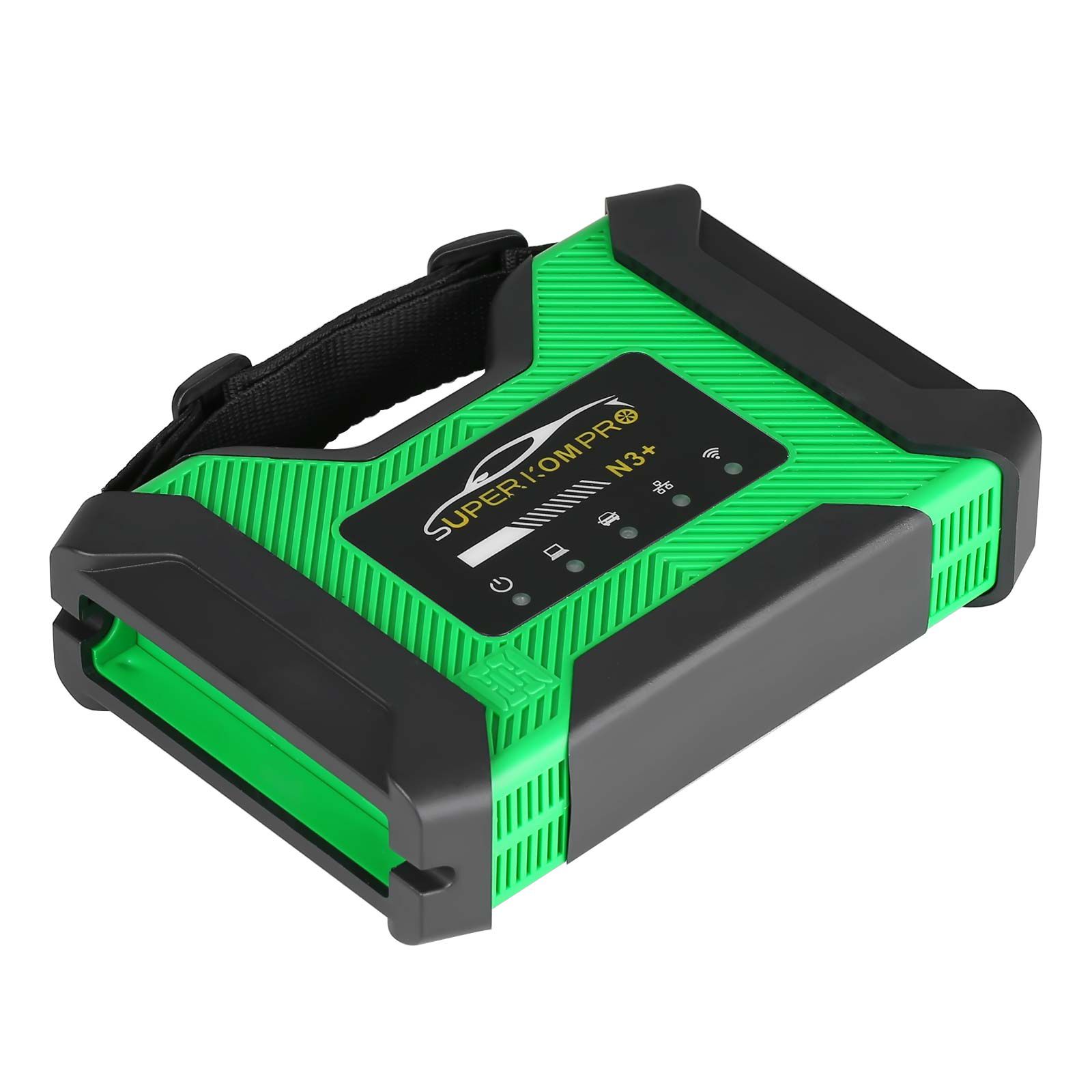

Super ICOM Pro N3+ BMW Full Configuration Plastic Box Supports DoIP J2534 , WiFi and USB connection

Description:

Super ICOM PRO N3+ is developed on the basis of BMW's special inspection device A1, A2, A3 and N3. On the basis of inheriting the advantages of these products, N3+ optimizes and upgrades them. It is 100% compatible with the original BWM special inspection software without any software changes, and J2534 and DOIP are added on the basis of the special inspection. The N3+ is the same as the N3, one code for one machine, and the wireless is bonded with the machine code, which is convenient for customer service and product tracking.

Super ICOM PRO N3+ Highlights:

1. Supports WiFi and USB connection, Compatible with DoIP protocol
2. Firmware update online
3. Replace ICOM Next and ENET cable. Fully compatible BMW ICOM ISTA-D, ISTA-P, INPA, WinKFP, E-sys etc engineering software

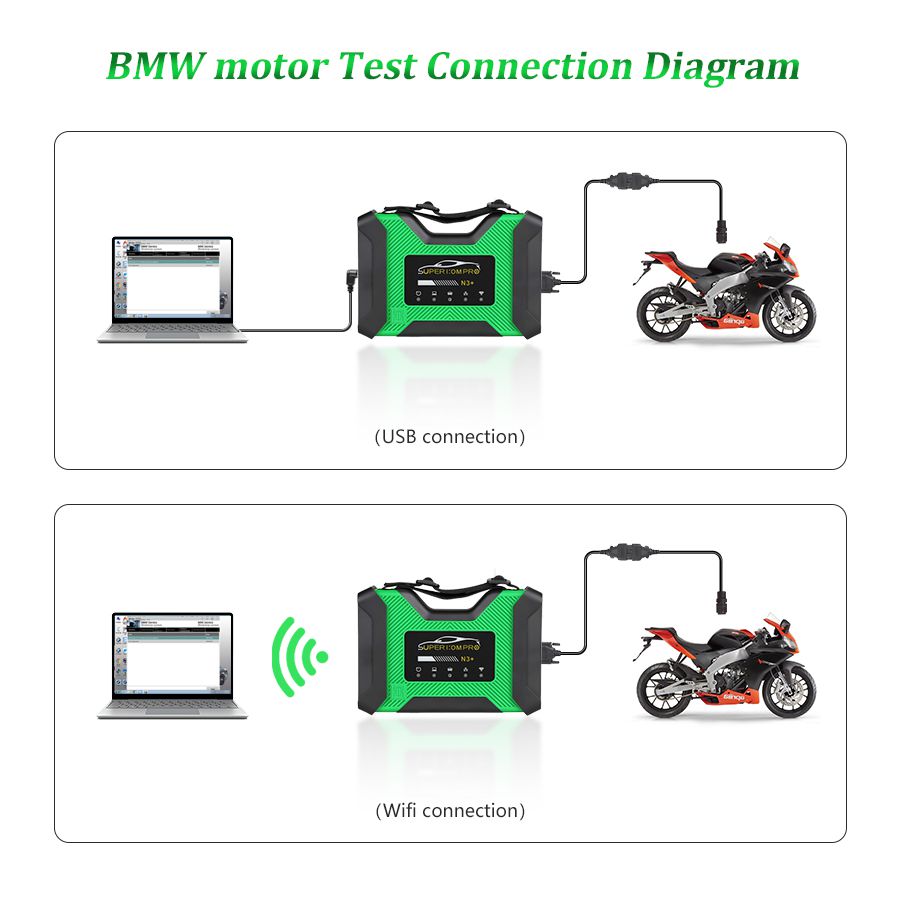

4. With OBDII to 20-PIN cable for old BMW and 10-PIN cable for BMW motorcycle

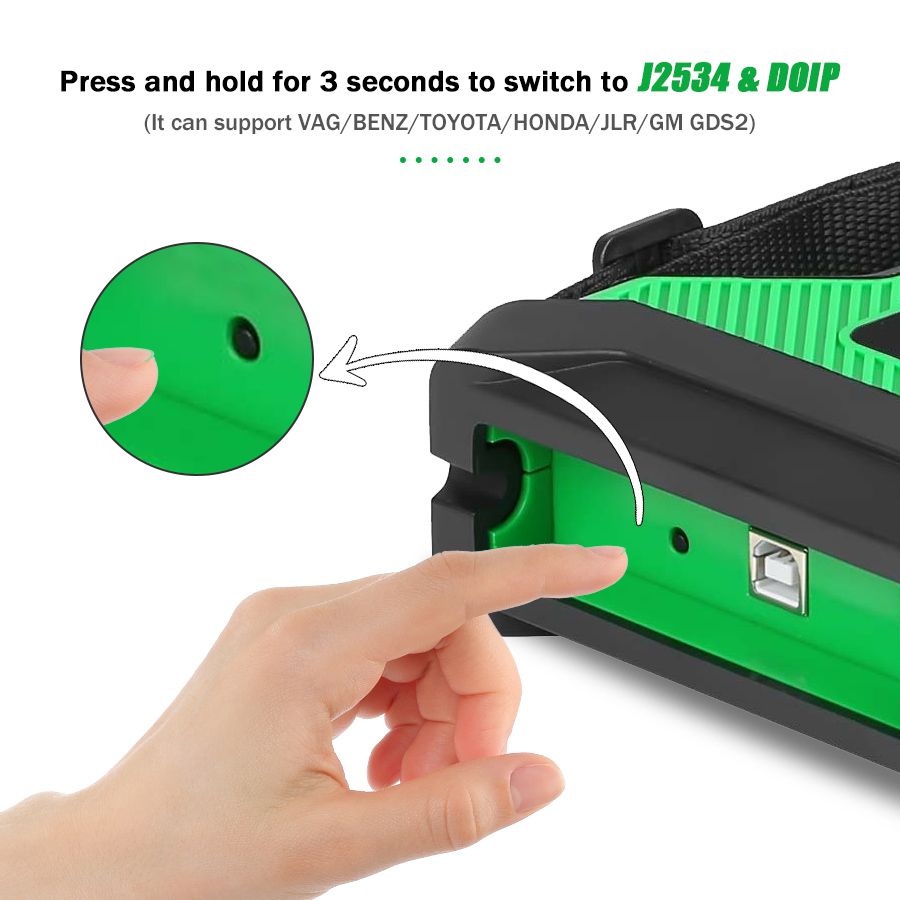

5. Can be used as J2534 Passthru device for ODIS HDS TIS GDS2 SDD etc

Super ICOM PRO N3+ Features:
The firmware of the N3+ product has been refreshed to version 147 when it leaves the factory. The firmware upgrade is synchronized with the original factory and the steps are the same. If there is an update to the firmware in the future, customers can download it from the official website of the original factory and then upgrade.

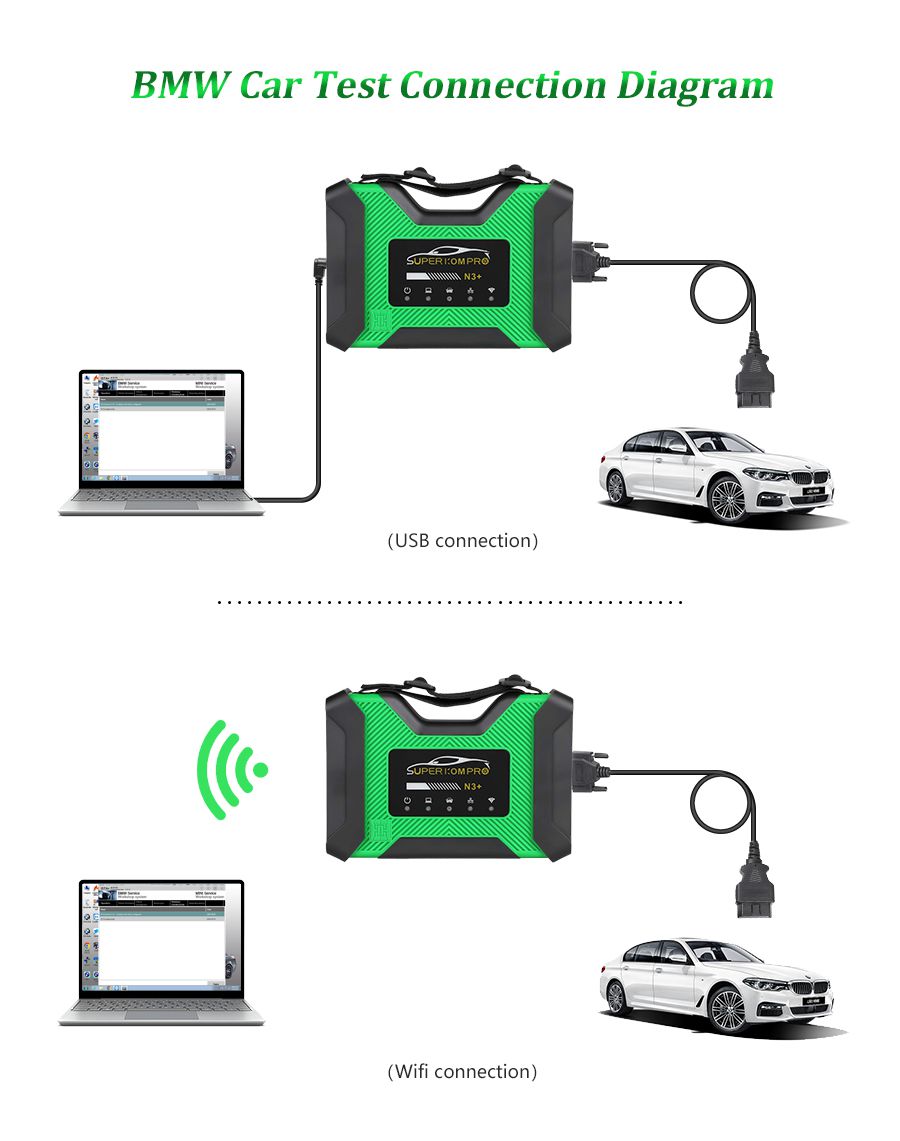

USB and WiFi connection:Wired USB mode: Wired adopts standard USB3.0 interface. Compared with the old RJ45 network port of the original factory, we have better compatibility and stronger applicability for existing general-purpose computers and tablets. (The first time you need to set the dedicated IP address)
Wireless mode: The latest low-power consumption design is used for wireless mode, which reduces the heat of the product in use and greatly improves the speed and stability of wireless communication. After one wireless connection, it can be automatically connected after booting. (Wireless needs to be wired disconnected.)


Firmware Update Online:

The Super ICOM Pro N3+ adopts the original ICOM solution. The firmware upgrade is synchronized with the original factory and the steps are the same. If there is an update to the firmware in the future, users can download it from the official website of the original factory and then upgrade. Current firmware version goes to V149.

Product Comparison Chart:

Product Model	Super ICOM Pro N3+	Super MB Pro N3	ICOM NEXT
BMW full system diagnostics	√	√	√
BMW programming	√	√	√
BMW coding	√	√	√
BMW hidden functions activation	√	√	√
BMW motorcycle	√	√	√
J2534 passthru	VAG/BENZ/TOYOTA/HONDA/JLR/GM GDS2	X	X
BENZ DOIP	√	X	X
VAG DOIP	√	X	X
Mobile version software	MHD, Bimmercode, Bimmergeeks	X	X
WIFI	direct connection	direct connection	via a router
USB Cable	√	√	X
LAN Cable	X	X	√

Super ICOM PRO N3+ PCB Display:

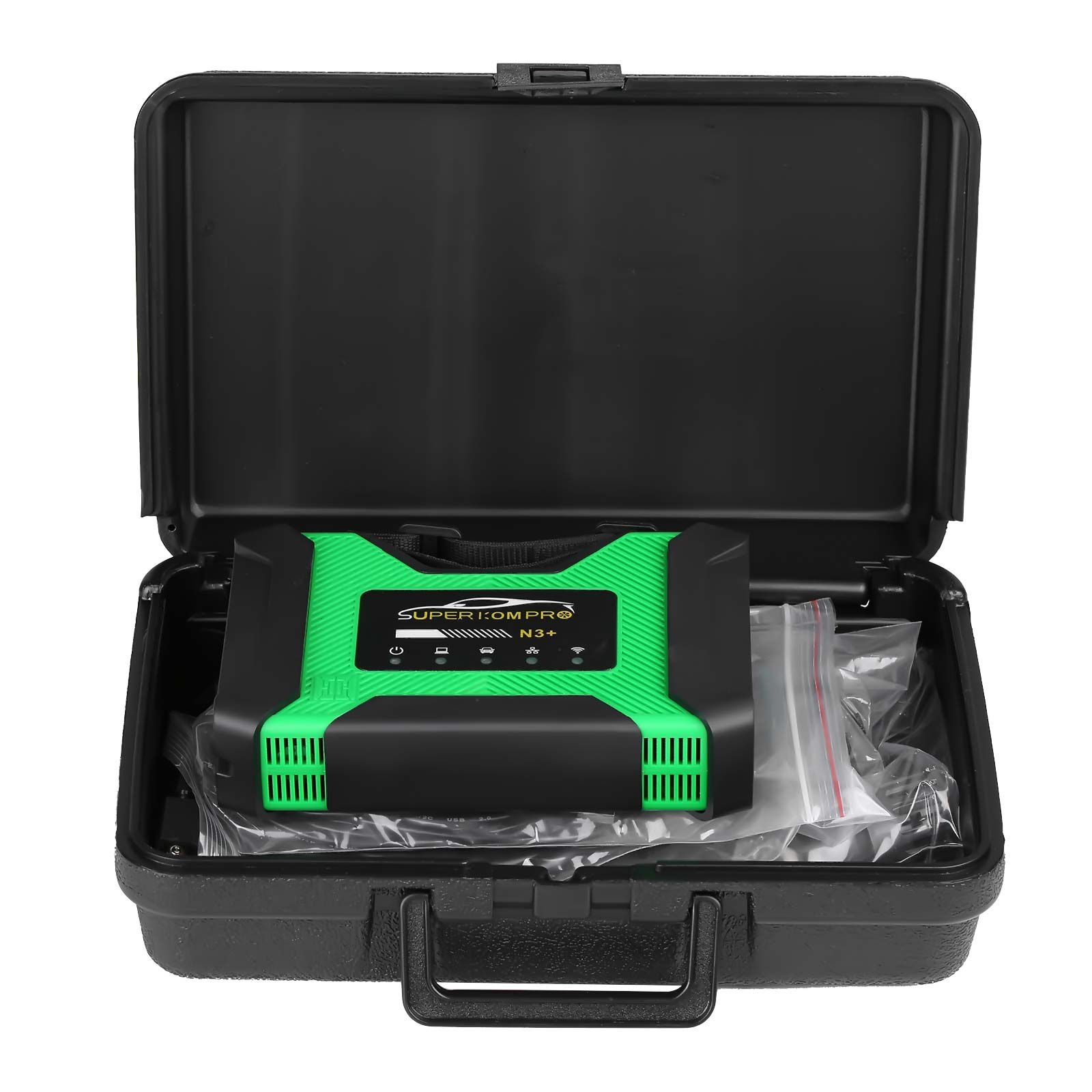

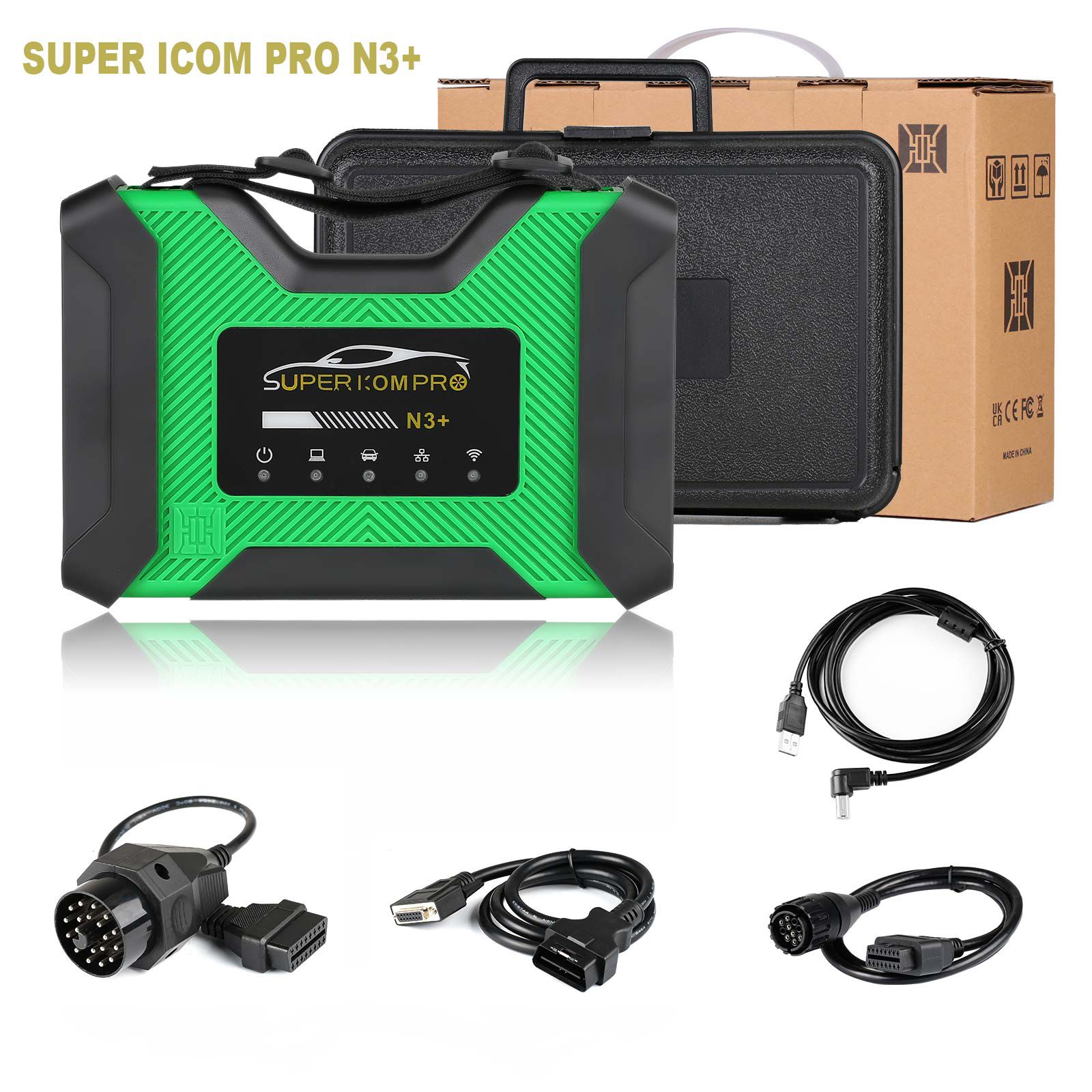

Package Includes:
