Free Shipping Original Xtool PS2 Professional Automobile Heavy Duty Truck Diagnostic Tool Update Online

3. The lower-side connection of the mainframe :

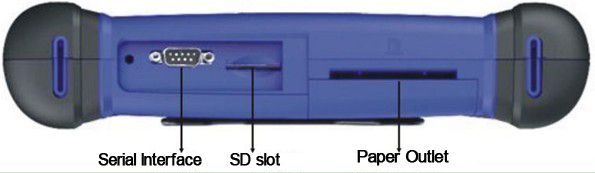

serial port: Uses in the main body debugging.
SD card slot: uses for SD card
paper outlet: use for mini printer

4. Functions of VCI diagnostic box:

The box is bridging the PS2 mainframe and the automobile diagnostic base. It is called lower position machine. This diagnostic box has two connections, the DB15 connection and the OBD II connection. The main testing line connects the PS2 mainframe with the DB15 adapter. The OBDII connection could link with the testing adapter (PS2 with OBDII diagnostic base could directly link with automobile connection base)
Because the blue-teeth communication module is installed in the VCI diagnosis box, the PS2 mainframe could proceed the diagnosis without the main testing line. The “on-line diagnosis” should be changed to the “wireless diagnosis” mode on the menu. serial port: Uses in the main body debugging.

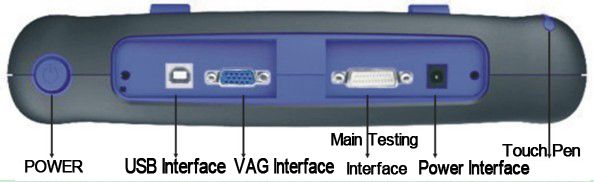

SD card slot: uses for SD card Power switch: Uses for starting and closing of main engine
USB connection: Uses this connection to carry on the data synchronization with PC.
VGA connection: Uses this connection to link the external monitor (800×600 pixels)
Main test connection: Uses the testing line to carry on the vehicles diagnosis.
Power connection: Uses for the exterior power supply
Touching pen: Uses in clicking on the touching-screen.

5. PS2 technical parameters:

operating system: WINCE 5.0 operating platforms
CPU: SAMSUNG 32 bits processors, basic frequency is 400MHZ random memory: SDRAM 64M
programming memory: FLASH 64M
exterior memory: supports SD card slot-in and slot-out
mainframe power supply: DC12V/24V
mainframe power: 25W
printer: Mini high-speed thermal sensitive printer
screen: 8 inches real-color touch-screens, 800×600 with LED back-light

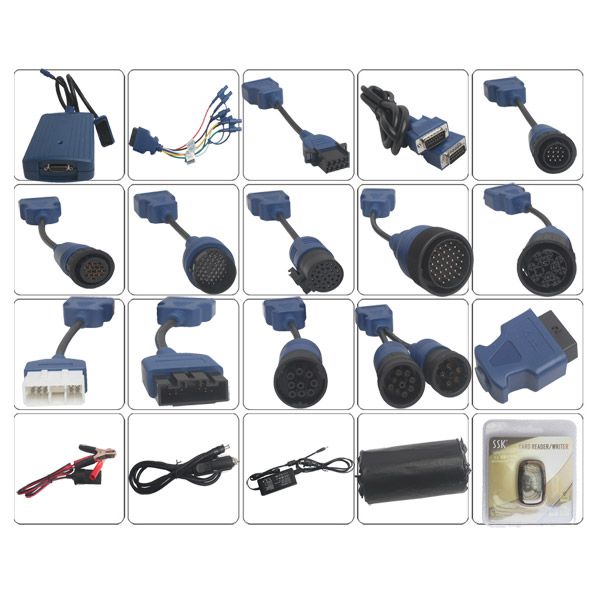

machine composition: mainframe, testing adapter, group of lines, manual and outside box
temperature: -20-50℃
relative humidity: <90%
mainframe battery: rechargeable battery 3500m/Ah
wireless communication: blue-teeth
overall size: 305.2×215.2×85mm
weight: 10KG

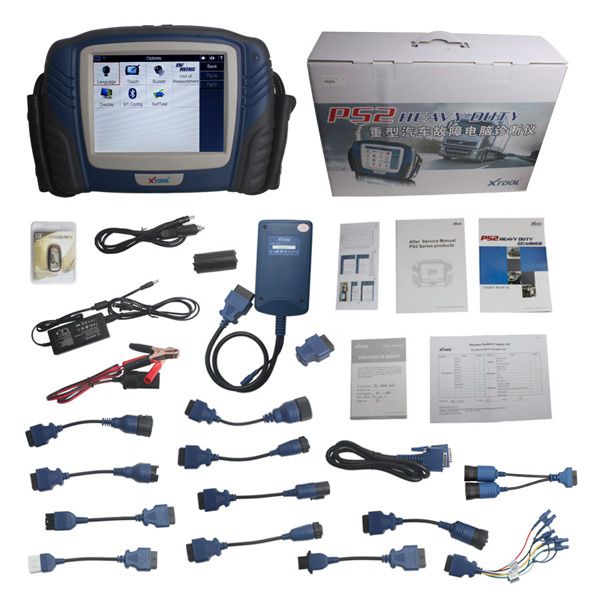

Packing List:
