OBDSTAR C4-07 (MB-VGS4-0-NAG2) Adapter Kit

Designed for drilling access to the FBS4 7G-Tronic VGS4-0-NAG2 Transmission Control Module (TCM), the OBDSTAR C4-07 (MB-VGS4-0-NAG2) adapter kit supports solder-free virginizing of used TCMs via JTAG mode. It also enables personalization (data transfer) through BENCH or OBD mode, delivering the same result as an ECU clone. This solution removes the need for automotive electronics technicians to possess advanced soldering skills, making it a powerful and accessible tool for professionals.

Supported Tools

Compatible with OBDSTAR G3, DC706, and other supported devices.

Important Notes

1. Requires use with OBDSTAR MP001.
2. If you require TCM-012 and Converter V2, purchase the Full Kit.

Supported Functions

• Supports all Mercedes-Benz vehicles equipped with the VGS4-0 NAG2 7G-Tronic TCU of the FBS4/DAS4 generation.
• Enables solder-free virginizing of used TCMs via JTAG mode.
• Supports personalization (data transfer) via BENCH or OBD mode, achieving the same effect as a TCM clone.

Advanced Features

• Custom positioning board ensures precise and secure drilling access to the control unit.
• When used with the custom drill head and a handheld drill, the TCM can be opened easily with minimal exterior damage.
• High-precision custom board allows safe, solder-free read/write operations—ensuring reliable data access and operational safety.

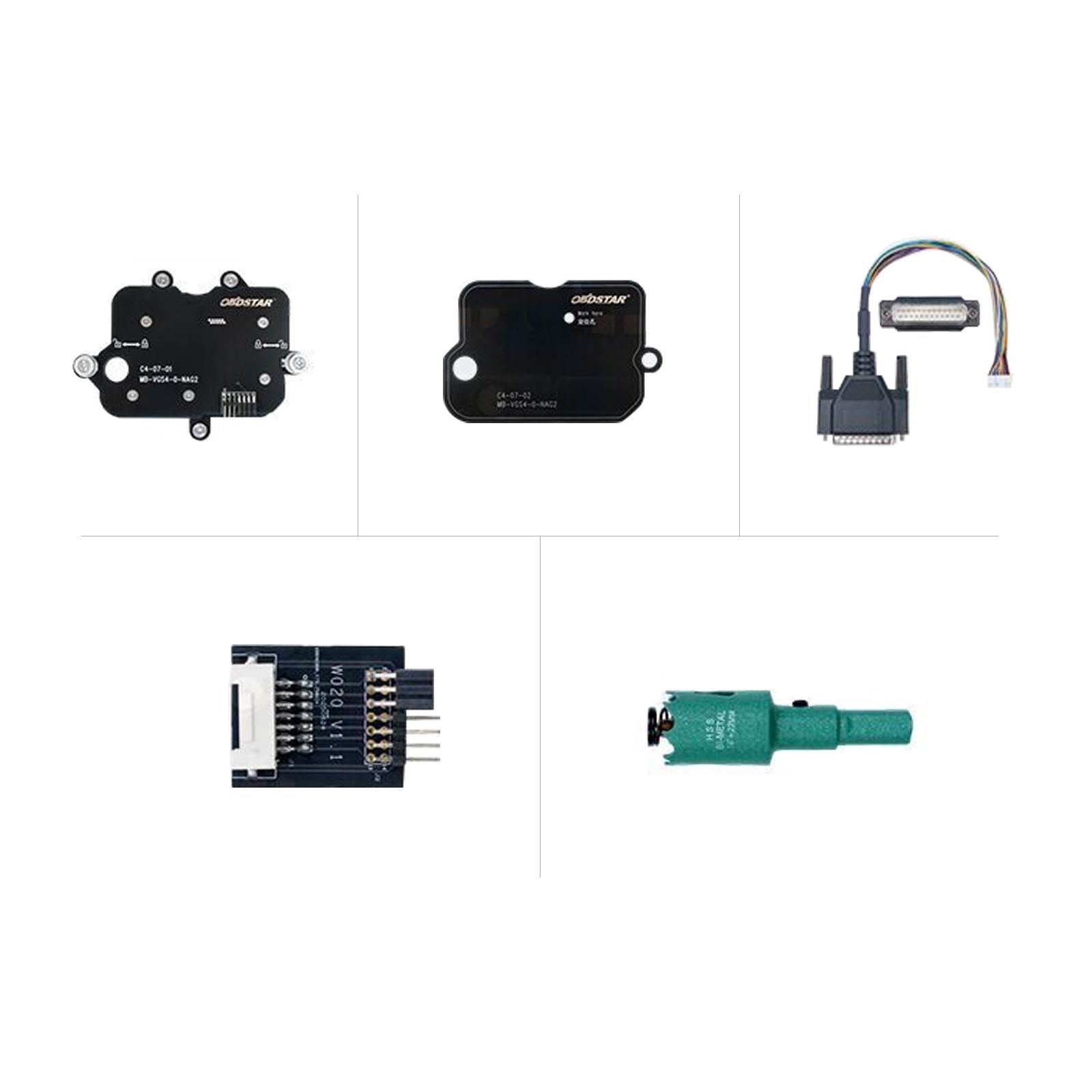

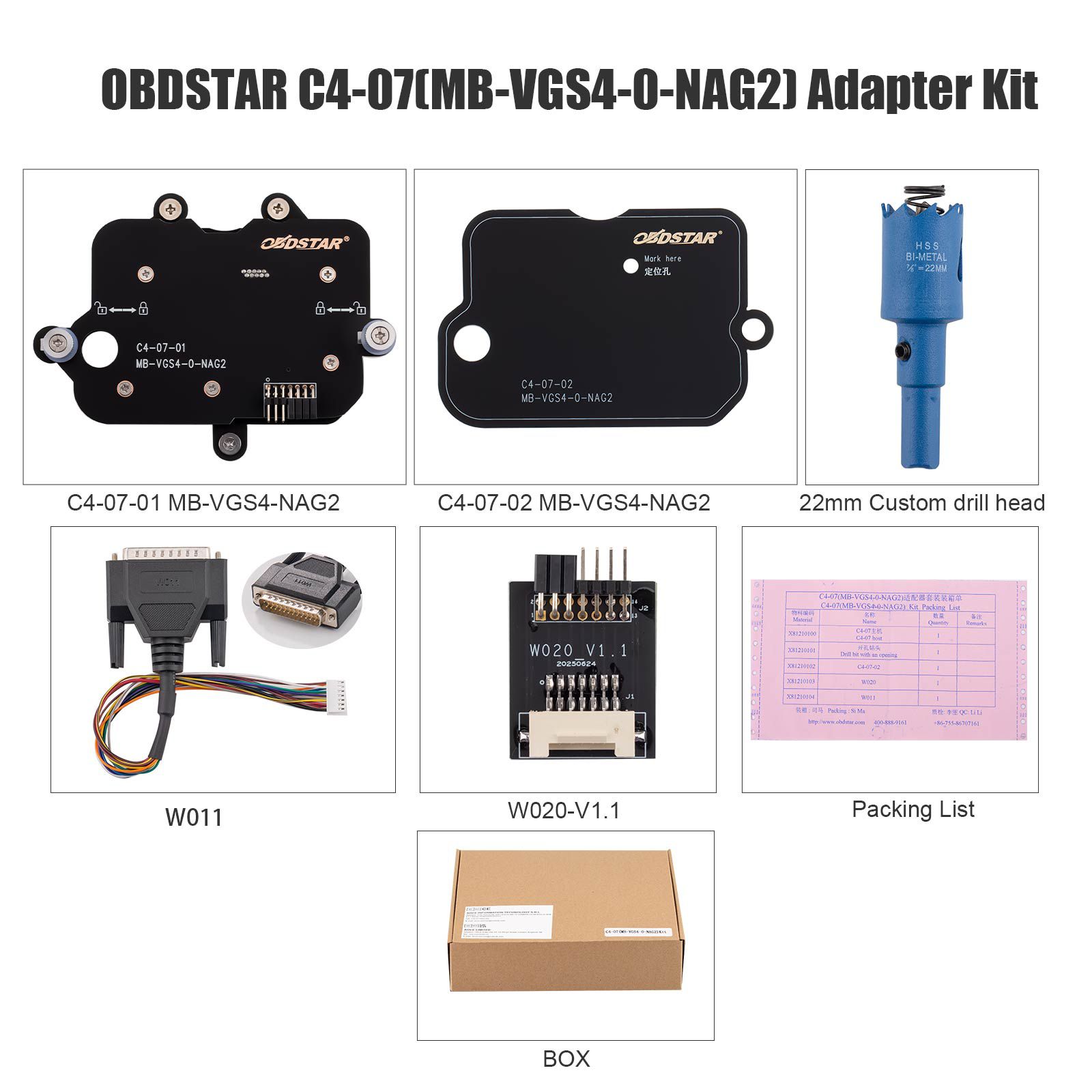

Package Includes

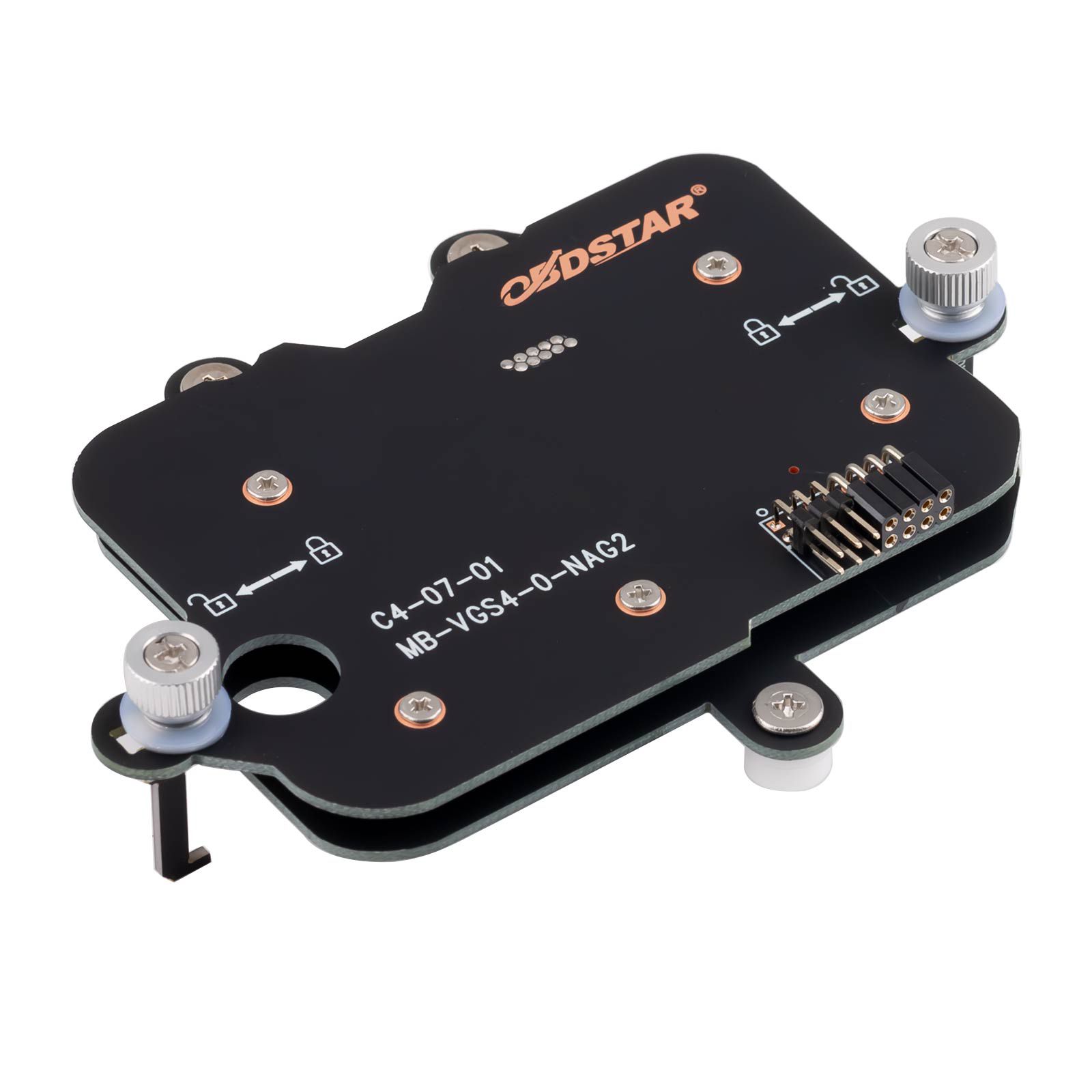

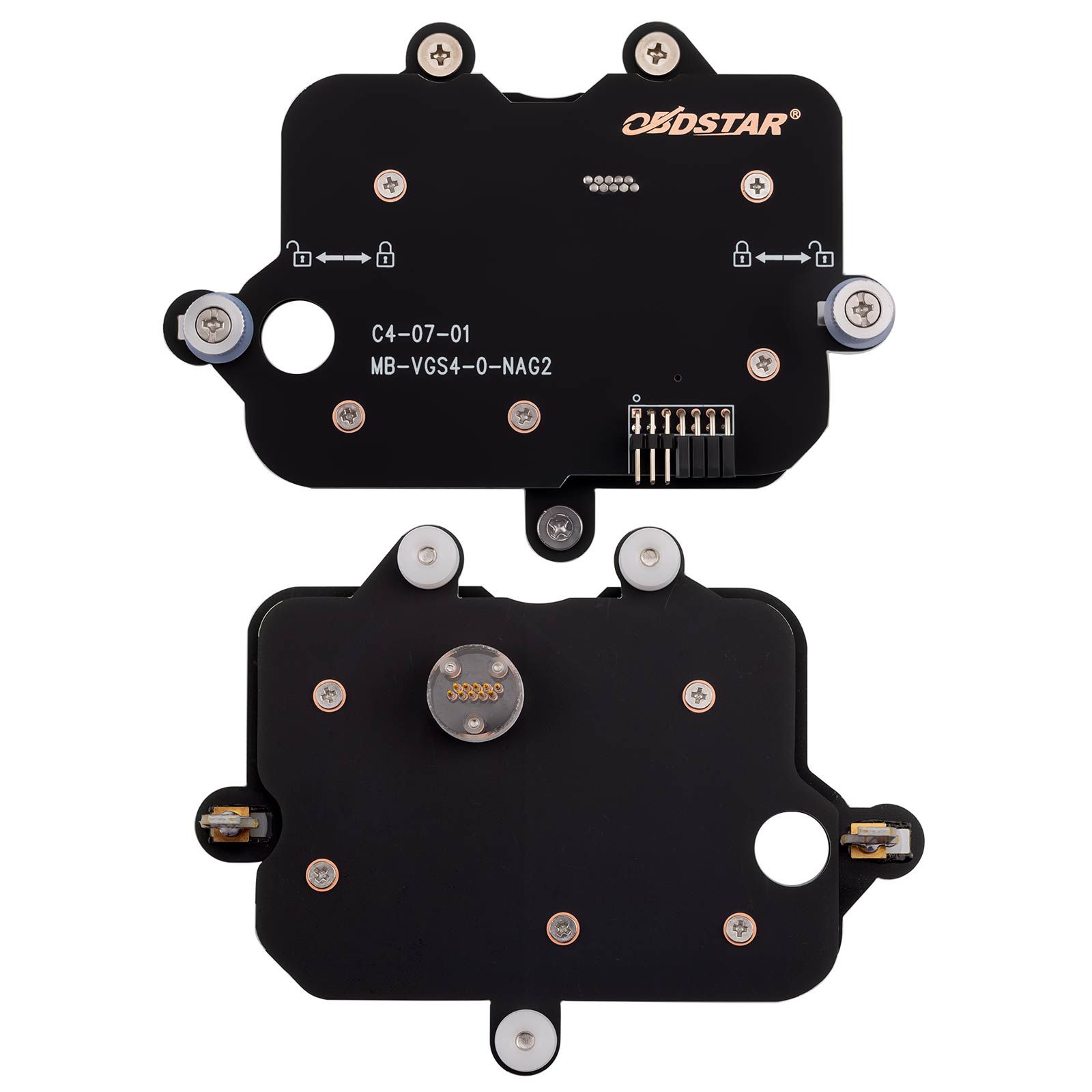

• 1pc x C4-07-01 soldering-free board

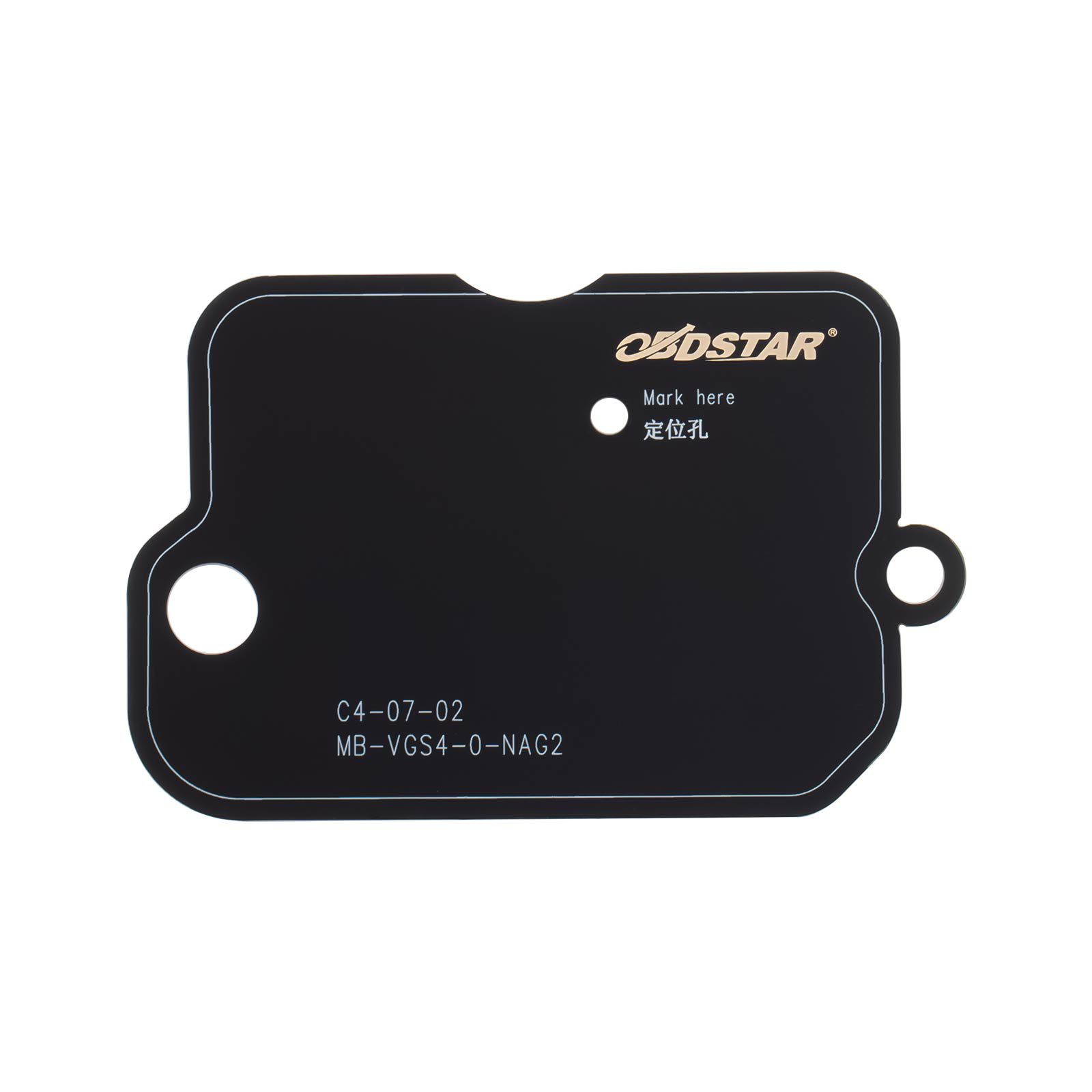

• 1pc x C4-07-02 custom positioning board

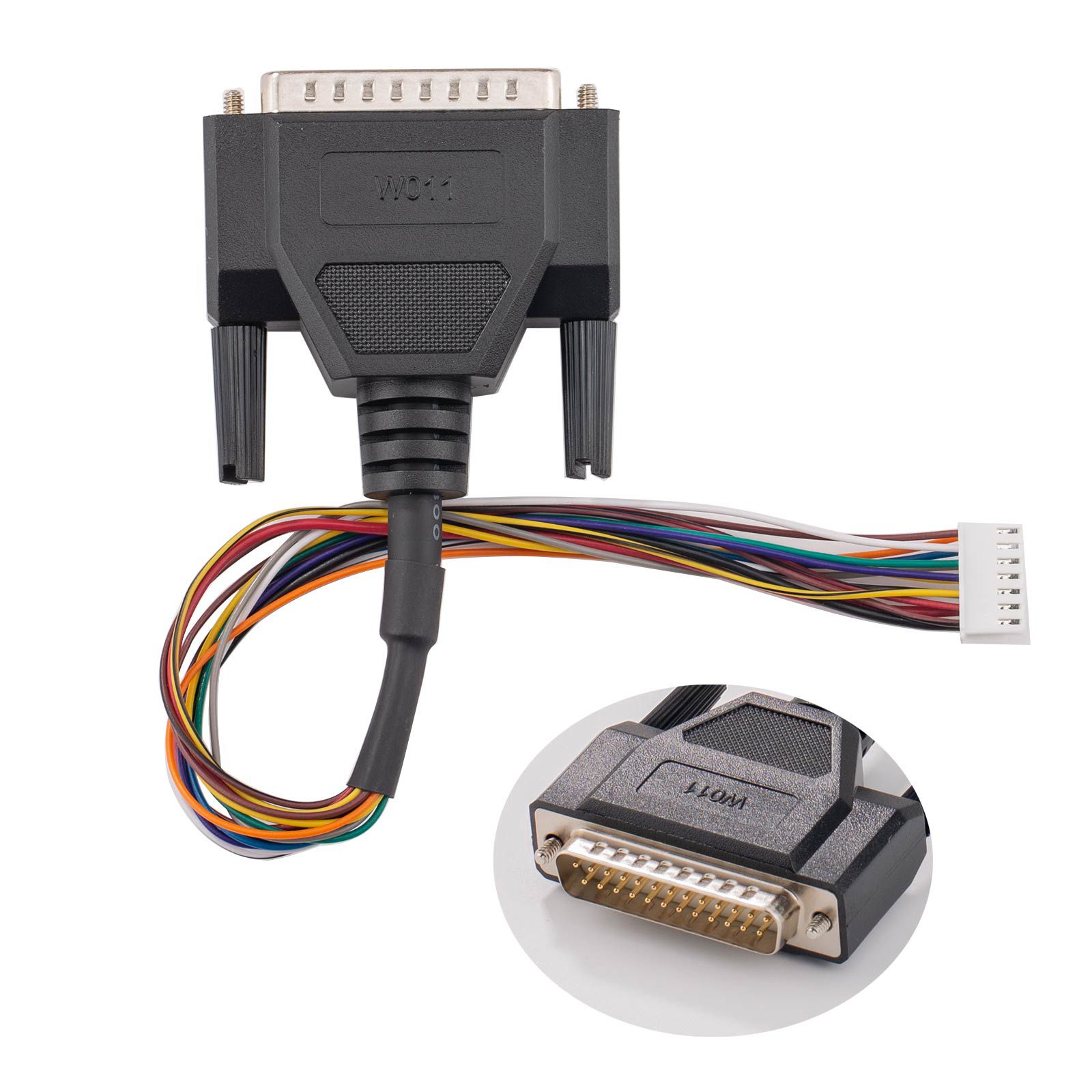

• 1pc x W011 cable

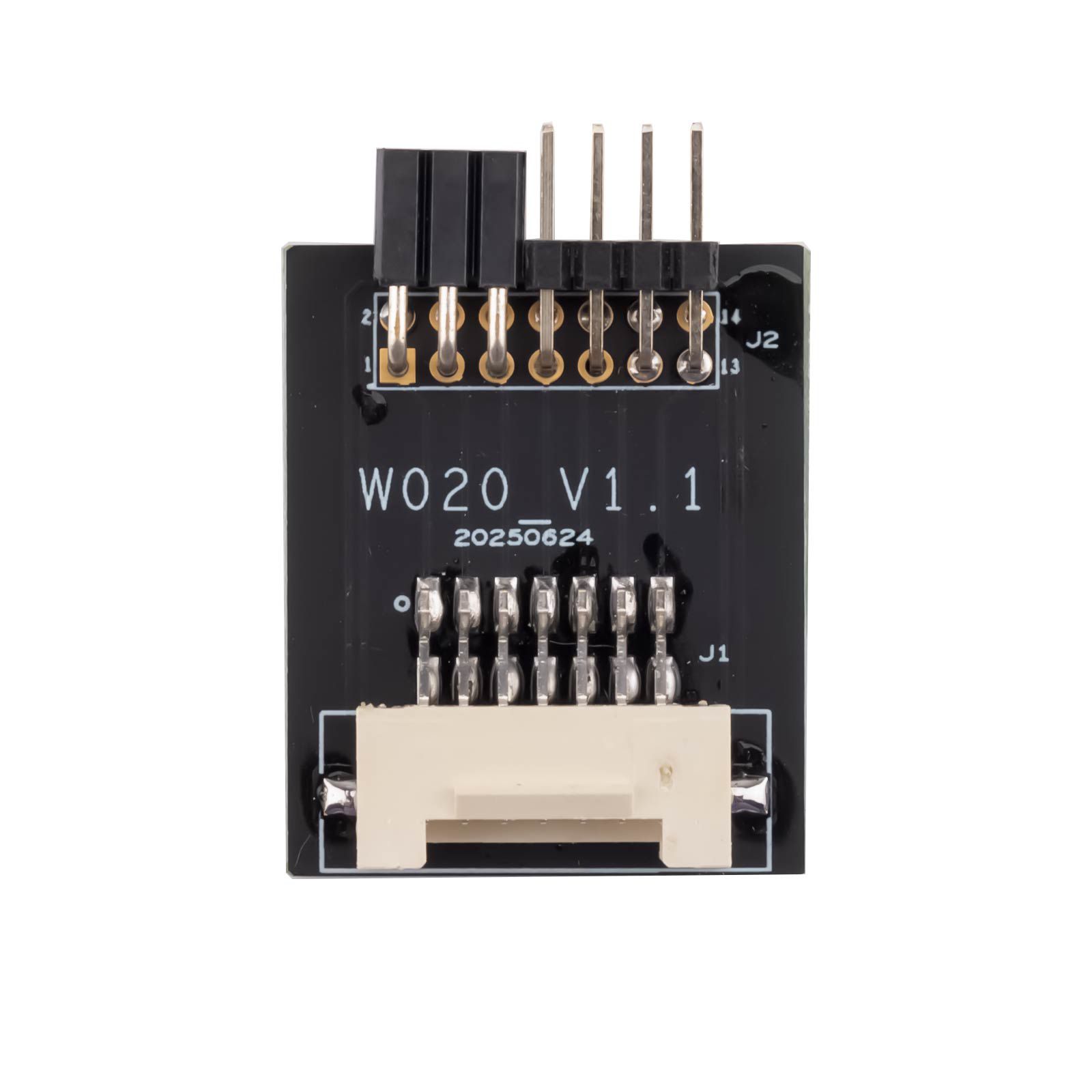

• 1pc x W020-V1.1 interface board

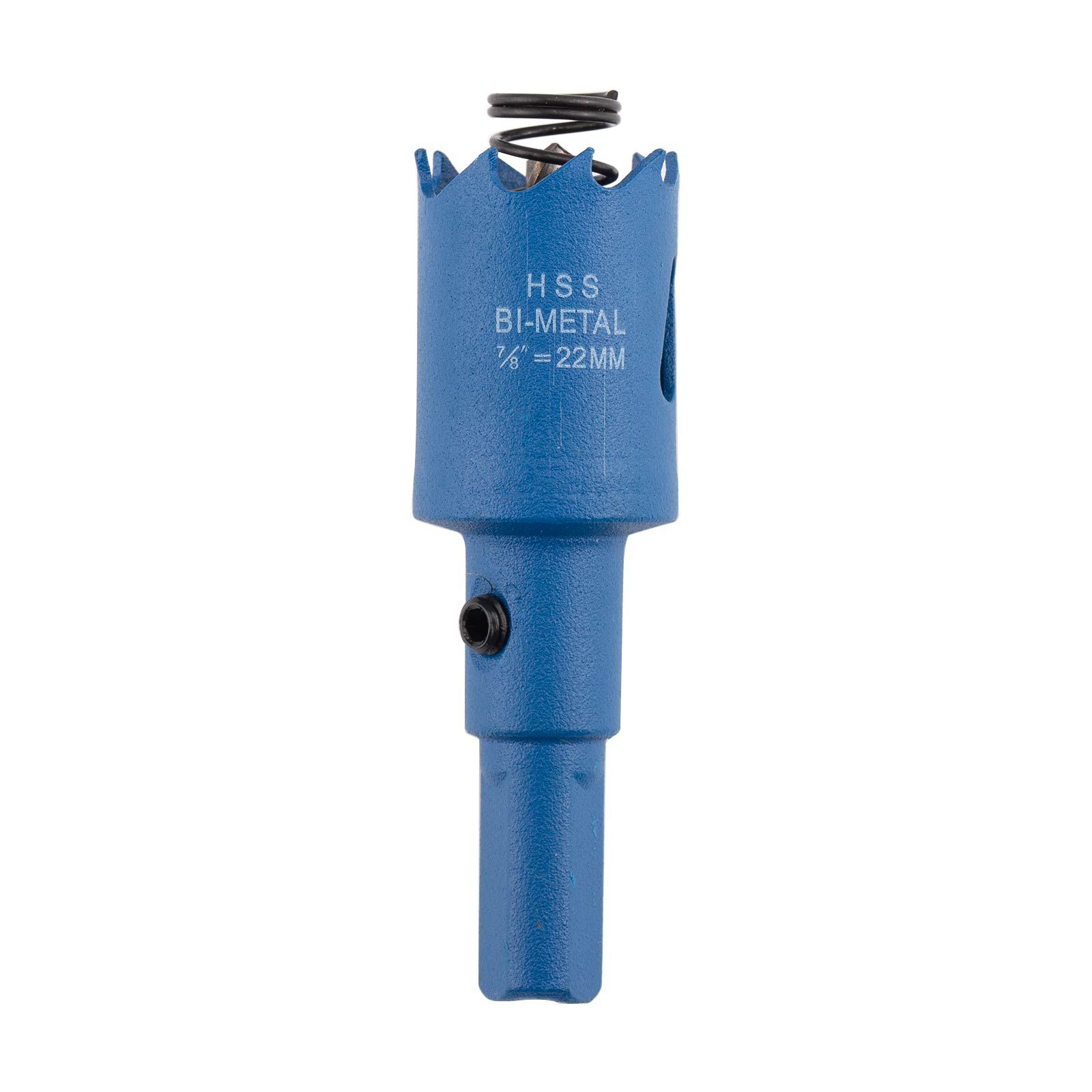

• 1pc x 22mm custom drill head
