KD X2 Remote Maker Unlocker and Generator-Transponder Clone with 96bit 48 Transponder Copy No Token + KD Data Collector

KEYDIY KD-X2 with 96-bit 48 Transponder Copy Function

The KEYDIY KD-X2 is a compact, powerful key programmer and transponder cloning device designed for professional locksmiths and automotive technicians. It supports both PC connectivity via USB-B and mobile device integration using OTG with Android or iOS devices.

Key Features

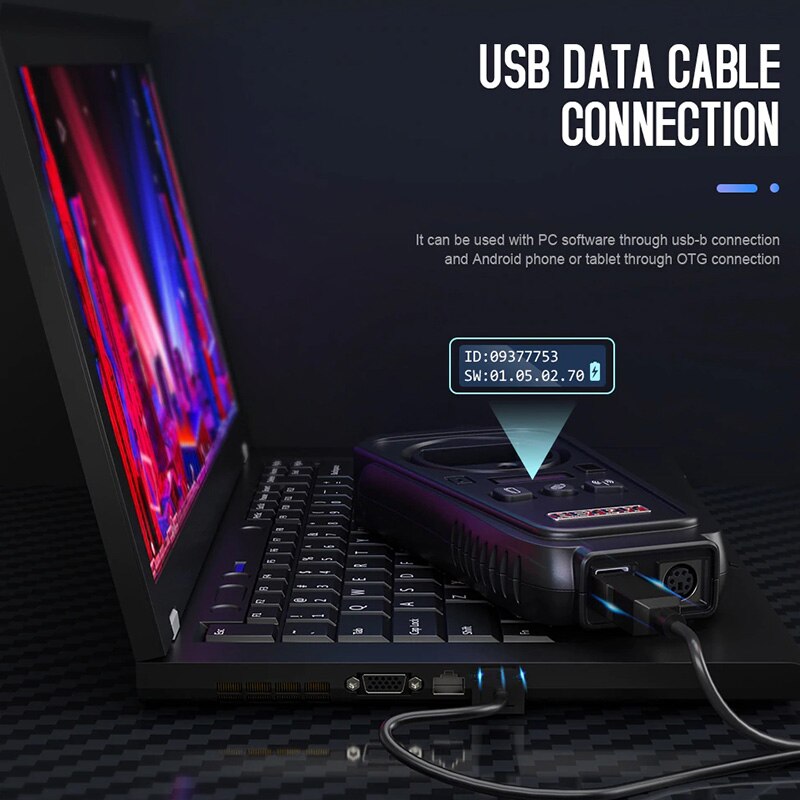

• Connects to PC via USB-B; compatible with Android/iOS devices using OTG
• Three dedicated shortcut buttons: chip identification, remote identification, and frequency detection
• Free activation of 96-bit ID48 transponder copy function – no tokens required

Note: 8A Copy chip use for KD-X2. Supports Toyota 8A copy chips for models like Toyota CAMRY, LEVIN, and H-chip variants. Currently does not support copying Carola H-chip.

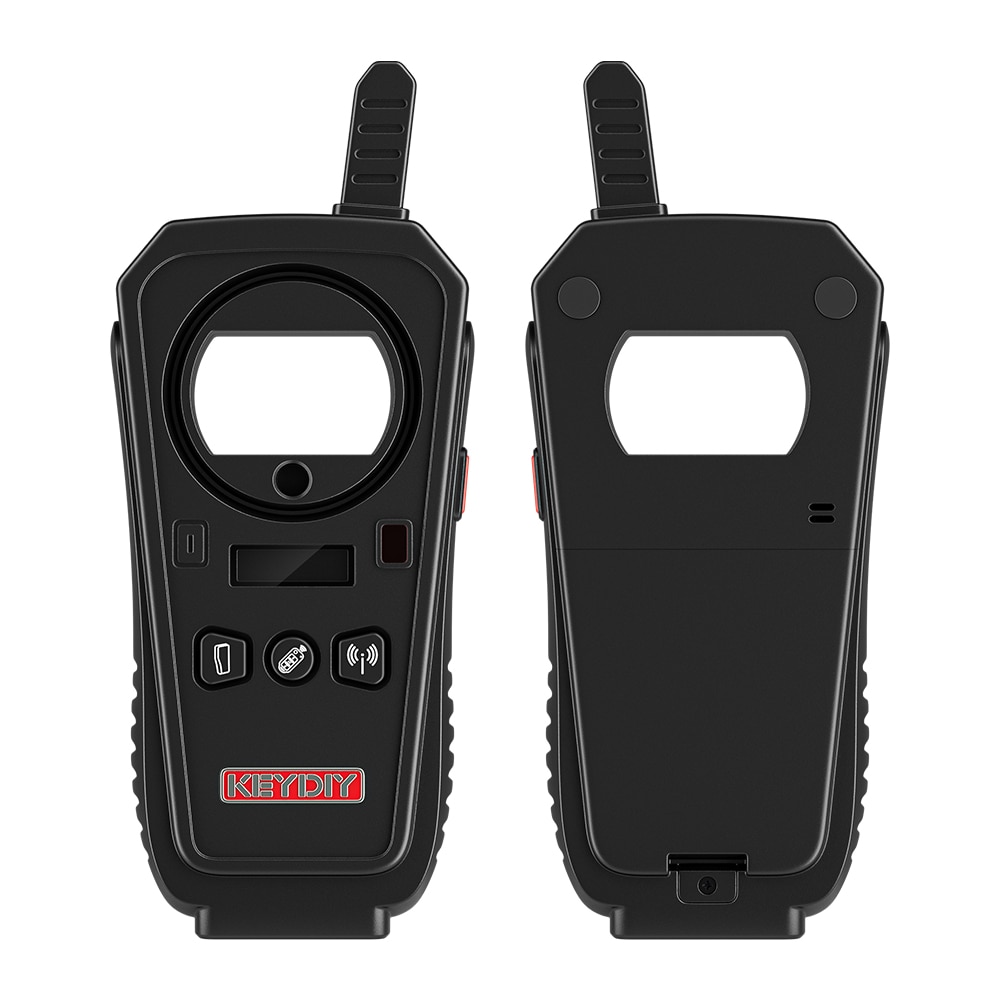

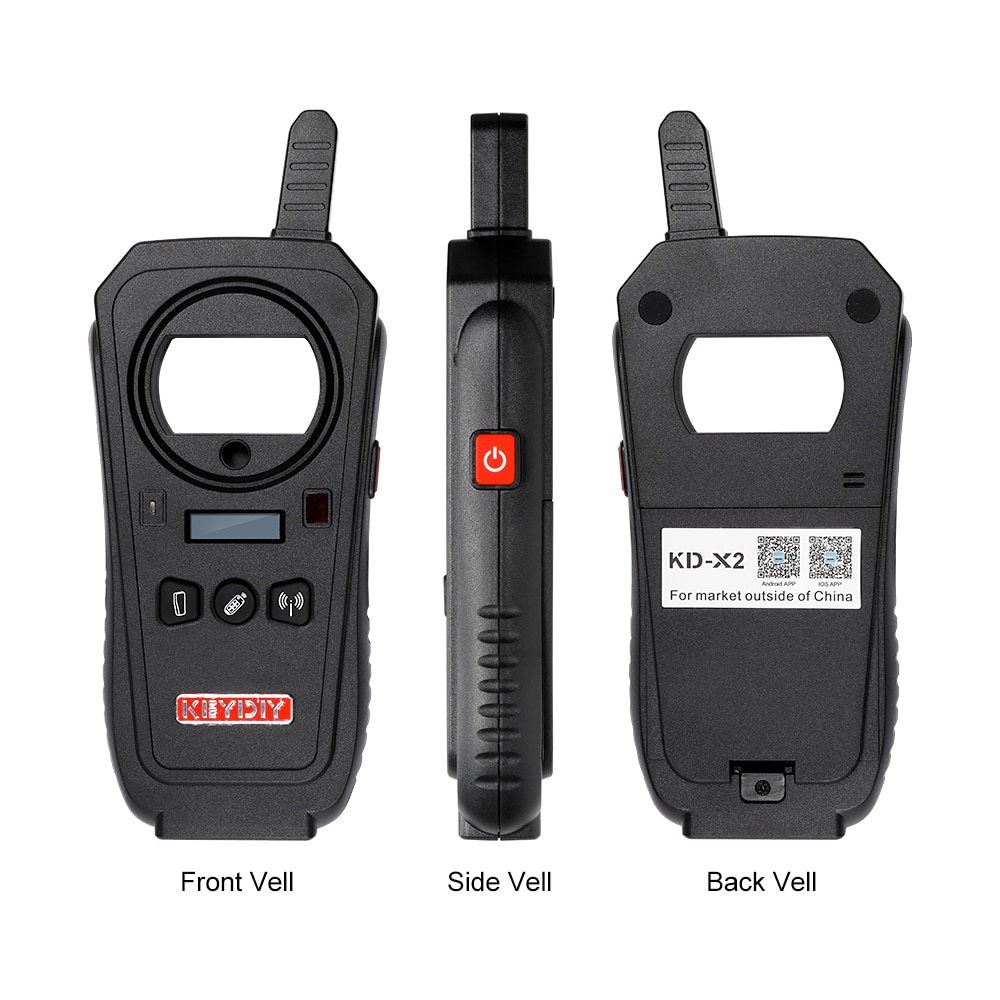

About the KEYDIY KD-X2

The KD-X2 is more than just a key cloner — it's a multi-functional auto key programming tool widely used by professionals due to its portability and robust feature set. This device can clone transponders, read/write chip data, perform frequency tests, generate transponders, and simulate signals — all in a few simple steps.

Equipped with a built-in snoop function, the KD-X2 notifies users when sufficient snoop data has been collected for ID46 and ID48 systems. Its smartphone-like size allows easy portability, while the integrated 1600mAh lithium battery ensures extended operation without power concerns — capable of hundreds of decodings on a single charge.

KEYDIY KD-X2 Main Features

1. No tokens required for operation
2. Free lifetime software updates
3. Compatible with popular market chips including Handy Baby, JMD, CN, VVDI, and more
4. Copies 96-bit ID48 transponders (limited to 96-bit only)
5. Works with PC software via USB for online-only functions
6. Reduces need for multiple specialized tools
7. Transponder chip identification to assist correct chip selection
8. Remote identification to simplify programming decisions
9. Frequency detection to verify remote button functionality
10. Ignition coil detection for signal fault testing
11. Ongoing updates and additional features coming soon

Basic Functions of KEYDIY KD-X2

1. Wired Generation
2. Wireless Generation
3. Mobile Phone Simulation
4. Garage Door Generation
5. Proximity Key Unlock
6. Frequency Detection
7. Infrared Detection
8. Access Card Copy
9. Fixed Code Remote Copy
10. Online HCS Remote Copy
11. Online Chip Copy (supports 96-bit 48chip, 46chip, 4Dchip, Toyota chip, etc.)
12. Chip Generation
13. Chip Editing
14. Chip Simulation
15. Ignition Coil Detection
16. Remote Data Backup
17. Additional functions available through future updates

KEYDIY KD-X2 Version 5.0.0 Updates

1. Enhanced remote data service
2. Improved stability during remote upgrades
3. Faster and more stable third-party remote downloading
4. Generating remotes now rewards KD-coins
5. Using KD NB remotes to copy chips earns KD-coins
6. Now supports garage door remote generation

Supported Vehicle Brands

Audi, Baojun, Bcahy, Benjin Auto, Benz, Besturn, BMW, BYD, Cadillac, Chang'an, Changfeng Motors, Changhe, Chevrolet, Chrysler, Citroen, Daihatsu, Dongfeng, FAW, Fiat, Ford, Garage, Geely, GMC, Great Wall Automobile, HaiMa, Hawtai Motor, Honda, Hyundai, Isuzu, Iveco, Jaguar, Jianghua, Kia, Land Rover, Lincoln, Mahindra, Mazda, MG, Mitsubishi, Nissan, Opel, Peugeot, Citroen DS, Porsche, Proton, Renault, Saipa, Samand, Seat, Skoda, Ssangyong, Subaru, TATA, Toyota, Lexus, Volvo, VW, Zhongxing

Transponder Identification Capabilities

The KD-X2 can identify the following transponder types:

• Fixed code: ID 11, 12, 13, 33, 4C
• Philips Crypto: 40, 41, 42, 44, 45, 46, 47, 49, 4A
• Megamos: 48, 48 Canbus
• Texas Crypto: 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 6A, 6B, 70, 71, 72, 82, 83, 8C, 8E
• Most smart keys

Transponder Cloning Support

The KD-X2 includes snoop-based cloning for ID46 and ID48 systems. Supported cloning includes:

• 4D / 4C / 46 / 11 / 12 / 13 / 33 transponder clone
• ID48 (96-bit only)
• Fixed code (T5): ID 11, 12, 13 & 33 using carbon T5 chip
• Texas TX 4C and Crypto TX/CR 4D
• Philips Crypto PH/CR 46
• Toyota 80-bit
• Megamos Crypto

Transponder Production (Generation) Support

The KD-X2 supports generation of various transponder types:

• ID4D / 60 / Epica60 / 61 / 62 / 63 / 64 / 65 / 66 / 67 / 68 / 69 / 6A / 71 / 72G 4C
• ID48 types: For Seat TP22 / VAG TP23 / Skoda TP24 / Audi TP25 / Seat TA22 / VAG TA23 / Skoda TA24 / Audi TA25 / Fiat ID48 / Jetta ID48
• ID46 types: For Great Wall (STEC), Zotye (STEC), Ha/ma (STEC), Maple (STEC), Geely (STEC), Cherry (STEC), Zhonghua230, Zhonghua530, VW46 (2007–2008), X-Trail (2008–2009)
• Renault: Master II, Trafic II, Espace IV, Laguna II, Velsatis, Twingo
• Opel: Vivaro, Movano
• Citroen, Fiat, Lancia, Peugeot (206/307)
• Mitsubishi, Cruze, Siemens, Changhe, Suzuki, GM, Beidouxing
• T5 type: 11 / 12 / 13 / 33
• ID47: Honda
• ID63 Ford 80-bit

Signal Testing

• Frequency Test (remote, ASK/FSK)
• ECU Signal Test (checks ignition coil signal output)

Simulator Function

Allows simulation before cloning to ensure compatibility:

• ID46
• ID4D

Transponder Editing

Read, write, and edit chip data for: 4D, 46, 48, 47, 4D DST, 8A, and others.

ID48 Activation & KD Coins System

ID48 (96-bit) copy function is free to use but requires 150 Key DIY Coins per clone. Coins are earned through regular usage:

• First-time generation of a "B" remote = 20 free KD Coins
• First-time generation of an "NB" remote = 10 free KD Coins

Examples:

• 7 x “NB” + 1 x “B” = 150 coins (1 free ID48 copy)
• 8 x “NB” = 160 coins (1 free ID48 copy + 10 spare coins)
• 15 x “B” = 150 coins (1 free ID48 copy)

Alternatively, KD Coins can be purchased:

• £9.99 + VAT per 150 coins (1 clone)
• Contact 01902 366 448 for more information

How to Identify a Chip Type Using KEYDIY KD-X2

1. Insert the chip into the designated slot
2. Press the "Chip Identification" button
3. Wait for result display on OLED screen

Technical Specifications

• Power Supply: 2600mAh lithium battery
• Charging: USB 5V/1A
• Display: 0.91-inch OLED screen

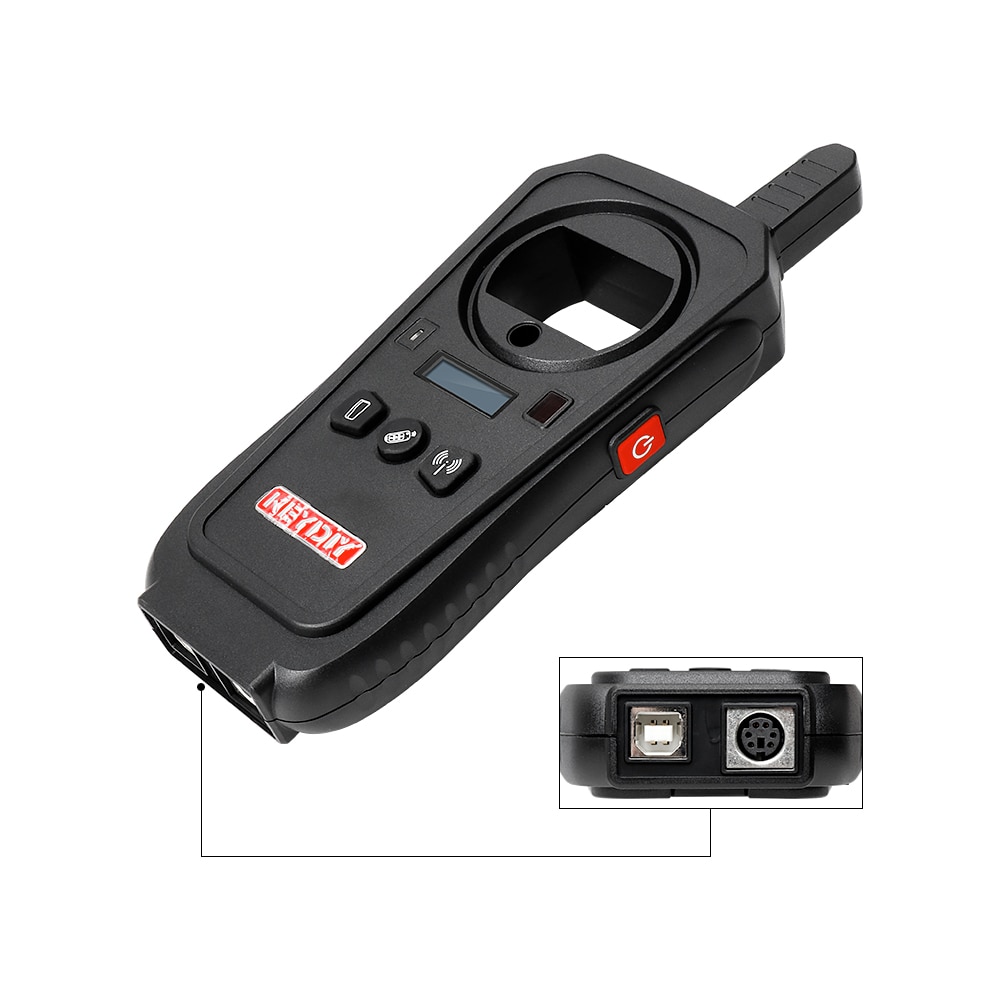

• Connectivity: Bluetooth BLE4.0 (for mobile app), USB-B (PC), OTG (mobile devices)
• Interface: PS-2 port for connecting remotes
• Shortcut Buttons: Chip ID, Remote ID, Frequency Detection
• Activation: Free 96-bit 48 transponder copy (no token needed)
• Languages Supported: English, Vietnamese, Russian, French, German, Spanish

Customer Feedback

"I just updated to version 4.6.2 and the REMOTE UNLOCK option is now available. This feature allows unlocking used keys so they can be reused, significantly reducing costs by enabling the reuse of second-hand keys."

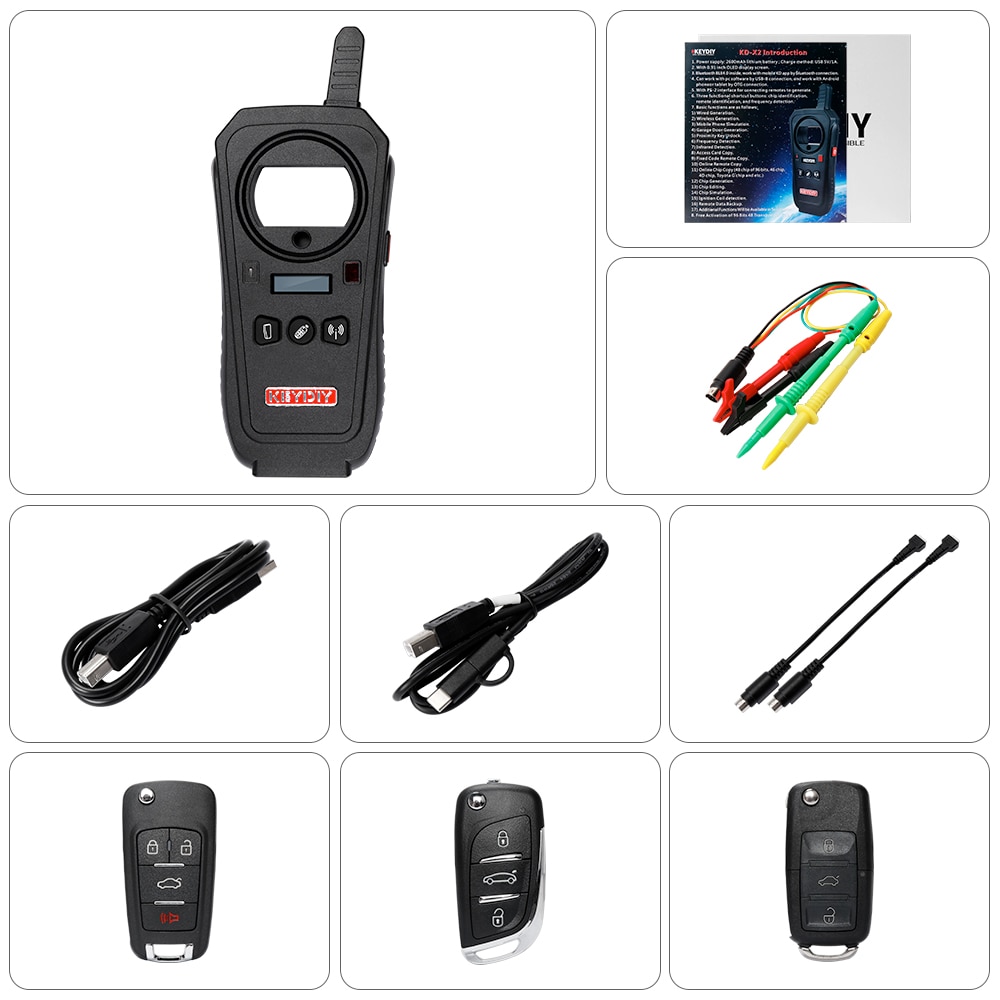

Package Contents

• 1 x KEYDIY KD-X2 Main Unit
• 1 x PC Data Cable
• 1 x Set of 3 Common Remotes
• 1 x Remote Data Cable
• 1 x Spare Remote Data Cable
