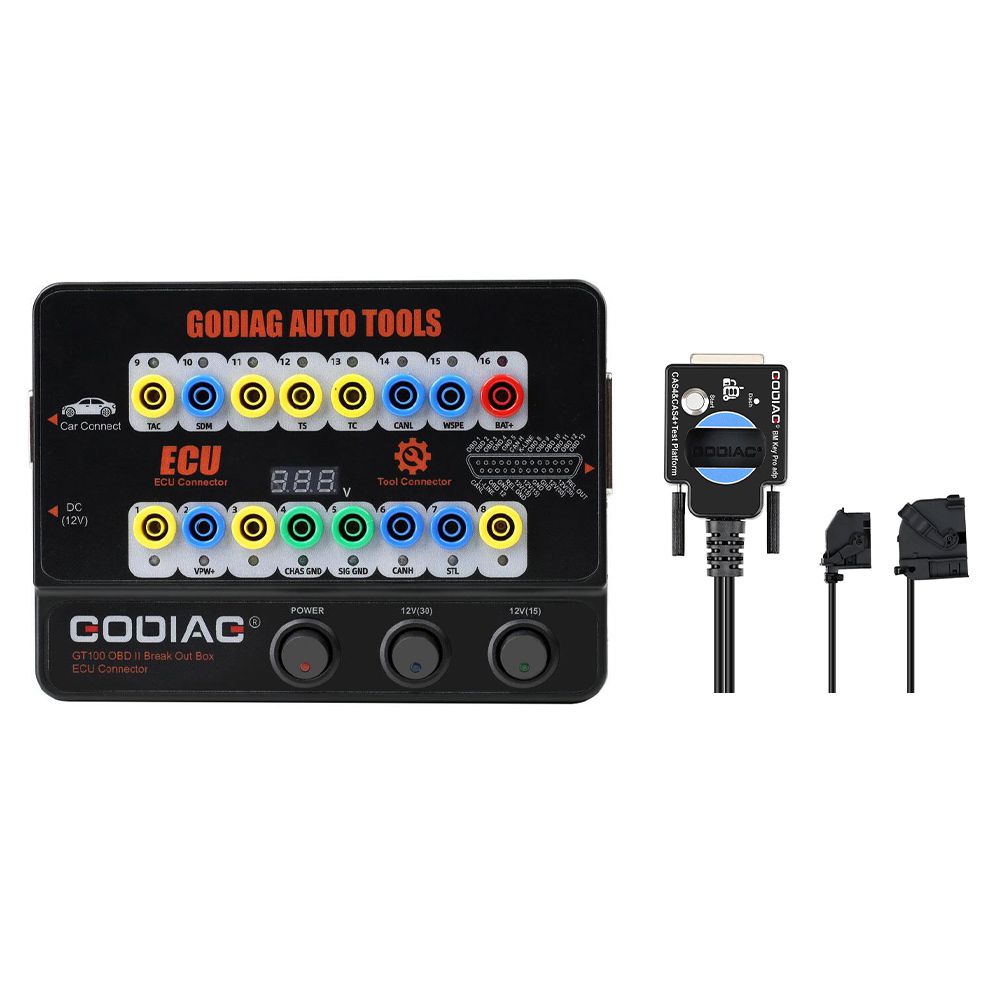

GODIAG GT100 with BMW CAS4 & CAS4+ Test Platform

GODIAG GT100 with BMW CAS4 & CAS4+ Test Platform

GODIAG GT100 with BMW CAS4 & CAS4+ Test Platform can program new key when all keys lost, add new key and replace CAS4 / CAS4+ ECU module by working together with Xhorse VVDI2, VVDI BIM Tool Pro, Lonsdor k518 and Autel im608 etc.

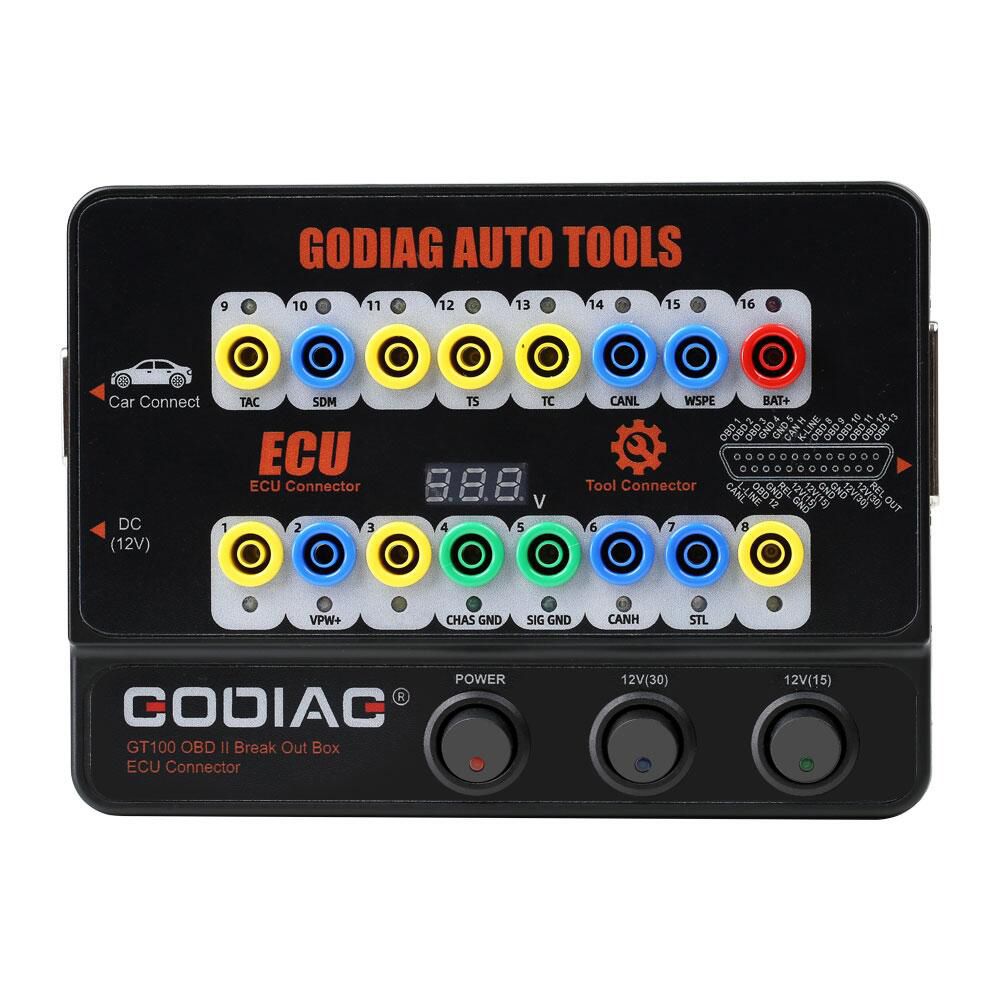

Highlights of GODIAG GT100:

1. GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding.
2. It can convert the car OBD2 interface into 6 pin for signal detection .
3. Able to connect the single modules or multiple modules of the vehicle.
4. Connect with any diagnostic tool to tell whether the car communication is good or not.
5. Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.
6. One Year Warranty.
7. Work together with Xhorse VVDI2, Autel devices, Launch, Foxwell etc.
8. BMW CAS4 Test Platform function will be coming soon, and also will develop the connection cable for Benz and Chrysler, please wait.

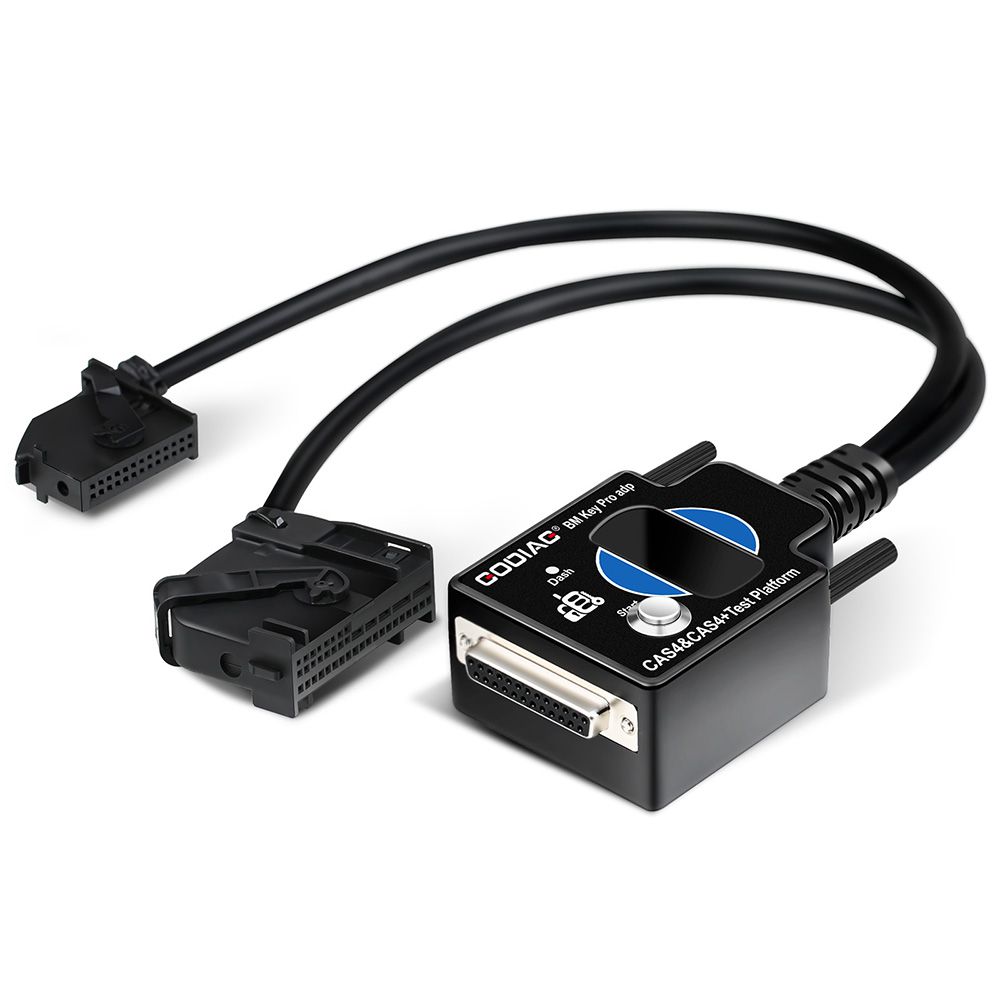

GODIAG for BMW CAS4 & CAS4+ Programming Test Platform

Godiag CAS4 / CAS4+ test platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS4 CAS4+ programming engineers.

1. By working together with Godiag GT100 & xhorse vvdi 2 / bmw vvdi bim tool / Lonsdor k518 / Autel im608 etc, Godiag CAS4 / CAS4+ test platform can program new key when all keys lost, can add new key and replace CAS4 / CAS4+ ECU module.
2. Before installing back the CAS4 CAS4+ module to the car, you are allowed to connect this test platform to the CAS module to test whether it can communicate or there is any malfunction.
3. Used to read out & backup the data after preprocessing, used to replace CAS4 / CAS4+ immobilizer module (for example: replace 2-port CAS4 with 3-port immobilize system with comfort access.)
4. Before installing the CAS4 / CAS4+ module back to the car, it can be used to test whether the programmed key synchronizes with cas4 cas4+.
5. Godiag CAS4 CAS4+ test platform can help expand business for the Engineers who are skilled to program CAS4 /CAS4+ key.
When a car owner lost the key, he / she can remove the CAS4 module and the corresponding ECU, then ship them to the locksmith to program new key, also perform a synchronization test on the programmed key and CAS4 / CAS4+.
6. Troubleshooting - when the key can't start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between cas4 cas4+and the key.
7. This test platform adopts the dedicated OEM cas4 cas4+ fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of CAS4 CAS4+ module.

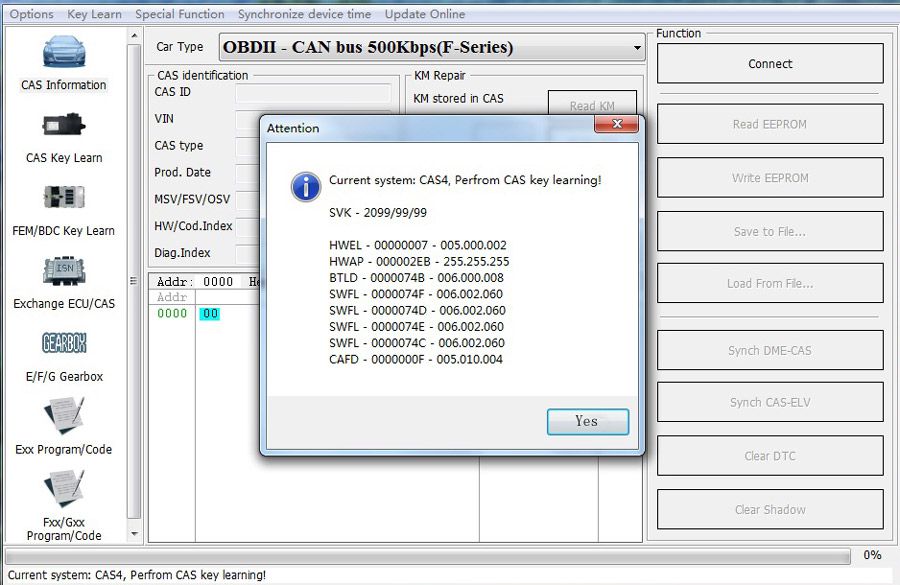

Godiag BMW CAS4 & CAS4+ Programming Test Platform Software



Unlock CAS4 Read D/P Exchange CAS4

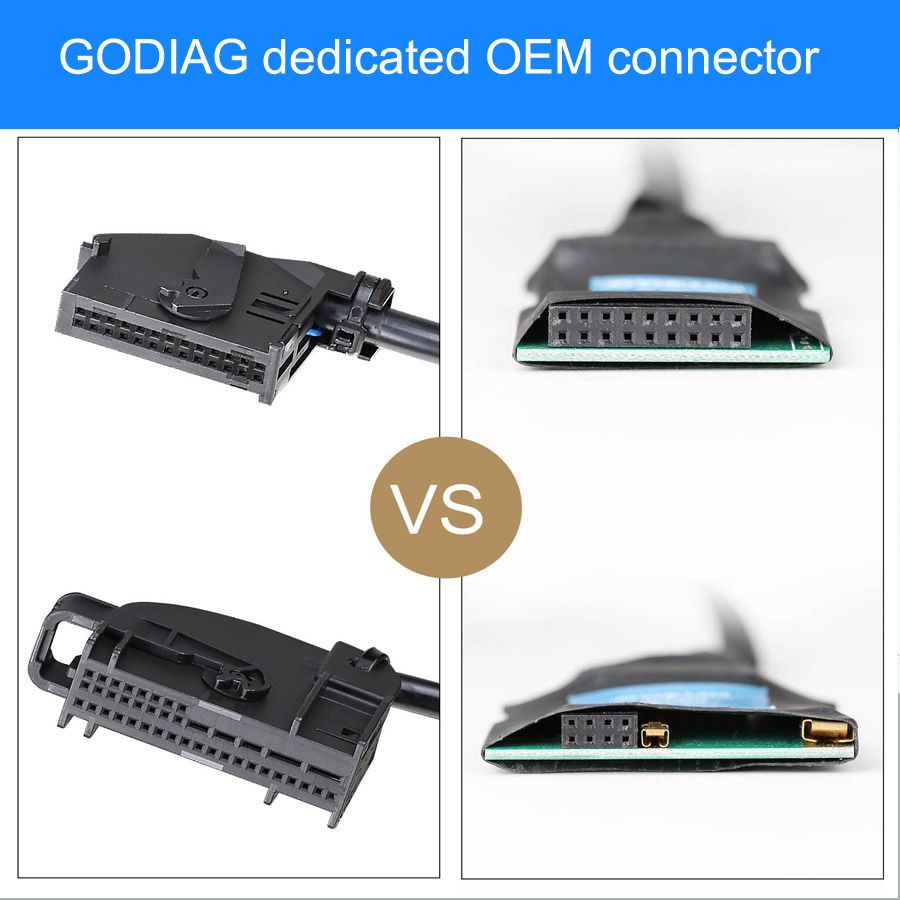

Godiag BMW CAS4 & CAS4+ Programming Test Platform vs. Other Connector

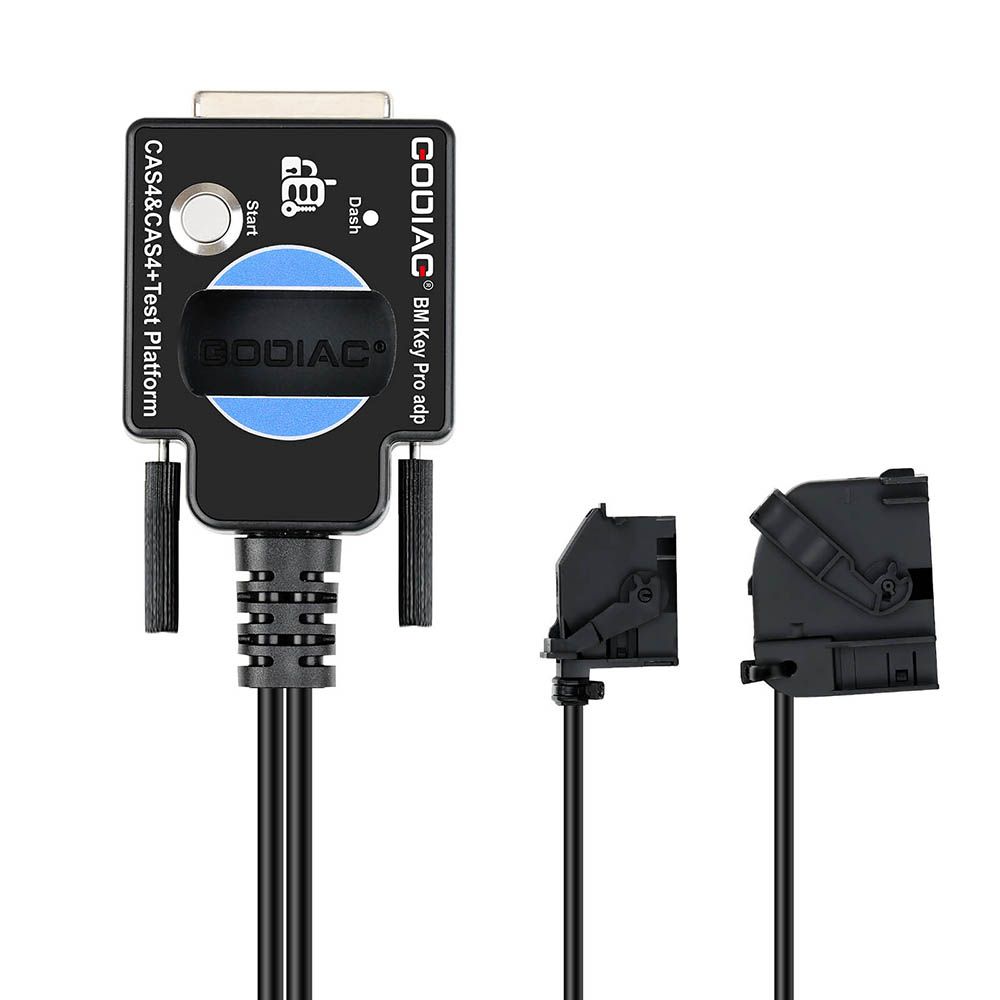

GODIAG for BMW CAS4 /CAS4+ Programming Test Platform Display:


① DB25 female connector(used to connect the male port of GODIAG GT100 / GODIAG OBD2).
② Ignition simulated start switch.
③ Immobilizer dashboard simulated indicator.
④ Key sensing area.
⑤ Screw bolt.
⑥ Godiag OEM dedicated CAS4 CAS4+ power adapter or CAN Communication adapter.
⑦ Godiag OEM dedicated CAS4 CAS4+ start control adapter.

Package List:

1pc x GODIAG GT100 Host
1pc x OBD 2-in-1 extension cable
1pc x Colored jumper cable
1pc x Power supply 12V
1pc x Resistance 120 ohm
6pcs x Banana plug
24pcs x Wire accessories, Dupont 2.54mm connector female pins
1set x GODIAG BMW CAS4 & CAS4+ Test Platform
