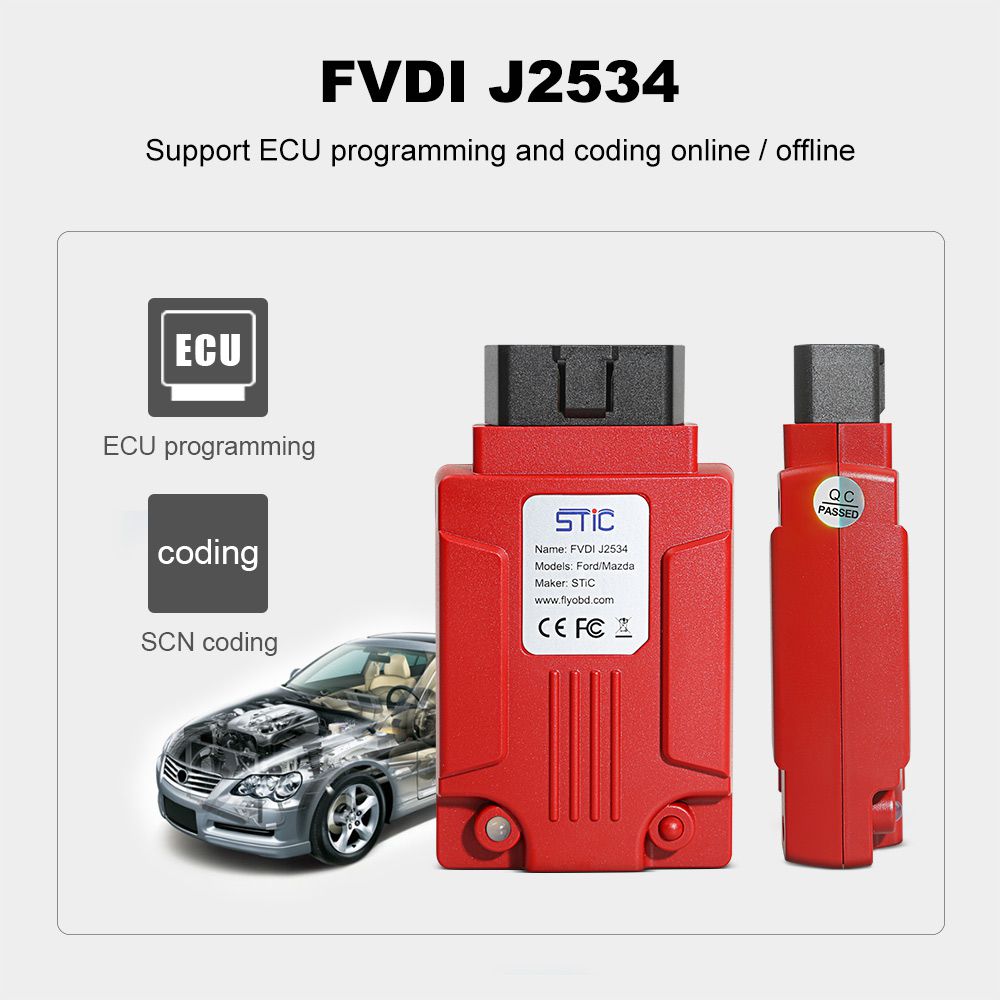

SVCI J2534 Diagnostic Tool for Ford & Mazda IDS V125 Support Online Module Programming

Newest SVCI J2534 Diagnostic Tool for FORD & Mazda Support Online Module Programming

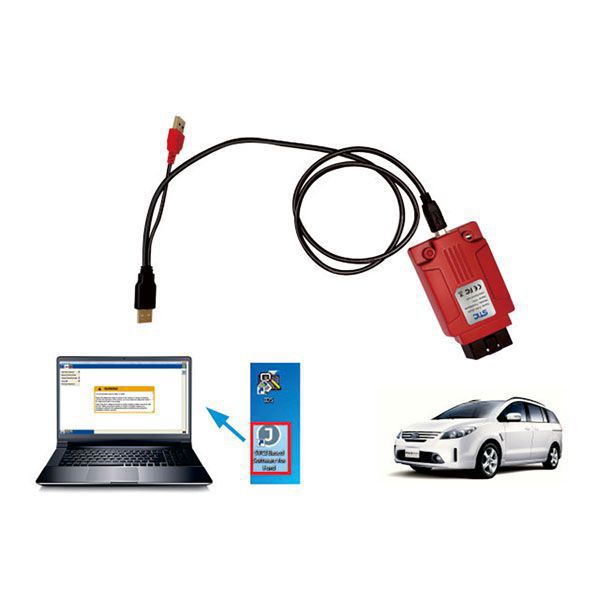

SVCI J2534 is a vehicle communication interface device that full compatible with SAE J2534-1 and partly compatible with SAE J2534-2 .It supports most of vehicle communication protocols and can be used as PassThru device for many dealer level diagnostic software. And it can be used as a ELM327 device also,support most of ELM327 software.

Top 7 Reasons to Get SVCI J2534:

1. High speed host communication.(3 Mbps)
2. Stable host communication.(with RTS/CTS flow control)
3. Automatically register software and no virtual machine needed.
4. USB 802.11 selectable host communication.
5. Support ELM327 software by one device.

SVCI J2534 Support Softwares:

J2534 FORD IDS V125
Mazda IDS V125
Toyota TIS V15.00.026
Land Rover/Jaguar SDD2 V160

Notice:
FORD and Mazda software cannot be installed on the same computer, please install them separately
The software will not update，please use the V125 version only.
Firmware will not update anymore.
Ford V125 Software download
Mazda V125 Software download

SVCI J2534 Support ELM327 Softwares:

ELMconfig
Forscan
FOCCCUS
FF2

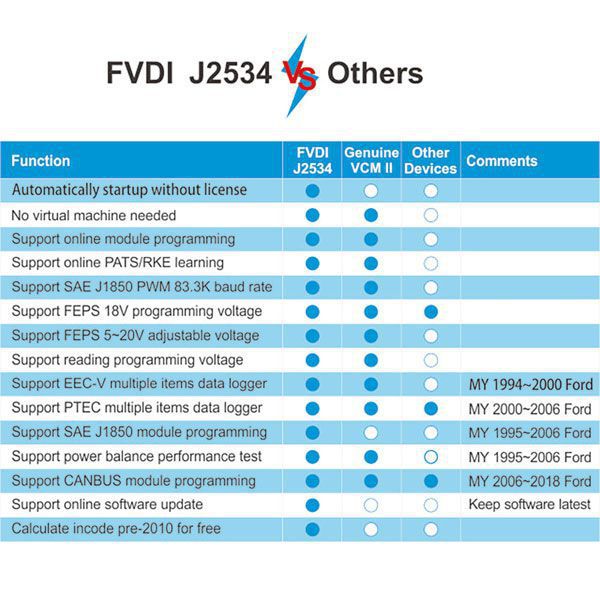

SVCI J2534 Comparison Table with other Devices

SVCI J2534 VS. Ford/Mazda IDS:

Functions	SVCI J2534	Genuine VCM 2	Other Devices	Comments
Automatically startup without license	√	×	×
No virtual machine needed	√	√	×
Support online Modules Programming	√	√	×
Support online PATS/RKE learning	√	√	×
Support SAE J1850 PWM 83.3K baud rate	√	√	×
Support FEPS 18V programming voltage	√	√	√
Support FEPS 5-20V adjustable voltage	√	√	×
Support Reading Programming voltage	√	√	×
Support EEC-V multiple items data logger	√	√	×	MY 1994-2000 Ford
Support PTEC multiple items data logger	√	√	√	MY 2000-2006 Ford
Support SAE J1850 module programming	√	×	×	MY 1995-2006 Ford
Support power balance performance test	√	√	×	MY 1995-2006 Ford
Support CANBUS module programming	√	√	√	MY 2006-2018 Ford
Support online software update	x	×	×
Calculate incode pre-2010 for free	√	×	×

SVCI J2534 VS. Toyota TIS:

Function	SVCI J2534	Genuine OTC	Other Devices	Comments
Automatically startup without license	●
No virtual machine needed	●	●	●
Support ISO15765 vehicle diagnostic	●	●	●
Support ISO14230 vehicle diagnostic	●	●		MY1995~2006 Toyota
Support online software update
Calculate smart system reset PIN for free	●

SVCI J2534 Support Protocols:

ISO9141 IS014230
J1850 VPW
J1850 PWM(Ford SCP)
IS011898 HS(500K BPS)
IS011898 MS(125K BPS)
IS015765 HS(500K BPS)
IS015765 MS(125K BPS)
FEPS(Flash EEPROM Program Signal)
KWP1281
J2819(TP2.0)

SVCI J2534 Specifications:

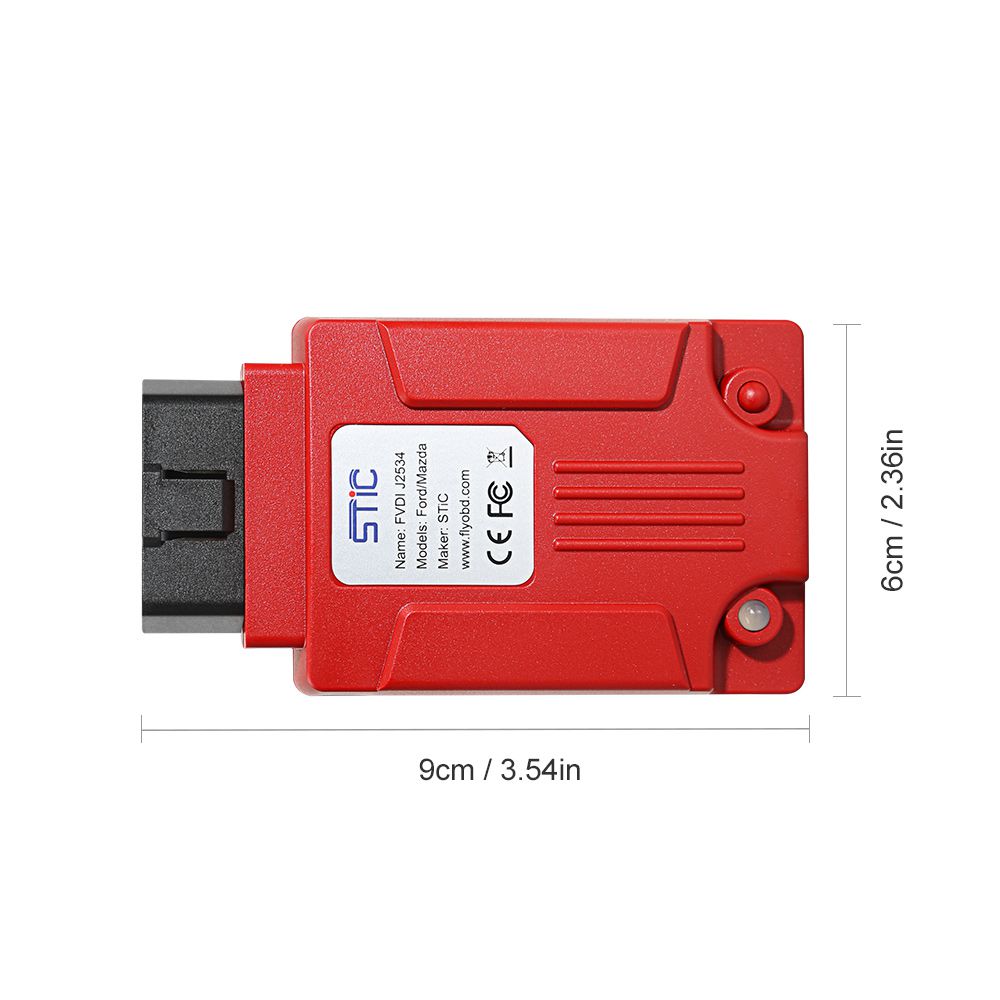

L*W*H: 76mm*54mm*22mm
Environmental: -20℃-45℃(-4℉-113℉) at 15% to 85%
Voltage Requirements: 8-32V DC,10 mA(max),0.6W @ 12V DC non-condensing
Vehicle Connection: Molded DLC3(OBDII-16)

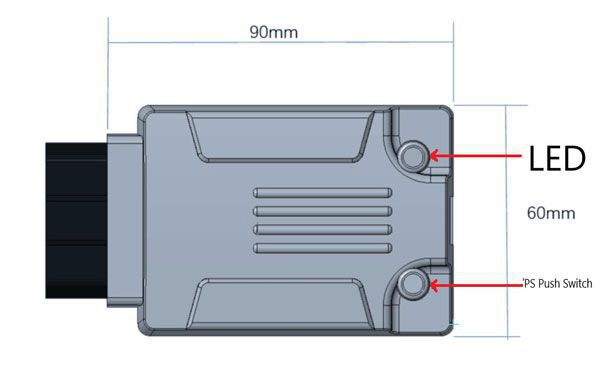

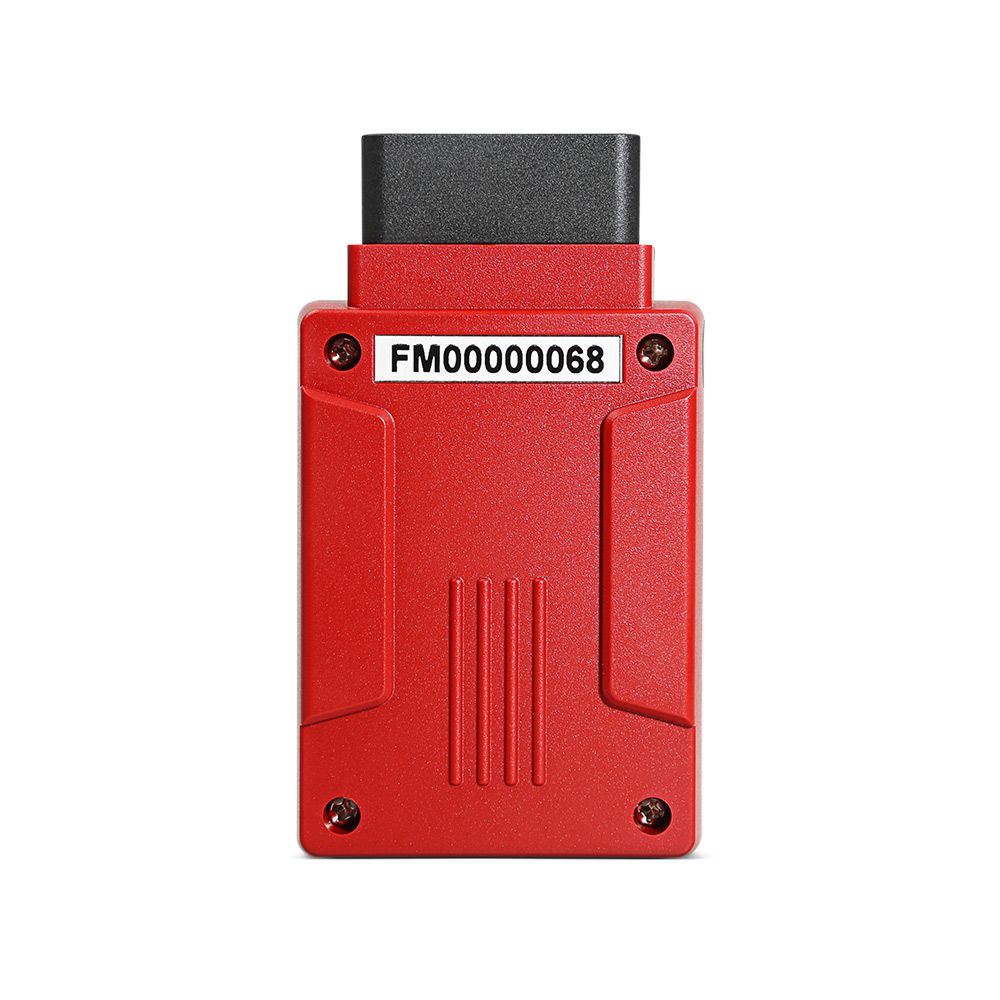

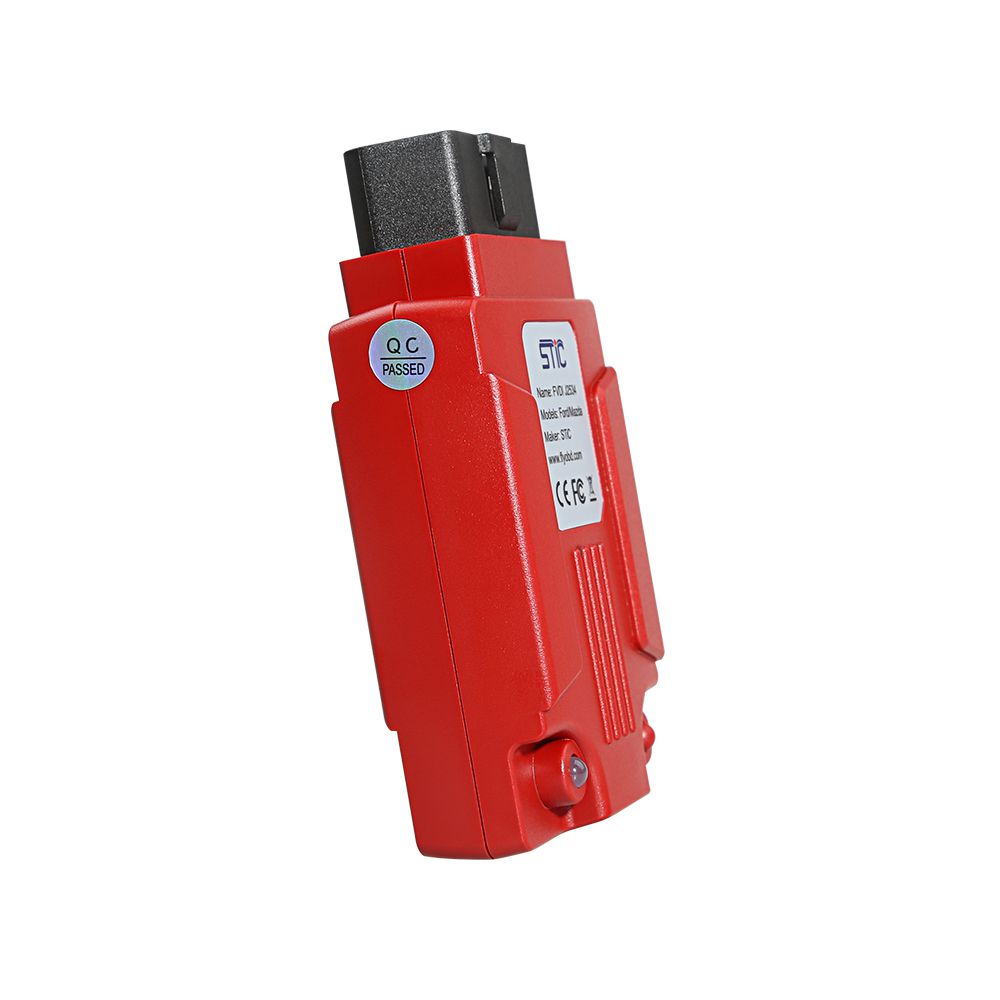

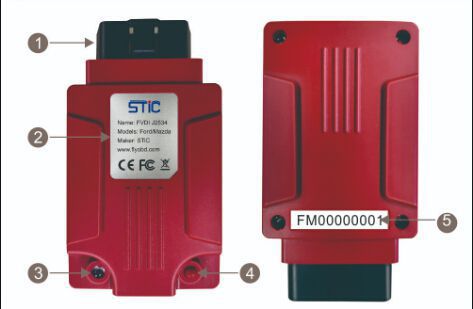

SVCI J2534 Appearance Details:


LED:
Work normal: Green LED blinks continuously slowly Firmware updating: Red LED blinks continuously quickly

PS Push Switch:
Pressed: works as ELM327 mode Released: works as J2534 mode

SVCI J2534 Package List:

1set x SVCI J2534
