ANENG V03A analog Measurement Digital Multimeter esrmeter multimeter auto power off testers tools for auto ac mutimetro

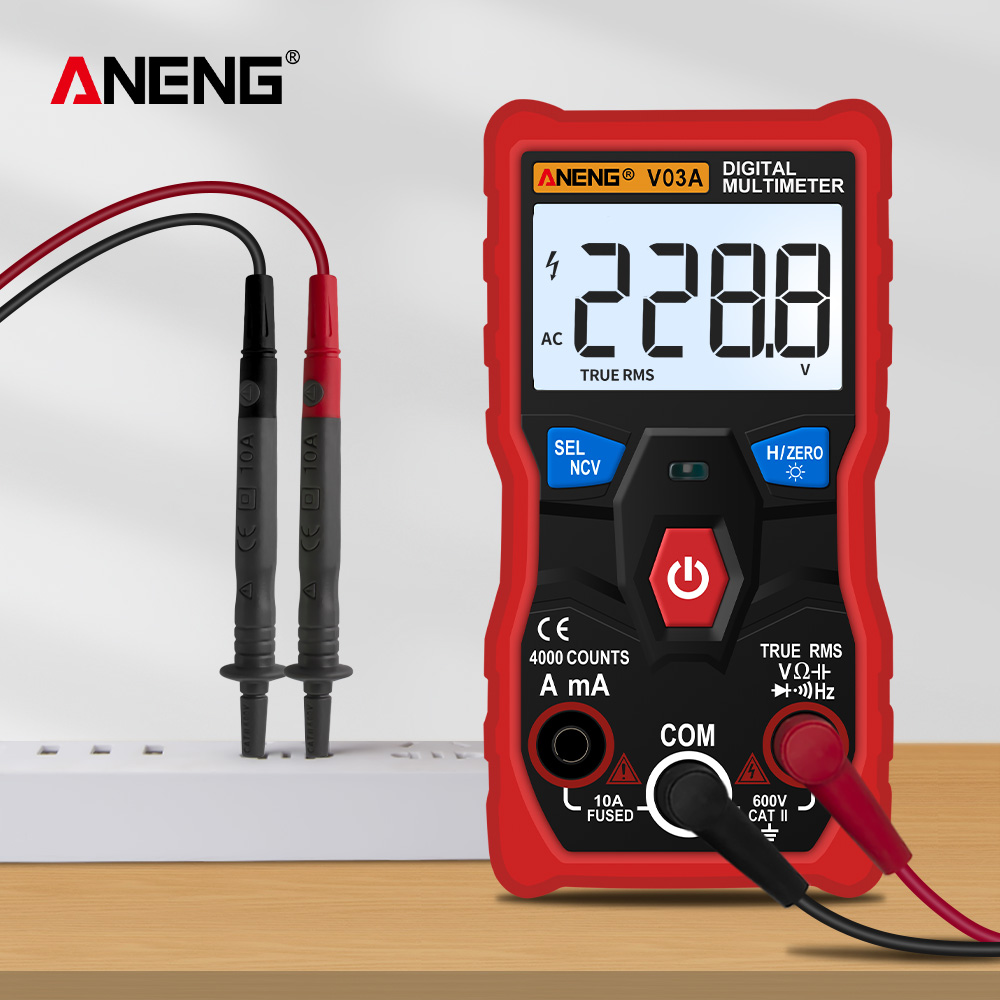

ANENG V03A Intelligent Digital Multimeter

Automatic Identification Measurement

Introduction:

This product is a battery-powered,auto-ranging,true RMS digital multimeter with a 4000 counts LCD display. When the measured voltage exceeds 36Vdc or 25V ac, the operator should fully avoid electric shock. Misuse of patterns or changes can lead to image distortion, so when input is within range, "OL" will be displayed on the screen. Low battery power can lead to incorrect readings. Please change the battery power when the battery power is low.

DC Voltage(V): 4.000V- 40.00V- 400.0V- 600V Accuracy +-(0.5%+3)

AC Voltage(V): 4.000V- 40.00V- 400.0V- 600V Accuracy +-(1%+3)

Resistance: 4.000K-40.00K-400.0K-4.000M-40.00M Accuracy +-(1.5%+3)

DC current range: 40.00mA-400.0mA-4.000A-10.00A Accuracy +-(1%+3)

AC current range: 40.00mA-400.0mA-4.000A-10.00A Accuracy +-(2%+3)

Capacitance: 4.000nF-40.00nF-400.0nF-4.000uF-40.00uF-400.0uF-4.000mF Accuracy +-(4%+4)

Frequency: 4.000Hz-40.00Hz-400.0Hz- 4.000KHz-40.00KHz-400.0KHz-4.000MHz-10.00MHz Accuracy +-(1%+2)

Working environment temperature: (Centigrade 0-40) (Fahrenheit 32-104)

Humidity of working environment: Less than 70%
