This Ultrasonic Cable Height Meter is a user friendly and easy-to-operate instrument. A circuit maintenance can make measurement of cable height. The AR600E with the Horizontal Adapter can be used for depth measurement, (examples: An elevator shaft or well) provided there is sufficient width to permit a proper ultrasonic reflection. Wholesale ULTRASONIC CABLE HEIGHT METER AR600E
Item No. COBD27617 Price Down Notice
In Stock
Price:
US$263.98/ piece
Discount Price:
US$131.99/ piece 50%
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

SMART SENSOR ULTRASONIC CABLE HEIGHT METER AR600E

SMART SENSOR This Ultrasonic Cable Height Meter is a user friendly and easy-to-operate instrument. A circuit maintenance can make measurement of cable height. The AR600E with the Horizontal Adapter can be used for depth measurement, (examples: An elevator shaft or well) provided there is sufficient width to permit a proper ultrasonic reflection.Typical Measurement Applications: Electrical, Forestry, Industrial, Mining, Overhead cables, Tree branches, Elevator shafts, Depth of Wells.

Product Features

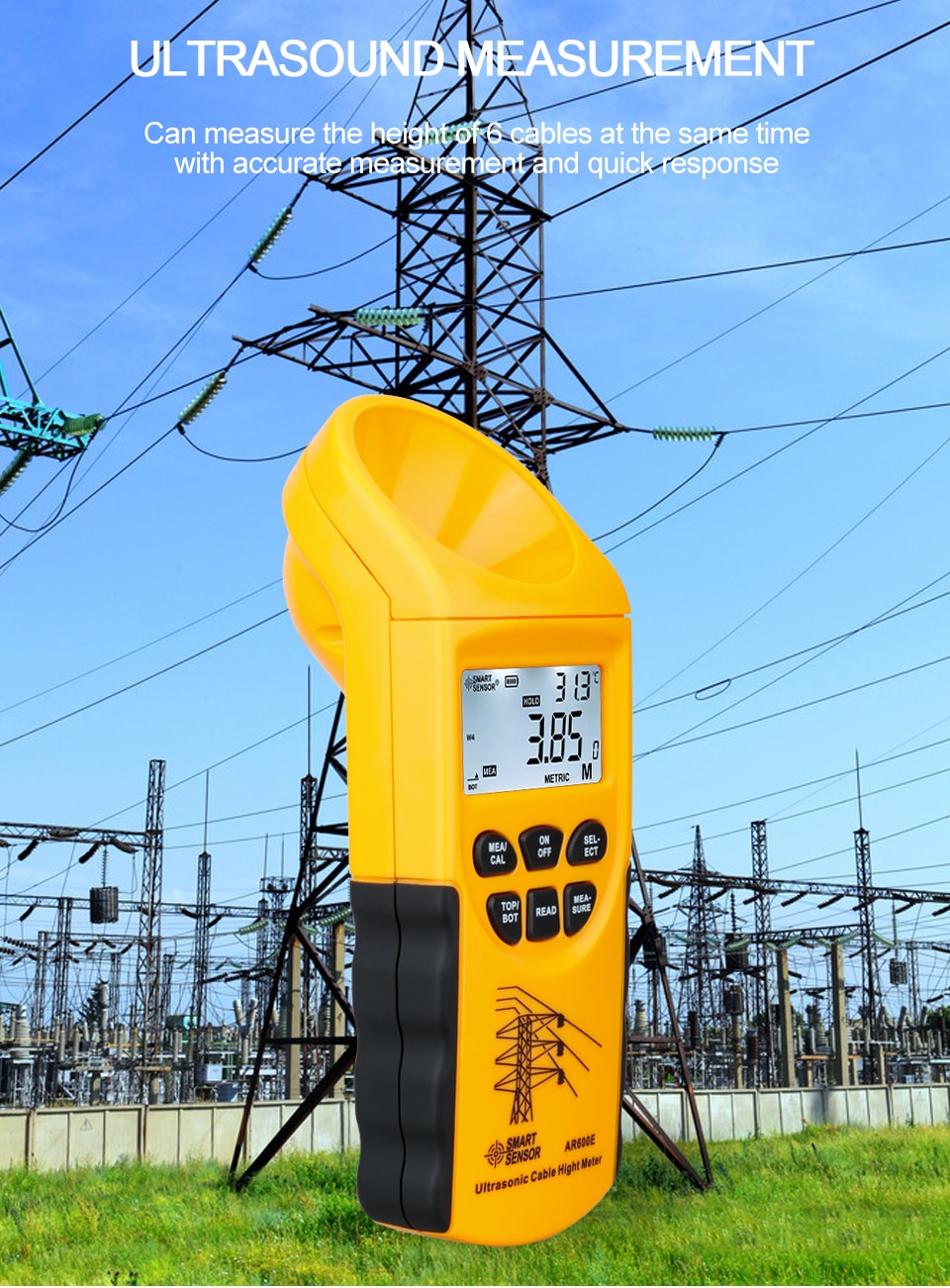

1. For measuring the height up to 6 cables together
2. Convenient to take measurement, easy to aim at the measuring position and to read measuring results.
3. For measuring the distance between wire and wire
4. Be applicable to different use of cables
5. Uses large measuring sensor, higher accuracy than existing cable height meter in market
6. Compact and easy to take along.
7. For measuring dimension of house and distance between objects
8. The temperature compensation function enables the unit compensates error automaticlly under the temperature of -10C+40c, and ensures the measuring accuracy on different temperature conditions

Technical Details


Product Specification

Brand Name:

SMART SENSOR











Model

AR600E

Material:

ABS Plastic

Display:

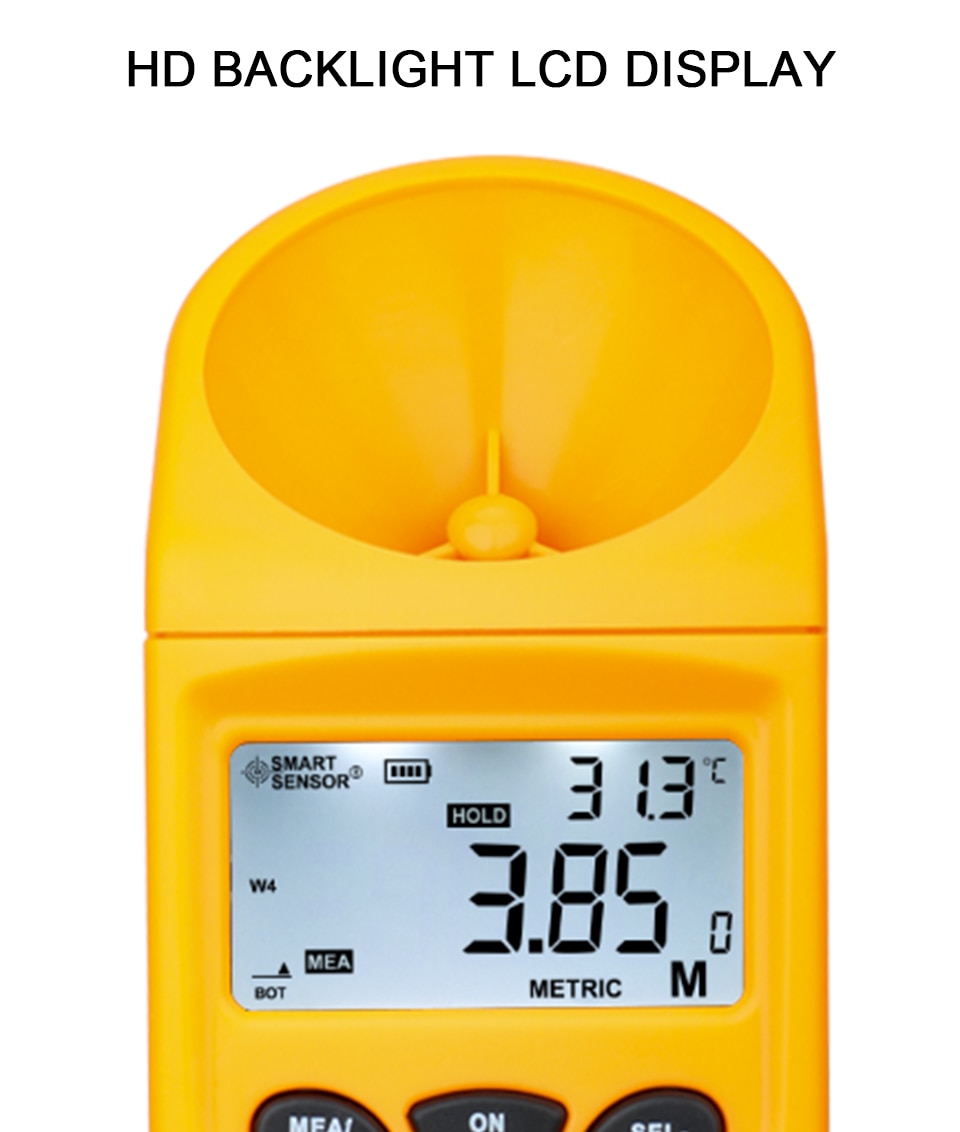

LCD Backlight Display

Screen Size:

52 * 26mm / 2.05 * 1.02in

Resolution:

±5mm(Range<10m), ±10mm(Range>10m)

Measuring Range:

Range(25mm Cable min): 3 ~ 23m

Accuracy:

0.5%±2dgt

Range(12mm Cable min): 3 ~ 15m

Minimum Gap Between Wires:

150mm

Range(5.5mm Cable min): 3 ~ 12m

Auto Power Off

V

Range(2.5mm Cable min): 3 ~ 10m

Battery Indication:

V

Horizontal Measuring Range: 3 ~ 18m

Backlight Display

V

Auto Power Off Delay:

120s

Real Time Temp. Display

V

BOT Mode:

Measuring the Height of the Lowest 6 Cables

TOP Mode:

Measuring the Height of the Highest 6 Cables

Operating Temperature:

-10℃~40℃(14℉~104℉)

Storage Temperature:

-20℃~60℃(-4℉~140℉)

Operating Humidity:

10% to 95% RH, <80%RH Storage

Power Supply:

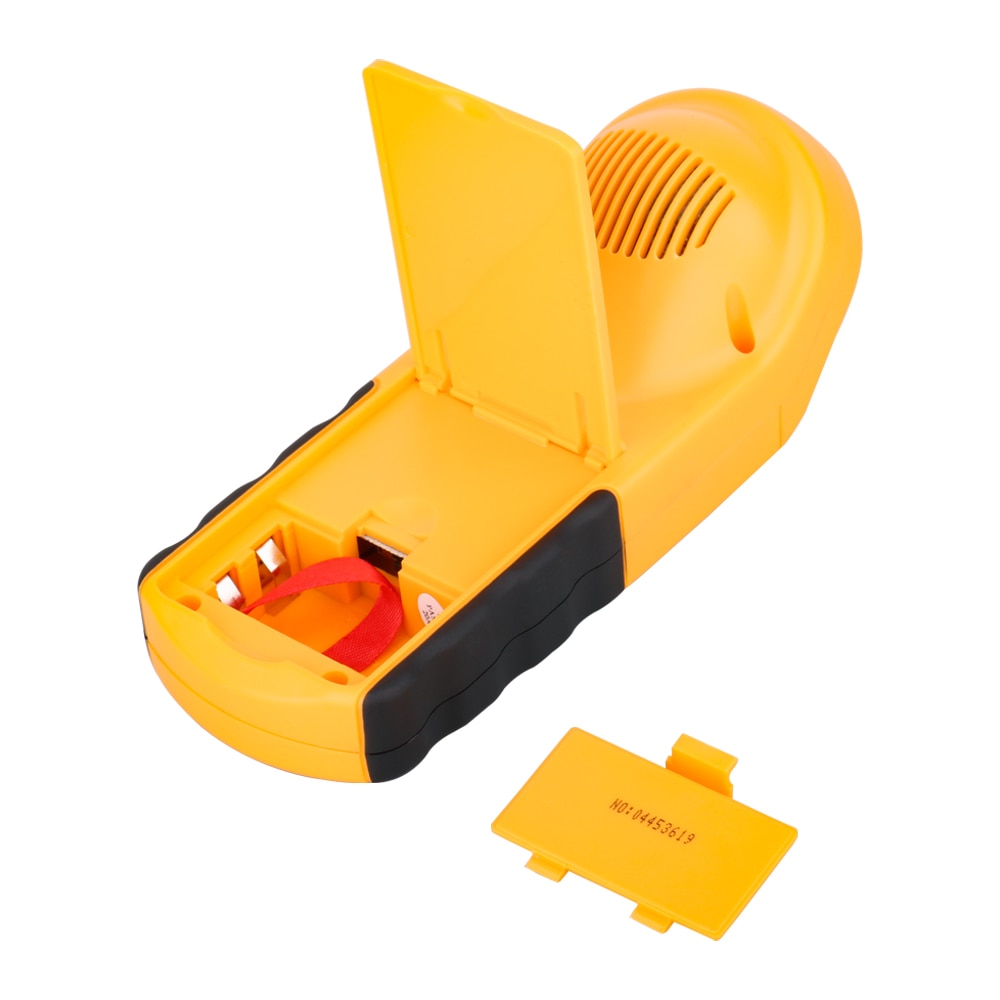

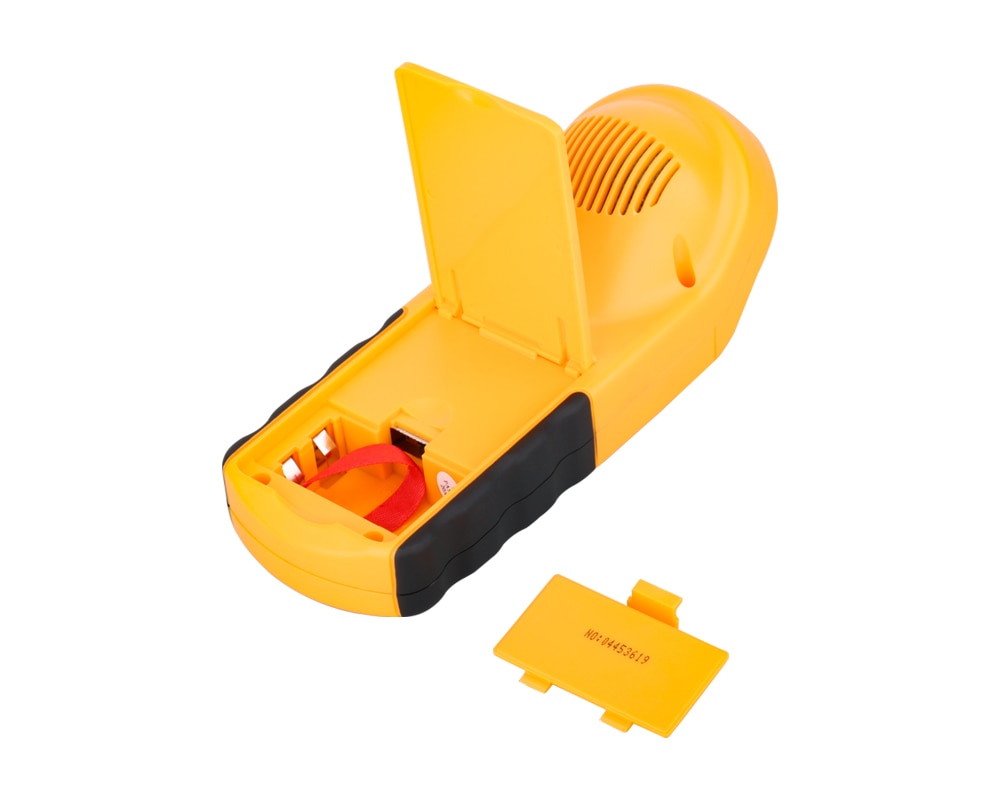

1 * 9V Battery (Not Included)

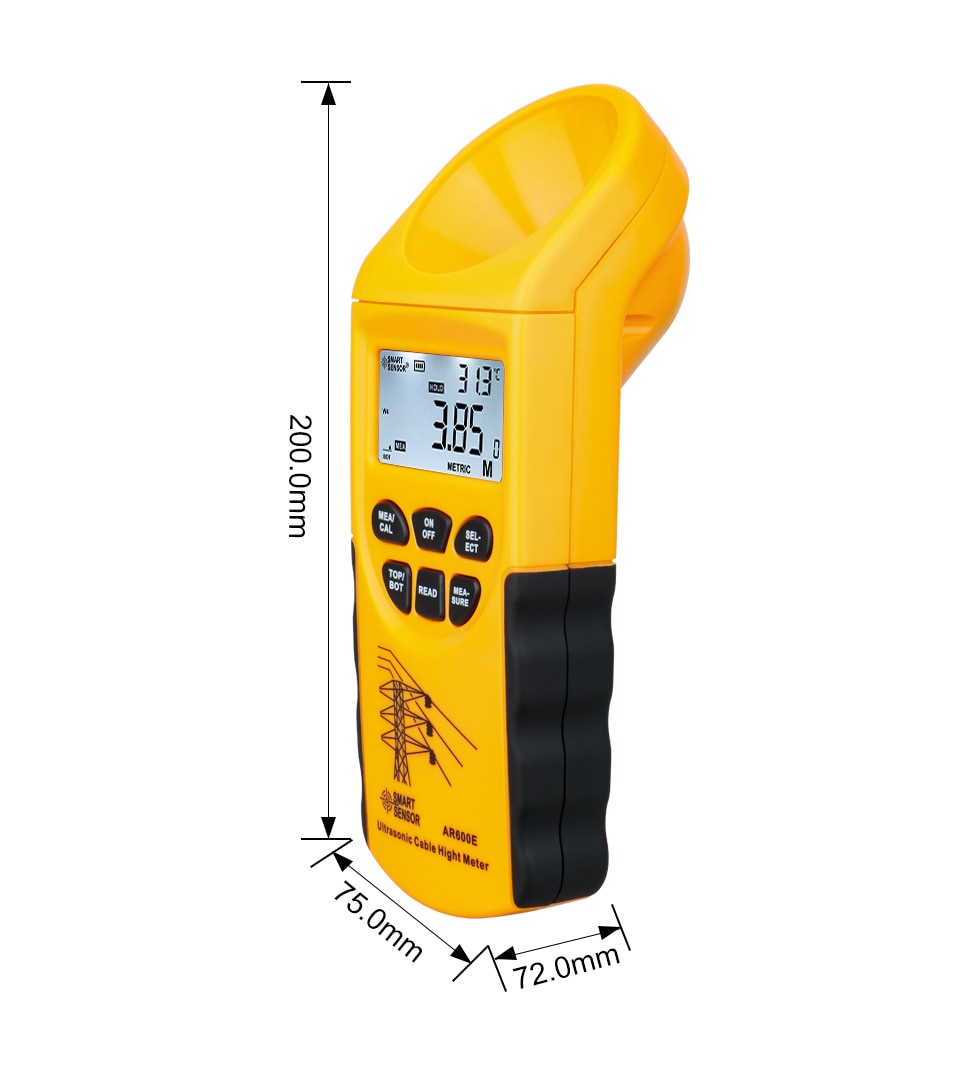

Product Weight/Size

182g/70x65x200mm

Package Weight/Size

809g/29.5x19.5x7cm

Package Contents

1 * Ultrasonic Cable Height Meter

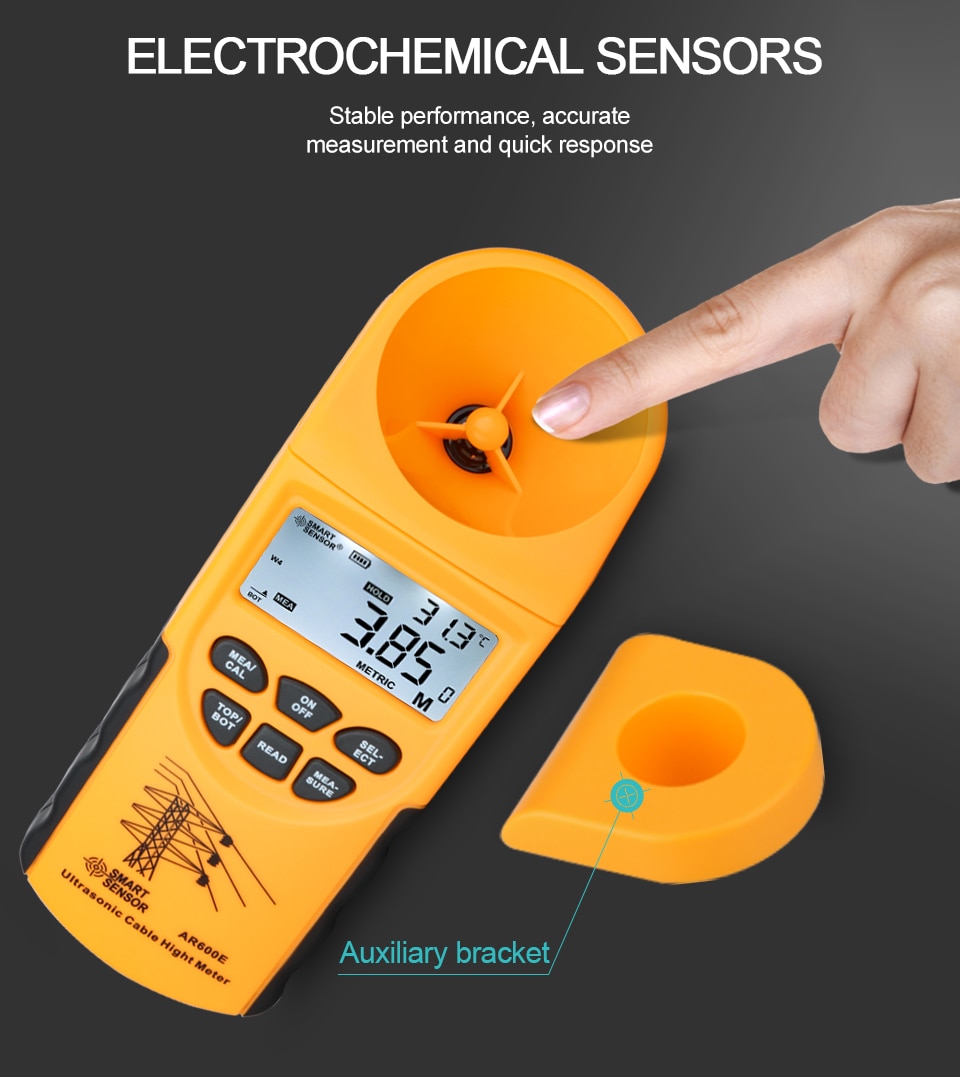

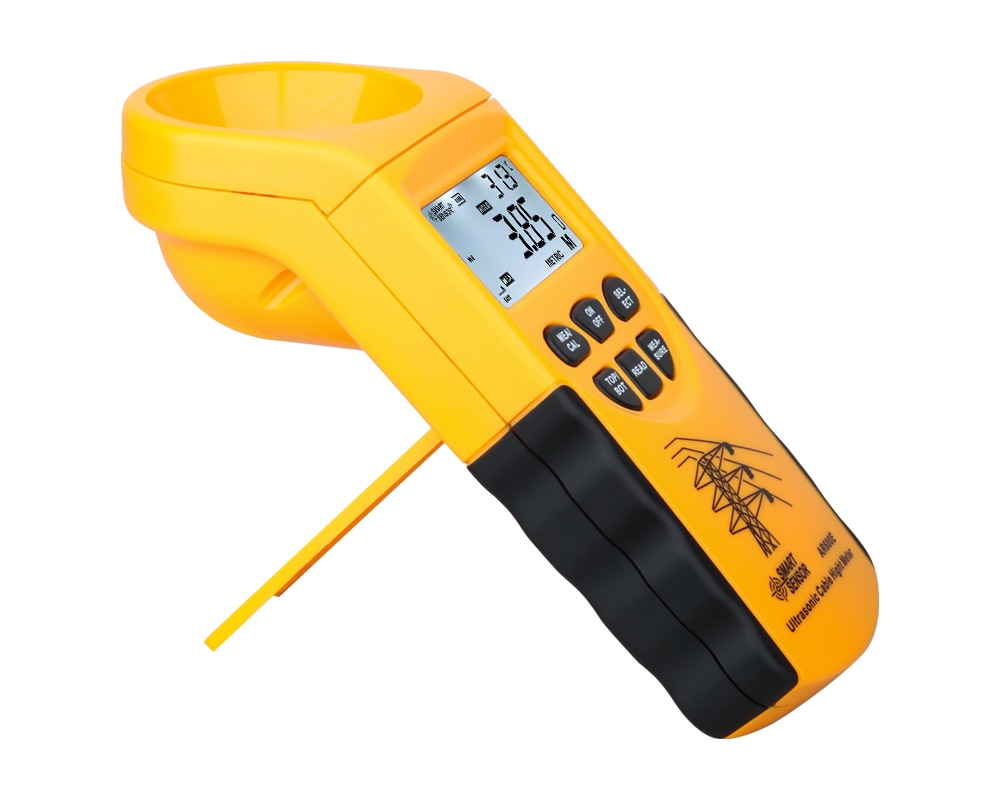

1 * Accessory Bracket(Horizontal Distance Measurement Only)

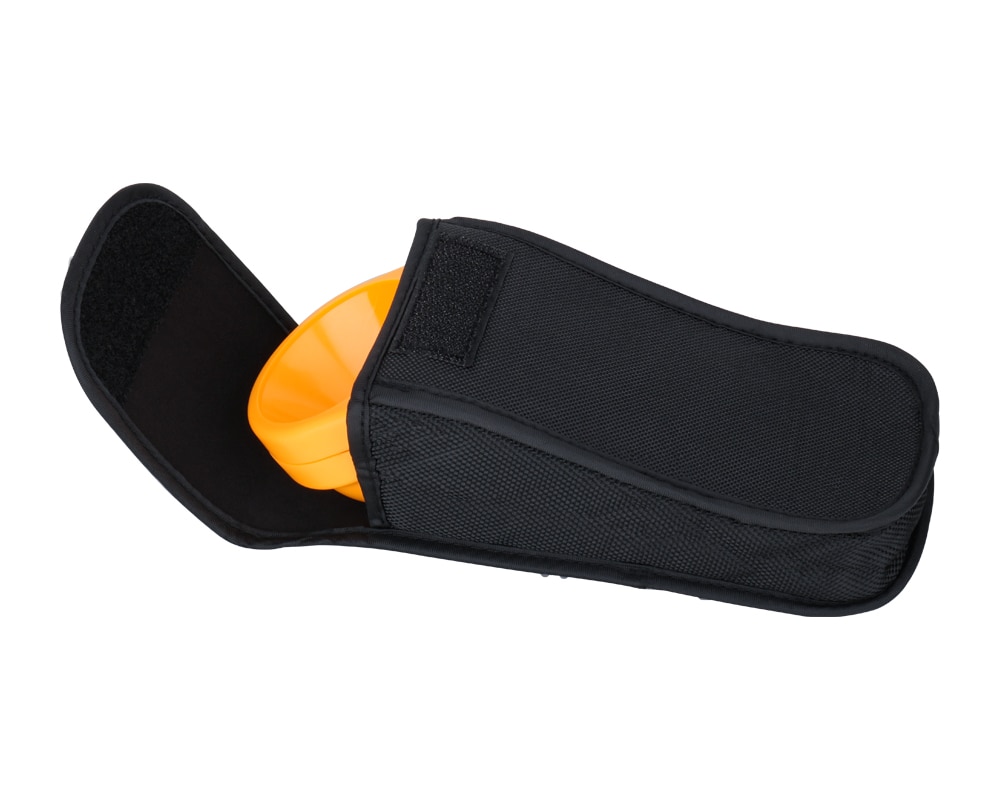

1 * Black Bag
1 * Storage Box

1 * Use Manual (English)

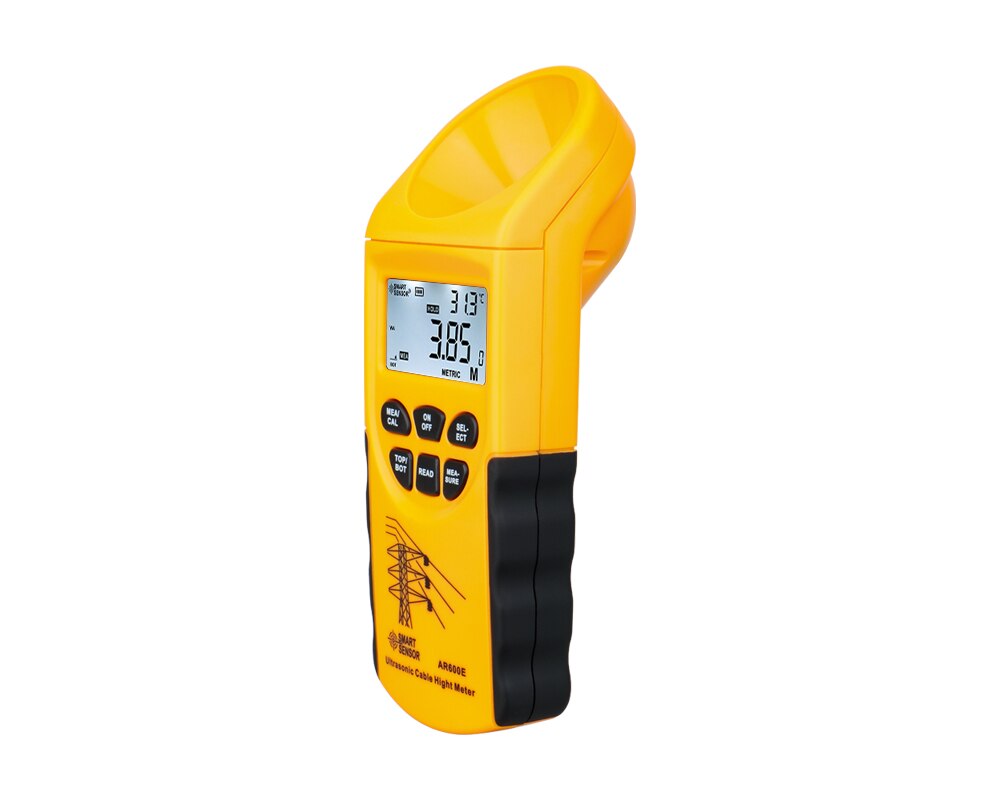

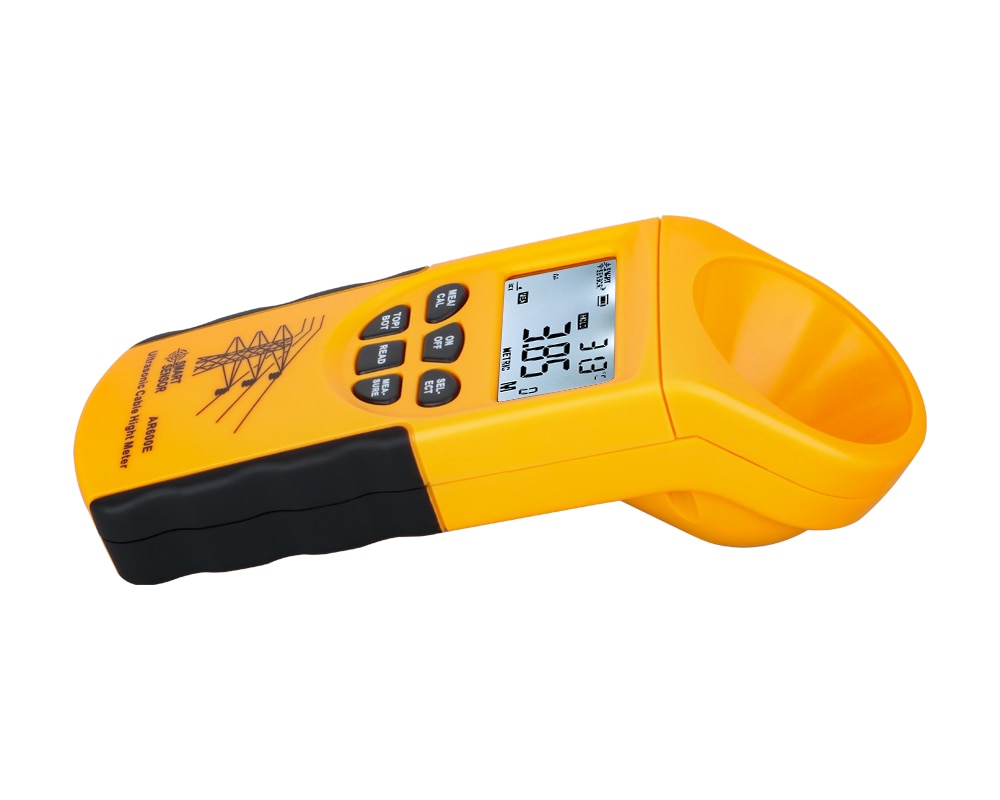

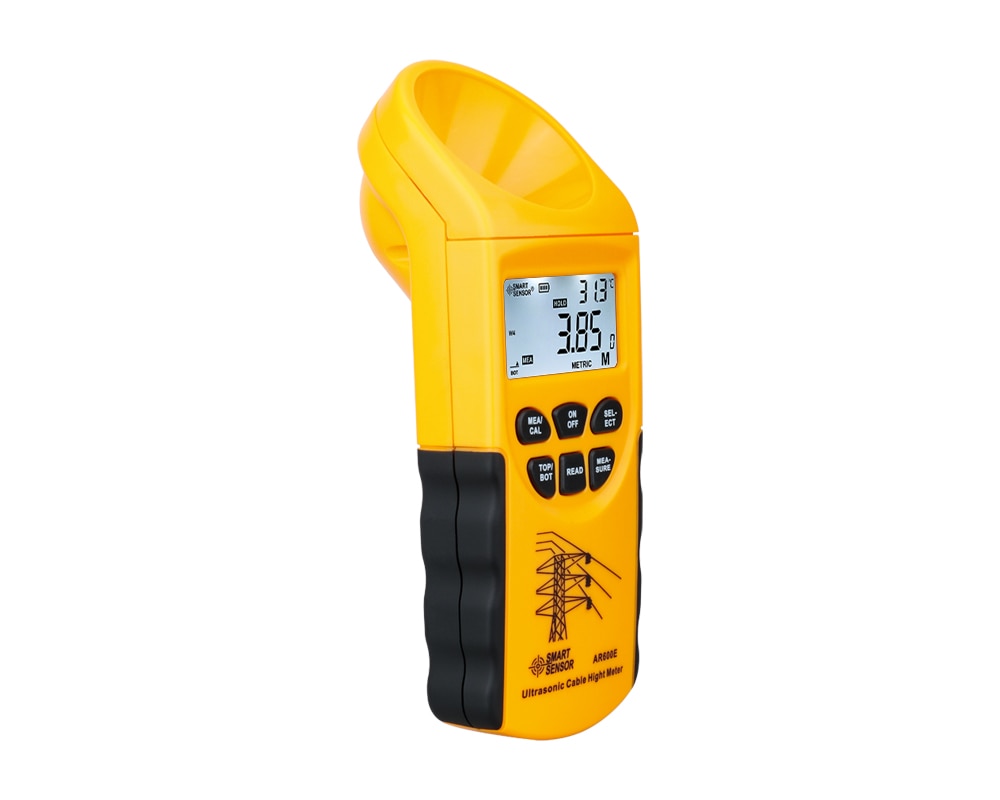

Product Photos
