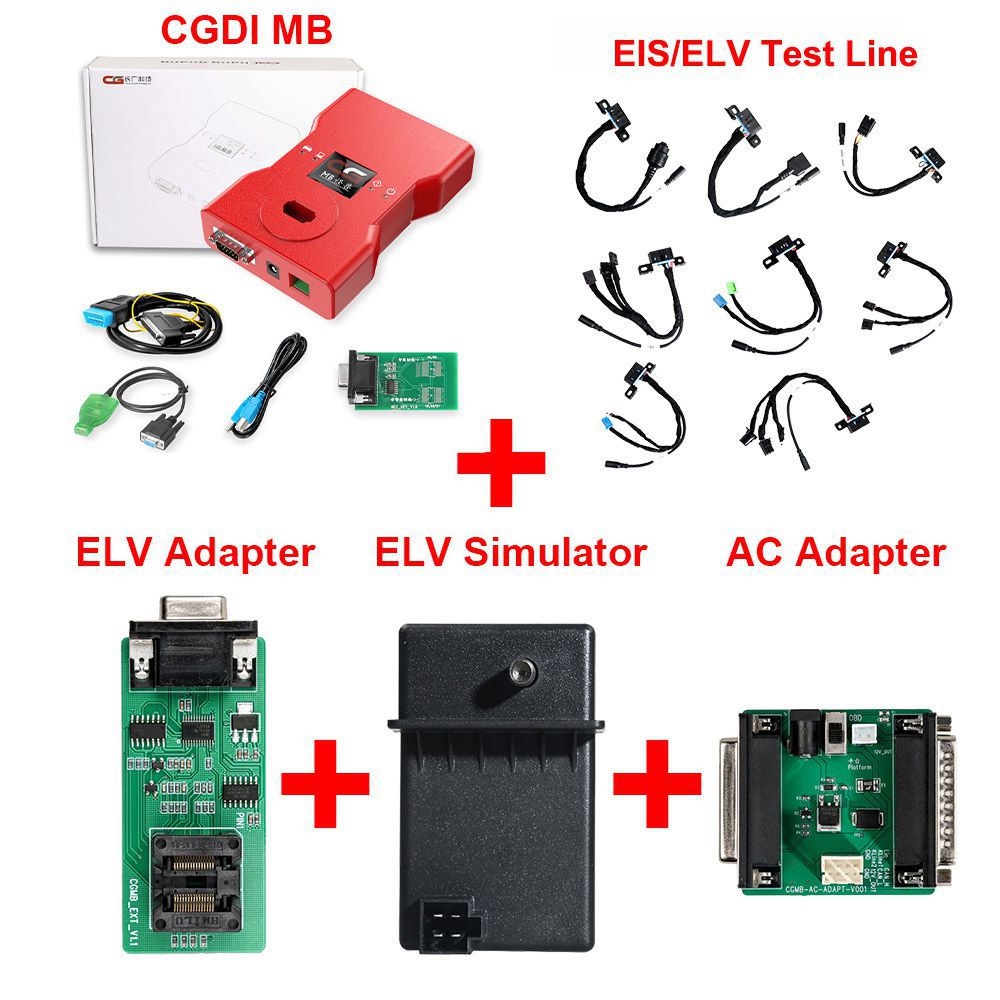

CGDI MB with Full Adapters including EIS/ELV Test Line + ELV Adapter + ELV Simulator + AC Adapter

Top 9 Reasons to Get CGDI Prog MB Key Programmer

1. Fastest Benz key programming: Collection time of 1'50s, password calculation in 40s, with a 99% success rate on the first attempt—making it the fastest key programming tool currently available.
2. Works with both BE keys and original keys.
3. Equipped with a new diode for enhanced infrared sensitivity with keyless go keys—no need to manually replace the diode chip anymore.
4. CGDI MB All Key lost Support List:
   • W164, W216 (2009–)
   • W164, W216 (2009–) (Fast)
   • W164 (Old), W221 (–2009)
   • W164 (Old), W221 (–2009) (Fast)
   • W166, W197, W212 (Old), W212, W246
   • W169
   • W169 (Fast)
   • W172, W204, W207, W209, W211
   • W172, W207, W209, W211 (Fast)
   • W202, W203, W208, W210, W463, W639 (K)
   • W202, W203, W208, W210, W463, W639 (K) (Fast)
   • W215, W220
   • W230
   • W639 (CAN 2009–)
   • W639 (CAN 2009–) (Fast)
   • W906

   List keeps updating.

5. Supports more older mercedes models via OBD compared to other programmers like VVDI MB BGA, including:
   • W210, W203, W639, W220, W215, W169
   • mercedes E Series W210 (before 2004)
   • mercedes C Series W203 (before 2005)
   • Mercedes V Series V639 (before 2008)
   • Mercedes A Series W169 (before 2009)
   • Mercedes B Series W169 (before 2009)
   • Mercedes S Series W220 (before 2005)
   • Mercedes E Series W211 (before 2008)
6. Mileage Repair and Gateway Read/Write Authorization – Free since March 2nd, 2019!
   Mileage Repair Supported Models:
   C(W204) / GLK(X204) / CLK(207) / E(W212) / SLS(197) / CLS(W218) / R-Class(W251) / GL(X164) / ML(W164) / E-Class(W211) / CLS(W219) / S-Class(W221) / CL(216) / C-Class(W203) / CLK(W209) / SLK(R171)
   List continues to update...
7. CGDI MB supports ECU renewal on these models:
   ME9.7, MED17, CR3.xx, CR4.xx, CR5, CR60.xx, CRD.11, CRD2.xx, SIM266, SIM271DE2.0, SIM271KE2.0, SIM4LE, SIMELKE
   Also supports Gearbox Renew on EGS 7G.
8. Free online updates—download the latest software Here.
9. Available languages: English, Spanish, French, German, and Chinese.

CGDI MB Prog Programming Key Features

• Automatically identifies basic key information (including SSID usage count).
• Can directly read pin code of BE keys via infrared and erase BE keys.
• NEC adapter can write original Benz smart keys and common keys.
• Can write Benz original keys via infrared.
• Can restore key and EIS data using the key password.

CGDI MB Prog Function List

1. Able to add keys on Mercedes-Benz and program a new key when all keys are lost.
2. Add new Mercedes-Benz keys: Data acquisition in 1 minute 50 seconds, pin code in 40 seconds, with 99% success rate.
3. Program a new key for the following models when all keys are lost: 211, 209, 204, 207, 212, 166, 246, 197, 172, 164+, 216, etc.
4. Can read EIS data via OBD without needing to distinguish EIS/EZS model.
5. Displays key status and allows direct disabling of key positions.
6. Displays EIS Number and distinguishes Benz model.
7. Displays EIS status.
8. Automatically identifies EIS model.
9. Automatically identifies CAN protocol.
10. Can directly read key pin code via infrared on select 209/211/220/215 EIS units.
11. Can read/write EIS via infrared.
12. Generates key data for HC05/908/912/9S12/NEC EIS/EZS in just 26 seconds; formats include 11, 41, and 51 (41 format is for smart key data).

Functions of the Adapters

EIS/ELV Test Line for Mercedes (No Need to Connect to Vehicle)

Mercedes Locks Platform Test Line compatible with: W204, W212, W221, W164, W166, W205, W222

Scope of Application

• EIS/ELV maintenance
• Key programming
• Key detection

ELV Repair Adapter for CGDI MB Benz Key Programmer

• Automatically forces content clearing
• Enables ELV and exits suspended animation
• Virginizes to resolve accidental errors
• Tests and writes ELV to verify proper operation
• Repairs locked chips on W204, W207, W212, W209, W906

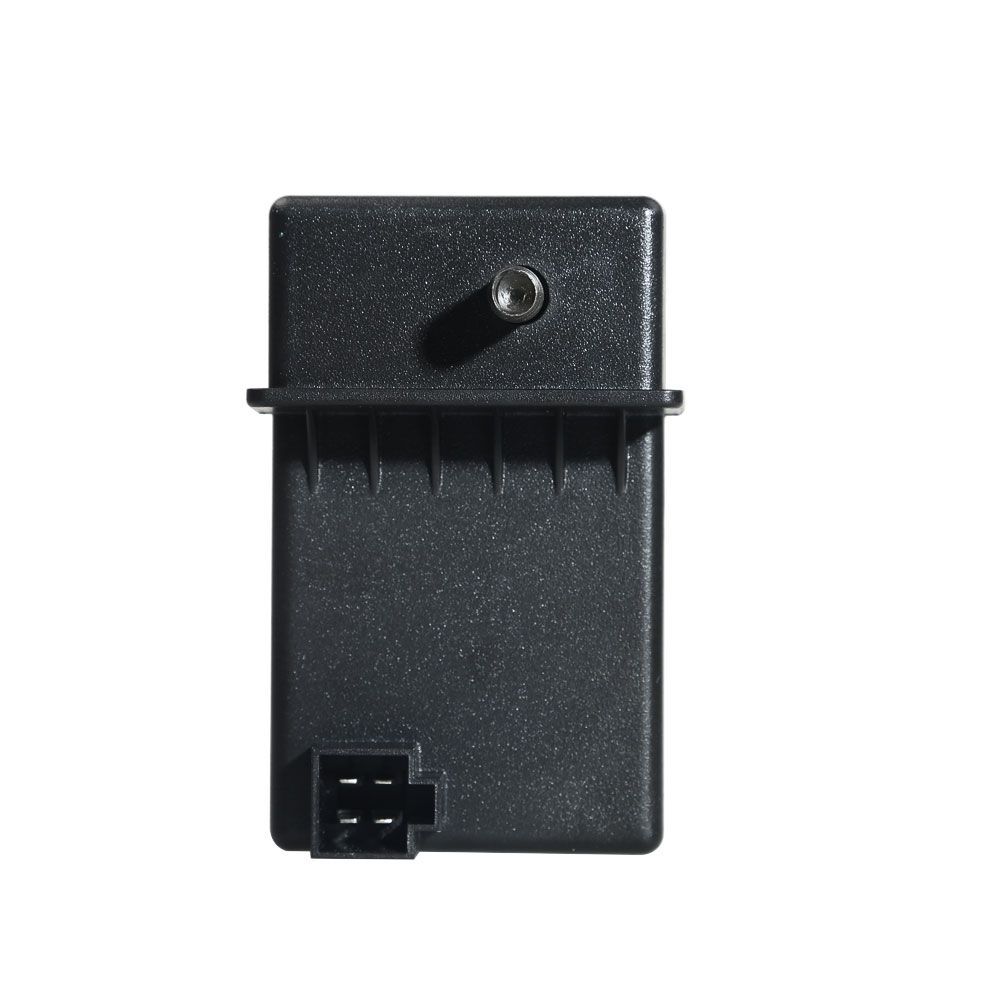

CGDI ELV Simulator – Renew ESL for Benz 204, 207, 212

The CGDI MB ELV Emulator is a newly released adapter from CGDI Company. It renews ESL for Benz models 204, 207, and 212 when used with the CGDI MB Benz Key Programmer, offering the same functionality as the Xhorse ELV Emulator at a lower price.

Common ESL Damage on W204, W207, W212 and Solutions

Most W204, W207, and W212 ESL units fail alongside EIS. Two likely causes and solutions:

• ESL motor is damaged—replace with a new motor.
• NEC chip is locked—while theoretically unlockable, in practice, a new ESL is typically required.

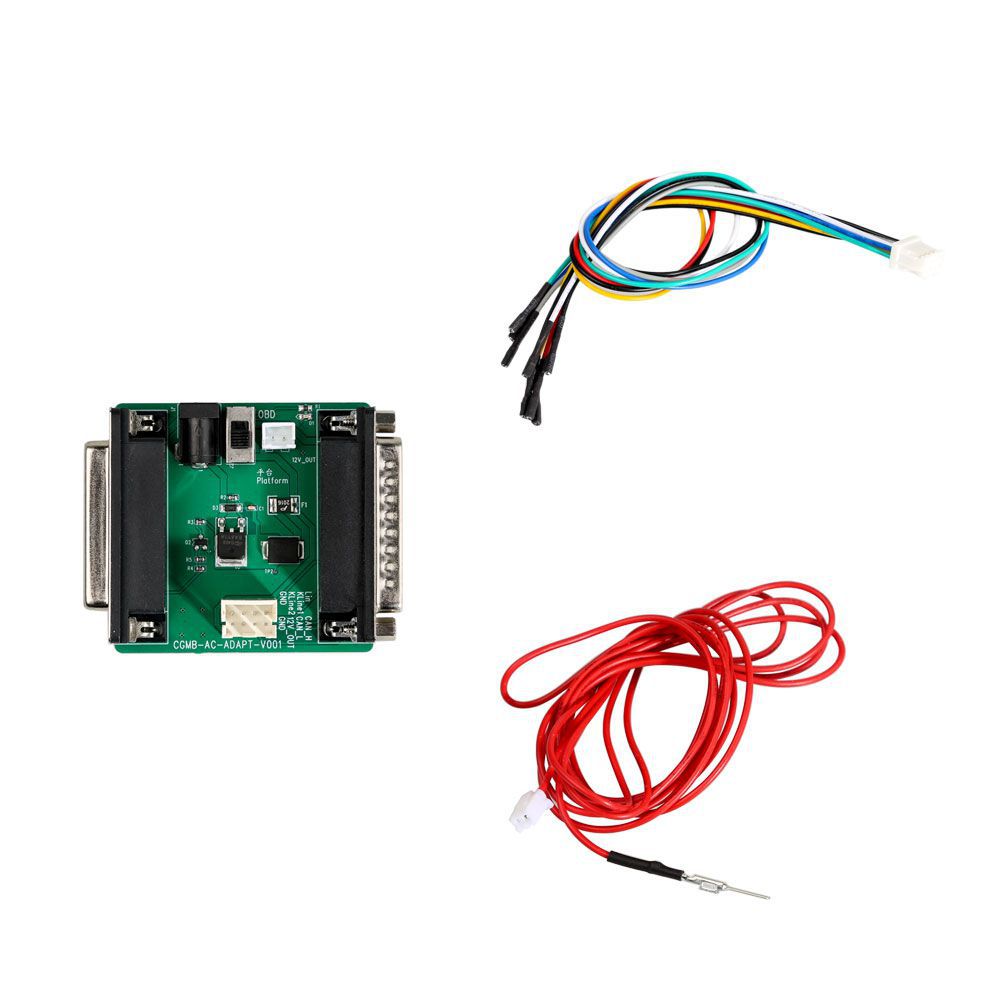

CGDI MB AC Adapter Features

• Acquires data via OBD at high speed
• No need to dismantle EIS
• No plugging or unplugging cables required
• Significantly reduces data acquisition time

CGDI MB AC Adapter – Workable Models and Data Acquisition Time

Mercedes-Benz S Series

Chassis W221, EIS model 216: No disassembly, no cable insertion/removal, acquisition time: 12 minutes

Mercedes-Benz E Series

Chassis W211, EIS model 211: No disassembly, no cable insertion/removal, acquisition time: 9 minutes

Mercedes-Benz C Series

Chassis W209, EIS model 209: No disassembly, no cable insertion/removal, acquisition time: 9 minutes

Mercedes-Benz B Series

Chassis W246, EIS model 169: No disassembly, no cable insertion/removal, acquisition time: 35 minutes

Mercedes-Benz A Series

Chassis W246, EIS model 169: No disassembly, no cable insertion/removal, acquisition time: 35 minutes

Mercedes-Benz R Series

Chassis W251, EIS model 164905: No disassembly, no cable insertion/removal, acquisition time: 12 minutes

Mercedes-Benz ML Series

Chassis W164, EIS model 164905: No disassembly, no cable insertion/removal, acquisition time: 12 minutes

Mercedes-Benz GL Series

Chassis W166, EIS model 164905: No disassembly, no cable insertion/removal, acquisition time: 12 minutes

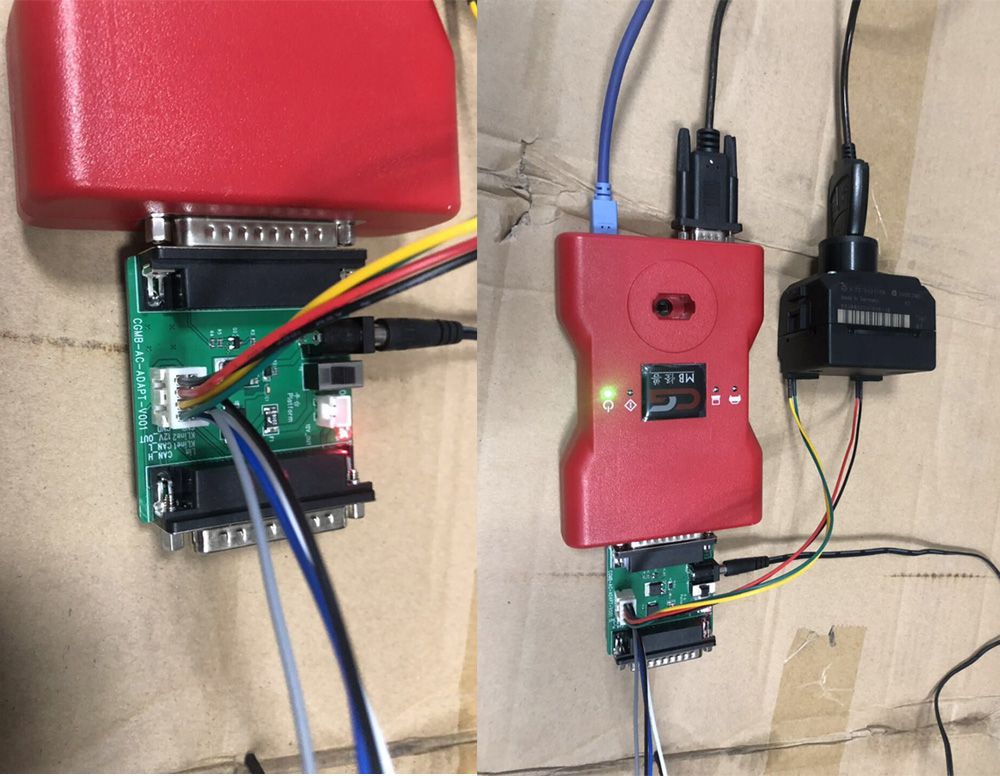

CGDI MB AC Adapter Connection Picture:

Package List

• 1pc × CGDI MB Multiplexer
• 1pc × NEC Key Adapter
• 1pc × IR Adapter
• 1pc × OBD Cable
• 1pc × USB Cable
• 1set × EIS/ELV Test Line for Mercedes
• 1pc × ELV Adapter
• 1pc × ELV Simulator
• 1pc × AC Adapter
