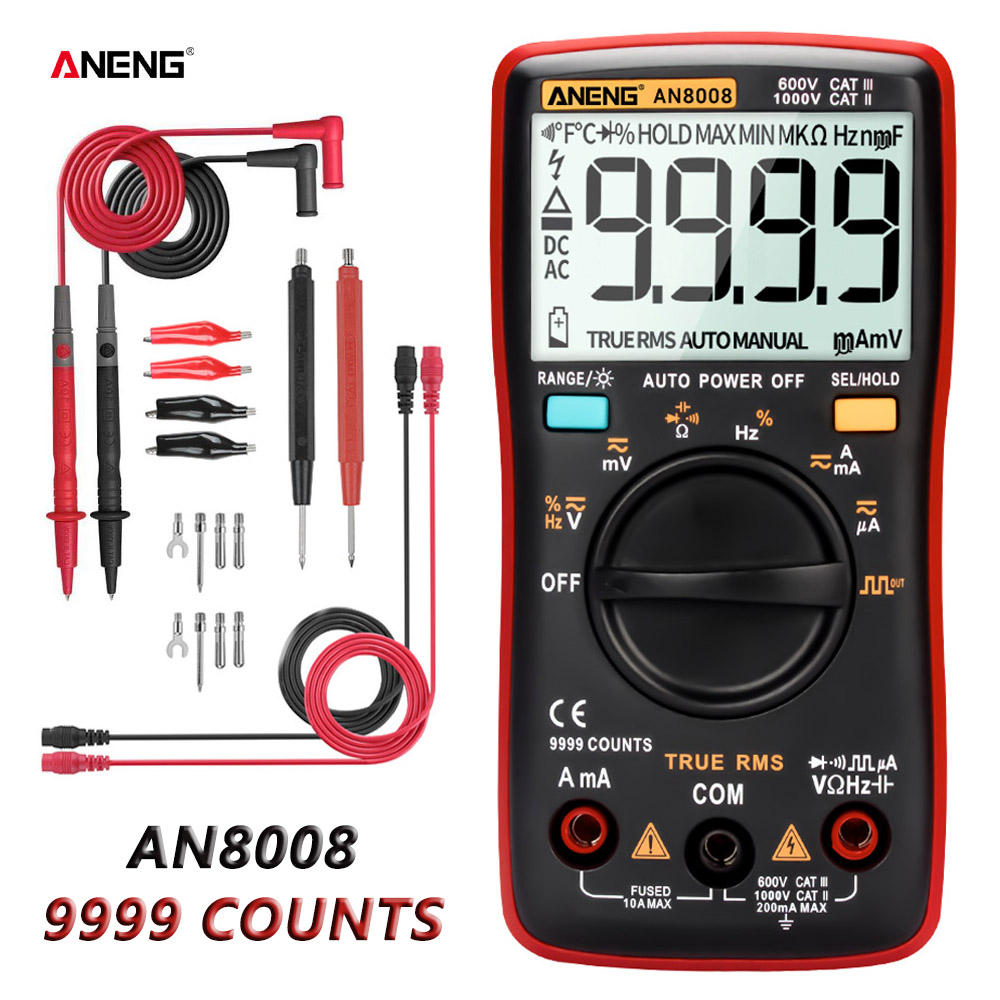

ANENG AN8008 Digital Multimeter 9999 Counts Transistor True RMS Tester rm409b Auto Electrical Testers Voltage capacitor Meters

Brand Name

ANENG

Model

AN8008

Counts

9999

Diode Test

Yes

Continuity

Yes

Square wave output

Yes

Backlight

Yes

Data hold

Yes

Auto/manual range

Yes

Auto power off

Yes

Over range Indication

Yes

Duty Cycle

1%-99% ±( 0.1%+2)

DC voltage

999.9mV/9.999V/99.99V/999.9V±(0.5%+3),9.999mV/99.99mV±(0.5%+3)

AC voltage

999.9mV/9.999V/99.99V/750V±(1.0%+3),9.999mV/99.99mV±(1.0%+3)

DC current

999.9mA/9.999A±(1.0%+3),99.99μA/999.9μA±(0.8%+3)

AC current

999.9mA/9.999A±(1.2%+3),99.99μA/9999μA±(1.0%+3)

Resistance

99.99Ω±(1.0%+3),999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ±(0.5%+3),9.999MΩ±(1.5%+3)

Capacitance

9.999nF±(5.0%+20),99.99nF/999.9nF/9.999μF/99.99μF/999.9μF±(2.0%+5),9.999mF±(5.0%+5)

Frequency

99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(0.1% + 2)

Power

2 x 1.5V AAA (Not included)
