This package includes the following items:
PCMtuner ECU Programmer with 67 Modules in 1
GODIAG GT107 DSG Gearbox Data Read/Write Adapter with GT105
PCMtuner ECU Programmer with 67 Modules in 1
PCMtuner is a customized read-write device specially used for vehicle engine control system (ECU) and transmission control system (TCU). It can support OBO (bus reading and writing), BENCH (read and write wittxxjt opening ECU or TCU box ), BOOT (read and write with open mode). It can read and write the current most models on the market, covering European airs, Japanese cars, some American cars, Chinese cars, supporting some Volkswagen Audi gearboxes, and models equipped with delphi control systems.
PCMtuner Highlights:
1. Master Version, save data in bin format, data not encrypted.
2. Read and write ECU data through OBD, BENCH, and BOOT modes.
3. PCMtuner provides VR files for all legal users and Helpdesk supplies free Damaos for Tuner: Free WinOLS damaos, A2L, MAPPACKGE and VR files.
4. PCMtuner software allows you to forcibly write (forcibly clone) without verification,
And supports forcibly reading and writing unknown ECUs with supported chip models.
5. Free Update Online, No Annual Subsription Fee, 2 Years Warranty
6. With integrated scanmatik2: The smart dongle is compatible with the original scanmatik2 pro
7. PCMtuner Wiring Diagrams Free Download
8. PCMTuner is From Tuner Group: so we can give more support for all our legal users
PCMtuner Functions:
PCMtuner performs a complete backup of ECU data, easy ECUs clones, and power upgrades. It can also support read and write gearboxes. According to the data read out via PCMtuner tool, our engineers can provide customers stage1 stage2 stage3, popbangs ,gearbox data to adjust LC, sport display, immo off, adblue off, dpf off, dtc off, vmax, swirl off, restoring ECU or TCU factory setting service (paid service).
1. Read and write ECU data
2. ECU clone
3. ECU parameter adjustment
4. ECU maintenance engineering
5. Chip turing
6. Read ECU maps
7. Checksum correction
8. Stage1-3, gearbox tuning , LC, sportdisplay , immo off, adblue off, dpf off, dtc off ,vmax ,swirl off (Paid Service, Buy Tokens in VZ Performance Directly)
9. Read flash and ep files
10. Powertrain adjustment
11. Support online update
12. VR files supply
13. Pinout comewith
14. Helpdesk and tuner account
15. OBD2 reading
16. Cover-free wielding-free no disassembly data reading, greatly reduce the risk of destroying the ECU, bench mode.
17. Cover-opening data reading, boot mode

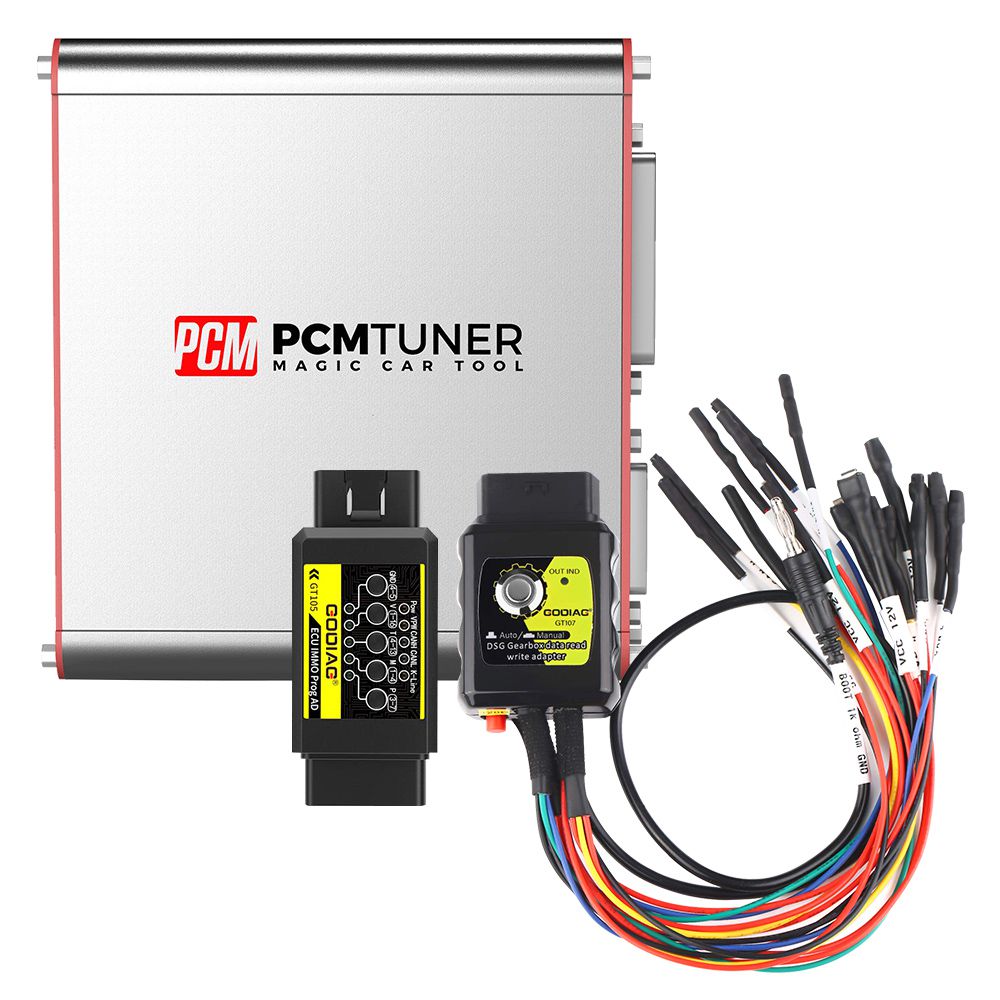

GT107 DSG Gearbox Data Read/Write Adapter with GT105 Adapter
GODIAG GT107 is a DSG gearbox connection adapter. DSG Gearbox maintenance engineers can clone, diagnose and repair DSG Gearbox ECU and can also read, write and adjust data or power for DSG Gearbox ECU via PCMFlash, PCMTuner, and Kessv2, etc.
GODIAG GT107 DSG Gearbox Data Adapter Support the Connection of:
Renault DC0/DC4 Gen2
Honda LUK UDCT
DQ200 (0AM) [WR/CK]
DQ250C (02E) [RD/WR/CK]
DQ250E/F (02E) [WR/CK]
DQ200MQB/G2 (0CW) [WR/CK]
DQ250MQB (0D9) [WR/CK]
VL300/V30 (01J/0AN) [WR/CK]
VL381 (0AW) [WR/CK]
DL501/G2 (0B5) [WR/CK]
DQ500 (0BH/0BT) [RD/WR/CK] reading when using a direct connection.
DQ200/MQB/G2 Boot (MICRO) [RD/WR/CK]
DQ200/MQB/G2 Boot (EEPROM) [RD/WR]
DQ250E/F/MQB Boot (MICRO) [RD/WR/CK]
DQ250E/F/MQB Boot (EEPROM) [RD/WR]
VL300/V30 BSL (FLASH) [RD/WR/CK]
VL300/V30 BSL (EEPROM) [RD/WR/CK]
VL381 Boot (MICRO) [RD/WR/CK]
VL381 Boot (EEPROM) [RD/WR]
DL501/G2 Boot (MICRO) [RD/WR/CK]
DL501/G2 Boot (EEPROM) [RD/WR]

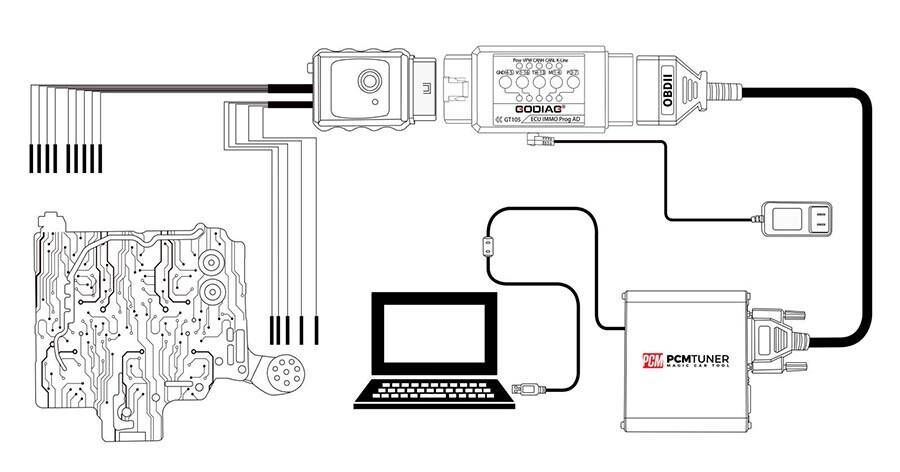

Maintenance workshop connection diagram:
Connection Steps:
1. Connect Godiag GT107 to the gearbox ECU like VAG, DQ250, DQ200, VL381, VL300, DQ500, DL501, for Renault DC0/DC4 Gen2 and Honda LUK UDCT.
2. Connect GT105 and connect 12V 2A DC power supply. (GT105 IMMO function keys must be up.)
3. The GODIAG GT107 analog ignition switch is in “Auto” mode if it is not pressed, and in “Manual” mode if pressed down(note: please select the corresponding mode in the software to read data)
4. Connect PCMFlash, PCMTuner J2534passthru.
5. Perform data reading and writing operations.
Steps:
1. Connect Godiag GT107 to the gearbox ECU, VAG, DQ250, DQ200, VL381, VL300, DQ500, DL501 for Renault DC0/DC4 Gen2 and Honda LUK UDCT.
2. Connect the Godiag ECU IMMO Prog AD and connect the 12V vehicle battery.(The Godiag ECU IMMO Prog AD’s IMMO button must be up.)
3. The Godiag GT107 analog ignition switch is in “Auto” mode if it is not pressed, and it is in “Manual” mode if it is pressed down(Note: Please select the corresponding mode in the software for data reading).
4. Connect PCMFlash, PCMTuner J2534passthru.
5. Perform data reading and writing operations.

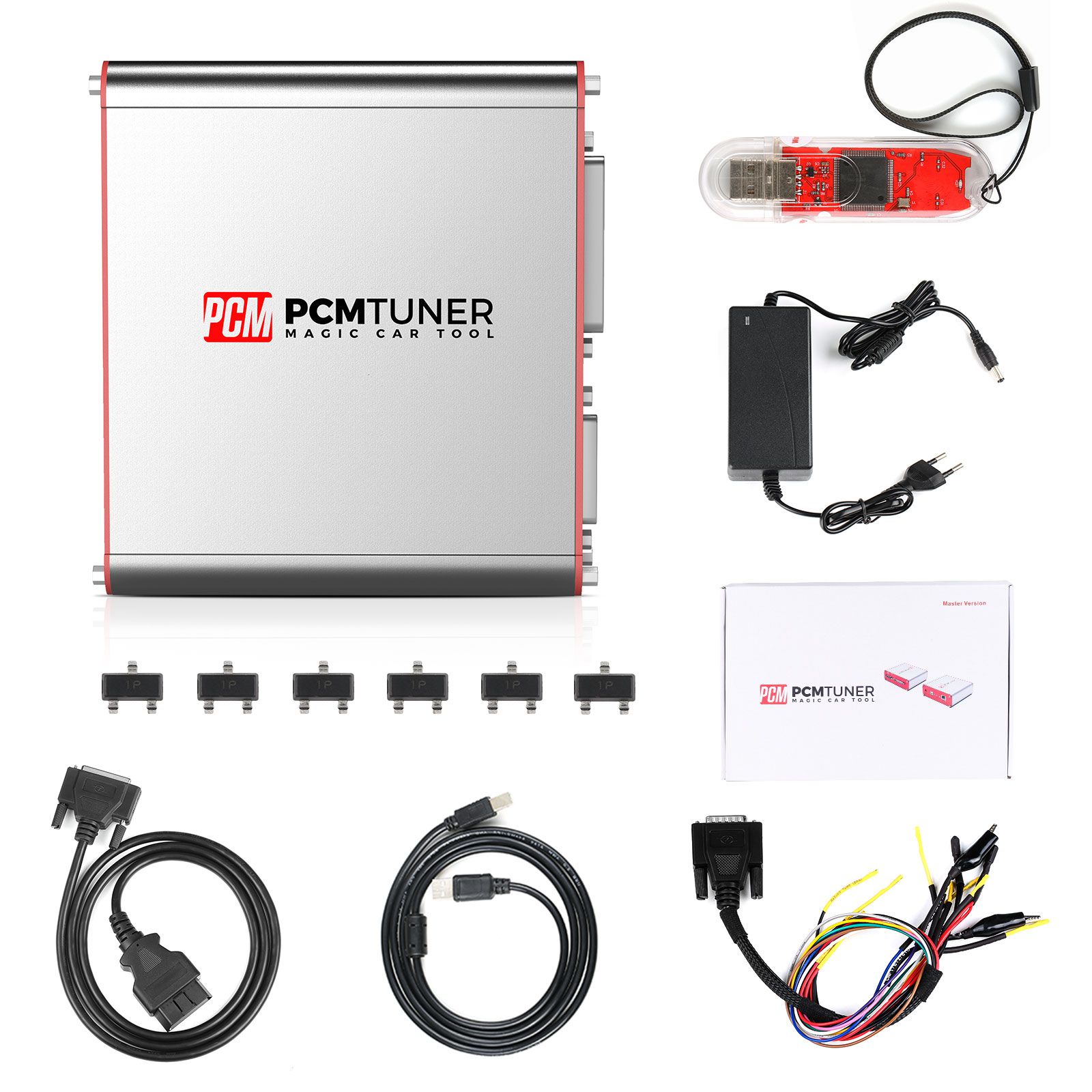

Package Includes:
1pc x PCMtuner ECU Programmer 67 Modules in 1
1pc x GODIAG GT107 DSG Gearbox Data Read/Write Adapter
