Highlights:
1. Read/write DSG Gearbox Data
2. Compatible with PCMTuner, Kess V2, PCMFlash, KTMBench etc

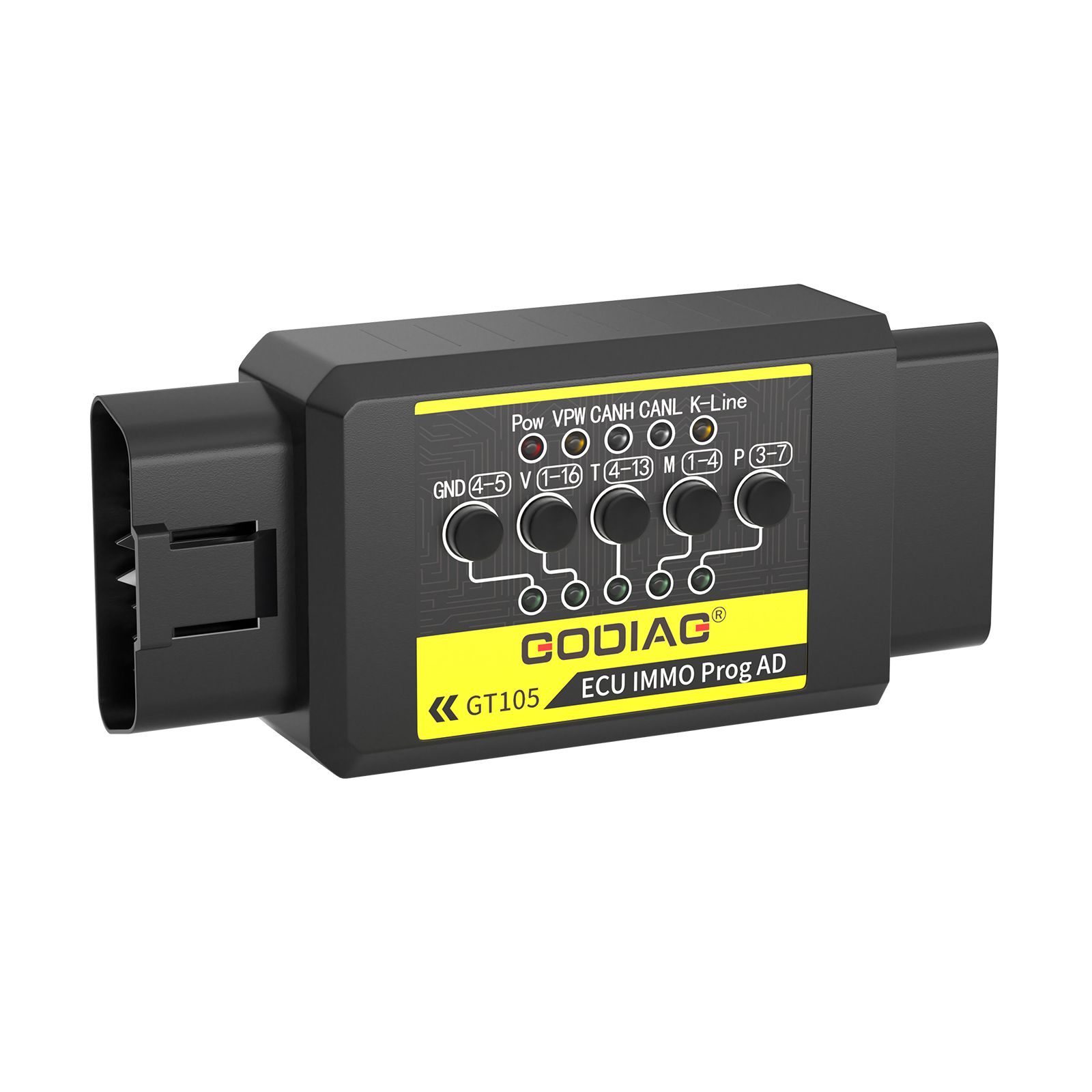

GT105 ECU IMMO Prog AD Features:
-A full-protocol ECU connection line for ECU programming power adjustment
-OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.
-PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
-Standard OBD2 independent PIN4, PIN5.
-Pure copper female seat supports repeated insertion and removal, and has a long service life.
-Battery clip treated with environmentally-friendly salt spray, with a thickness of 0.5mm.
-The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.
-The DC connector has a resettable 7A fuse.
-DC power interface, dedicated laboratory power connector.
-OBD2 universal jumper of good quality.

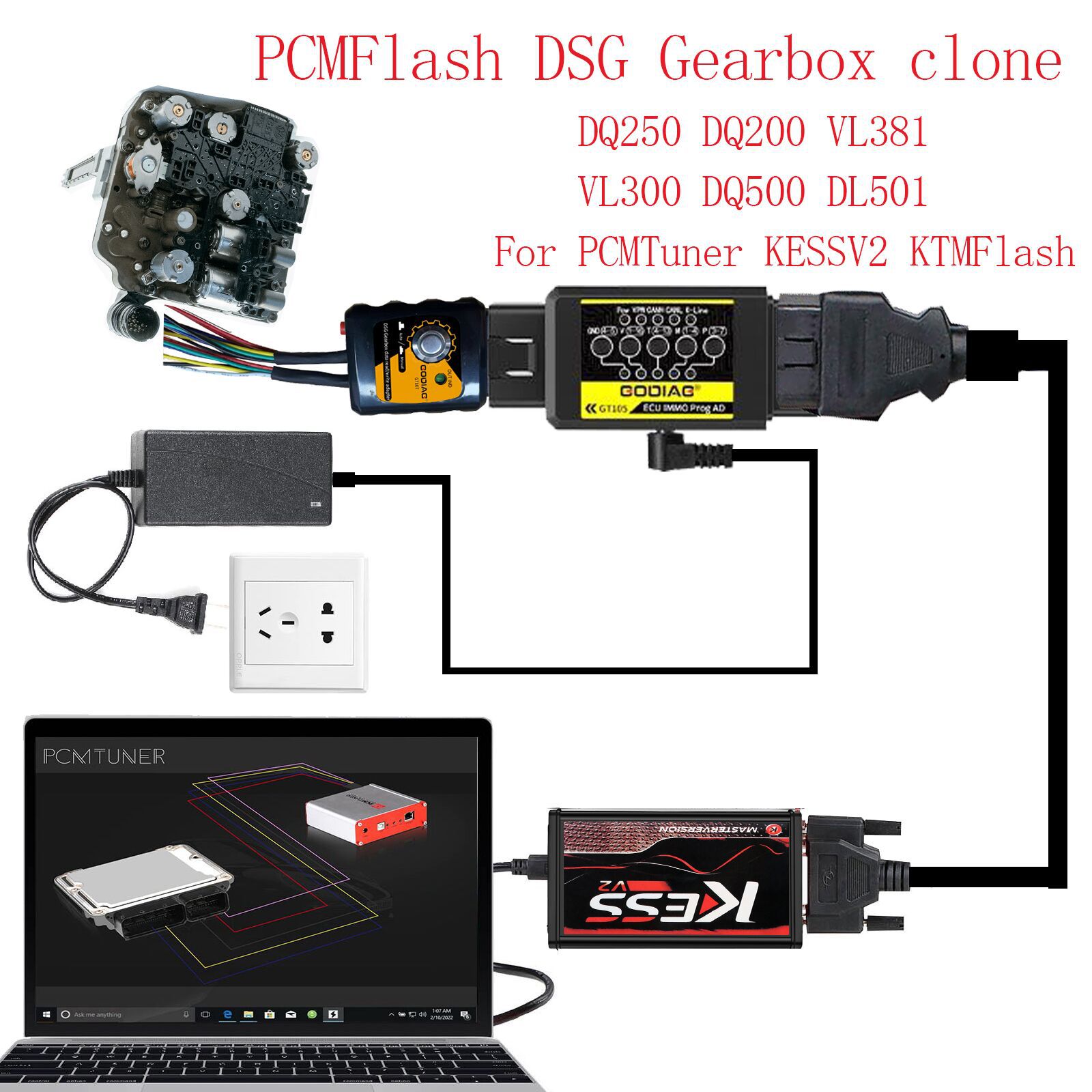

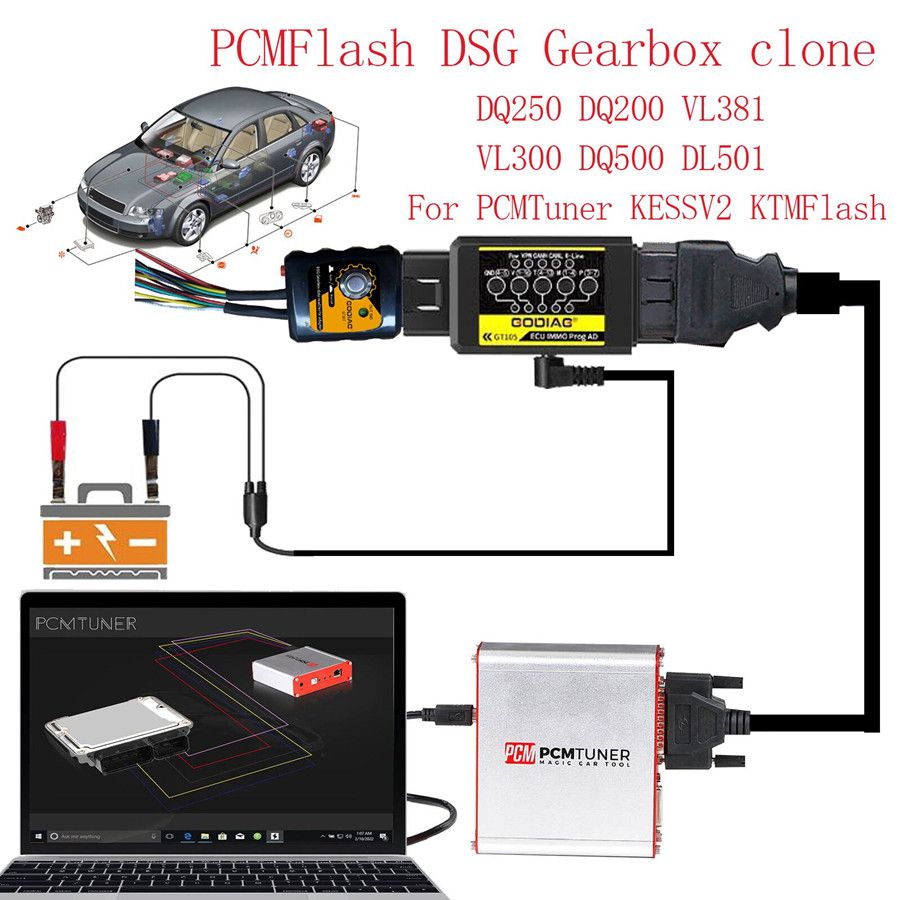

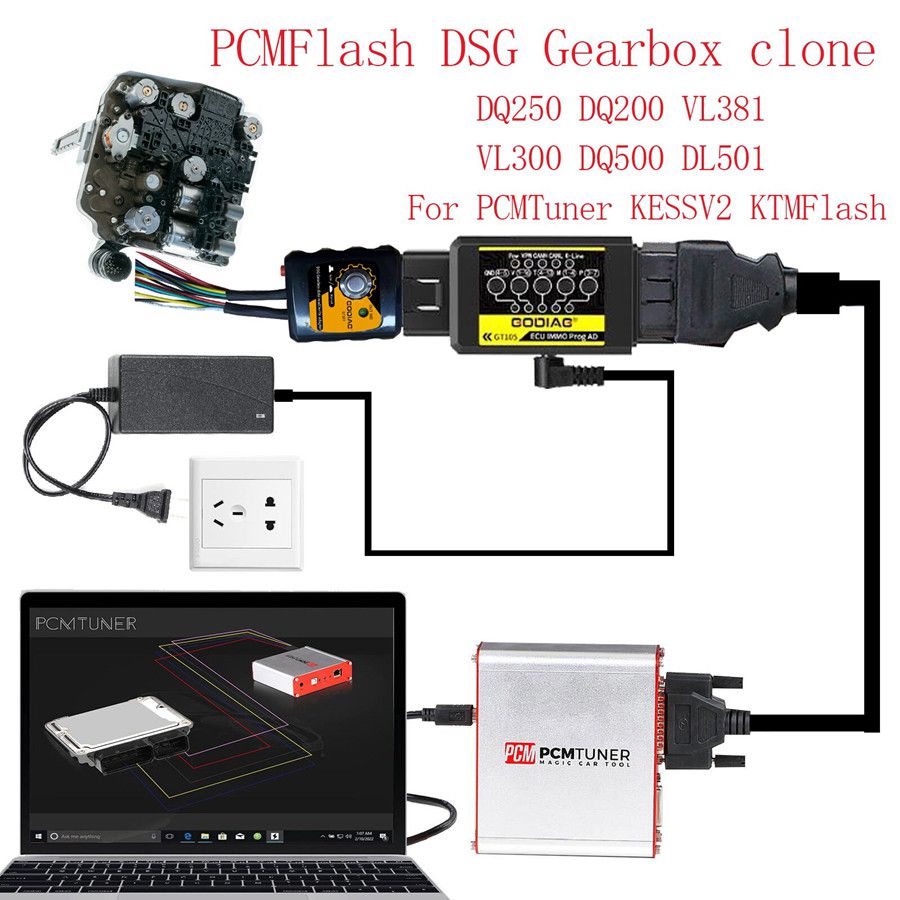

Connection Diagram:

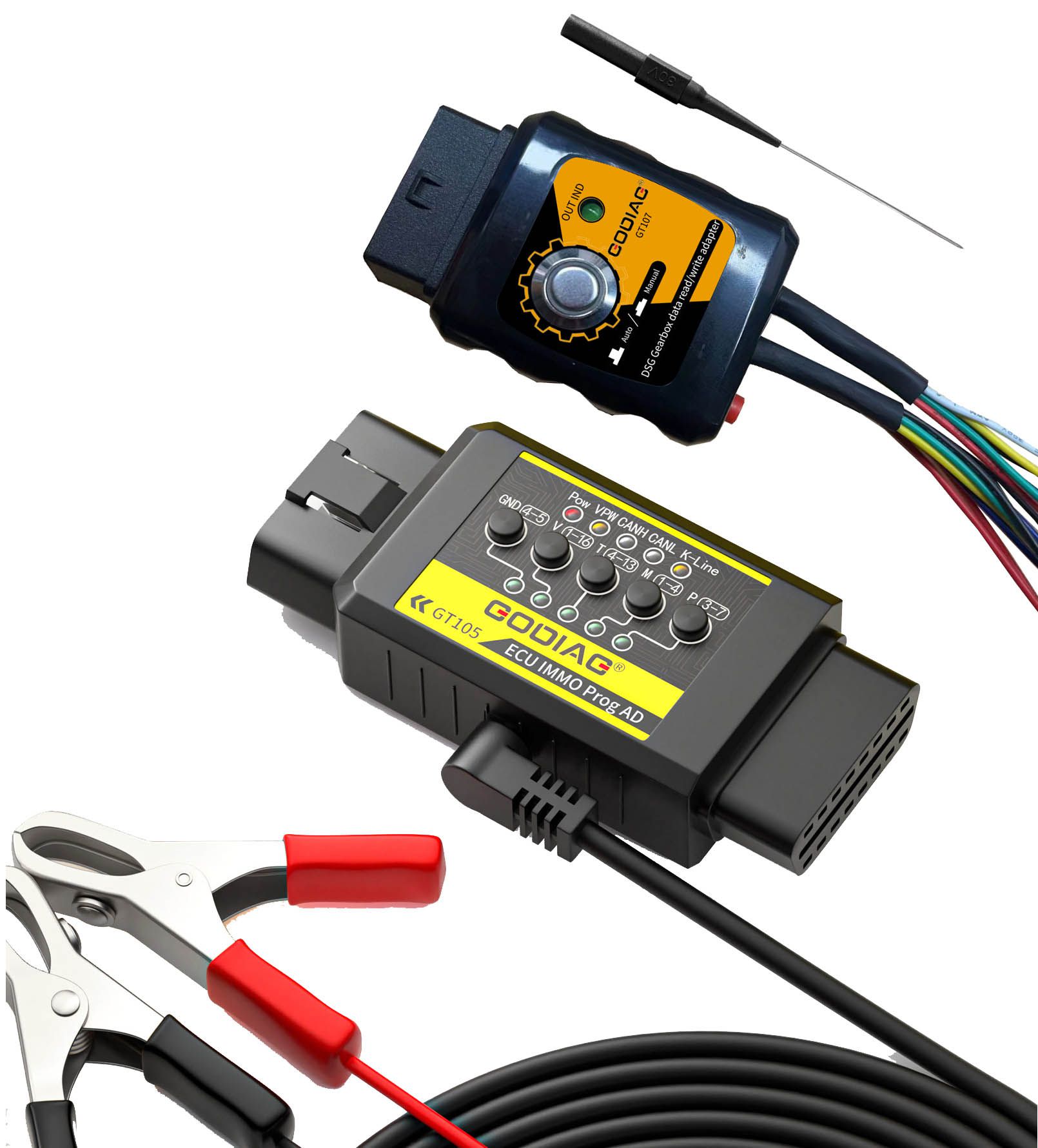

Package Includes:
1pc x GODIAG GT105
1pc x GT107 DSG Gearbox Data Read/Write Adapter
