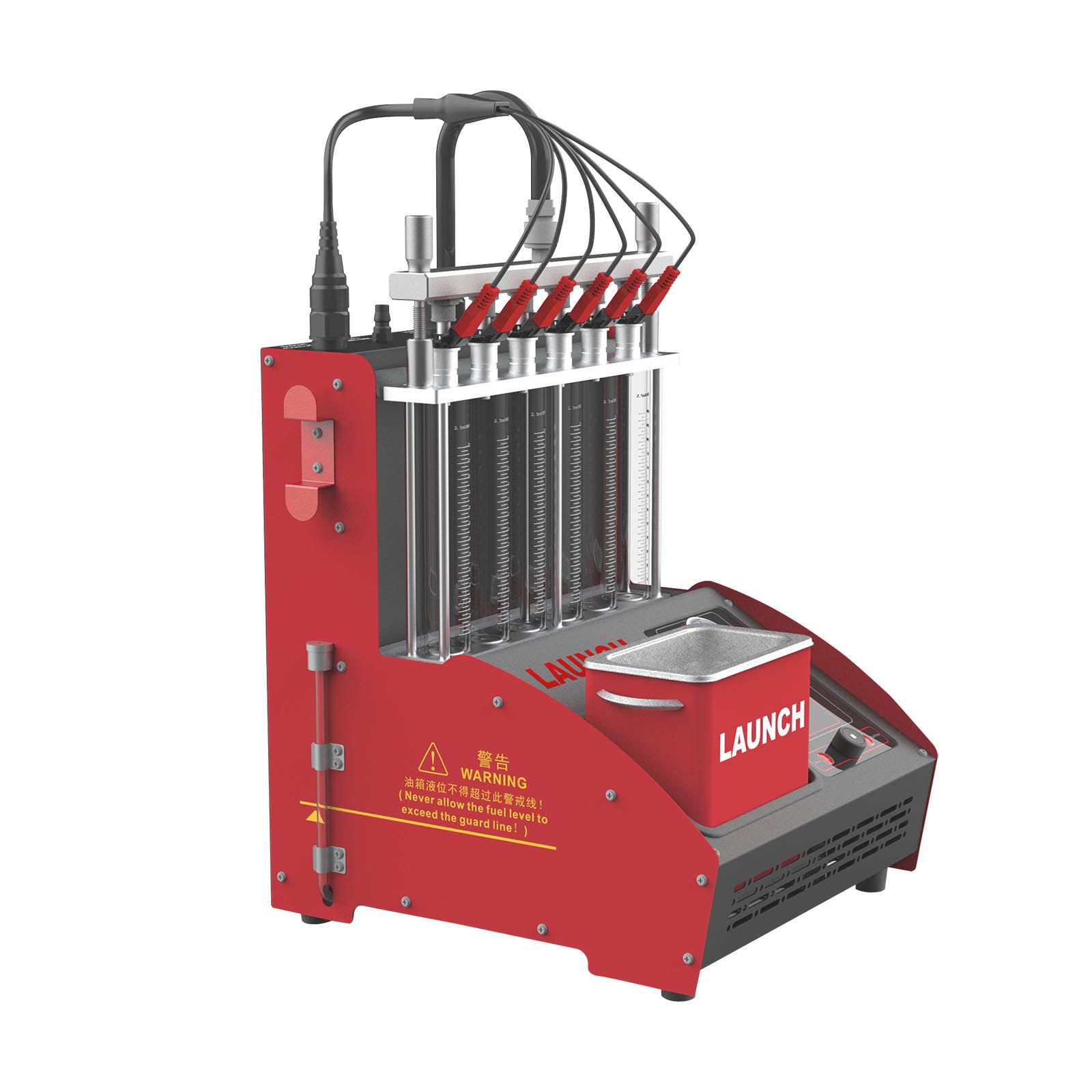

Launch CNC603A Exclusive Ultrasonic Fuel Injector Cleaner Cleaning Machine 4/6 Cylinder Fuel Injector Tester 220V/110V
Launch CNC603A is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicles.
There are two voltage options for Launch CNC603A: 110V and 220V.
There are two voltage options for Launch CNC603A: 110V and 220V.
Product Features:
Adopting ultrasonic cleaning technology, CNC603A injector cleaner & tester presents a strong cleaning ability.
Launch CNC603A also adopts fuel pressure adjustment and control technology by microcomputer, which can ensure stable fuel pressure and wide adjustable range. It is applicable to vehicles equipped with a variety of gasoline injection systems. Meanwhile, the automation of injectors’ cleaning and testing processes can be realized.
Thanks to the adoption of microcomputer automatic control and digital display technologies, the cleaning and testing processes can be controlled automatically and the parameters of the main status can be monitored in real time.

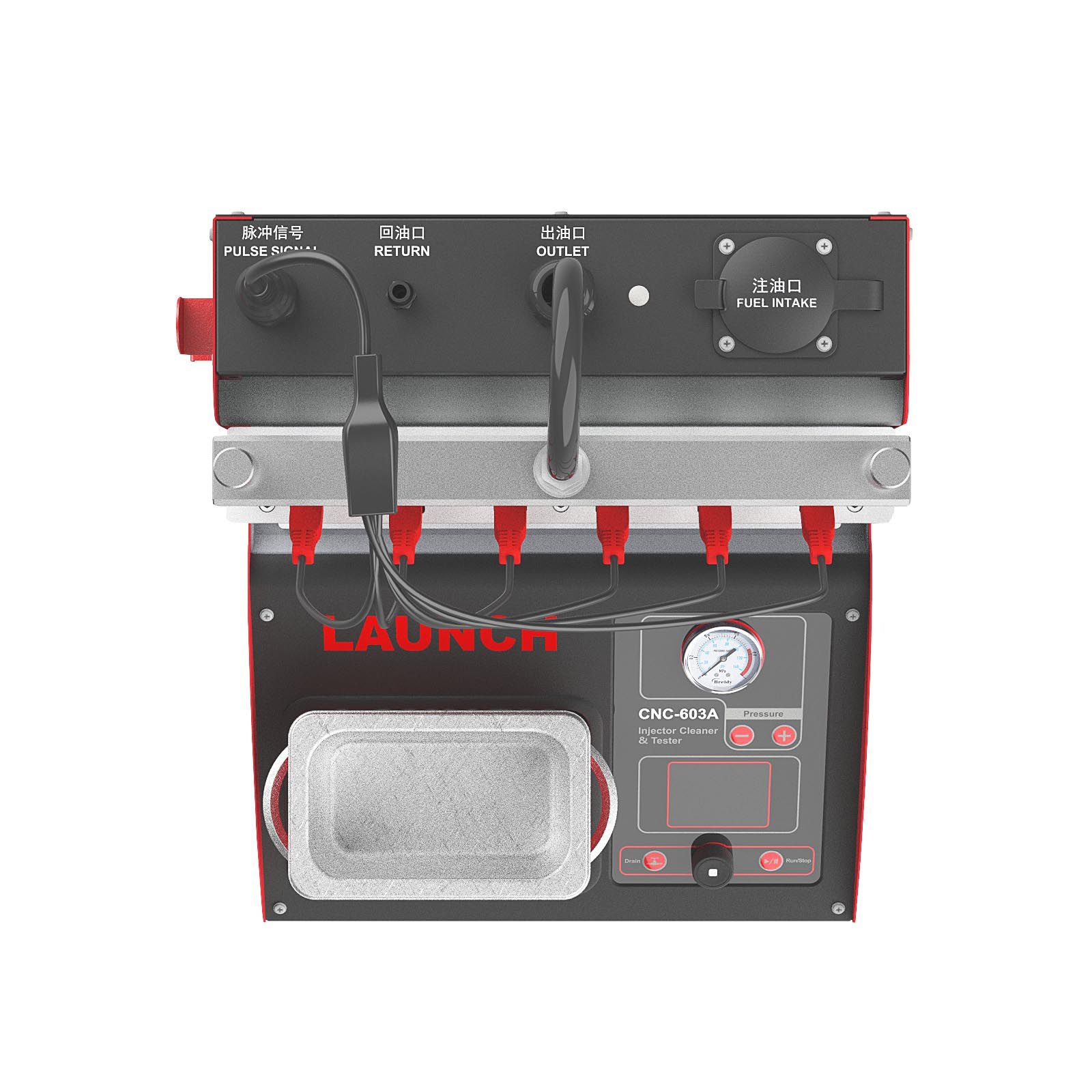

Automatic fuel drain during a certain test can be realized via a routine, owing to the adoption of automatic fuel drain control technology. Start or [stop] fuel drainage via the [Drain] button on the control panel in running or stop state.
Multi-language: English, Japanese, Russian, Korean, French, Portuguese, Italian, Chinese.
Multi-language: English, Japanese, Russian, Korean, French, Portuguese, Italian, Chinese.
Top 5 Reasons to Choose Launch CNC603A
1. [Wide range of applications]: CNC603A car fuel injector tester cleaner has a good compatibility. Support for more cars and motorcycles to ‘clean’ and ‘test’ fuel injector. And also can be used to ‘clean’ diesel fuel injectors.
2. [Easy to operate]: When cleaning, fix the car injector in the socket of the washing tank, add an appropriate amount of cleaning fluid, and the cleaning can be completed after power on; when testing, fix the car injector in the oil separator and add it to the glass tube industrial alcohol, the test can be completed after power on.
3. [Leading technology]: At present, only our company produces this portable and multi-functional automobile fuel injector cleaning and testing machine, and it has obtained a special patent.
4. [Safety]: Its working voltage range is 110V. When the machine is short-circuited, the fuse inside will automatically trip to shut down the running machine to prevent electric shock.
5. [1 year warranty]: For damage caused by non-human factors, we promise to resend parts for free within 1 years.
Product Functions:
Uniformity / spray ability test: to detect the uniformity of the fuel injection quantity of each injector and monitor the spray status of injectors thoroughly and carefully by using the backlight, and to back flush injectors.
Leakage test: to test the leakage and dribbling conditions of injectors under system pressure.
Injecting flow test: to detect the amount of fuel injected normally by injectors in 15 seconds.
Auto test: under specific working conditions and parameters, the precise simulation of test of injectors
Ultrasonic cleaning: to perform ultrasonic cleaning on multiple injectors at the same time, removing carbon deposits on injectors completely.
On-vehicle cleaning: Coming with a variety of disassembly-free cleaning connectors, the device can be used to perform on-vehicle cleaning and maintenance for various vehicle models.
Version information: to check the software version information of the current device.
Supported Models:
For Audi, Australia Ford, Benz, BMW, Brilliance, Chevrolet, Chevy, Chrysler, Citroen, Dacia,Dadi, Daewoo, Daihatsu, Demo, Fiat, Ford, GM,Holden, Honda, Hyundai, Isuzu, Jaguar, Kia, Lancia, Land Rover, Mahindra, Maruti, Mazda, Mitsubish, Nissan, Opel, Peugeot, Porsche, Renault, Romeo, Rover, Saab, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Toyota, Volvo, VW, Yamaha.
Product Specifications:
| Power | AC220V-230V，50Hz/60Hz 1.5Amax |
| Mechanical Power | 300W |
| Ultrasonic Cleaning Power | 100W |
| Speed Range for Simulation Test | 10～9990rpm (step: 10rpm) |
| Timing Range | 1～9999s Pulse |
| Width Range | 0.5～25ms (step: 0.1ms) |
| Speed Range for Simulation Test | 10～9990rpm (step: 10rpm) |
| Timing Range | 1～9999s Pulse |
| Width Range | 0.5～25ms (step: 0.1ms) |
| Operating Volume | 2000ml |
| Packing Dimension | 458mm×433mm×537mm |
| Main Unit Dimension | 355mm×350mm×356mm |
| Net Weight | 10.5kg |
| Gross Weight | 13kg |
| Environment Temperature | 0℃~+45℃ |
| Relative Humidity | ＜85% |
| Strength of External Magnetic Field | ＜400A/m |
Note: Open fire is strictly prohibited within 2M.
How to Use CNC603A Car Fuel Injector Tester Cleaner:
1.Clean injector's outside with cleaning liquid before opening the machine .Putting injectors in ultrasonic bathtub after the outside of injector is free of dirt. The cleaning fluid does not exceed the connection port of the pulse line.
2.Turn on ultrasonic system allowing the ultrasonic energy to dislodge any particles build-up inside the injectors. After cleaning, the remaining cleaning fluid can be recycled.
3.Fixed injectors on main machine, testing injectors for resistance, shorts, and current draw.The test liquid can be added to the half of the glass tube.
4.Performing leak test, spray pattern, and flow rate testing on flow bench.The injectors are now returned to the flow bench for retesting of all functions.
Package Includes:
1pc x Launch CNC603A
