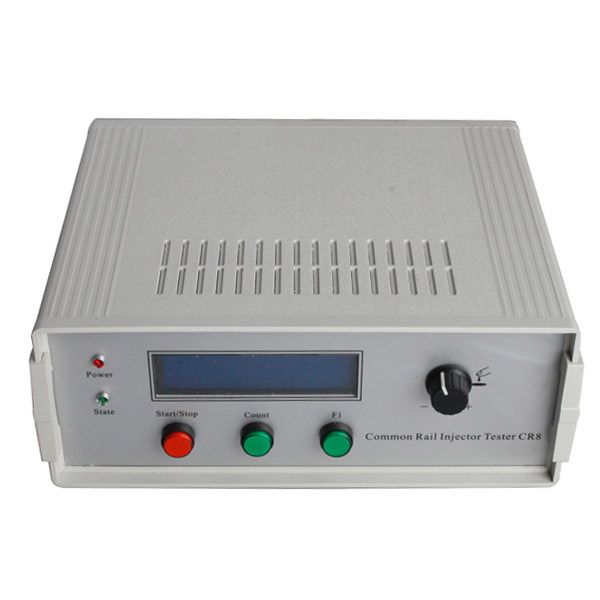

2012 Newest High-pressure common-rail injector tester
Specifications
High-pressure common-rail injector tester is made of Bus microcontroller from ATMEL Company, which can generate the driving signal of high pressure common rail electromagnetic valve injector from Bosch, Denso and Delphi.
W= to arbitrarily set fuel injection pulse width (100—6000NM),
F= to arbitrarily set fuel injection counts per second (1—40 times)
C= to arbitrarily set fuel injection frequency (10—9990 times)
Intelligent knob enables arbitrary setting
(W= Fuel injection pulse width, F= fuel injection counts per second, C= Fuel injection frequency setting. And
Fuel injector type options: Bosch, Denso and Delphi)
There are 10 built-in channels for fuel injector saving type and parameters. The user is allowed to arbitrarily switch any channel only by pressing one single button, so long as the frequently-used parameter and working status is set well.
Fine Quality Control
Take easy to buy our tester; we keep them working 72 hours before they leave the factory in order to make sure they will work.
Note: our tester can work with Calibrator or homemade common rail test bench.
