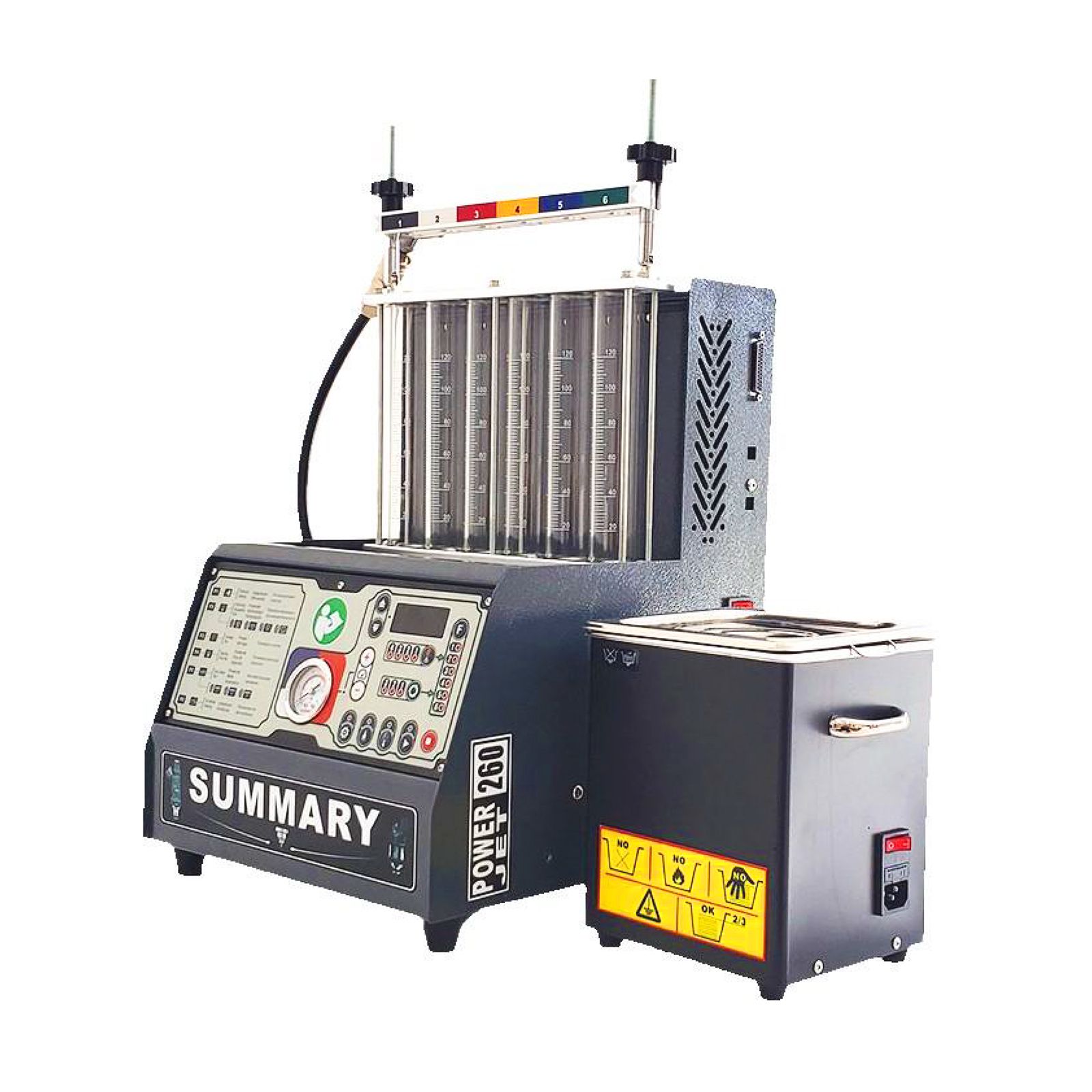

SUMMARY POWERJET PRO 260 Injector Cleaner & Tester Machine Kit
SUMMARY POWERJET PRO 260 injector cleaner & tester uses ultrasonic technology to quickly remove carbon from the vehicle fuel system, and test leaking, uniformity, inbreath of injectors, so that the injectors can discharge fluid more quickly.
SUMMARY POWERJET PRO 260 injector cleaner & tester fits for most petrol cars and motorcycles injectors, but NOT for diesel injectors. It also can be used for cleaning and testing six injectors at the same time.
Product Features:
High efficiency
The special structure design makes the disassembly and assembly of the oil separator easier.
High security
The unique oil circuit depressurization technology can make the machine automatically depressurize in the case of sudden shutdown, avoiding equipment damage or personal injury.
Strong cleaning
The machine has a strong ultrasonic cleaning ability, which can remove carbon deposits and impurities on the fuel injection nozzle to the greatest extent.
Real time monitoring
Thanks to the adoption of microcomputer automatic control and digital display technologies, the cleaning and testing processes can be controlled automatically and the parameters of the main status can be monitored in real time
Easy to control
Automatic fuel drain during a certain test can be realized via a routine, owing to the adoption of automatic fuel drain control technology. Start or [Stop] fuel drainage via the [Drain] button on the control panel in running or stop state
Humanization design
Adopting humanization design can make the system pressure fast restored to the default values
Product Functions:
Ultrasonic cleaning
To clean injectors to remove the carbon deposition on them completely.
Uniformity test
To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight.
Leakage test
To test the sealing and dribbling conditions of injectors under system pressure.
On-Vehicle cleaning
Coming with a variety of disassembly-free cleaning connectors, the device can be used to perform on-vehicle cleaning and maintenance for various vehicle models.
Automatic test
Automatic fuel drain during a certain test can be realized via a routine, owing to the adoption of automatic fuel drain control technology.
Multi items setting
Set different parameters of the device, including the buzzer sound level, display brightness, and backlight brightness.
Product Comparison Chart
| Brands | Summary | Autool | Launch | Tektino |
| Model | PowerJET PRO 260 | CT200 | CNC-602 | INJ-6B |
| 6 cylinder series |  |  |  |  |
| size | 375*405*510 | 485*465*490 | 670*500*600 | 670*470*600 |
| volume | 0.077 m3 | 0.111 m3 | 0.201 m3 | 0.106 m3 |
| weight | 18KG | 22.5KG | 31KG | 25KG |
| Support low resistance injector (1-2Ω) test and cleaning function | Yes | No | No | No |
| Support Top-feed fuel injector test & cleaning | Yes | Yes | Yes | Yes |
| Support Side-feed fuel injector test & cleaning(With Optional Spare parts) | Yes( standard configuration does NOT support.) | No | Yes | No |
| Support GM TBI injector test & cleaning(With Optional Spare parts) | Yes( standard configuration does NOT support.) | No | Yes | No |
| Support Votec injector test & cleaning(With Optional Spare parts) | Yes(standard configuration does NOT support.) | No | No | No |
| Injector resistance testing function | Yes | No | No | No |
| RPM adjustable range:100～9900rpm, | Yes | No | Yes | Yes |
| Pulse width adjustable : 0.1～25ms, | Yes | No | Yes | Yes |
| Independent ultrasonic cleaning machine | Yes | No | Yes | No |
Product Specifications:
| Main unit power supply | AC110V±10% 60Hz |
| Input power | 230W |
| Ultrasonic cleaner power | 100W |
| Simulated RPM range | 100～9900rpm, step:10rpm |
| Time range | 5～300s, step:5s |
| Pulse width | 0.1～25ms,step: 0.1ms |
| Fuel tank capacity | 3.3ml |
| Work pressure | 0-7bar |
Package Includes:
1pc x Hole stopper
1pc x Main pulse cables
1pc x Liquid filler
1pc x Fuel separator
1pc x User manual
1pc x Fuel separator stopper
1pc x Lock handwheel
1pc x Hook
1pc x Power cable
1pc x Pulse signal cable
1pc x Main adaptor
1pc x Vice adaptor
