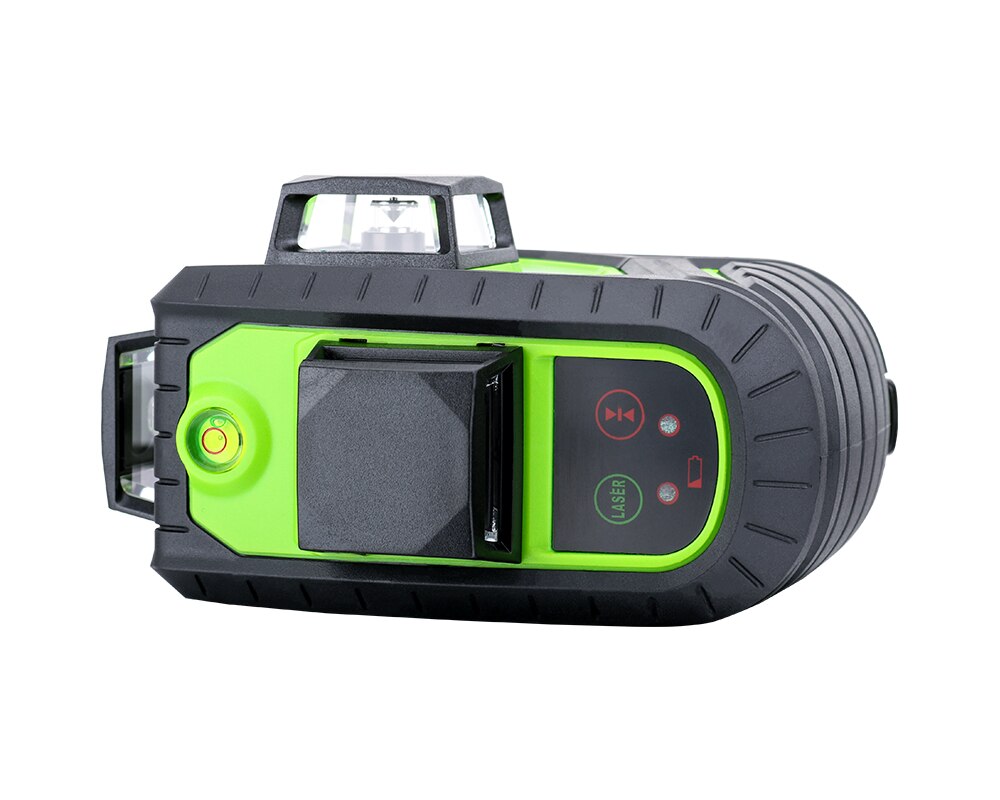

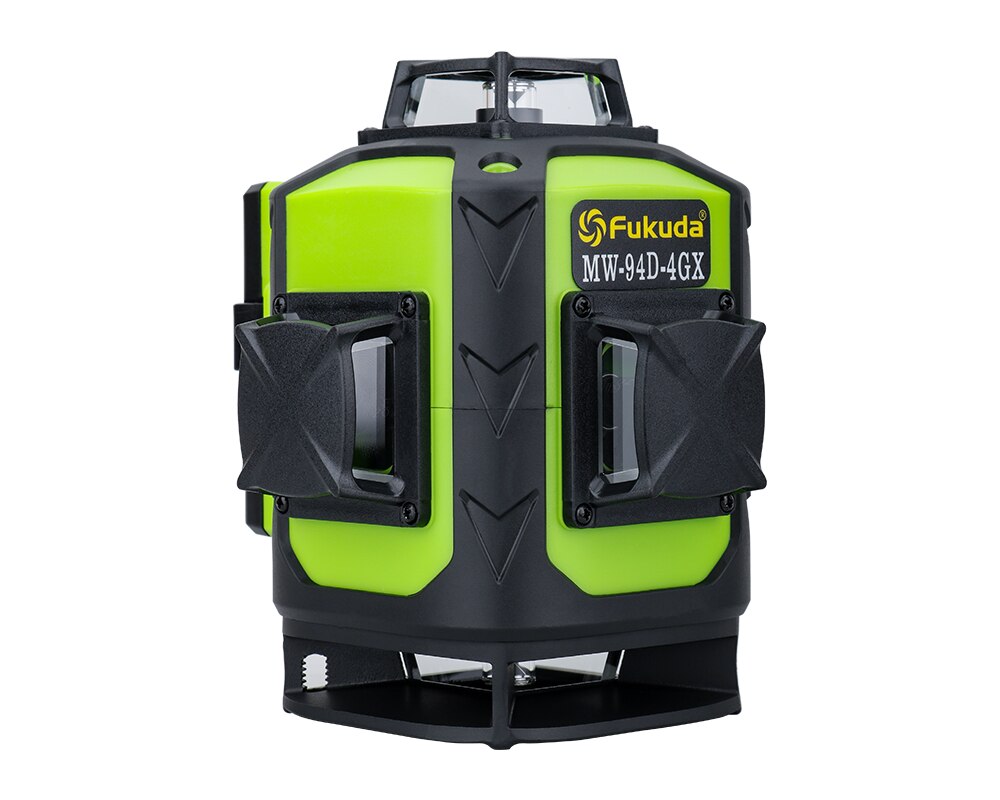

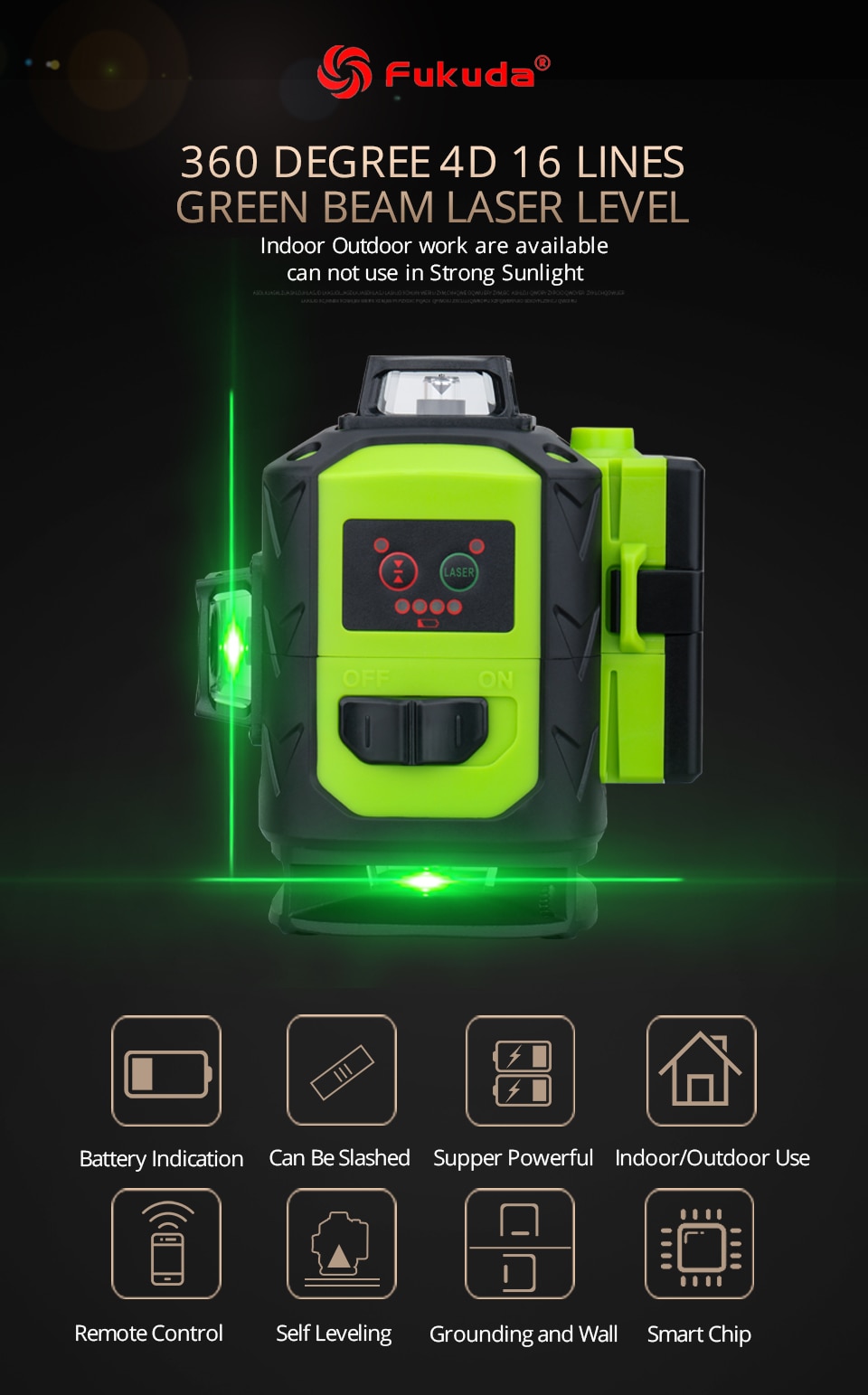

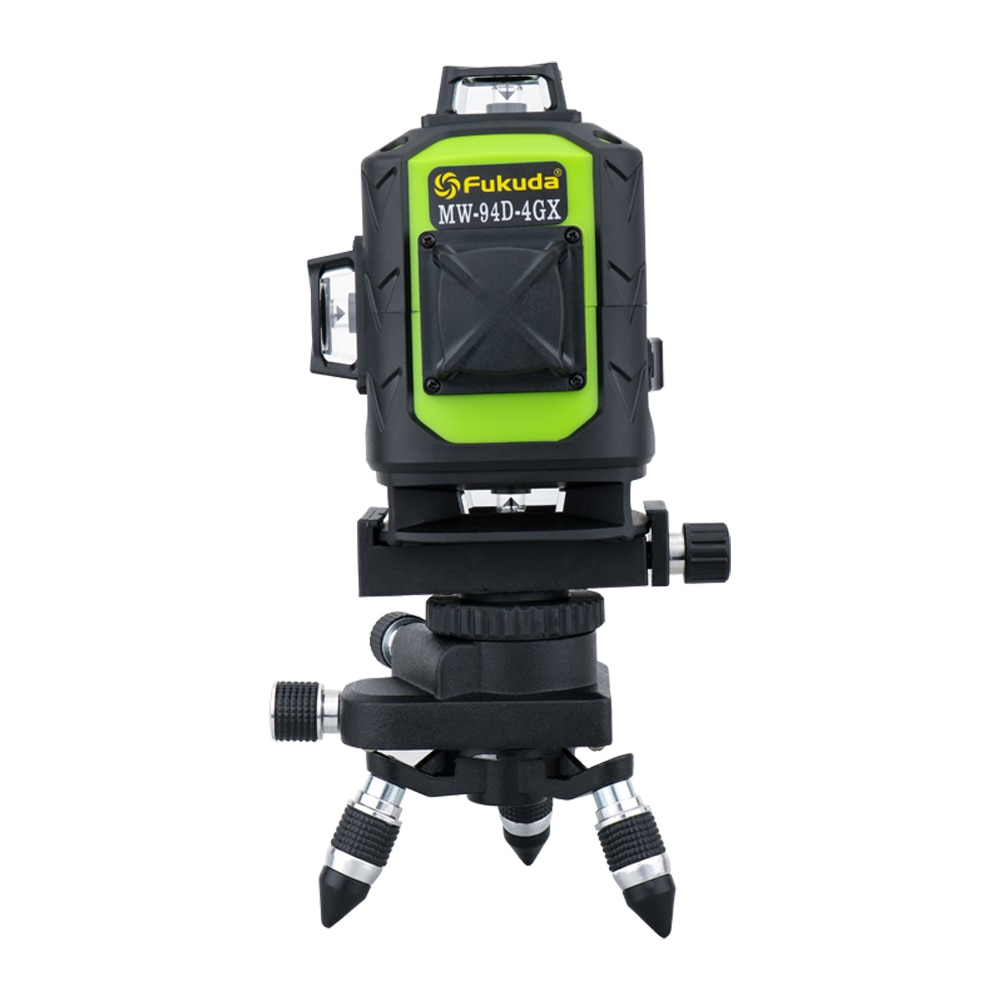

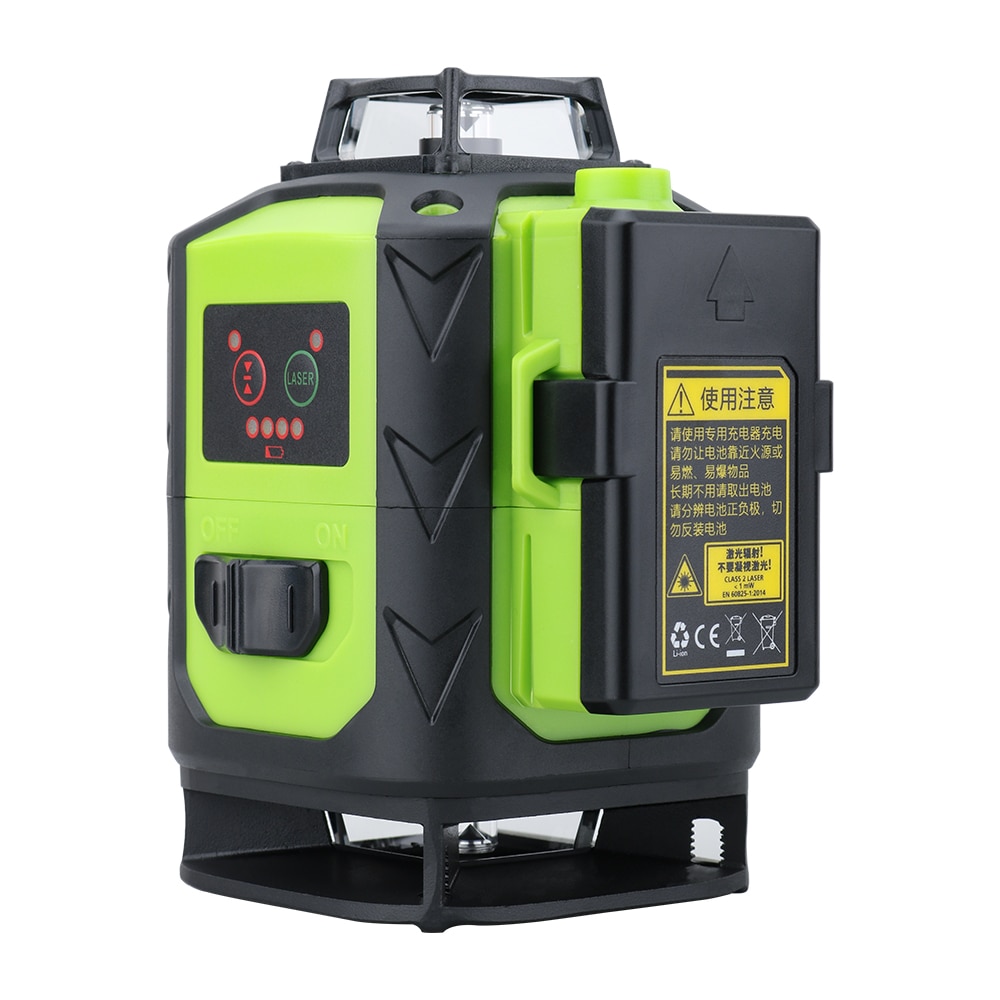

FUKULA LASER LEVEL 4D 16 LINES GREEN BEAM MW-94D-4GX

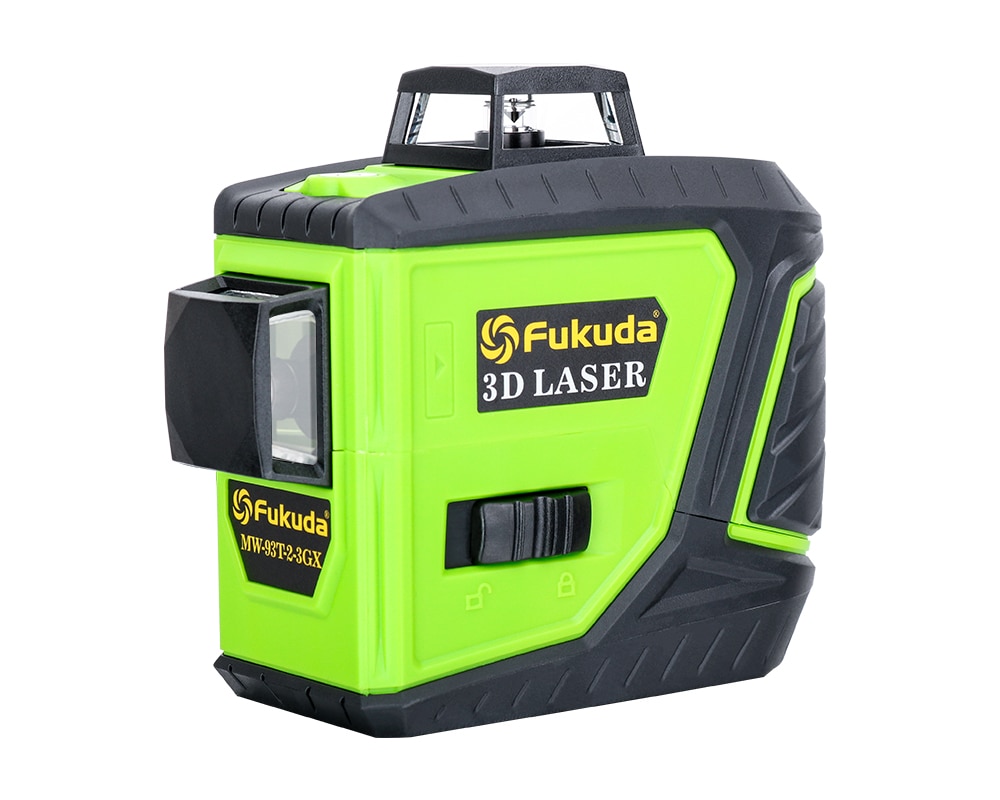

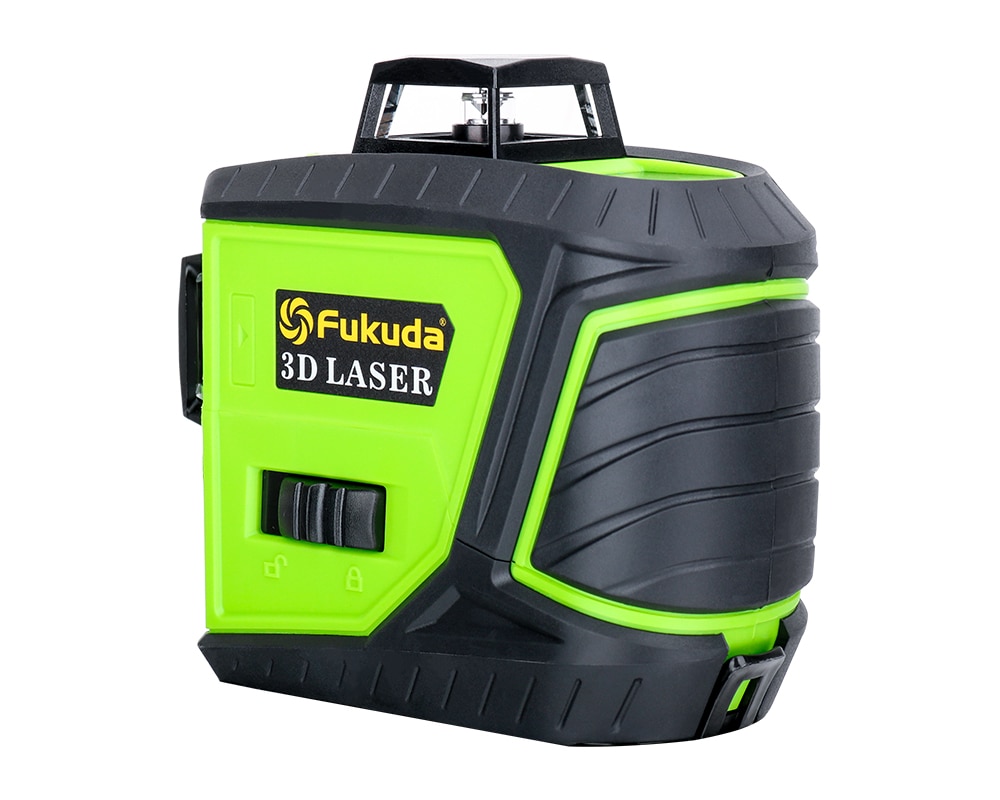

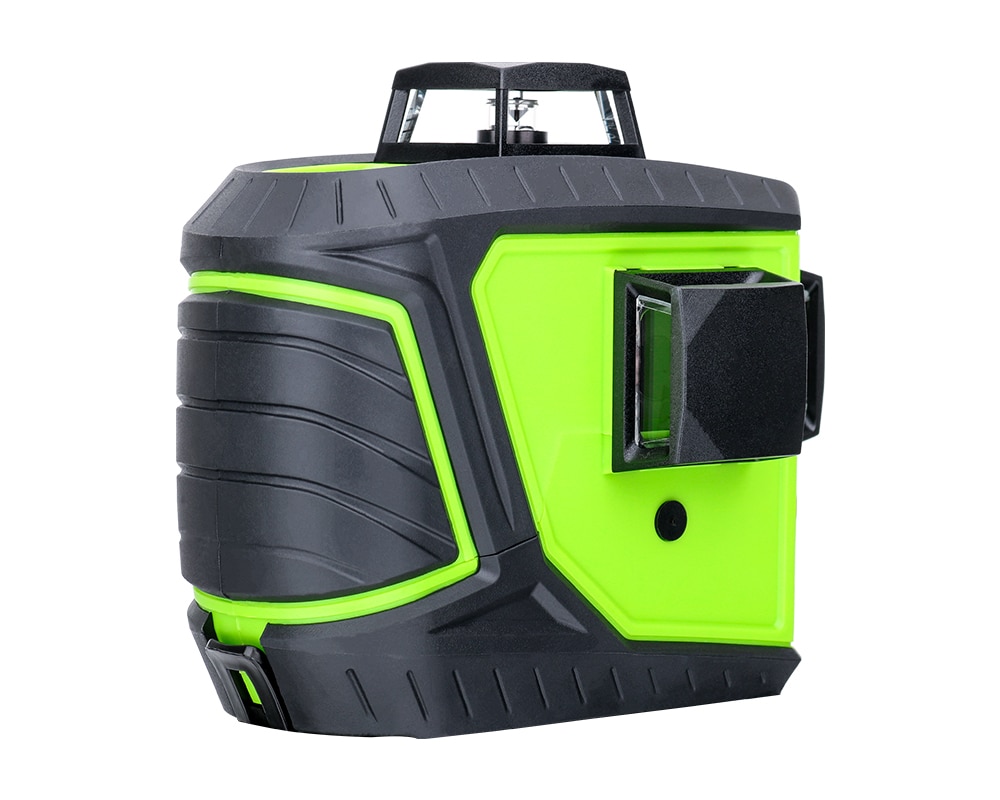

3D 12 LINES GREEN BEAM MW-93T-2-3GX
This product is a semiconductor laser device, the light is clear and bright, and the isible laser horizontal line and vertical line of the automatic leveling can be simultaneously ssued separately. Provide accurate level and plumb bod reference for interior decoration, woodworking installation, brickwork construction, etc.
Product Features
2. Design: The Fukuda 4D laser level is a compact, practical option for basic cross line leveling work

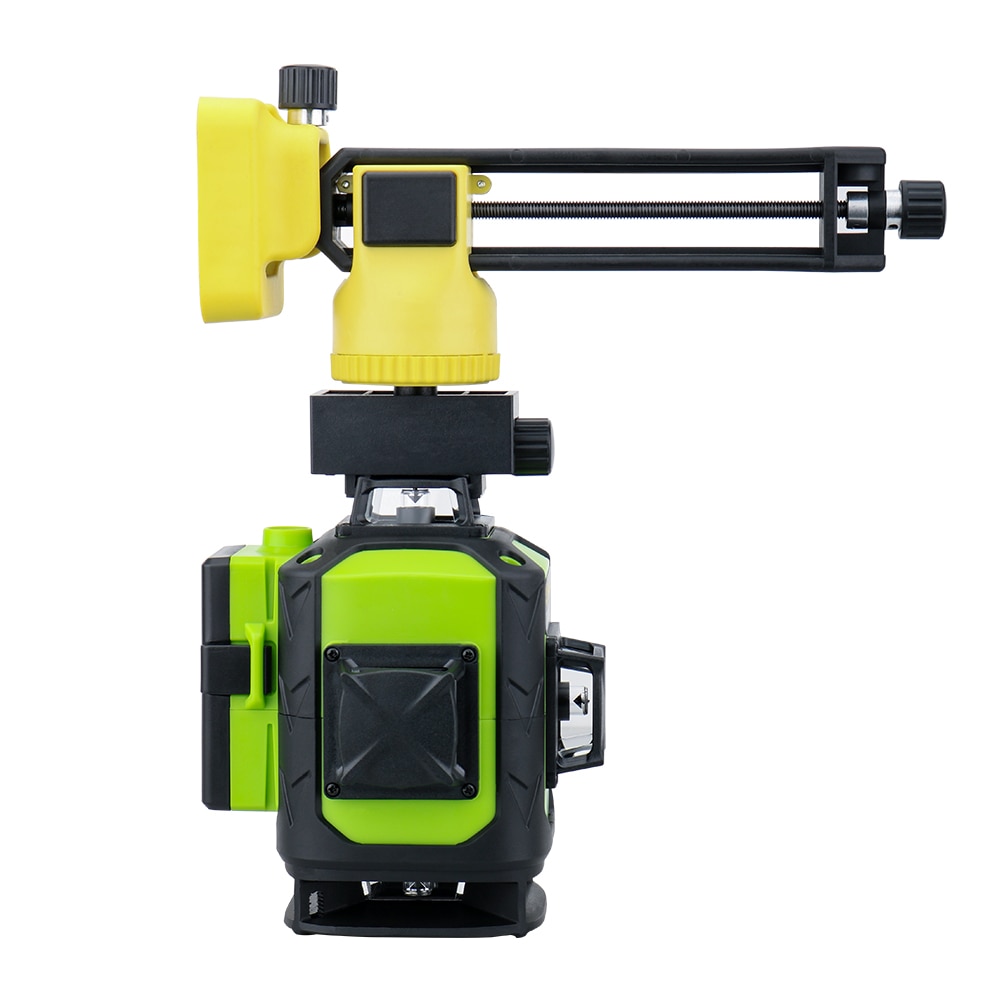

3. Mounting Options: It has a hard plastic housing to protect the laser beams and pendulum leveling system within.
4. Leveling function: Once the pendulum is in unlocked condition, the instrument will be self-leveling within 3.5 degrees, when the unit is using out of the leveling range, laser lines and main indicator will keep flashing.

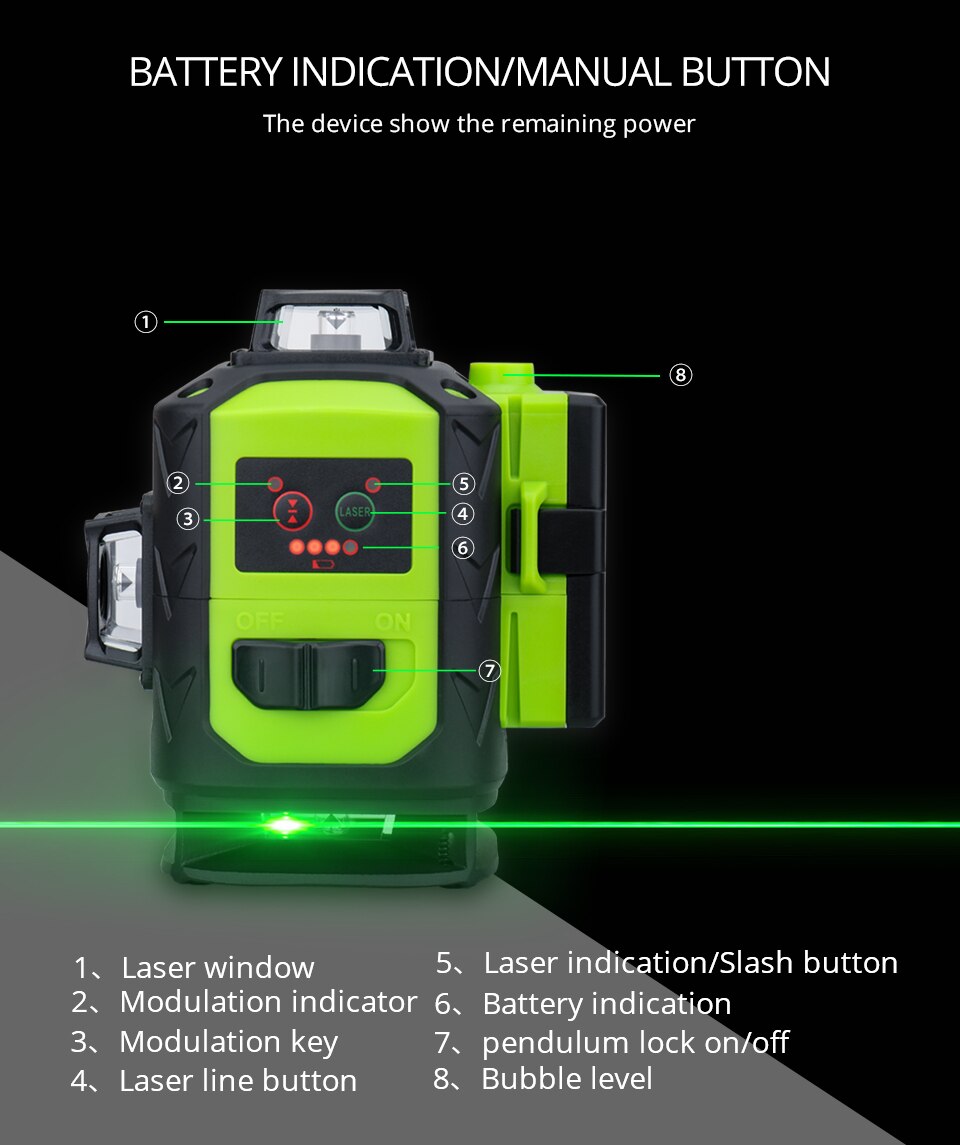

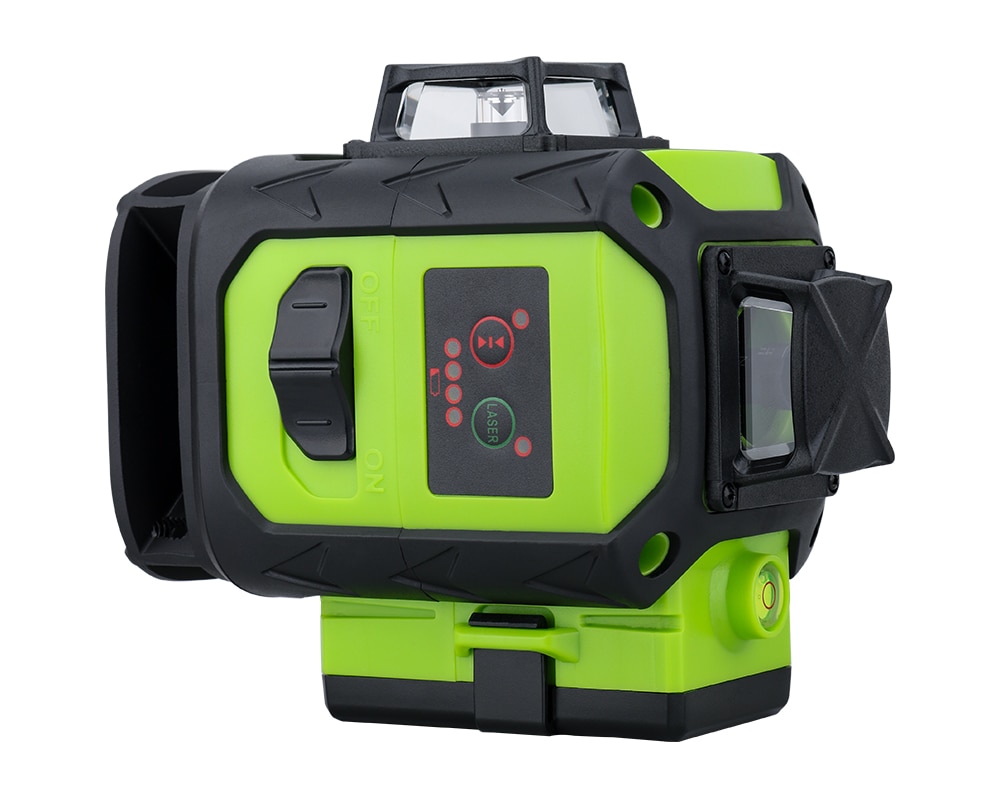

5. (Right Side)Pendulum Lock: When not in use, the pendulum should always be in the Off position (OFF mode). Locking the pendulum allows the Cross Line Laser to better withstand vibration and Trauma incurred during transportation or if the units is dropped.
6. ( Left Side )automatic leveling: when the pendulum is unlocked,the pendulum is free to automatically level,in order for the cross line laser to automatically level,the base of the unit needs to be within 5° of level
Technical Details
| Model number | MW-94D-4GX / MW-92T-2-3GX |
| Laser color | Green beam 16 lines 12 lines |
| Accuracy | ±3mm/10m |
| Leveling range | ±3° |

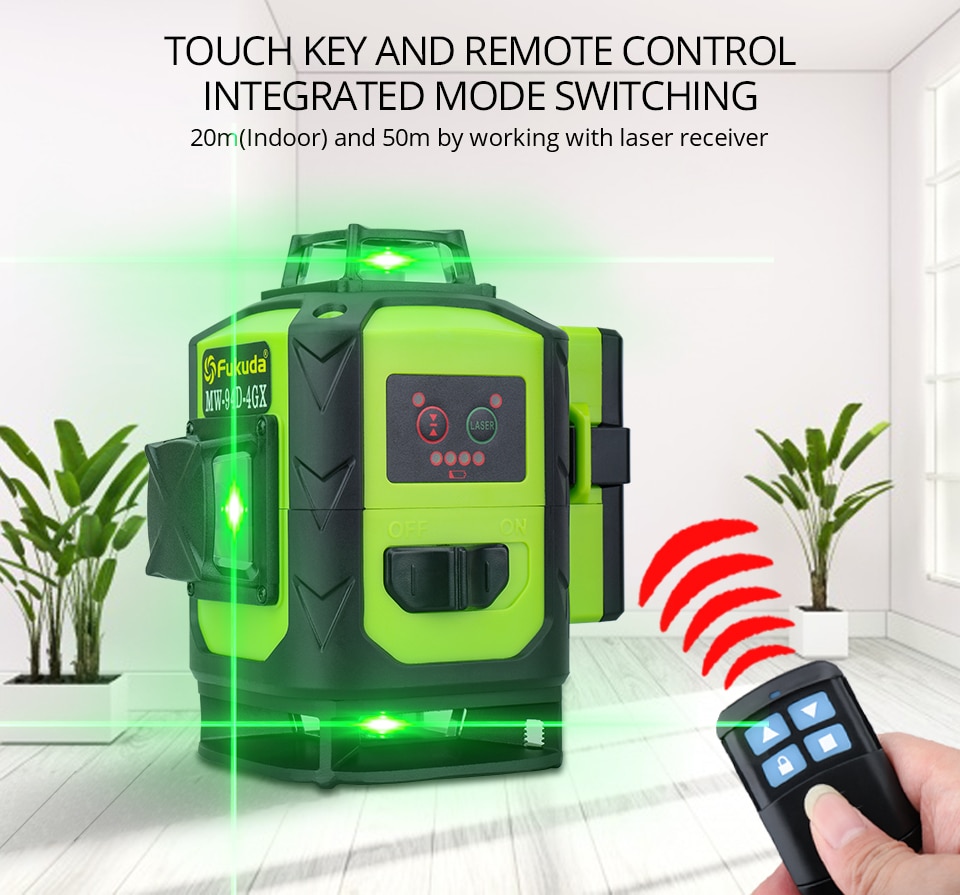

| Working range/with detector | 20m(Indoor) and 50m working with laser receiver |
| Tripod Thread | 1/4'' & 5/8'' |
| Ground distance | 10mm |
| Laser type | 532nm |
| Operating temperature | -10°C to 50°C |
| Storage temperature | -20°C to 60°C |

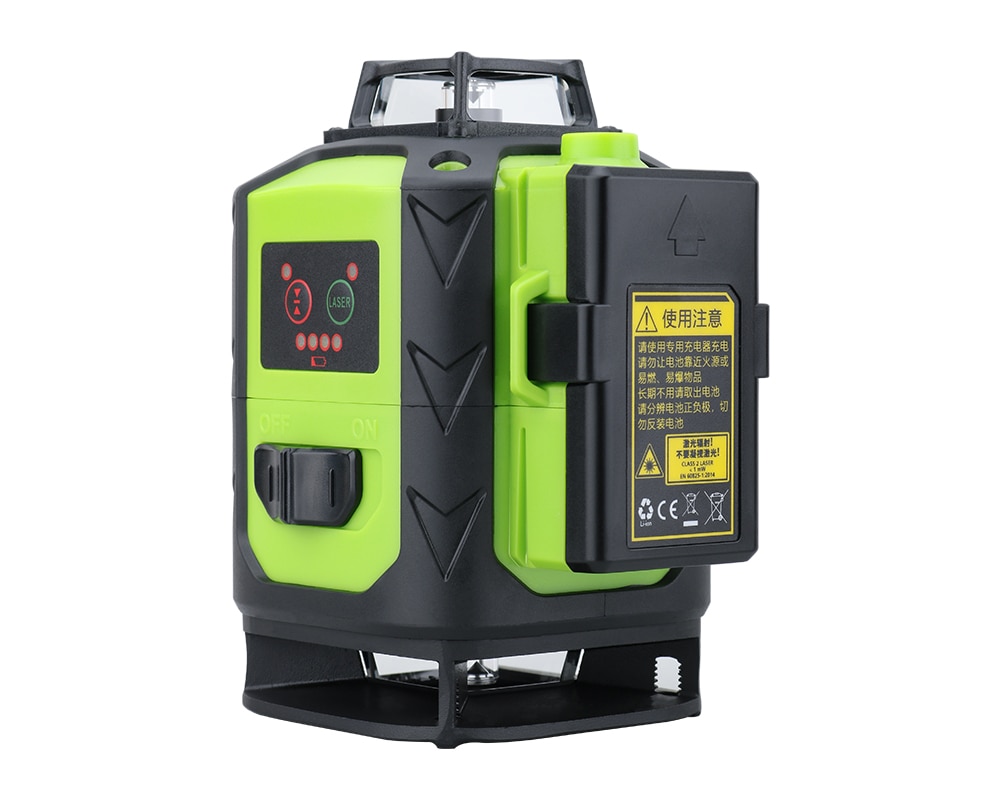

| Power supply | 4000mAH lithium battery |
| Continuous working time | Li-ion≥5 hours(all green diode on) |

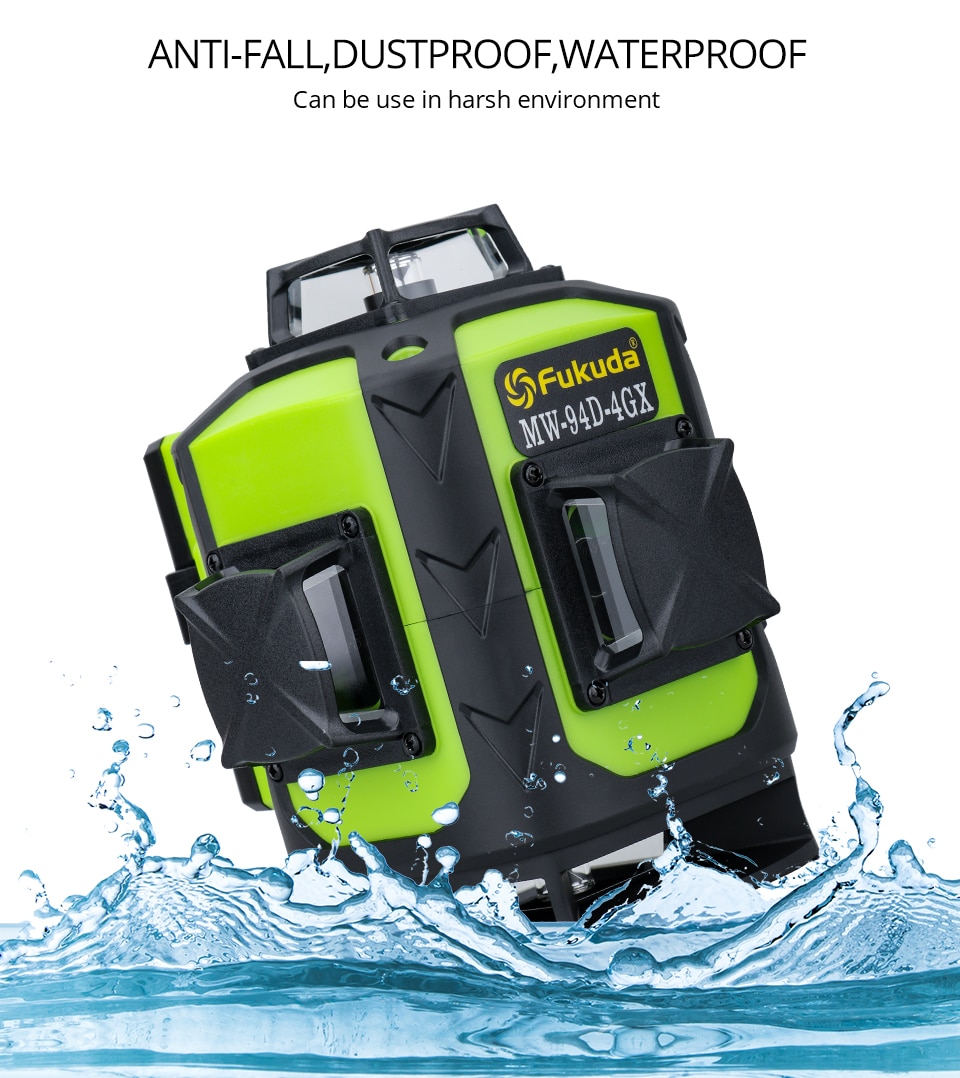

| Protection class spray water/dust | IP54 |

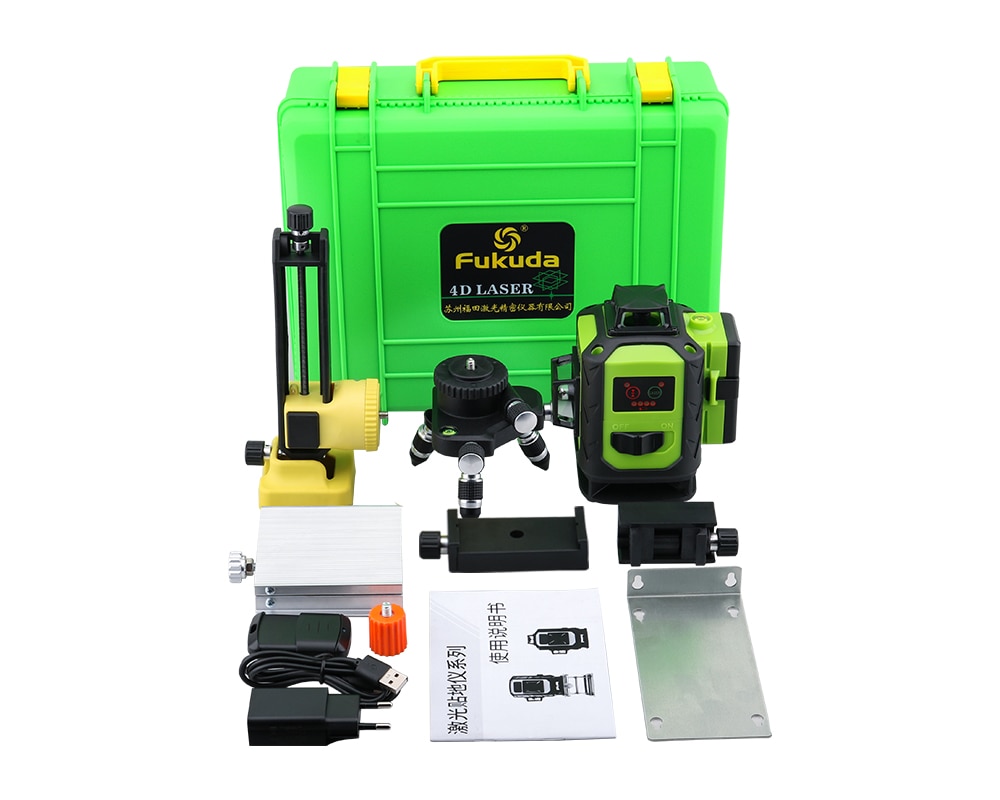

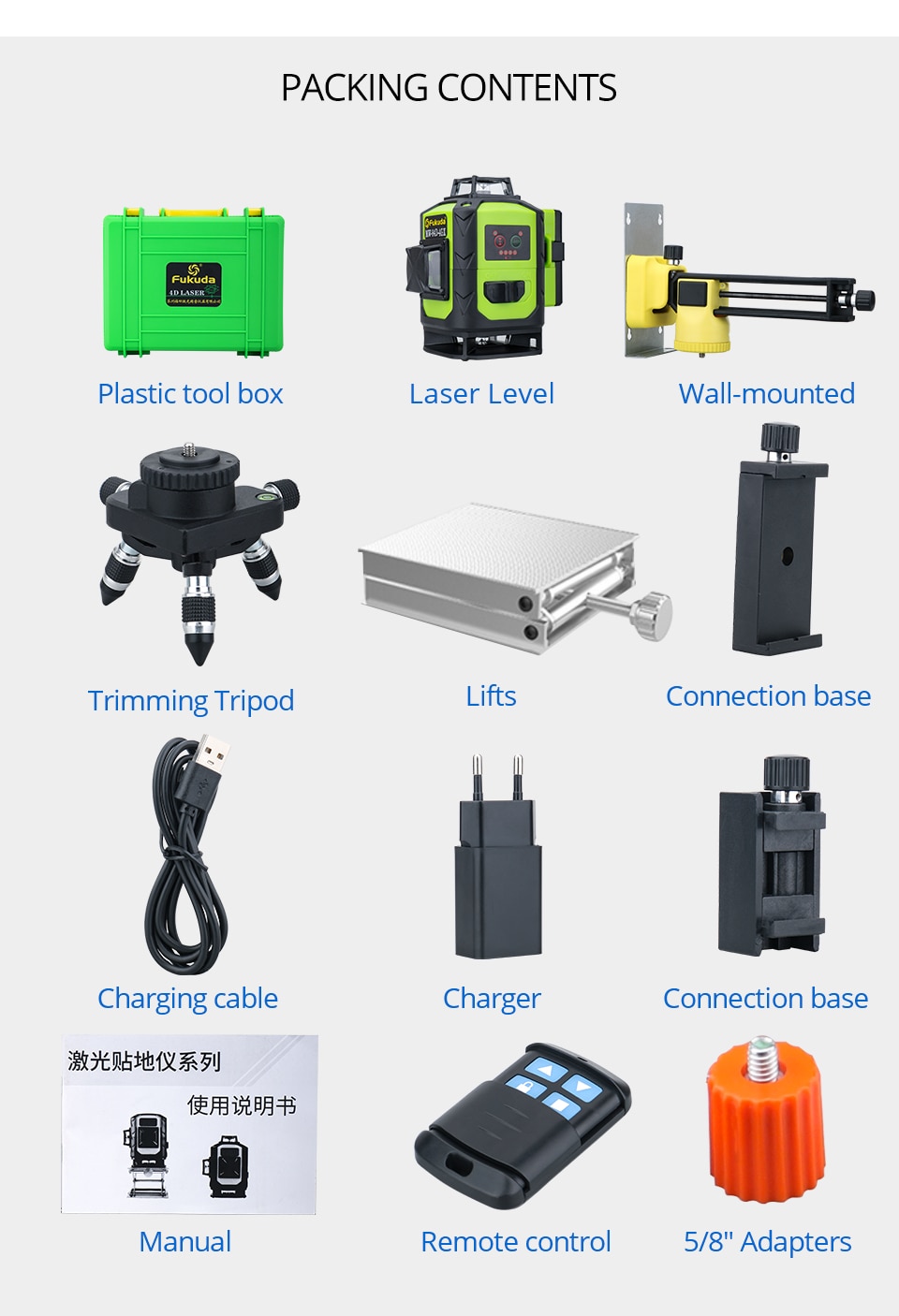

| Package Included | 1 * Laser level |

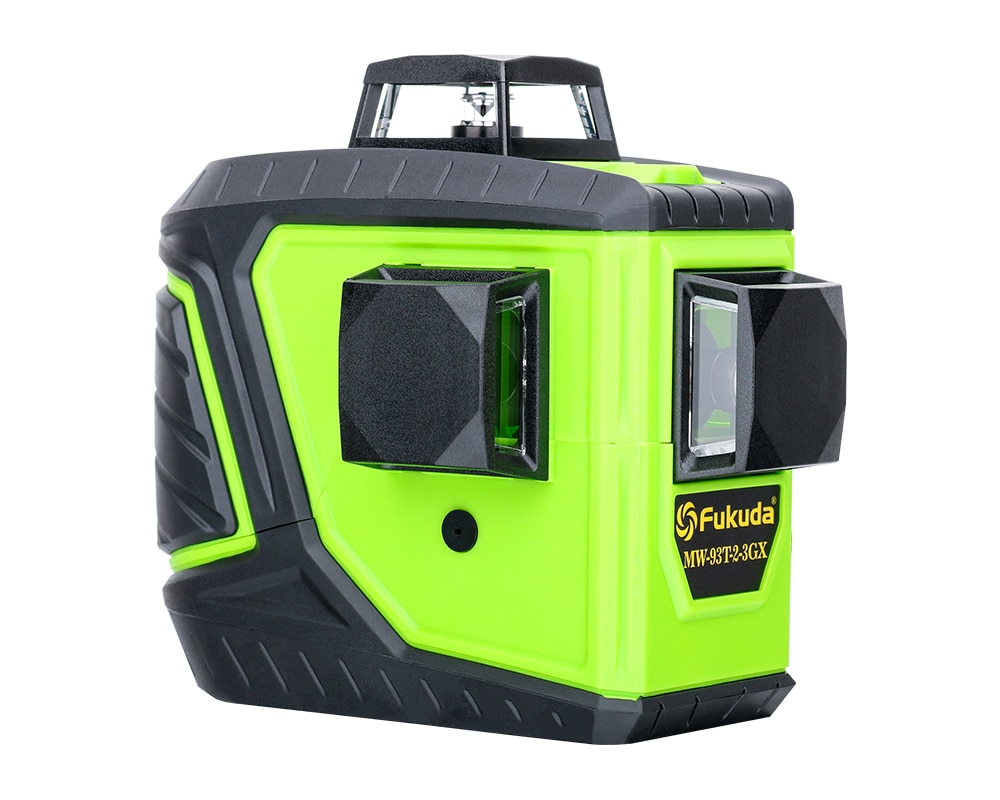

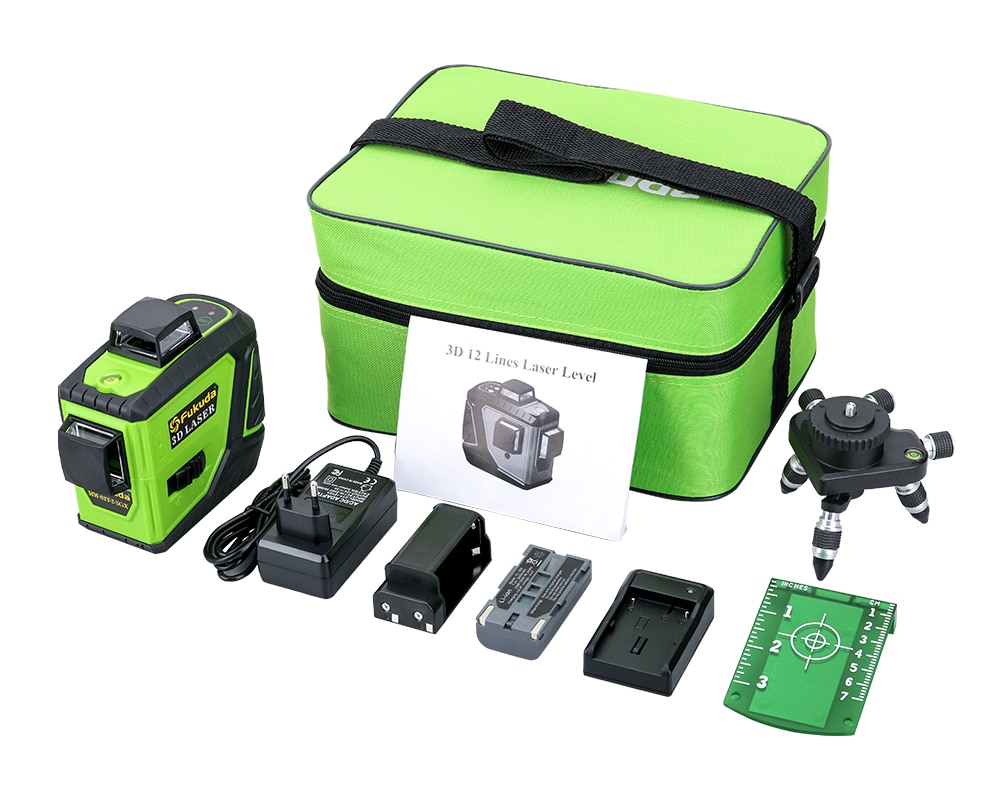

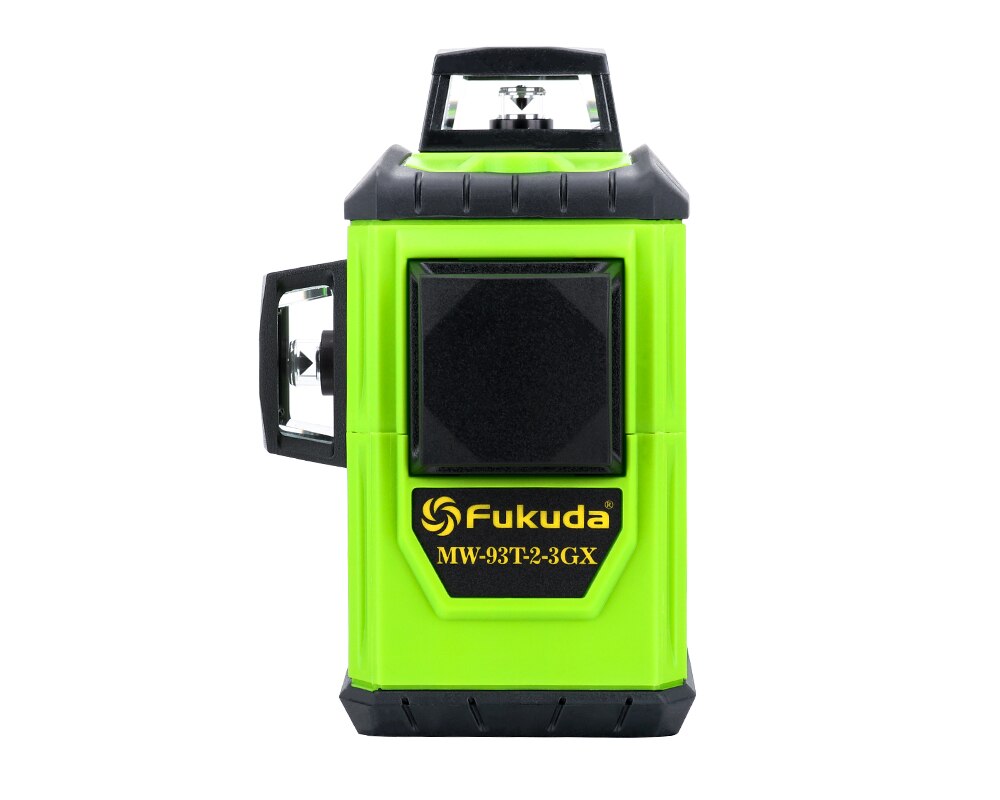

MW-93T-2-3GX GREEN BEAM 12 LINES
