Product Features
-

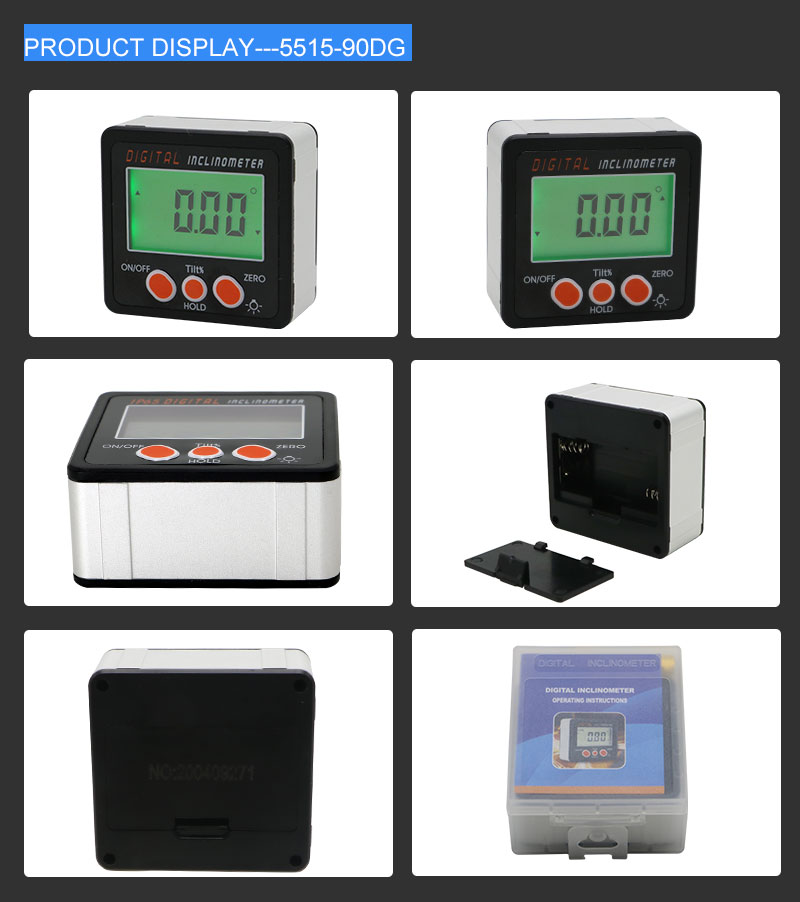

Aluminum alloy enclosure (light weight and durable)
-
Relative/absolute measurement interchange at any position
-

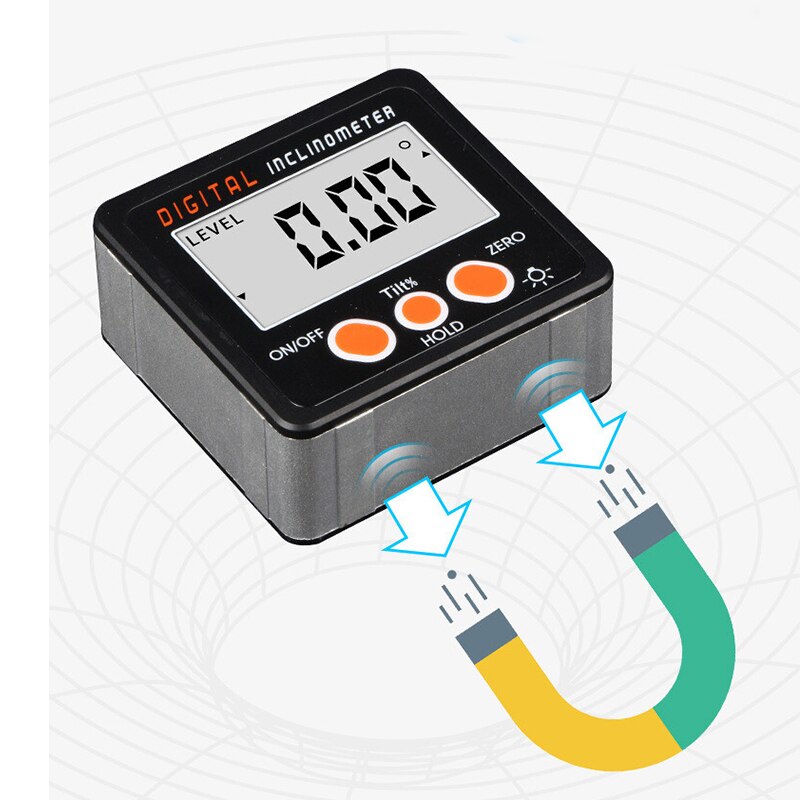

With 3 built-in magnets in measuring surface, which is convenient to be attached to the object measuring workpiece
-
Power-off automatically in 5 minutes
-
Portable size, convenient to co-work with other measuring tools and enlarge measuring range
Technical Parameters
-
Measuring range: 360°
-
Resolution: 0.05°
-
Accuracy: ±0.2°
-
Repeatability: 0.1°
-
Battery: 2pcs AA battery (not including for air shipment)
-
Working temperature: 0°C-40°C
-
Dimension: 57*57*30.5mm
-
With 3 diameter 10mm built-in magnets in measuring surface, which if convenient to be attached to the object measuring workpiece.
-
Absolute zero measurement based on the horizontal surface
-
Net weight:0.21kg
Operating Instructions:
-

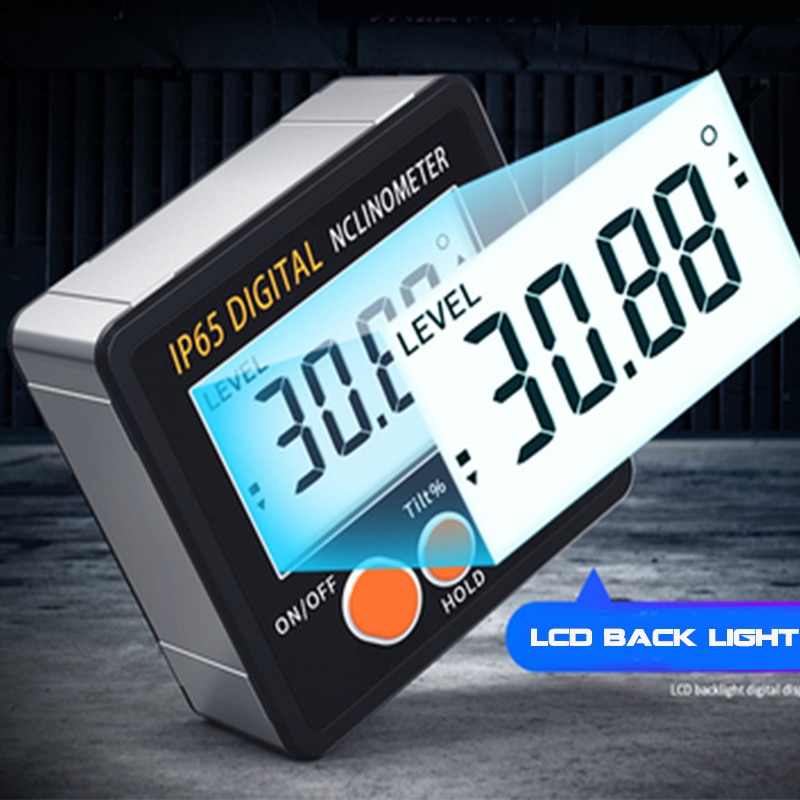

Press the “ON/OFF” button, it turns on, and the LCD displays absolute horizontal angle. Press “ON/OFF” button again, it turn off.
-
Measurement initially displays 0.0°on the LCD at the beginning, when it displays“”on the left side “”on the right side, it means the left side is higher and right side lower; when it displays“” on the left side “”on the right side, it means the left side is lower and right side higher.
-
Put the instrument on the horizontal stand, and press the “ZERO” button, the value returns to zero, and the read-out is the angle value measured angle value relatively to the horizontal stand.
-

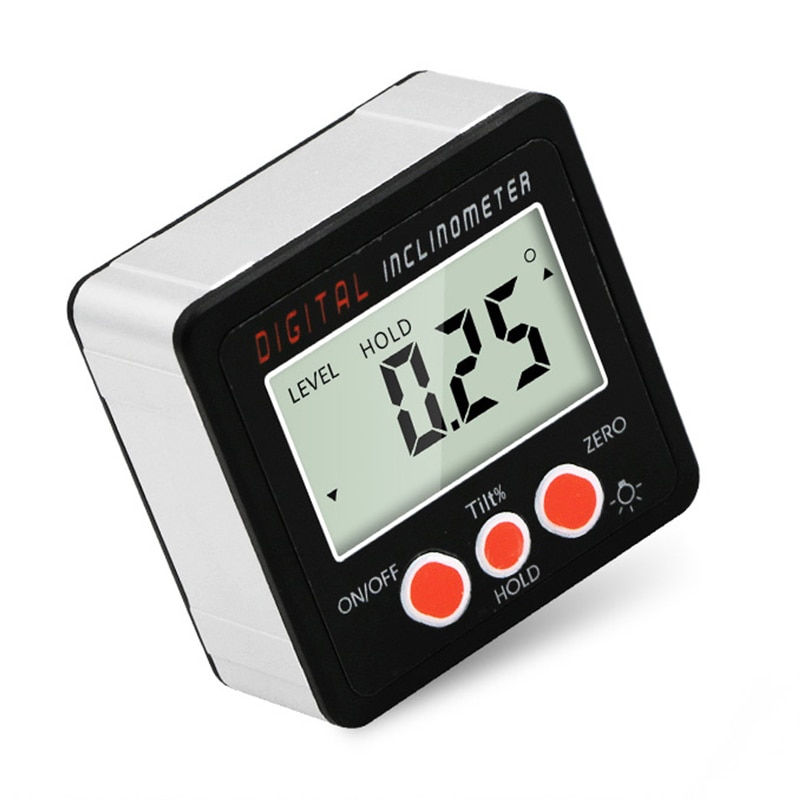

Press the “HOLD” button, the value on the screen will be locked.
-

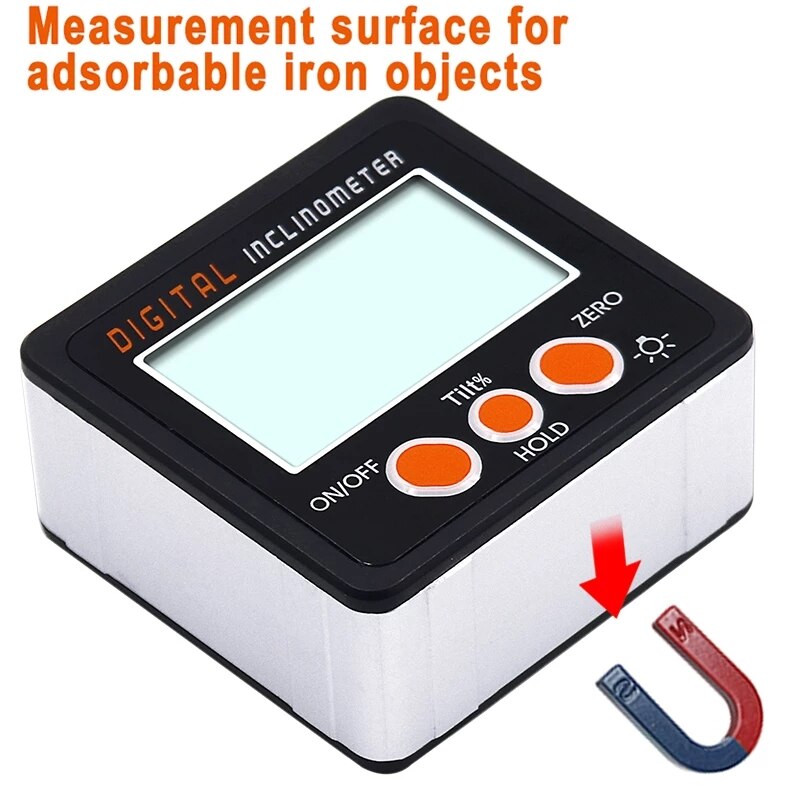

The magnets at the bottom allow the instrument to be attached onto iron material measurement object. Press the “ZERO” button; reset the value to proceed relative measurement
Application:
More widely application is in wood processing industry (especially in furniture manufacturing industry) for wood angle accurate cutting; auto repair industry for tiring assembling angle accurate controlling; in machining industry for machine tool working angle accurate positioning, and large vehicle arm rotation angle etc.
