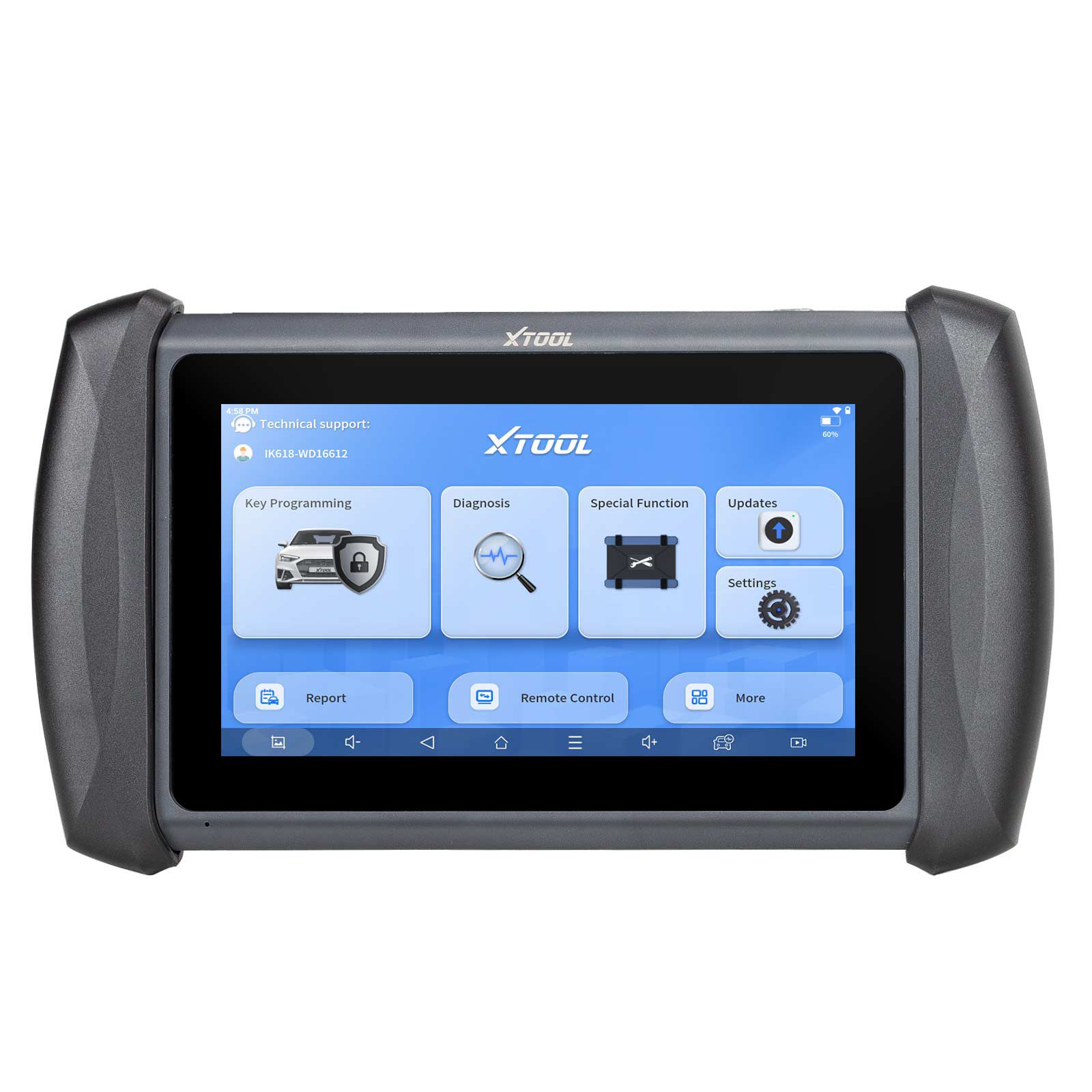

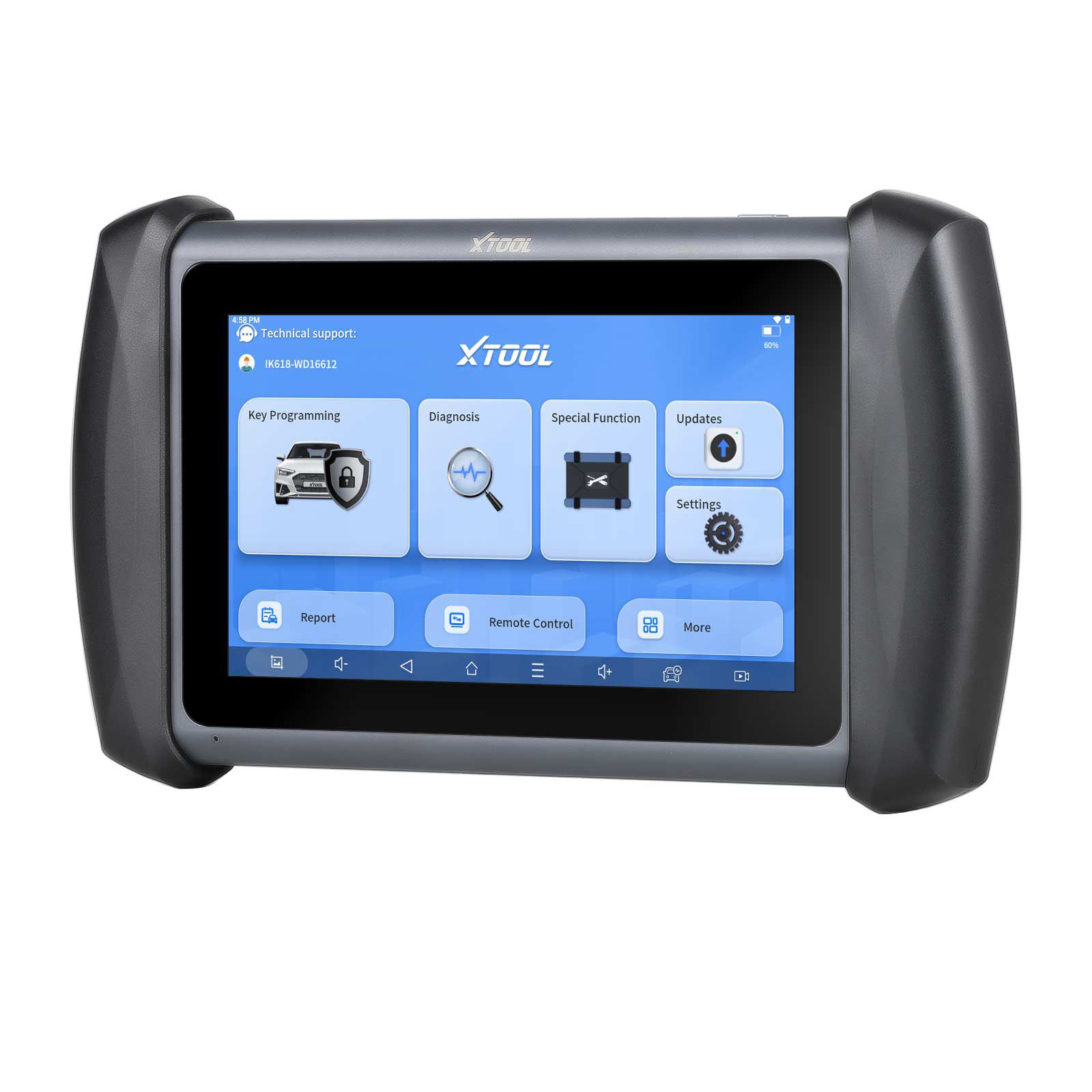

XTOOL InPlus IK618 Key Programming Tool with KC100 Programmer and EEPROM Adapter Support Bi-Directional Control, 31+ Services, OE Full Diagnos

XTOOL InPlus IK618 Key Programming Tool with KC100 Key Programmer and EEPROM Adapter

Key Features

1. Comprehensive IMMO & Key Programming Functions

X100 InPlus IK618 combines advanced Key Programming and immobilizer capabilities with OE-level diagnostics. Equipped with the KC100 Key Programmer, it supports key fob programming, reading PIN codes, reading and writing car keys and key chips—ideal for auto technicians, advanced DIYers, garages, and locksmiths.

2. 31+ Maintenance Services & Full Special Functions

Includes essential reset and service functions such as:

• Oil Reset
• EPB (Electronic Parking Brake)
• BMS (Battery Management System)
• SAS (Steering Angle Sensor)
• Throttle Relearn
• ABS Bleed
• Key Programming
• Injector Coding
• Steering Angle Sensor Adjustment
• Transmission Relearn
• TPMS Reset
• Airbag Repair
• Hybrid Control Compression Test
• HVAC Control Module Calibration
• Zero Point Calibration
• Injector Balance Test
• Fuel Trim Reset
• Cylinder Power Balance
• Crankshaft Sensors Relearn
• VIN rewrite on PCM
• Alcohol Composition Reset
• Suspension Calibration

3. Bi-Directional Control

Full control over various vehicle components for active testing, including:

• EVAP Test
• Idle Relearn
• Injector Test
• Cycling ABS Motor Pump
• A/C Clutch Switch On/Off
• Window, Mirror, and Door Lock Tests

4. ECU Coding & Guide Functions for VW

Supports online coding, component matching, adaptive data reset, and flashing hidden functions to optimize performance and customize settings—such as disabling backup beep or seat belt buzzer. With VAG Guide Functions, the IK618 provides step-by-step instructions for complex diagnostics on VW, Audi, Skoda, and related models.

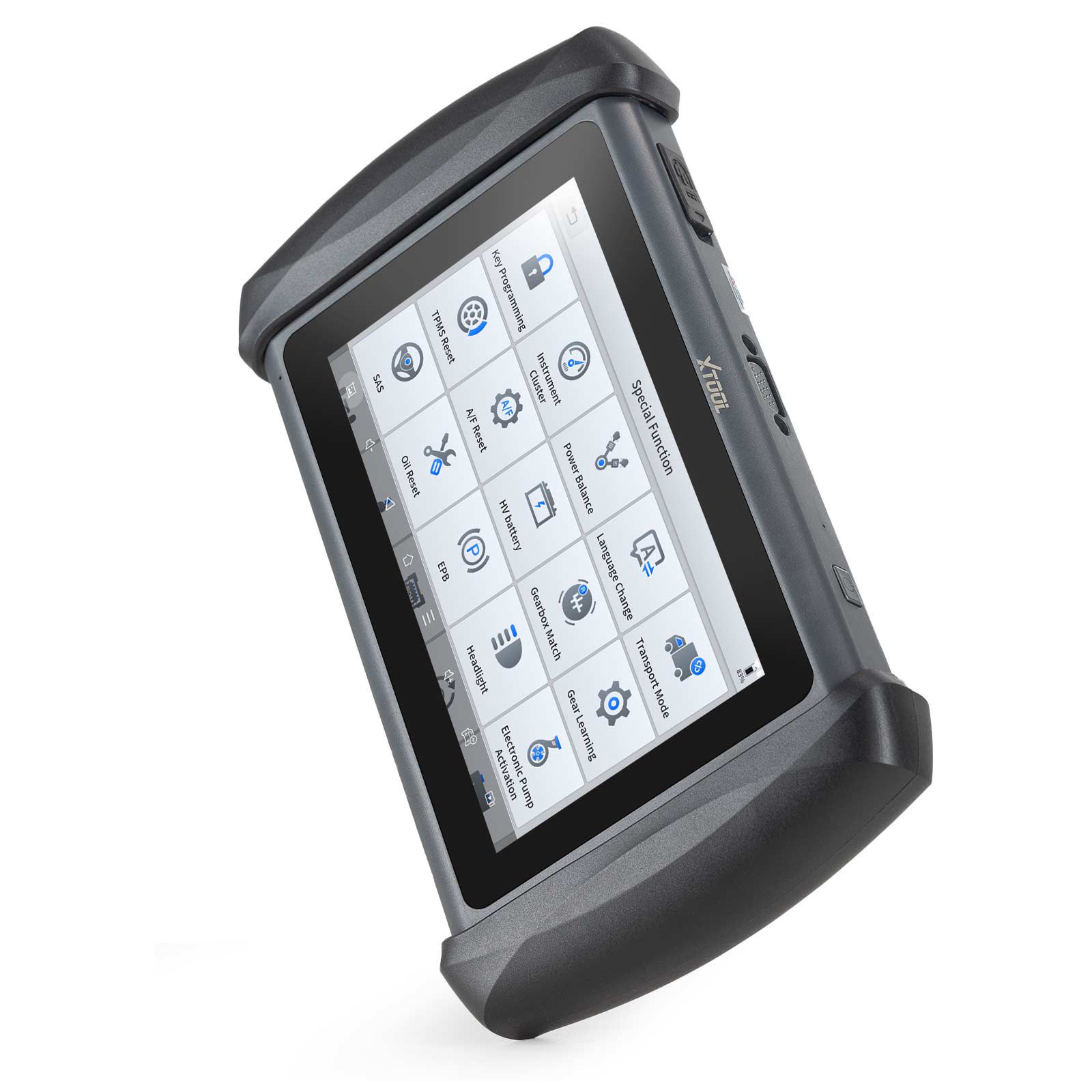

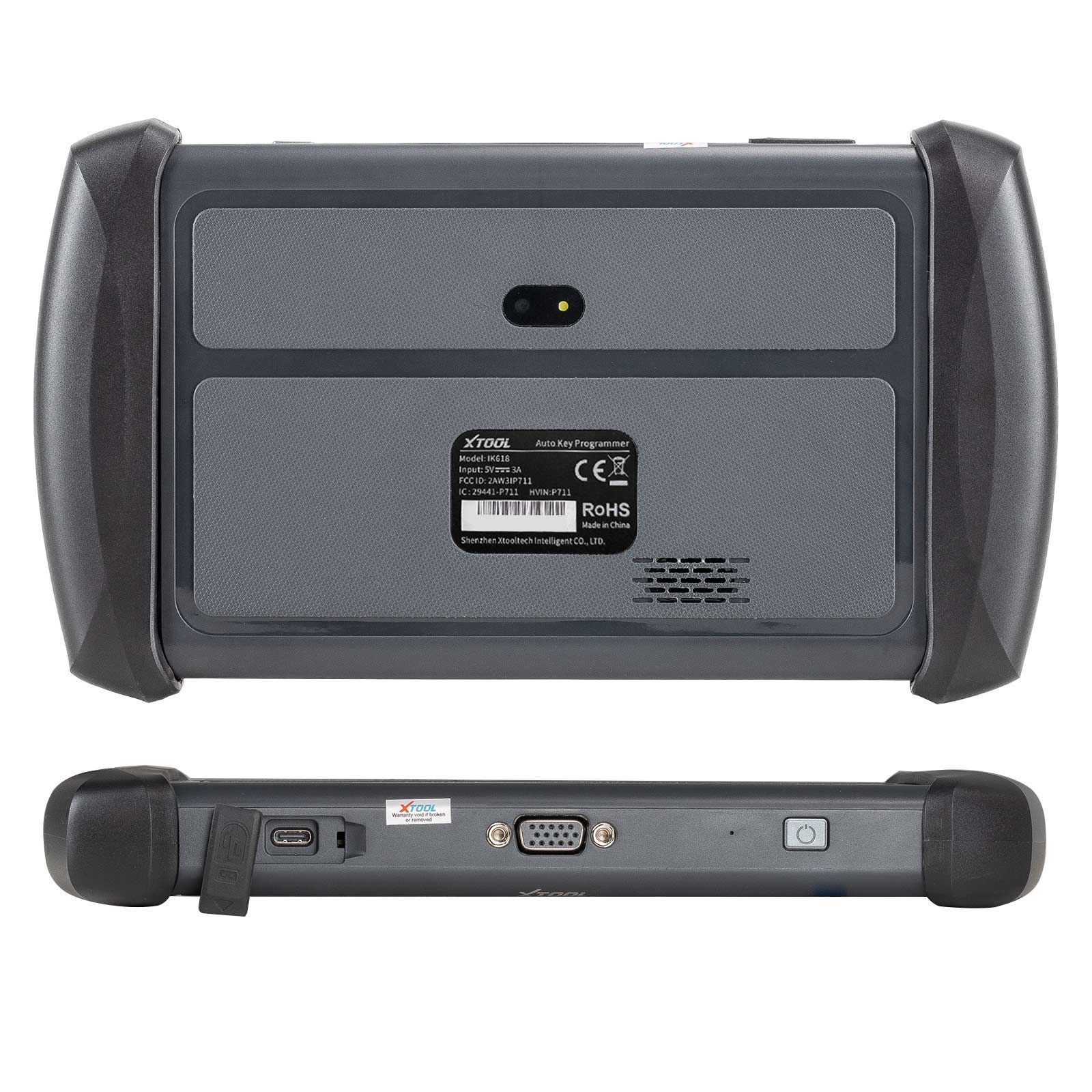

5. Strong Hardware Configuration

Premium specs include:

• Android 5.1 OS
• 7-inch Touch Screen (1024×600 resolution)
• Quad-Core 1.6GHz CPU
• 2GB RAM + 32GB Storage
• Dual WiFi Connectivity
• 5000mAh Battery

6. Support for CAN FD Protocols

Direct access to CAN FD communication protocols, compatible with GM models from MY2020 and newer—no additional adapter required.

7. Extensive Vehicle Coverage

Supports over 10,000 vehicles across American, European, Asian, and Japanese brands.

8. 2 Years Free Software Updates & Multi-Language Support

Includes 2 years of free updates and support for 14+ languages: English, Spanish, German, French, Portuguese, Italian, Finnish, Arabic, Japanese, Thai, Korean, Polish, Russian. Send your serial number to change language preferences.

9. Smart AutoScan & AutoVIN Technology

AutoVIN quickly identifies the Vehicle Identification Number (VIN) for fast and accurate diagnostics.

Product Features Overview

• OE-Level bi-directional control + full system diagnostics + powerful key programming
• all key lost support: delete lost keys and add new ones to restart the vehicle
• Advanced IMMO functions: add new key, disable lost key, remote learning, key matching, all key lost, EEPROM operations
• 30+ common reset services (ABS bleeding, DPF, oil, SAS, BMS, etc.)
• ECU coding & guide functions for VW, bi-directional controls, AutoVIN, and 8-in-1 live data
• No IP restrictions—usable worldwide
• 2 years free updates + 3 years warranty + online technical support
• Supports 8 languages: English, French, Spanish, Portuguese, German, Russian, Japanese, Polish
• Includes KC501 (Benz infrared), KC100 (VW 4th/5th gen), KS01 (Toyota all key lost), M821 (Toyota 4A/8A), M822 (Benz all key lost), SK1 (Toyota free password)
• Powerful hardware expansion: Android 10 OS, Quad-Core 1.6GHz processor, 7-inch touch screen, CAN FD, 5000mAh battery, 2GB RAM + 32GB memory

XTOOL InPlus IK618 – Complete IMMO & Key FOB Programming Capabilities (Upgraded Version of X100 PAD PLUS)

• Backup IMMO Data: Read, write, and back up EEPROM chip data from the immobilizer module
• Check Number of Keys: View how many keys are currently registered to the vehicle
• Read PIN Code & Key Info: Retrieve immobilizer PIN codes when system access is required
• Program/Add Key Fobs: Add a new key when one functional key is present
• Generate Dealer Key: Create dealer keys for Volkswagen, Audi, Fiat, Renault, BMW, Land Rover, and more
• Program Remote: Read radio frequencies and program remote keys
• All Keys Lost: Generate a new key even with no existing keys available
• EEPROM Modification: Modify EEPROM chips without desoldering
• Write-Enable Functions: Write key information into dump files

Note on Compatibility

All functions vary by vehicle. Please verify compatibility with us before purchase.

• IK618 supports pulling PIN codes for Dodge Ram (2013–2018)
• IK618 supports pulling PIN codes for Dodge Charger, Challenger, and 300C (2015–2018)
• IK618 reads PIN codes via OBD for FCA Group (Fiat, Chrysler, Dodge, Jeep) using VPW protocol
• IK618 does not support FBS4 infrared key for Benz

KC100 Adapter Functions

1. Supports VW/Audi/Skoda 4th and 5th generation key programming
2. Supports VW/Audi/Skoda 4th-gen 96-bit, 5th-gen, and MQB online key programming
3. Supports BMW CAS1–CAS3++ key programming
4. Supports Land Rover (2015–) smart key write start key
5. Supports Fiat Viaggio, 500, Palio, and other models
6. Supports BMW EWS2, EWS3, EWS4 key programming
7. Supports Toyota/Lexus all smart key lost programming without dismantling; enables simulation key generation for 94, 98, 88, A8, A9, 39 (requires KS-01 emulator)
8. Compatible with dashboard types for VW/Audi/Seat/Skoda 4th/5th immobilizer: CDC24C32, NEC24C32, 9S12, NEC24C64, NEC24C64 color screen, Jiangsen, NEC95320, NEC24C64 white screen

OE-Level All Systems Diagnostics

As both a Key Programmer and scan tool, the XTOOL IK618 delivers dealership-level diagnostics across all major automotive systems including Engine, ABS, BCM, HVAC, SRS, TPMS, TCM, and more.

• Complete diagnostic trouble code (DTC) capability
• Graphing and text-based live data streaming (e.g., misfire, transmission temperature, sensors)
• Freeze frame retrieval
• ECU information reading
• Actuator tests

Full Bi-Directional Control

The XTOOL InPlus IK618 is a bi-directional scan tool enabling direct communication with vehicle systems to perform actuator tests and streamline troubleshooting.

• Fuel Pump Tests
• Cooling Fan Tests
• A/C Clutch On/Off Test
• ABS Motor Pump Test
• Car Wipers
• Window, Door, Sunroof, Wiper Tests
• Horn Test
• Interior Lighting Test
• High Beam Test
• EVAP Tests: Purge Solenoid Valve, Vent Solenoid Valve, Purge/Seal
• Injector Tests: Buzz Test, Kill Test, Cut Out Test

Note: Available active tests vary by vehicle make, model, year, and system. Please contact us with your vehicle’s VIN to confirm compatibility before purchase.

Special Service Functions

• Oil Reset: Turn off oil service light and reset mileage and interval after oil change
• Steering Angle Calibration: Clear old sensor data and register new steering angle sensor
• Electronic Parking Brake Reset: Safely reinitialize new EPB system
• Battery Register & Maintenance: Reset battery fault codes and re-match battery
• ABS Bleeding: Remove air from brake lines for firm pedal feel
• Throttle Position Reset & Learn: Reinitialize throttle actuators for accurate idle and throttle response
• DPF Regeneration: Clean diesel particulate filter to restore performance
• TPMS Reset: Relearn tire pressure sensors after replacement
• Tooth Learning: Perform crankshaft position sensor learning after engine component replacement
• Injector Matching: Program new injector IDs into ECU for precise fuel control

Note: These functions are not universally compatible. Please provide your VIN and required functions to check compatibility.

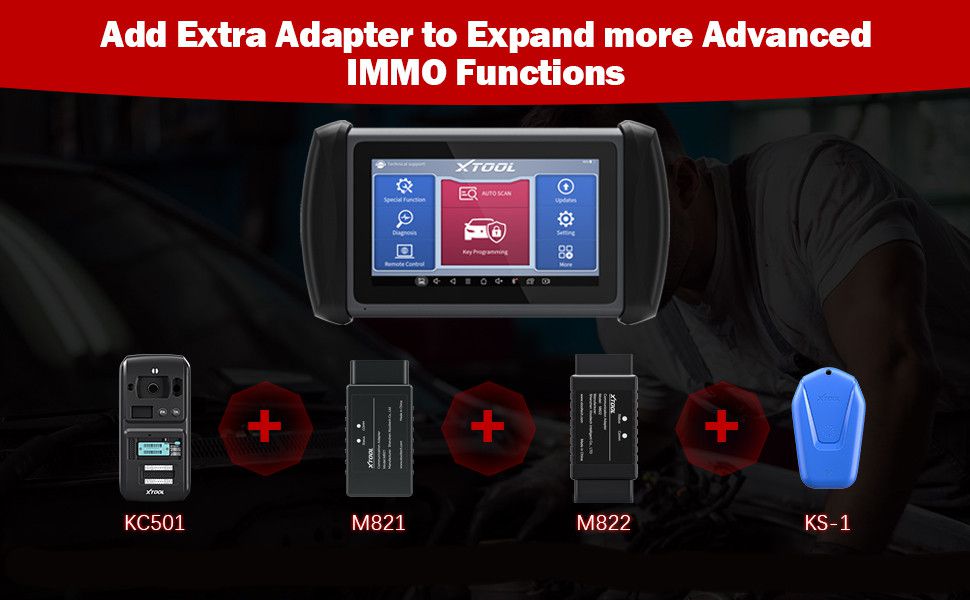

Additional Adapters for Advanced IMMO Functions (Sold Separately)

• KC501 / M821 Adapter (B09QZMWDTN): Required for Mercedes-Benz FEM3 all keys lost
• Chrysler 12+8 SGW Cable (B0B4D76NWB): For 2019+ FCA Group models (Fiat, Chrysler, Dodge, Jeep)
• KC501 (B09PQL4WSF): For Land Rover/Jaguar 2015–2018 key matching via OBD
• KS-1 Key Programmer (B09SNWWVX3): For Toyota smart key all keys lost situations
• Nissan CGW Cable: For Nissan Sylphy/Sentra (B18) 2019+ key programming
• KS-1 / M822 Adapter: Required for Toyota blade keys (8A Chip) in all keys lost scenarios

Package Note:

The IK618 package includes the KC100 and EEPROM adapter. All other adapters (KC501, KS-1, M821, M822, Chrysler 12+8 cable, Nissan CGW cable) must be ordered separately.

Vehicle Coverage

European Brands:
Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Citroen, Dacia, Ferrari, Fiat, Ford, GAZ, Jaguar, Lancia, Land Rover, Maserati, Maybach, Merc/CV, Mercedes, MINI, OPEL, Peugeot, Porsche, Renault, SAAB, SEAT, Skoda, Smart, UAZ, Vauxhall, Volvo, VW, VW-CV

Asian Brands:
Acura, Daewoo, Daihatsu, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Nissan GT-R, Perodua, Proton, Renaultsa Msunng, Ssangyong, Subaru, Suzuki, Toyota

American Brands:
Buick, Cadillac, Chevrolet, Chrysler, Dodge, GM, GMC, Hummer, JEEP, Lincoln, Pontiac, Saturn

Chinese Brands:
BYD, Chery, Geely, Great Wall, JAC, Lifan, MG, Roewe

Australian Brand:
Holden

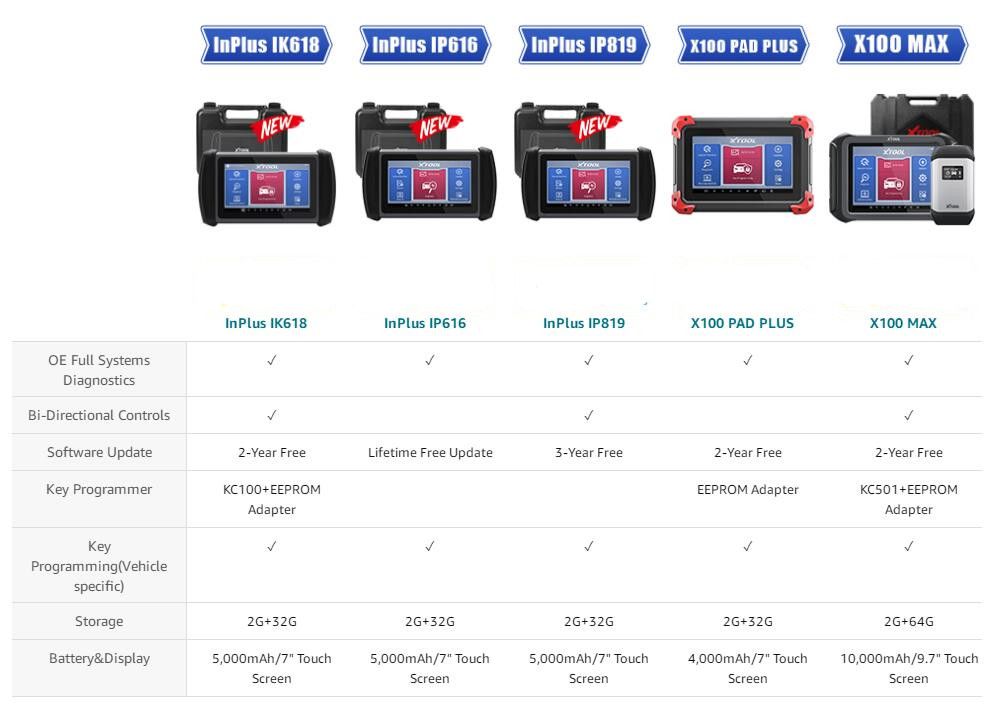

Comparison: InPlus IK618 vs InPlus IP616 vs InPlus IP819 vs X100 PAD PLUS vs X100 MAX

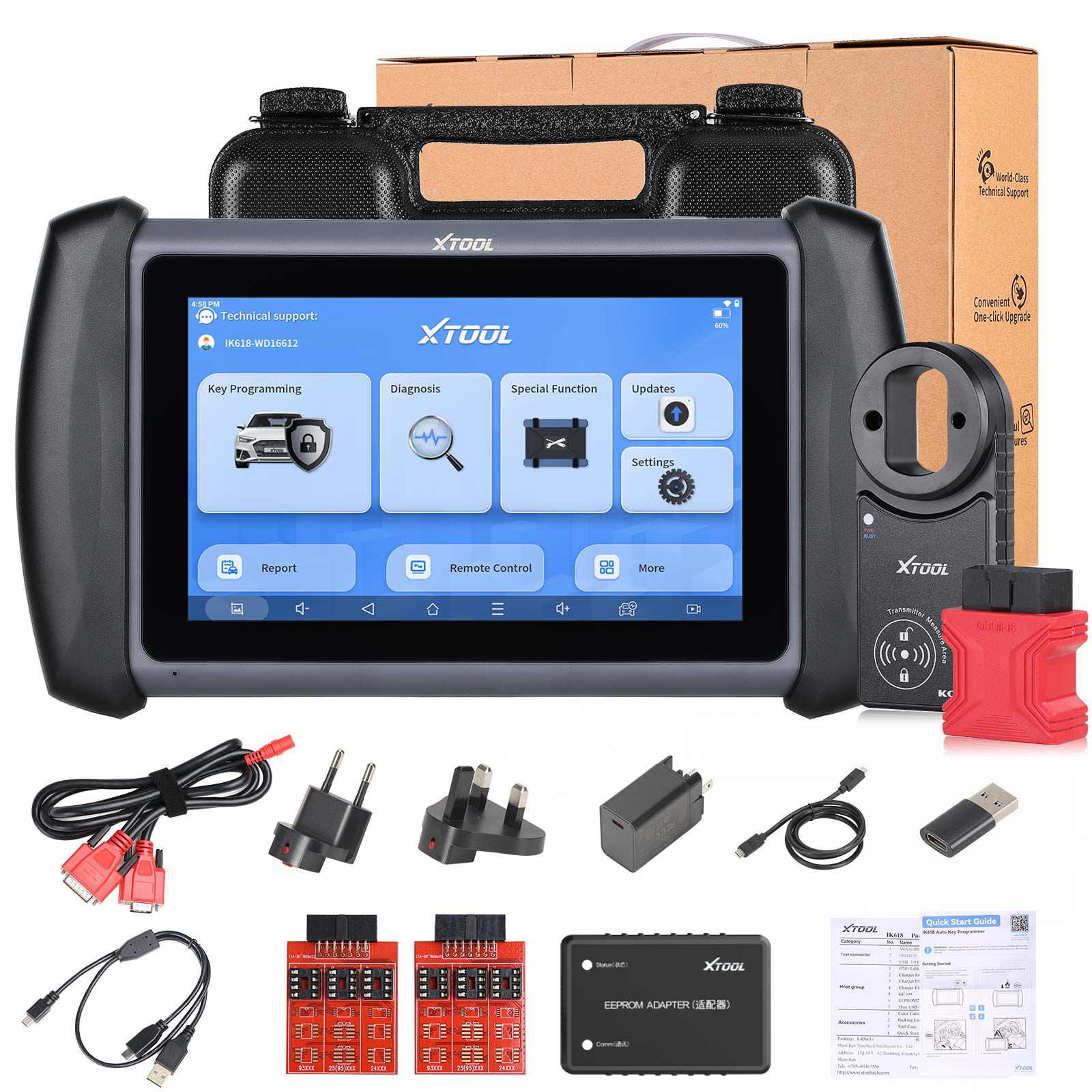

Package List

• 1 set × XTOOL InPlus IK618
