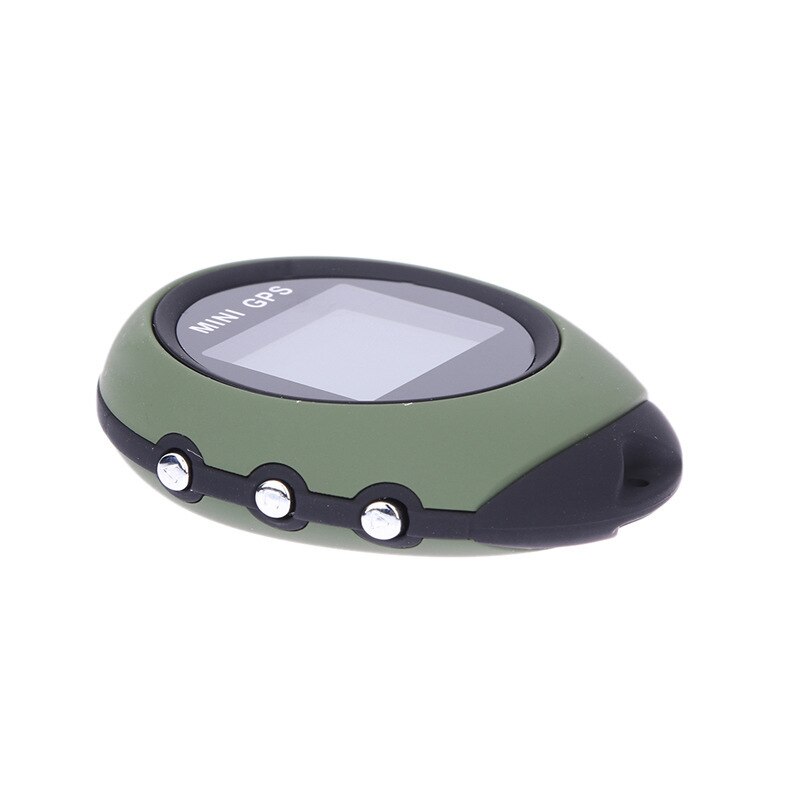

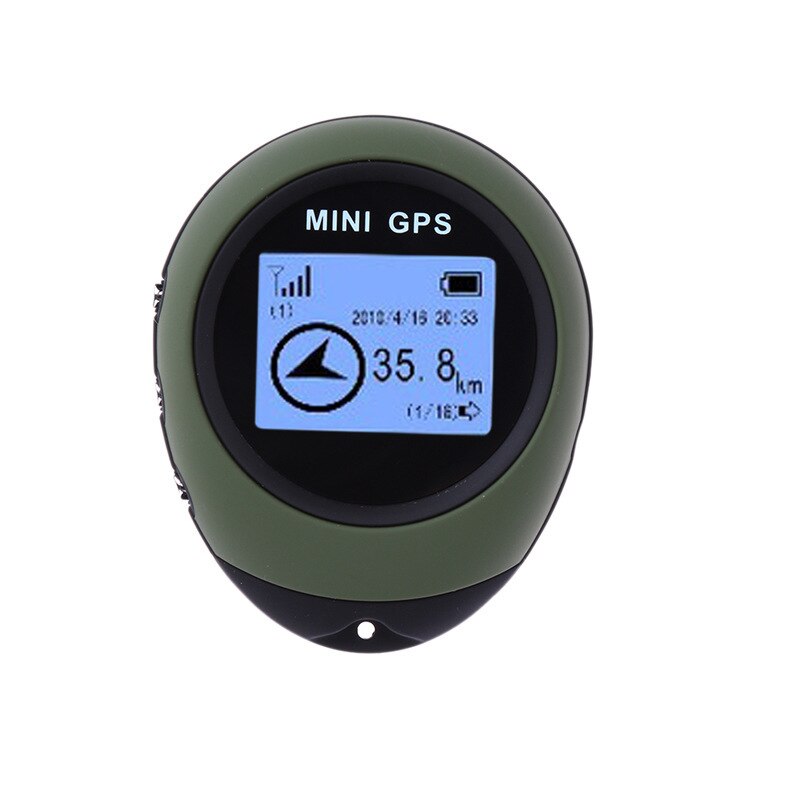

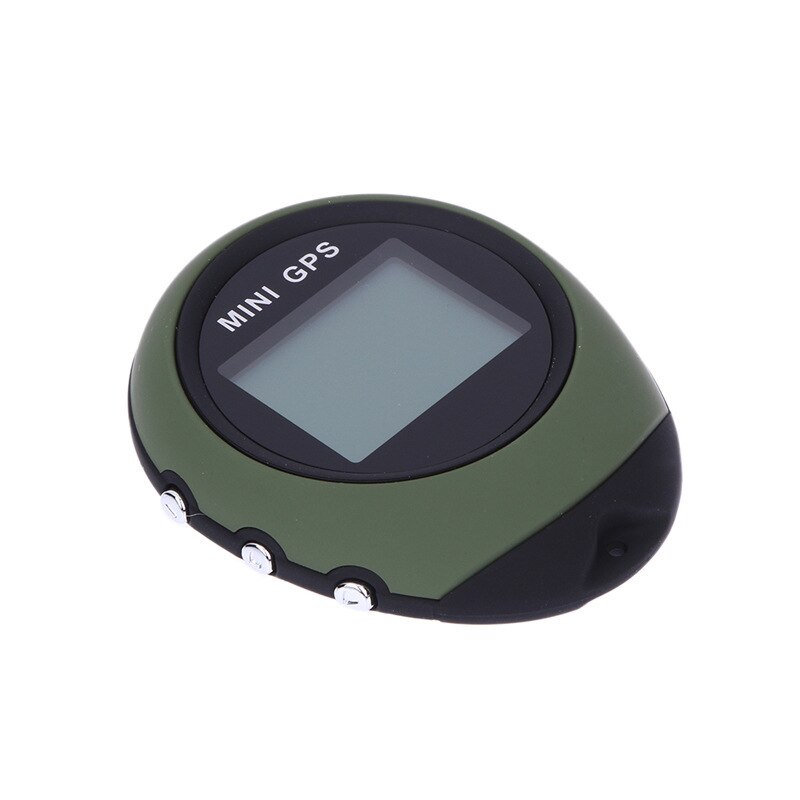

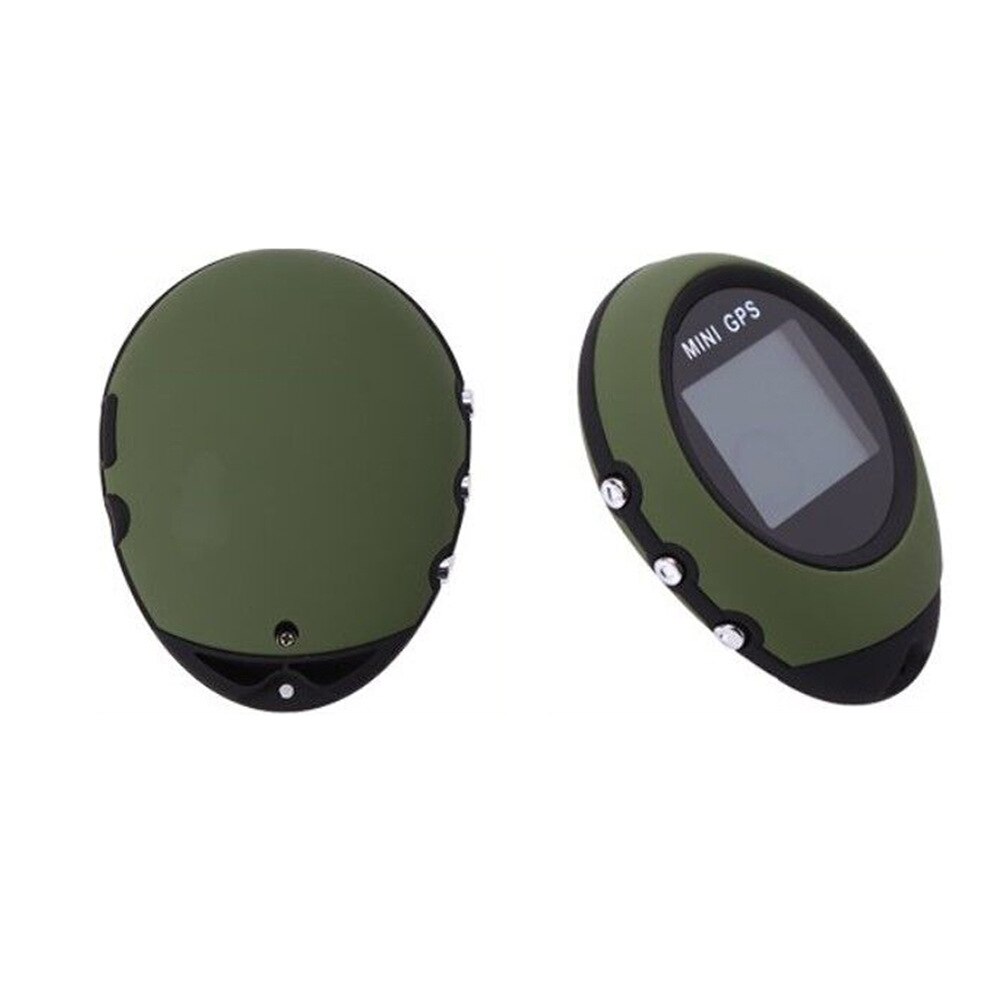

PG03 Mini GPS Recorder Hand-Held GPS Locator Road Seeking Treasure Mountaineering GPS tracker Track Playback Anti Loss Device

1, Main functions of the product

The lightest and easiest way to operate GPS!

Up to 16 POIs can be stored!

Return to the starting point or guide the destination!

Real time longitude and latitude coordinates!

Travel distance time!

Travel speed and poster height!

Satellite time!

It is easy to find the scenic spot you want to reach and the parking place you want to park?





2, Technical indicators

Receiver: L1 type, C/A code, acquisition channel: 51, tracking channel: 14,

Maximum update frequency: 10 Hz,

Display image rate: 128 * 64,

Backlight type: blue

Appearance dimension: 65 * 52 * 21mm

Weight: 39.6g with battery,

Memory: 512KB,

Key: 3 keys,

Accuracy: positioning, 10 meters (supporting 2 meters of differential correction system area), speed, 0.1 meters per second,

Initial positioning time: about 5 seconds for hot start, 40 seconds for warm start, and 2 minutes for cold start,

Sensitivity: - 161 dbm tracking, - 157 dbm recapture, - 148 dbm capture

Data protocol: NMA-0183 v3.01

Power voltage: USB DC 5V/3.7V390mA built-in lithium battery

Operation duration: about 6 hours

Power waste:
Capture: about 70 Ma
Continuous tracking: about 30 Ma
Storage temperature: -30°C to +85°C
Working temperature: -20°C to +75°C
Humidity: Up to 80% non-condensing

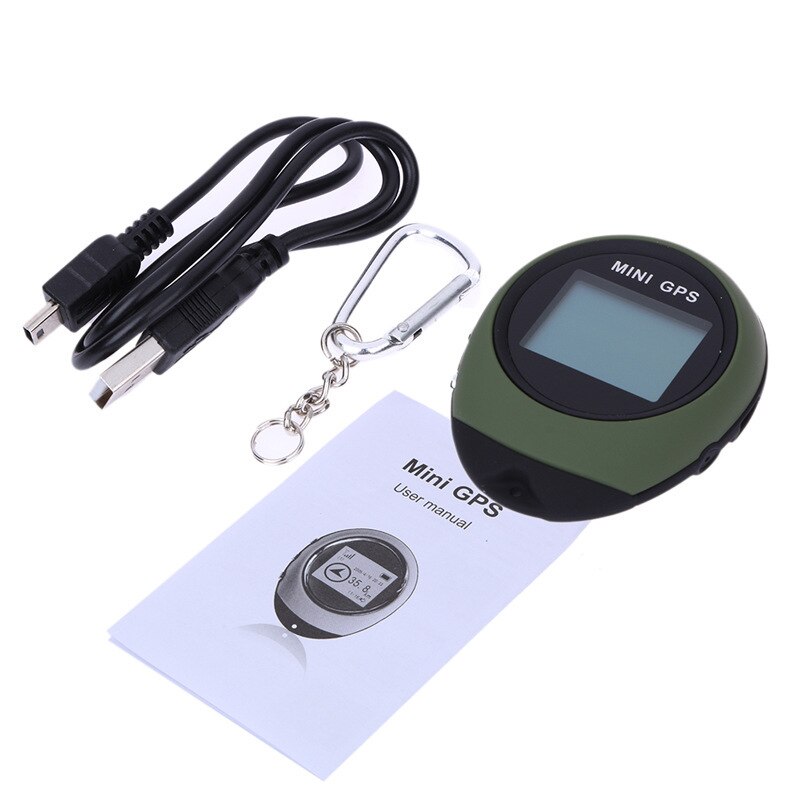

Package includes:
1 x Mini tracker

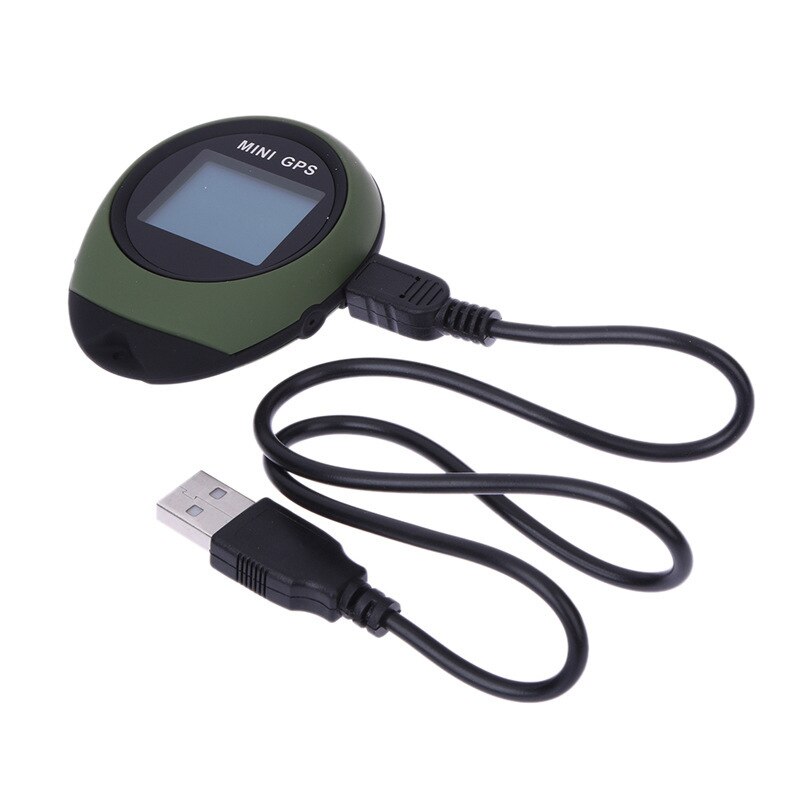

1 x USB cable
1 x Instructions
