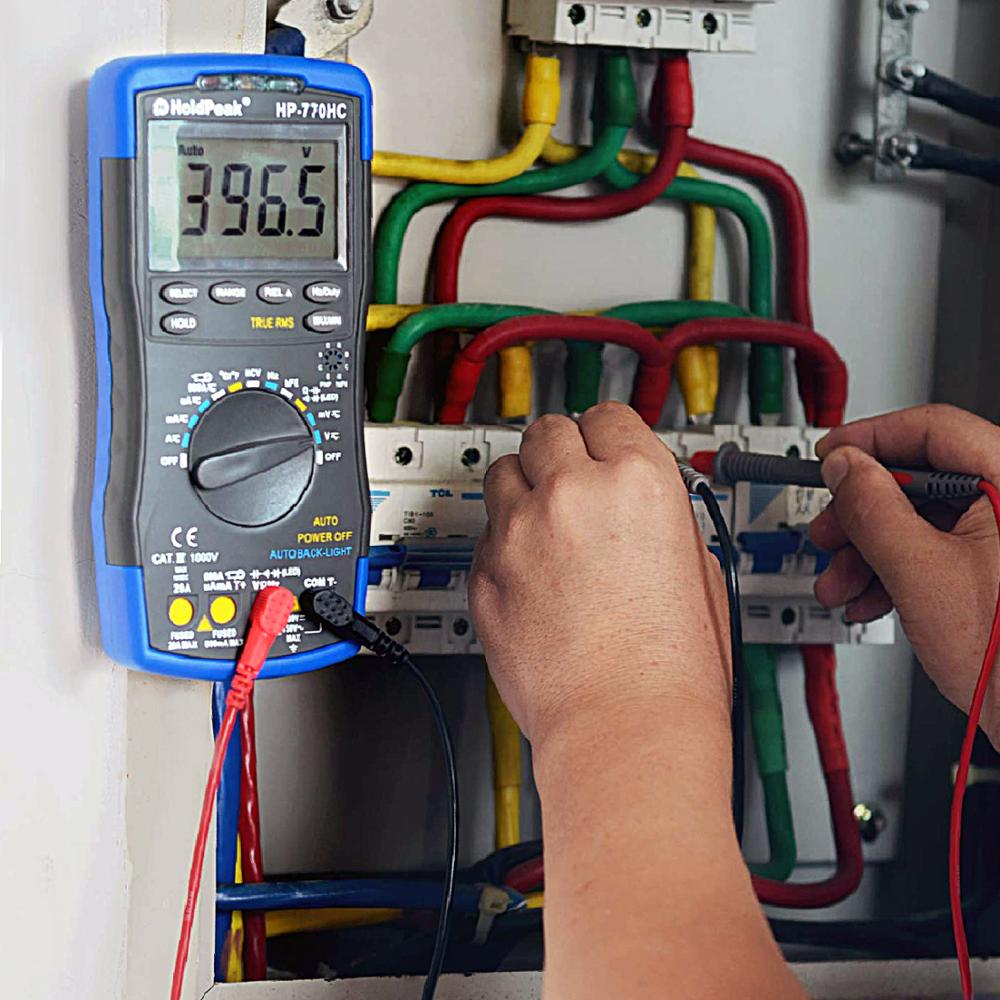

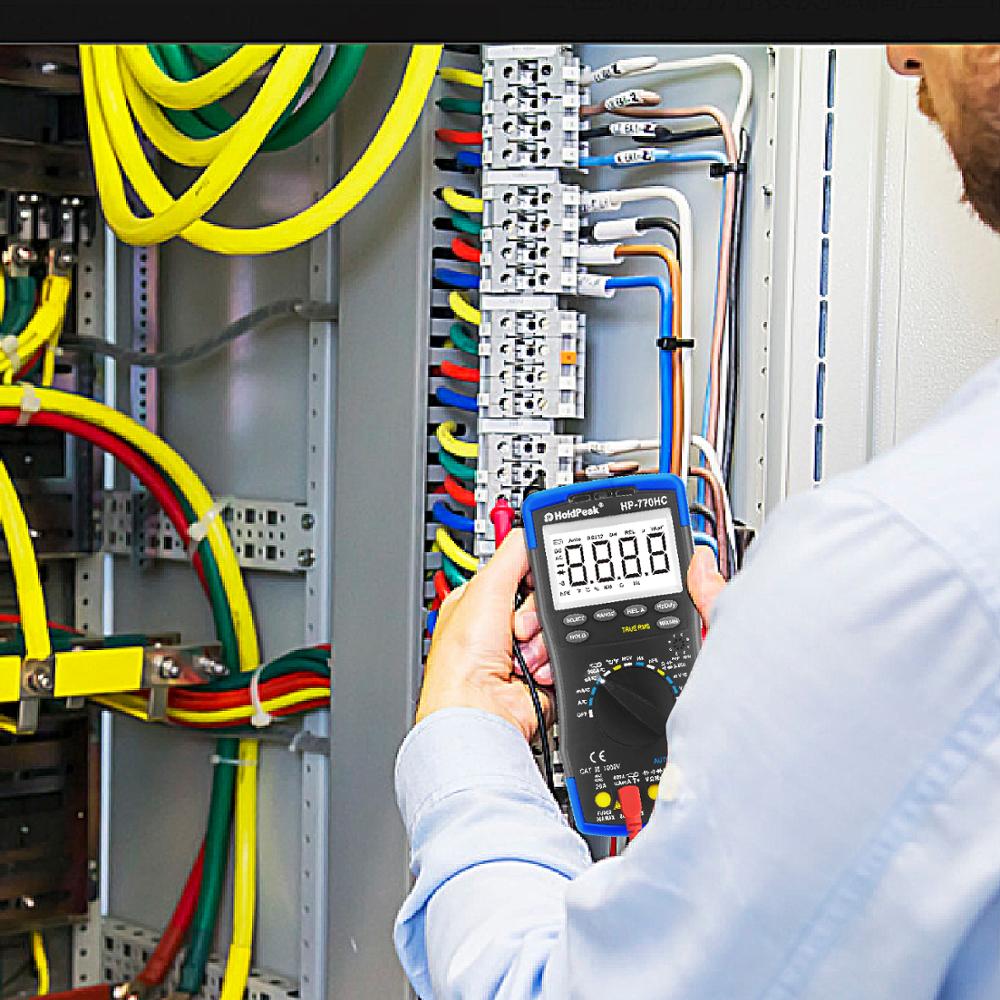

HP-770HC Multimetro HoldPeak Digital Auto Range Multimeter AC DC Voltage Meter Measurement Temperature/ Frequency/ Duty Cycle/ True RMS

HoldPeak HP-770HC True RMS Auto Ranging Digital Multimeter with NCV Feature and Temperature/Frequency/Duty Cycle Test

1. Contactless Voltage Test (NCV): when the detection of voltage is greater than 90 v (RMS), keep close to the conductor, the instrument sensor will light and buzz
2.Load moment limitation & continuity test: use the ptc protection circuit for resistance, temperature and frequency measurement. If the measured resistance is less than 100Ω, the buzzer will sound
3. Auto-ranging & auto-power off: dc & ac current (600A range with ac / dc current clamp adapter), resistor, capacitor, frequency, duty cycle, temperature, transistor hfe
4. Low battery indication & blacklit lcd: 3 1/2 digit lcd display for visibility in poorly lit areas. Function a battery indicator so you never run out of juice accidentally
Battery Tpye:1.5V(AA)x2
Weight:350g
Model: HP-770HC
Max LCD Display: 6000 Counts Digit.
DC Voltage range: 60mV / 600mV / 6v / 60v / 600v / 1000v
AC Voltage range: 60mV / 600mV / 6v / 60v / 600v / 750v
DC Current Range: 600uA / 6000uA / 60mA / 600mA / 6A / 20A
AC Current Range: 600uA / 6000uA / 60mA / 600mA / 6A / 20A
Capacitor: 9.999nF ~ 99.99mF
Frequency: 9.99 hz / 99.99 hh / 999.9 hh / 9999 khz / 99.99 khz / 999.9 khz / 9.999 mhz
Resistance Range: 600/6 k / 60 k / 600 k / 6 m / 60 m
Temperature range: -20 Celsius ~ 1000 Celsius / (- 4 ~ 1832 Fahrenheit)
Duty Cycle: 0.1% ~ 99.9%
Transistor hFE Test Range: 0 ~ 1000; Ib = 10 & micro; ONE, vce = 1.8 v Ca.
Item Weight: 312g/11oz
colour:Blue + black
Material:ABS+ electronic components
size:19.5*9*4cm
Package Contents:
1 x HoldPeak HP-770HC Digital Multimeter(Battery NOT Included)
1 x Test leads
1 x Temperature Test Probe
1 x Carrying bag
1 x English Manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
