5MP 2MP SIM Card 3G 4G Wireless Mini PTZ Dome Camera AI human Auto Tracking Outdoor 5X Zoom Two Way Audio CCTV Security Camera

Product

HX-4G20M200AS

HX-4G20M24AS

HX-4G50M24AS

Operating system

Embedded Linux OS

Effective pixels

2MP(1920x1080)

2MP(1920x1080)

5MP(2560x1920)

CMOS Sensor

1/2.8"

Lens interface type

M12

Lens

Fixed 4mm lens ( not zoom )

2.7-13.5mm 5X zoom lens

View angle

70°

89.9°-26.2°

Min.illumination

0.05 Lux / 0 Lux(IR on)

Day&Night mode

Auto IR-CUT

Night vision distance

4pcs Array Infrared LEDs+2pcs Floodlight LEDs. 60m IR Night Vision/30M Color Nightvision

Video compression Standard

H.264 Main Profile/H.264 Baseline

Video streaming

Dual streaming

Video resolution

First stream:2560x1920 or 2560x1440

Second stream:800x600 or 800x480

JPEG stream :(Monitoring for mobile phones), Q720P(640x352), QQ720P(320x176)

Video code rate

32 to 8192Kbps. supports constant bitrate/variable bitrate

Video frame rate

15fps(PAL 50HZ/NTSC 60HZ)

Audio

Audio compression standard: G.726/G.711

Audio code rate: Rate adaptive

Audio Input: Support, built-in Microphone

Audio Output: Support Two Way Audio Talk Back(With Speaker)

Image settings

Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror

Image enhancement

Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction

Audio function

Built in Audio Microphone, Support Two Way Audio Talk Back(With Speaker)

Motion detecting

Can set 4 independent detection region (1-100 sensitivity can be set)

Alarm linkage

Alarm send pictures to the specified mailbox,

alarm upload pictures and videos to the FTP server,

alarm write pictures and videos to Micro TF card, alarm message push

Privacy mask

Maximum support 4 users to simultaneously browse

OSD

Support camera name, date and time information superimposed

User management

Supports user and rights management

Simultaneous viewers

maximum support 12 users to simultaneously browse (each stream supports 4 users)

Network protocol

TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,

FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.

Connection protocol

N/A

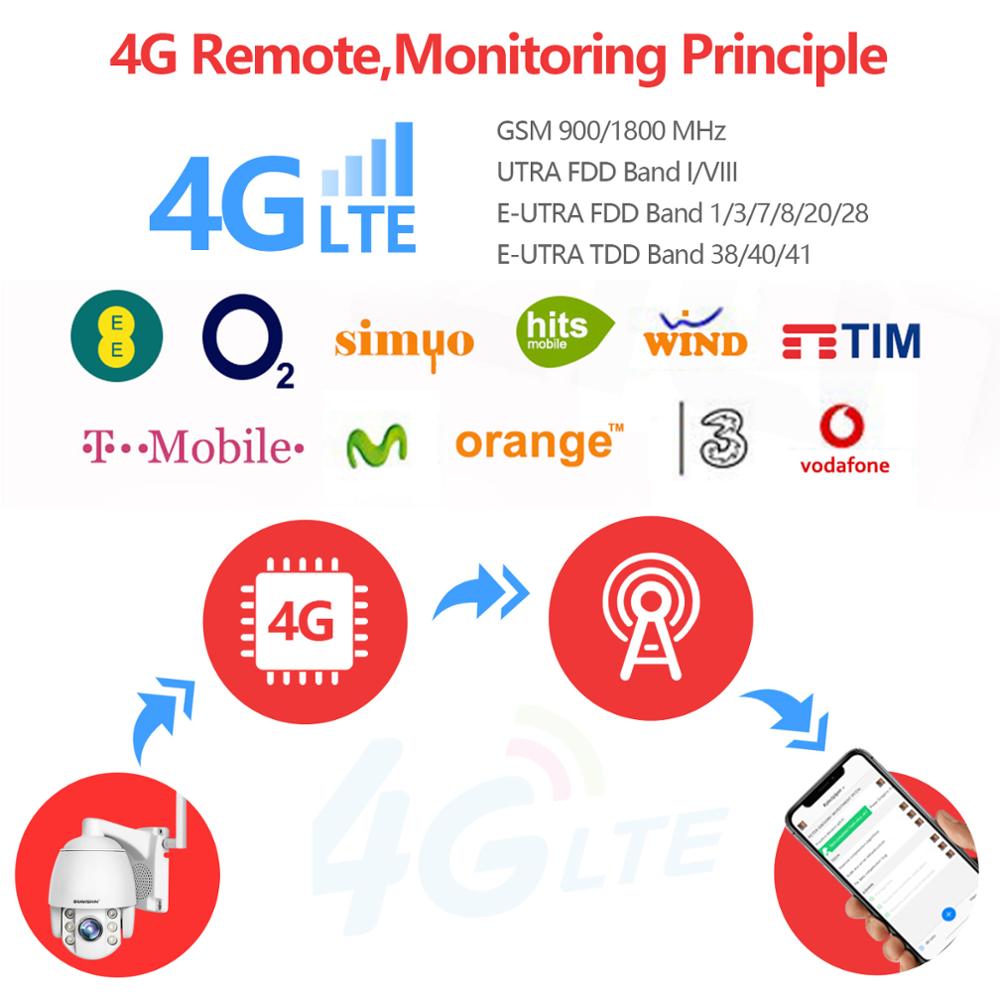

4G standard

FDD-LTE

Frequency range

B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)

Transmission rate

Upload max:50Mbps, download max: 150Mbps

Security

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Rotation angle

Horizon:0° to 355°. Vertical: 0° to 90°

Horizontal speed

1° to 40°/S

Vertical speed

1° to 20°/S

Preset

Support 8 preset points , zoom lens status can be saved during the preset

Auto Tracking

AI Humanoid Dection Auto Tracking

Power interface

1* 5.5mm power interface

Ethernet

1*RJ45 & Antenna 10M/100M Adaptive Ethernet Interface

TF card Slot

1*TF card slot. up to 64GB(TF Card Optional Choose)

Reset button

Support(On the side of the TF Card Slot)

Power supply

DC 12V 2A

power

Day: 3W; Night: 12W

Operating temperature

-20 to +60 degree

Operating humidity

10% to 95%

Material

Outdoor Use,Waterproof IP65

Installation

Rack mounting

Size(mm)

175*115*110mm

Weight(kg)

0.9kg

Package Size(mm)

250*250*100mm

Package Weight(kg)

1.1kg
