MB IR NEC Key Programmer with ESL for Mercedes-BENZ (1997–2005)

Programming Instructions for BENZ IR NEC Key with ESL

You read and program the EEPROM of the CPU from the Steering Lock Module via the 38-pin diagnostic connector.

Desolder and read, using a programming tool, the two CPUs from the Electronic Ignition Control Module. Load these EEPROMs into the programmer.

Desolder the NEC CPU from the key, solder it onto the programming device, select the key nuMBer, and program it. Then resolder all CPUs back to their original positions and start the car.

You can program new keys without the vehicle—using only the EIS and steering lock modules.

You can read these CPUs using a compatible programming tool (e.g., ETL) for Motorola CPUs such as the 68HC705X16(32).

Current Features

• Easy and convenient generator of microprocessor software dumps
• Supports keys based on the NEC controller, including models: 0x28, 0x35, 0x40, 0x51, 0x57, 0x61, 0x71, 0x81, 0x229
• Ability to check the status and proper operation of the Electronic Steering Lock (ESL)
• Ability to program the ESL directly on the vehicle (no replacement required)

Supported Mercedes-BENZ Models

• W202 (MC68HC05X32 x 2 controller)
• W203 (MC68HC908AZ60 controller)
• W208 (MC68HC05X32 x 2 controller)
• W209 (MC9S12DG128 controller)
• W210 (MC68HC05X32 x 2 controller)
• W211 (MC68HC912DG128A controller)
• W215 (MC68HC908AZ60 controller)
• W220 (MC68HC908AZ60, MC68HC05X32 x 2 controller)
• W230 (MC68HC908AZ60, MC68HC05X32 x 2 controller)
• W639 Vito (MC68HC908AZ60 controller)

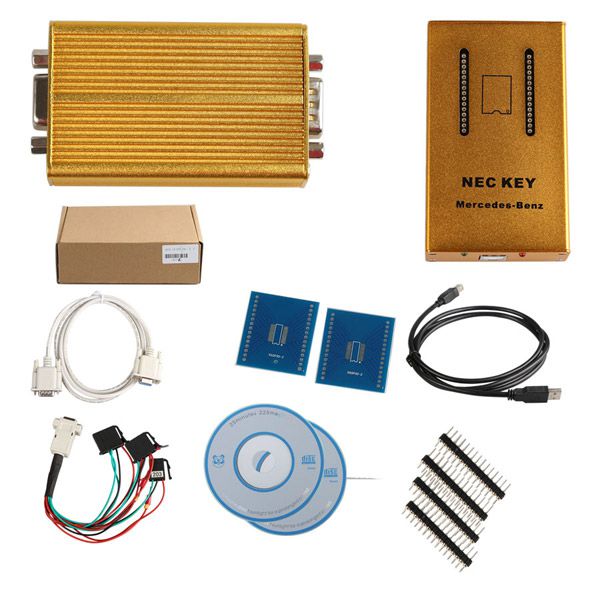

What’s Included in the MB Keyprog Kit

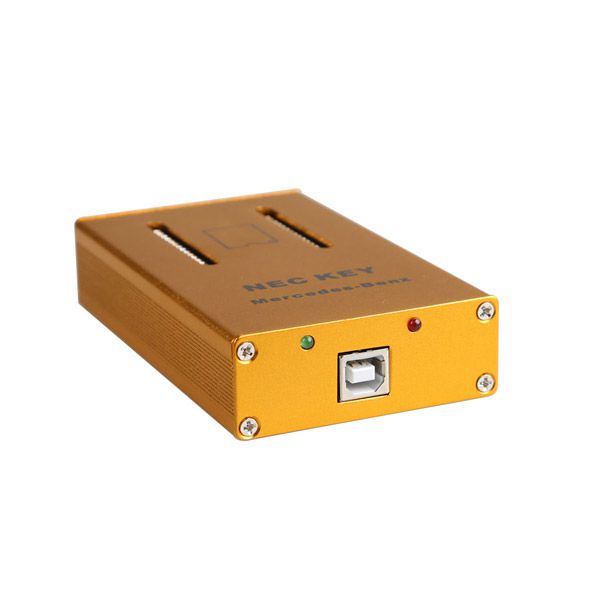

• NEC controller programming tool
• ESL (Electronic Steering Lock) programmer (via K-Line)
• EEPROM Calculator (for microcontroller software dumps): supports EIS, ESL, ESM

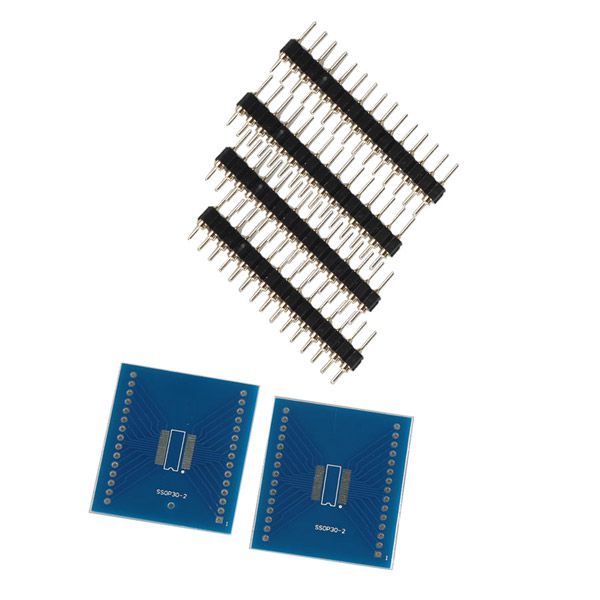

• Adapter for working with NEC controllers (for soldering)

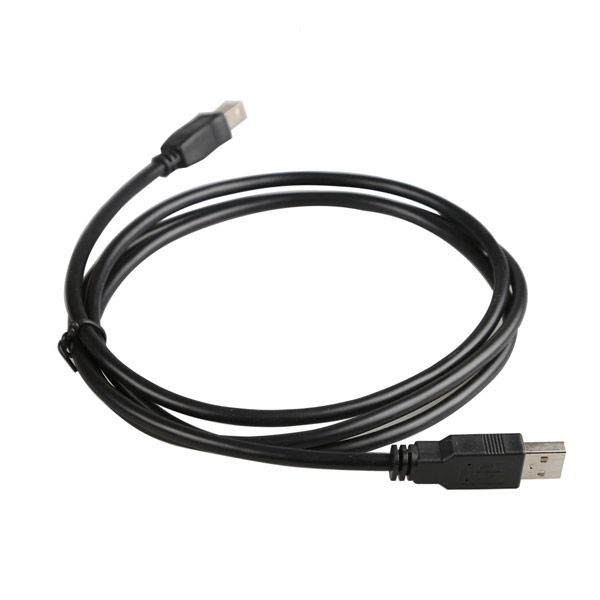

• USB cable

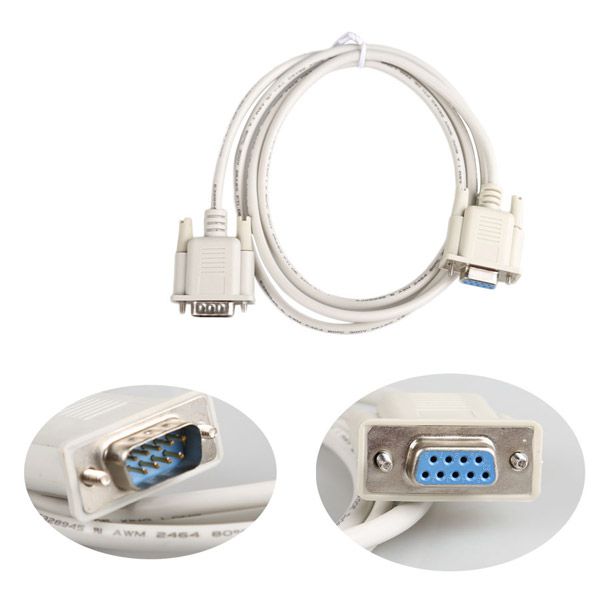

• K-Line Cable + Module
• Diagnostic cable (38-pin)
• ESL cables: 3-pin, 4-pin, and 5-pin variants

Package Contents

1 pc × BENZ IR NEC Key Programmer with ESL
