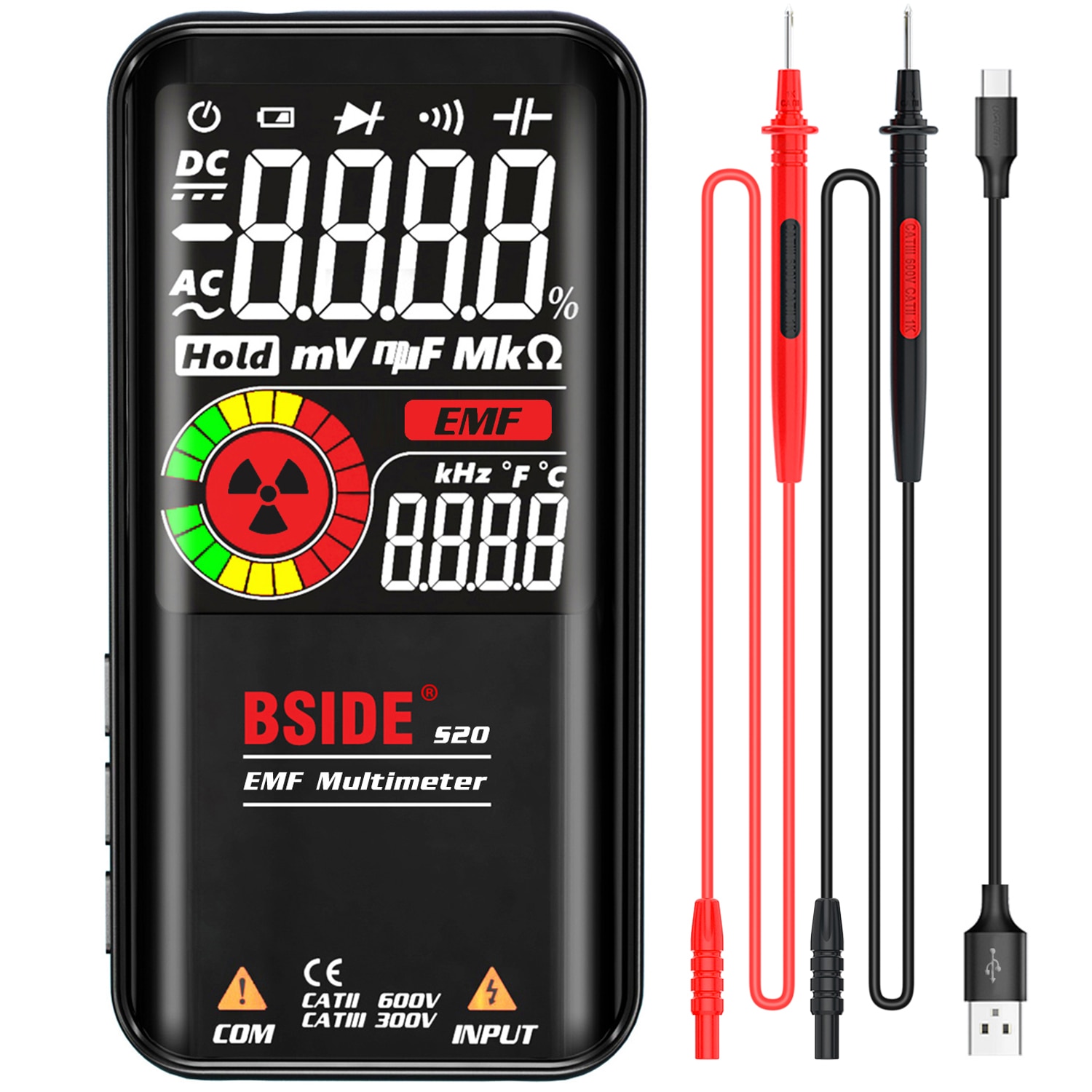

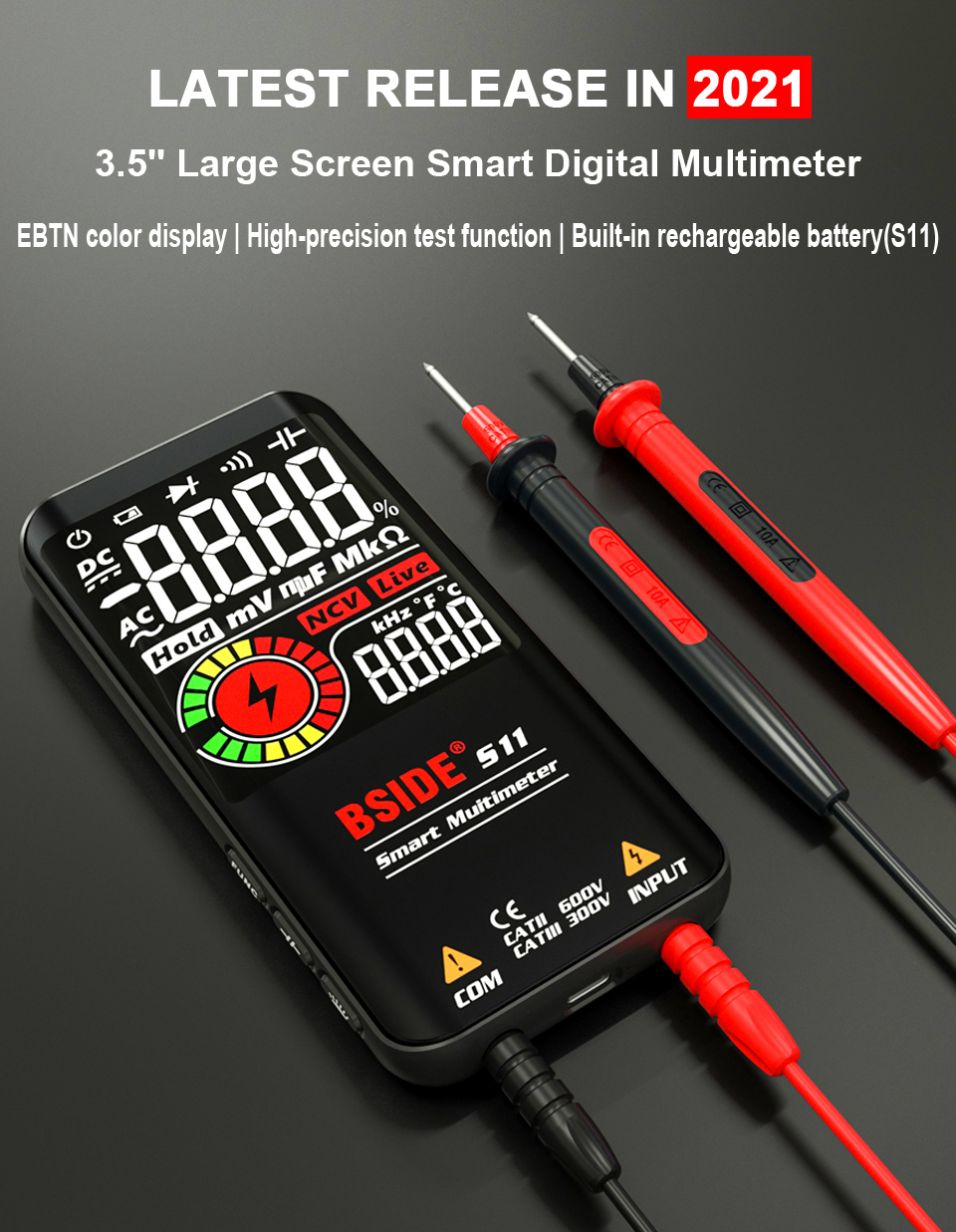

Digital Multimeter A10 S10 S11 S20 Profesional multimetro Smart DC AC Voltage Capacitor Ohm Diode NCV Hz EMF Tester Detector

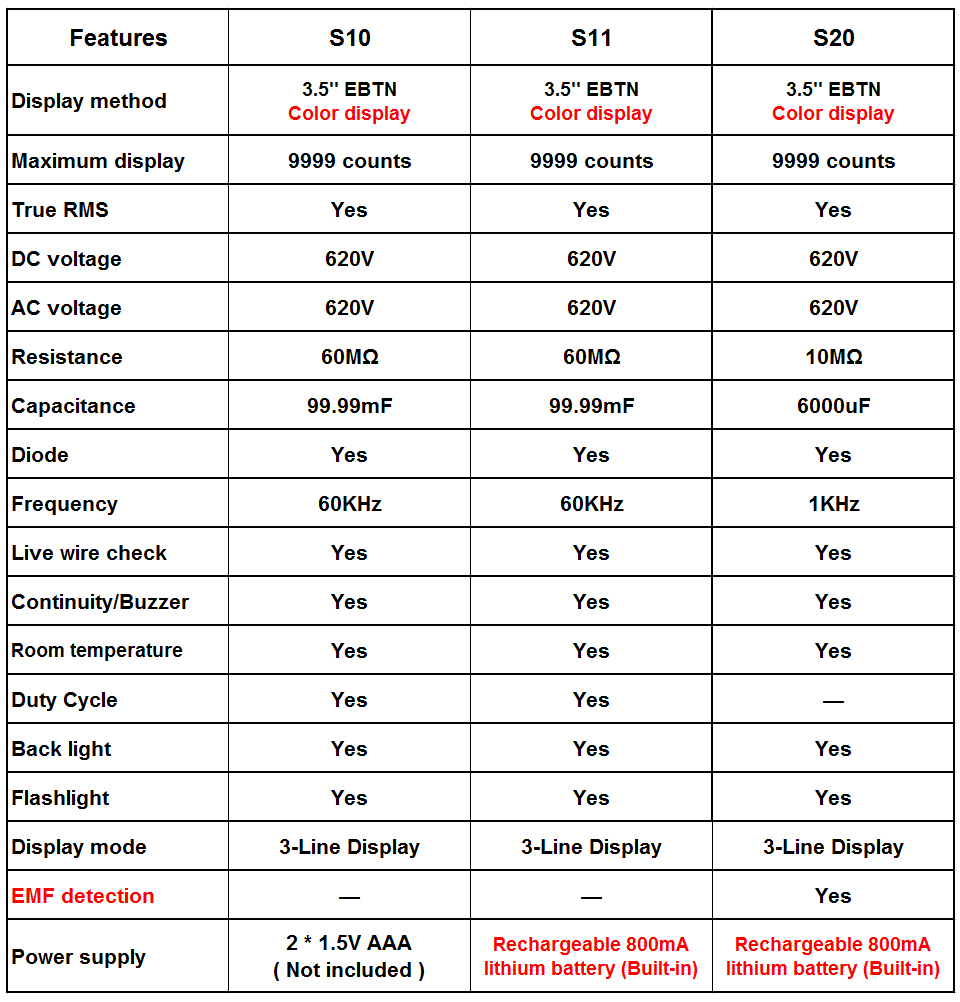

S10/S11 Specifications:

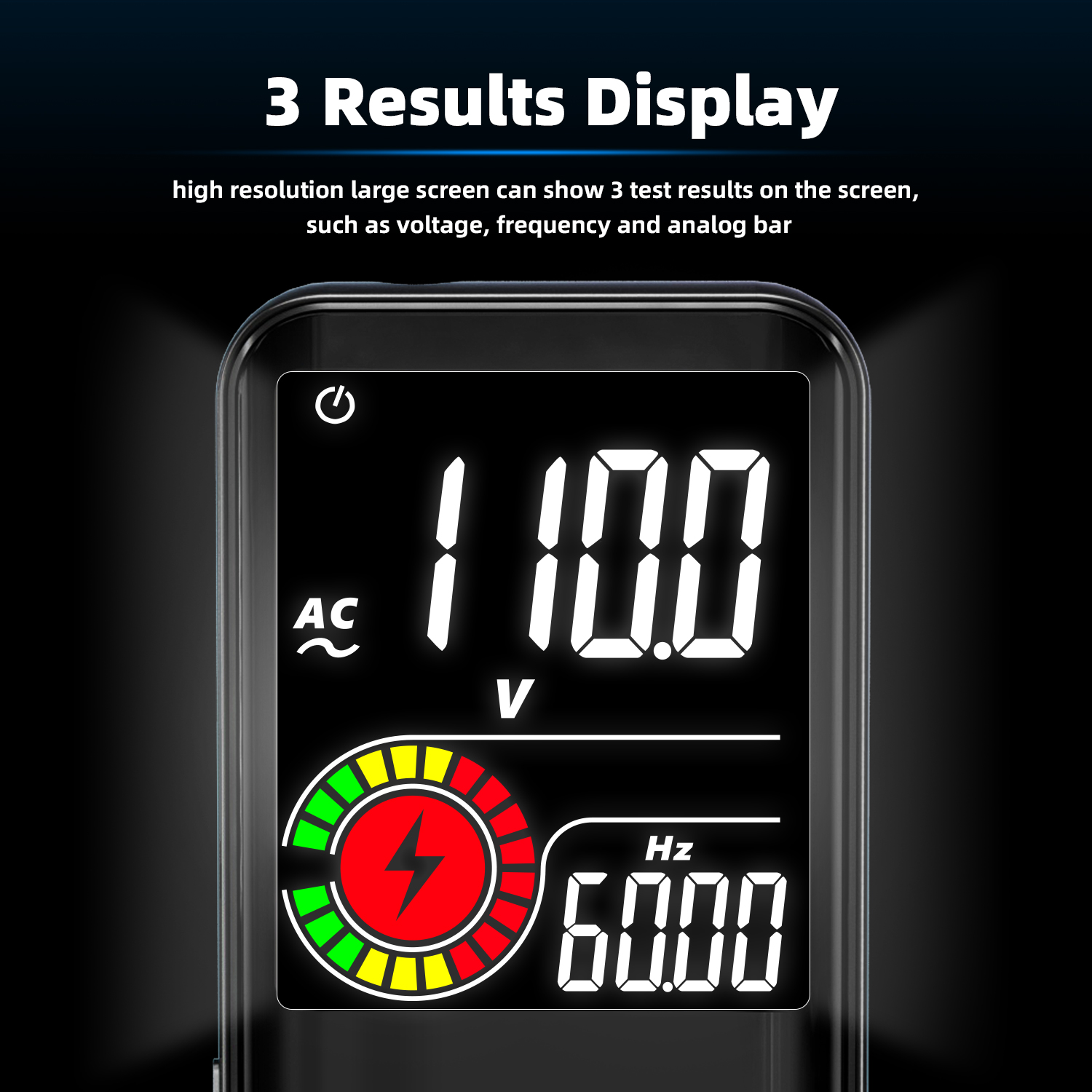

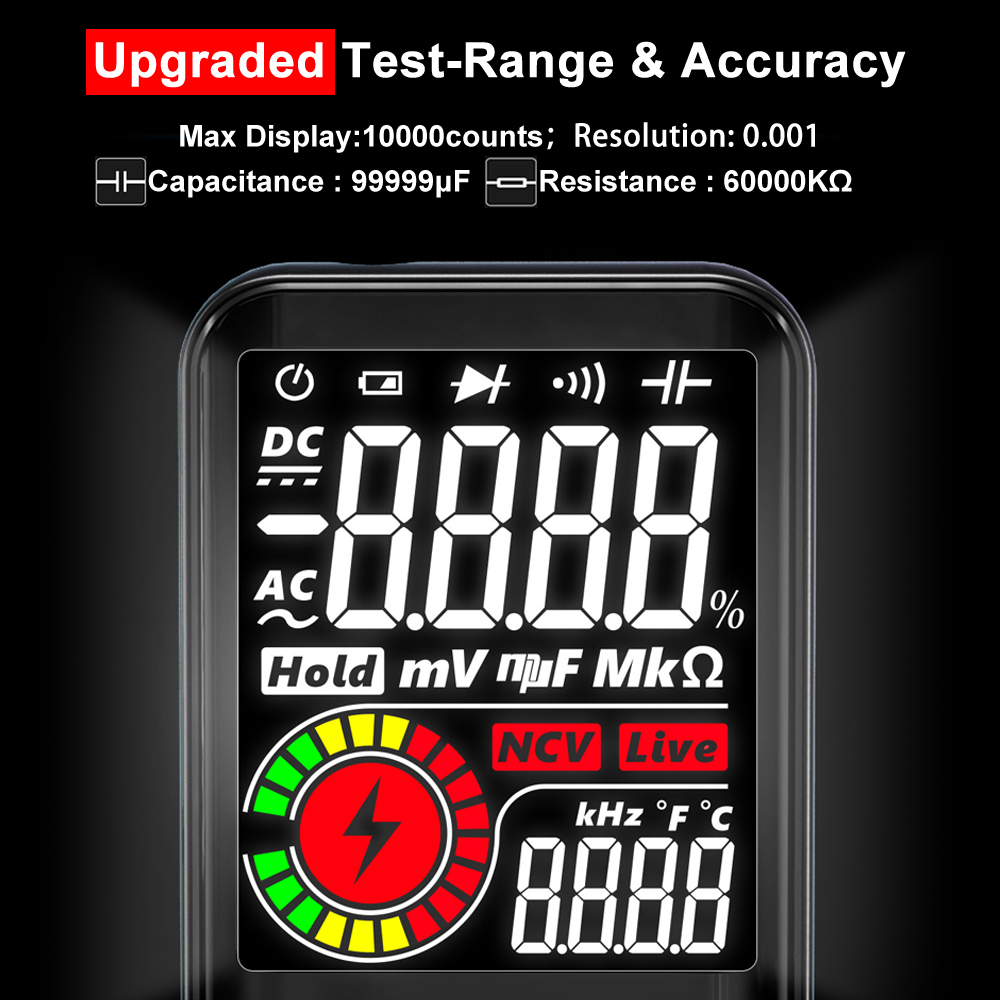

Display: 9999 counts.

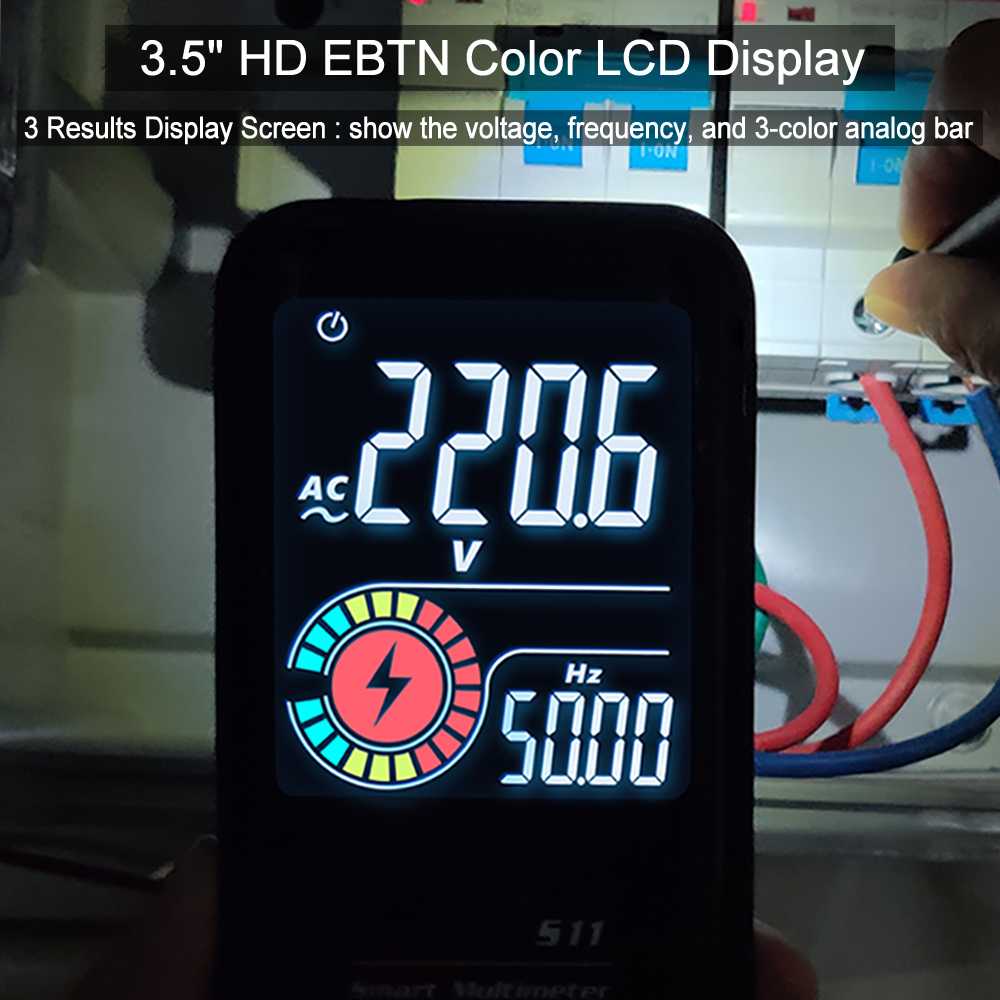

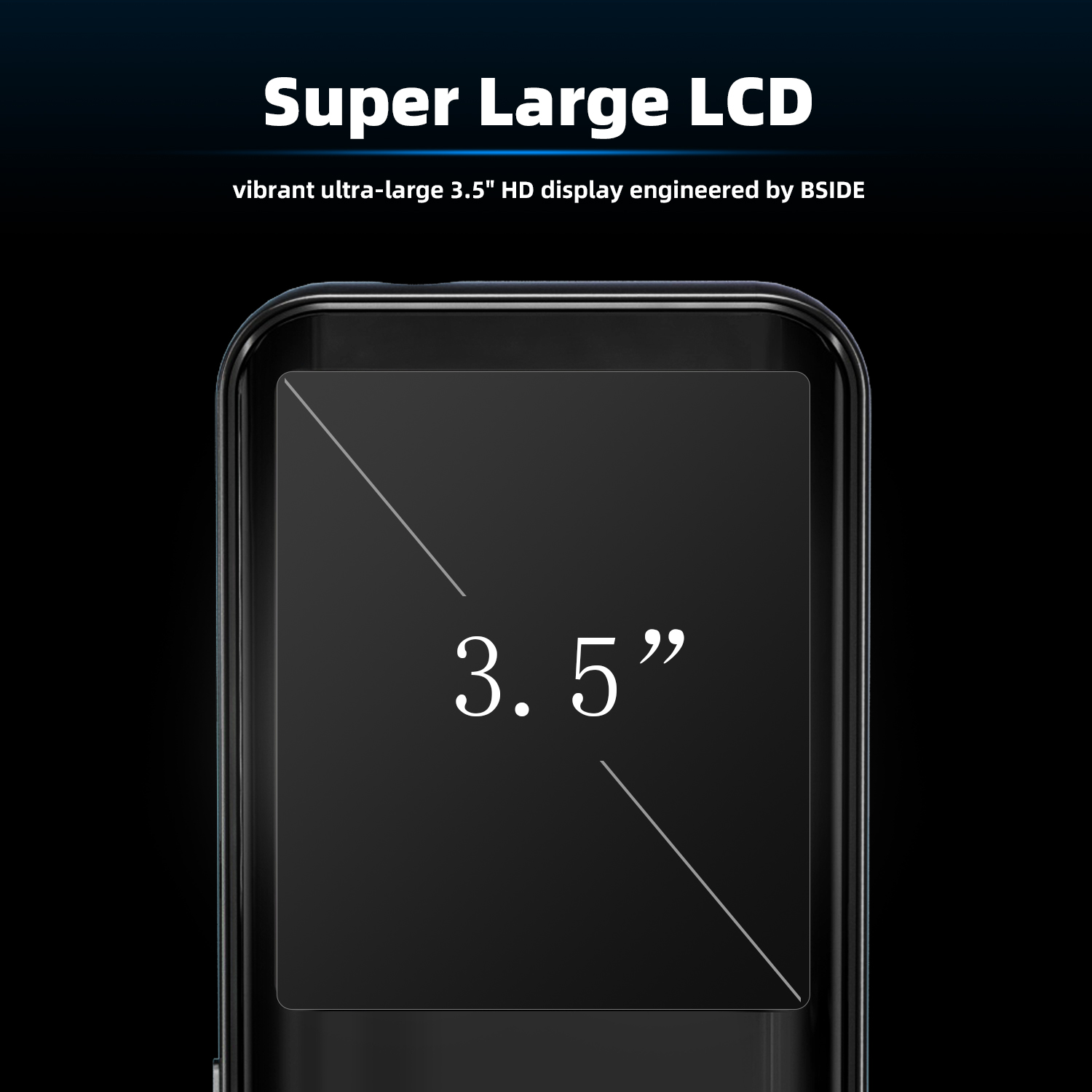

Screen: 3.5 inch.

DC Voltage: 0.8V-620V ±(0.5%+3); Resolution: 0.001V.

AC Voltage: 2.2V-620V ±(0.5%+5); Resolution: 0.001V.

Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.

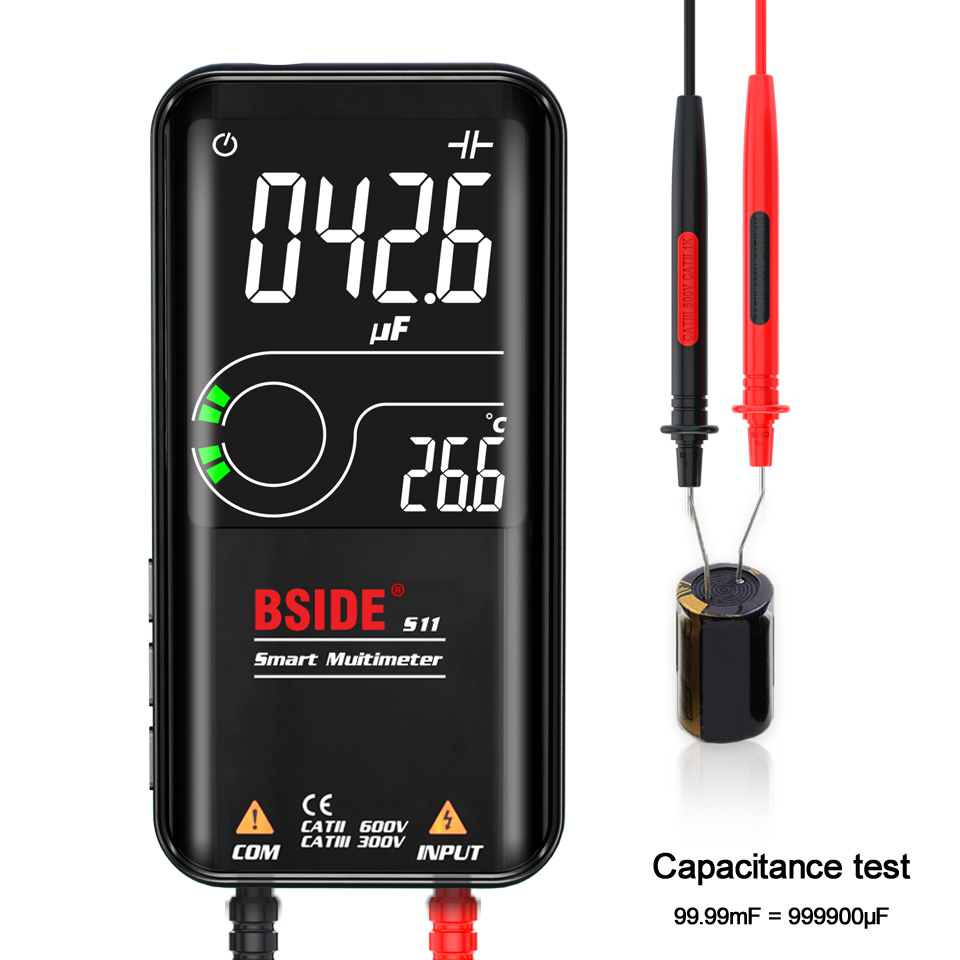

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF.

Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz.
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.

Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.

Diode: Auto identify diode if less than 3.0V.

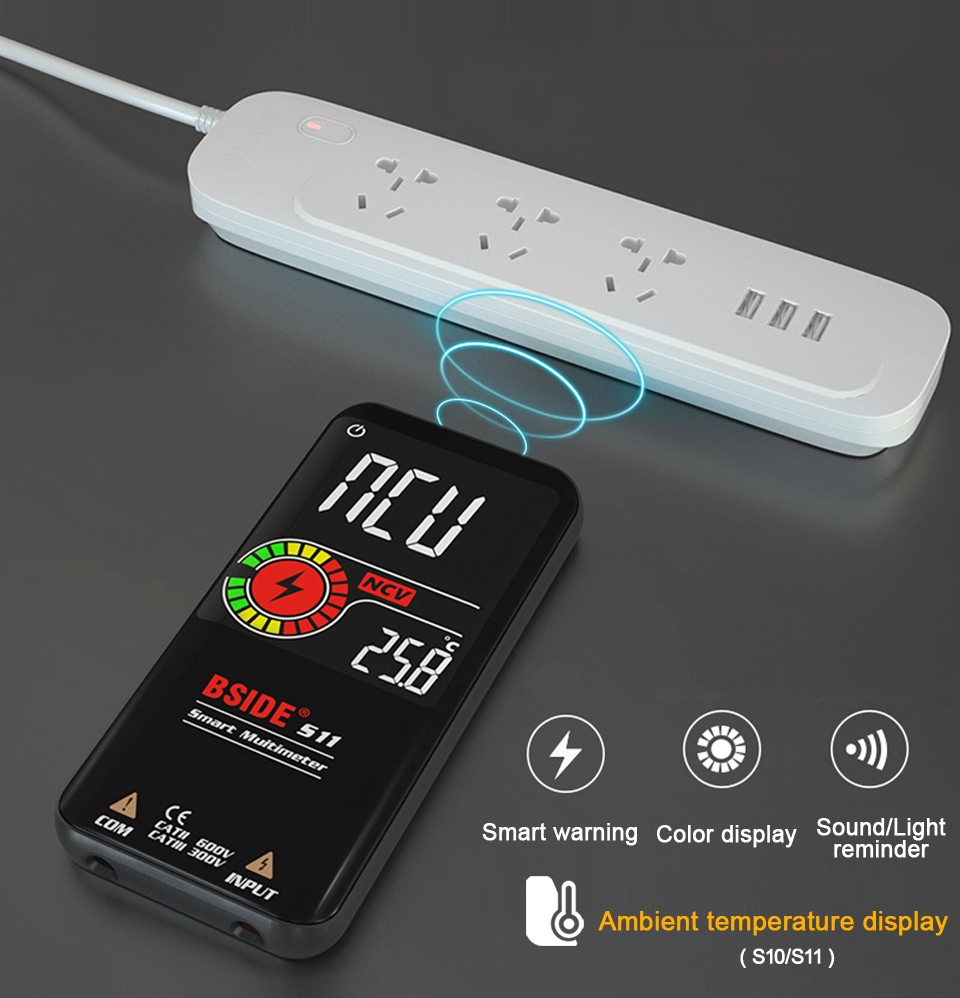

V-Alert(non-contact voltage detection): beep alarm sounds.

Live Check: alarm beep sounds, LCD screen display stripe.

Continuity: If the resistance is less than 30Ω, the beeper sounds.

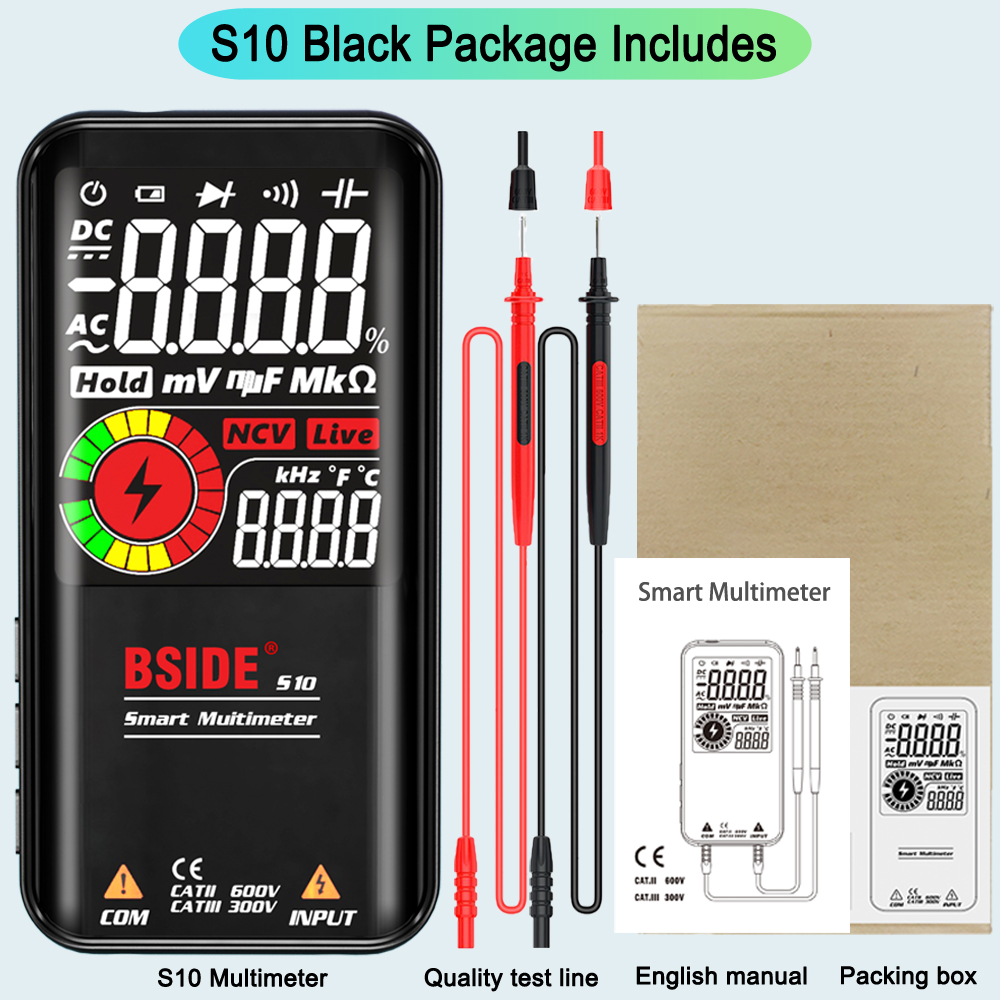

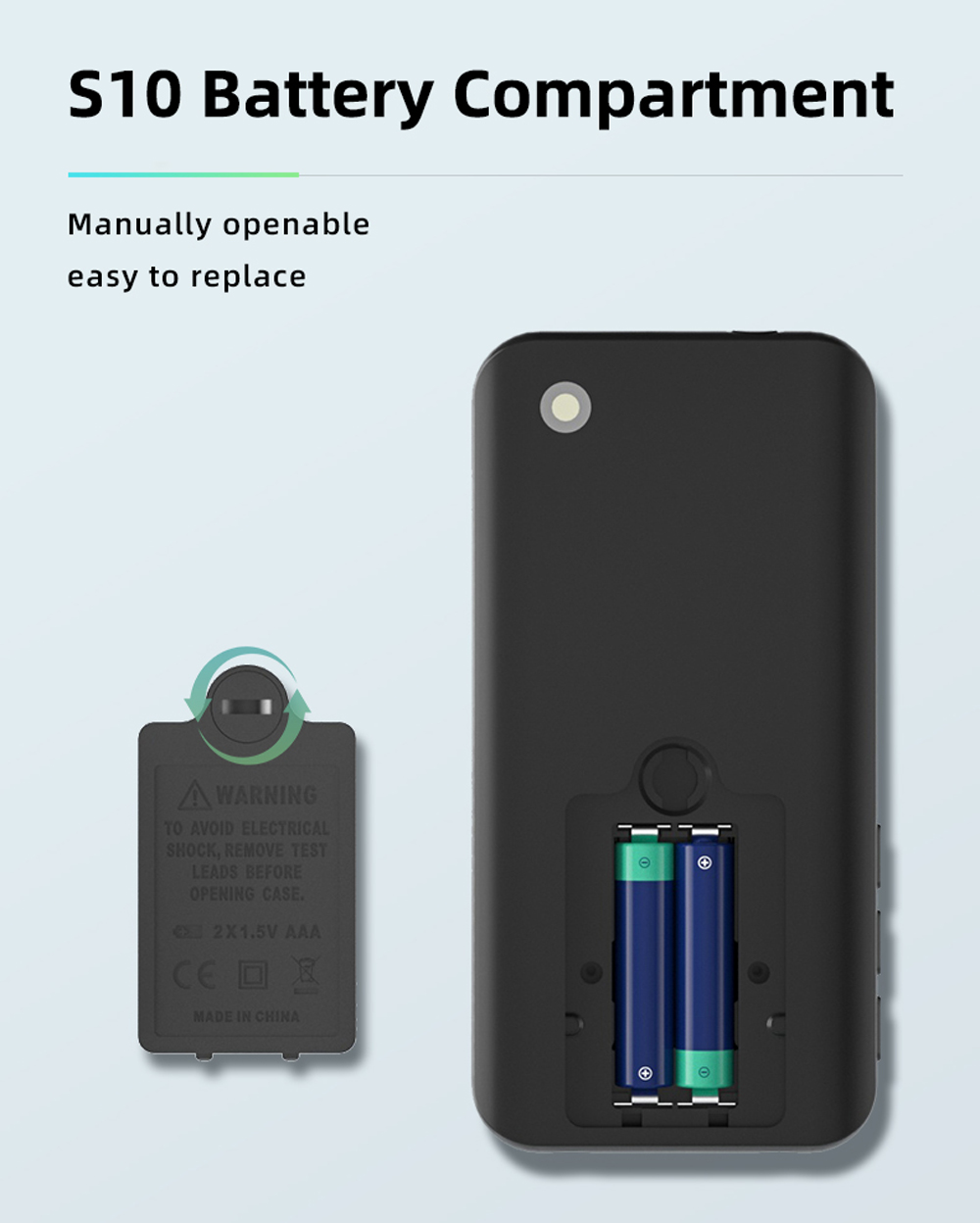

S10 Power: 1.5V (AAA) x 2.

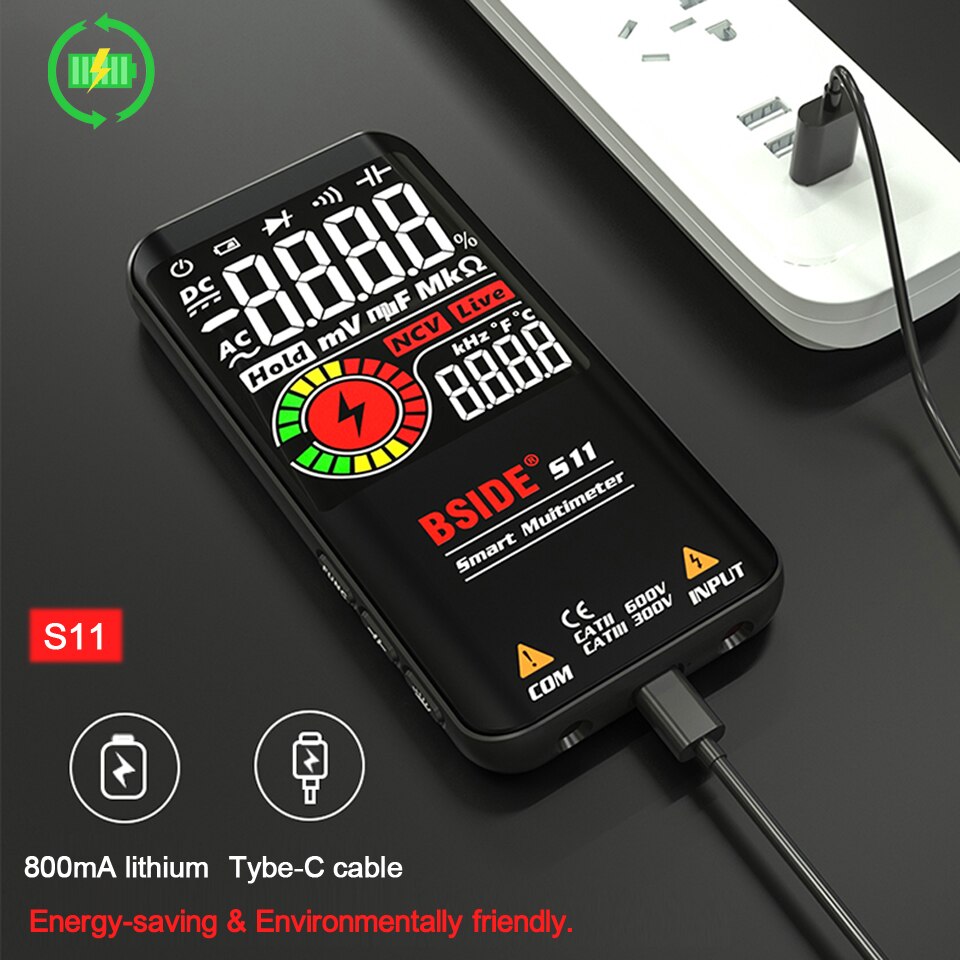

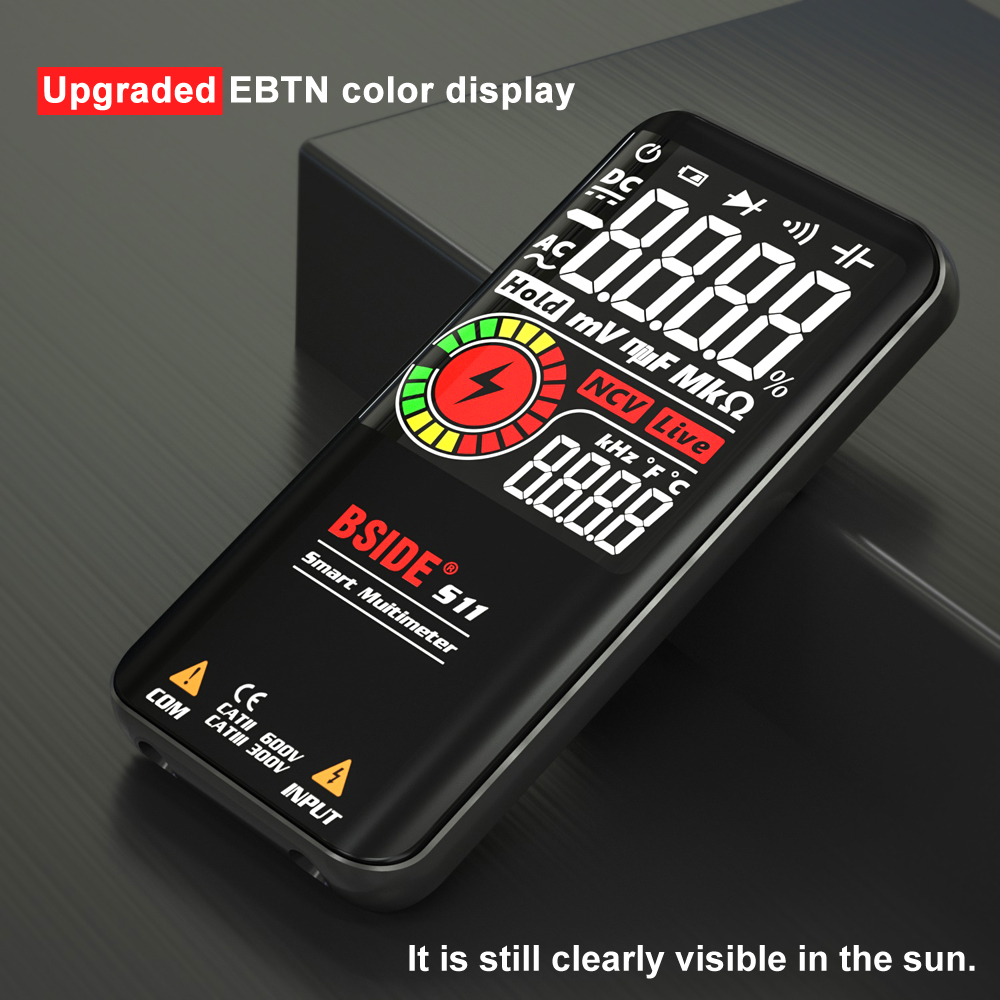

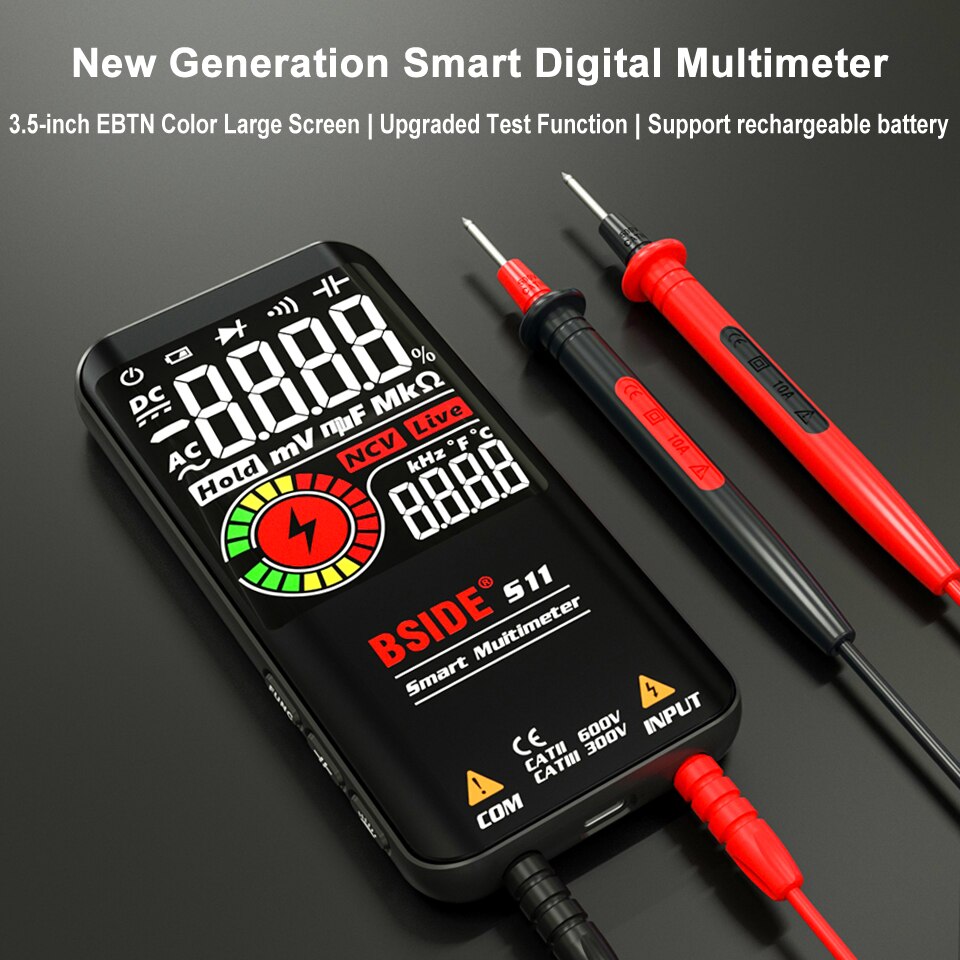

S11 Power: Built-in rechargeable lithium battery.

DC Voltage: 0.5V-620V ±(0.8%+3); Resolution: 0.001V

AC Voltage: 1.0V-620V ±(1.2%+5); Resolution: 0.001V

Resistance:1Ω-10.0MΩ ±(1.2%+3); Resolution: 0.1Ω

Capacitance: 0.5uF-1000uF ±(3.5%+8), 1000uF-6000uF ±(4.5%+10); Resolution: 0.1uF

Frequency: 10Hz-1000Hz ±(2.0%+10); Resolution: 1Hz

Diode: Measure diodes within 1.0V

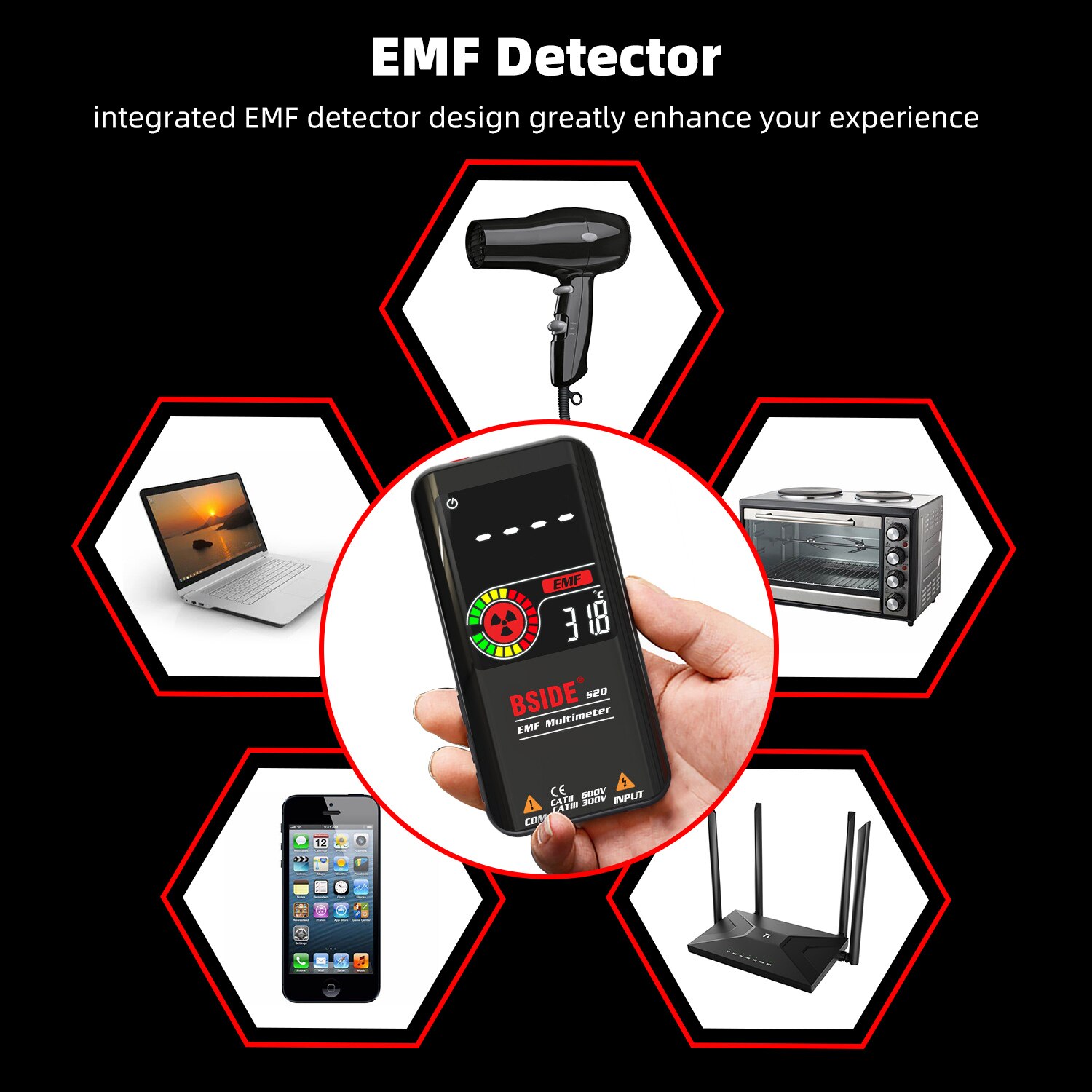

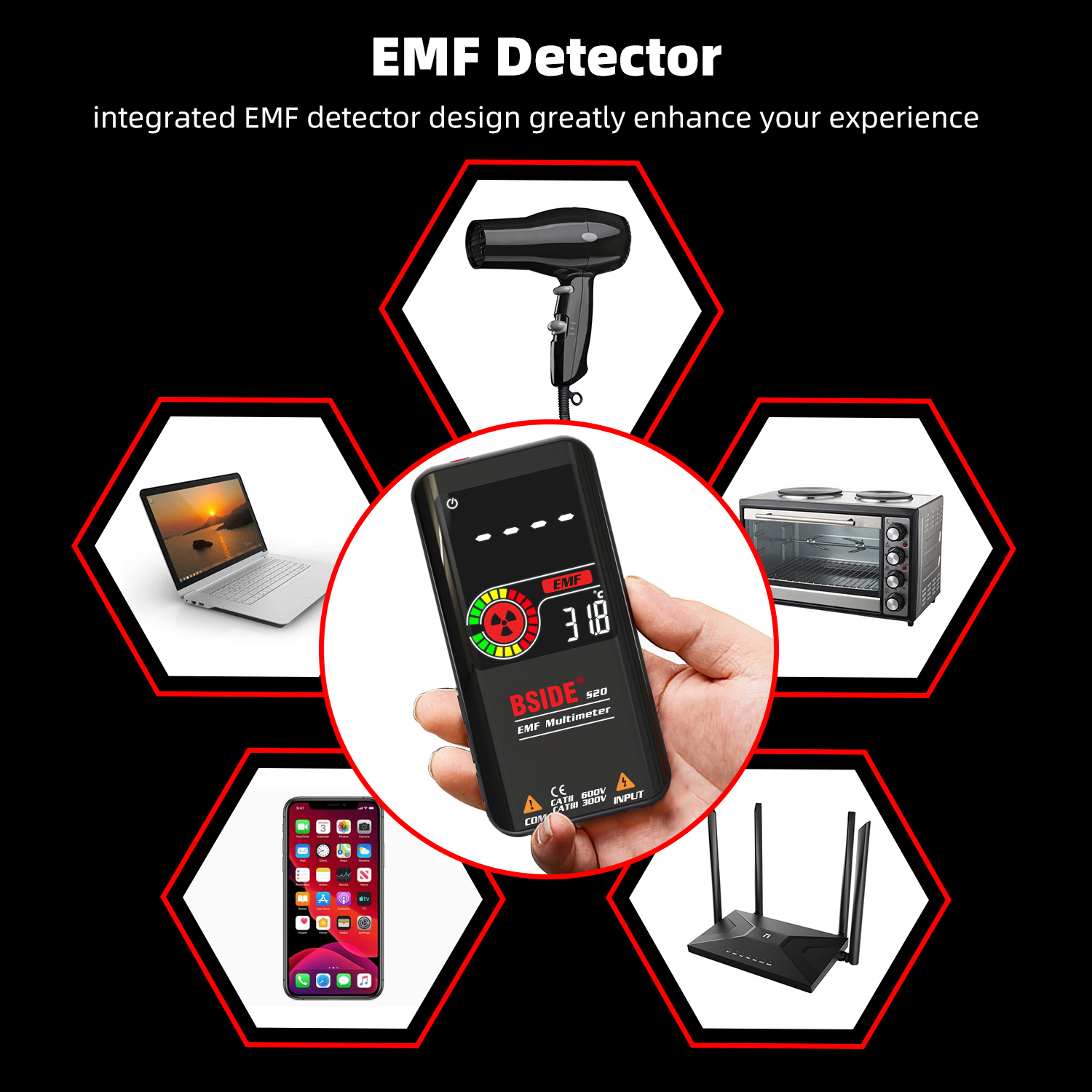

EMF Detect: alarm beep sounds, LCD screen display stripe.

Live Check: alarm beep sounds, LCD screen display stripe

Continuity: If the resistance is less than 30Ω, the beeper sounds

S10/11/20 Package Size: 147*85*42mm.

S10/11/20 Package Weight: 180g
