Xhorse VVDI MB Tool V5.1.6 Benz Key Programmer Get 1 Year Unlimited Token

1. If you have Xhorse Condor Mini Plus or Xhorse Dolphin XP-005, you can have one free token each day.
2. Support Password Calculator Function. It takes 4 minutes to collect data, and 2 minutes to calculate. Check MB BGA Tool Token Service

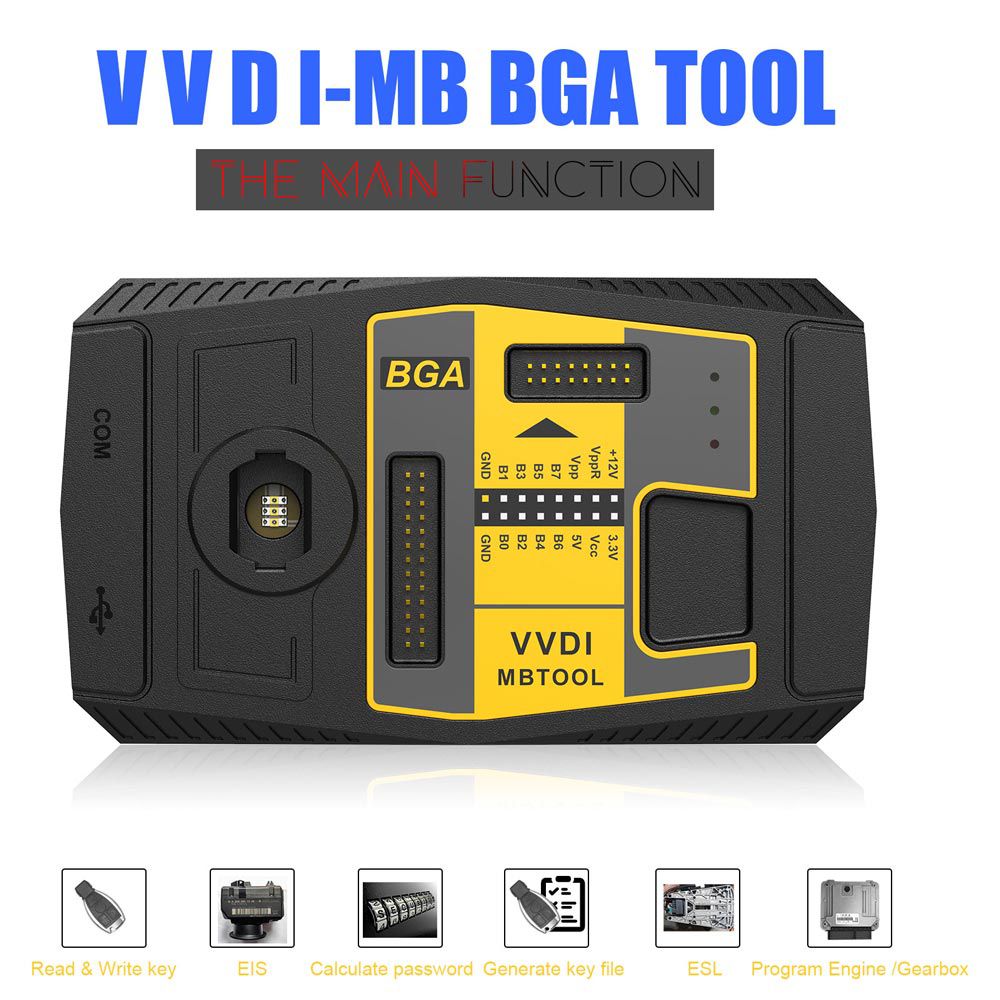

VVDI MB BGA Tool Function in Details:

1. Read Write Key

1. Read key basic information
2. Key with BE version, we can read password from key via IR directly. Of course,renew key, write new key file via IR is also supported
3. Support IR repair key, repair key not work via IR
4. NEC adaptor can read key password from NEC v51, v57 version
5. Support write and renew (NEC adaptor) NEC key versions following: v51, v57,v28, v35, v40,v03, v06, v08 (Keyless Go),v05, v07, v09 (Keyless Go),v59, v61 (Keyless Go)

2. EIS Tools

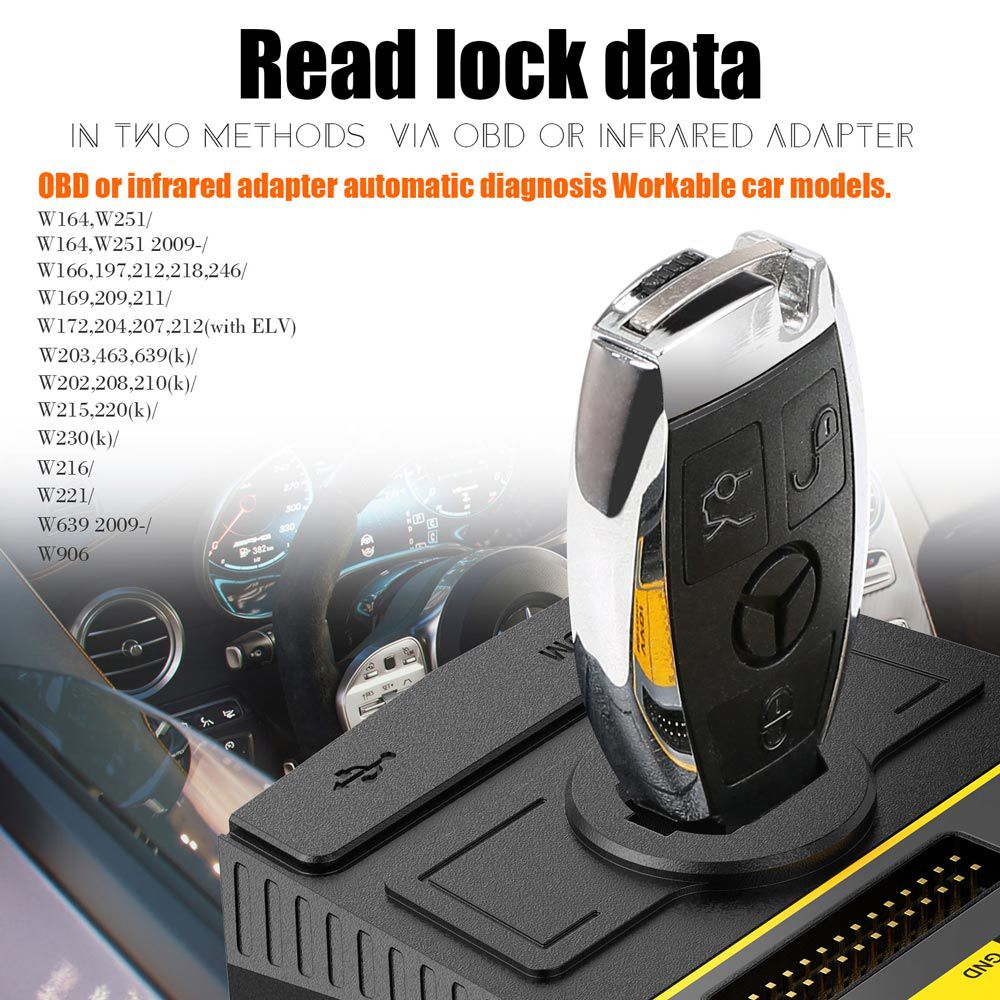

1. Support read EIS data via OBD and IR adaptor
2. Under OBD mode, we provide auto detect EIS type for CAN protocol
3. Support read W164, W209, W211 EIS via OBD without gateway support
4. Support read old Motorola EIS (HC05, HC08, K-Line) password via IR directly
5. Support renew EIS, make 2 nd hand EIS to new one (online)
6. Support replace EIS, you can write original EIS data to new EIS via IR
7. Support write new VIN
8. Support clear TP
9. Support disable key position
10. Support personalize W204 ESL
11. Support test EIS, ELV, working key status
12. Support type:
W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212 (old, with ELV) W203, 463, 639 (K),W202, 208, 210 (K),W215, 220 (K),W230 (K),W216,W221,W639 2009-

3. Password Calculation: support working key and lost all key

1. Password calculation can get the key password from working key and EIS(online)
2. CAN protocol EIS all support password calculation (support BGA keys and other NEC keys)
3. We also support calculate password for NEC v51, v57 keys. No soldering.
4. Data acquisition time depends on the key version. It needs about 3.5 minutes -13minutes, BGA version need about 5 minutes
5. Calculate time in server: 30 seconds – 1 minute
6. Now VVDI-MB TOOL is the fastest tool for password calculation
7. Lost all key password calculation: Now we support calculate password for W166, W212, W246, W212(old, with ELV) while lost all key
8. Support type (have working key): W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212(old, with ELV),W216,W221,W639 2009-

4. Prepare Key File

1. Prepare key file means prepare the key file which you will write to new key(online)
2. Prepare key file need about 20 seconds
3. Support VVDI-MB type EIS data and old Motorola EEPROM dump

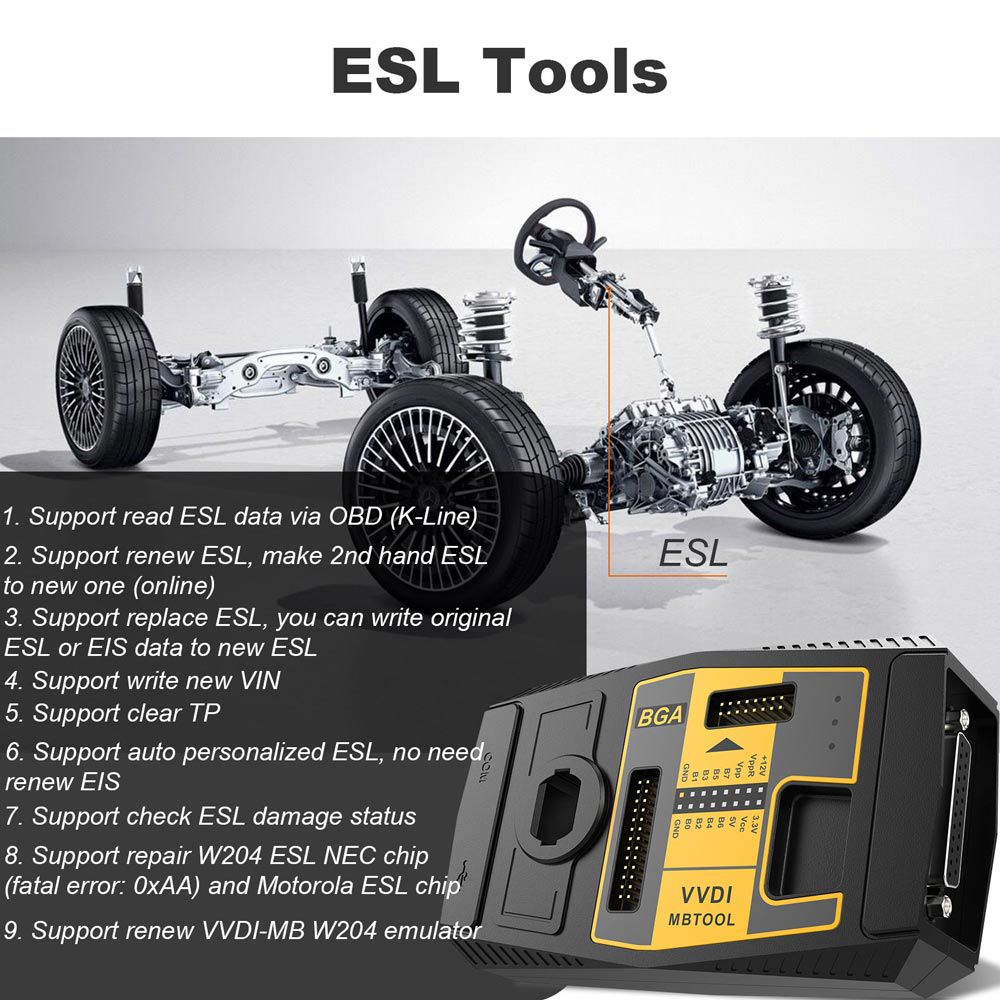

5. ESL Tools

1. Support read ESL data via OBD (K-Line)
2. Support renew ESL, make 2 nd hand ESL to new one (online)
3. Support replace ESL, you can write original ESL or EIS data to new ESL
4. Support write new VIN
5. Support clear TP
6. Support auto personalized ESL, no need renew EIS
7. Support check ESL damage status
8. Support repair W204 ESL NEC chip(fatal error: 0xAA) and Motorola ESL chip
9. Support renew VVDI-MB W204 emulator

6. Renew ECU/Gearbox

1. This function support renew, write VIN, personalization operation for module ECU,Gearbox, ISM etc

More detail infomotion click Xhorse VVDI MB Tool User Manual

VVDI MB TOOL Latest Update Information:

V5.1.1 VVDI MB Tool Update (2021-07-14 ) Require firmware V5.0.1
1. Release user manual V2.1 version
2. Bufix

V5.1.0 VVDI MB Tool Update (2021-04-06 ) Require firmware V5.0.1
1. Bugfix for write Kline EIS
2. Bugfix for write ECU (272) VIN, only for test purpose
3. Add Setting option (Menu->File->Setting), support deactivate voltage limit function, Read password via IR
4. Bugfix

V5.0.6 VVDI MB Tool Update(2020-07-30) Require firmware V5.0.1
1. Improvement for VVDI smart key(FBS3) get bonus points
2. Bugfix

VVDI MB TOOL Latest Software Version V5.0.5 update 2020-05-26
Require firmware V5.0.1
BENZ V5.0.5
1. Support VVDI smart key(FBS3) get bonus points
2. Support synchronize device time manually from menu
3. Bugfix

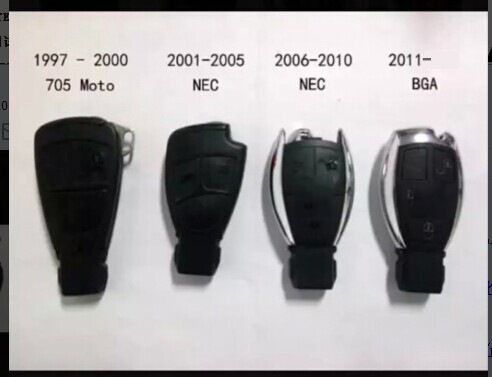

Support Key Types Display:

VVDI MB BGA tool update goes well, the following workable models are for reference only.

W164, W164 2009+

A166, W197,W212, W218, A246

A169, W209, W211

W172, W204, A207

W203

W204, W207, W212 only by dump

W209 only by dump

W210

W215, W220

W230

W216

W221

W906

v03, v06, v08

v05, v07, v09

v59,v61

VVDI MB BGA Tool Firmware Update Guide:

1.Connect the VVDI MB Tool to your computer with the USB cable
2.Choose the VVDI MB Tool firmware version from Firmware List
3.Click on Update Online and wait for the update ot end
4.If while updating the VVDI MB Tool you receive an error messaage; close, dissable, or pause your antivirus and firewall programs and try again.
5.DON’T shutdown your computer or disconnect the USB cable during the update.

How to Use VVDI MB BGA Tool?

Step 1: Connect VVDI MB BGA Tool to vehicle,and run VVDI Benz BGA software to read and save EIS data.
Step 2: Select Password Calculation, choose chassis to click "Data Acquisition", then save data fiel
Step 3: Upload the data file you save just now in step 2, then calcute the password
Step 4: Back EIS Tool menu, and read EIS data, then paste password then save new EIS data fiel with password.
Step 5: Go to "Prepare Key File", click "Load EIS file" to load new EIS file with key password. Click "Prepare key file", then it will prepare all keys and complete.
Step 6: Go to "Read Write Key", put new blank BGA key into coil to identify, then write the data fiel into key.
Step 7: Now the last thing is to synchronize the new key to car.

Here is a real VVDI MB BGA progmiming case: VVDI MB BGA Tool Program mercedes BGA Key for ML250 W166

VVDI Benz BGA Tool Customer Feedback:

i have an mercedes W245 B-Class from 2007 it work for all key lost
W221 - all keys lost - Ok
W164 - no connection by OBD, IR is ok. Can not do data collect, EZS IR reading only
W212 - all keys lost by OBD - Ok
W220 - no K-Line connection for data collect. IR reading - Ok.
I try to collect list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 - MCU -read PSW IR - not successful
W210: EIS/EZS A210.545.02.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.03.08 - MCU 1D69J - read PSW IR - not successful W210: EIS/EZS A210.545.00.08 - MCU 0D69J - read PSW IR - not successful W215: EIS/EZS A215.545.00.08 - MCU 0D69J - read PSW IR - not successful W215: EIS/EZS A215.545.08.08 - MCU 1L85D - read PSW IR - not successful
W203: EIS/EZS A203.545.05.08 - MCU ??? - read PSW IR - OK
W203: EIS/EZS A203.545.05.08 - MCU 1J35D - read PSW - OK
W203: EIS/EZS A209.545.09.08 - MCU 1L85D - read PSW IR - not successful
W220: EIS/EZS A215.545.02.08 - MCU - read PSW IR - OK
W220:EIS/EZS A215.545.00.08 - MCU 1D69J read PSW IR - not successful
W639: EIS/EZS A639.545.05.08 - MCU 2x 1L02Y - read PSW IR - not successful
W639: EIS/EZS A639.545.09.08 - MCU 0L01Y - read PSW IR/OBD - not successful
I Can guarantee it will not read ANY WITH HC05
1D69J/0D69J cannot be read by IR alone - A calculation with kline is possible.
read a w203 A203.545.05.08 with mask 1J35d password ok
W203 IES 203 545 05 08 read PSW IR OK
W 220 IES 215 545 02 08 read PSW IR – OK

Only support parts of HC05, HC08 motorola eis(K line),if cannot support will show error, need to remove eis get eeprom. we have tested W215 ok, but not means all W215 can support.in fact only support parts of this type.

please refer to change W204 esl steps:
ESL:Clear TP, Renew ESL(need erase password)
EIS:Renew EIS(need password & erase password)
Write EIS data back,then Personalize W204ESL

1. I test password from 212 new model super
good tool need pay 2 tokens
need 10 min all ok

2. Do you have see video of this tool?
They say can do all key lost on w212.
No tool can do it even Mehaco or nec pro51.
w212 eis on video, sure it can.. mehaco/mercedesinstrument can do all keys lost on w212.. the option is availible a few months.
To view more real feedback from customers worldwide, please refer to our official blog Xhorse VVDI MB BGA Tool All Info

VVDI MB BGA Tool FAQ:

Q: I test read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect

16 12v

4+5 GND

14 CAN_L

6 CAN_H

pin 1 : ESL 1

pin 2 : GND

pin 3 : +12V (30)

pin 5 : CAN L (White)

pin 6 : CAN H (Green)

pin 7 : CAN L

pin 8 : CAN H

Can any one test?

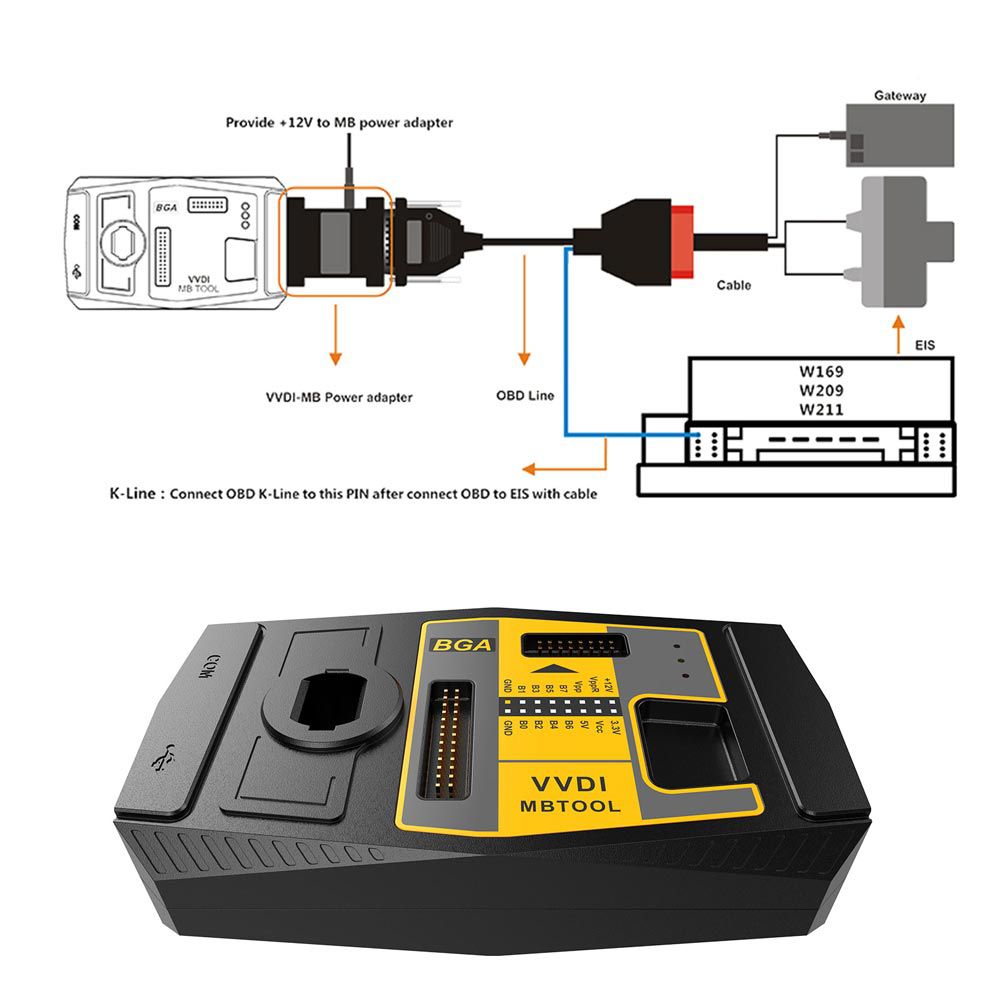

A: Read eis via obd for W164, W169, W211, W209, require gateway connected

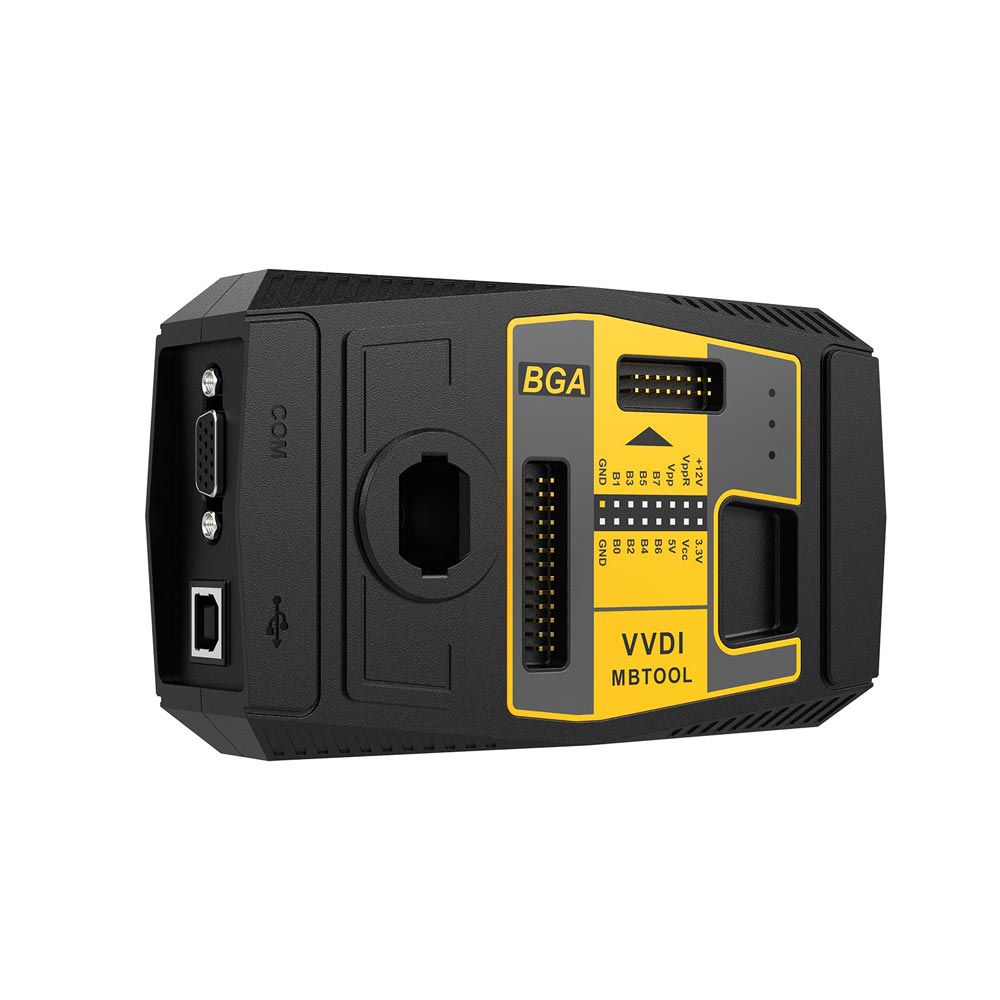

1. VVDI-MB TOOL Device
2. IR Adaptor
3. USB Cable
4. NEC Adaptor 1
5. NEC Adaptor 2
6. NEC Adaptor Base PCB
7. K Line in OBD Line
8. OBD Line
9. Plastic Box
10. Carton Box
