Note: English manual:https://www.xprintertech.com/pos-printer-user-manual,
Driver download : https://www.xprintertech.com/pos-printer-user-manual
if you choose bluetooth version for android application:https://www.xprintertech.com/xprinter-application
if you choose bluetooth version for IOS,please go to IOS Store, download a Xprinter app.

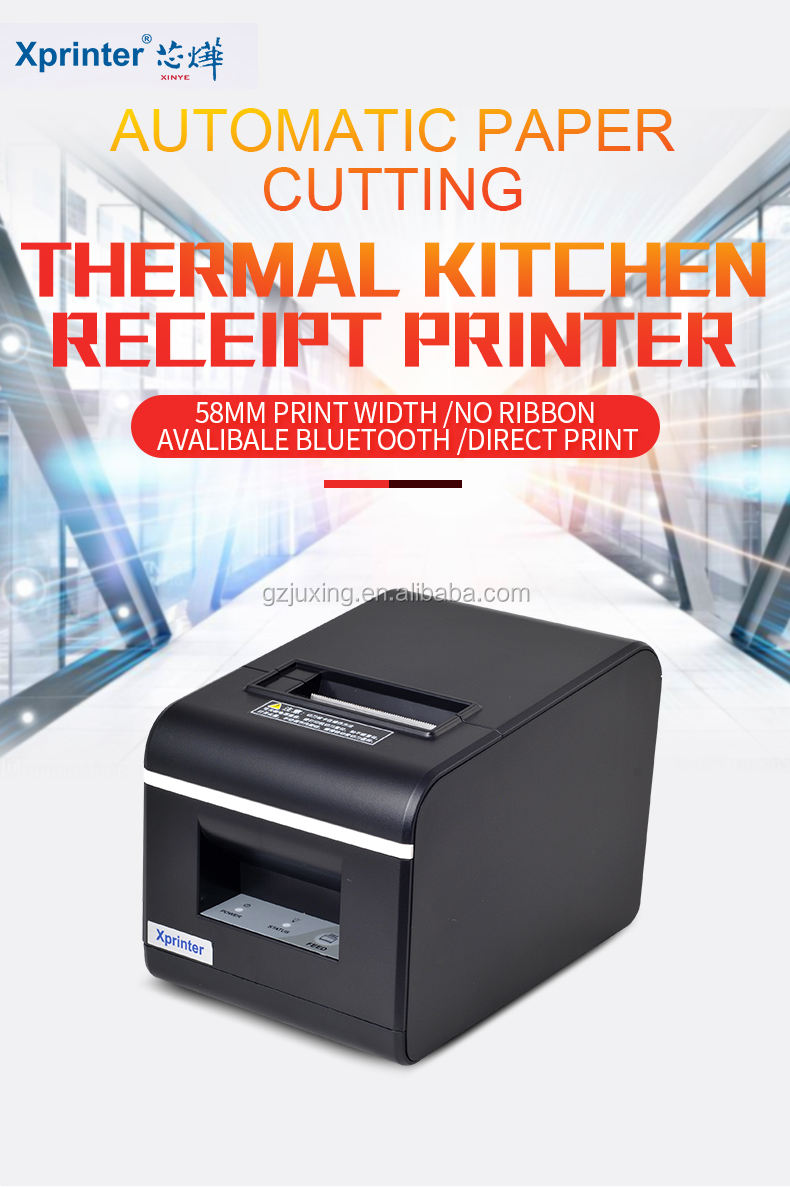

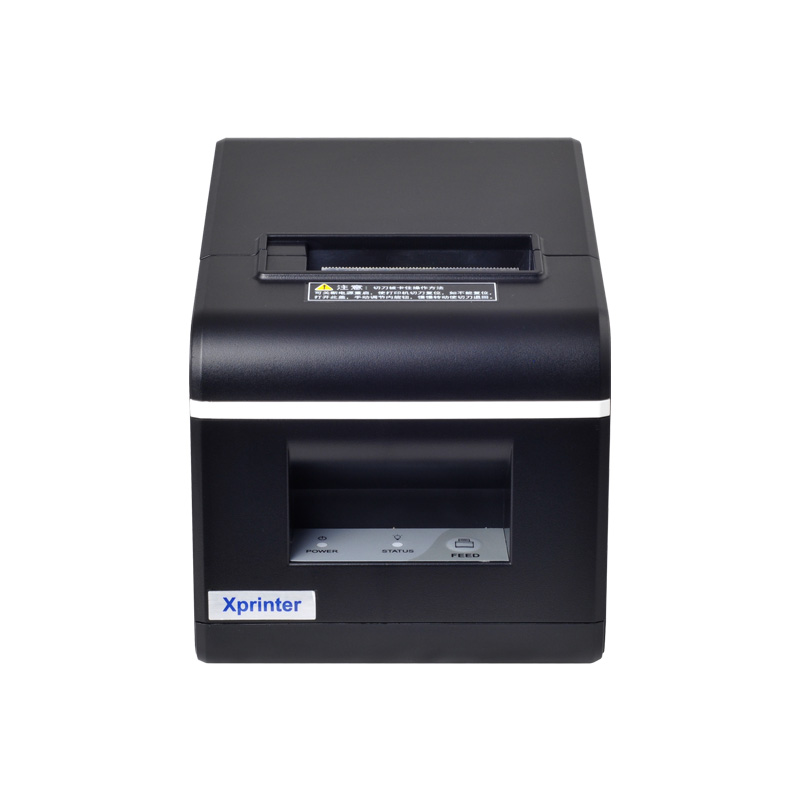

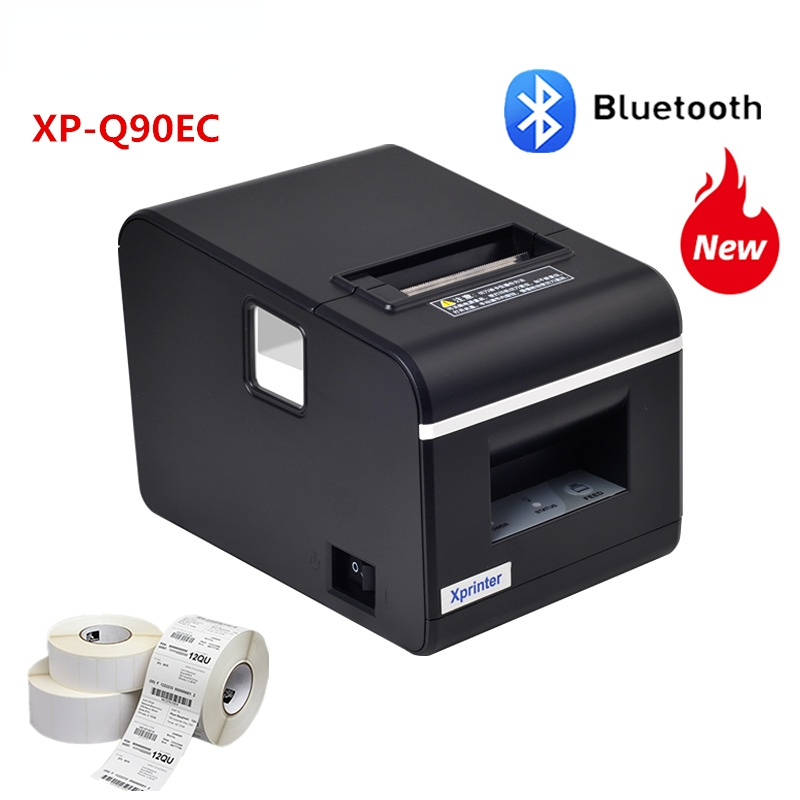

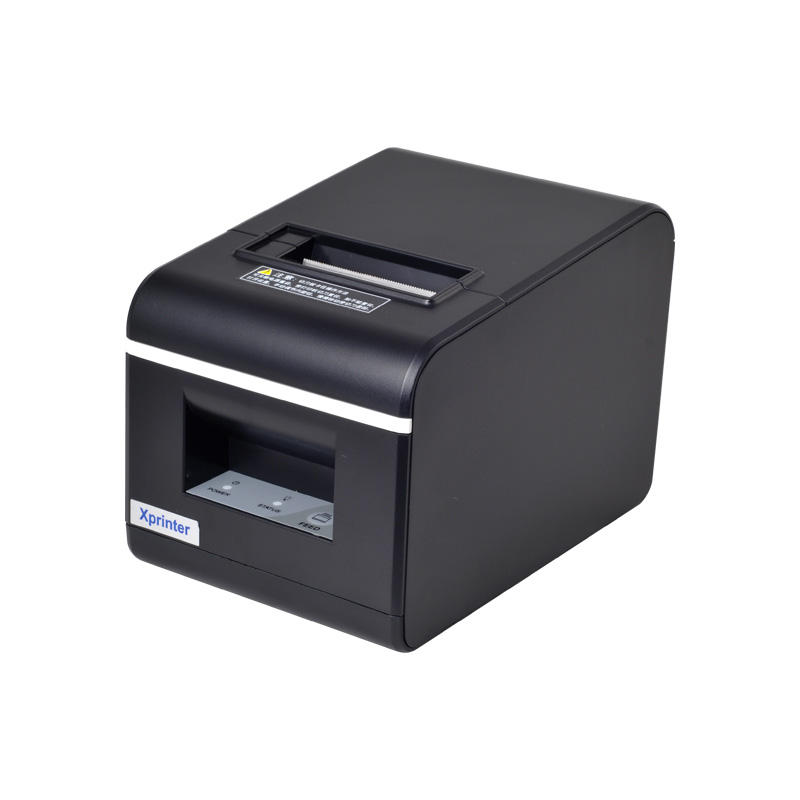

High quality 58mm Bluetooth auto cutter thermal receipt printer with Ethernet and USB or Bluetooth and USB interface
| Brand | XPRINTER |
| Color | black, white |
| Function | Printing thermal roll paper / thermal adhesive paper |
| Feature | With paper automatic verification function |
| Usage | Print label/cash register receipt |
| printing method | Thermal label mode |
| Resolution | 203 DPI 384 dots/line |
| Print width | 48mm |

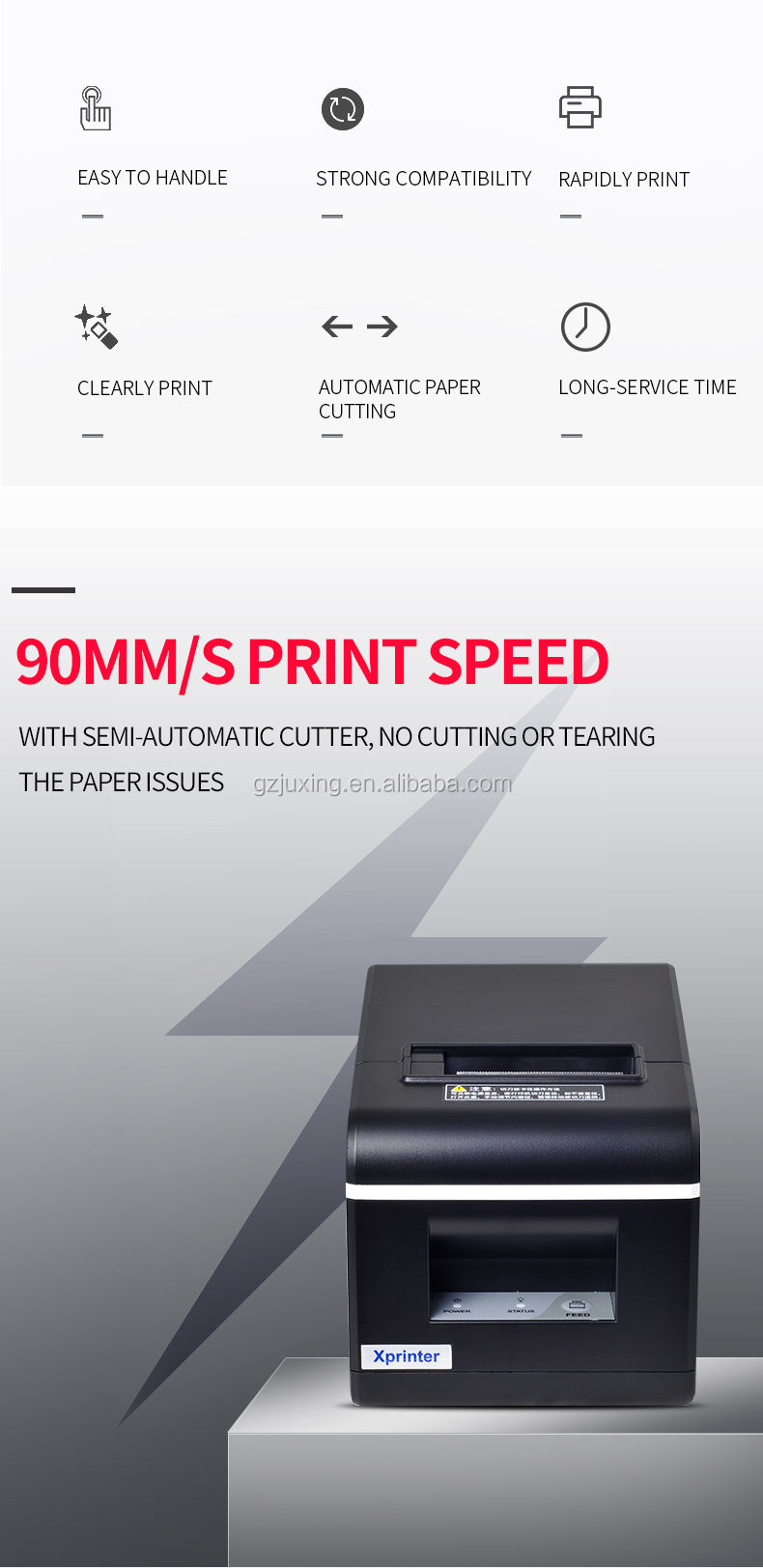

| printing speed | 101mm/s 90mm/s |
| Memory | FLASH:576KB |
| Communication Interface | USB/USB+BT/USB+Ethernet port |
| Print head temperature detection | Thermistor |
| Print head position detection | Micro Switch |
| Paper presence detection | Photoelectric Sensors |
Specification
Product Description
The picture packaging method is for reference only, and the final actual packaging shall prevail.To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packing & Delivery
| Printing method | Direct line thermal |
| Print width | 48 mm |
| Print density | 384 points / line |
| Printing speed | 120 mm / S |

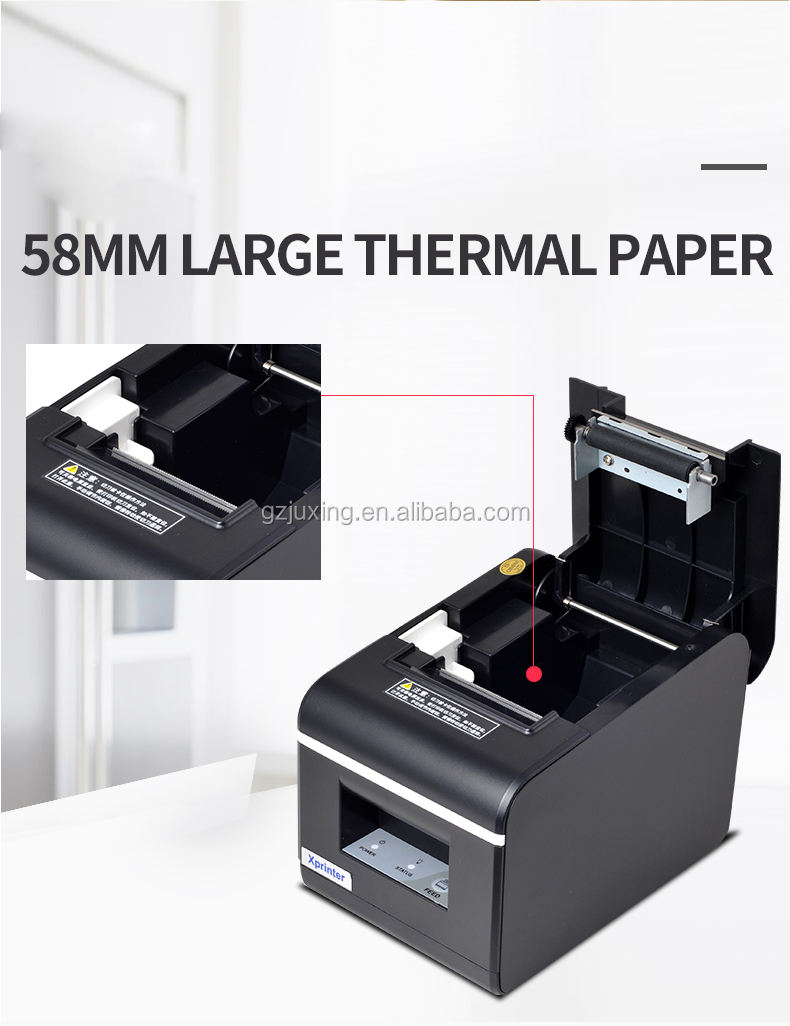

| Print paper width | 57.5 ± 0.5 mm |
| Outside diameter of printing paper | 60 mm |
| Print paper thickness | 0.06 ~ 0.08 mm |
| Row spacing | 3.75 mm |

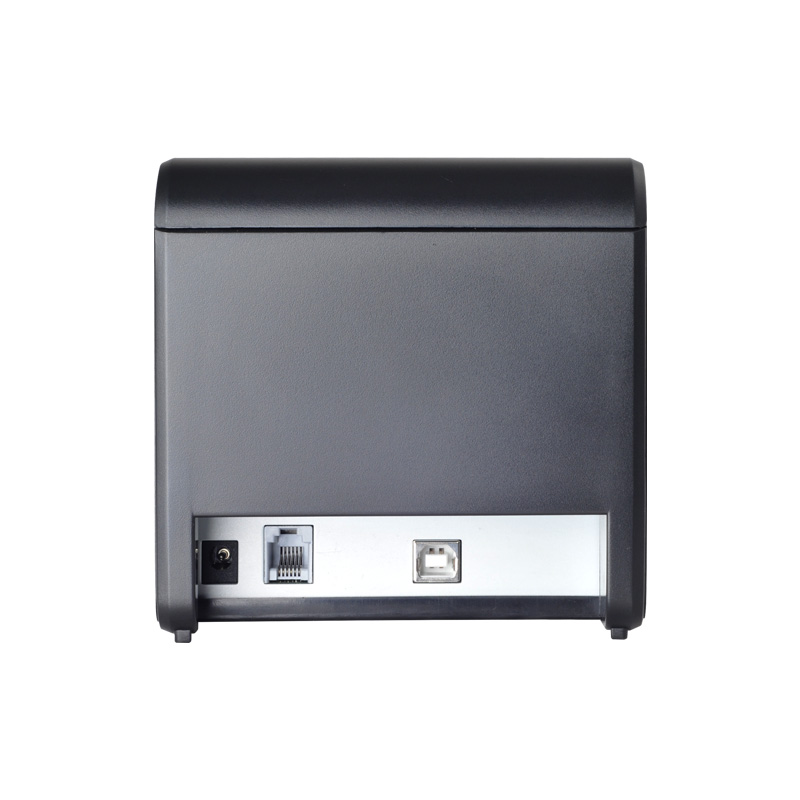

| Interface | USB/USB + LAN/USB + B T |
| Character size | Ank character, fonta: 1.5 * 3.0mm FontA：1.5*3.0mm Simple / traditional: 3.0 * 3.0mm |
| Extended character table | PC347（Standard Europe）、Katakana、 PC850（Multilingual）、PC860（Portuguese）、 PC863（Canadian-French）、PC865（Nordic）、 West Europe、Greek、Hebrew、East Europe、Iran、 WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、 PC858、IranII、Latvian、Arabic、PT151（1251） |

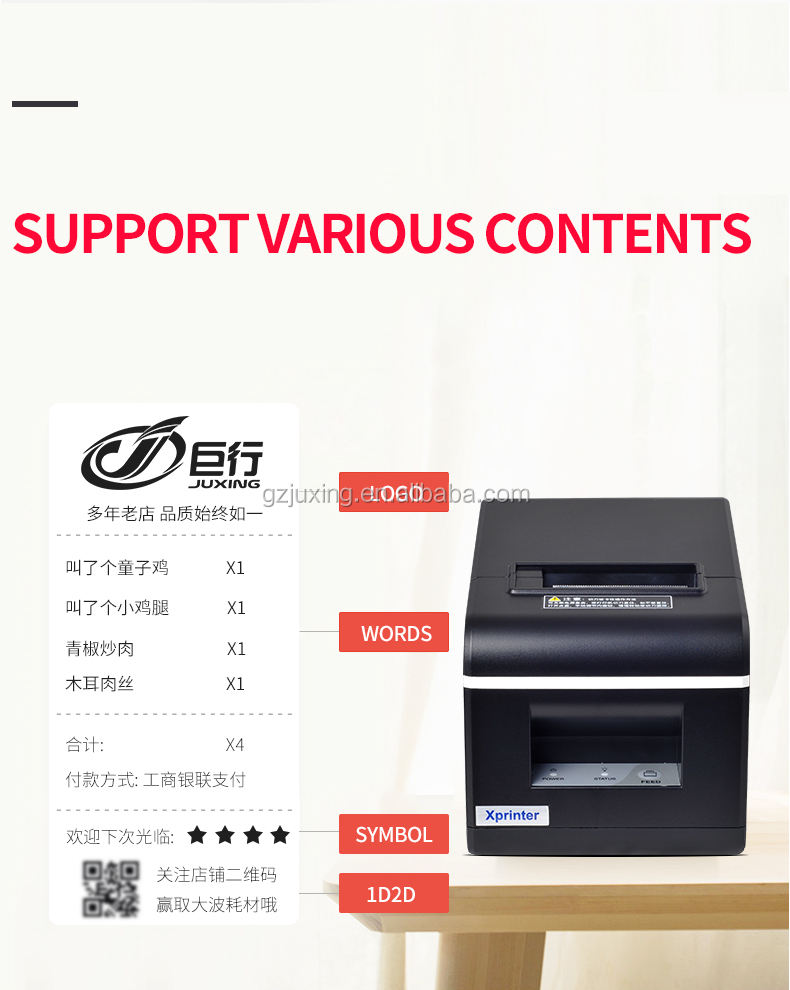

| Barcode Type | UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/ CODE39/ITF/CODABAR/CODE93/CODE128 |
| Input buffer | 128k bytes |
| NV flash buffer | 4M bytes |
| The power adapter | DC 12V 2.6A |
| Cash drawer output | DC 12V/1A |
| Net weight | 0.8kg |
| Product dimension | 169.95 ×120 × 119.92mm（L×W×H） |
| Work environment | Temperature: 0 ~ 45 ℃, humidity: 10 ~ 80% |
| Storage environment | Temperature: - 10 ~ 60 ℃, humidity: 10 ~ 90% |
| Operating environment | Windows/Linux/Android/IOS |
| Print command | Compatible with ESC / POS commands |
| Print head life | 50km |
Specifications
Products Description
High quality 58mm Bluetooth auto cutter thermal receipt printer with Ethernet and USB or Bluetooth and USB interface
Product Certification
Tags: Thermal Receipt Printer
