Red Green Laser 120m Distance Meter Digital Rangefinder 100m 70m 50m Range Finder Tape Measure Electronic Level Ruler Sensor Tool
Specifications | ||||
Model | SW-50G/70G/100G | SW-T40/T60/T80/T100 | SW-TG50/TG70/TG100/TG120 | |
Working Range | 50/70/100m | 40/60/80/100m | 50/70/100/120m | |
Laser color | Green | Red | Red | |
Bubble level | Electronic level | 1 bubble | 2 bubbles | |
Reference point | 3 ( rear, middle,front) | 2(rear, front) | 2(rear, front) | |
Accuracy | ±2mm | ±2mm | ±2mm | |
Continuous measure | yes | yes | yes | |
Area measure | yes | yes | yes | |
Volume measure | yes | yes | yes | |
Pythagorean measurement | Full mode | Full mode | Full mode | |
Unit options | m/in/ft | m/in/ft | m/in/ft | |
Add and subtract measurement | yes | yes | yes | |
Working temperature | 0°C~40°C | 0°C~40°C | 0°C~40°C | |
Storage temperature | -20°C~60°C | -20°C~60°C | -20°C~60°C | |
Storage humidity | 20%~80% RH | 20%~80% RH | 20%~80% RH | |
Min/Max value | yes | yes | yes | |
Self-Calibration | yes | yes | yes | |
Laser level | II | II | II | |
Laser type | 500-535nm,<1mW | 635nm,<1mW | 635nm,<1mW | |
Max storage | 99units | 30units | 30units | |
Display | 2.2 inch | 1.8 inch | 2.0 inch | |
Automatically cut off laser | 20s | 20s | 20s | |
Automatic shutdown | 150s | 150s | 150s | |
Battery | 3x1.5V AAA (not included) | 2x1.5V AAA (not included) | 2x1.5V AAA (not included) | |
Buttons/keys sound | yes | yes | yes | |
Product dimension | 118x52x27mm | 112x50x25mm | 112x50x25mm | |
Packing Contents | 1*Laser meter | 1*Laser meter | 1*Laser meter |
Features For SW-T & SW-TG Series:
1, Instant measurement of distance, area & volume with one button operation: YES
2, Wide measuring range: YES
3, High accuracy: ±2mm (0.079inch)
4, Automatic calculation of Area and Volume: YES
5, Indirect measurement by Pythagorean Theorem: YES
6, Single/Continous measurement: YES
7, Max/Min distance tracking (display value): YES
8, Easy Addition/Subtraction of measurement: YES
9, Set up front/rear benchmark: YES
10, Selectable meter(m), inch(in) and feet(ft): YES
11, Data store/recall function: YES
12, Data Hold/Data clear function: YES
13, Air Bubble Level: YES, Included
14, Easy targeting with bright laser pointer: YES
15, Large LCD with backlight and multi-line display (4 lines): YES
16, Auto correction and error report technology: YES
17, Buzzer indication: YES
18, Battery status Indication: YES
19, IP54 protection (dust & splash proof): YES
20, Auto/Manual power off function: YES
21, Multifunction with intelligent calculation: YES
22, Compact & handy design: YES
23, CE, ROHS, FCC certificate: YES
Specifications For SW-T & SW-TG Series:
1, Measuring range: 0.05 to 100M/80M/60M/40M (0.16 to 262ft/197ft/131ft)
2, Acurracy: ±2mm (0.079inch)
3, Laser class: Class II
4, Laser maximum output: <1Mw
5, Dust & Splash proof: IP 54
6, Laser Auto off: 20S
7, Power Auto off: 150S
8, Operation temperature: 0~40C (32~104F)
9, Storage temperature: -20~60C (14~140F)
10, Power supply: 2 x 1.5V AAA battery (Please note that we have to take away the batteries due to the policy of the shipping company)
11, Dimension: 112*50*25mm (4.41*1.97*0.99inch)
12, Package Weight: approx. 200g

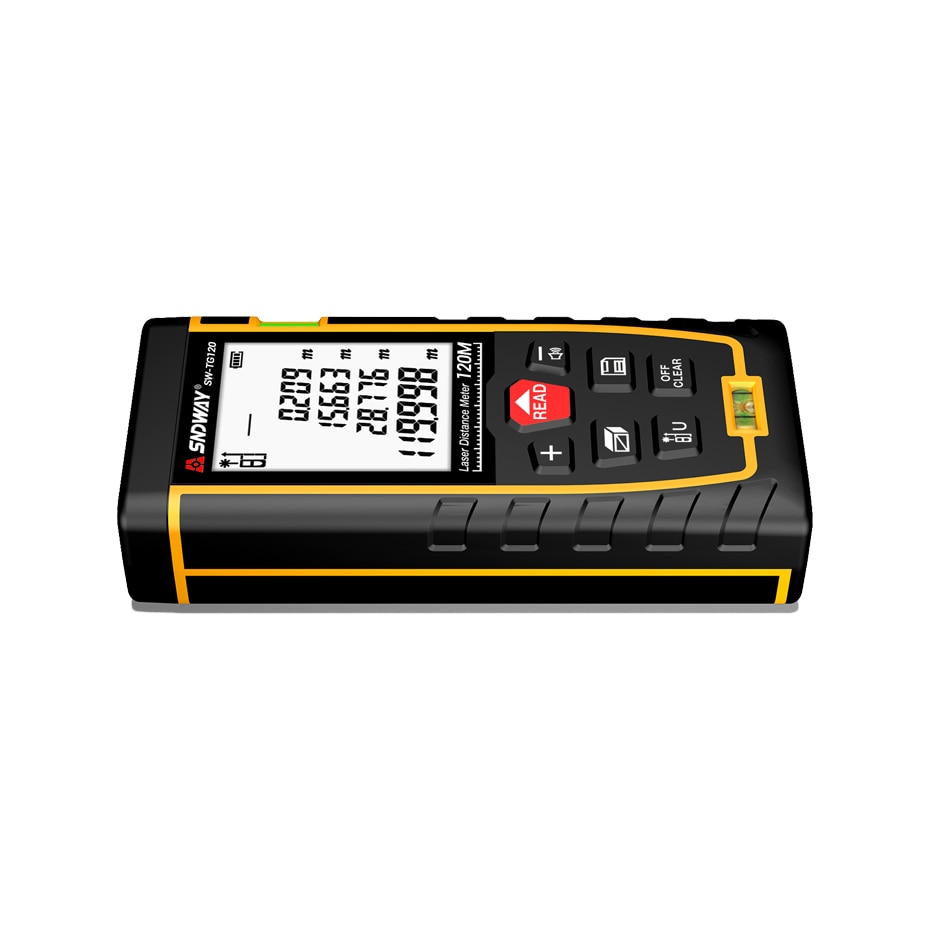

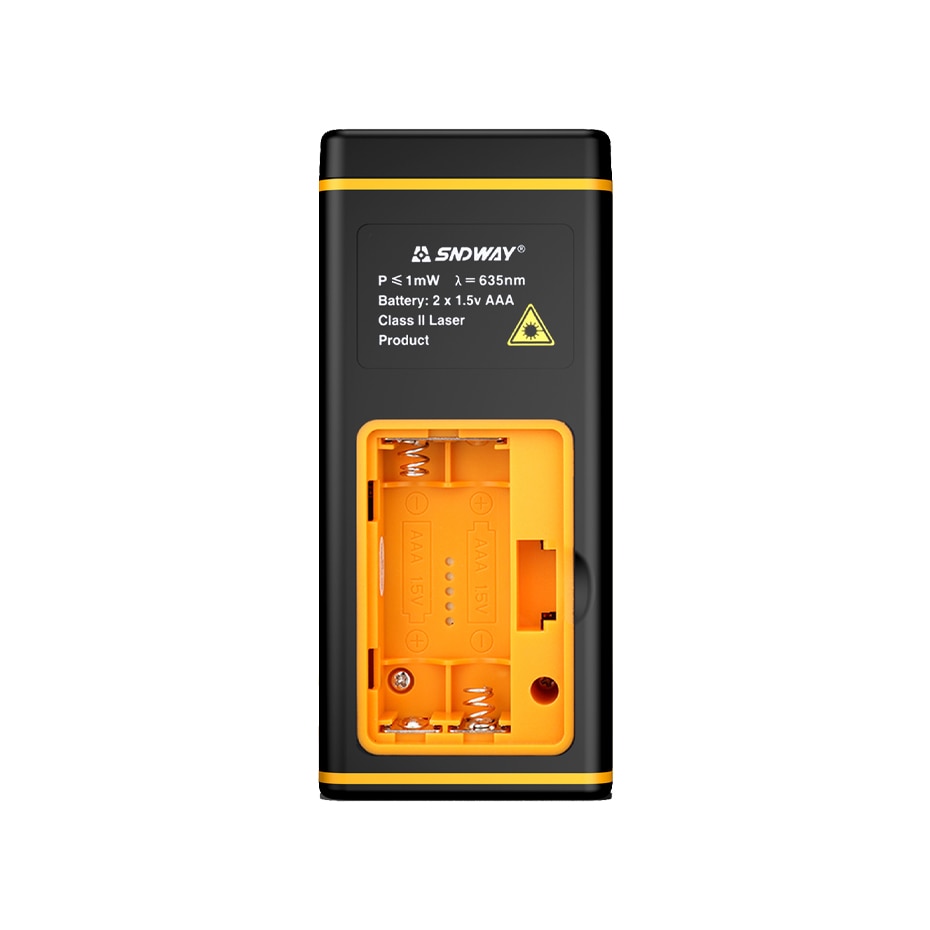

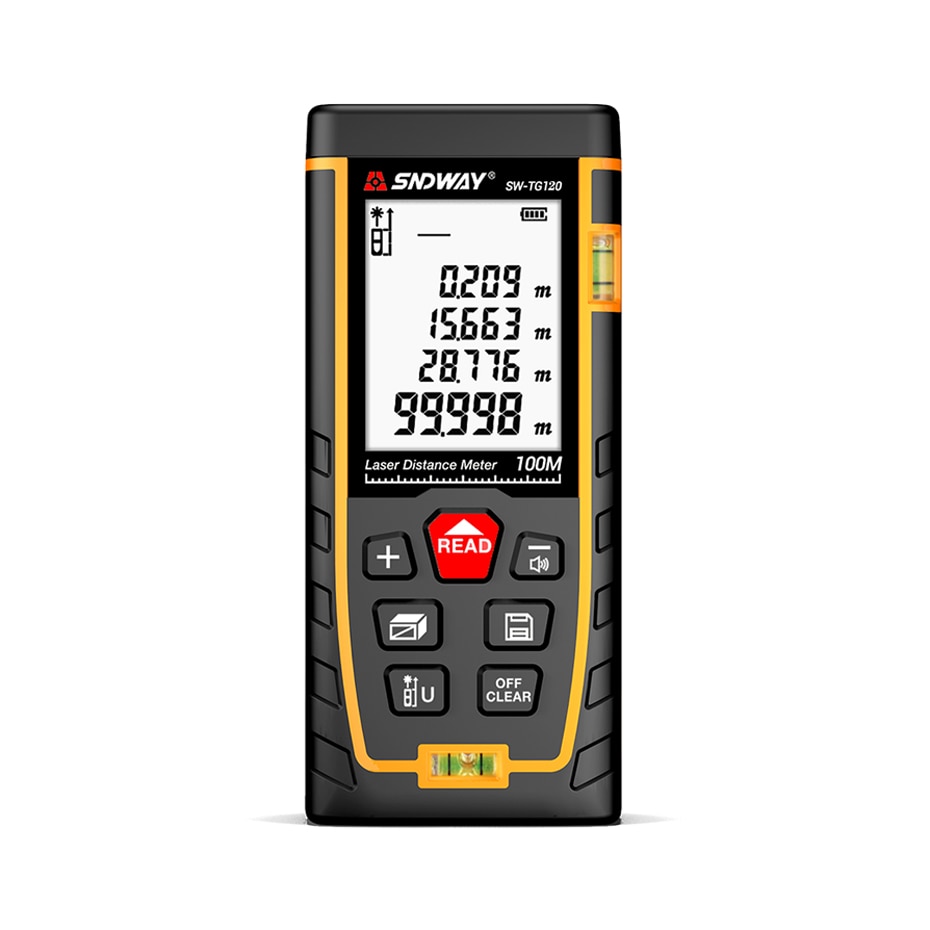

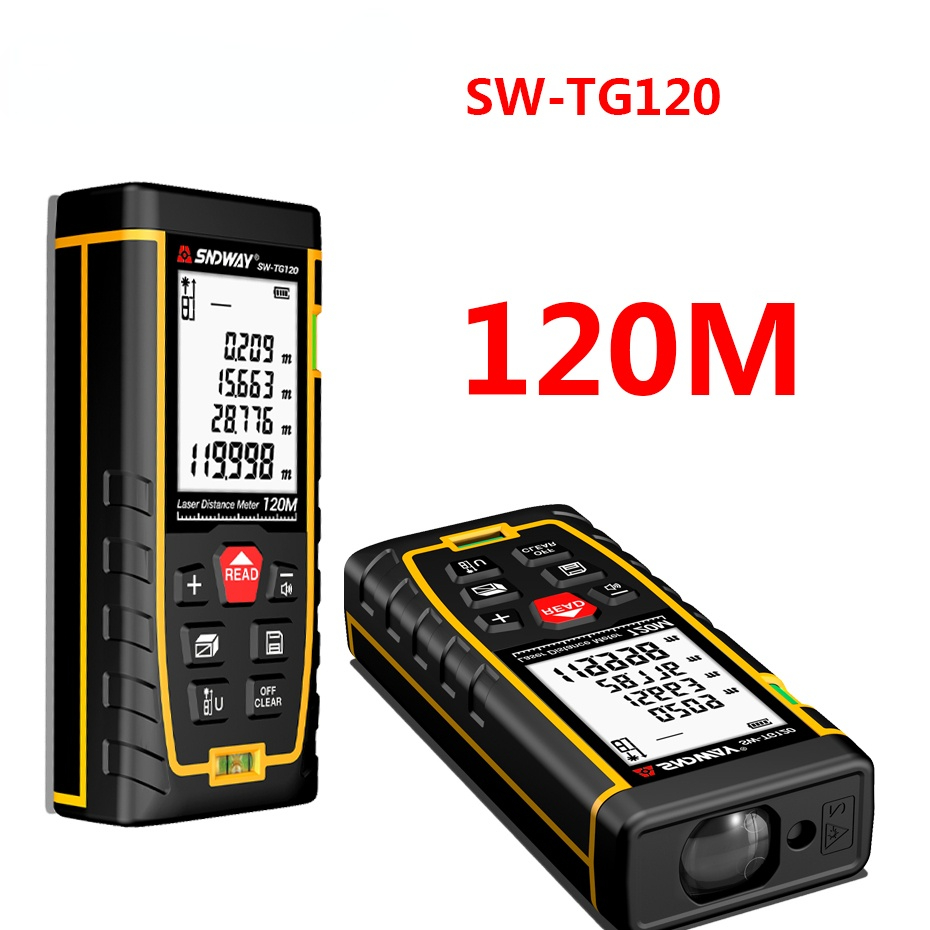

Item Pictures For SW-TG Series:
SW-TG50/SW-TG70/SW-TG100/SW-TG120
Package Contents:
1 x Laser Distance Meter
1 x Portable bag
1 x Hanging rope
1 x User manual
1 x Retail box
Specifications for SW-50G/70G/100G
1, Model: SW-50G/SW-70G/SW-100G
2, Working Range: 50m/70m/100m
3, Distance measurement precision: ±2mm
4, Continuous measurement function: yes
5, Area measurement function: yes
6, Volume measurement function: yes
7, Pythagorean measurement function: Full mode
8, Painter function: yes
9, Angle function: yes
10, Add and subtract measurement: yes
11, Min/Max value: yes
12, Self-Calibration: yes
13, Laser level: II
14, Laser type: 500-535nm,<1mW
15, Max storage: 99 units
16, Automatically cut off laser: 20s
17, Automatic shutdown: 150s
18, Buttons/keys sound: yes
19, Storage temperature: -20°C~60°C
20, Working temperature: 0°C~40°C
21, Storage humidity: 20%~80% RH
22, Battery: 3x1.5V AAA (not included)
23, Angle range: ±90°
24, Product dimension: 118x52x27mm
Item Pictures For SW-50/70/100G
SW-50G/SW-70G/SW-100G Green Laser Distance Meters
