SM6236E Non-contact Laser Digital Tachometer LCD RPM Rotation Speed Meter Contact Surface Speed (m/min) Tach Measurement Tools
Features:
1.The tachometer uses microcomputer (CPU) technique， photoelectrictechnology，anti-jamming technique and junction
laser technique fornoncontact measurement of rotation speed (RPM) or contact measurement ofrotation speed (RPM),
surface speed (m/min) Wide measuring range and highresolution.
2.Wide measuring range and high resolution.
3.Large screen LCD display provides clear reading.
4.White backlight guarantee reading in any light environment.
5.Automatically save Max, Min and last value, also save 96 set ofcontinuous data. (The tachometer starts to store data after first reading)
6.Low battery voltage indication.
7.Easy switch between contact and noncontact mode.
8.Surface speed wheel with groove to test surface speed or length ofwire, cable, or rope conveniently.
9.Smooth housing design, comfortable to hold and use.
10.The instrument is delicate and rugged. It uses the durable, long-lasting components and a strong, light weight ABS plastic housing.
TECHNICAL SPECIFICATION:
Display: 5digital, 18mm LCD
Range:
2.5~99999RPM noncontact mode
0.5~19999 RPM contact mode
0.05~1999.9 m/min contact mode
Resolution:
Noncontact rotation Speed:
0.1 RPM (0.5~999.9RPM)
1 RPM (above 1000RPM)
Contact rotation Speed:
0.1 RPM (0.5~999.9RPM)
1 RPM (above 1000RPM)
Surface Speed: 0.01m/min (0.05~99.99m/min)
0.1m/min (above 100m/min)
Accuracy: ± (0.05%+1digital)
Sampling Time: 0.8second (over 60RPM)
Range Select: Auto-range
Time Base: 6MHz Quartz crystal
Detecting Distance: 50mm-500mm

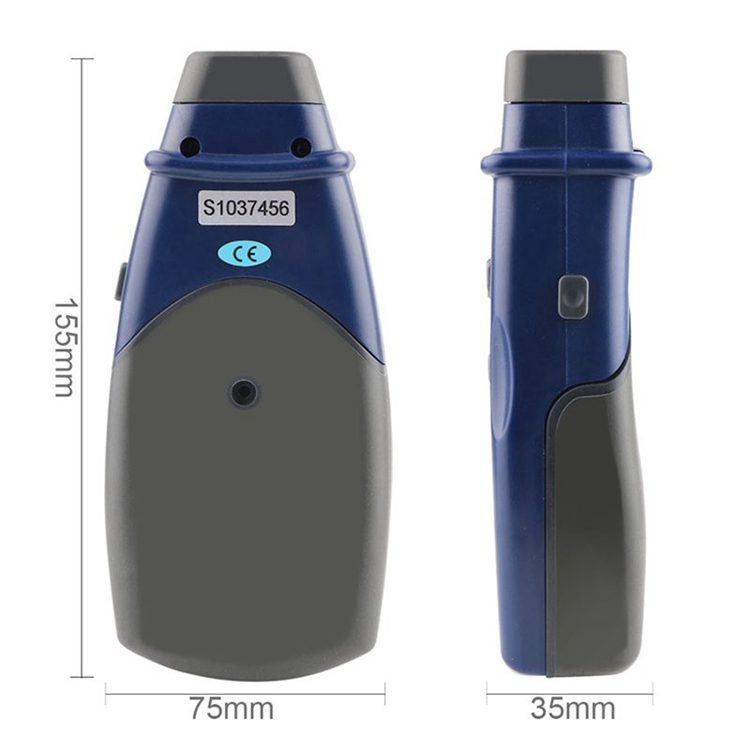

Dimension: 155*70*35mm(without contact tacho part)
Power: 3×1.5V AAA battery(Not Included)
Power Consumption: about 50mA
Color: As Photo
Size (L*W*H): 21*7.4*3.7cm / 8.27*2.91*1.46in
Weight: Approx. 436g/15.4oz

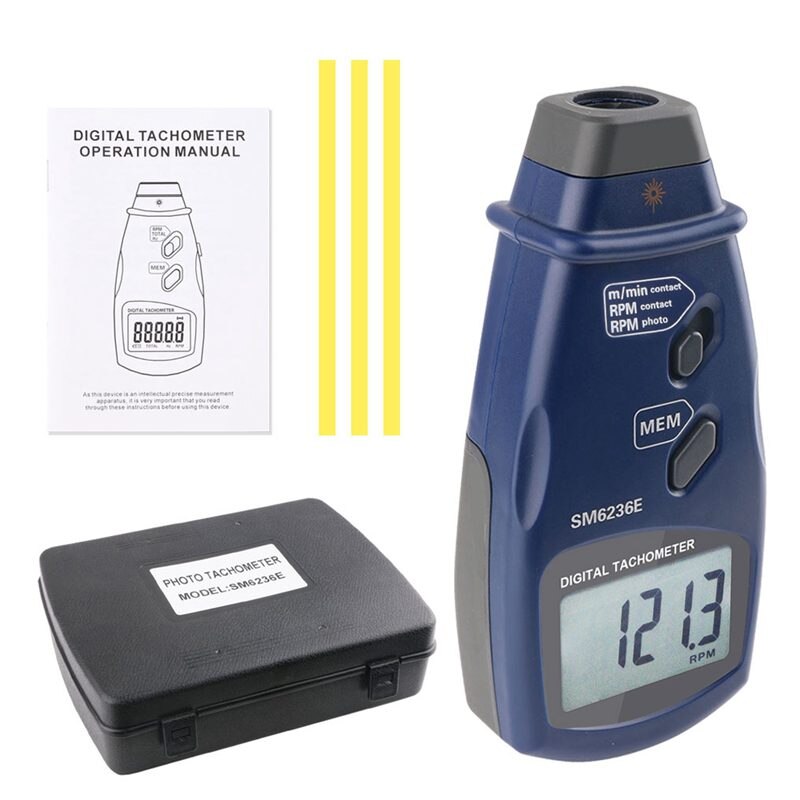

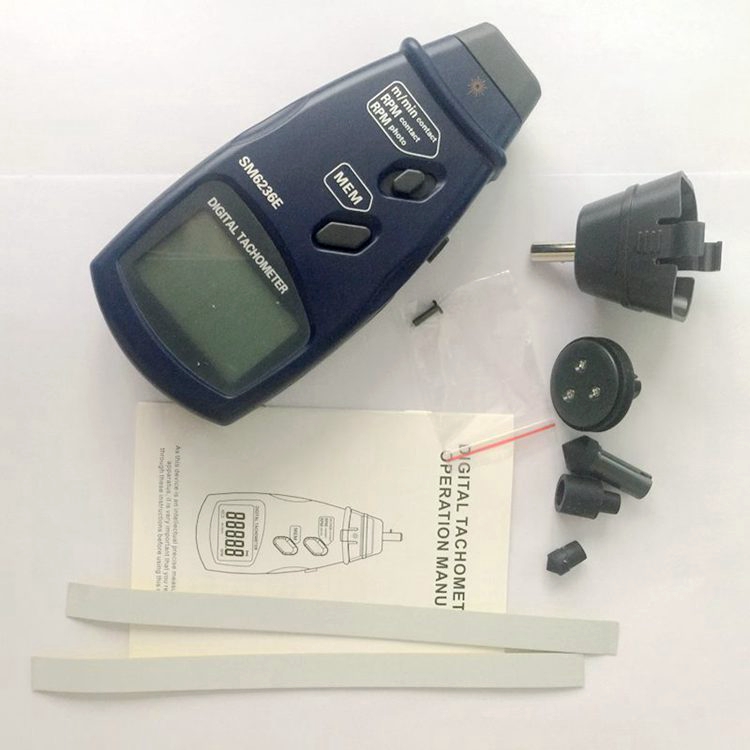

Package list:
1 * Tachometer
1 * User Manual
3 * Reflective Paper
1 * Screw
4 * Tach Accessories
1 * Photoelectric Tach Head
1 * Storage Case
Note:
1. Due to the difference between monitors and light effect, the pictures maynot reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for yourunderstanding.
