FNIRSI-C1 Product Manual：https://www.mediafire.com/file/ju57qo52v3tx3nf/FNIRSI-C1_Product_Manual_v1.0.docx/file
FNIRSI-C1 Firmware-v0.70:https://www.mediafire.com/file/6t34k5gbf7kbhkc/FNIRSI-C1_Firmware_V0.70.rar/file
https://www.mediafire.com/file/smyrax4h6q64jei/FNIRSI-FNB48_Bluetooth_APP_Manual_V1.0.pdf/file

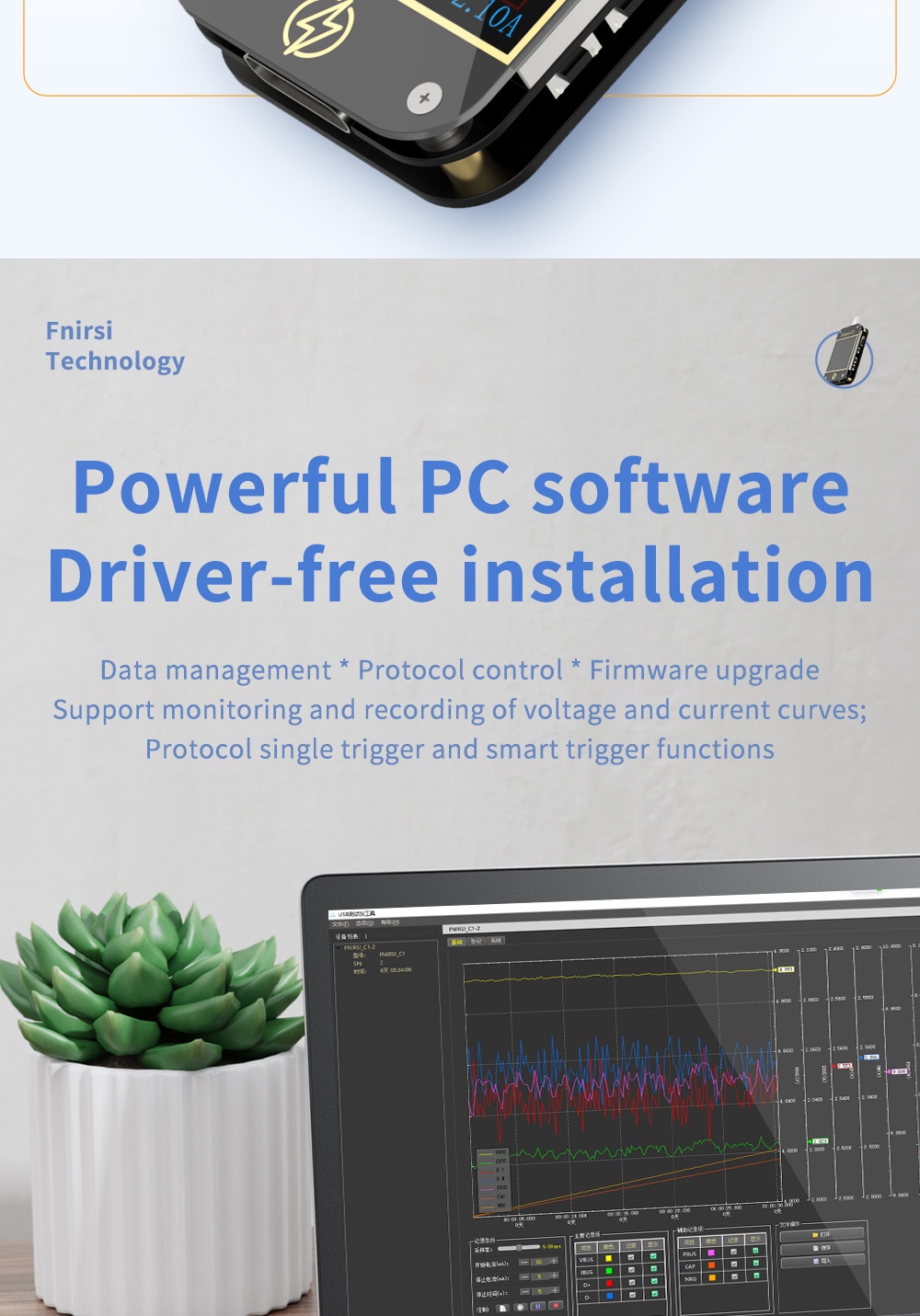

FNIRSI Usb Tester PC Software:
https://www.mediafire.com/file/cnx1i9umpt4tqbg/FNIRSI_UsbMeter_PC_Software.rar/file
PC Software Manual：https://www.mediafire.com/file/i9cw11iu5zaucea/FNIRSI_UsbMeter_PC_Software_V0_0_4.rar/file
FNRISI USB Tester Update Tool：https://www.mediafire.com/file/qklhiw8sfkg7q8s/FNRISI_USB_tester_Update_Tool.rar/file
Compatibility Issues
①There may be incompatibilities problems of the PC software with some Windows systems, if you really need it, please install and test the software before buying the product.

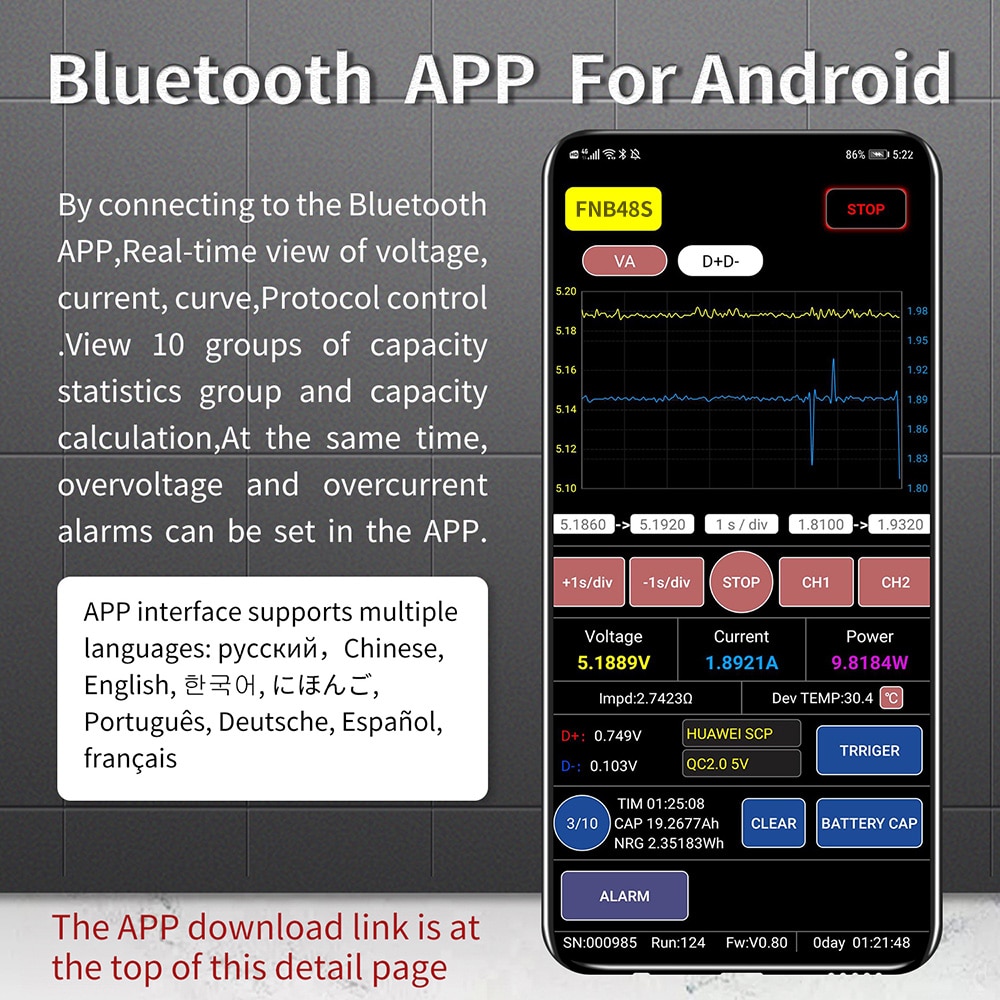

②There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need APP, please install and test the APP before buying the product.
③If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.
④Please do install and test the APP if you use Samsung mobile phone.

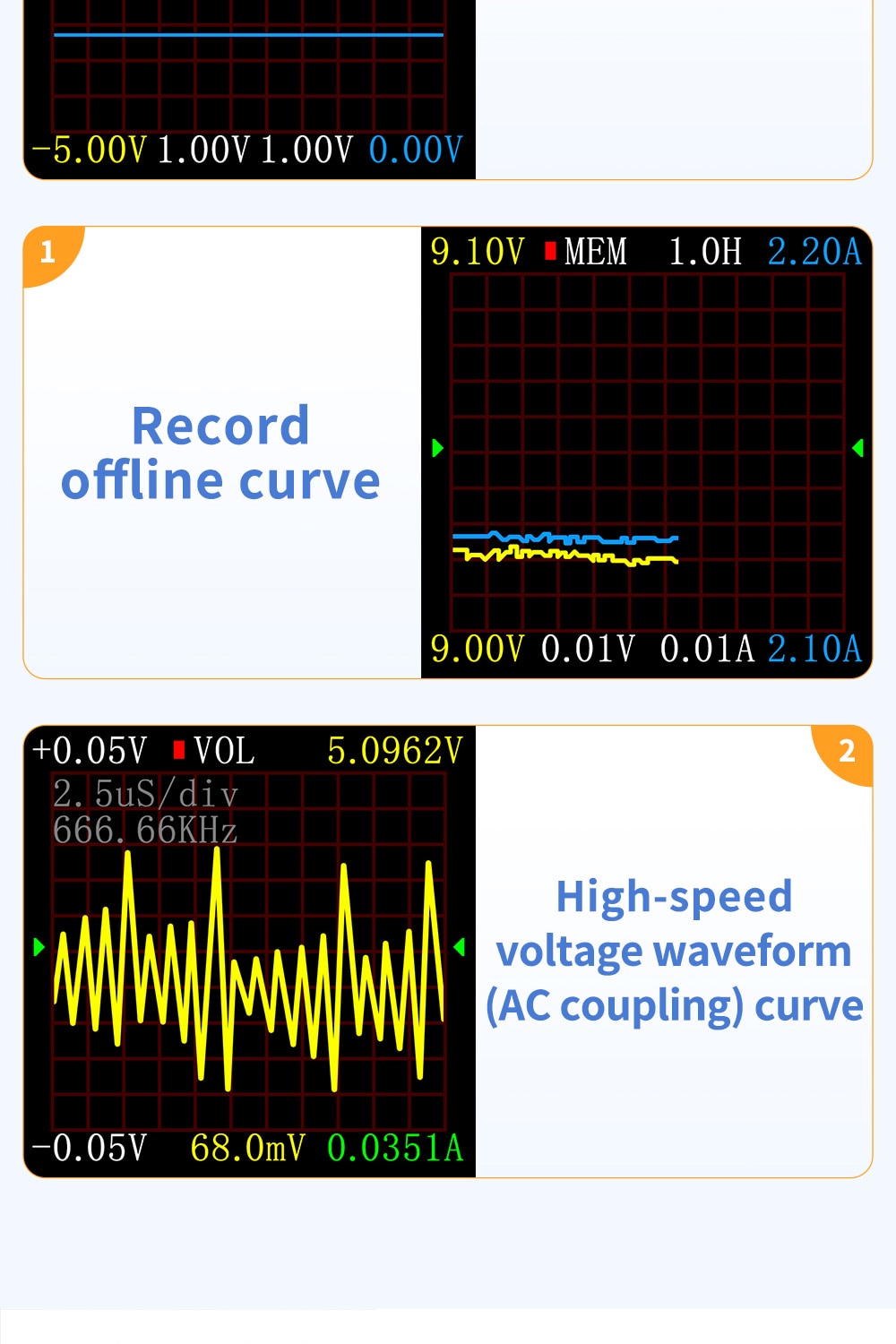

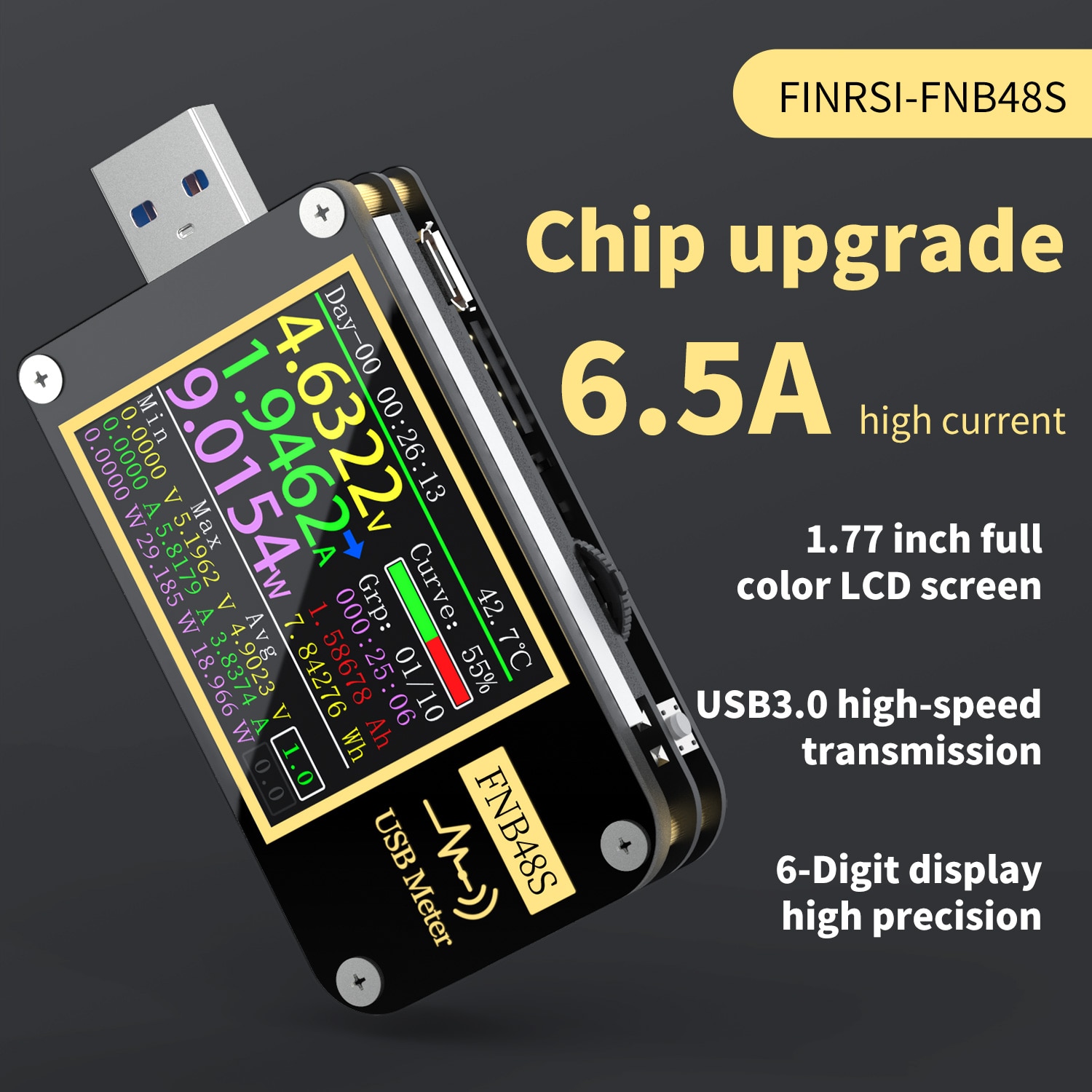

This tool is an multifunction protocol capacity test tool, it integrated USB-A, Micro-USB, type-C interface, with 1.77 inch high definition display screen, using external 16-bit ADC, PD protocol physical chip, which can real-time monitoring of the voltage, current, power, capacity, recharging protocol, curve waveform and so on, come on and try it, it will not let you down.

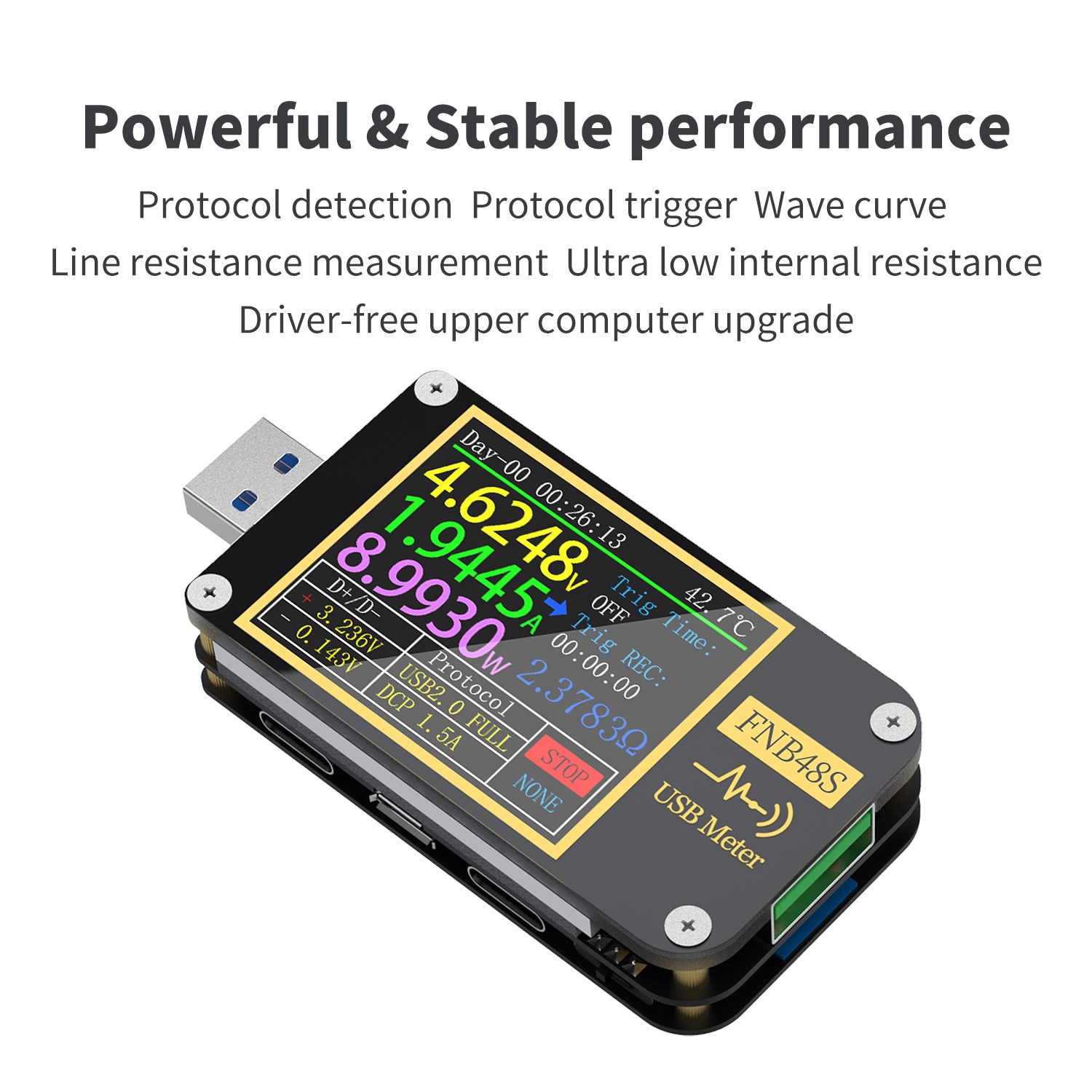

Features:
Five-bit or six-bit display can be switched by one button , with the maximum resolution of 0.00001, which can real time monitoring of the subtle changes in voltage, current and power during recharging.
This product uses USB3.0 interface, 9 pin design, downward compatible with USB2.0,+ times the transmission rate of USB2.0.There is no need to use the primary data cable, it can also directly test the recharger agreement of some mobile phones.

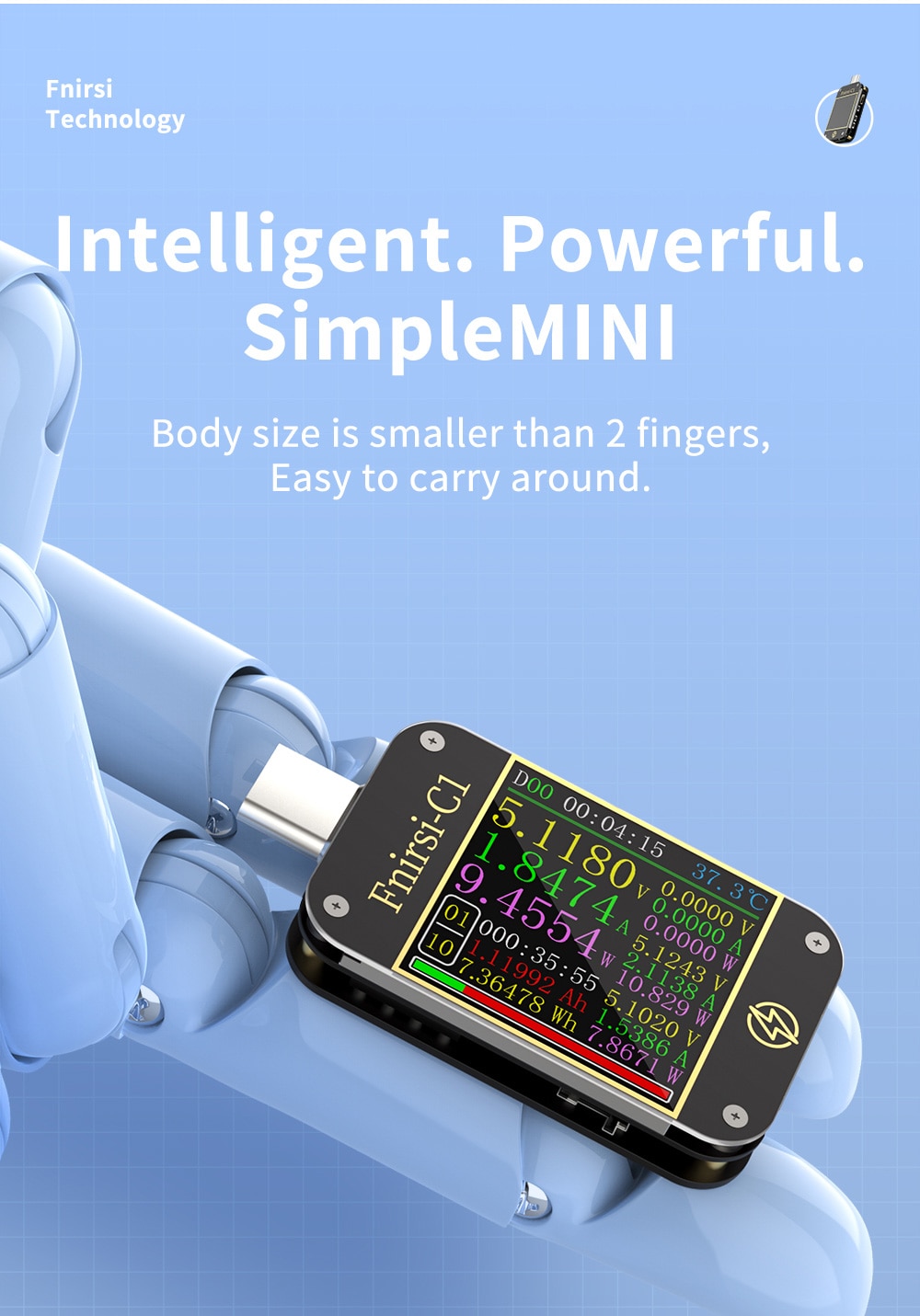

It is in small size, so you can take it with you to anywhere you want to use it, or you can take it and share it with your friends.

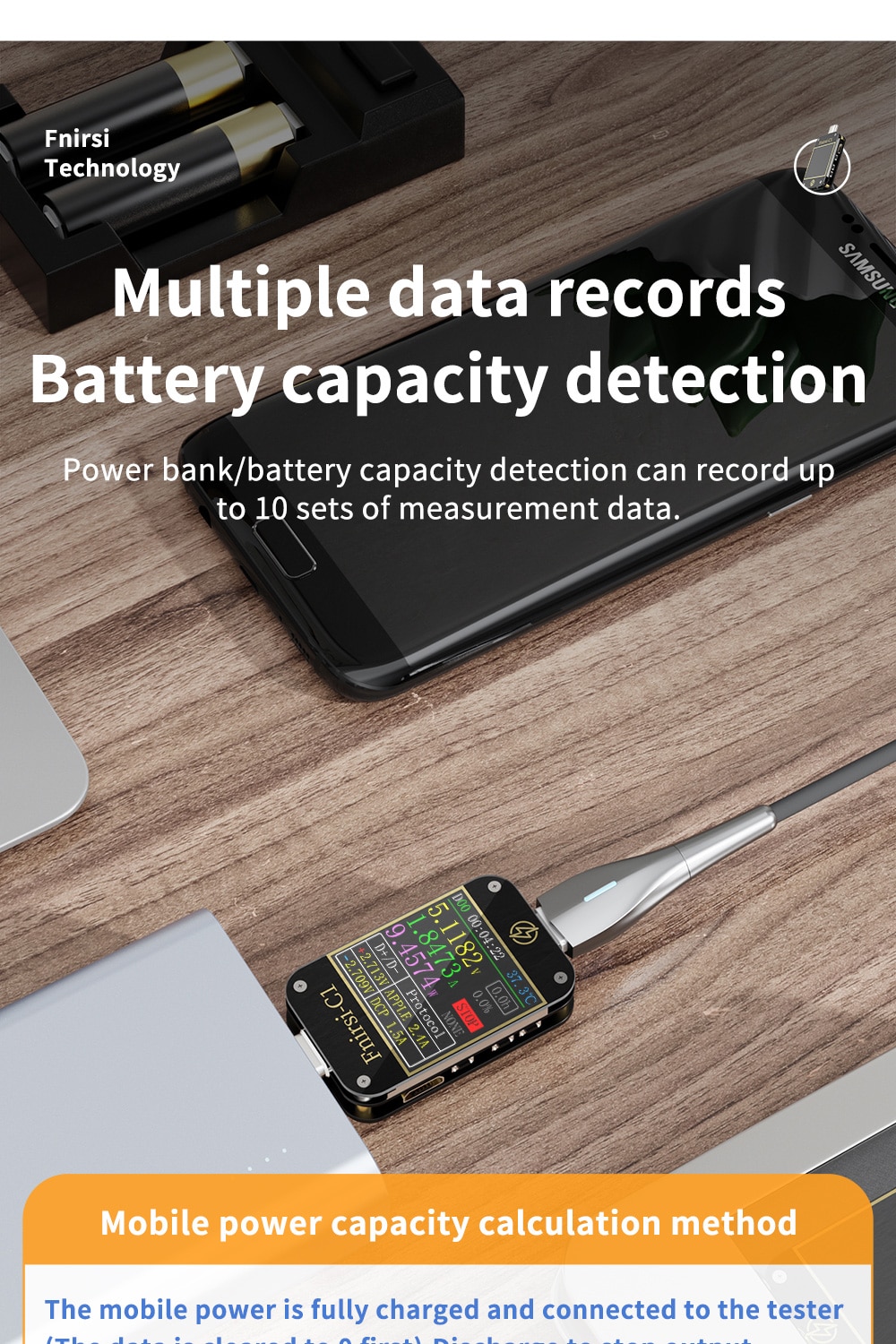

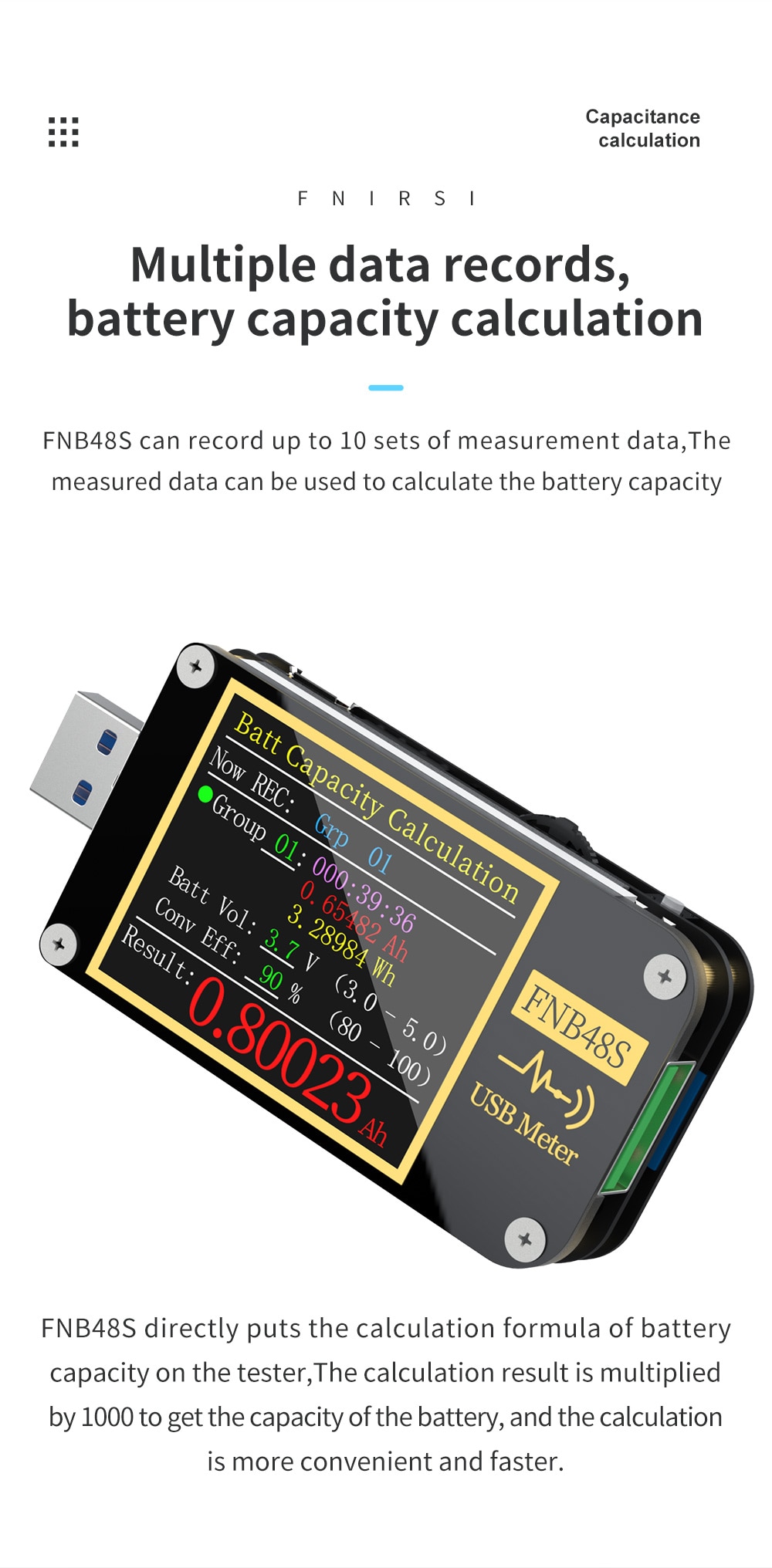

This product can record 10 sets of measurement data, you can use the data you get to calculate the capacity of battery.
This product directly add the calculate formula on this product, the result multiply 1000 to get the capacity of battery.

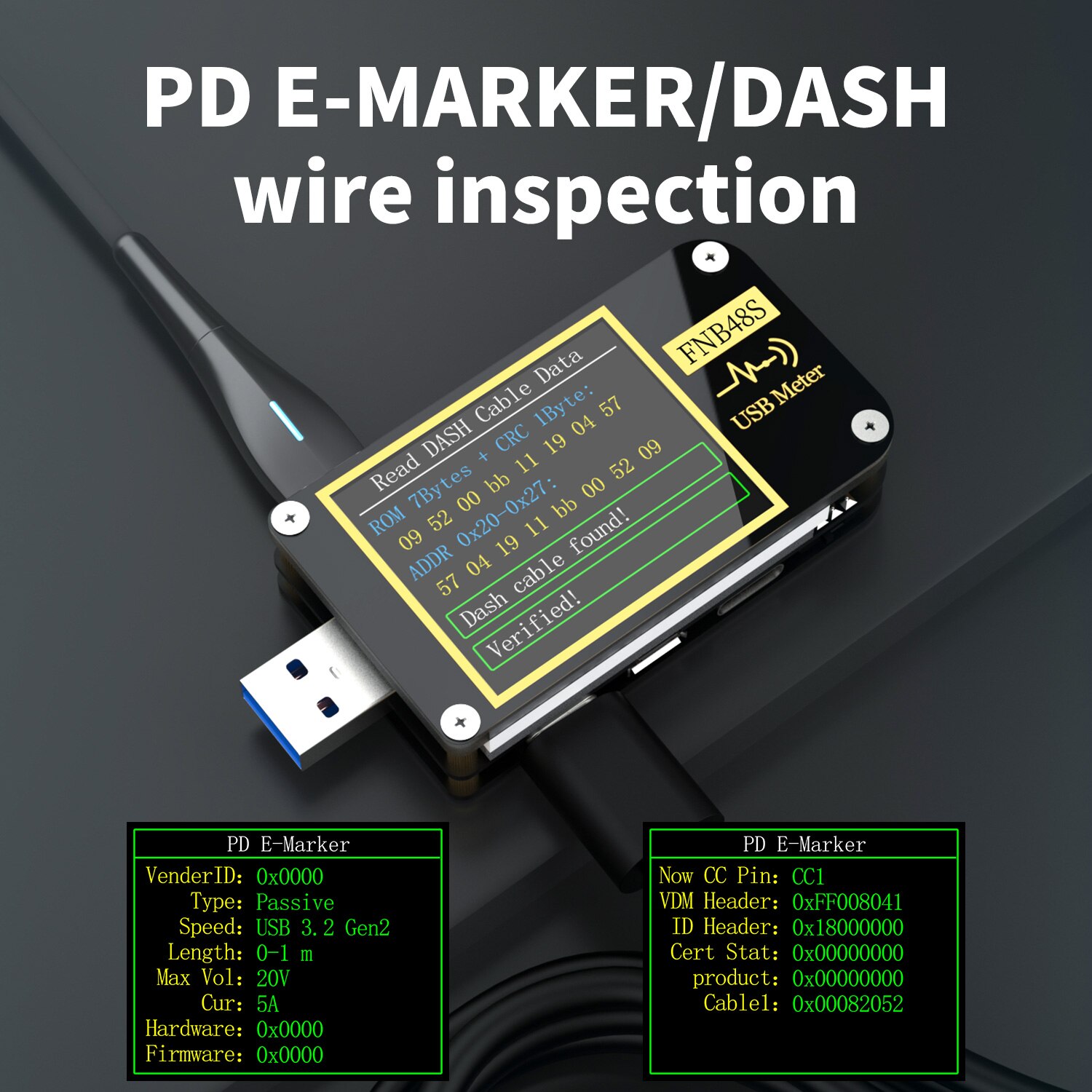

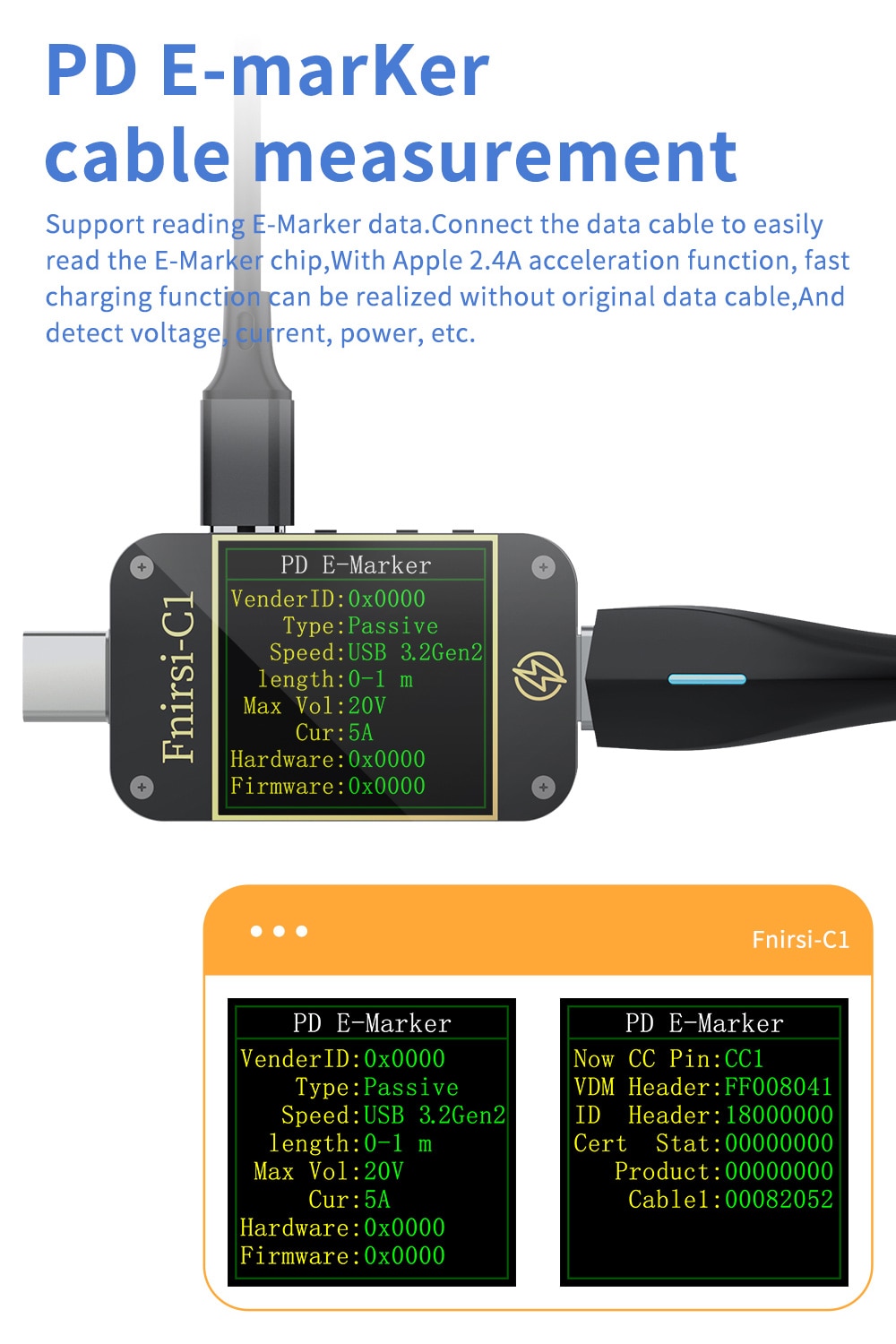

This product support read the data of E-Marker and DASH cable, and the chips of e-marker and DASH cables can be easily read after connecting the data lines.

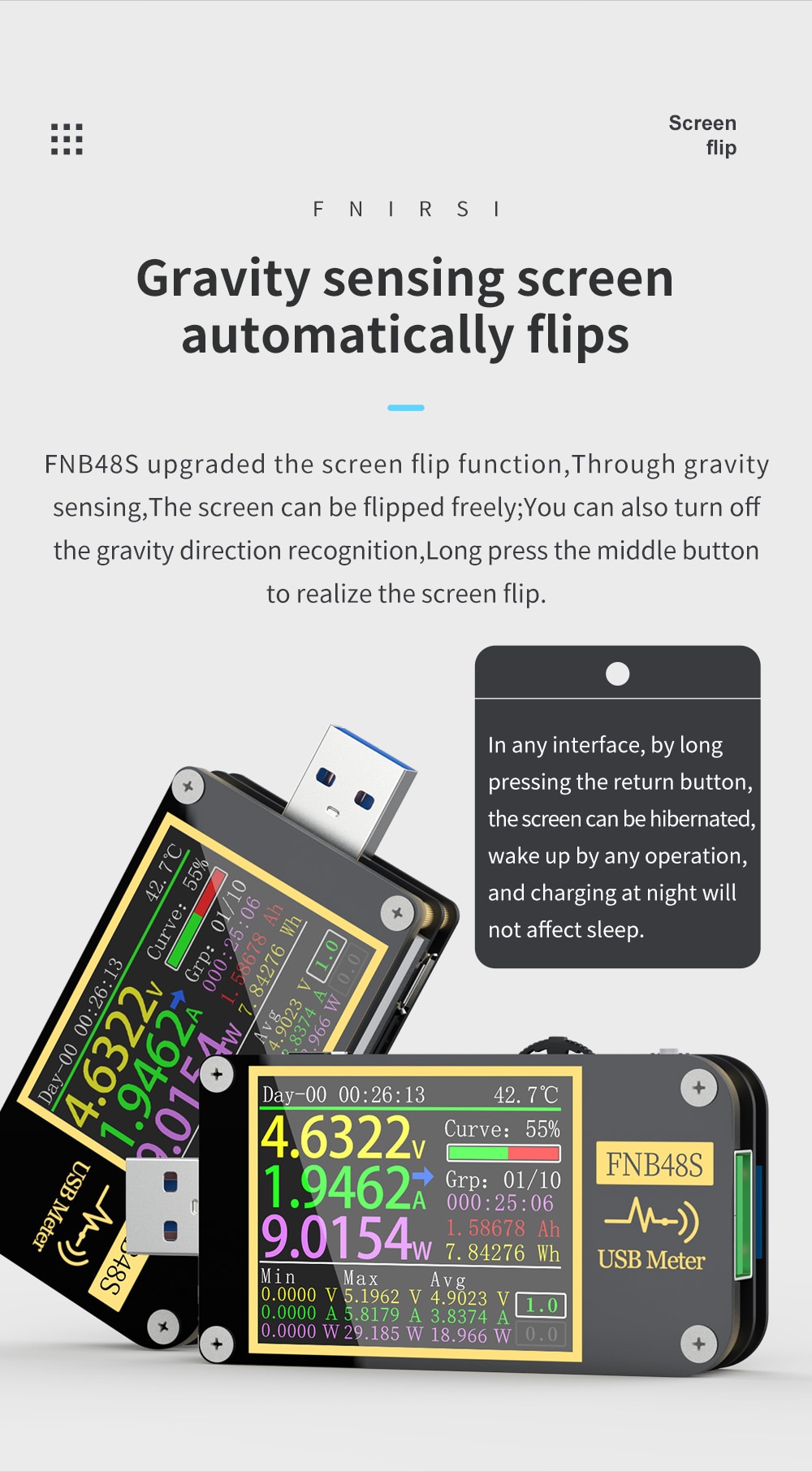

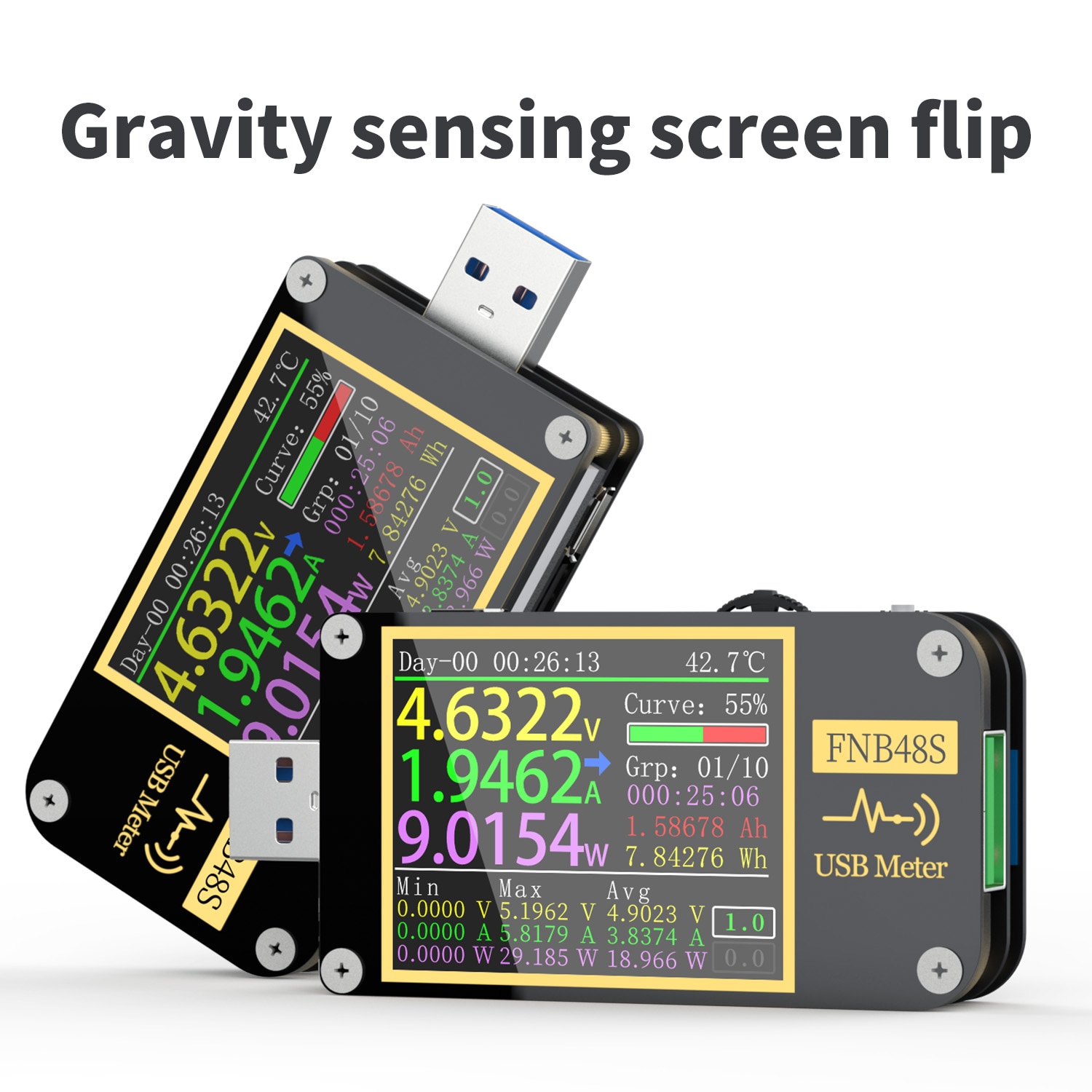

This product support screen flip function, through the gravity-induction, the screen can be free to flip, you can also turn off gravity-direction recognition and flip the screen by long pressing the middle key.

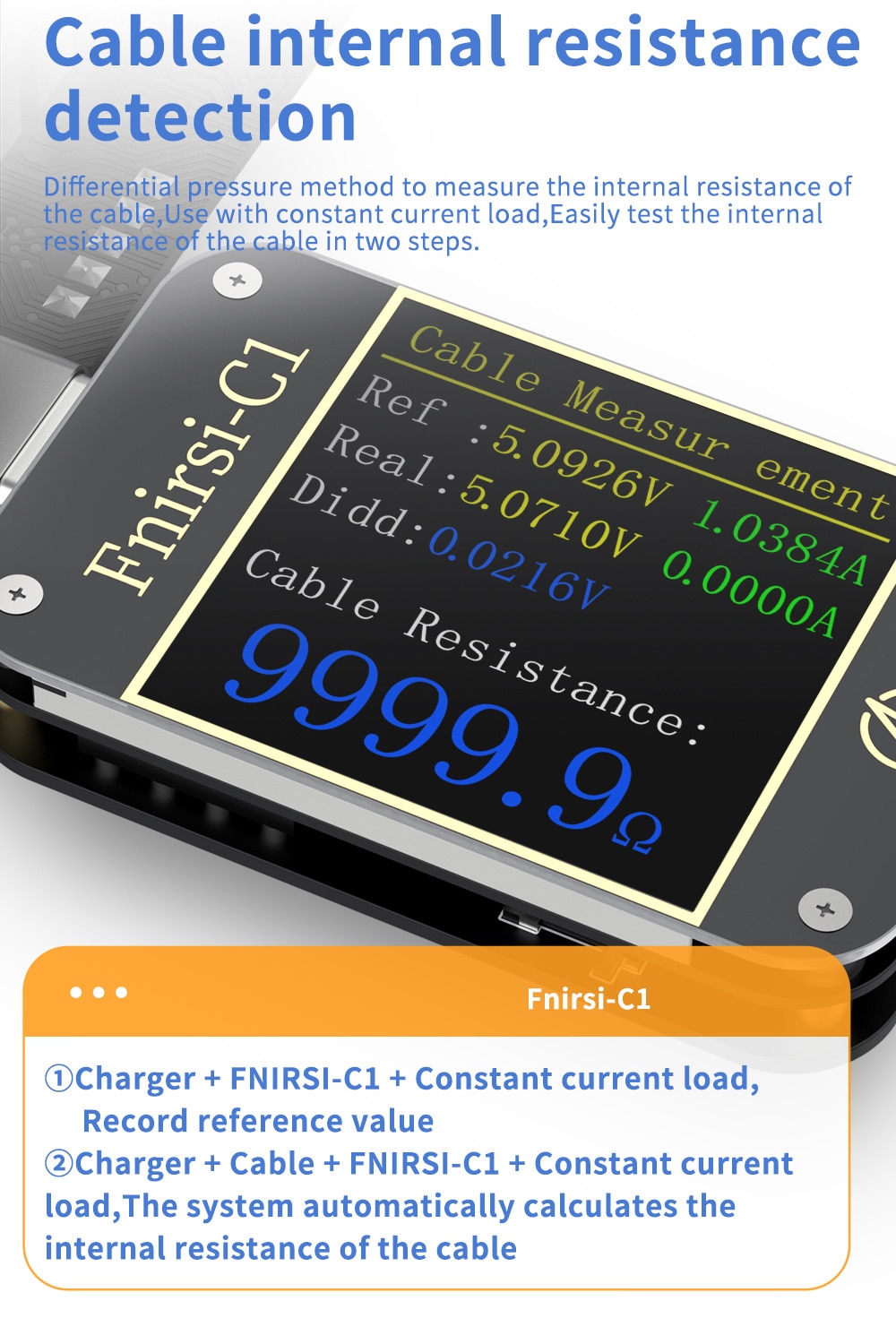

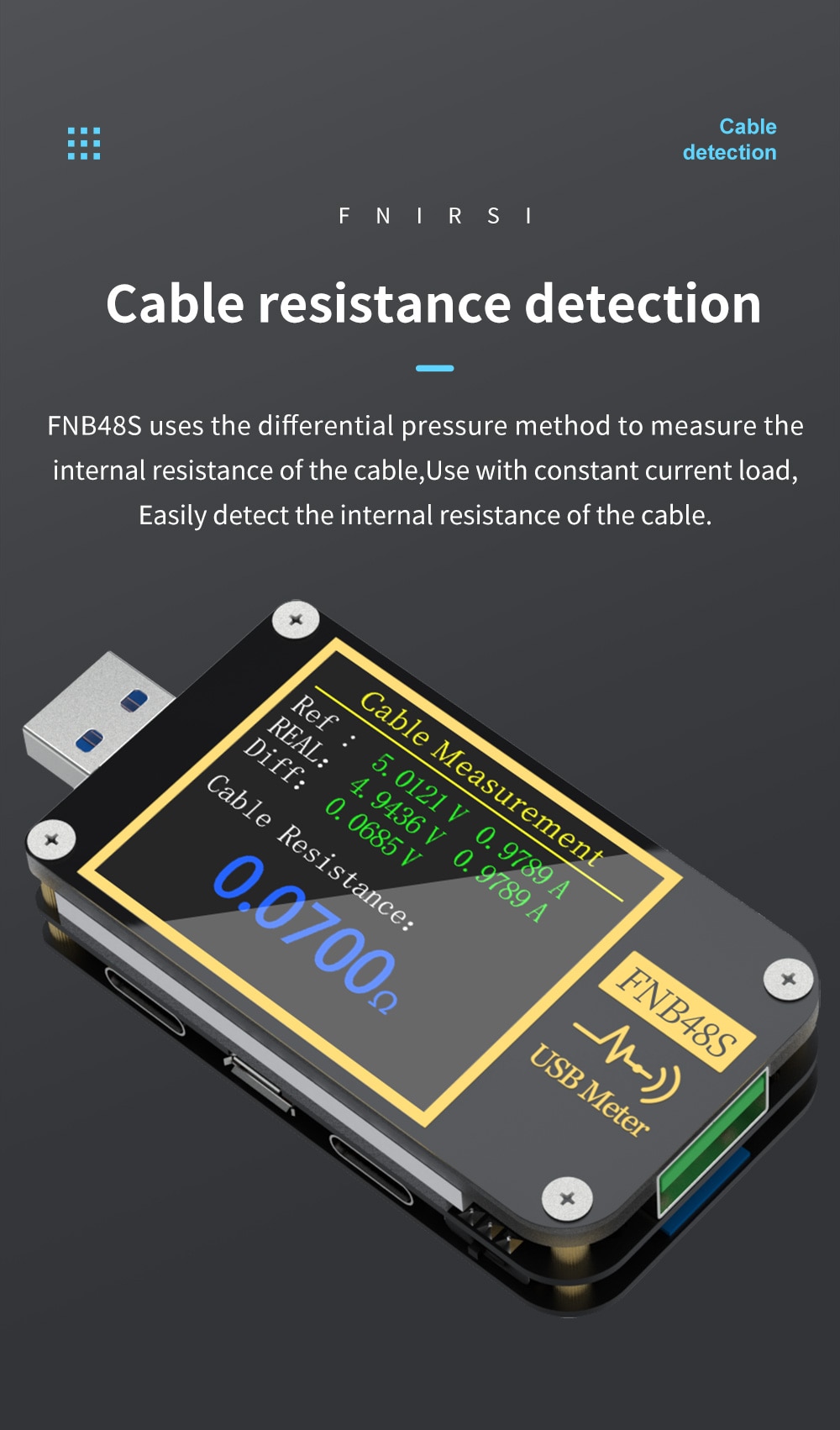

This product uses differential pressure method to measure cable resistance. It is used with constant current load to easily detect cable resistance.
Specifications:
Material: ABS
Monitor voltage: 4~24V
Monitor voltage resolution: 0.00001V
Monitor voltage accuracy: ±（0.2%+2）
Monitor current: 0~6.5A
Monitor current resolution: 0.00001A
Monitor current accuracy: ±（0.5%+2）
Monitor power: 0~156W
Monitor current resolution: 0.00001W
Monitor current accuracy: ±（0.5%+2）
Load equivalent international resistance: 0~9999.9Ω
Load equivalent international resistance resolution: 0.0001Ω
Load equivalent international resistance accuracy: ±（0.5%+2）

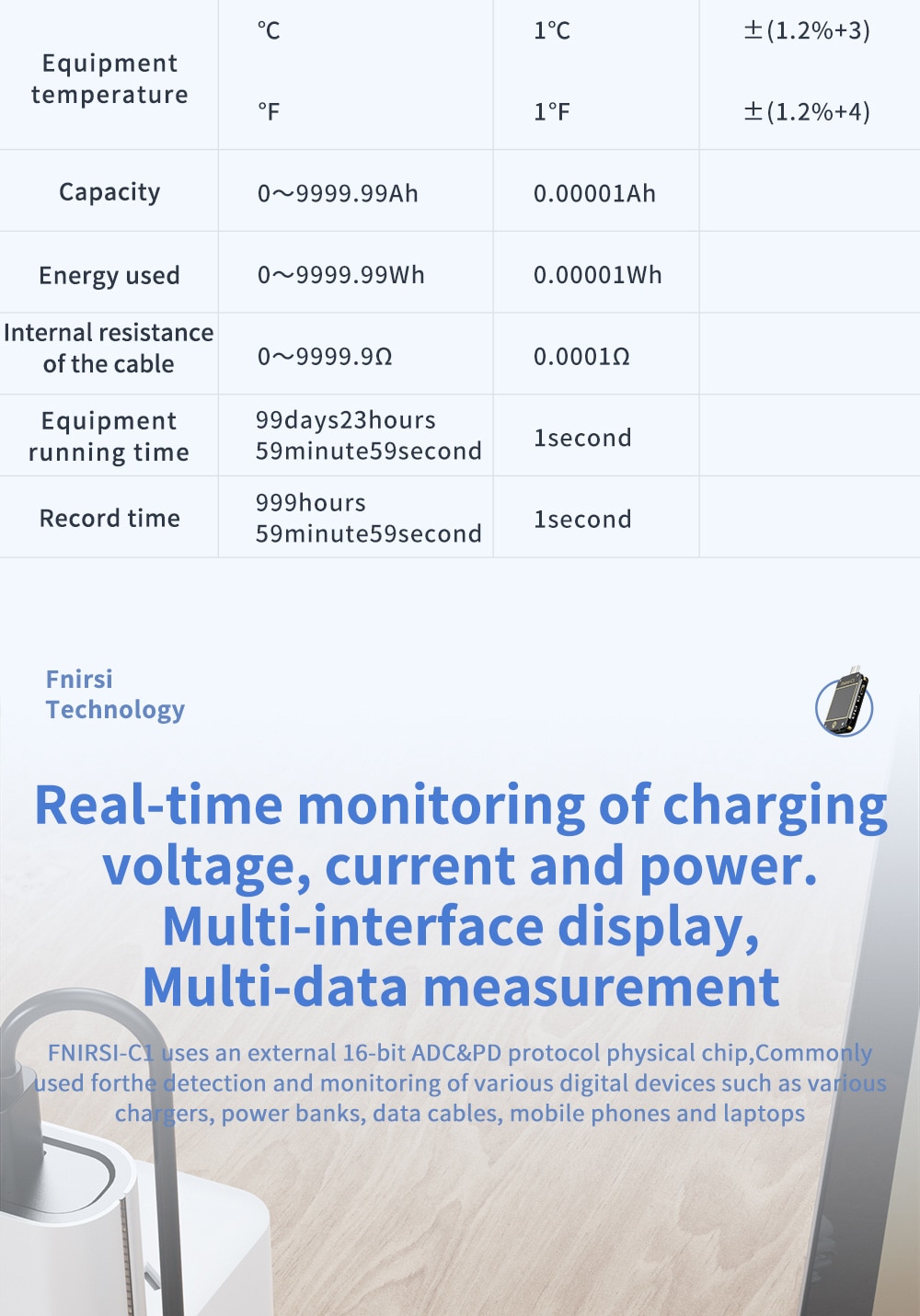

Capacity: 0~9999.99Ah
Energy used: 0~9999.99Wh
Cable resistance: 0~9999.99Ω
D+/D- voltage: 0~3.3V
D+/D- voltage resolution: 0.001V
D+/D- voltage accuracy: ±（1.0%+2）
Equipment temperature: ℃/℉

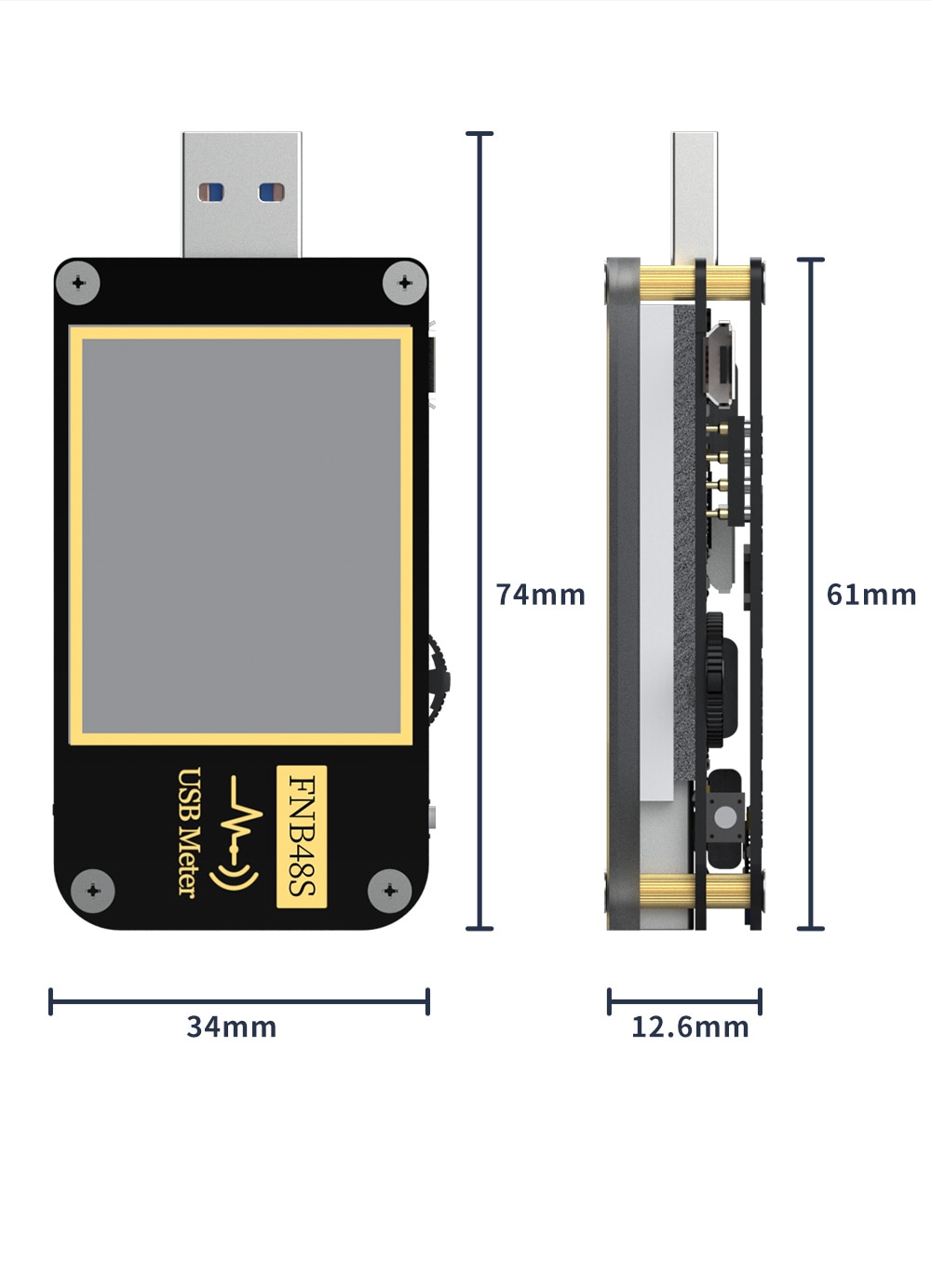

Package size: 91 * 63 * 19mm / 3.6 * 2.5 * 0.7in
Package weight: 55g / 1.9ounce
Packing list:
1 pcs * FNIRSI FNB48S

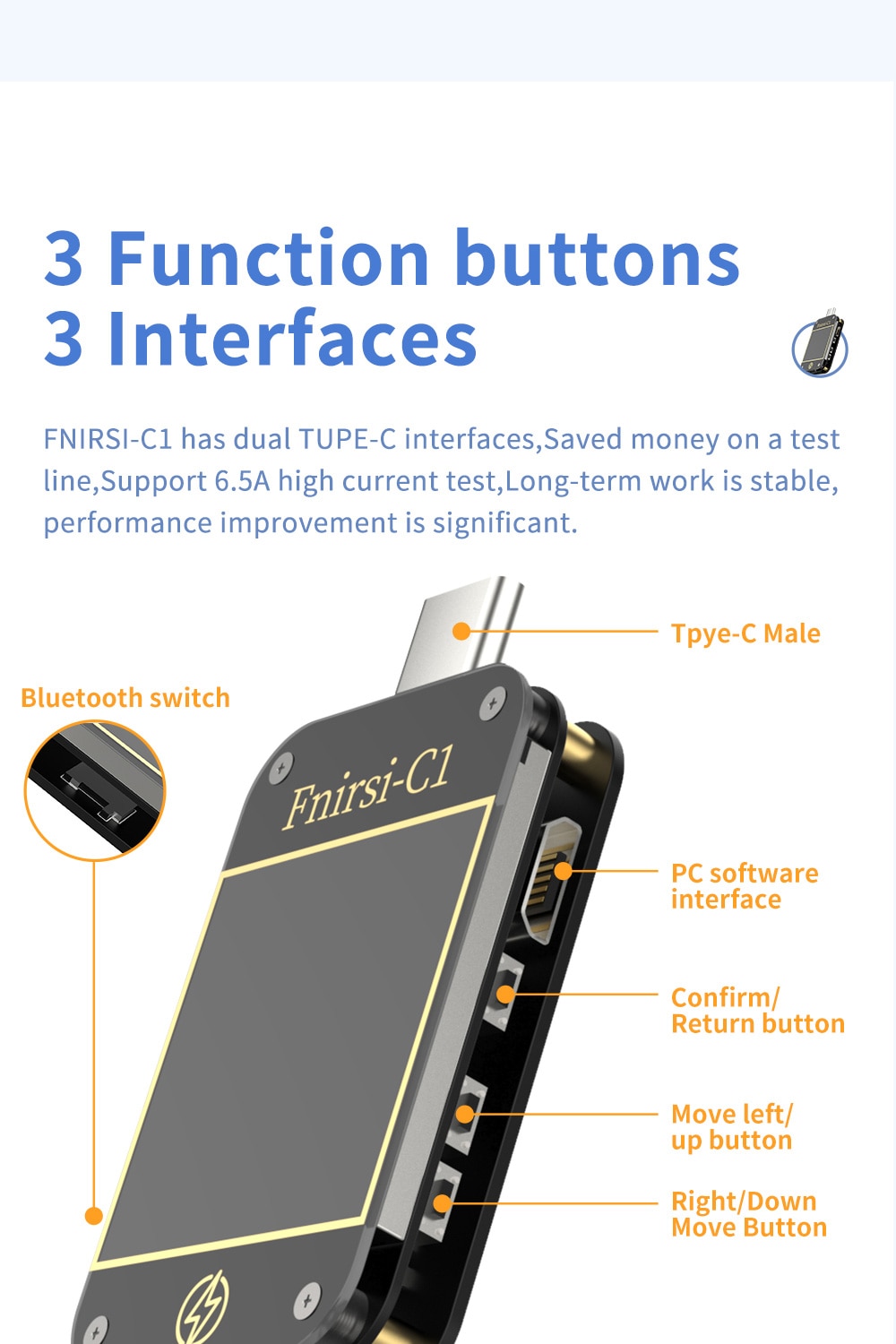

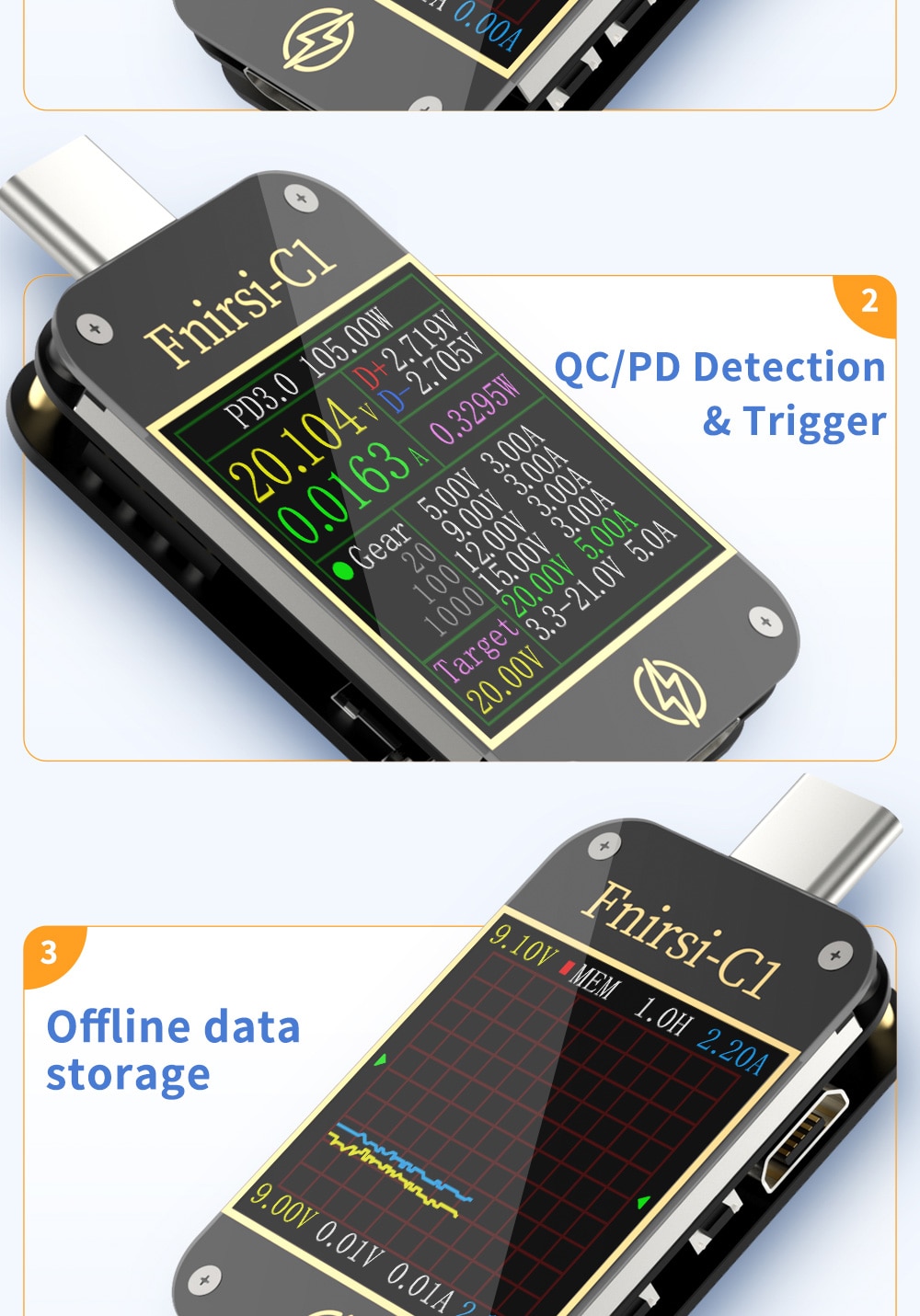

FNIRSI-C1 Type-C PD Trigger USB-C Voltmeter Ammeter Fast Charging Protocol Test Type-C Meter Power Bank tester

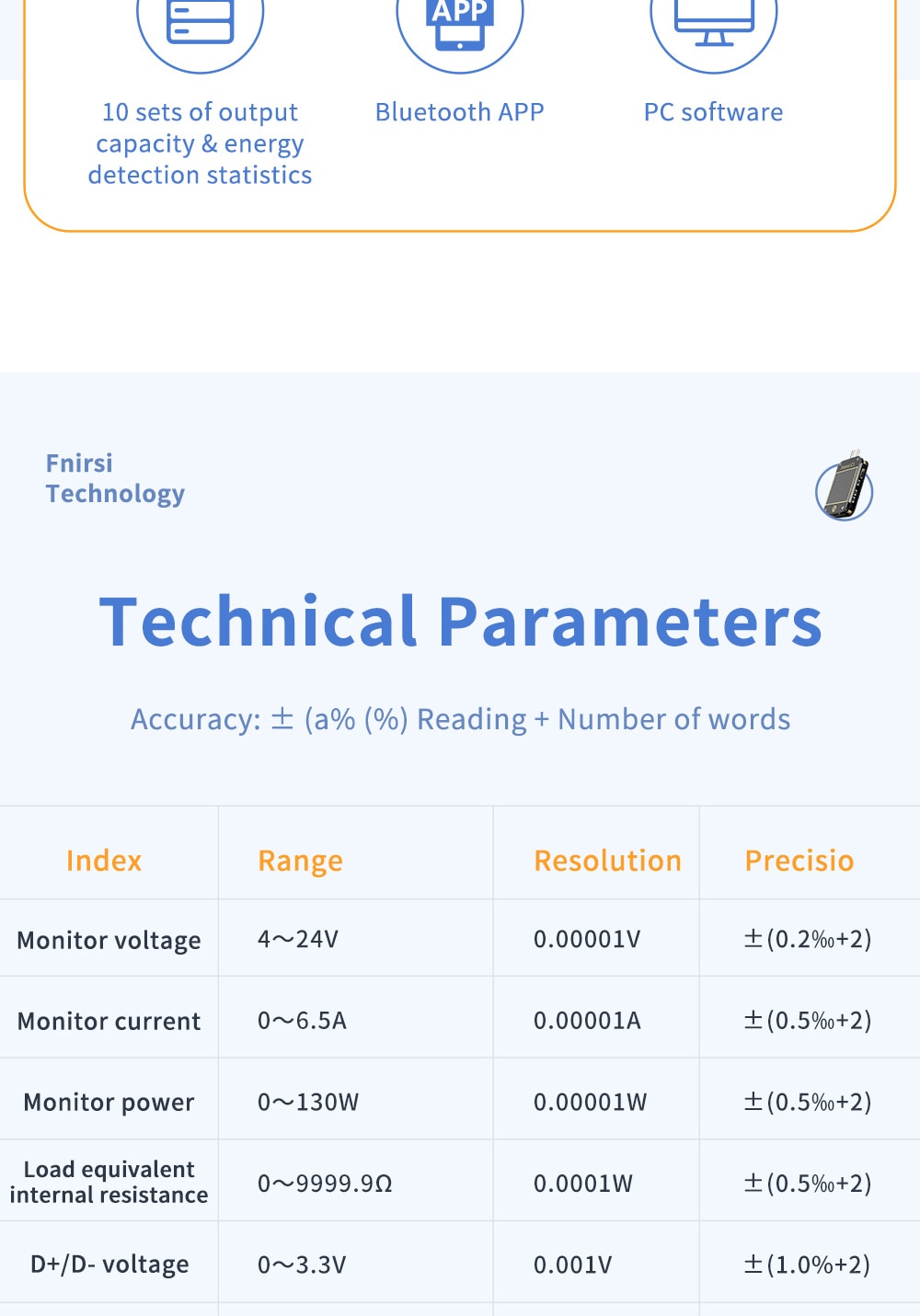

Specifications:
Monitoring voltage: 4~24V
Monitor voltage resolution: 0.00001V
Monitoring voltage accuracy: ±(0.2‰+2)
Monitoring current: 0~6.5A
Display current resolution: 0.00001A
Monitoring current accuracy: ±(0.5‰+2)
Display power: 0~130W
Display current resolution: 0.00001W
Monitoring current accuracy: ±(0.5‰+2)
Load equivalent resistance: 0~9999.9Ω
Load equivalent resistance resolution: 0.0001Ω
Load equivalent resistance accuracy: ±(0.5‰+2)
Capacity: 0~9999.99Ah
Use energy: 0~9999.99Wh
Cable resistance: 0~9999.9Ω
D+/D- voltage: 0~3.3V
D+/D- voltage resolution: 0.001V
D+/D- voltage accuracy: ±(1.0%+2)
Equipment temperature: ℃/℉

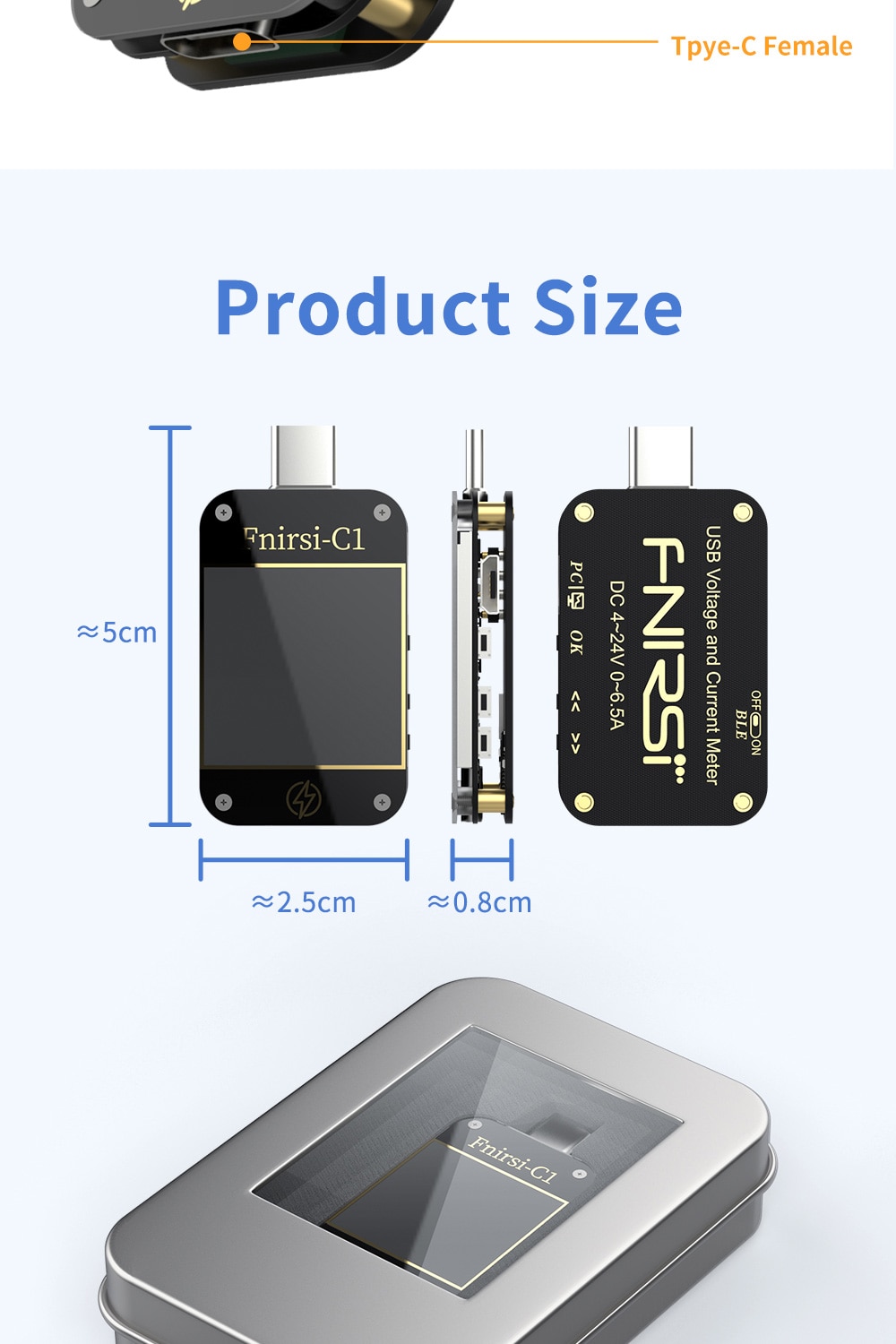

Package size: 50*25*8mm / 1.97* 0.98 * 0.31in
Package weight: 47g / 1.66oz
1 pcs * FNIRSI C1
