Features：
• Large anti -UV & Anti-g lare LCD screen
• All-in-one design with digital signal processing system
• Using chip technology for most of the components
• Multiple indicator functions as the L/R Turn Signal, High Beam, Position Lights, N Lights
• High withstand voltage up to 100V
• Waterproof & Anti-vibration
• Fits for most motorcycle that is with 4 stroke, 2/ 4 Cylinders (default as 1 cylinder of the setting)

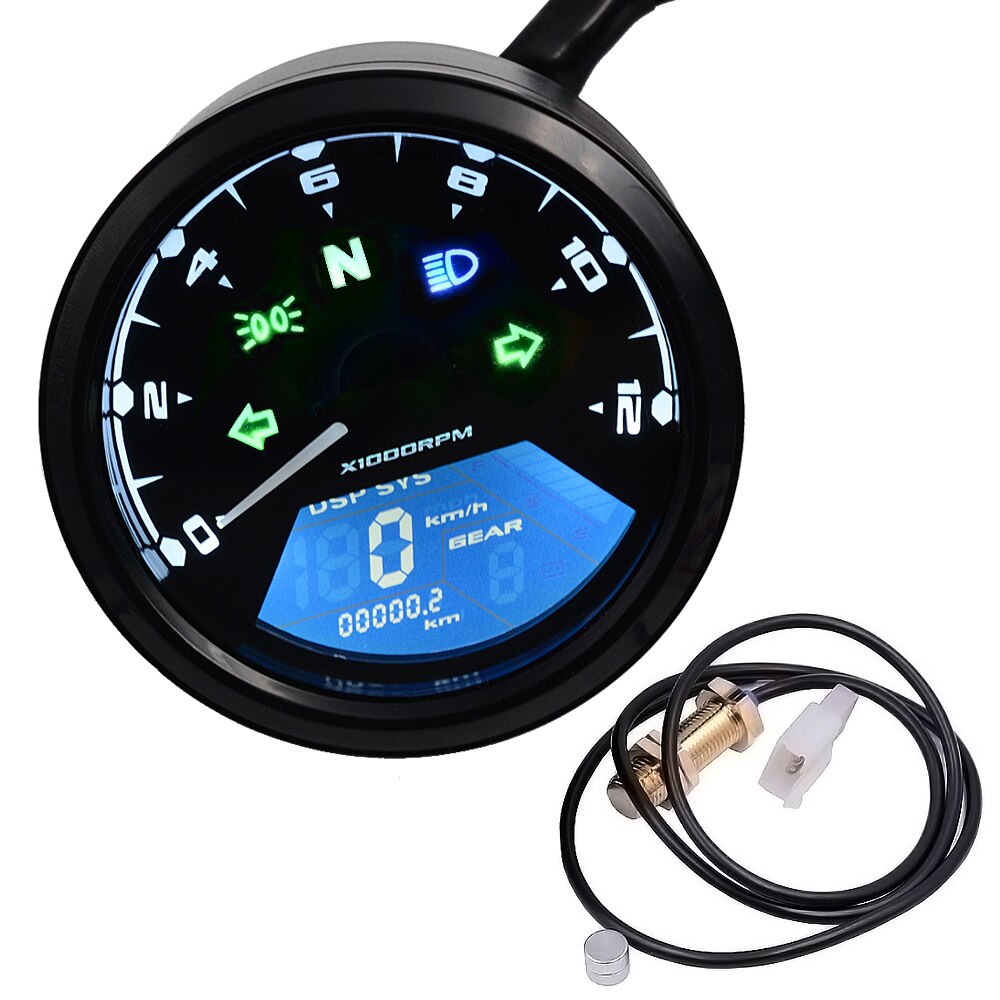

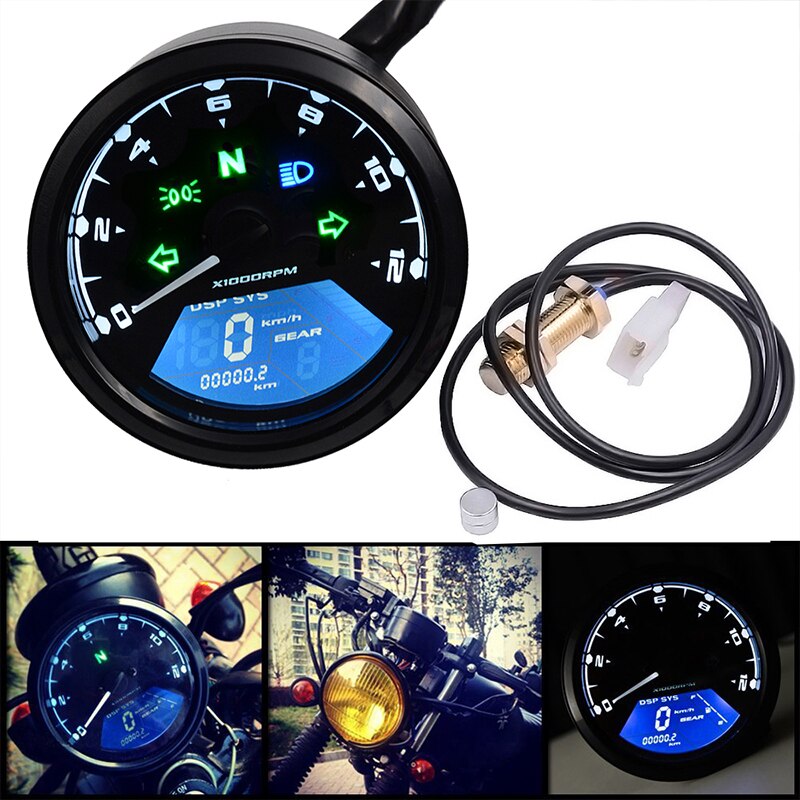

Package includes：

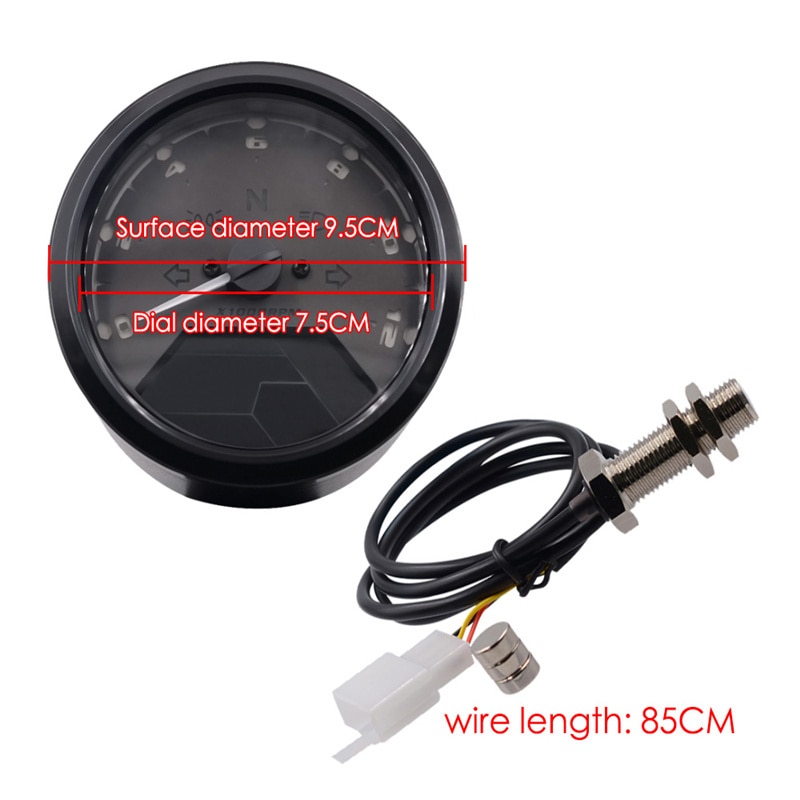

1X speedometer
1X magnet
1X wire with a plug and screw
1X instruction manual
Tips：

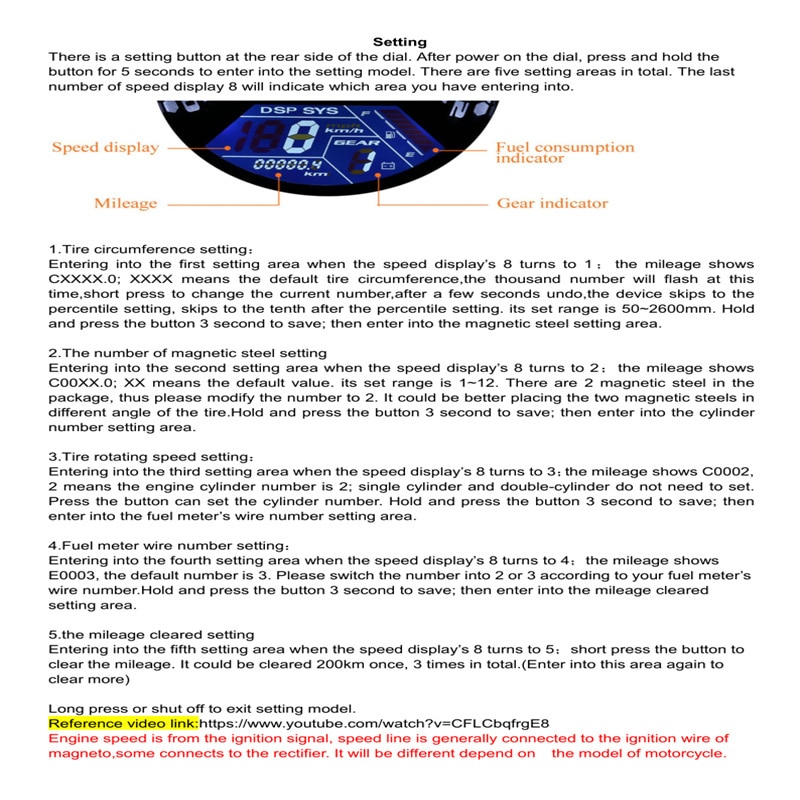

The meter comes with a instruction, if you have any problem please contact us. Will do our best to help you.

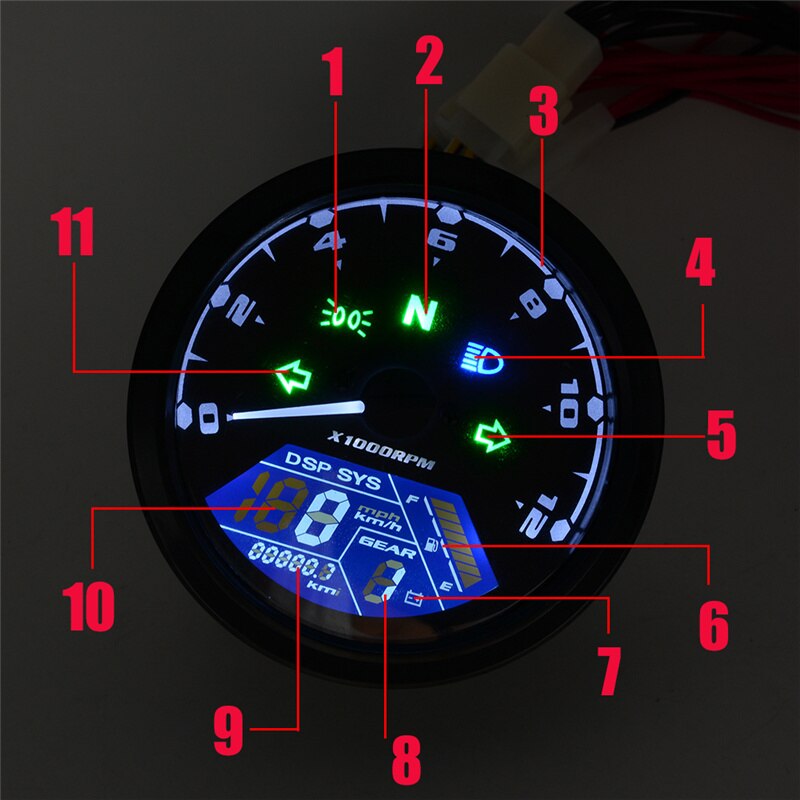

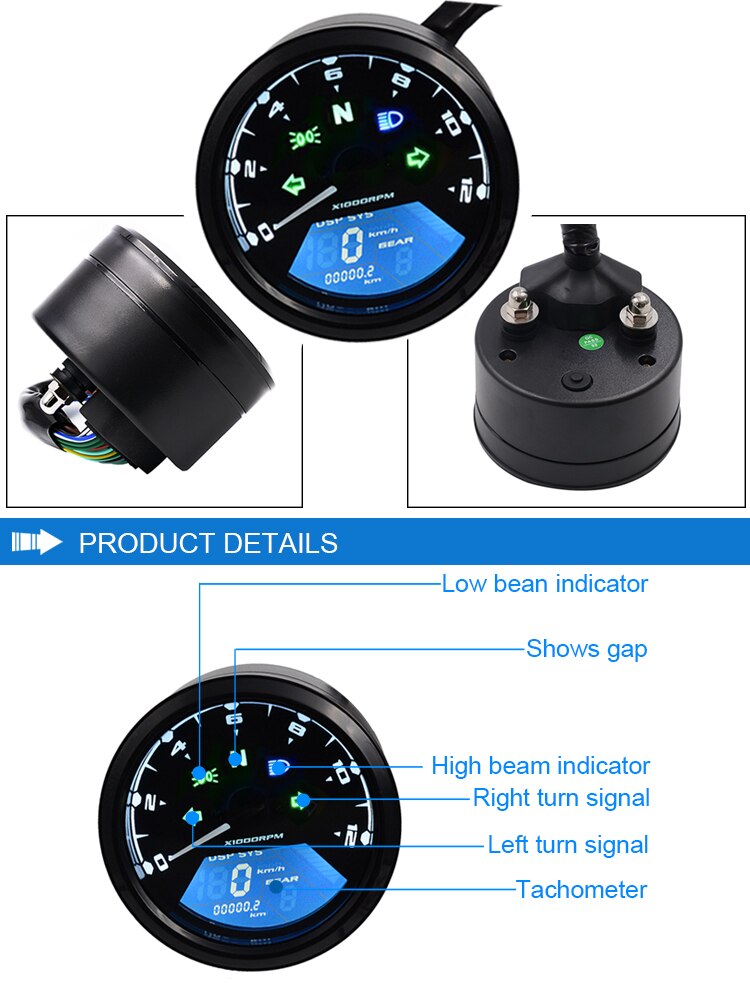

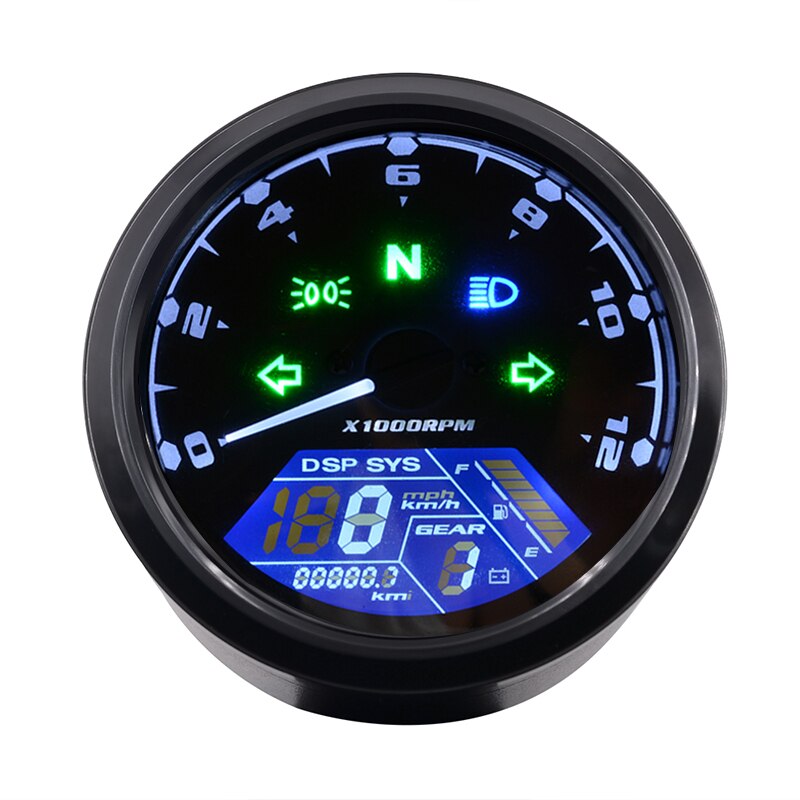

Number 1：beam indicator
Number 2：Neutral gear
Number 3：Rotation rate
Number 4：High beam
Number 5：Turning right
Number 6：Oil Level
Number 7：Low battery voltage alarm
Number 8：Gear
Number 9：Mileage accumulation
Number 10：Speed
Number 11：Turning left

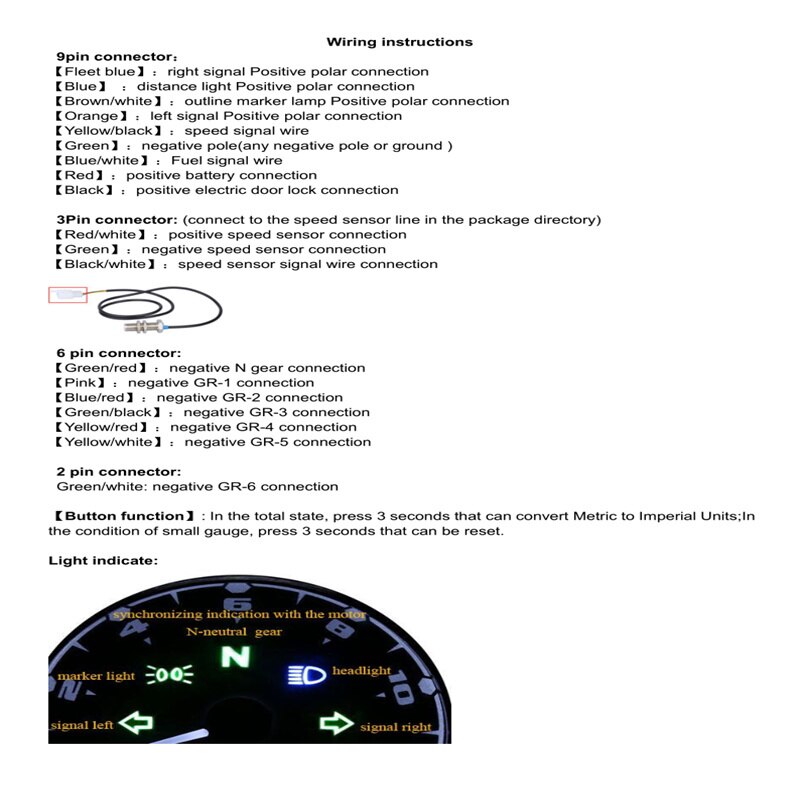

1[Yellow/black]：speed signal wire
2[Blue]：distance light Positive polar connection
3[Brown/white]：outline marker lamp Positive polar connection
4[Green]：negative pole(any negative pole or ground )
5[Black]：positive electric door lock connection
6[Red]：positive battery connection
7[Orange]：left signal Positive polar connection
8[Brown/white]：outline marker lamp Positive polar connection
9[Fleet blue]：right signal Positive polar connection
10[Green/white]：negative GR-6 connection
11[Green/black]：negative GR-3 connection
12[Yellow/red]：negative GR-4 connection
13[Yellow/white]：negative GR-5 connection
14[Green/red]：negative N gear connection
15[Pink]：negative GR-1 connection
16[Blue/red]：negative GR-2 connection
17[Red/white]：positive speed sensor connection
18[Black/white]：speed sensor signal wire connection
19[Green]：negative speed sensor connection
Must place the correct placement！！！
