Order notice:

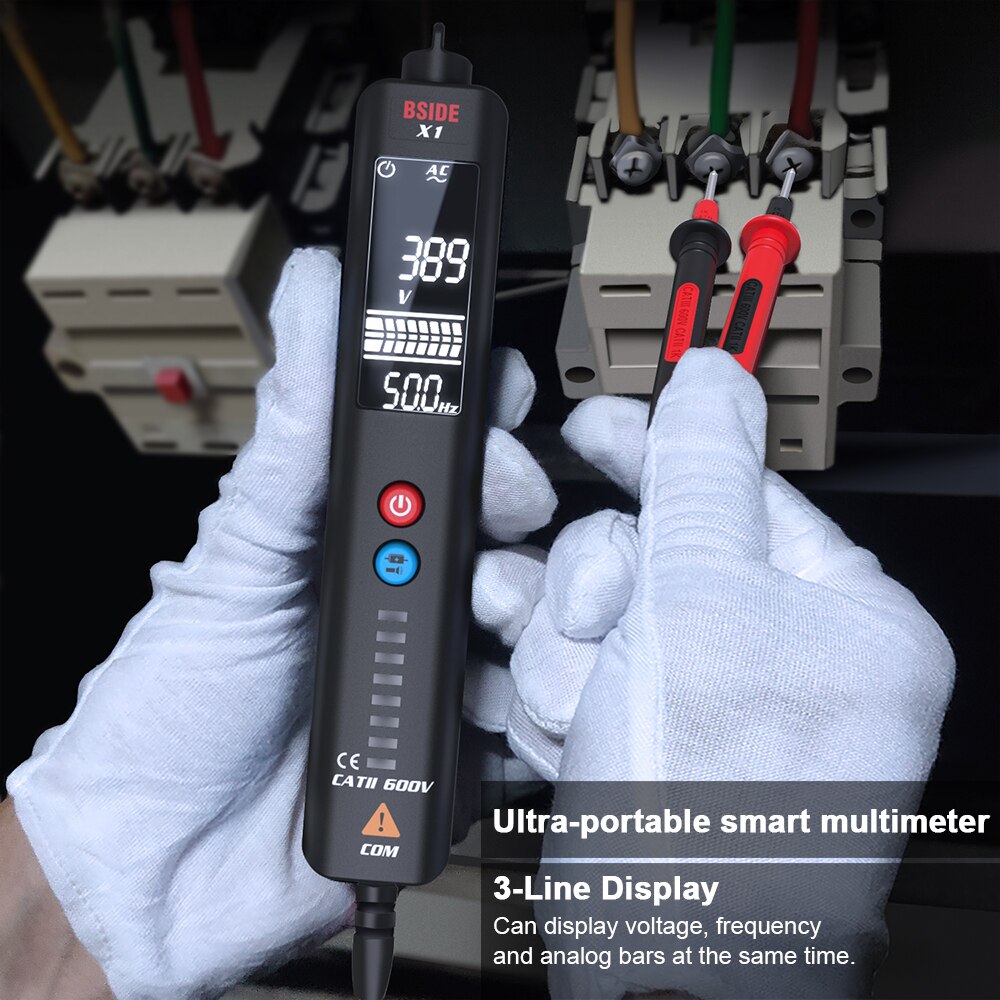

In order to meet the operational and aesthetic needs of different customers, we made the design style of the X1 product more in line with the pen-shaped smart multimeter; the design style of the S1 product is more novel, and the EBTN display is larger.
The test functions of X1 and S1 products are exactly the same.
Product introduction:
It is born for people's daily life and fashion needs. Customers' first impression for it is simple and comfortable！
The product Simultaneously has both the test functions of a multimeter and a voltage detector, At the same time optimize the use of functions and test experience.And added the latest design of Hidden wire test function.

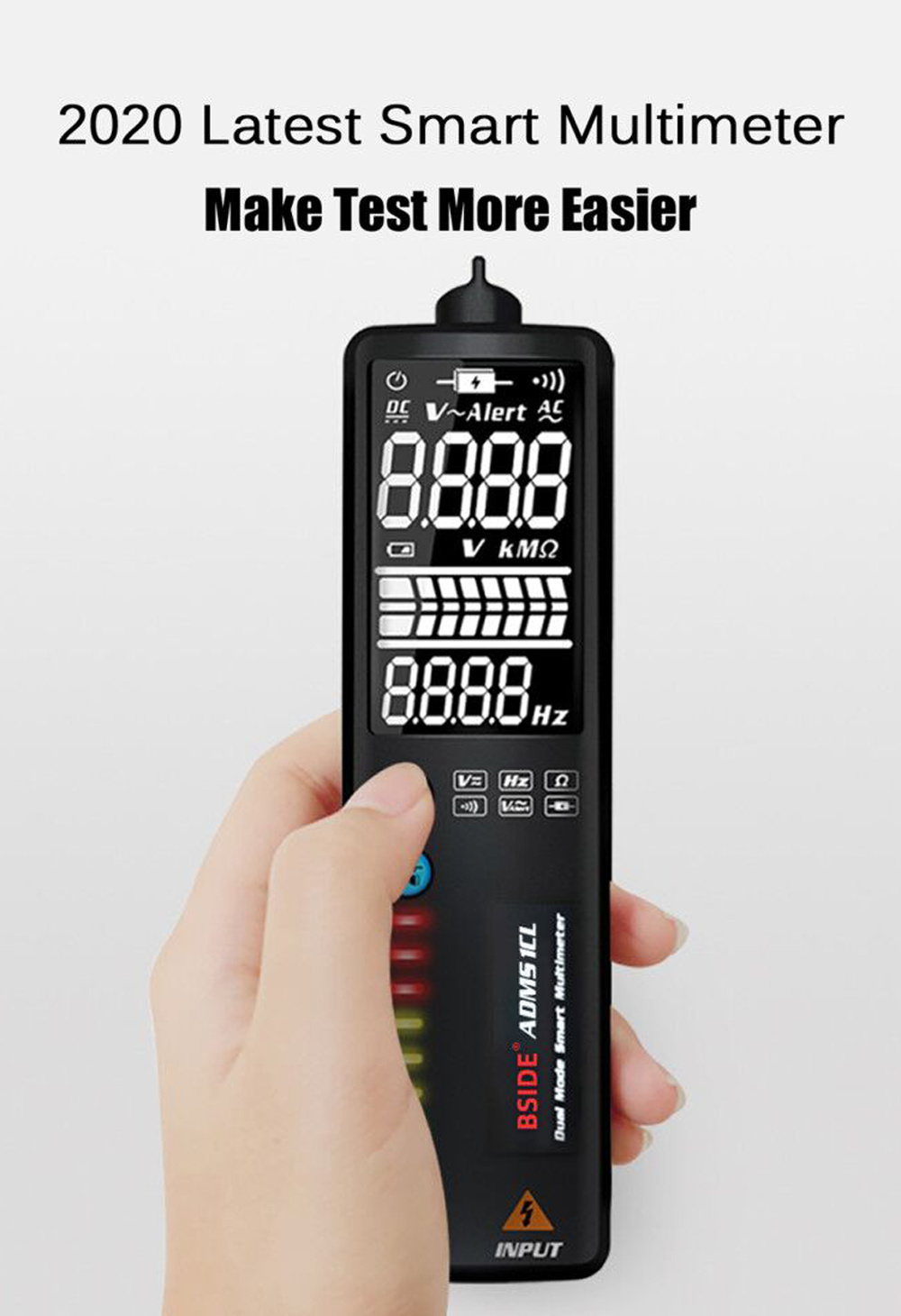

The latest design in 2020.
- Exquisite and unique.

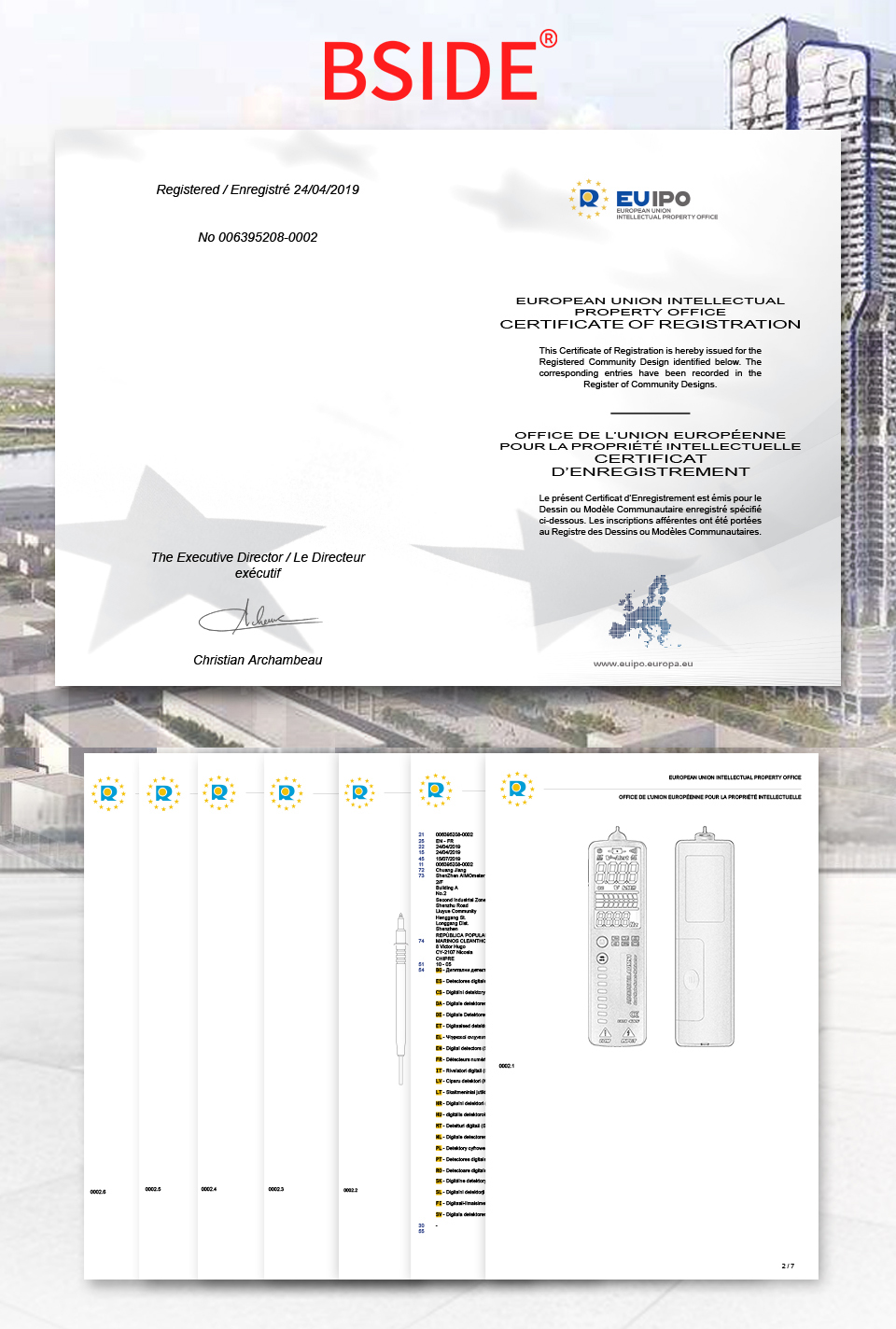

With a patent certificate, you can order with confidence.
Ultra-portable multi-function multimeter.
- Your excellent tool partner.
ADMS1 = Smart Multimeter + Voltage Detector + Hidden Wire Detector + Flashlight.

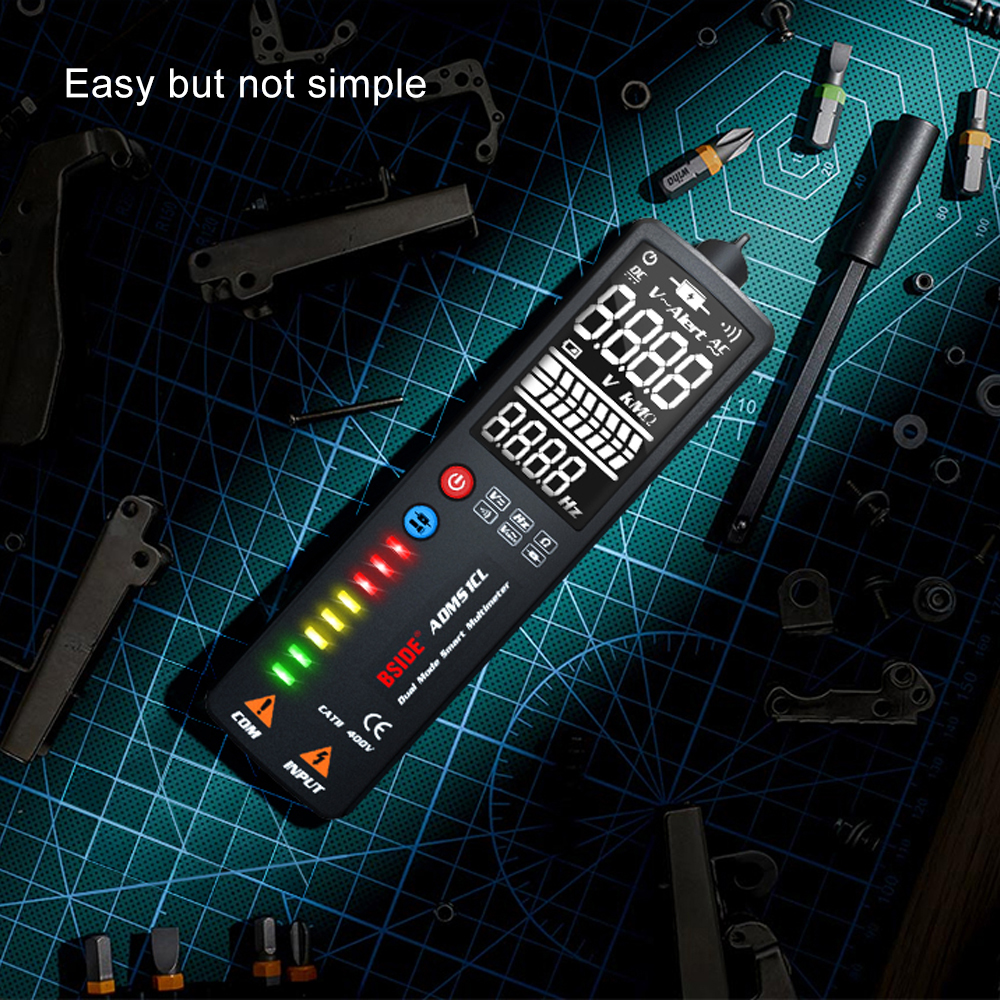

Easy but not simple.
Customers' first impression for it is simple and comfortable，Excellent workmanship will win word of mouth.

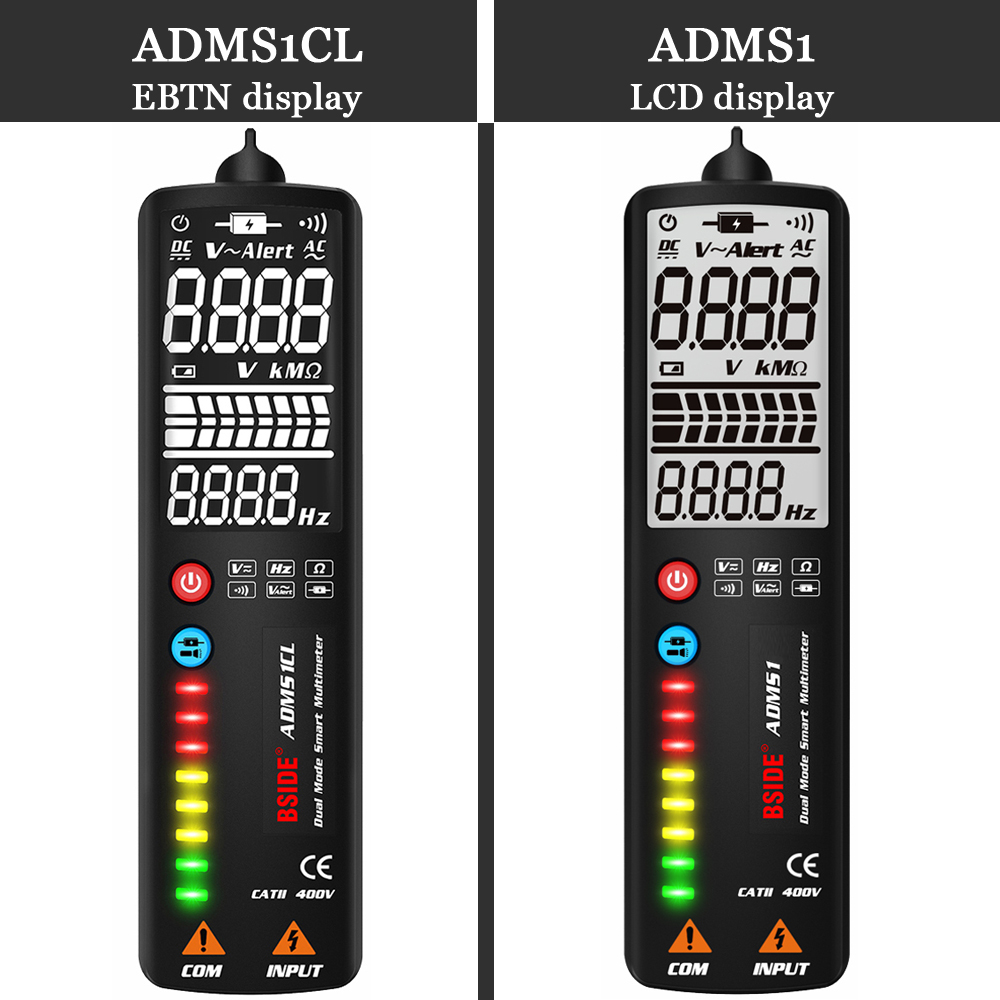

The product has two display designs, and there is always one for you.
- ADMS1 uses LCD display（$19.99）.
- ADMS1CL uses the latest EBTN display（$23.99）.

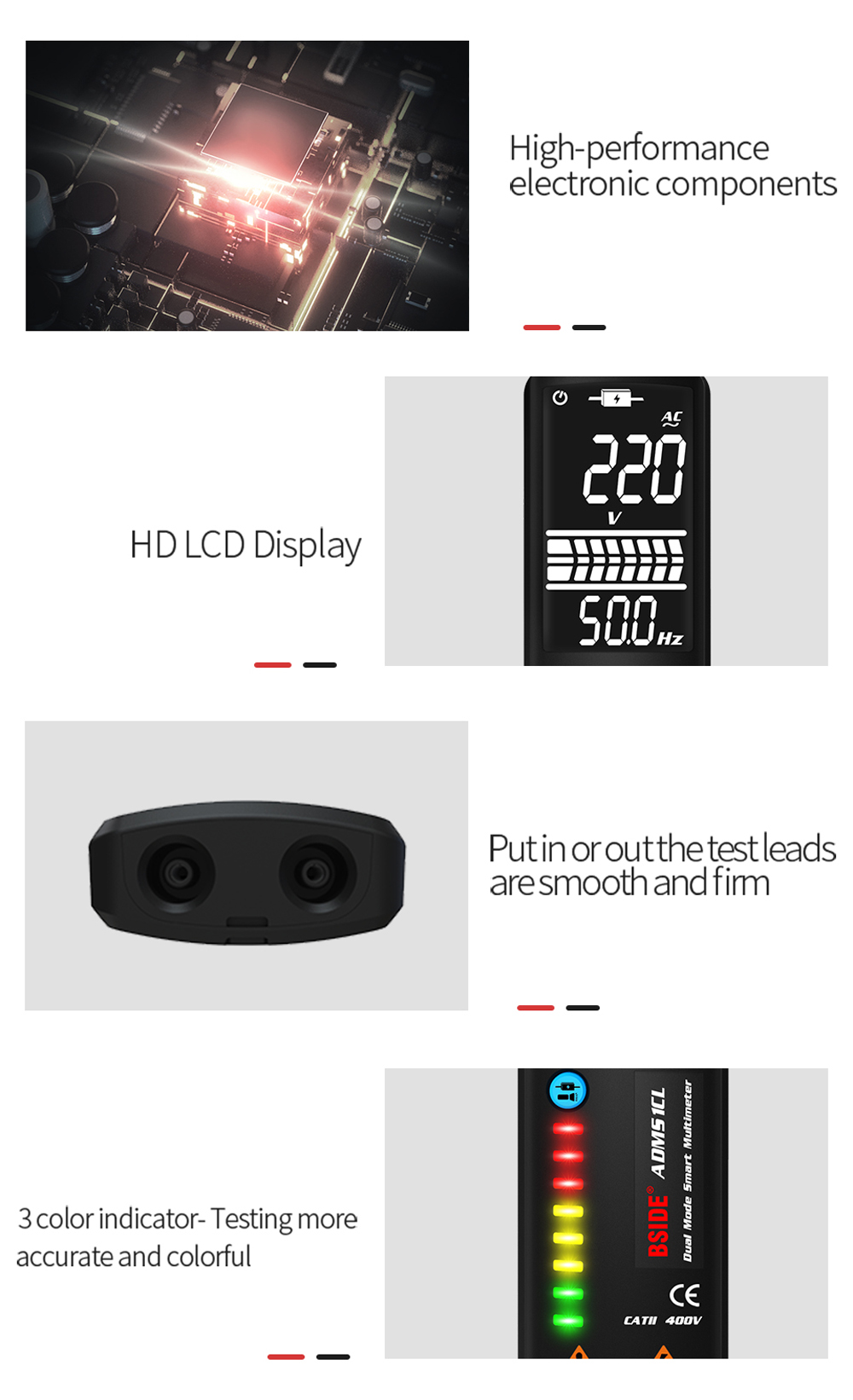

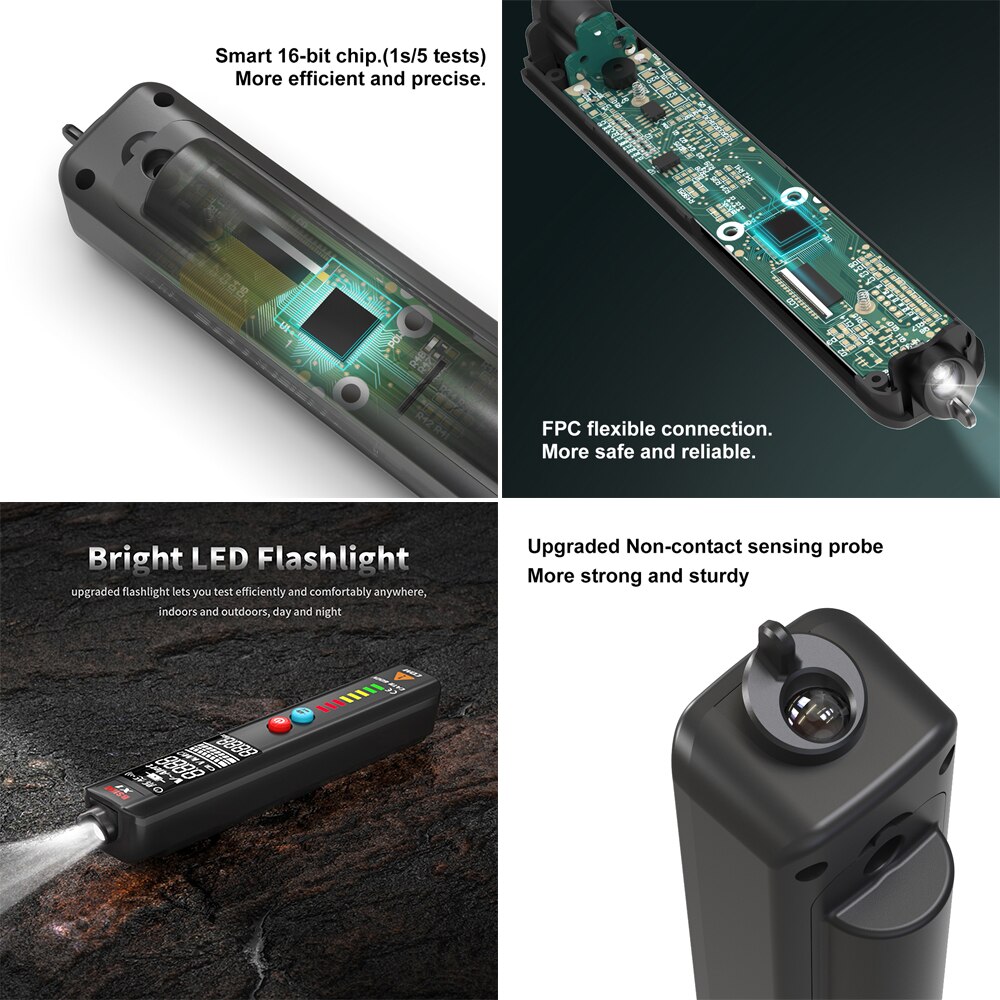

Excellent workmanship will be reflected in every product detail.
High-quality industrial ABS material.
Highly sensitive and rugged sensor probe.

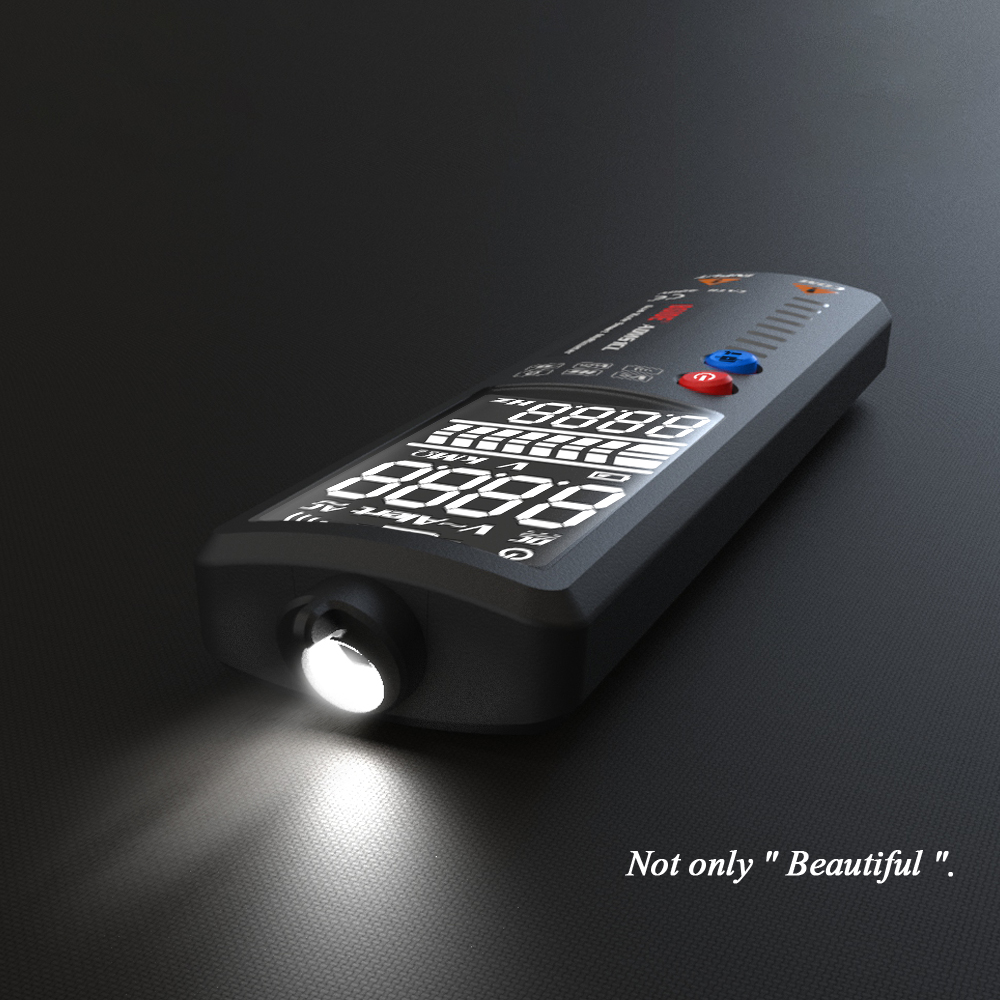

Bright LED spotlight.

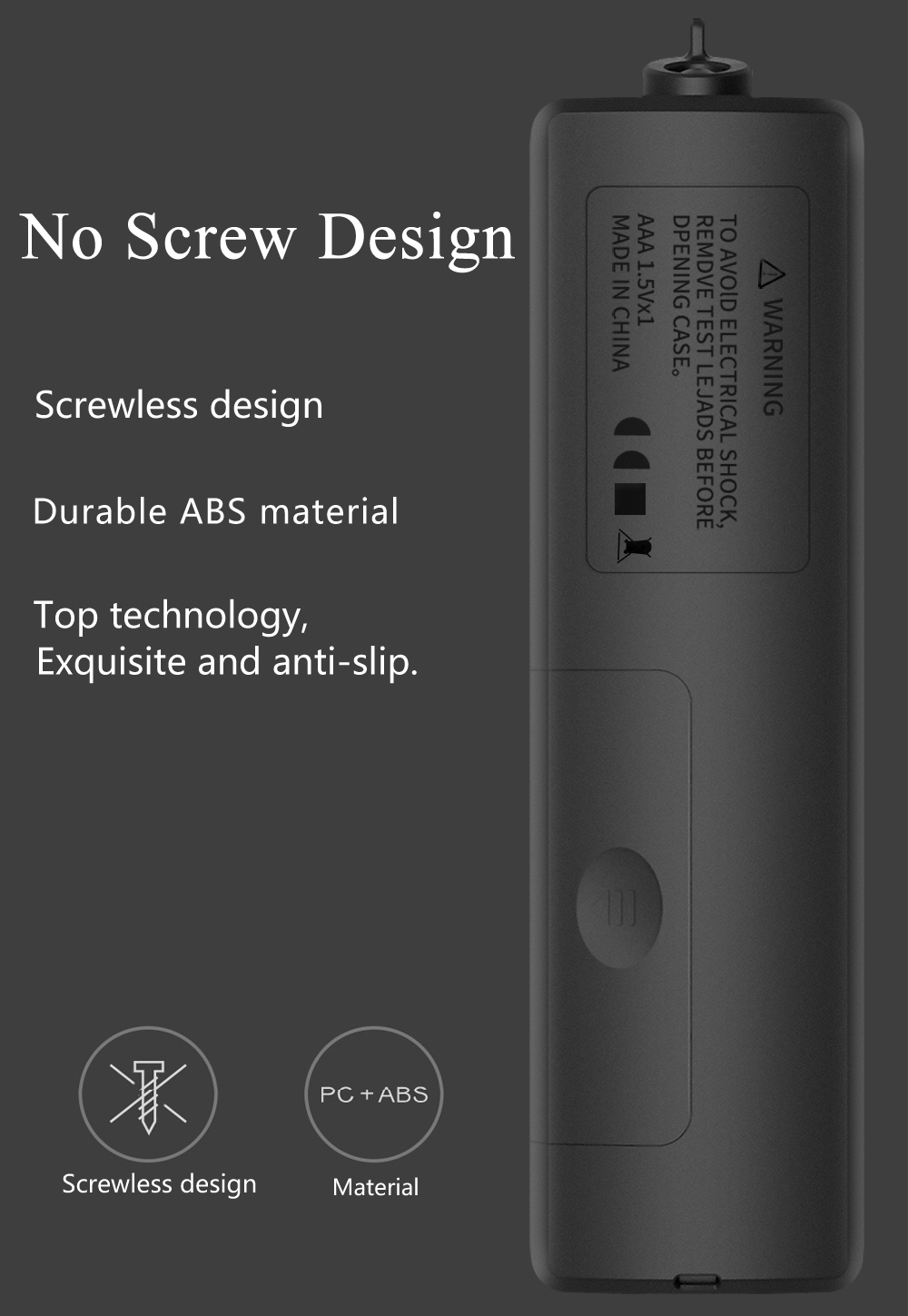

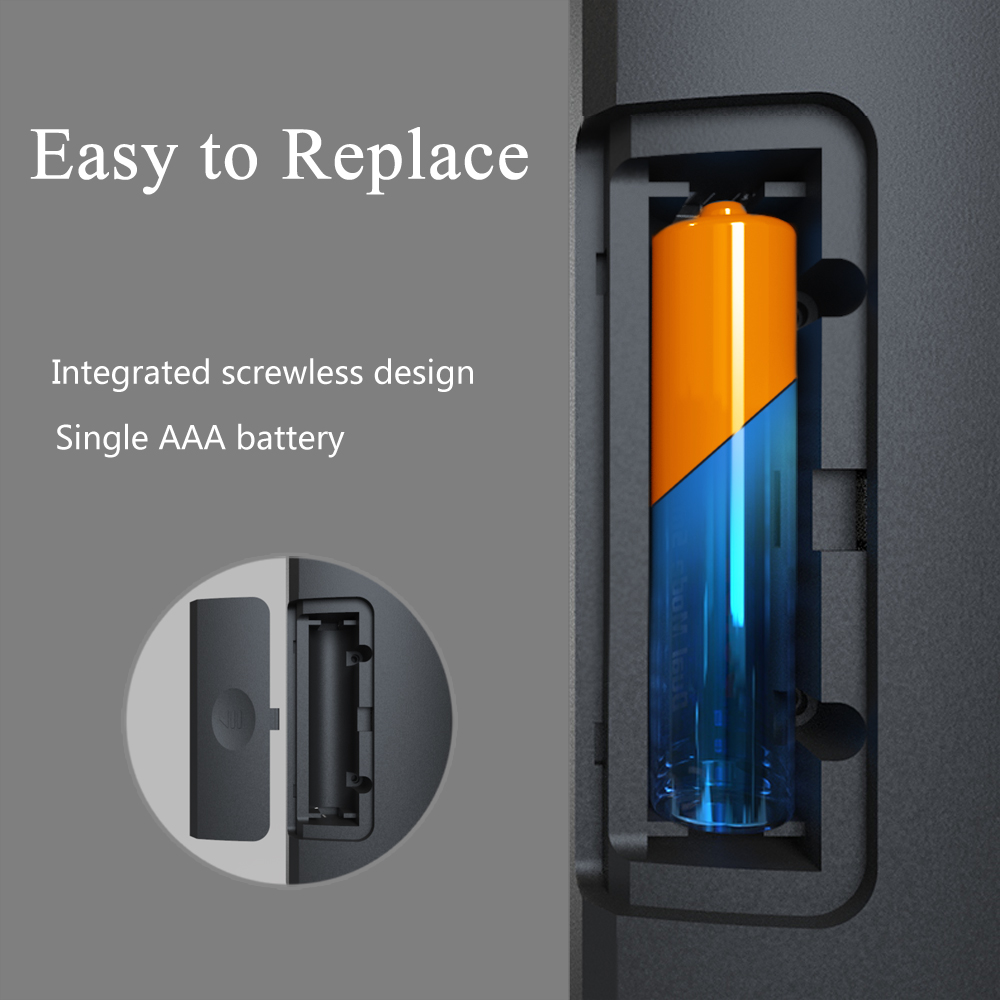

Screwless design on the integrated surface.
One 1.5V battery power supply, more energy saving and environmental protection.
Product description:
| Maximum display: 2000 counts. |
|
|
| ADMS1CL/X1: EBTN display. |
|
|
| Meter Thickness: 1.5 cm. |
|
|
| DC Voltage test: 400V ±(0.8%+3). |
|
|

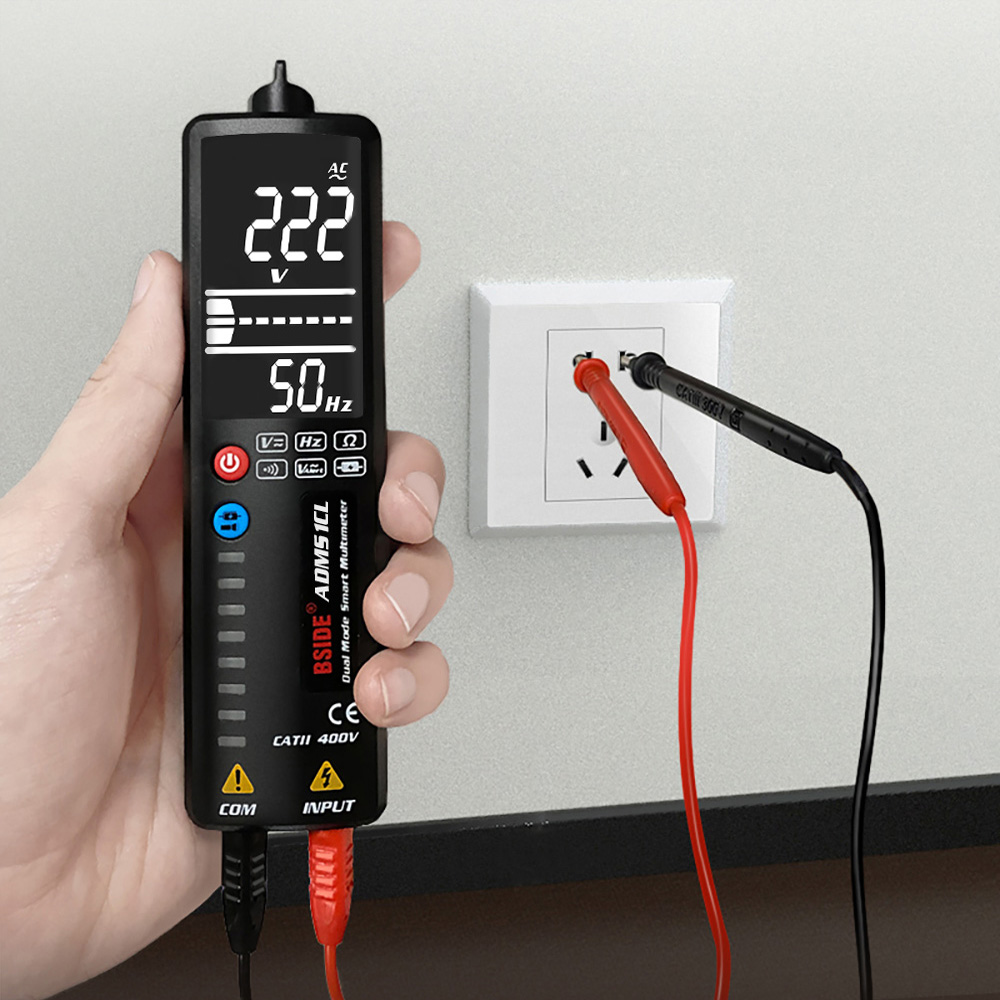

| AC Voltage test: 400V ±(1.2%+5). |
|
|

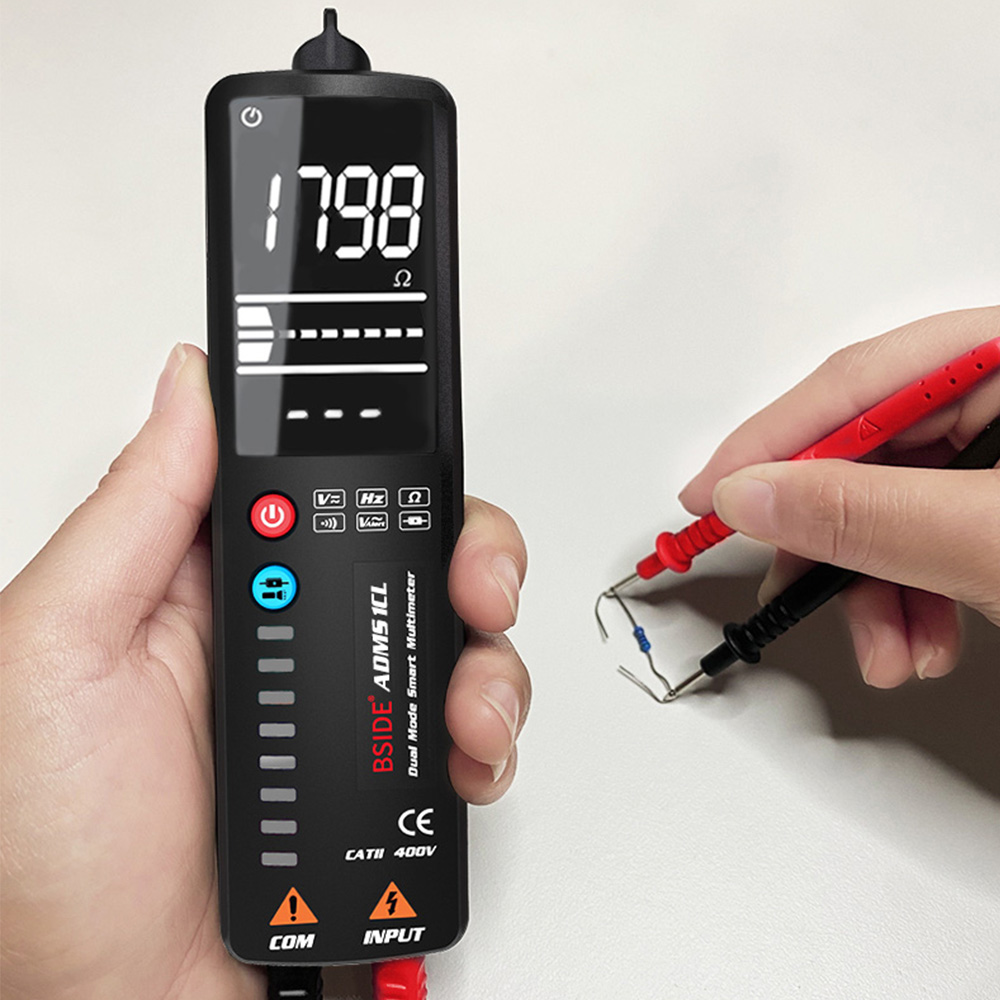

| Resistance test:10MΩ ±(1.2%+3). |
|
|
| Frequency test: 1000Hz ±(1.0%+5). |
|
|

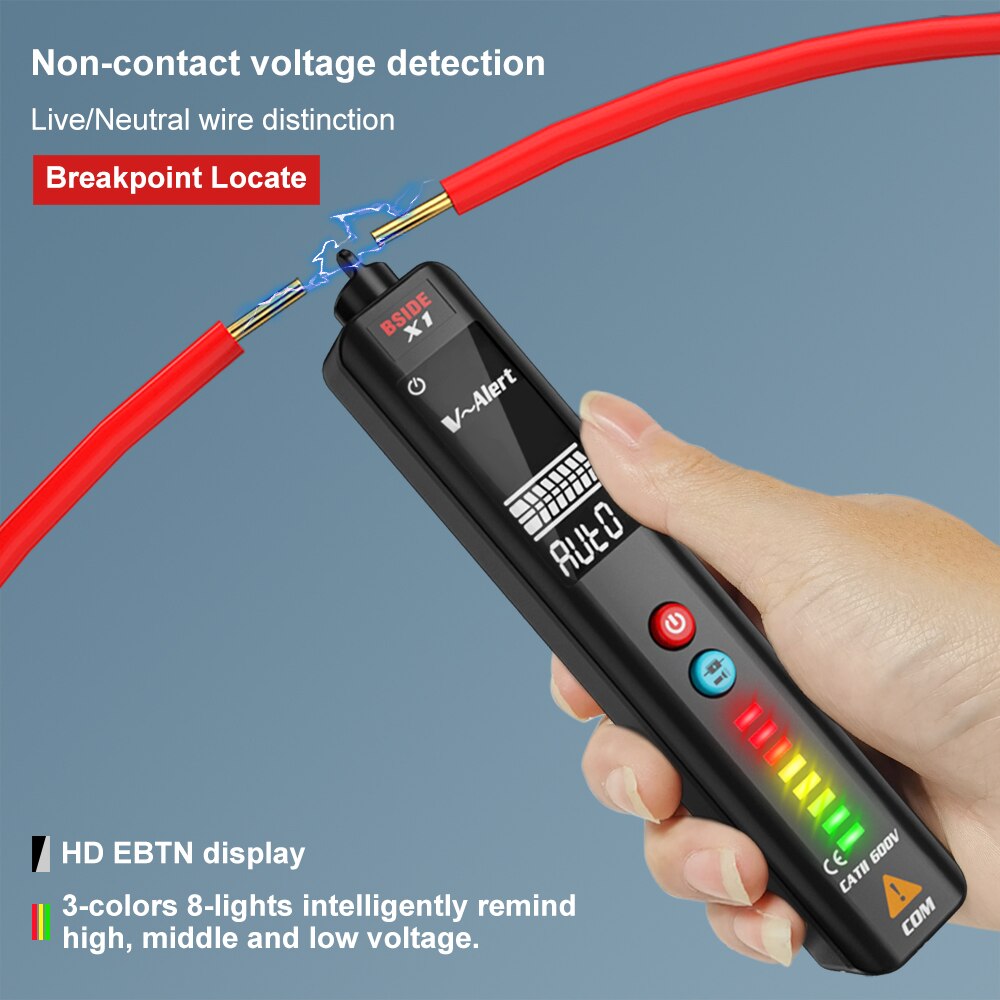

| Non-contact dangerous voltage detection:Yes. |
|
|

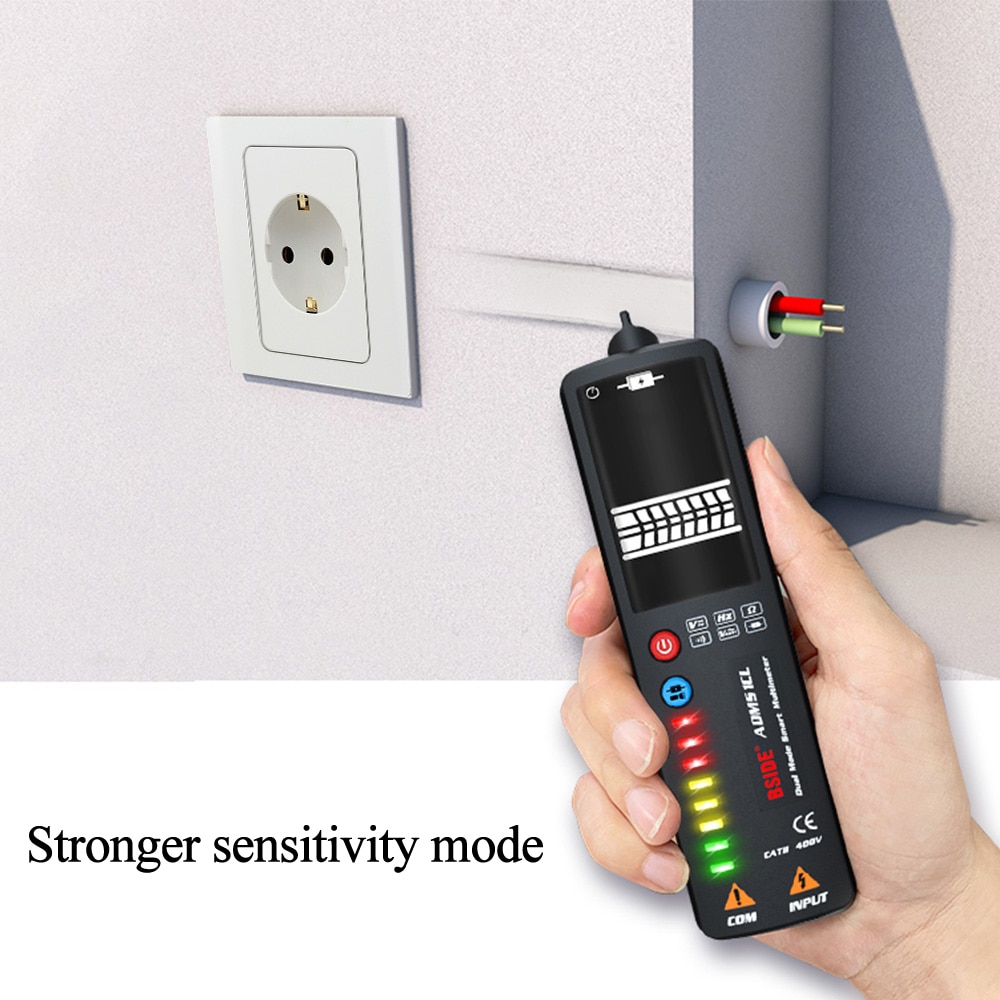

| Hidden Wire Test: Less than 3cm. (The actual test depth is determined by the wall material) |
|
|

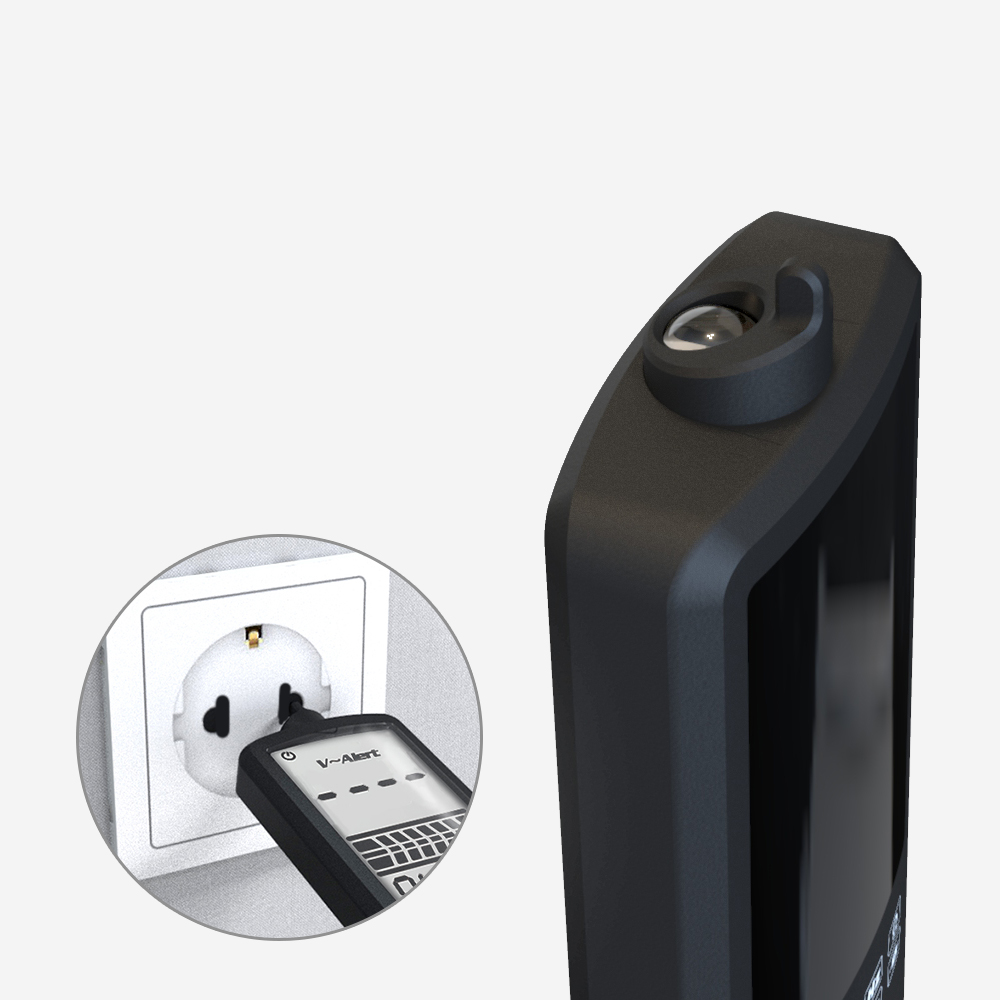

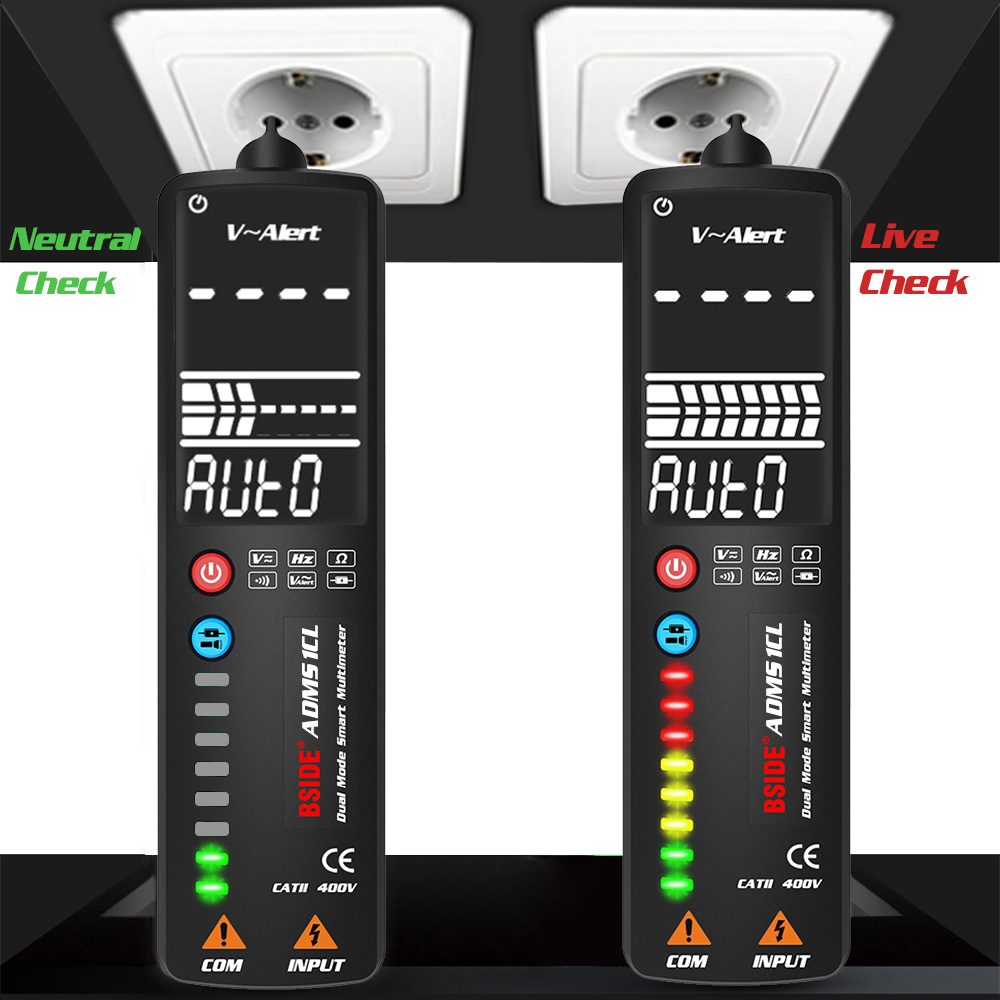

| Live/Neutral Check: alarm beep sounds, LCD screen display stripe. |
|
|
| Continuity test: If the resistance is less than 30Ω, the beeper sounds. |
|
|
| Battery test: 1.5V/6V/9V/12V. |
|
|
| Power: 1 * 1.5v AAA battery. |
|
|
| Size: 150*39*18mm. |
|
|
| Weight: 65g. |
|
|
| Security Level:Comply with international safety standards. CE certification. |
Smart and convenient test method.

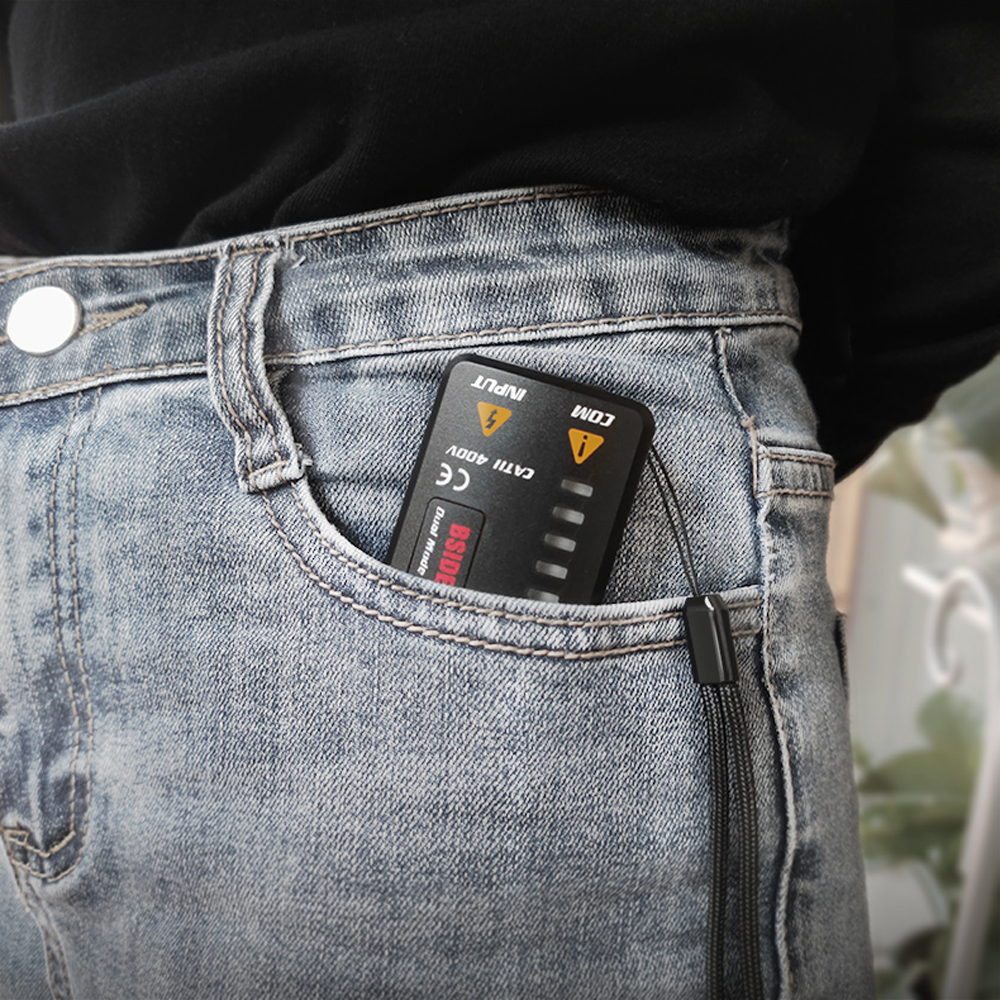

Small and portable.

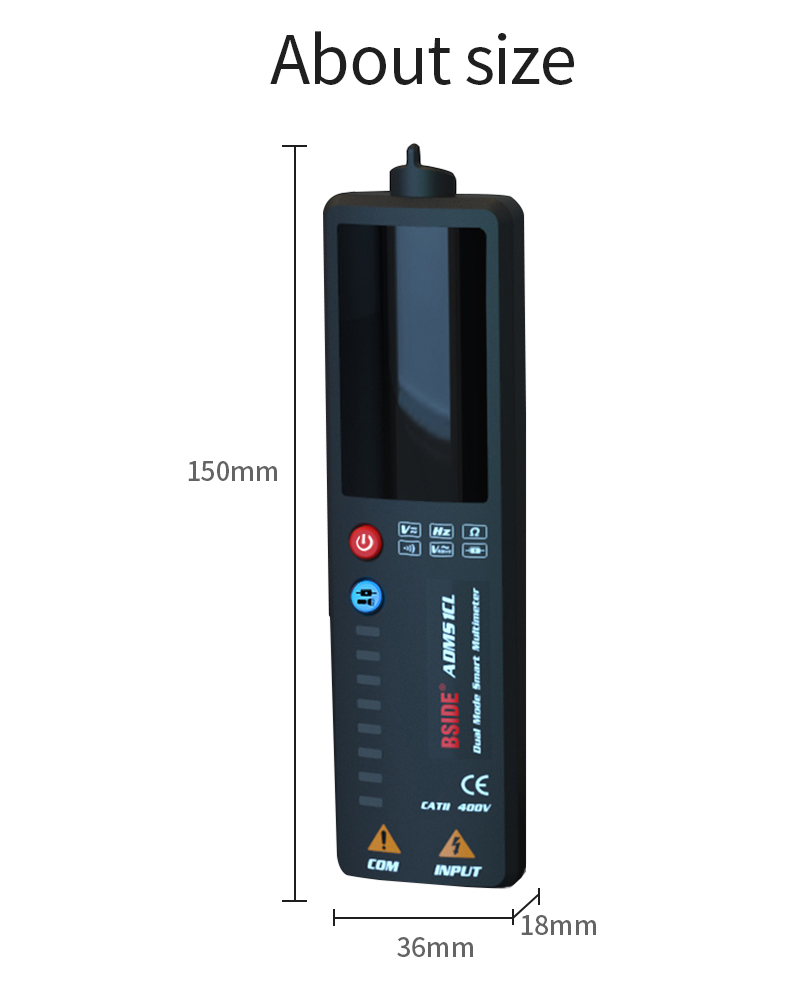

Product body size : 150 * 36 * 18mm.

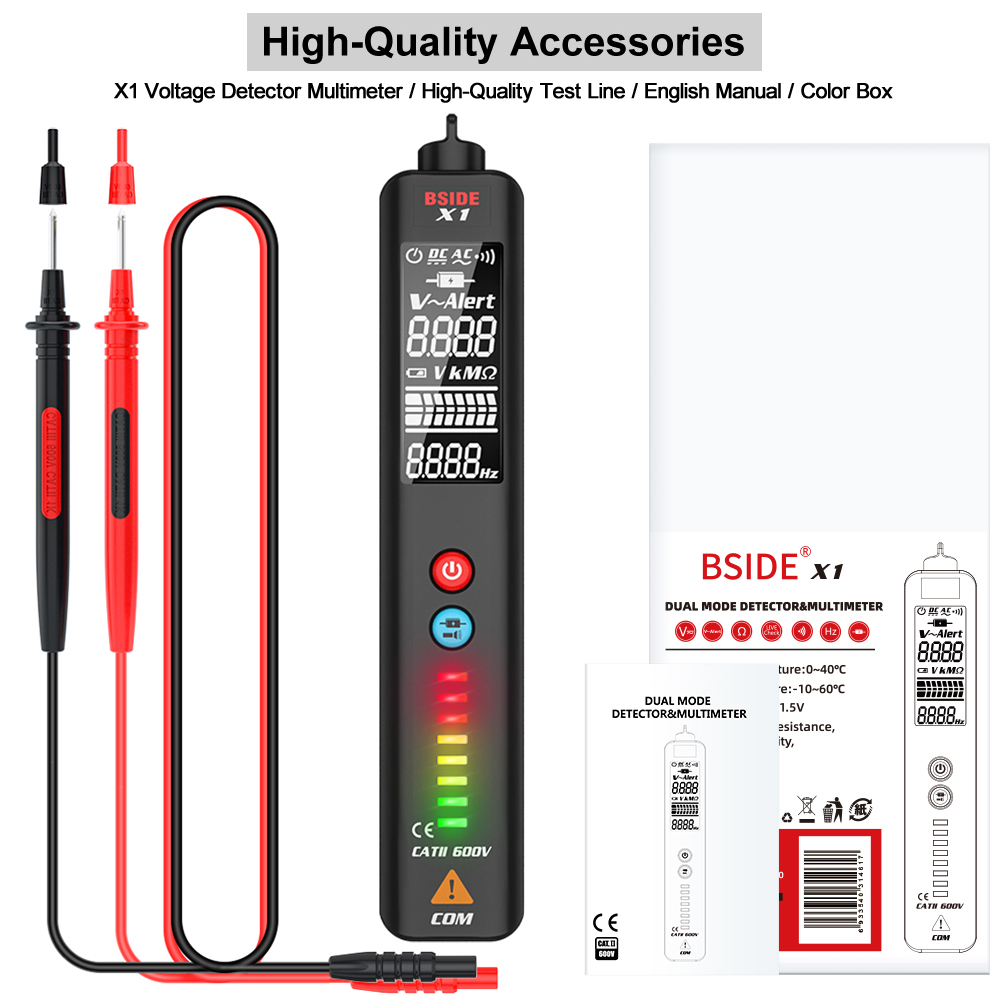

High-Quality Accessories.
Package Includes:
1 x Smart Digital multimeter. 2 x Test Leads. 1 x Silicone Lanyard. 1 x User Manual.
