Introductions:
This gauge is ultra low cost coating thickness gauge and can mainly be used to measure car’s paint coating thickness. It is used for non-destructive coating thickness measurement of non-magnetic coatings on steel and insulating coatings on non-ferrous metals.
Specifications:
Measuring principle: Eddy current(F+N)
Measuring range: 0~2mm
Accuracy: ±(2%+0.02mm)
Resolution: 0~2000um(0.01mm)
Units: um, mm, mils
Power supply: Two 1.5V AAA battery
Standards/Certificates: CE, ROHS, ISO 2178, 2360, GB/T 4956-2003, 4957-2003
Storage environment: Temperature: -10 to 60°; humidity: 20% to 90%rh
Operation environment: Temperature: 0 to 50°; humidity: 20% to 90%rh
Size: 89mmX49mmX21mm
Weight: 45g
Case material: ABS
Measurement Step:
Step 1. Prepare the sample to be measured.
Step 2. Press POWER key to power on, and keep probe away from any metal.
Step 3. Reference to the “Zero Calibration” if need to calibrate the gauge.

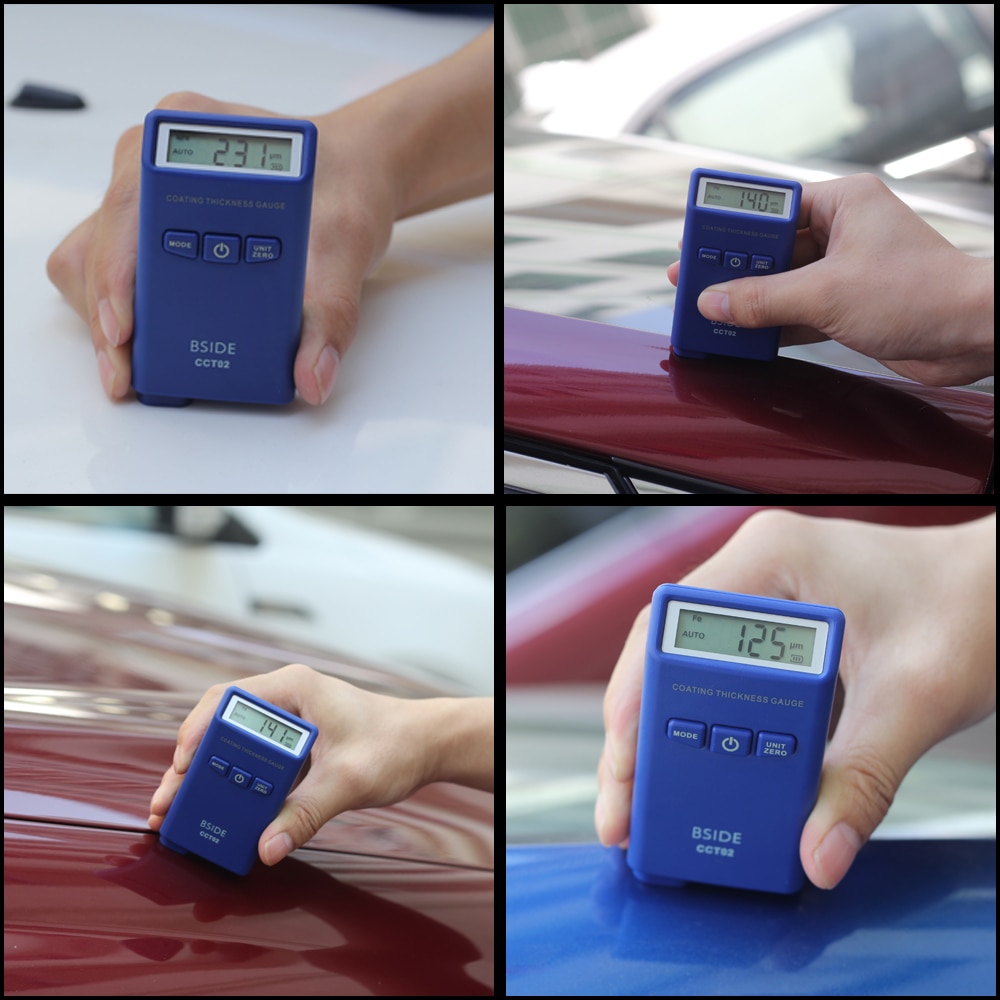

Step 4. Start measuring. Place the probe on the sample vertically and rapidly,
and after one beep, raise the probe rapidly. Readings will be display on LCD.
Step 5. Do next measurement according to step 4.
Step 6. Press POWER key to power off. If not any operations within 2 min.,
the gauge will power off automatically.
Package Includes:

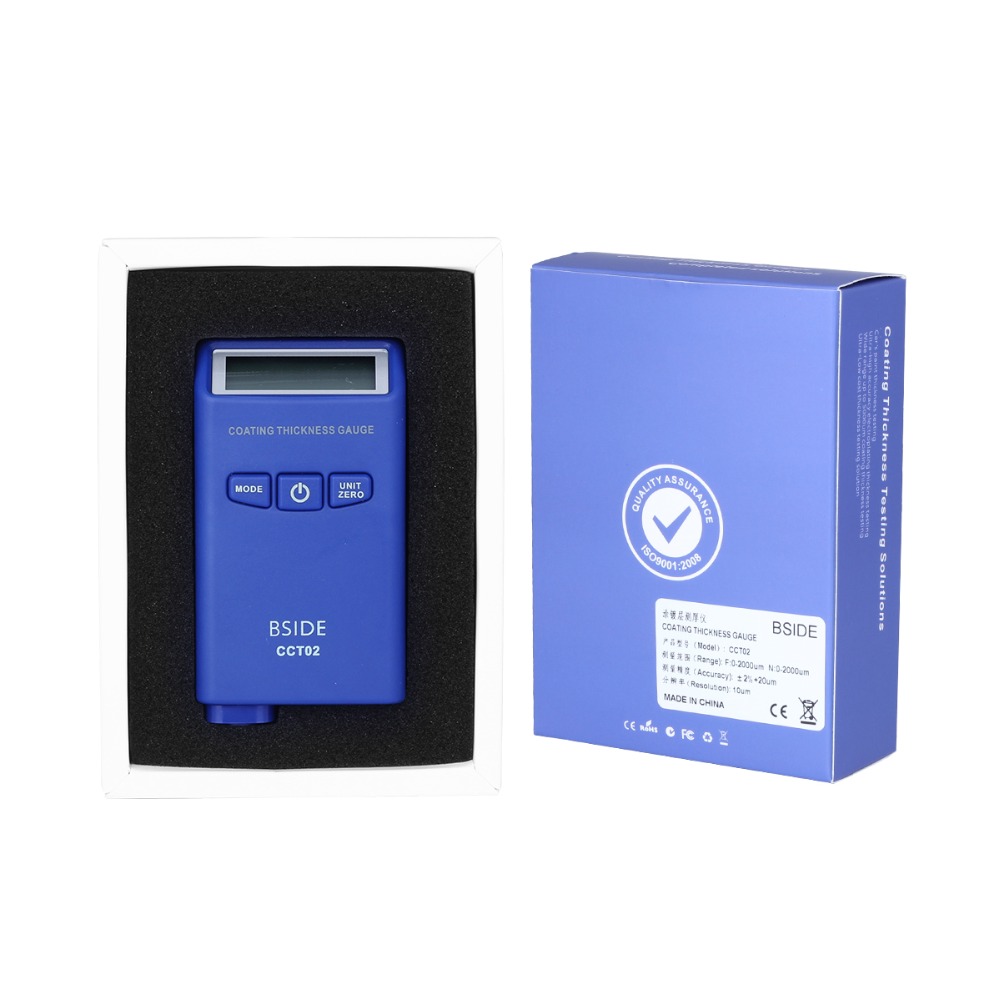

1 x The Coating Thickness gauge
1 x Aluminium substrate
1 x User manual
Note:
The batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.
