Thickness Gauge Digital Coating Gauge Meter Thickness Tester Car Detector Automotive Coating Car Paint Tester Meter UT343D
Features：

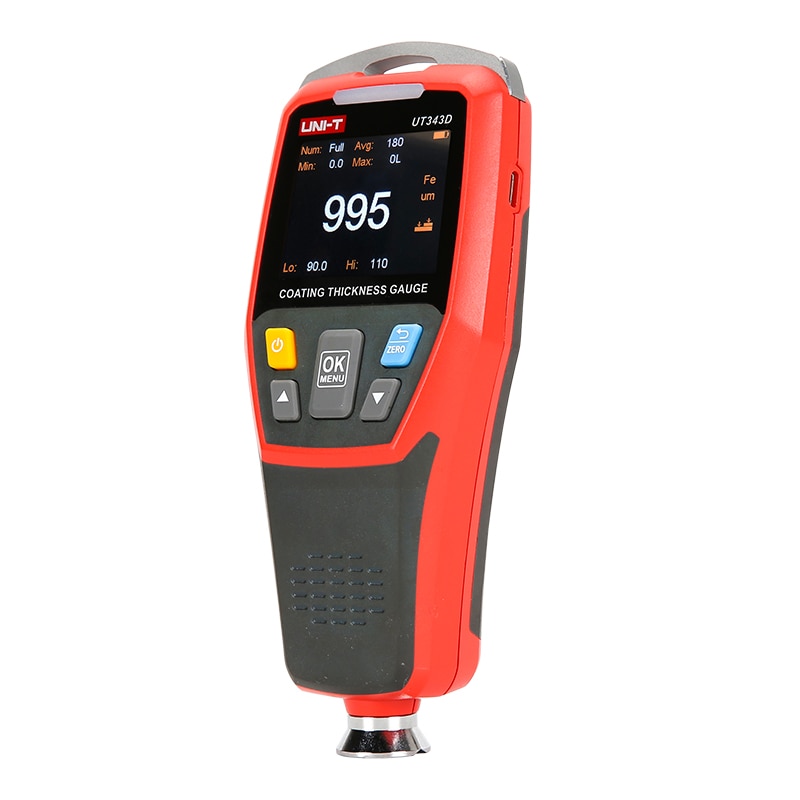

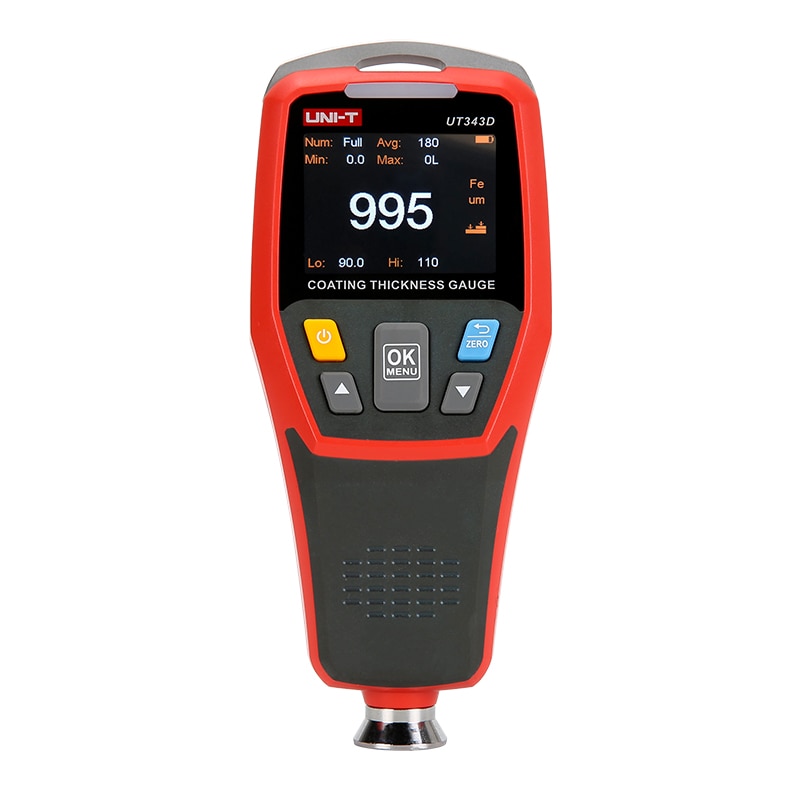

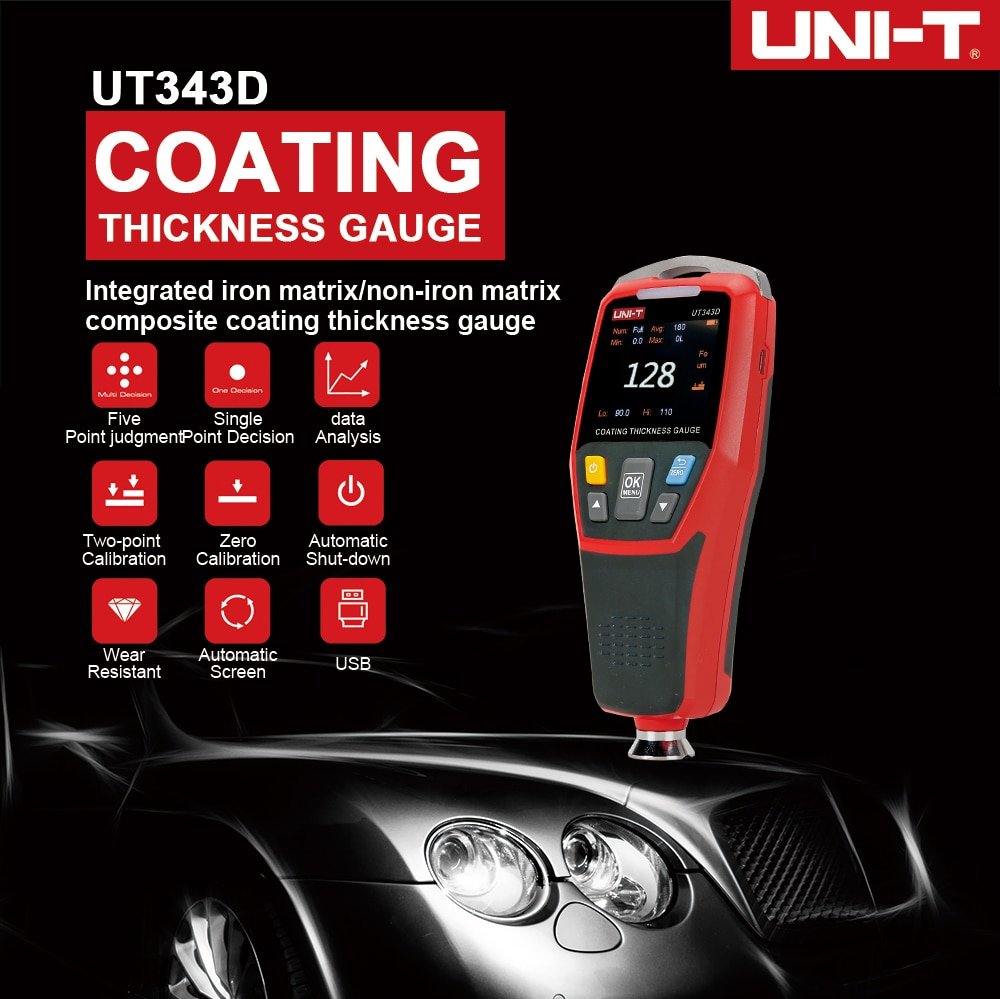

The UT343D Coating Thickness Gauge is a high performance composite coating thickness gauge with integrated iron
matrix (FE) and non-ferrous matrix (NFE) measurements.
The product has the characteristics of high precision, stable and reliable performance, no damage measurement,
and also has the functions of single point, multi-point averaging algorithm and rapid judgment of industrial products.
The products are based on the principle of electromagnetic induction and eddy current measurement to detect magnetic metal

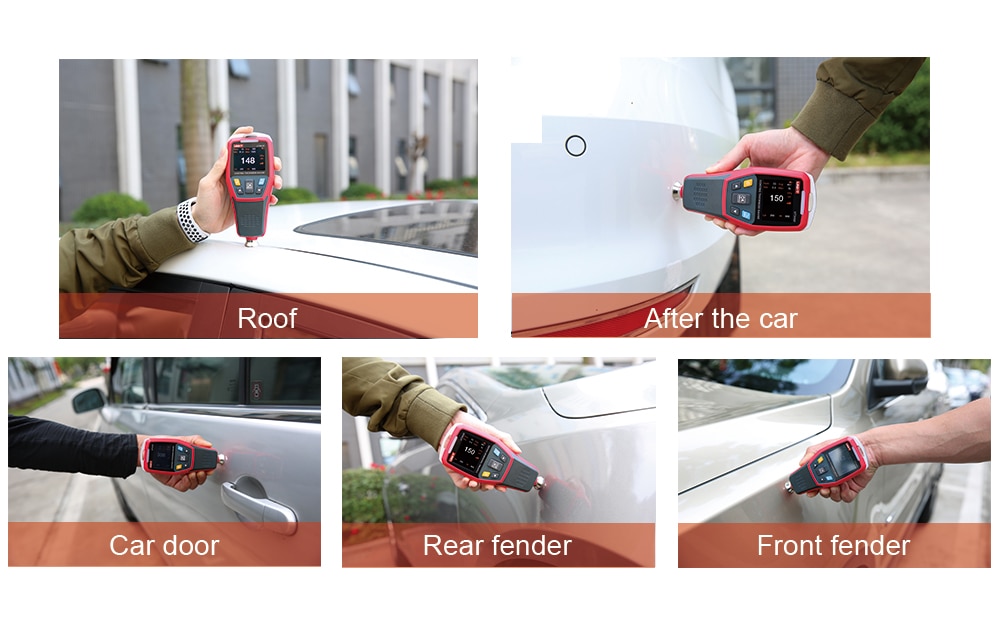

coating and Non-magnetic metal coating thickness. It is an essential instrument for automobile manufacturing, sales, evaluation,
and metal processing, painting, inspection and other industries.
It is widely used in manufacturing, metal processing, aerospace, marine, motor train, scientific research, quality inspection, etc.
Function：
Automatic identification of iron and non-ferrous substrates

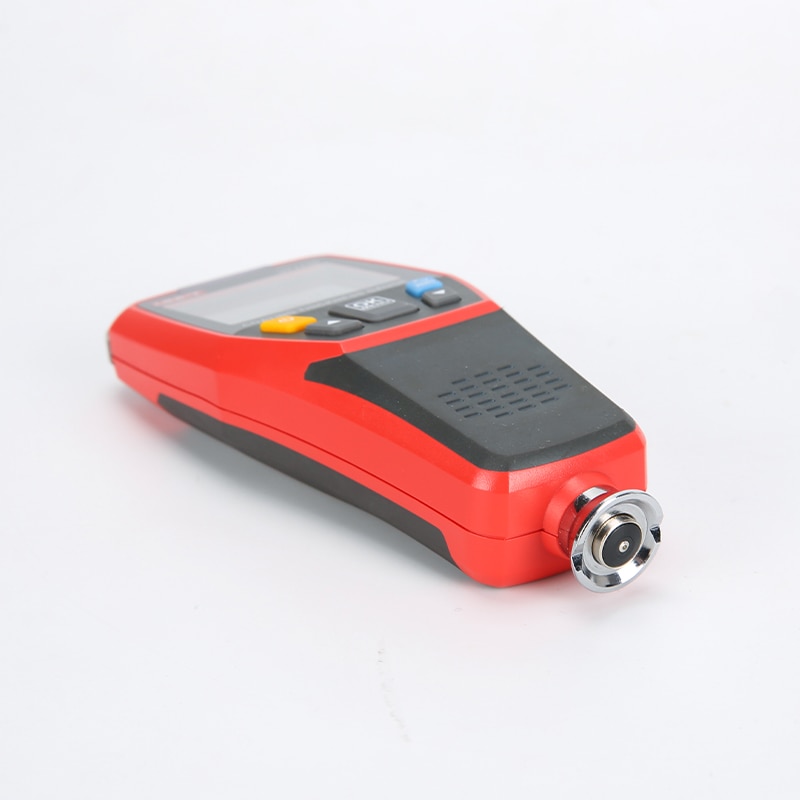

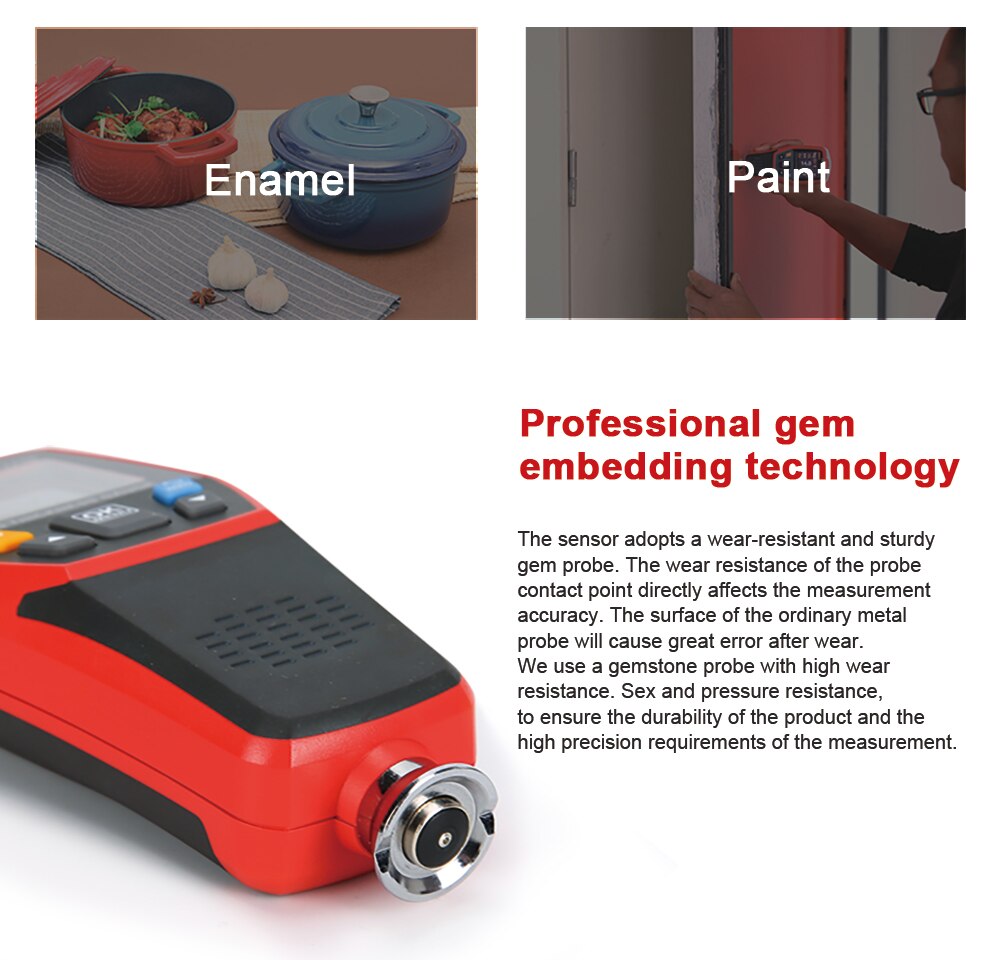

The sensor uses diamond clamping technology, which is accurate, wear-resistant and stable.
Single point and two point calibration to ensure measurement accuracy

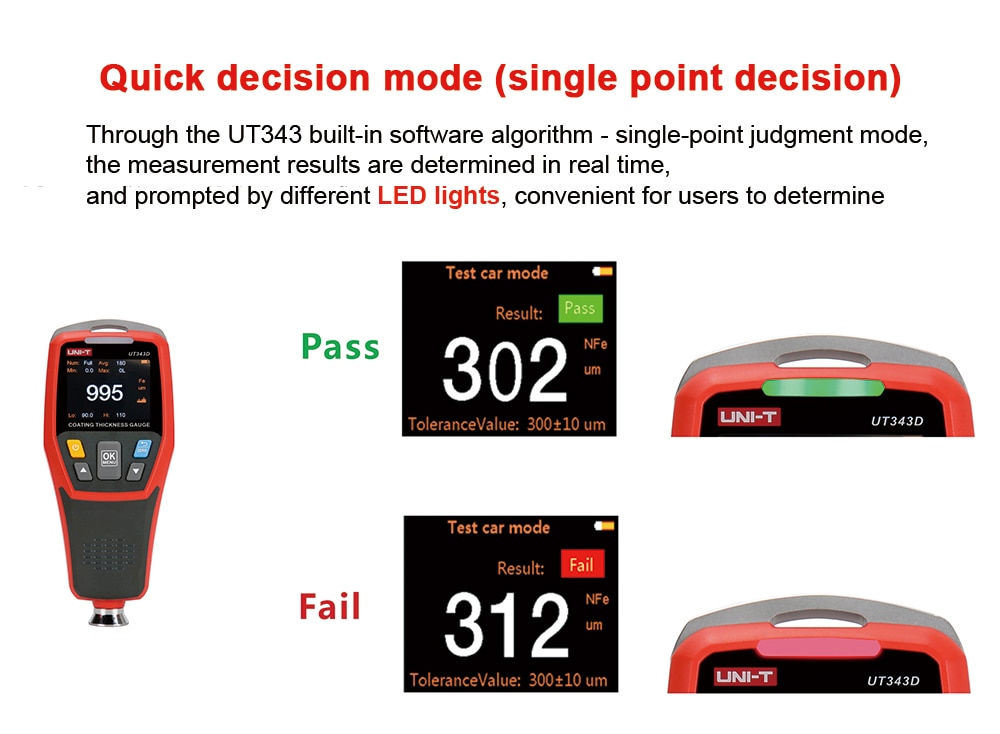

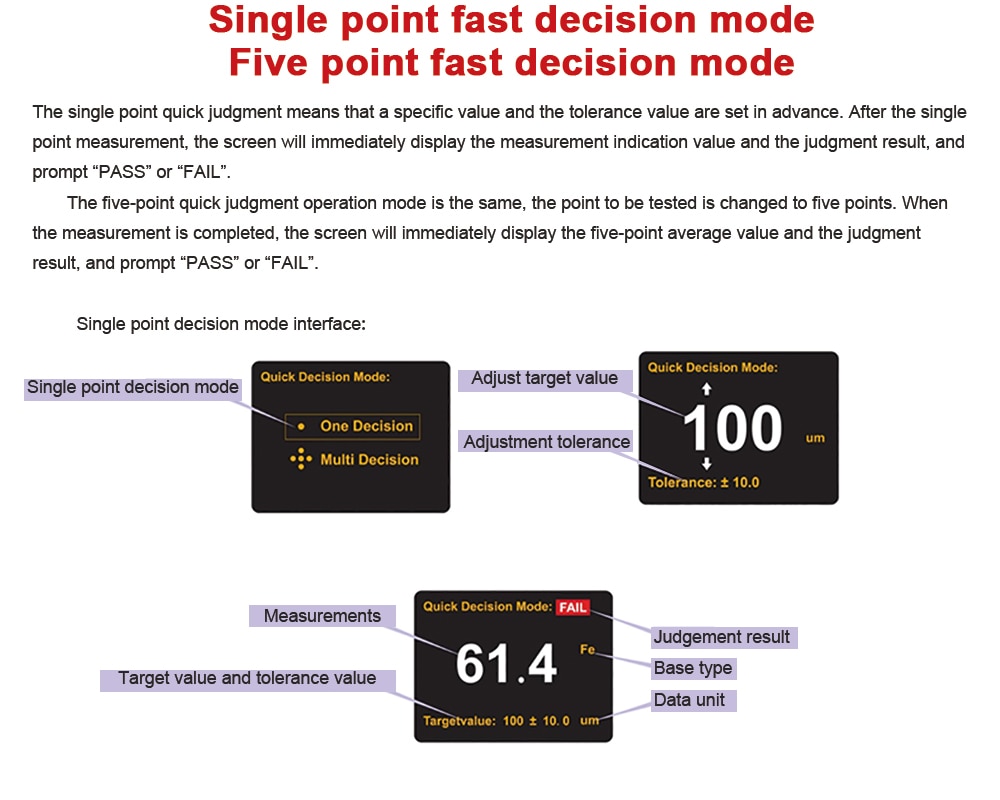

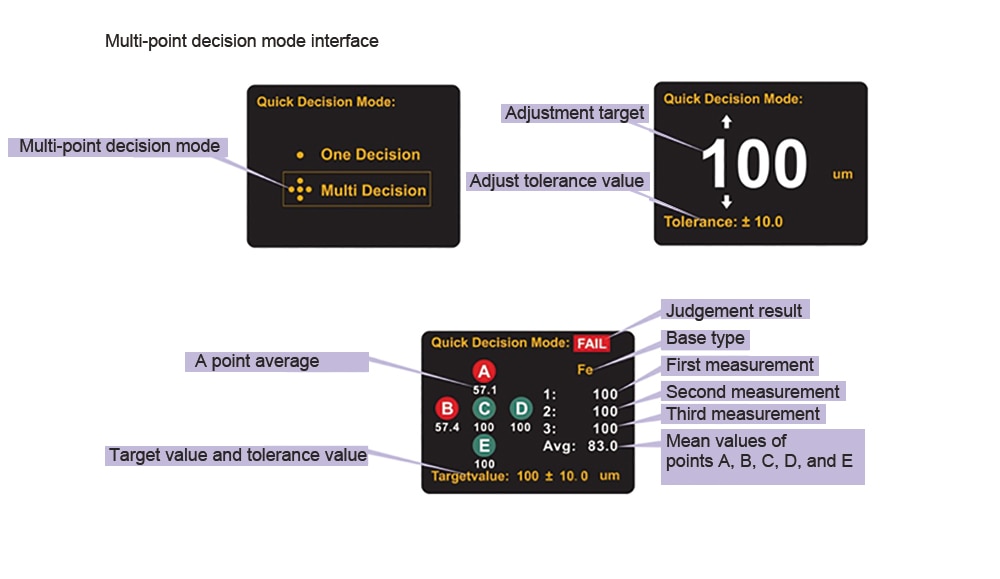

Single point, multi-point quick judgment and prompt

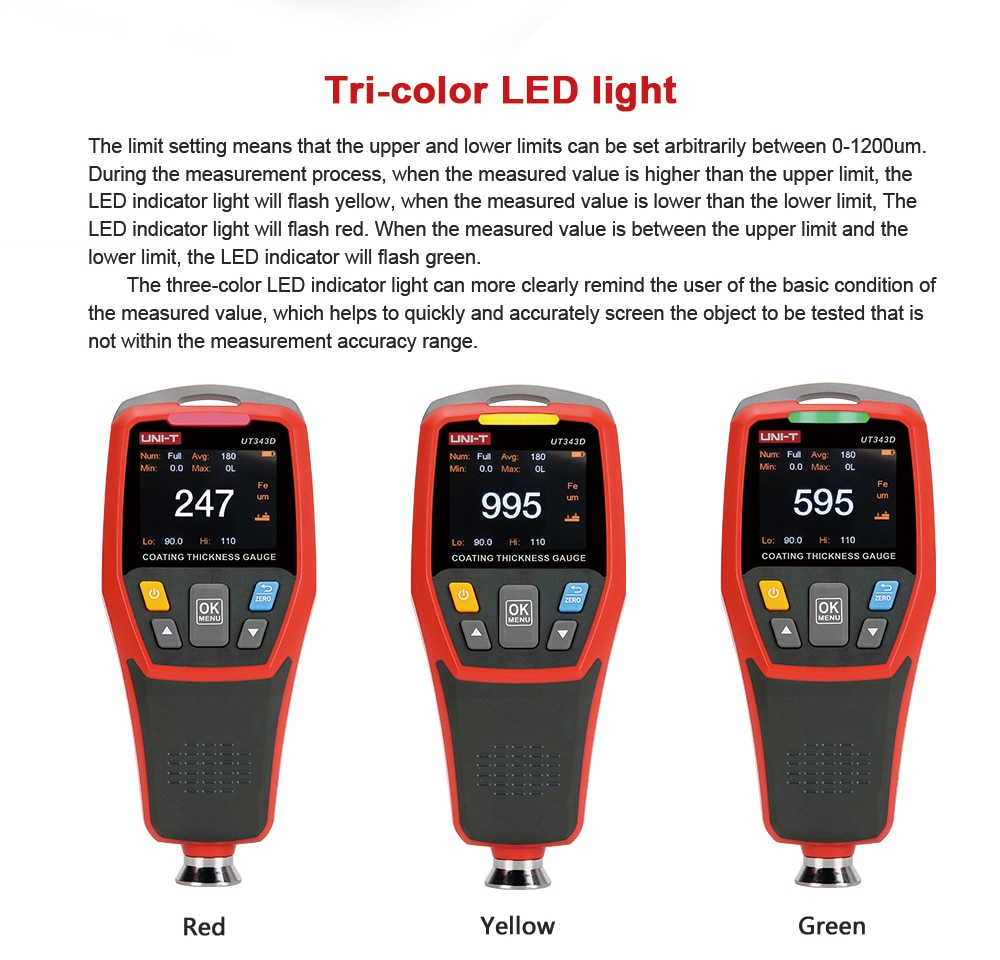

Red, green and yellow warning lights
The screen display content is automatically rotated
500 sets of storage data and USB data transmission
Please note: The product does not come with a battery
| Specifications | Range |
| Measuring range | 0~1250um |
| Accuracy | ±(3%H+1)um |
| Resolution | 0.1um (0~99.9um); 1um (100~1250um) |
| Measurement method | Single/Continuous |
| Measurement mode | Max/Min/Avg |
| Metal type | Ferrous/ non-ferrous |
| Features | |
| Display type | 2.0-inches TFT LCD (320 x 240 pixels) |
| Auto rotatable screen | Automatically rotate screen content |
| Unit switching | μm/mil switching |
| Alarm indication | When the value exceeds the set value, the LED light will flash according to the corresponding color. |
| Sound prompt | There is a corresponding sound when measuring and alarming |
| Limit setting | The limit can be set arbitrarily between 0-1250um |
| Measurement method | Single/continuous |
| Automatic identification | The probe automatically recognizes the substrate |
| USB communication | The product is connected to the computer software via USB for data storage and analysis. |
| Data storage | 500 sets of measured values can be stored |
| Backlight brightness | 5 levels of brightness adjustable |
| Auto power off | 5 minutes automatic shutdown |
| Low battery prompt | 2.2V ± 0.2V prompt battery low battery |
| Product size | 153.5mm x 64.5mm x 41mm |
